Hiwonder MasterPi AI Vision Robot Arm with Mecanum Wheels Car
Description
Line Following
Color Recognition
Color Sorting
PC Software Control
With the graphical PC software, you can control the rotation of the robot servo by dragging slider without code, and can edit the robot action group.
Threshold Adjustment Tool
MaterPi is equipped with a color threshold adjustment tool that allows you to visually fine-tune the LAB color space.
APP Control
WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.
Easy to build
MasterPi is easy to build with instruction. You can enjoy the fun of building by build a robot.

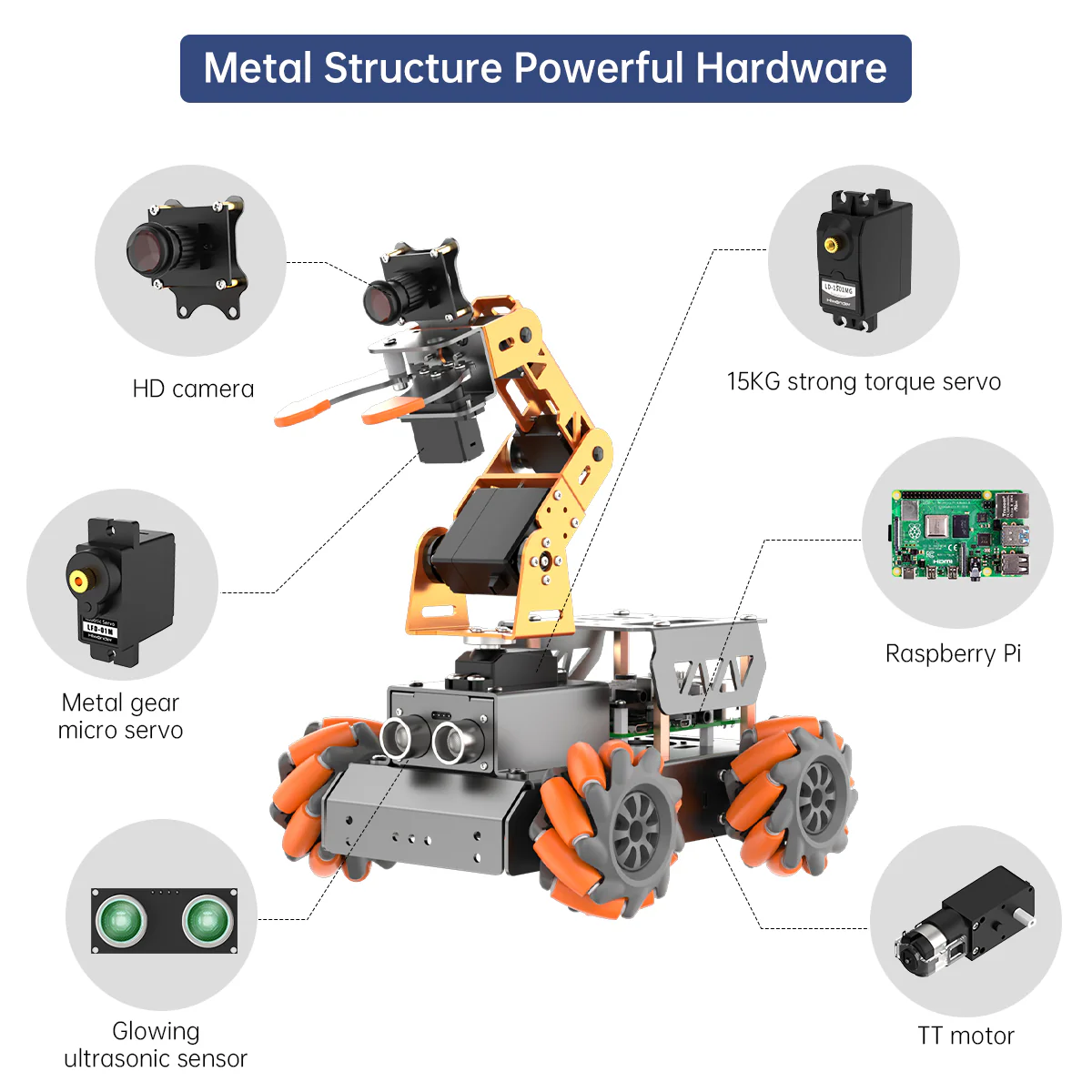

Powered by Raspberry Pi
MasterPi is powered by Raspberry Pi 4B or 5 controller allowing you to embark on motion control, machine vision, and OpenCV projects.
Hard Aluminium Alloy
It protects the core control board from shattering and shocking and can bear bigger load!
High-performance Metal Servo
LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing forthe robot.The control angle is 180 degree.

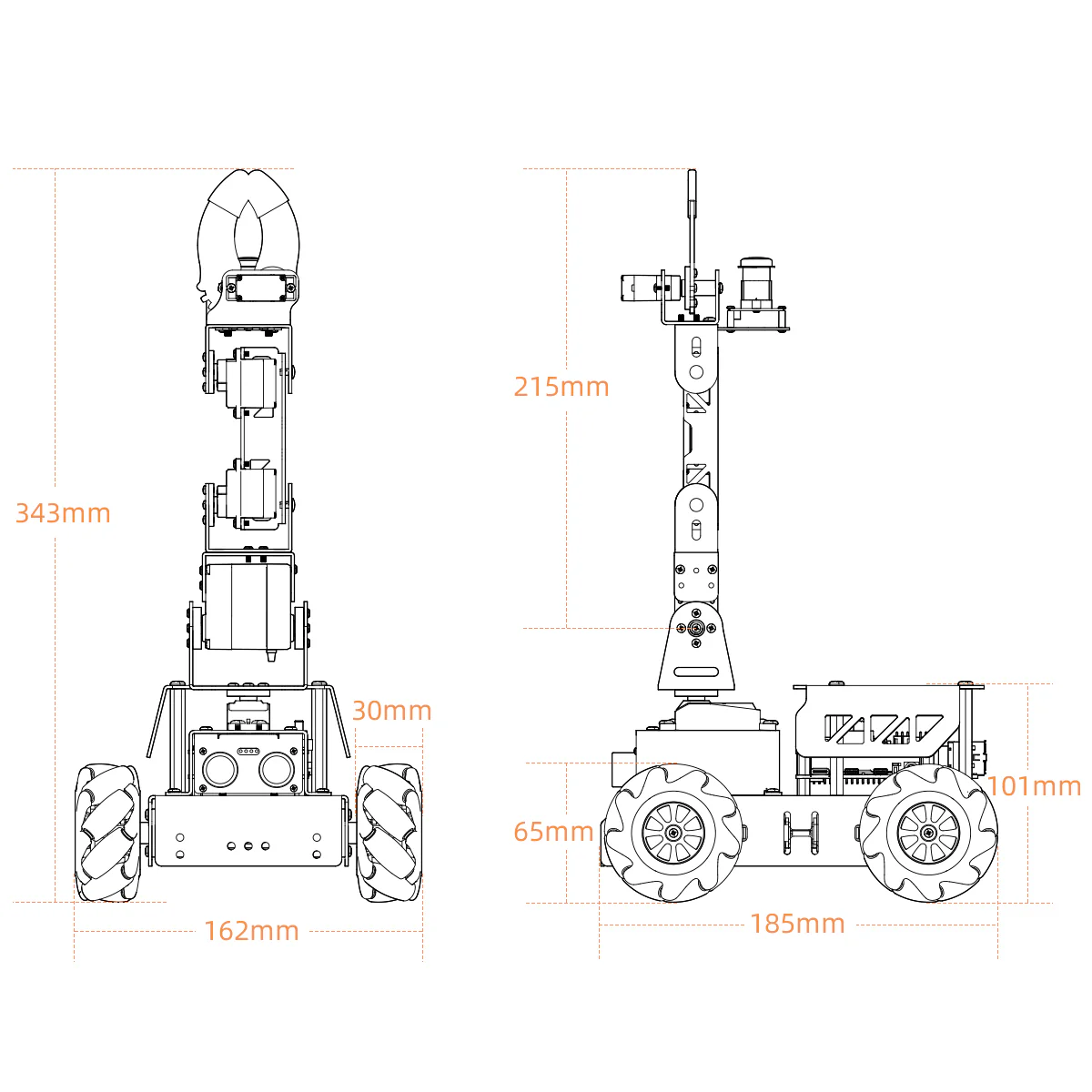

| Product dimension: | 185*162*343mm |
| Weight: | 1100g |
| Body material: | Metal bracket |
| Camera resolution: | 480P |
| Robotic arm DOF: | 4DOF+gripper |
| Battery: | 18650 lithium battery |
| Battery life: | work for 60min continuously |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software: | PC software, iOS/Android APP |
| Communication: | Wi-Fi and Ethernet |
| Servo: | LD-1501MG digital servo & LFD-01M micro servo |
| Control method: | PC and phone control |
| Package size: | 33*29*9cm (length*width*height) |
| Package weight: | About 1.6kg |
