Name: Intelligent Conveyor Belt with Infrared Sensor Module for AI Demo
Brand: ZL Robot
SKU: SHN0102417
Price: 2278.81 ZAR
Availability: InStock

Bring industrial automation to life with this miniature conveyor belt and robotic arm simulator. Perfect for education, training, and hobbyists interested in simulation of manufacturing processes and robotics.

What's included in the kit:

Conveyor Belt Only	Conveyor belt comes with two infrared sensor(one for controlling the belt, the other for controlling the robotic arm), and the controller pad(including 4 buttons simulate Emergency Stop, Mode Change, Backward, Forward)

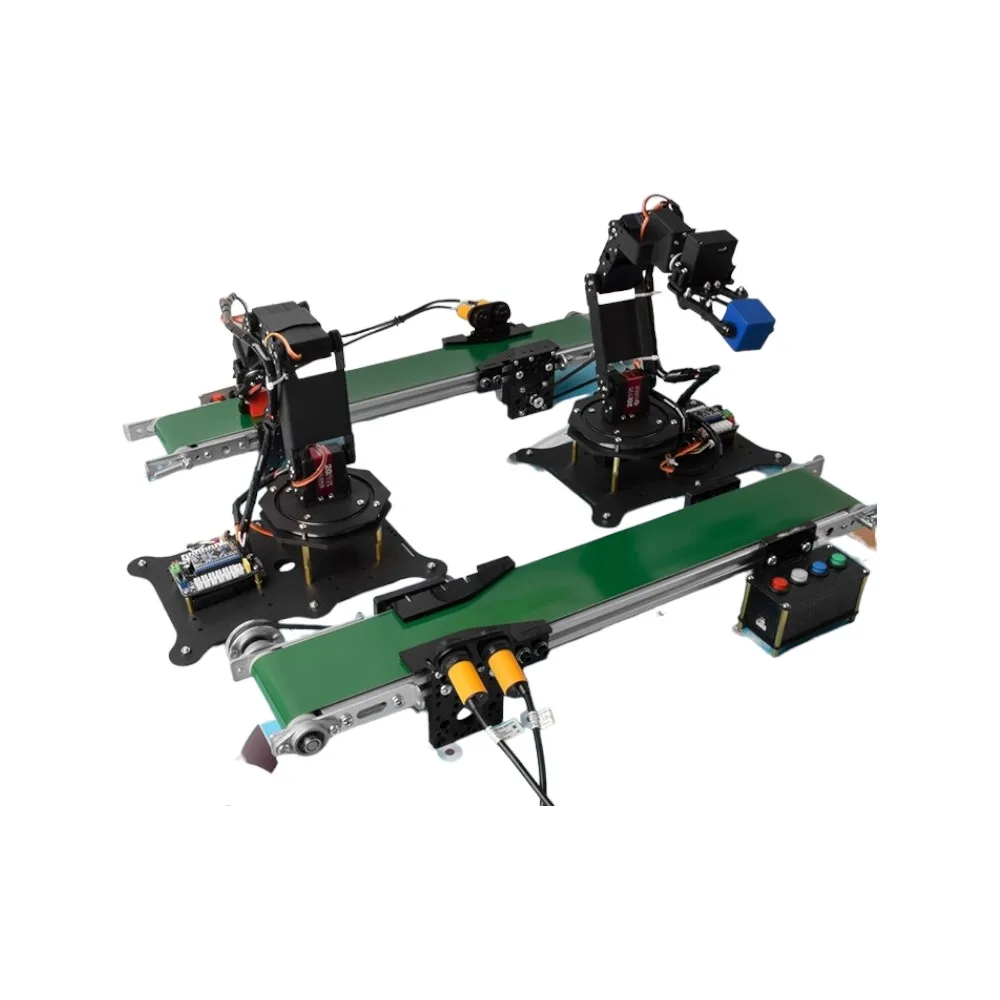

Industrial Conveyor Simulation Kit	Two sets of conveyor belt, each comes with two infrared sensor(one for controlling the belt, the other for controlling the robotic arm), and the controller pad(including 4 buttons simulate Emergency Stop, Mode Change, Backward, Forward) Two 6 DOF robotic arms standard version without camera.

Key Features:

Realistic conveyor belt with adjustable speed
Programmable robotic arm with 6 degrees of freedom (Optional)
High-precision stepper motors for smooth, accurate movements
Infrared sensors for object detection and tracking
24/7 operation capability
Compact size: 595mm x 110mm x 70mm

Specifications:

Stepper motor: 1.8° step angle, 2 phases
Rated current: 1.4A
Resistance: 2.3 ohm ±10% (20°C)
Inductance: 3.8 mH ±20% (1Vrms, 1k Hz)
Holding torque: 0.31 N.m (44 oz-in) MIN
Weight: 0.22 kg

Uses:

Teaching robotics and automation concepts
Simulating industrial processes
Prototyping manufacturing systems
STEM education
Hobbyist projects

This miniature industrial simulator allows you to program and control a robotic arm and conveyor system, providing hands-on experience with core concepts in manufacturing automation and robotics.
