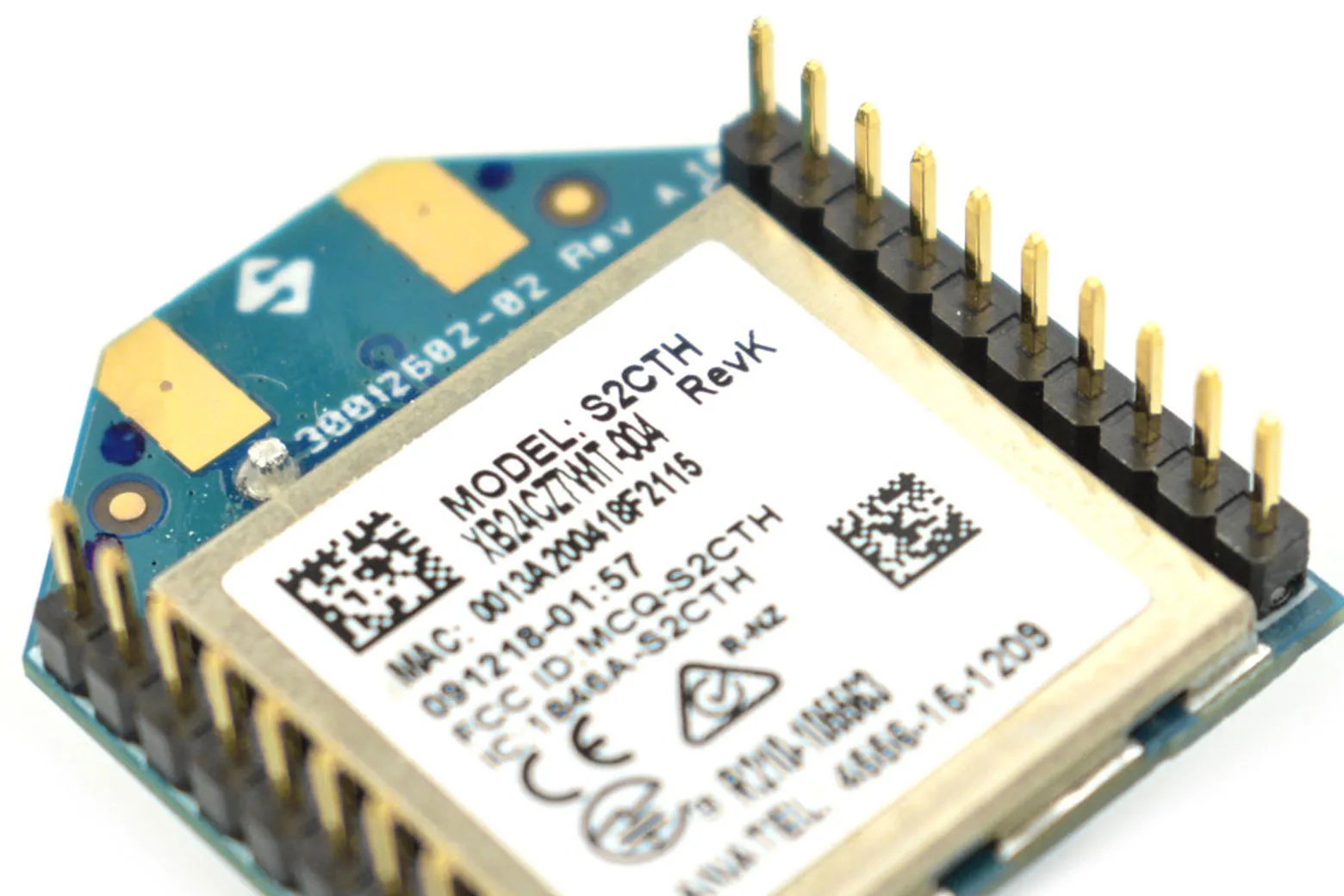

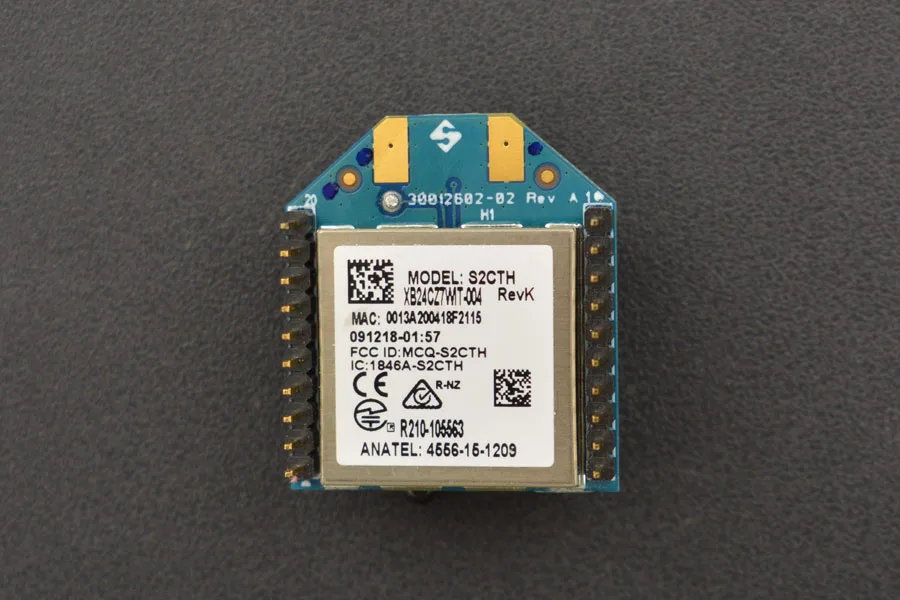

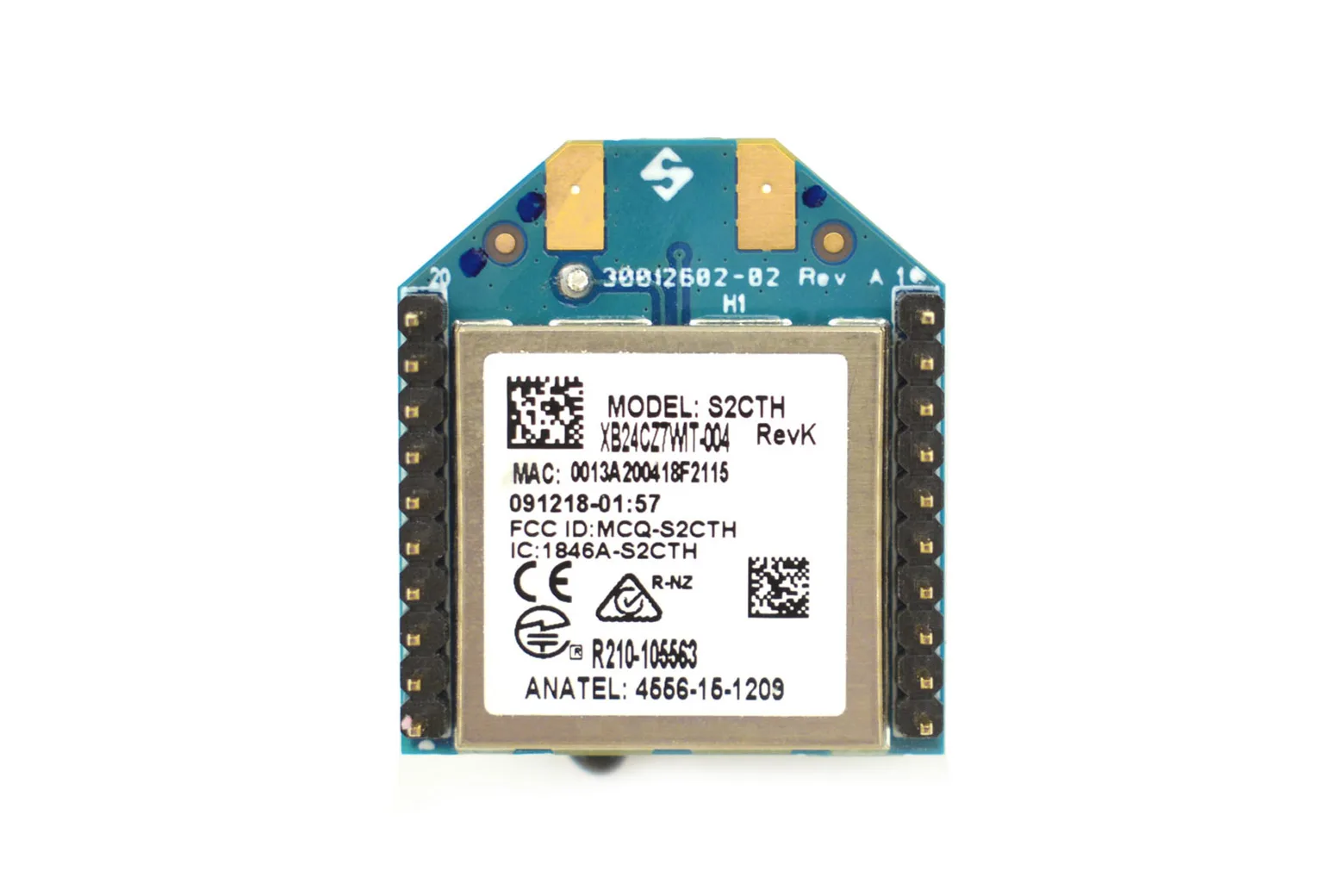

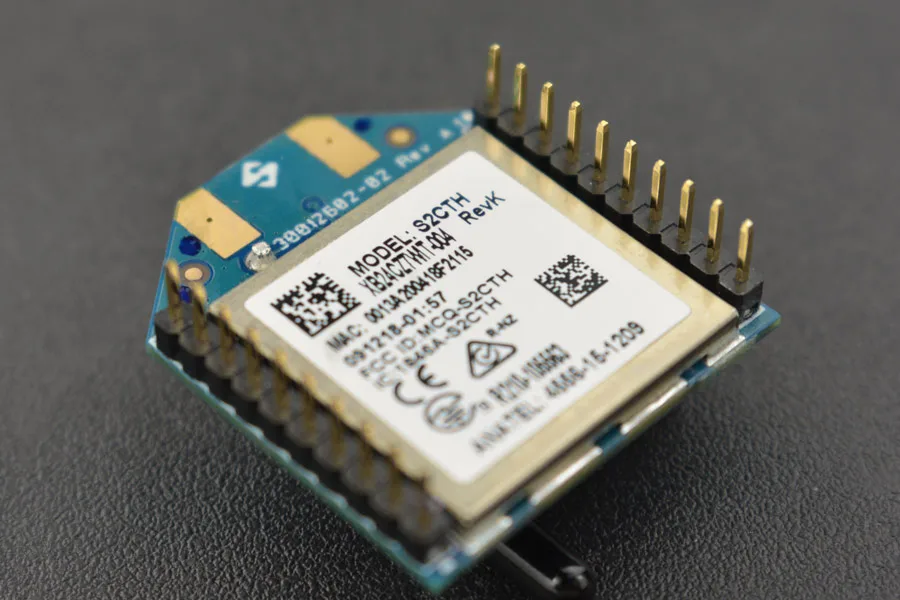

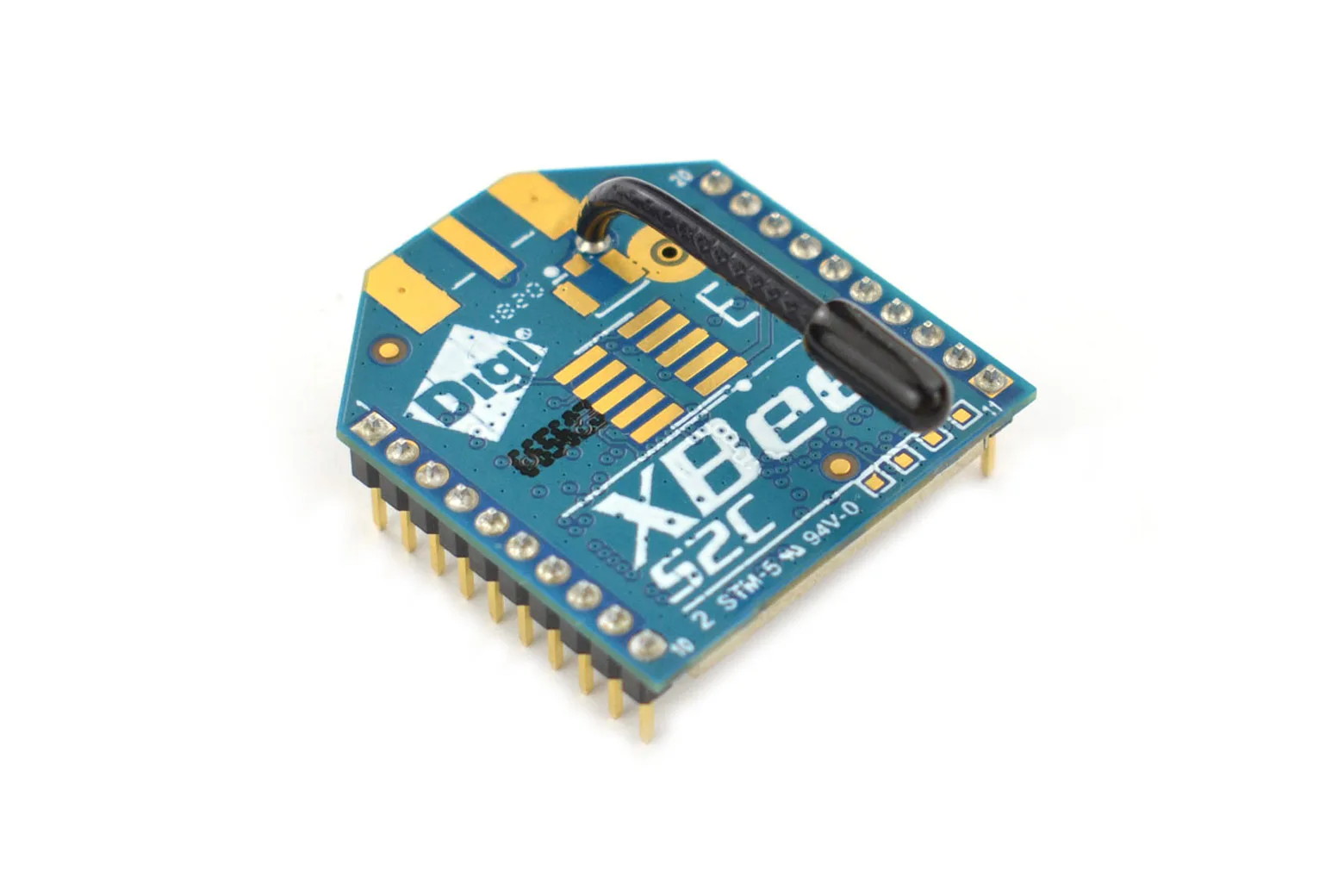

XBee S2C ZigBee (Wire Antenna)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The XBee S2C ZigBee module with integrated wire antenna provides reliable wireless data communication for microcontrollers, computers, and embedded systems. Operating on the 2.4 GHz band, it is an ideal choice for makers, students, and engineers creating robust mesh networks, remote sensing nodes, and home automation systems.
Versatile mesh networking capabilities
Running on the XBee ZB ZigBee firmware, this module supports point-to-point, multipoint, and complex mesh topologies. It enables seamless serial communication between microcontrollers and systems, and includes support for binding and multicasting in home automation setups.
Extended indoor and outdoor range
With a 3.1mW transmit power, -100dBm receiver sensitivity, and a 110 dB link budget, the module achieves an indoor range of up to 60 metres and an outdoor line-of-sight range of up to 1200 metres. It delivers an RF data rate of 250 Kbps using Direct Sequence Spread Spectrum immunity.
Standard pinout and shield compatibility
The module features the standard XBee form factor and uniform pin layout. This allows direct integration with popular development boards and carrier boards, including the DFRobot Gravity IO Expansion Shield.
Ultra-low power sleep modes
Featuring a sub-1uA sleep current, the S2C is engineered for high energy efficiency. This makes it well suited for long-term battery-operated remote sensor networks.
On-board digital and analogue interfacing
The module provides 15 general-purpose digital I/O lines and four 10-bit ADC inputs for direct sensor attachment. Data can be transferred via UART or SPI serial interfaces at speeds up to 1 Mbps.
Flexible configuration and firmware updates
Module settings can be managed locally or over the air using AT commands or API mode. Firmware upgrades are easily deployed via UART, SPI, or wirelessly over the air.
Downloads & documentation
Specifications
| Data Rate | RF 250 Kbps, Serial up to 1 Mbps |
| Indoor/Urban Range | 200ft (60m) |
| Outdoor/RF Line-of-Sight Range | 4000ft (1200m) |
| Transmit Power | 3.1mW |
| Receiver Sensitivity | -100dBm |
| Serial Data Interface | UART, SPI |
| Configuration Method | API or AT command, local or over-the-air |
| Frequency Band | ISM 2.4GHz |
| Form Factor | Through-Hole, Surface Mount |
| Interference Immunity | DSSS (Direct Sequence Spread Spectrum) |
| ADC Inputs | (4) 10-bit ADC inputs |
| Digital I/O | 15 |
| Antenna | Integrated Wire |
| Operating Temperature | -40o C to +85o C |

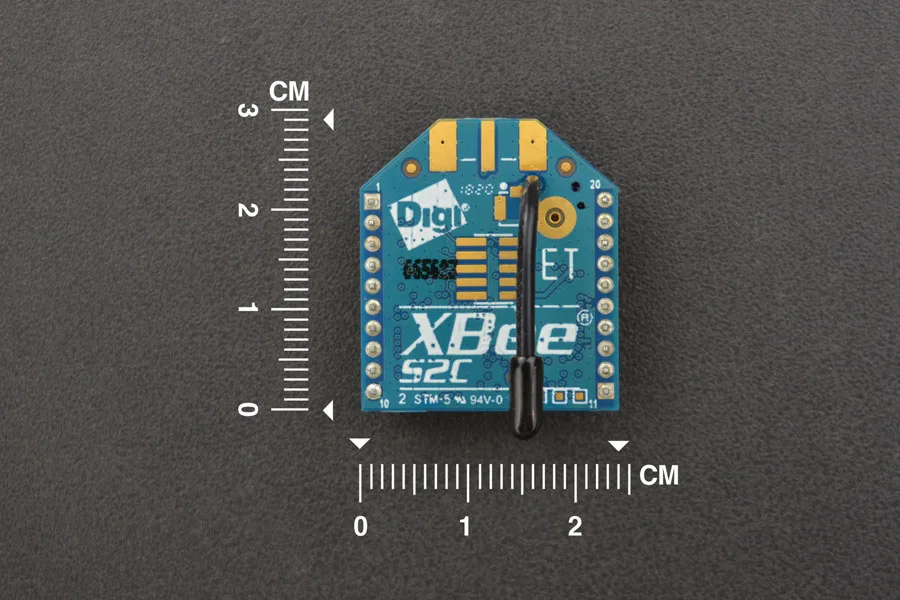

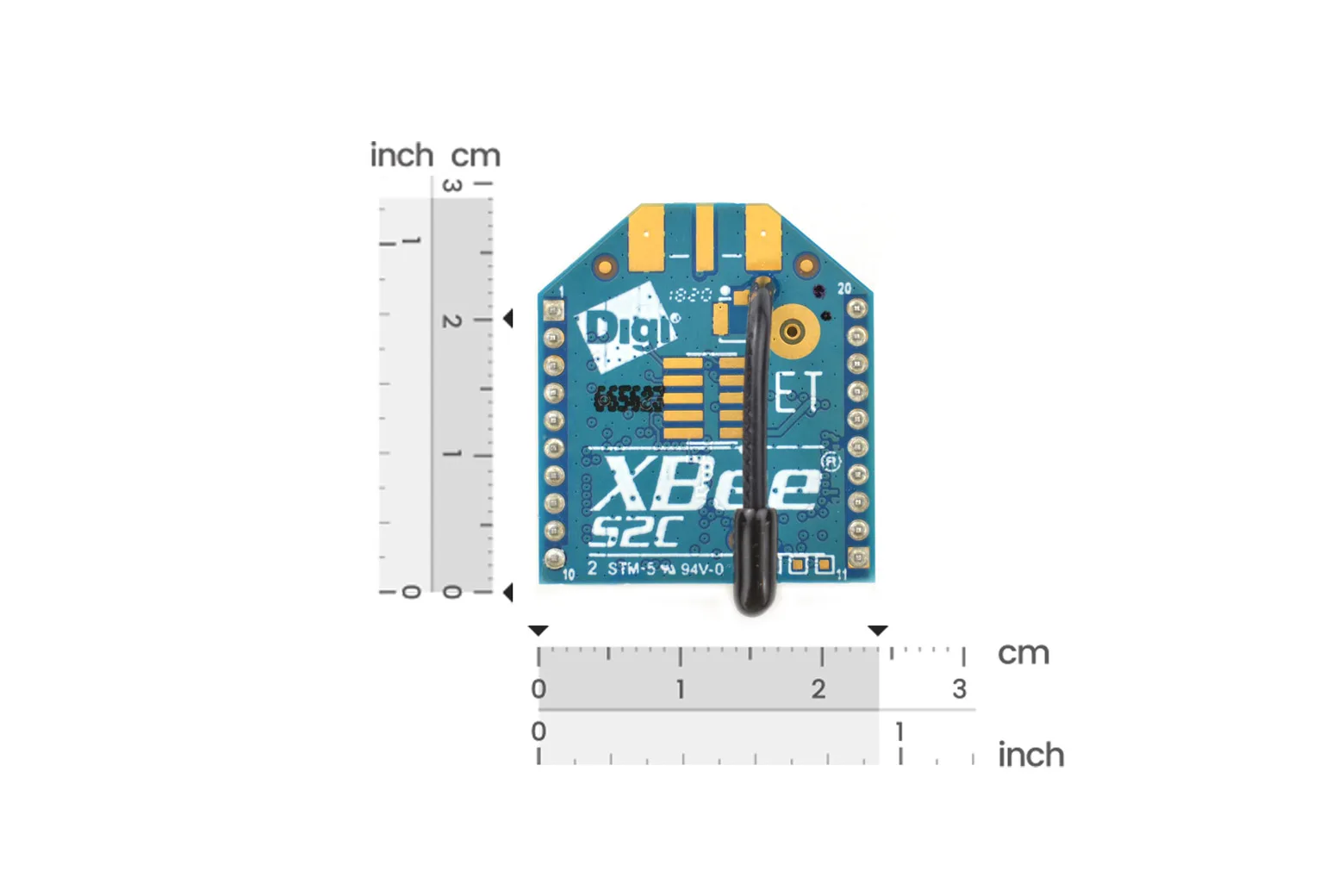

| Dimensions (L x W x H) and Weight | 0.960 x 1.087 in (2.438 x 2.761 cm) |
In the box
| XBee S2C ZigBee (Wire Antenna) | 1 |
