Full-Function Evaluation Carrier Board for LattePanda Mu Compute Module

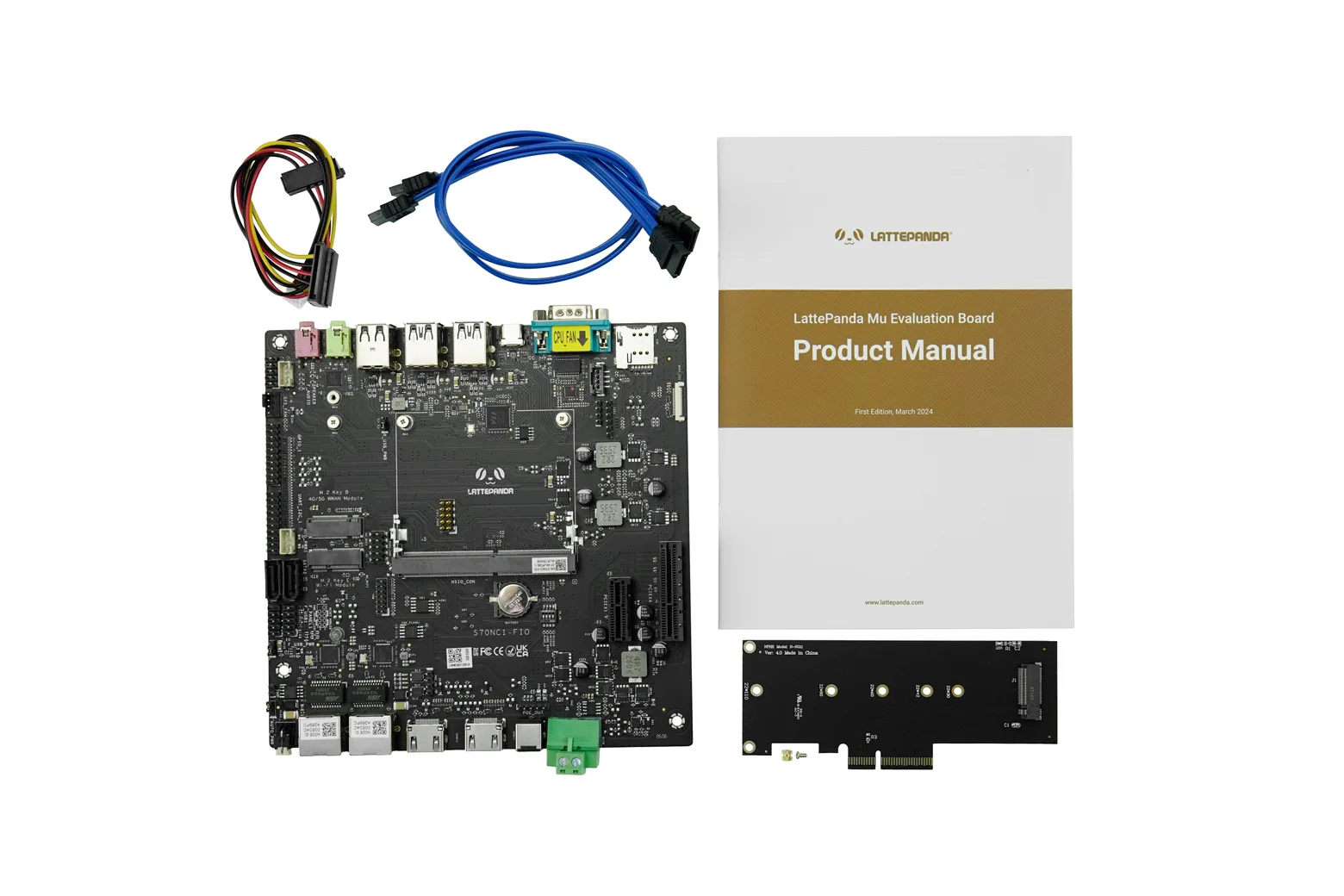

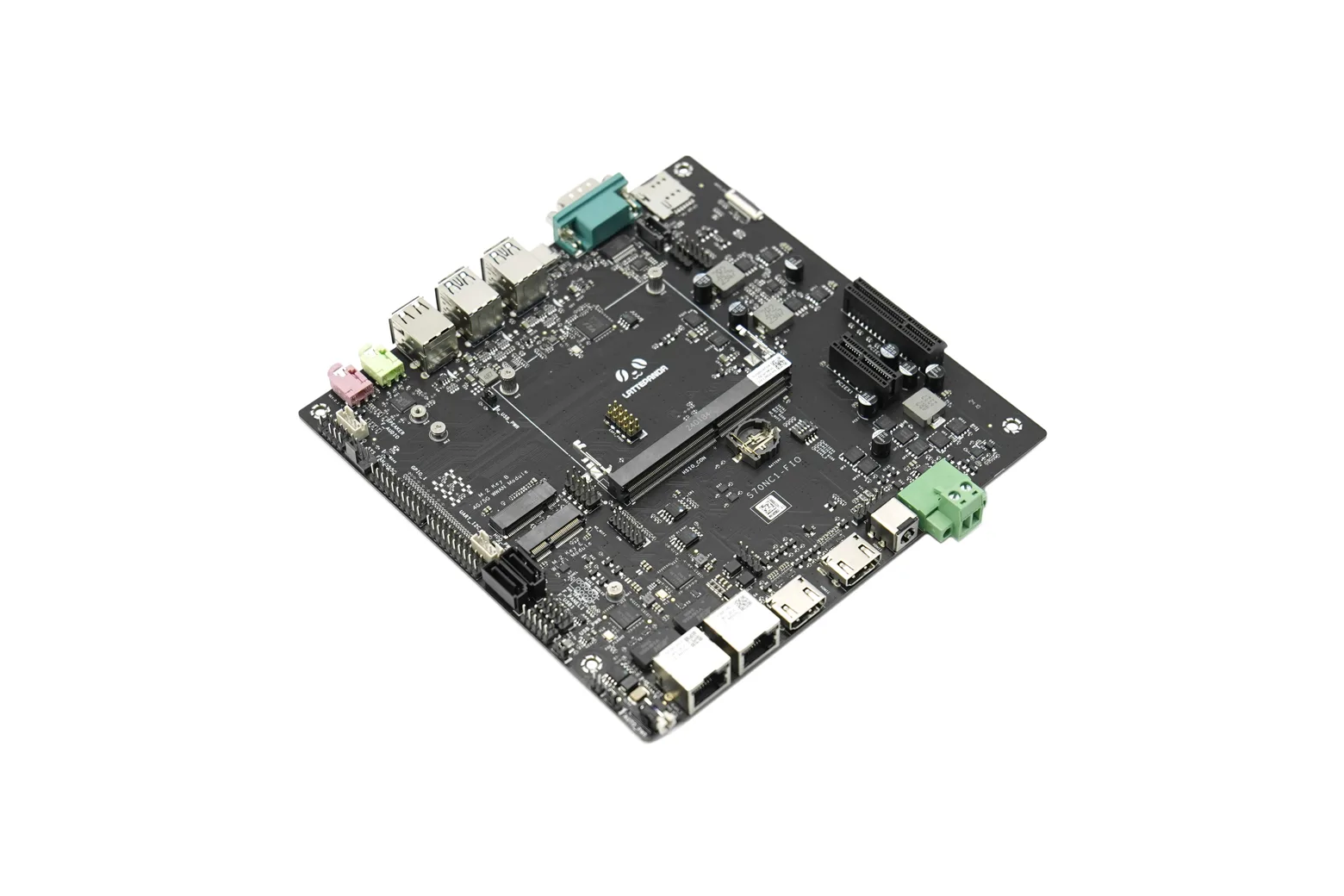

The Full-Function Evaluation Carrier Board for the LattePanda Mu breaks out every pin from the compute module into a comprehensive, standard development platform. Built to the standard Mini-ITX form factor with extensive I/O and expansion slots, it is ideal for engineers and makers conducting complete hardware and software testing. Please note that the LattePanda Mu compute module is required and sold separately.

Complete pin breakout and interfaces

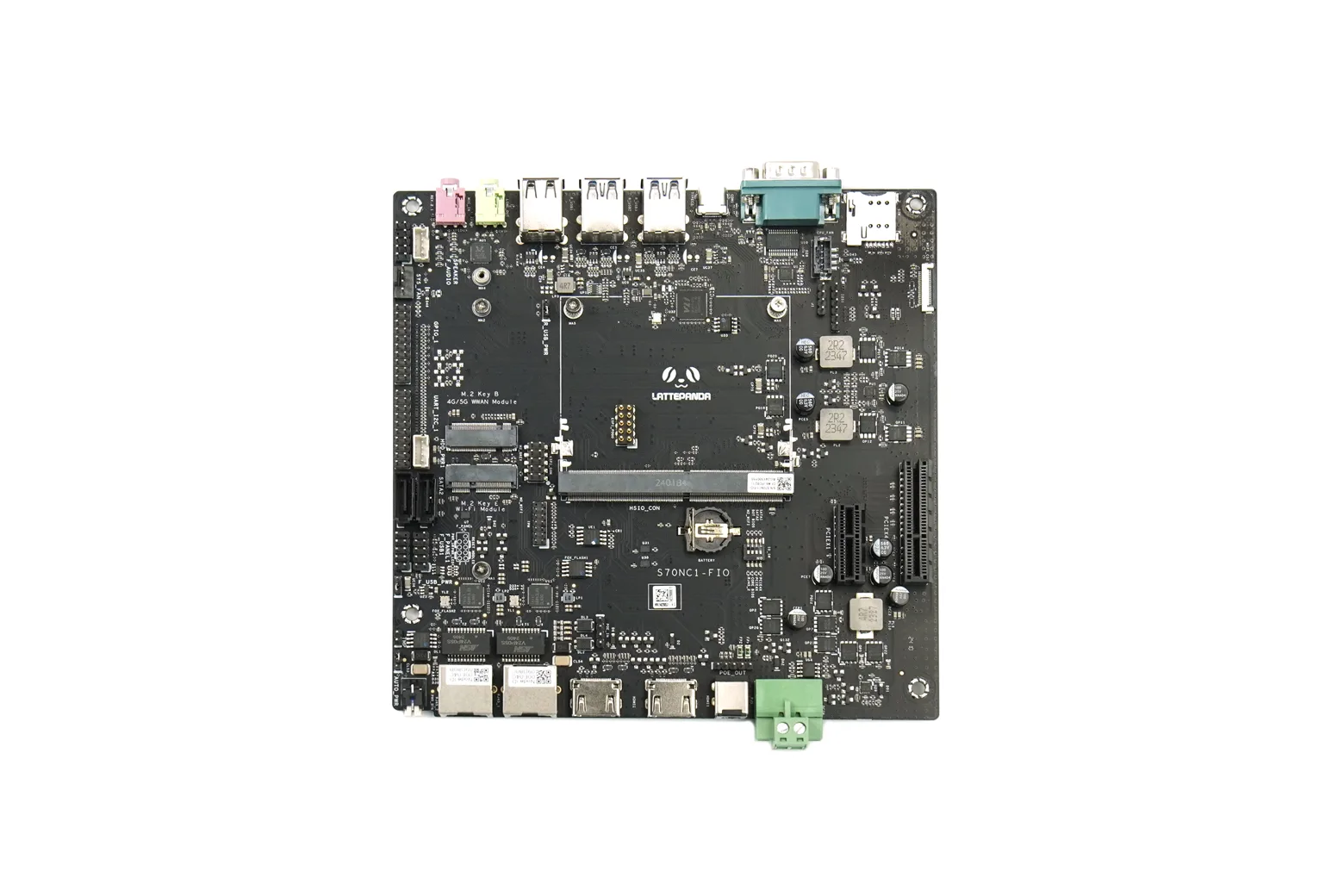

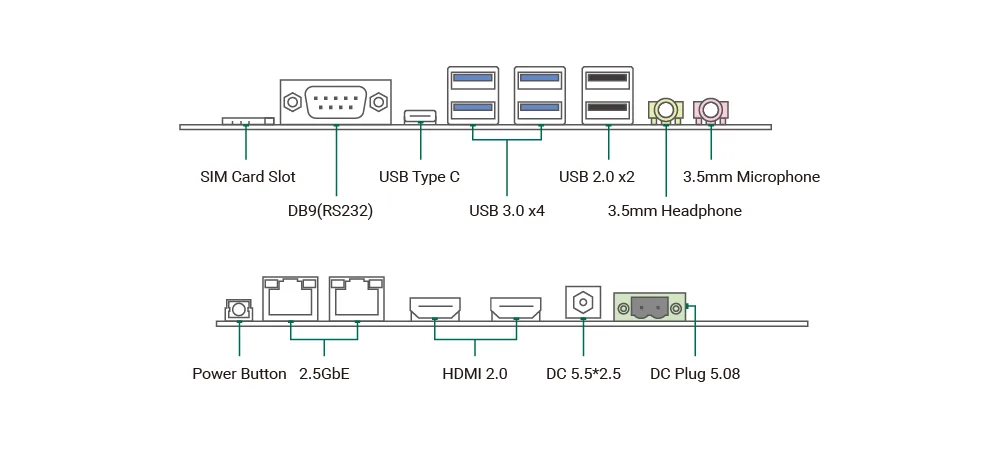

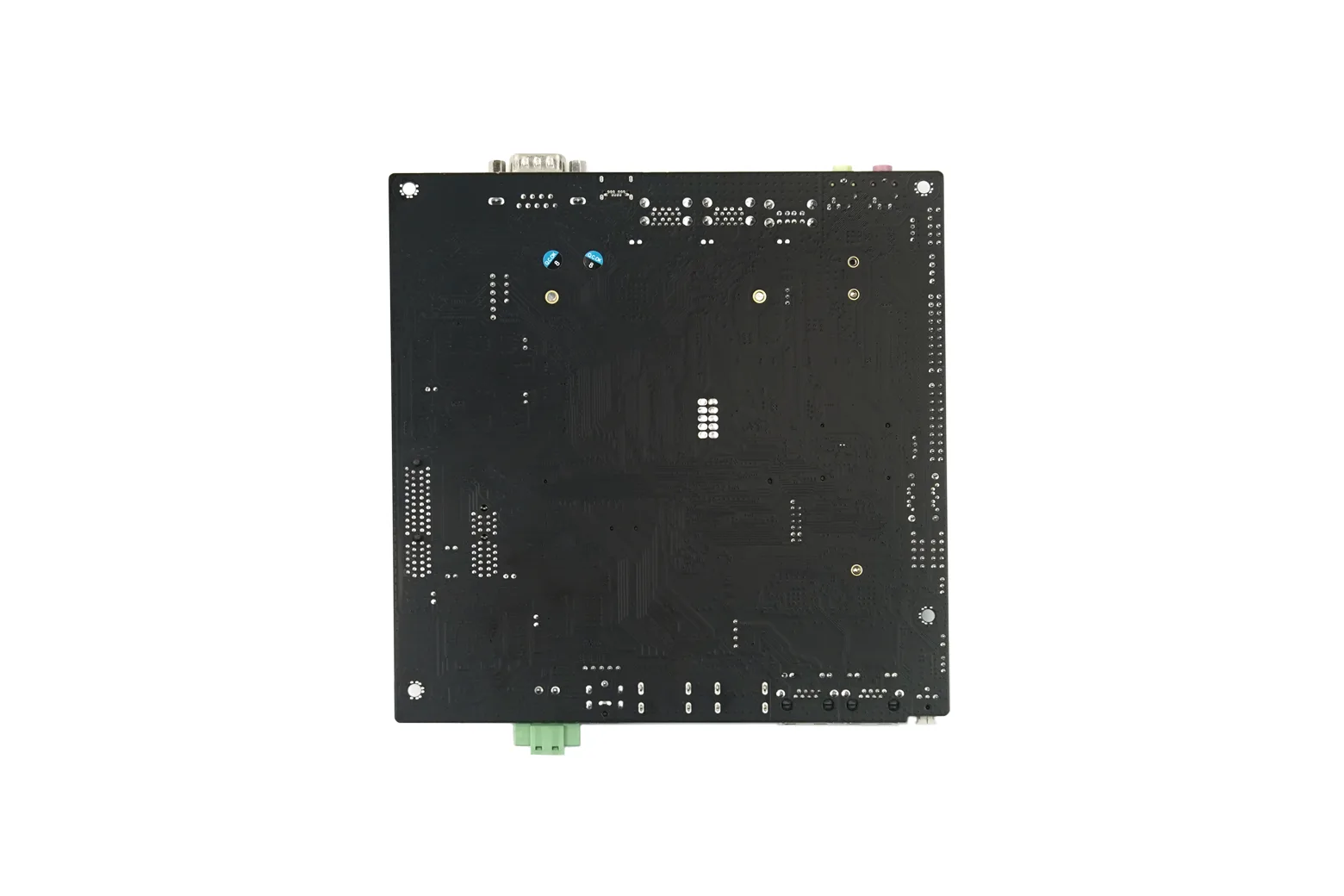

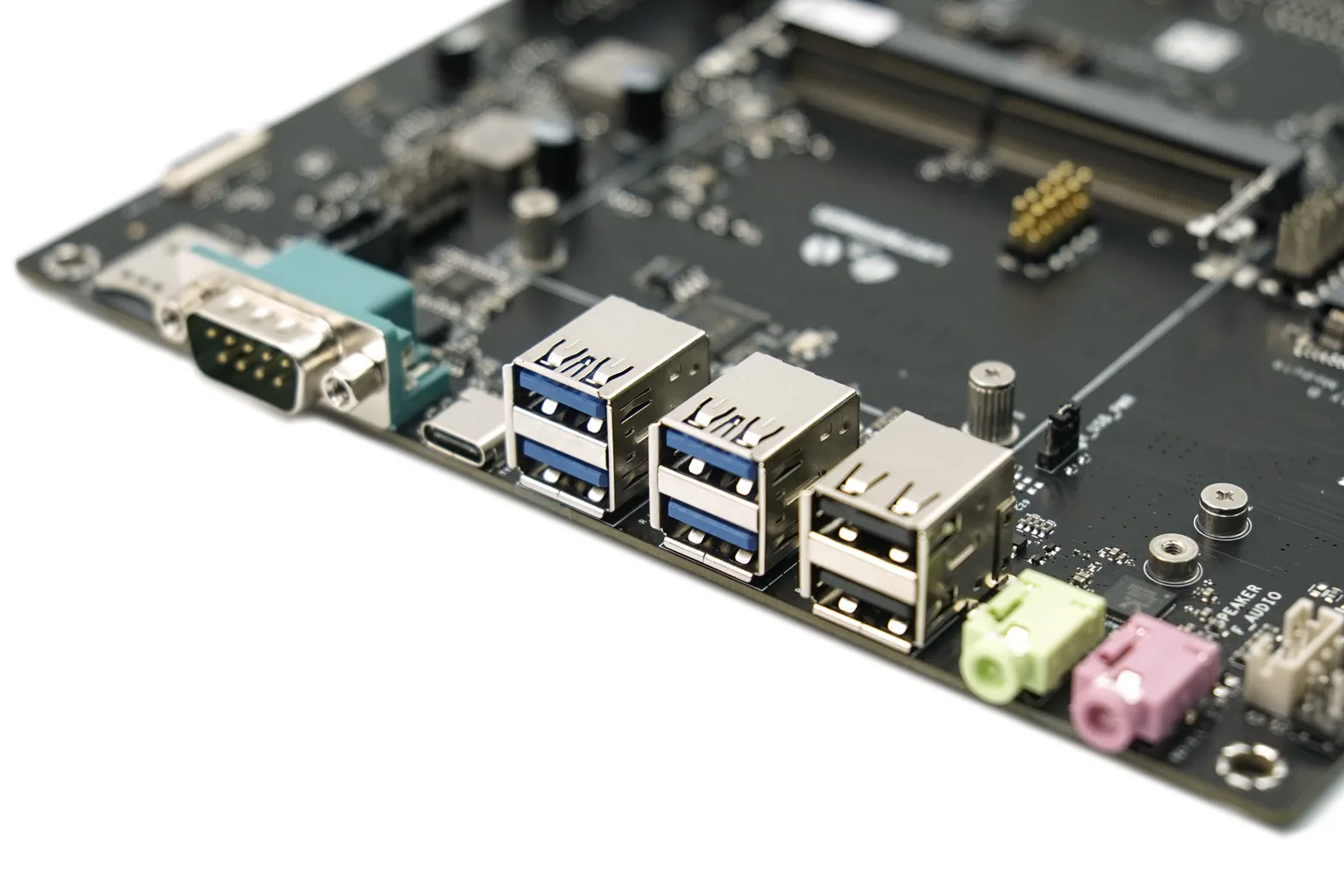

This carrier board exposes all pins of the LattePanda Mu compute module, offering a rich array of onboard I/O for verifying peripherals and custom hardware. Interfaces include four USB 3.0 ports, two USB 2.0 ports, two HDMI 2.0 outputs, a USB Type-C port, and a DB9 RS232 serial connection.

Standard PCIe and M.2 expansion

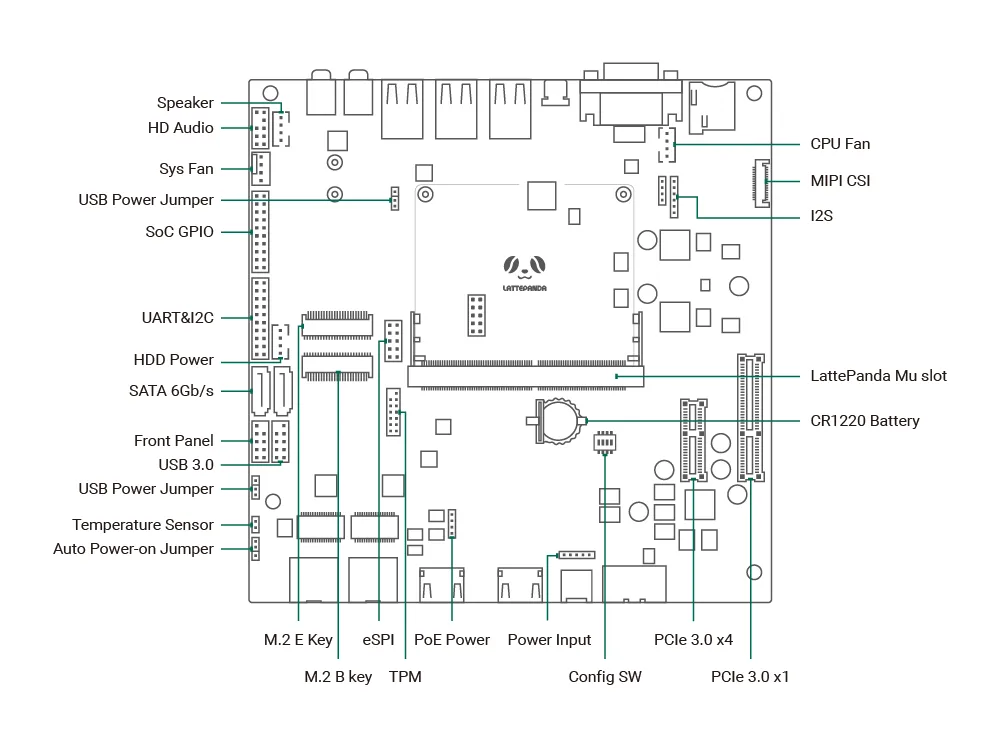

Equipped with dedicated PCIe 3.0 x1 and PCIe 3.0 x4 slots, the board supports add-in cards such as dedicated graphics, sound cards, and network adapters. Dual M.2 slots (E-key and B-key) allow straightforward integration of Wi-Fi cards and 4G or 5G WWAN modules.

Dual Intel 2.5GbE networking

Two integrated Intel i225-V 2.5 Gigabit Ethernet ports provide reliable, high-speed wired networking for data-intensive evaluation and networking projects.

Standard Mini-ITX form factor

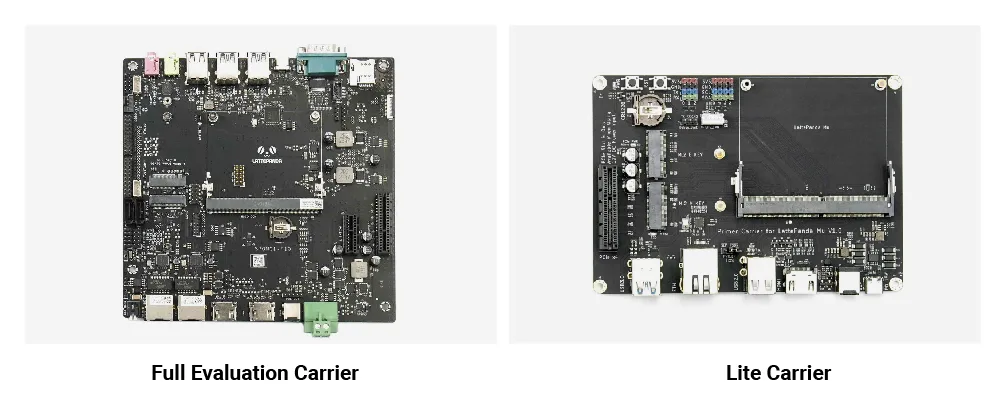

Adopting standard 170 x 170 mm ITX dimensions, this board easily mounts into standard ITX test benches, chassis, and custom project enclosures.

Wide voltage power input

The board accepts a 12V to 20V wide DC voltage input through either a 5.5 x 2.5 mm DC barrel jack or a 5.08 mm screw terminal plug to suit diverse bench and field power sources.
