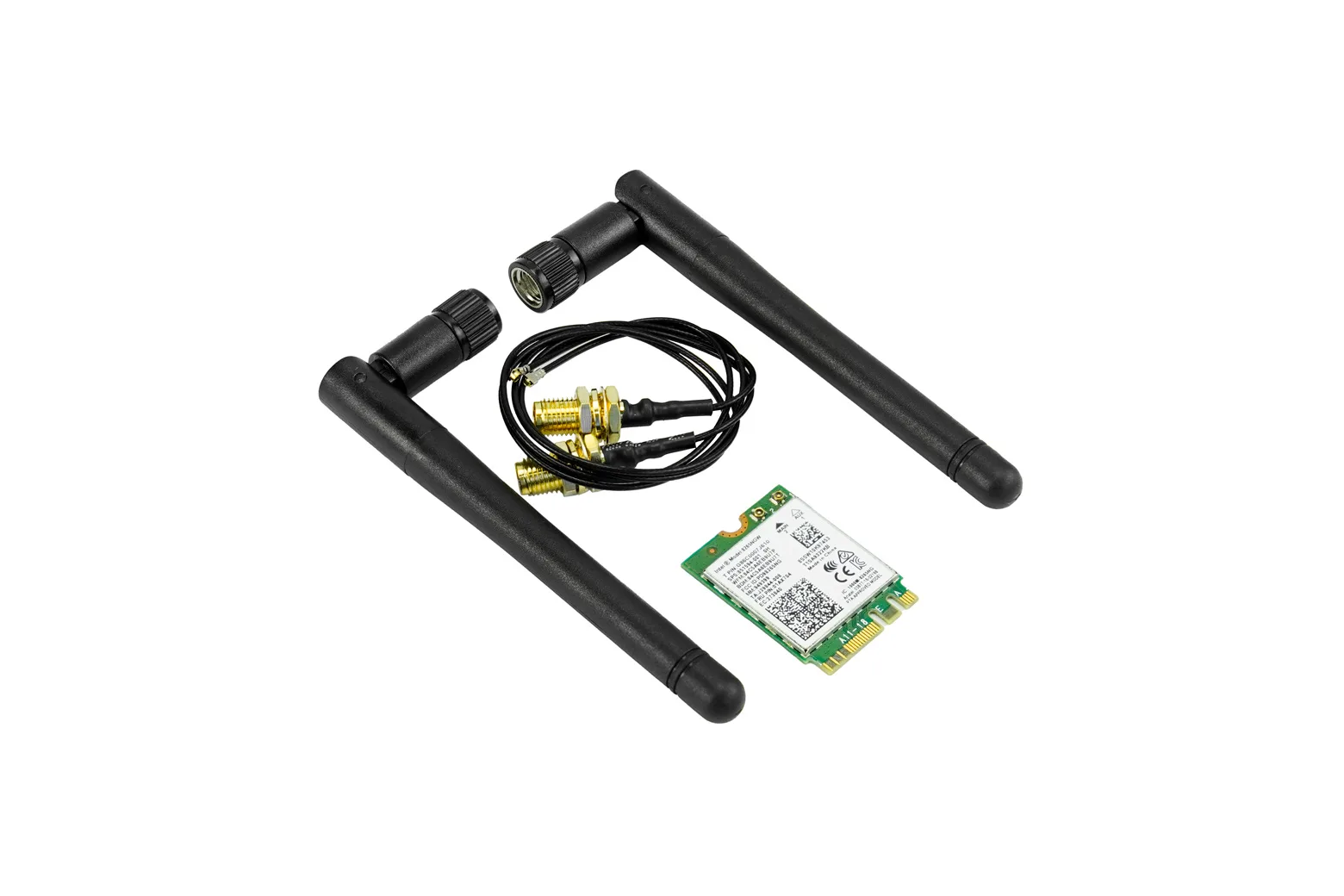

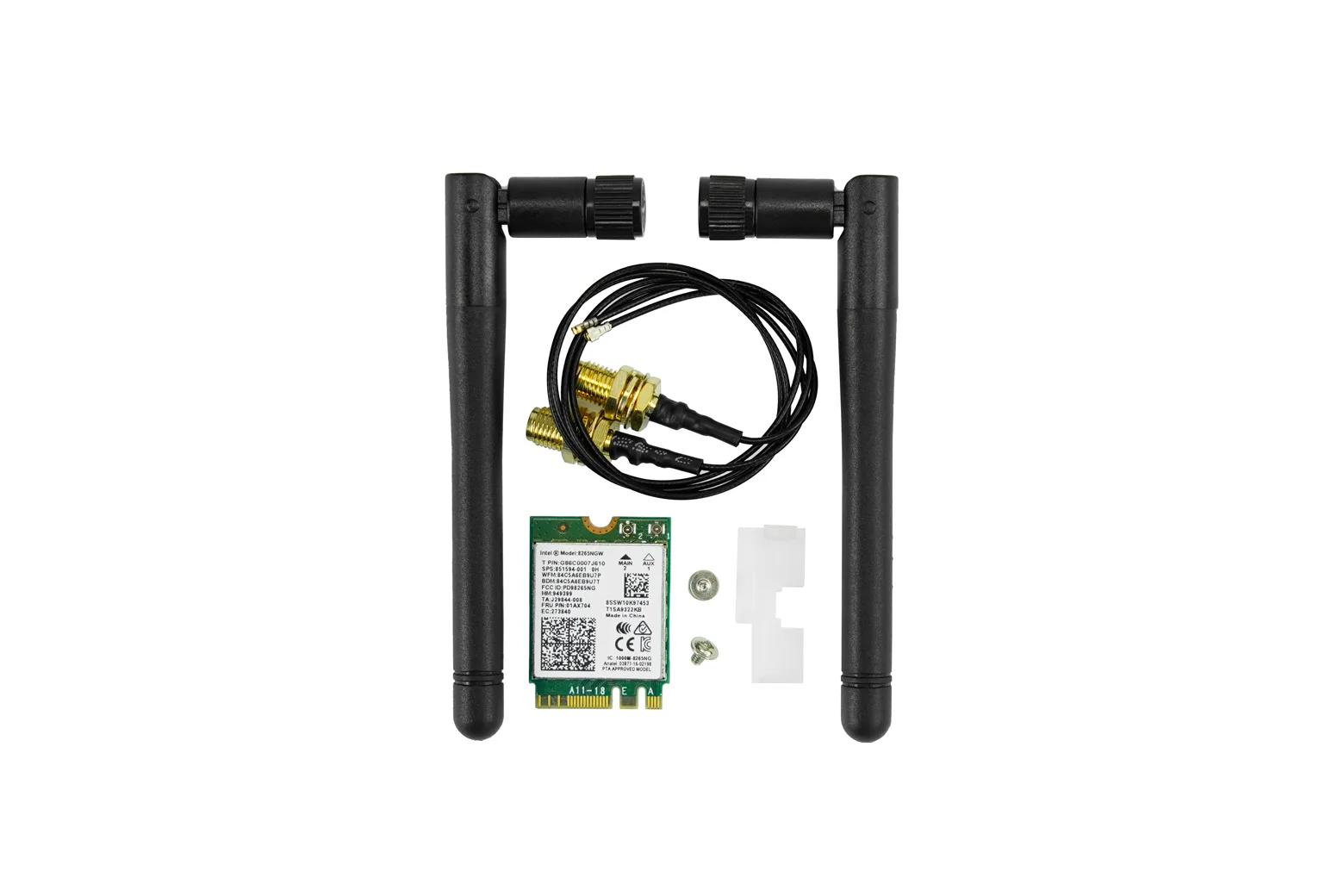

WiFi Module for LattePanda / NVIDIA Jetson Nano

This dual-band wireless card is powered by the Intel 8265AC chipset, providing high-speed WiFi and Bluetooth 4.2 connectivity for LattePanda and NVIDIA Jetson Nano boards. It is ideal for makers, developers, and educators adding reliable wireless networking to edge computing and single-board computer projects.

Dual-band wireless and Bluetooth performance

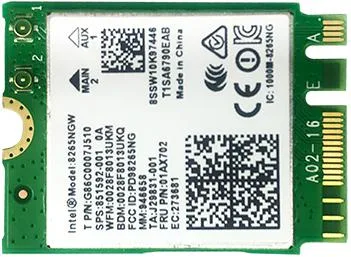

Powered by the Intel 8265AC chip, this card supports 2.4GHz and 5GHz dual-band WiFi across IEEE 802.11a/b/g/n/ac protocols. It delivers wireless speeds up to 867Mbps alongside integrated Bluetooth 4.2 support.

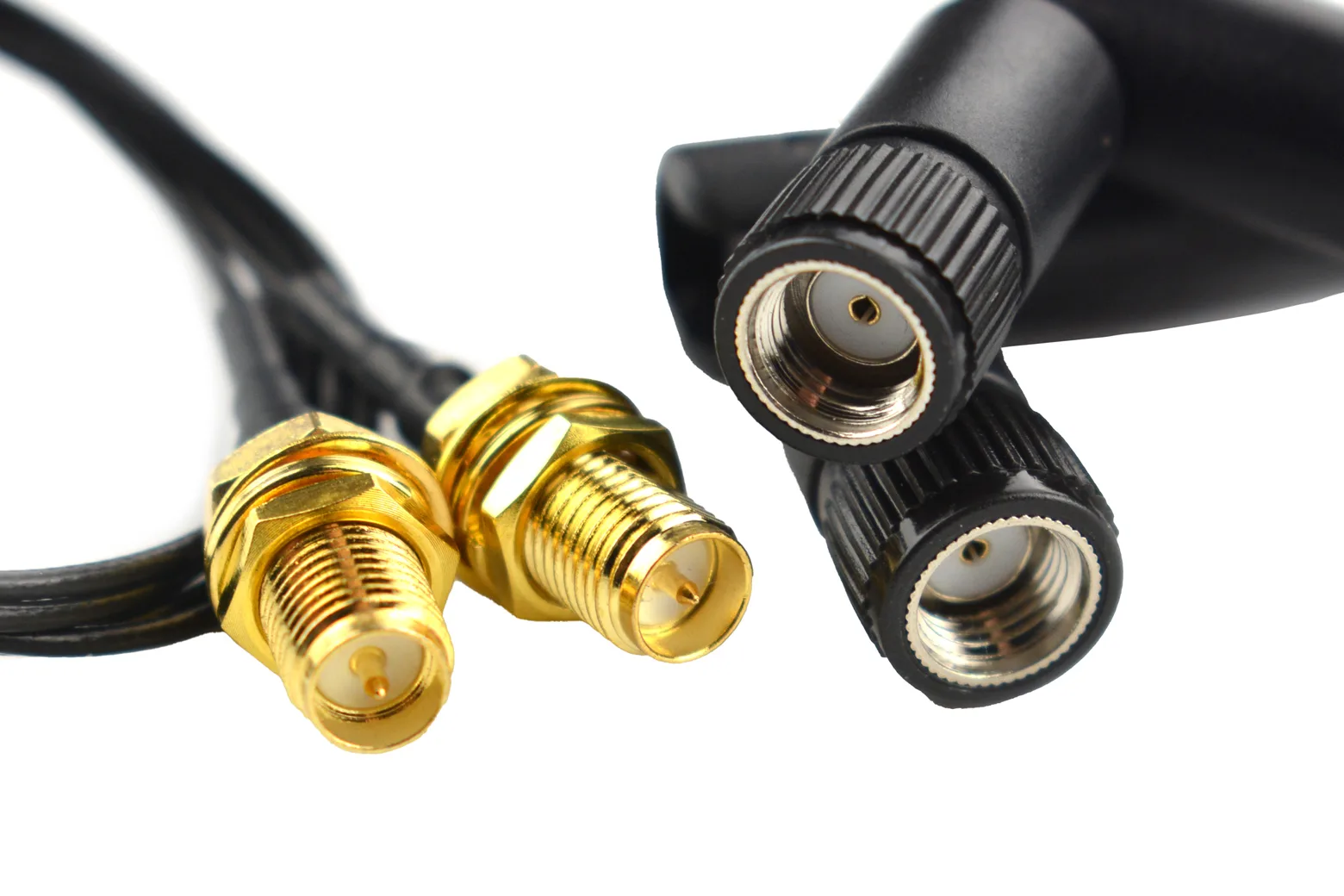

Adjustable high-gain dual antennas

The module pairs with external 3dB high-gain dual antennas to maintain strong signal penetration and wider coverage in complex environments. Each antenna supports 90-degree rotation so you can adjust the angle to optimise signal reception.

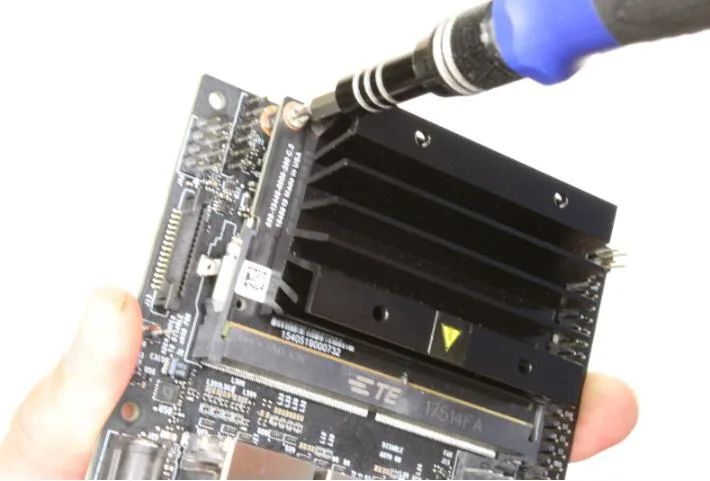

Jetson Nano heatsink removal

To prepare for installation, remove the two fixing screws from the Jetson Nano heatsink module. Release the side latches located on either side of the module to detach it from the board.

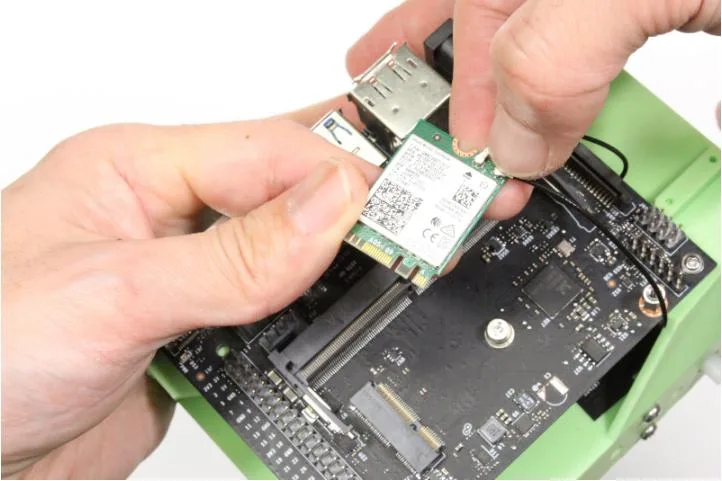

Module insertion and reassembly

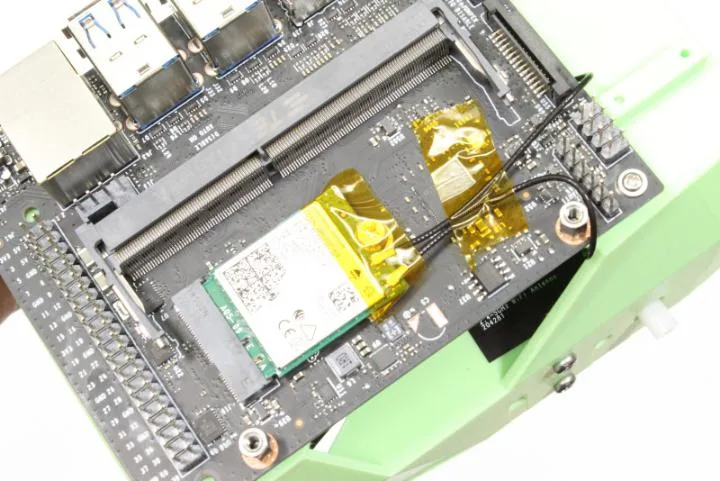

Directly insert the WiFi card into the reserved card slot on the carrier board and seat it firmly. Reinstall the heatsink module over the card onto the board to complete the hardware setup.

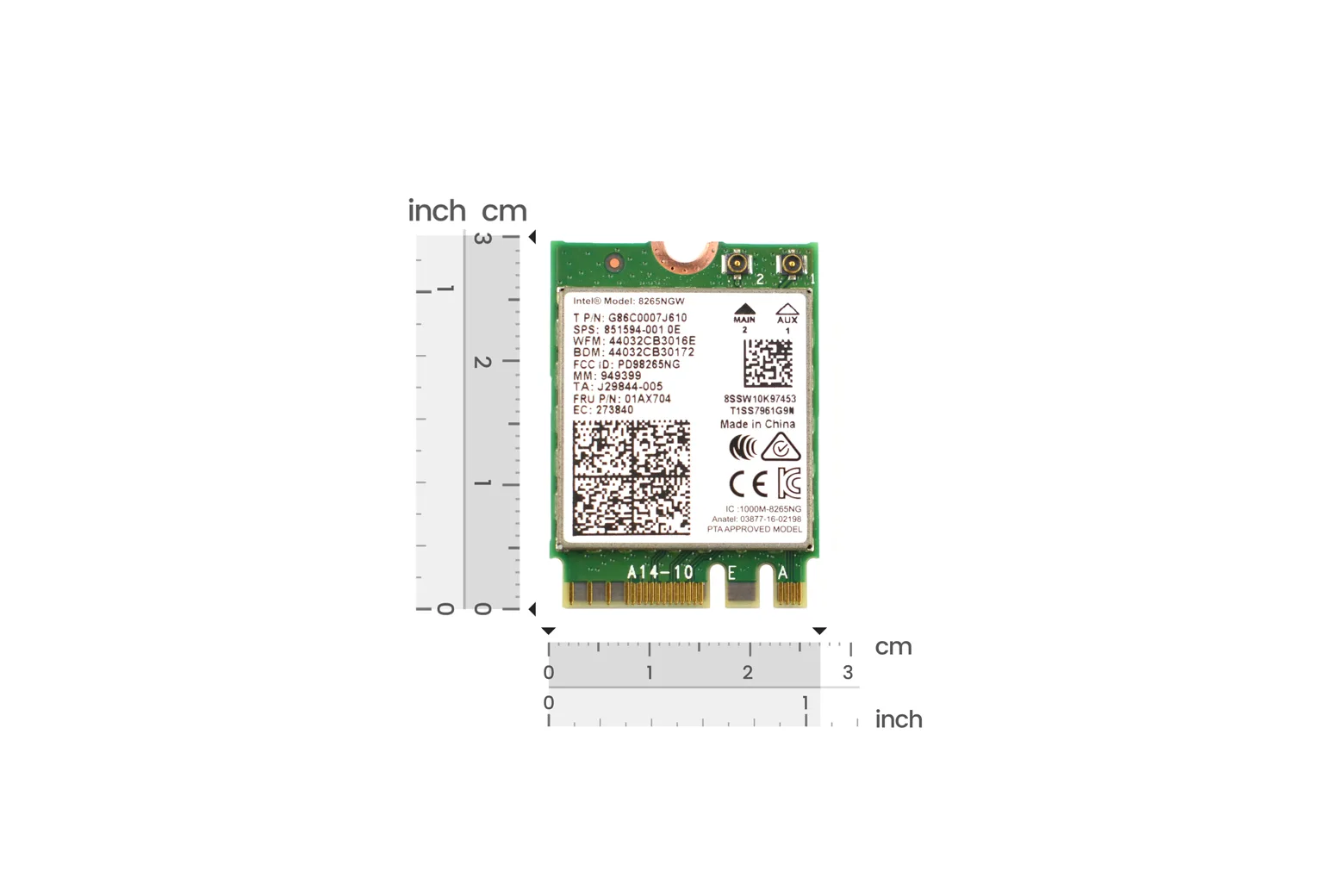

Compact dimensions and operating system support

Featuring an NGFF M.2 interface and IPEX antenna connectors, the compact 22 x 30 x 2.4mm card fits neatly into small enclosures. It is compatible with systems running Linux as well as Windows 7, 8, 8.1, and 10.
