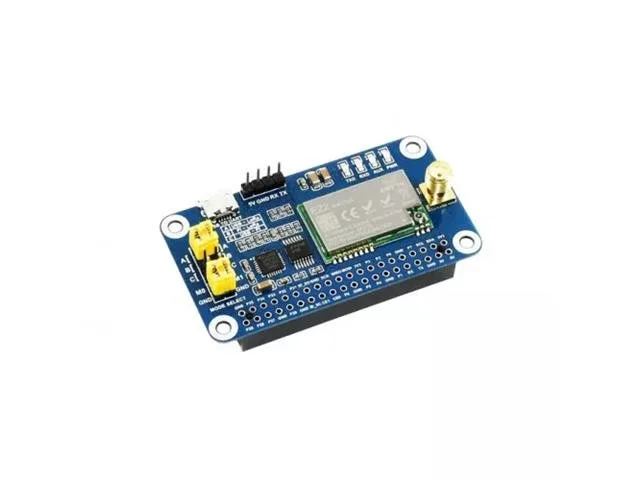

Waveshare SX1262 868MHz LoRa HAT for Raspberry Pi
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

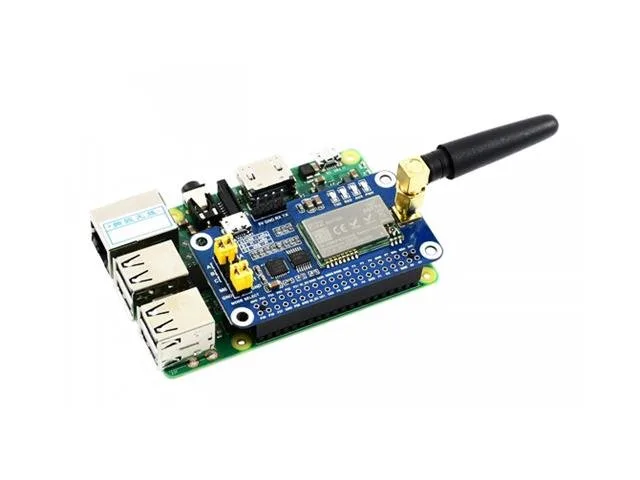

The Waveshare SX1262 LoRa HAT is a long-range wireless communication expansion board designed for Raspberry Pi, operating on the 868MHz band with transmission ranges up to 5km. It incorporates new-generation LoRa spread spectrum modulation, Wake-on-Radio support, and onboard CP2102 USB-to-UART conversion. It is ideal for makers, students, and developers building long-range IoT networks, smart agriculture setups, and remote telemetry systems.
Long-range wireless communication
Utilising the SX1262 LoRa spread spectrum modulation chip, this HAT enables robust data transmission up to 5km through a serial connection. It supports auto-repeating for extended distances, alongside features like carrier sensing, wireless configuration, and communication keys for secure and reliable data links.
Flexible control and hardware interfacing

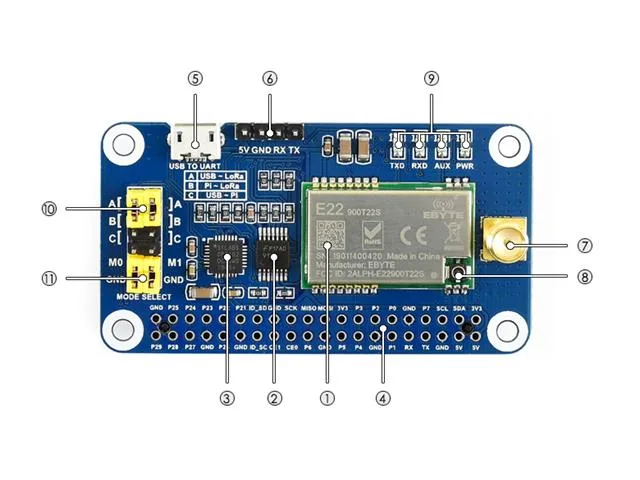

The board features a standard Raspberry Pi GPIO connector, an onboard CP2102 USB-to-UART converter, 74HC125VM level translator, and a dedicated UART header for host microcontrollers such as Arduino or STM32. Dedicated jumpers allow seamless switching between operating modes including transmission, configuration, Wake-on-Radio, and deep sleep.
Low-power performance and applications
With a deep sleep current of just 2uA and selectable transmit power up to 22.0dBm, the module balances high sensitivity and energy efficiency. It is well-suited for industrial automation, remote sensor data collection, smart home monitoring, and outdoor IoT applications.
Package contents
The kit includes one SX1262 868M LoRa HAT, one USB Type-A plug to micro-plug cable, and one matching 868MHz antenna.
Specifications
| Device | LORA HAT |
| Type | for Raspberry |
| Working bands | 850.125 ~ 930.125MHz |
| Range | 5KM(Sunny day; open area; Antenna: AUX 5dBi, Height 2.5m; Air Speed: 2.4kbps) |
| Interface | UART |
| Working voltage | 5V |
| Logic voltage | 3.3V |
| Transmit Current | 133mA (Transient current) |
| Receive Current | 11mA |
| Sleep Current | 2uA (LoRa module deep sleep) |
| MAX Transmit Power | 22.0dBm(10, 13, 17, 22dBm Selectable) |
| Receive Sensitivity | 147dBm@0.3Kbps ( On air) |
| Transmit Length | 240 Bytes (32, 64, 128, 240 Bytes Selectable) |
| Buffer | 1000 Bytes |
| Working Temperature | 40 ~ 85°C |
| Weight | 0.069 kg |
