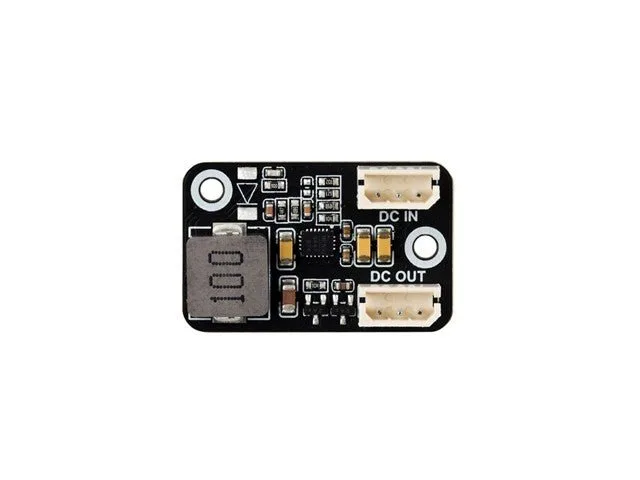

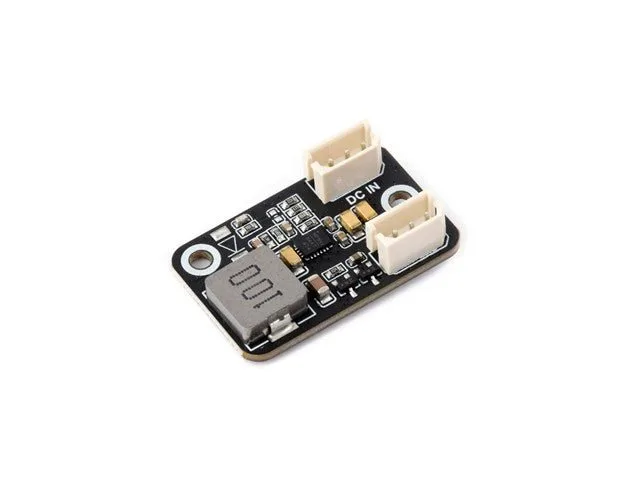

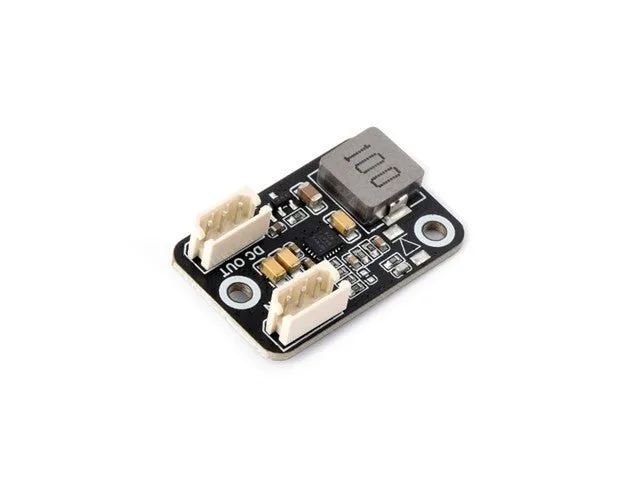

Waveshare Serial Bus Servo DC Buck Adapter, 7.2V 3A

The Waveshare Serial Bus Servo DC Buck Adapter is a compact power regulation module designed to convert wide DC input voltages down to a stable 7.2V output. It provides a simple plug-and-play power solution for makers, students, and roboticists working with serial bus servos. Delivering up to 3A peak current, it is ideal for driving compatible servos such as the SC15 and SC09 in robotics projects.

Wide voltage input

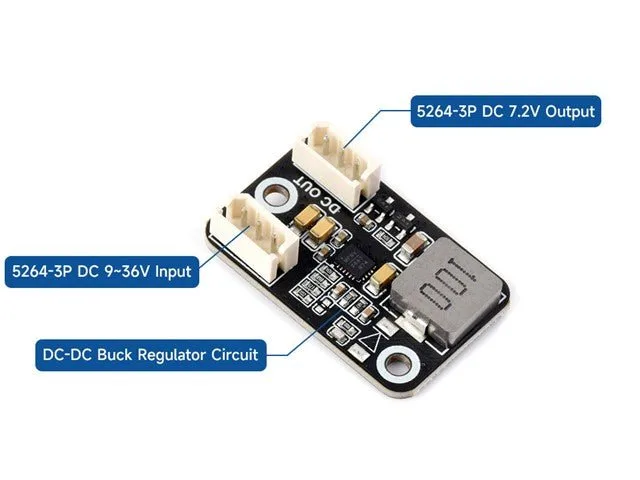

The adapter accepts an input voltage range of 9V to 36V DC, giving you flexible power supply options across diverse project setups and battery configurations.

Dedicated servo power delivery

Regulating power down to 7.2V DC with a peak current capacity of 3A, the module is tailored specifically for serial bus servos such as the SC15 and SC09 models.

Compact integration and connection

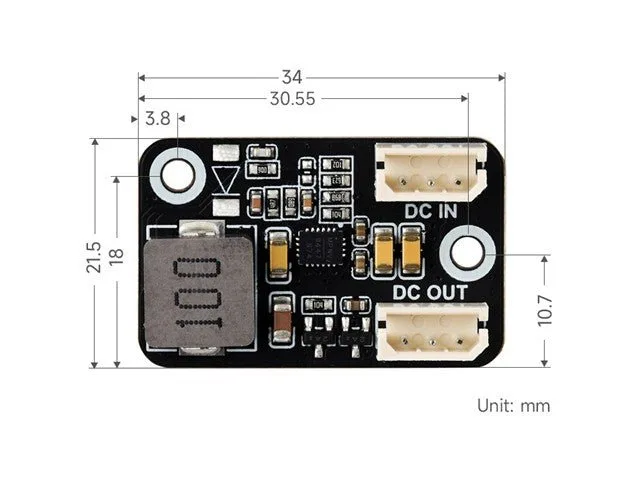

With a compact 21.50 × 34.00mm footprint, 2.70mm mounting holes, and standard SC/ST 5264-3P headers, the adapter connects directly in series within your servo circuit to save space.
