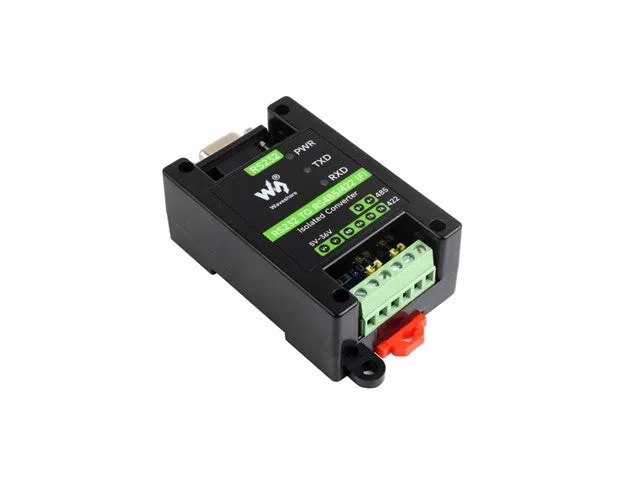

Waveshare Industrial Isolated RS232 to RS485/RS422 Converter
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Waveshare Industrial Isolated RS232 to RS485/RS422 Converter is an active digital isolated serial adapter engineered for reliable, interference-free serial communication. Featuring onboard digital and power isolation alongside comprehensive surge and ESD protection, it provides stable bridging between RS232 devices and RS485/RS422 networks. It is ideal for makers, students, and engineers developing industrial automation, robotics, and robust serial telemetry projects.
Comprehensive circuit protection and isolation
The converter integrates unibody digital and power isolation to suppress ground loops and electrical interference without requiring an auxiliary isolated power source. Enhanced hardware protections include 15kV ESD isolation, 600W lightning and surge protection, onboard TVS diodes, and self-recovery fuses for sustained over-current and over-voltage safety.
High-speed transmission and automatic control
Driven by genuine SP3232EEN and SP485EEN transceiver chips, the device delivers communication speeds from 300 to 921600 bps with zero-delay automatic hardware direction control. A built-in 120-ohm terminal resistor is also included for easy impedance matching across RS485 and RS422 bus runs.
DIN rail mounting and wide voltage input
Designed for clean and organised installations, the compact ABS enclosure clips directly onto standard 35mm DIN rails. Three onboard LEDs display power and transceiver status at a glance, while a wide 5V to 36V DC input range with anti-reverse protection accommodates various power supplies.
Specifications
| PRODUCT TYPE | Active digital isolated RS232 to RS485/422 serial converter |
| POWER SUPPLY INTERFACE | Power supply 5~36V DC |
| Protection | Anti-reverse |
| Baud rate | 300 ~ 921600bps (300~115200bps is recommended for long-distance reliable communication) |
| Device port | RS232, RS485/422 |
| RS232 | Connector DB9 male/female |
| Transmission distance | about 15m |
| Transmission mode | point-to-point |
| RS485/422 | Connector Screw terminal |
| Direction control | Hardware automatic control |
| Terminal resistor | 120R, enabled/disabled via switch |
| Appearance | Enclosure Rail-mount ABS case, suitable for 35mm DIN rail |
| Dimensions | 81.9 × 54.0 × 32.0mm |
| Device | Converter |
| Onboard Transceivers | SP3232EEN and SP485EEN |
| Power Supply Voltage | 5~36V DC |
| Power Protection | Anti-reverse |
| RS232 Port | DB9 male/female connector (~15m transmission distance, point-to-point) |
| RS485/RS422 Port | Screw terminal |
| Status Indicators | 3 LEDs (power and transceiver status) |
| Enclosure | Rail-mount ABS case, suitable for 35mm DIN rail |
