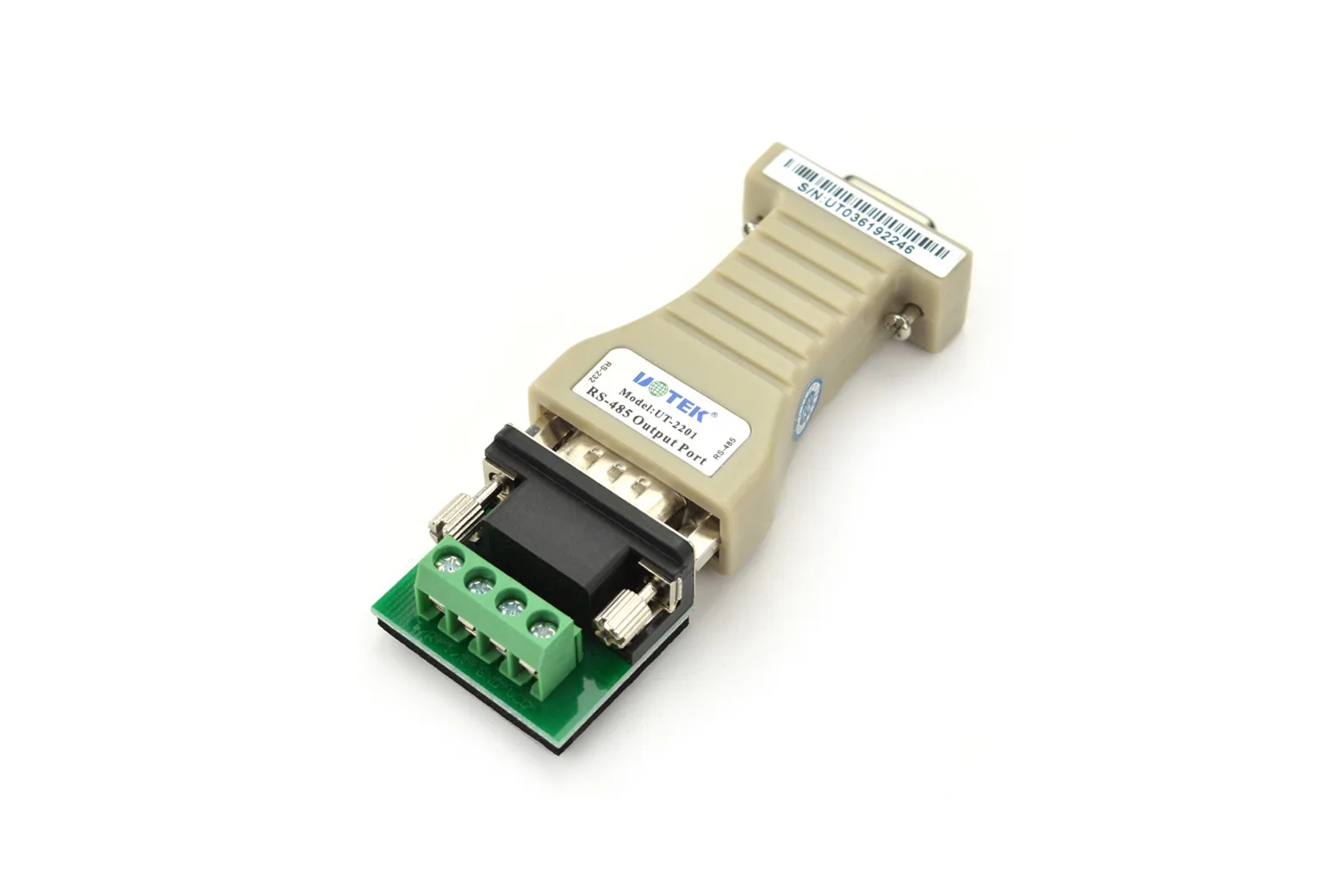

RS-232 to RS-485 Converter
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This compact RS-232 to RS-485 converter allows you to translate standard serial communication into balanced differential signals over extended distances. It is completely self-powered via the serial interface lines, making it an ideal choice for makers, students, and technicians working on long-range telemetry, industrial instrumentation, or robotics projects.
Passive self-powered operation
The module operates passively by harvesting parasitic power directly from the RS-232 TX, RX, RTS, or CTS signal lines. This eliminates the need for an external power supply or extra wiring in your setup.
Extended communication range
By converting standard RS-232 signals to RS-485 balanced differential transmission, the unit extends communication range up to 1200 m over twisted pair or shielded twisted pair cable. The RS-232 connection supports cable lengths up to 5 m.
Versatile connection options

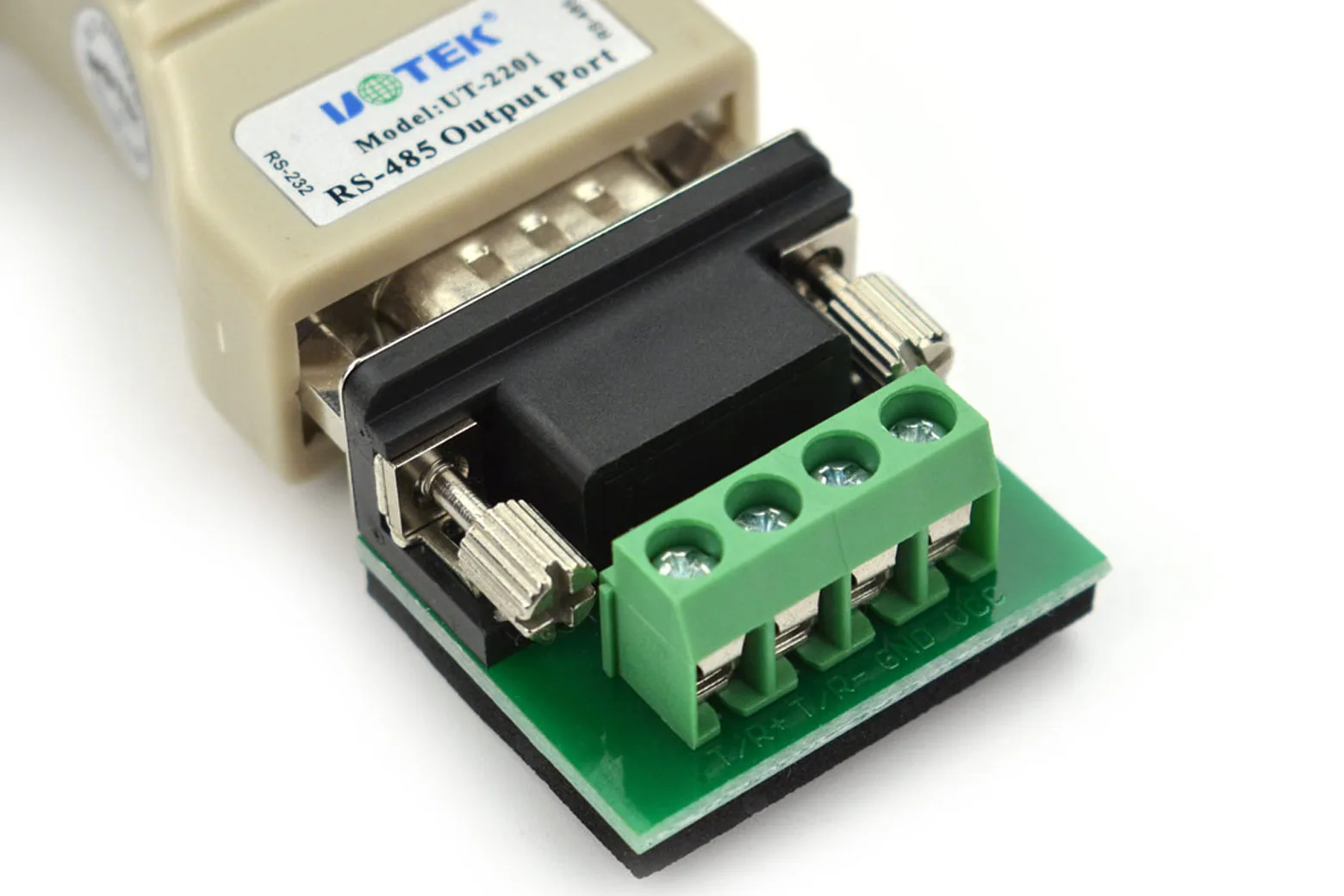

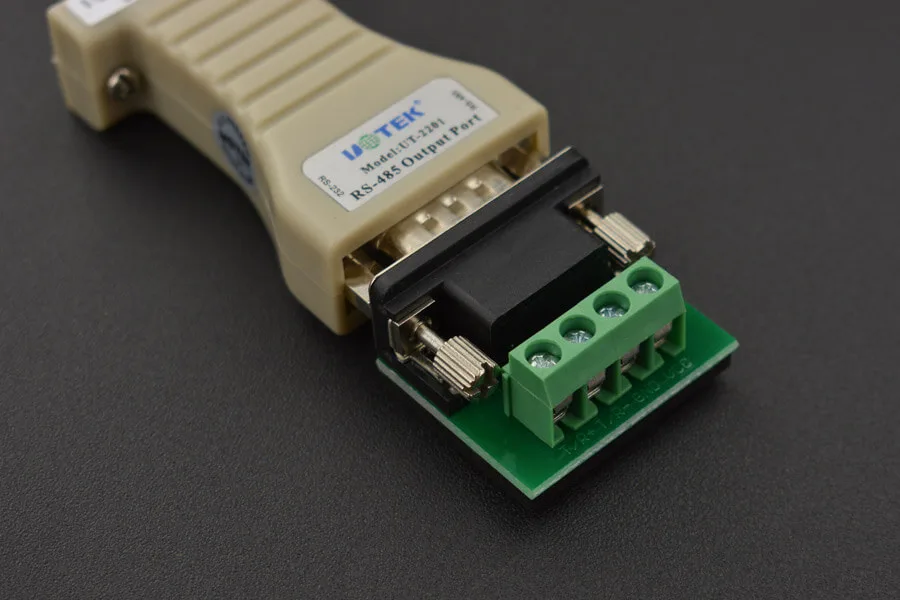

The RS-232 input uses a standard DB9 female connector, while the output interface provides both a DB9 male connector and a 4-position terminal block for straightforward field wiring.
Reliable signal protection
The converter includes opto-isolation along with lightning and surge protection to safeguard connected hardware from electrical transients. It complies with CE, FCC, and RoHS standards.
Transmission speeds and compatibility
Supporting asynchronous half-duplex communication at baud rates from 300 bps up to 115.2 kbps, the converter follows EIA/TIA standards and is compatible with devices such as the URM04 ultrasonic sensor.
Specifications
| Working Mode | Asynchronous, Half-duplex, Differential Transmission |
| Transmission Media | Twisted Pair or Shielded Twisted Pair |
| Transmission Rate | 300bps -115.2K bps |
| Transmission Distance | 1200m(RS485), 5m(RS232) |
| Working Environment | 25 -70 degree (Temperature) , 5% - 95% (Humidity) |

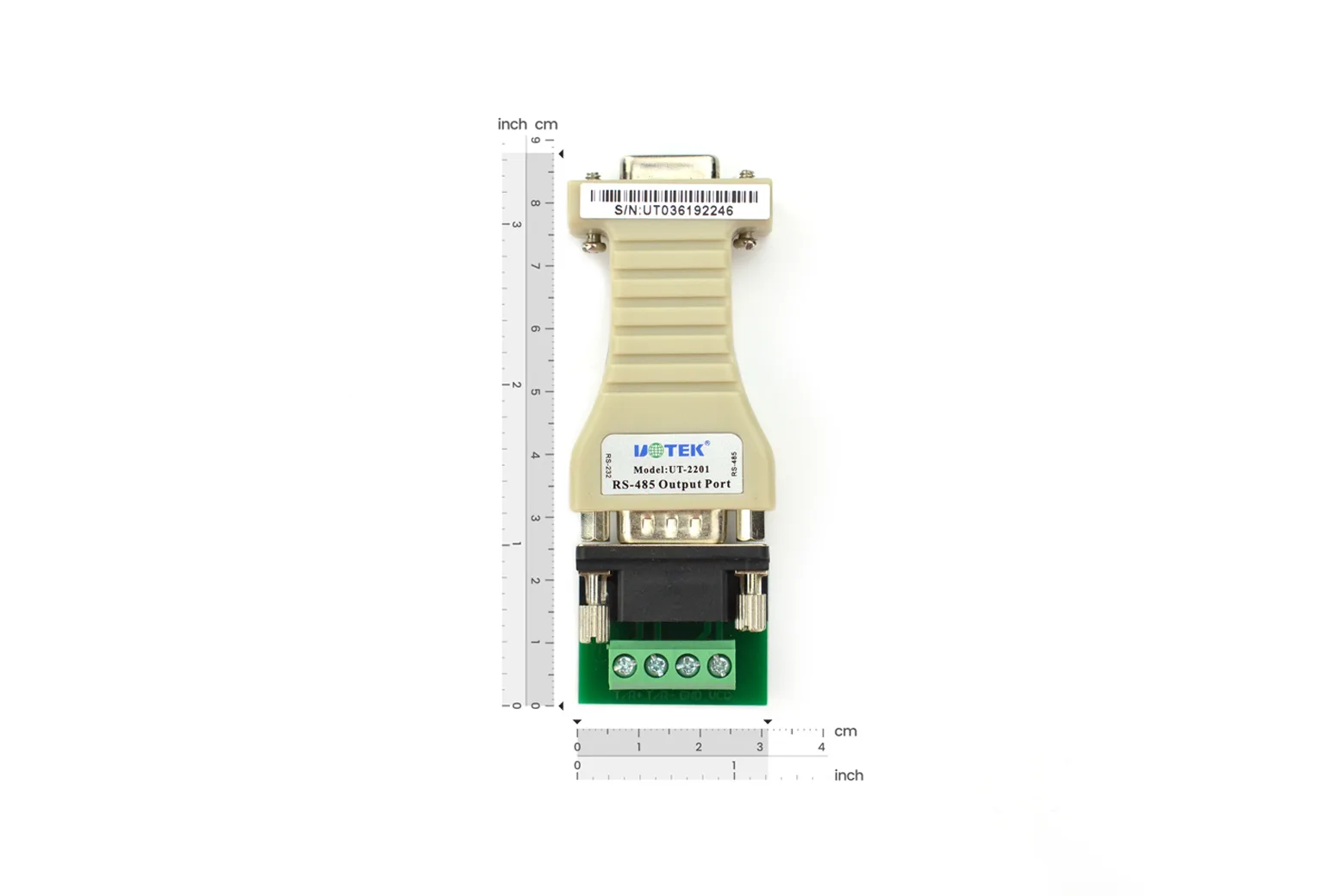

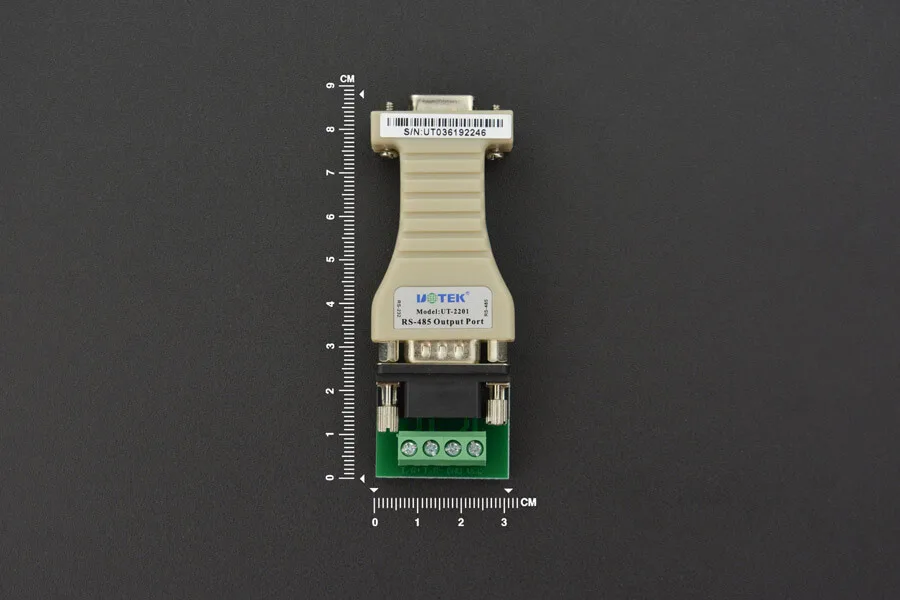

| Dimension | 3.25" x 1.25" x 0.6"(L * W * T) |
| Net Weight | 36g |
In the box
| RS-232 to RS-485 Converter | 1 |
| FAQ | 1 |
| Hi, could you advise if this can be powered from an external power source? Driving RS485 over a long distance is very difficult when using parasitically harvested power from an RS232 port. | 1 |
| Explore More Related Questions > | 1 |
Reviews
No reviews yet — be the first to review this product.
