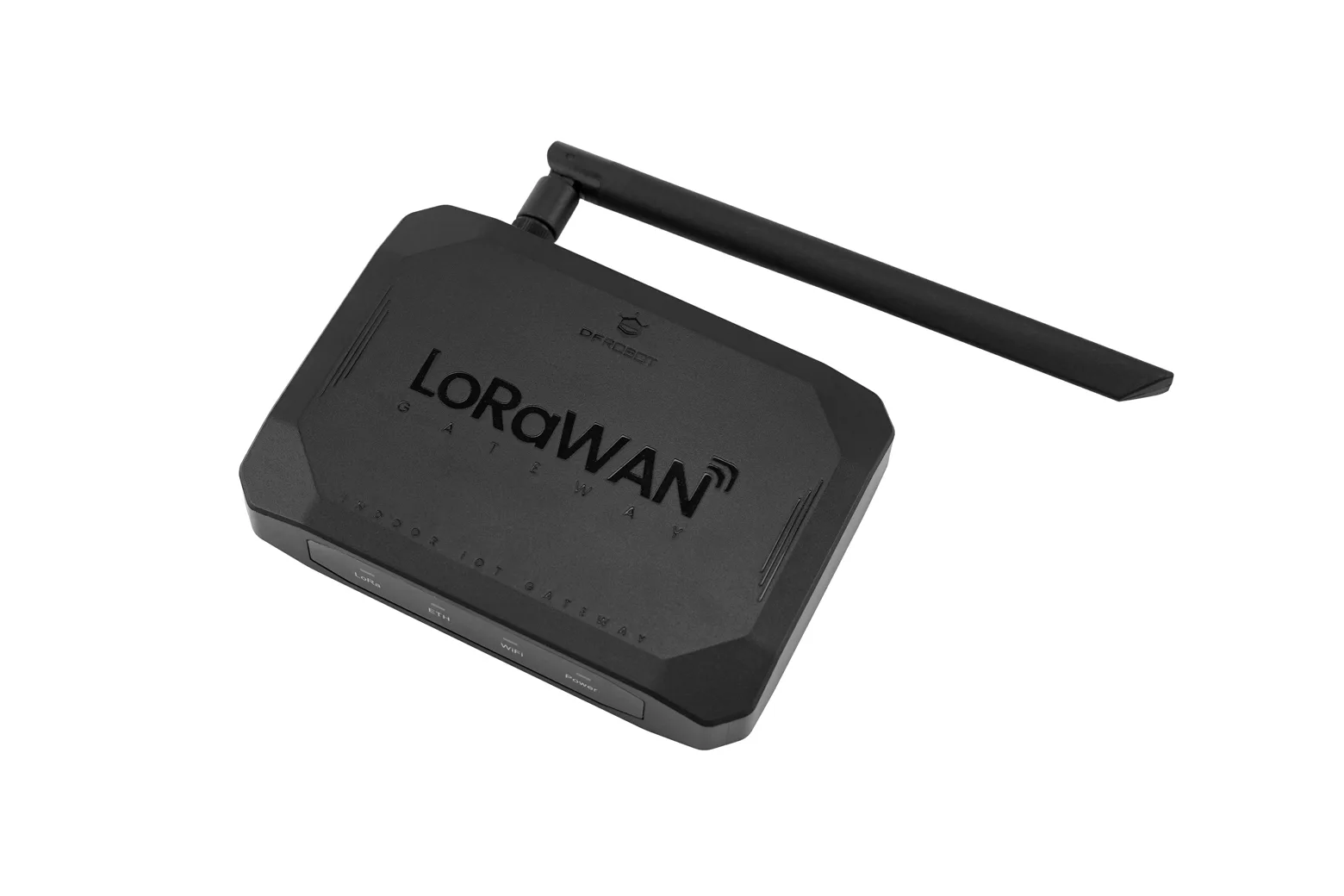

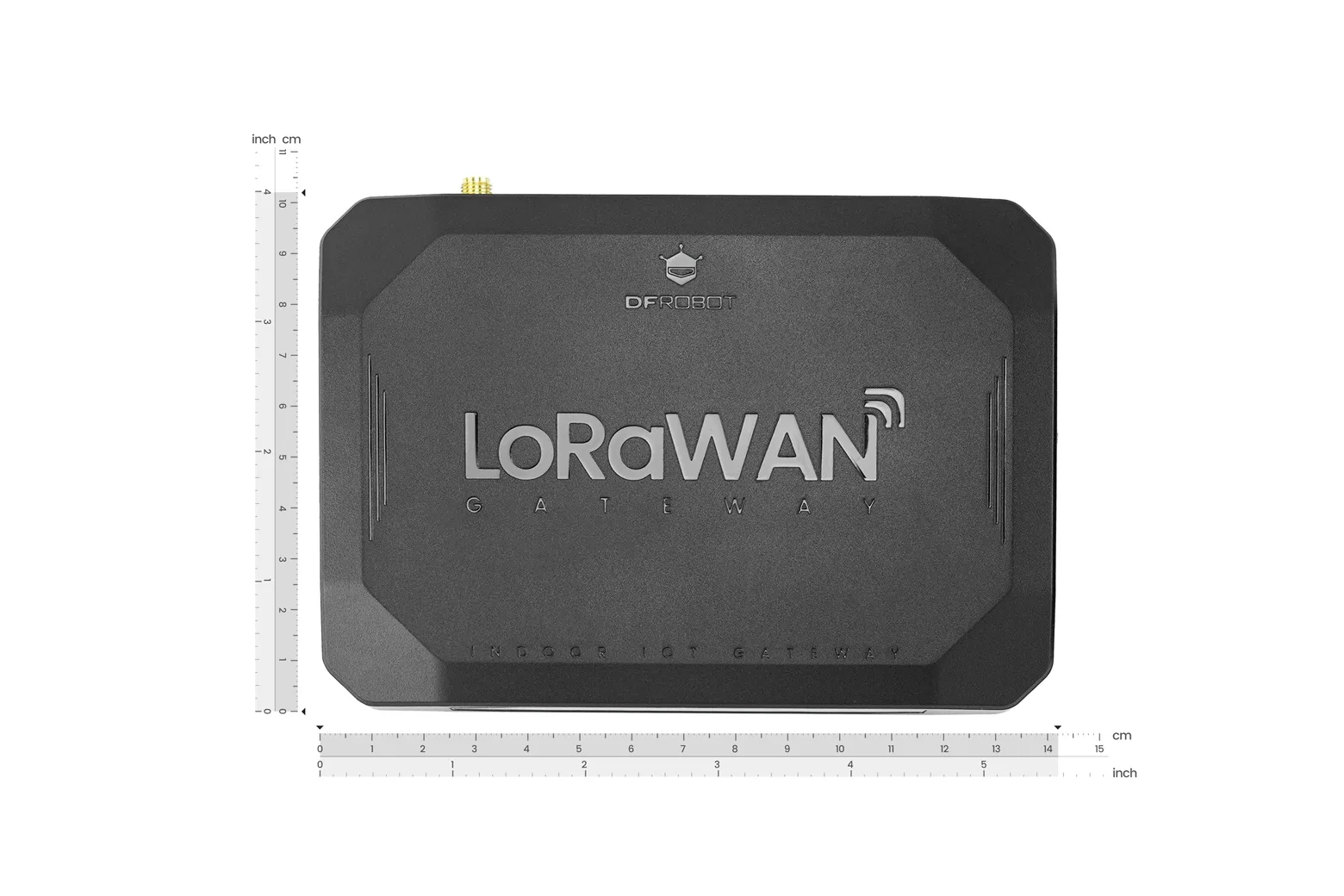

Private LoRaWAN Gateway with Built-in Local Server & Node-RED (EU 868MHz)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

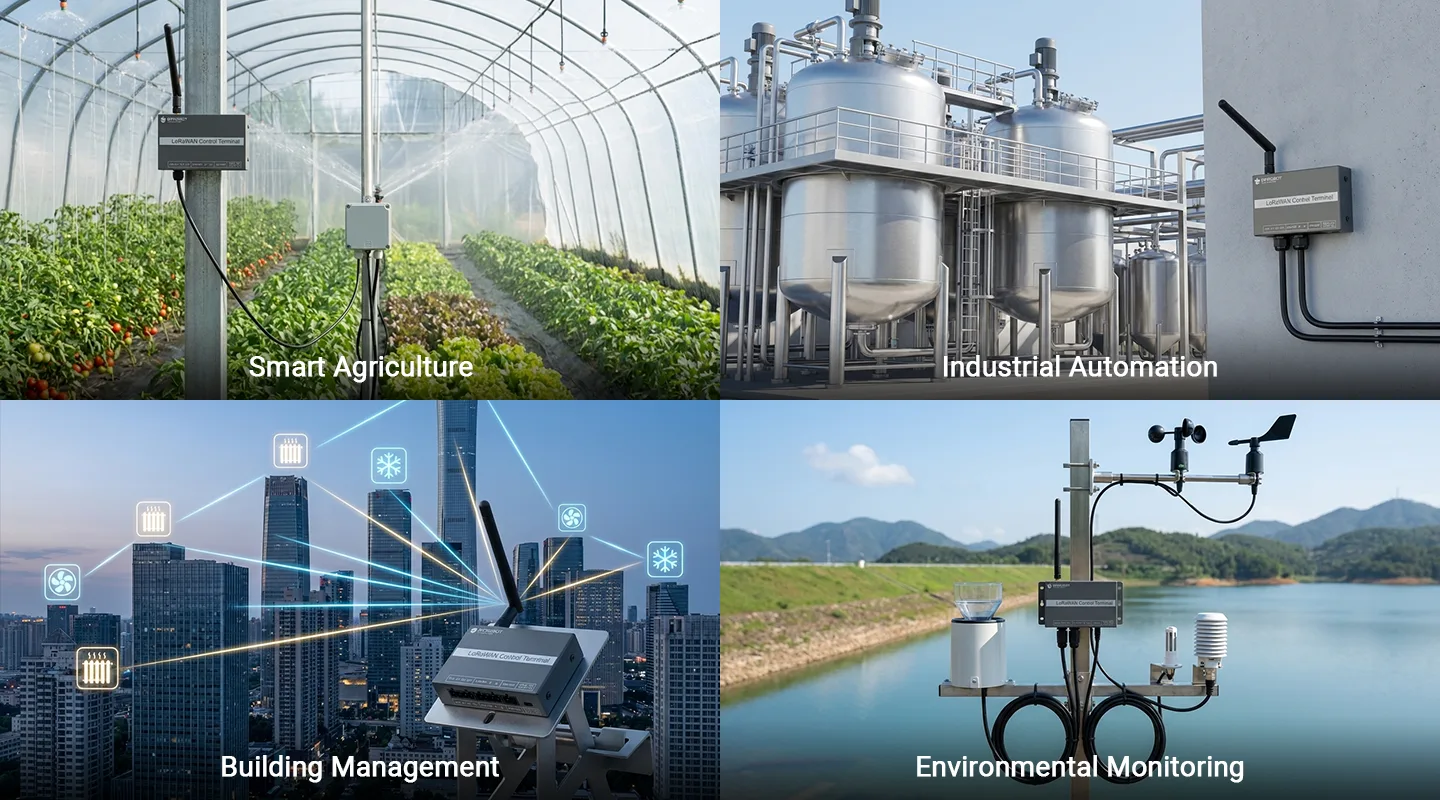

The Private LoRaWAN Gateway (EU 868MHz) is an indoor IoT base station featuring a built-in SIoT local server and pre-installed Node-RED. Powered by a quad-core Cortex-A35 processor and an 8-channel Semtech SX1302 chip, it enables sensor communication over distances up to 4km without cloud dependencies. It is ideal for students, makers, and developers creating private home automation, agriculture, or educational IoT setups.

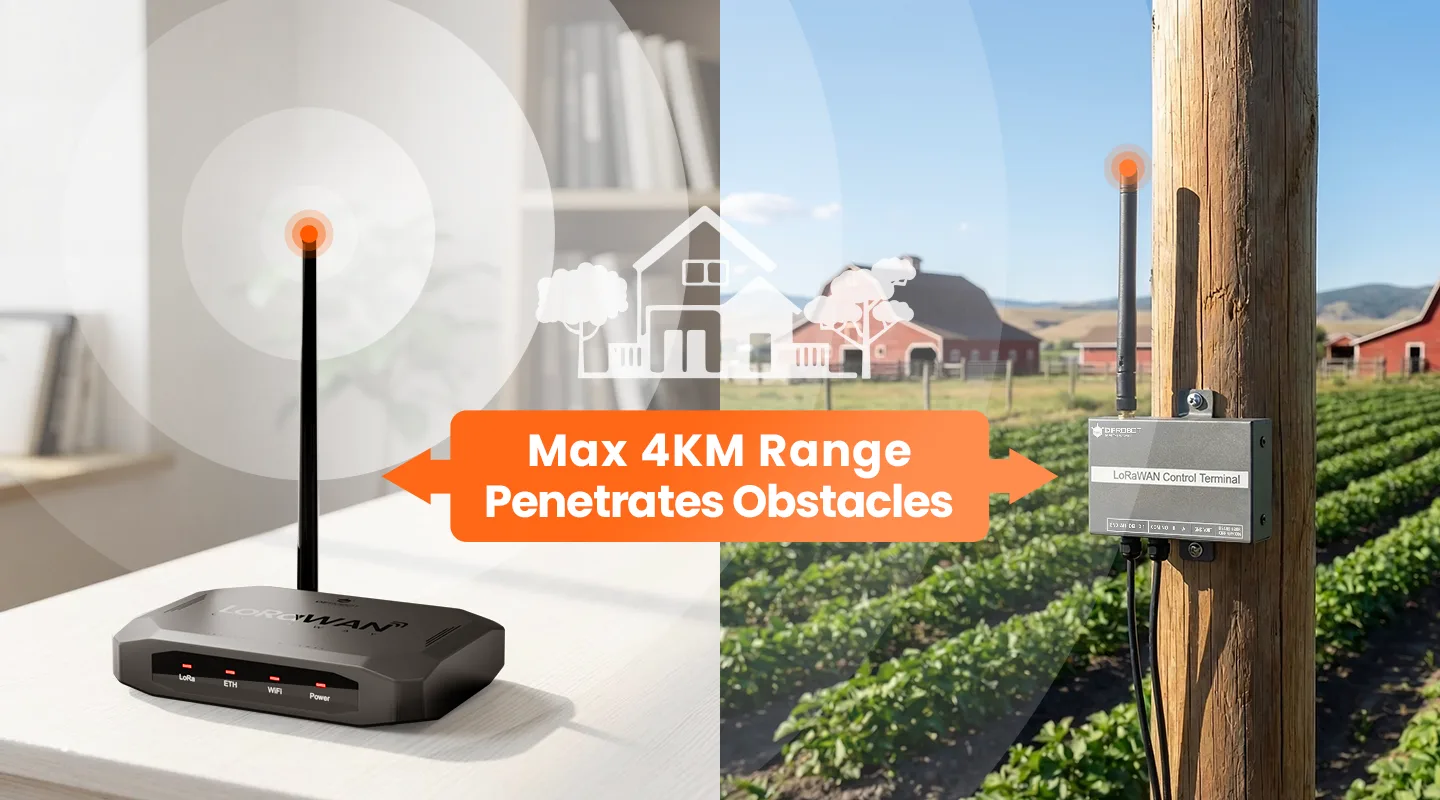

Long-range outdoor IoT coverage
Equipped with the Semtech SX1302 8-channel chip and a 5dB gain antenna, the gateway delivers high receiver sensitivity of -140dBm and up to 4km communication range. It supports Class A and Class C LoRaWAN protocols on the EU868 band to gather telemetry from multiple nodes simultaneously.

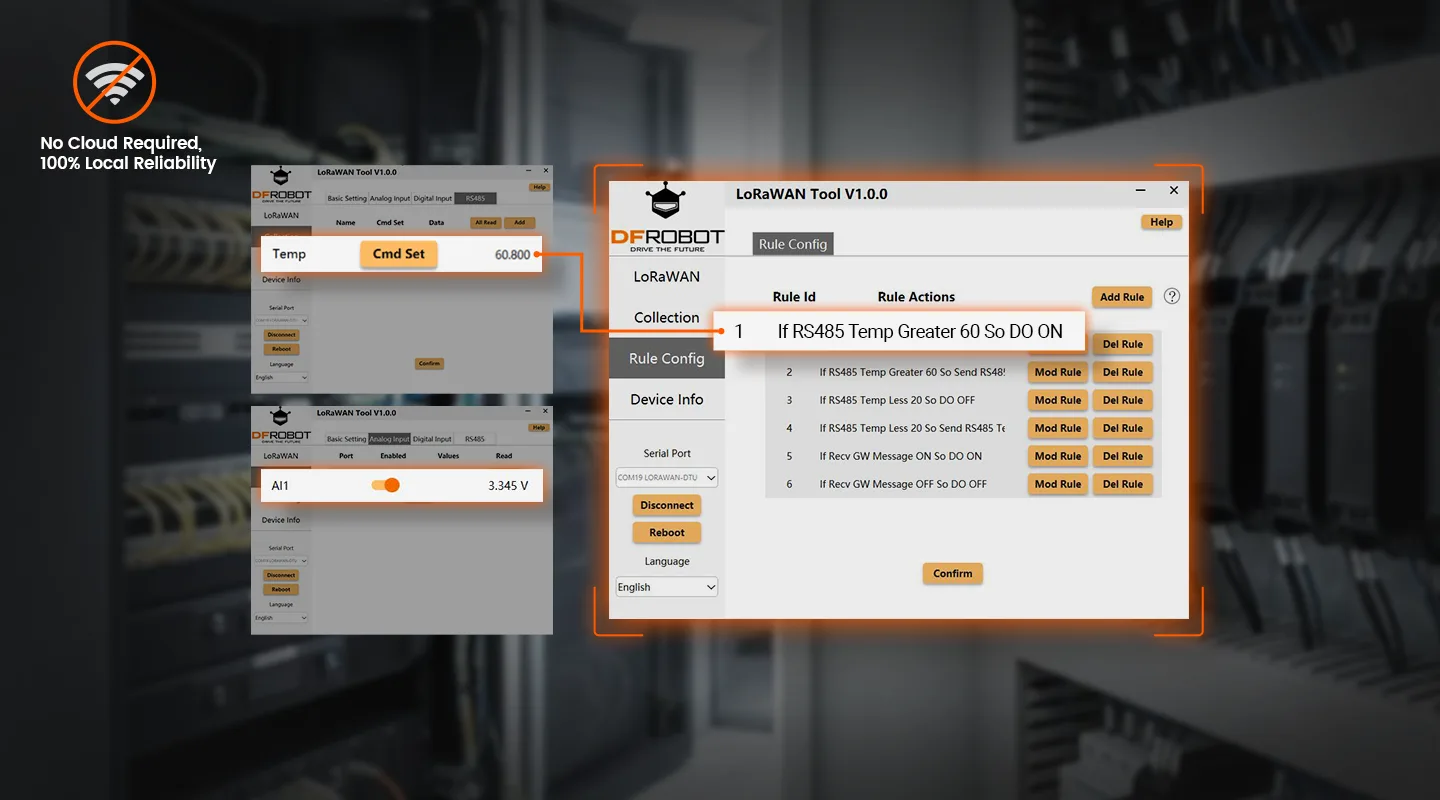

Built-in local server for data privacy
An integrated SIoT local server keeps all telemetry, camera feeds, and automated actions strictly within your local network. This eliminates recurring cloud subscription costs, provides zero-latency responses, and ensures automations keep running even when disconnected from the internet.

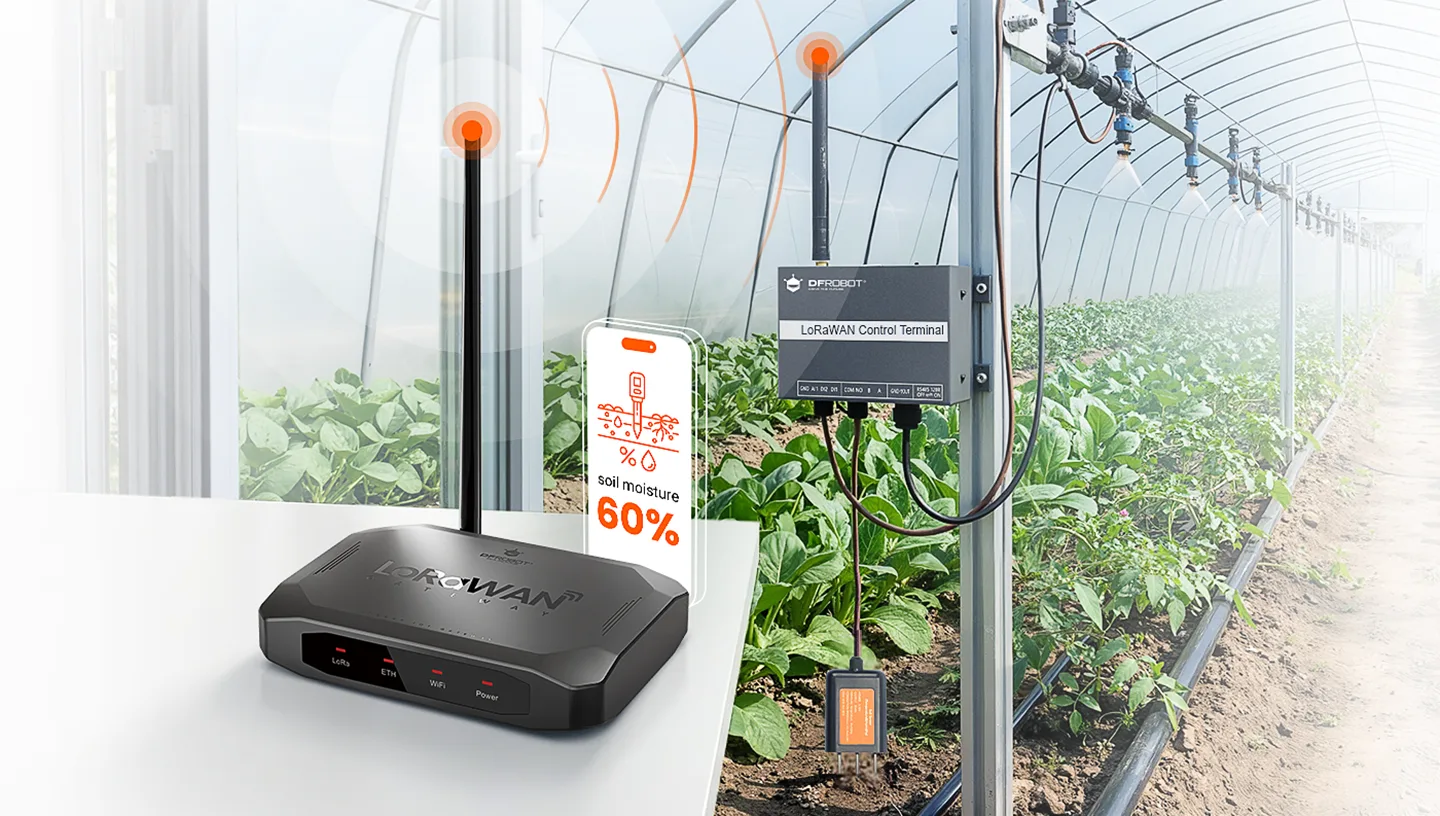

Pre-installed Node-RED visual programming
The gateway comes with Node-RED ready to deploy, allowing visual drag-and-drop construction of automation rules without complex programming. Users can create flows that process incoming sensor data and automatically trigger downlink commands to peripheral relays and valves.

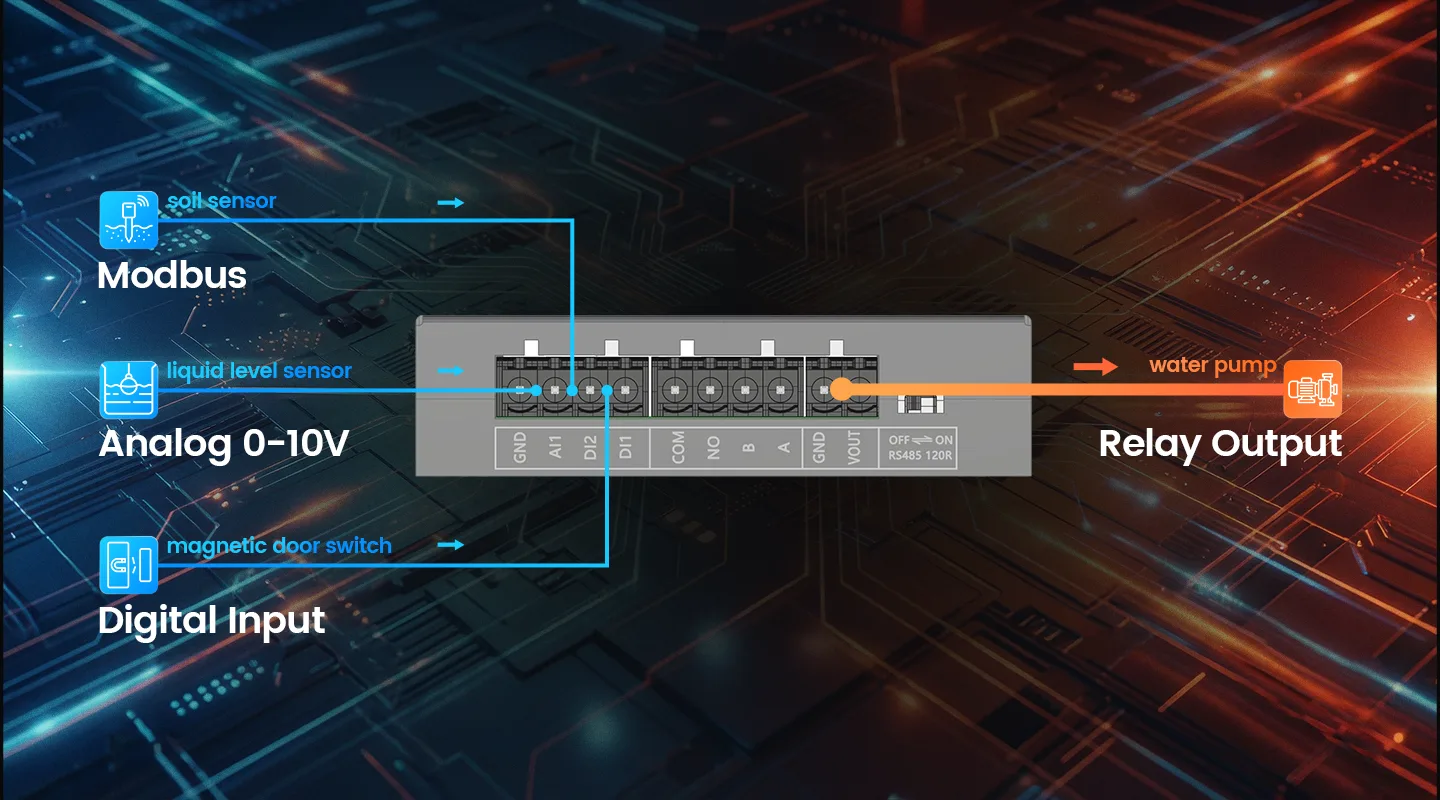

Simplified network and control architecture
The system streamlines data routing between field control terminals and local dashboards. Built-in automatic parsing converts raw hex payloads into human-readable engineering units, simplifying device management and rule configuration.

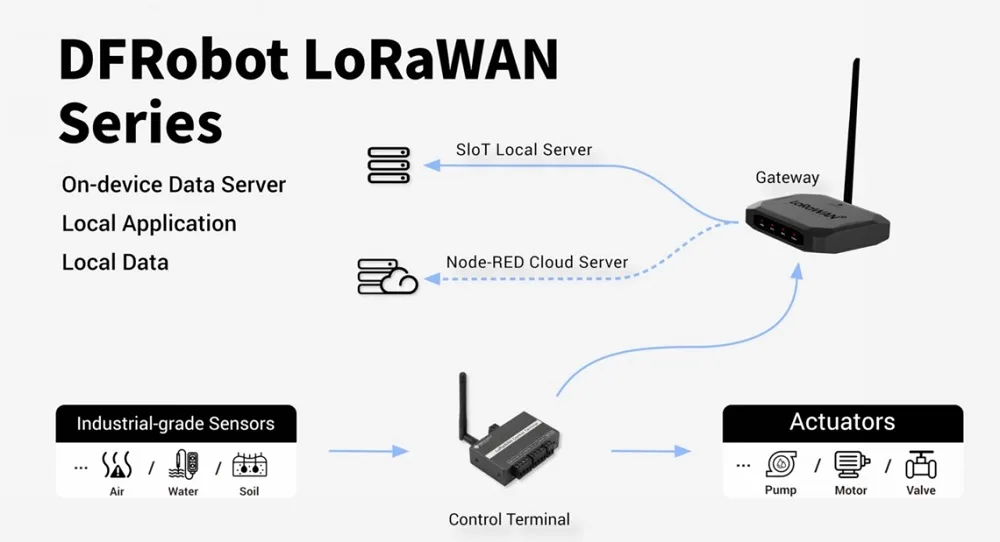

Comprehensive LoRaWAN ecosystem support
The gateway anchors a broader LPWAN platform that includes multi-interface control terminals, Arduino-compatible development boards, and sensor modules. These nodes interface seamlessly via standard I2C and UART protocols with controllers such as micro:bit, Arduino, and ESP32.
Robust quad-core hardware specifications

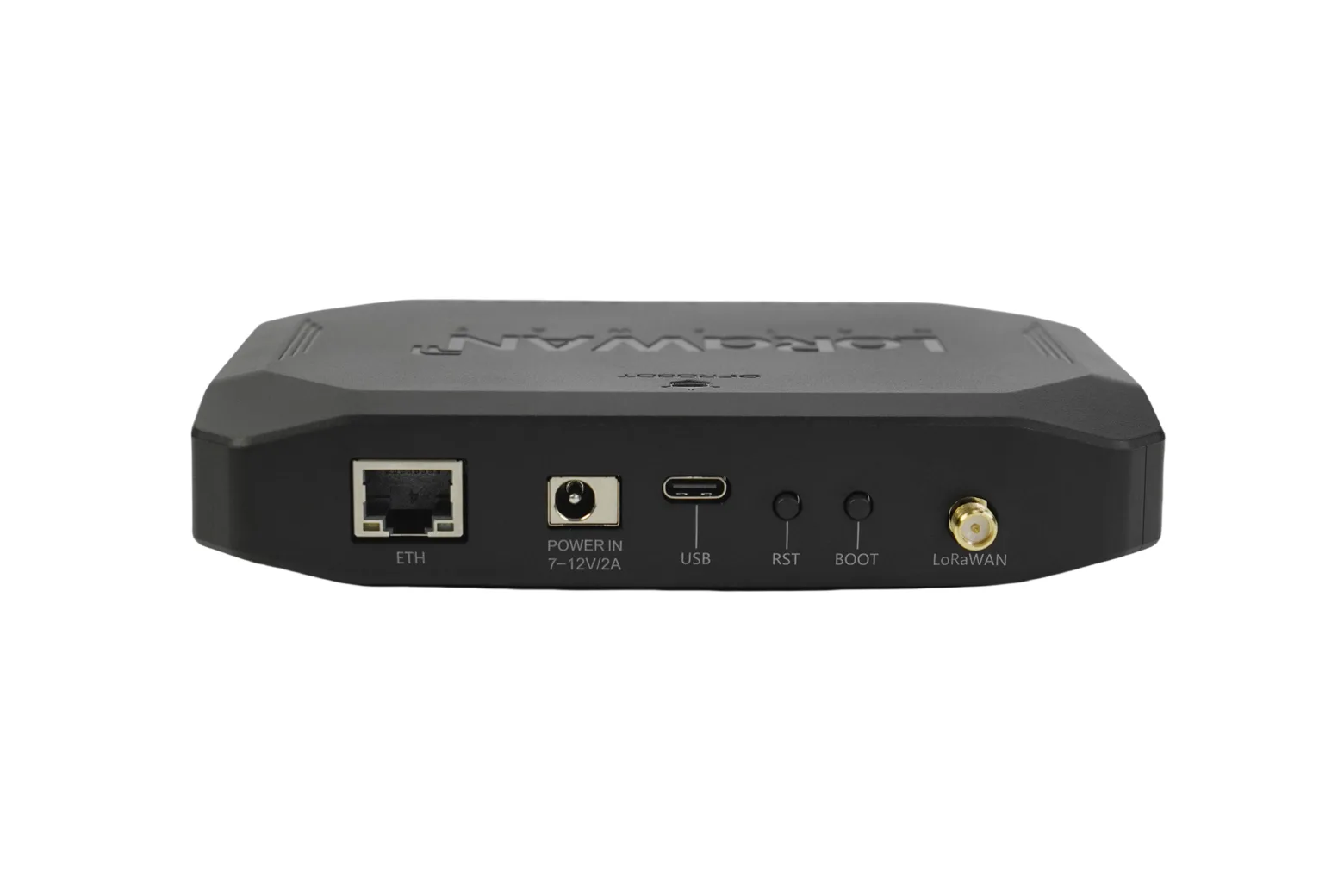

A 1.3GHz quad-core Cortex-A35 processor, 512MB DDR4 RAM, and 16GB eMMC storage ensure responsive multi-flow performance. Network connectivity is handled via 2.4GHz Wi-Fi with AP hotspot mode and a 100Mbps Ethernet port, powered through USB Type-C or a DC2.1 input.
Video
Downloads & documentation
Specifications
| USB-TYPE-C Port | 5V 2A |
| DC2.1 Power Supply Port | 7-12V 2A |
| Channels | ×8 |
| Operating Frequency Band | EU868MHz |
| Transmission Power | 27dBm MAX |
| Protocol | Class A/Class C |
| Sensitivity | -140dBm@292bps |
| Antenna Connector | SMA |
| Antenna | 5dB Gain |
| WiFi | IEEE 802.11 b/g/n (2.4G) |
| AP Hotspot | IEEE 802.11 b/g/n (2.4G) |
| Ethernet | 1× 100Mbps Ethernet Port |
| CPU | Quad-core Cortex-A35, maximum frequency 1.3GHz |
| Memory | 512 MB DDR4 RAM |
| Flash Memory | 16GB eMMC |
| RTC | Built-in |
| Firmware Update | USB-TypeC |
| Product Dimensions | 142mm (L) × 102mm (W) × 30mm (H) (Antenna Excluded) |
| Product Weight | 445g (Including Packaging & Power Supply) / 188g (Gateway Host + Antenna) |
| Case Material | Environmentally Friendly ABS |

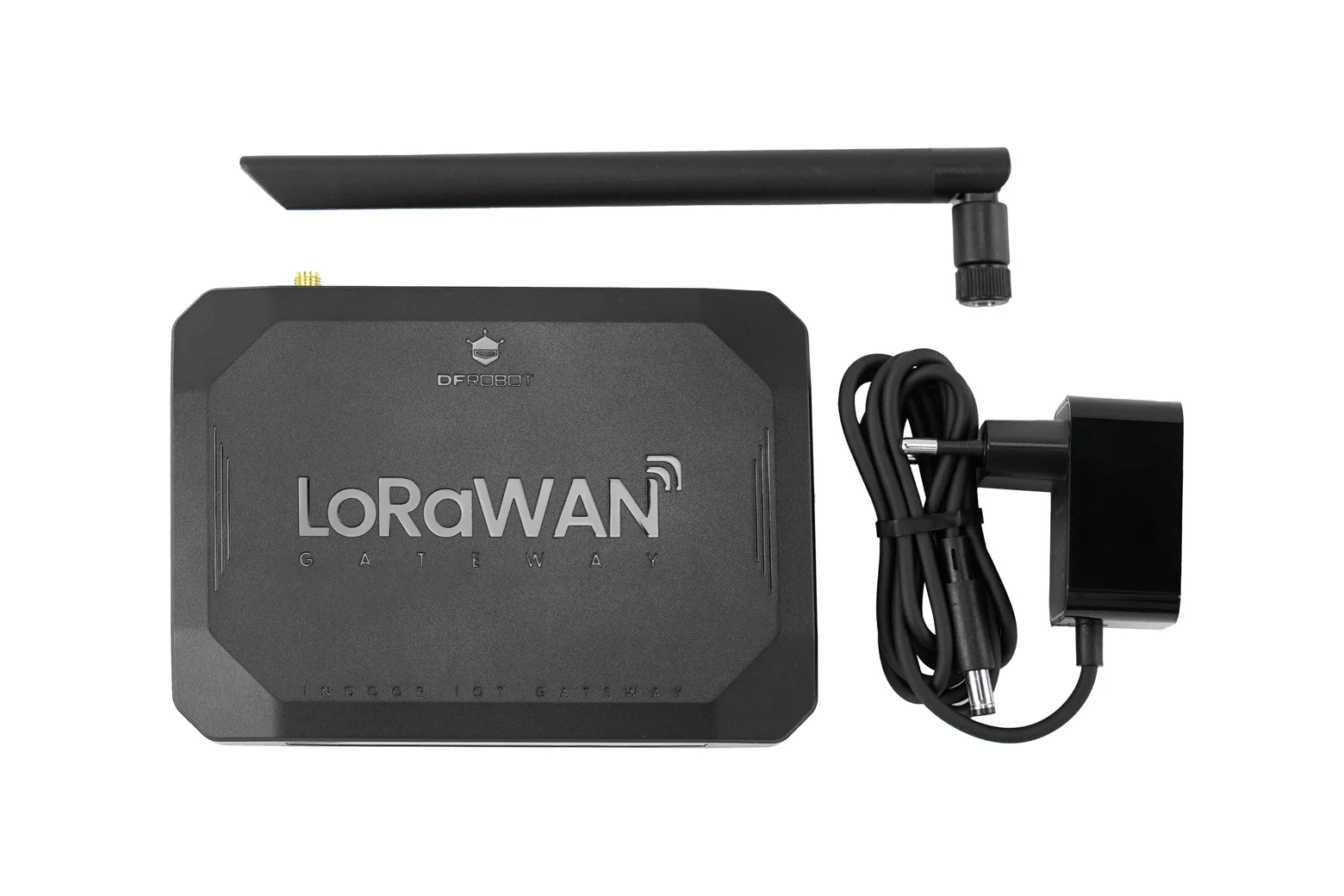

In the box
| LoRaWAN Indoor Gateway (868MHz) × 1 | 1 |
| Gateway Antenna × 1 | 1 |
| AC/DC Power Adapter × 1 | 1 |
