M.2 E Key WiFi7 Bluetooth 5.4 Intel BE200 Wireless Network Card for LattePanda IOTA / Sigma
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Intel BE200 M.2 E Key network card upgrades single-board computers, laptops, and desktops with high-speed WiFi 7 and Bluetooth 5.4 connectivity. It provides triple-band performance across 2.4GHz, 5.8GHz, and 6GHz channels with total speeds reaching up to 8774Mbps. This module is tailored for makers and professionals working with LattePanda IOTA, LattePanda Sigma, and 64-bit Windows systems.

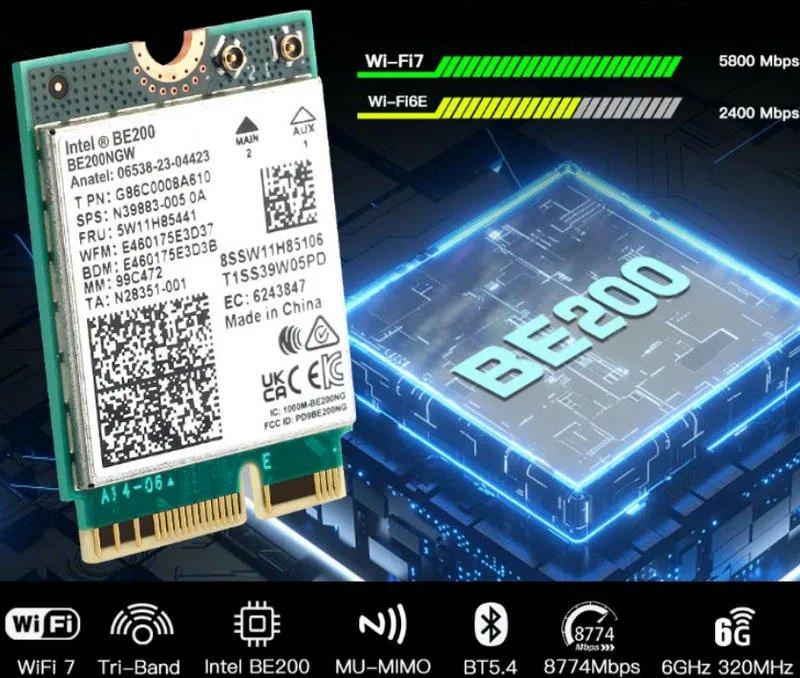

Next-generation WiFi 7 performance
Equipped with the IEEE 802.11be WiFi 7 standard, this module delivers combined wireless transmission speeds of up to 8774Mbps. It provides high throughput and reduced latency for demanding computing, media streaming, and data-intensive tasks.

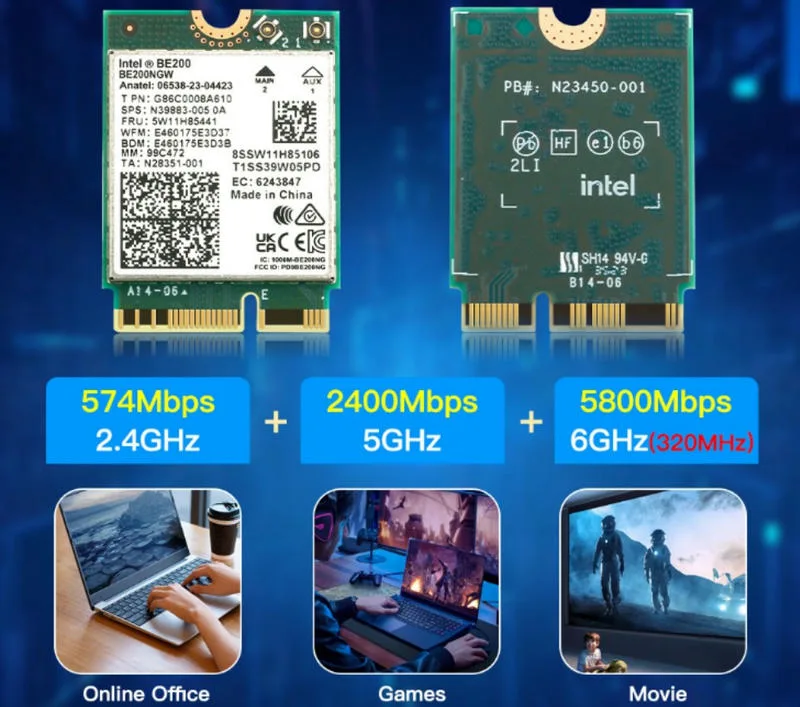

High-speed triple-band operation
The module operates across 2.4GHz (574Mbps), 5.8GHz (2400Mbps), and ultra-wide 320MHz 6GHz (5800Mbps) bands. Utilizing the 6GHz frequency provides extra bandwidth and minimises interference in congested wireless environments.

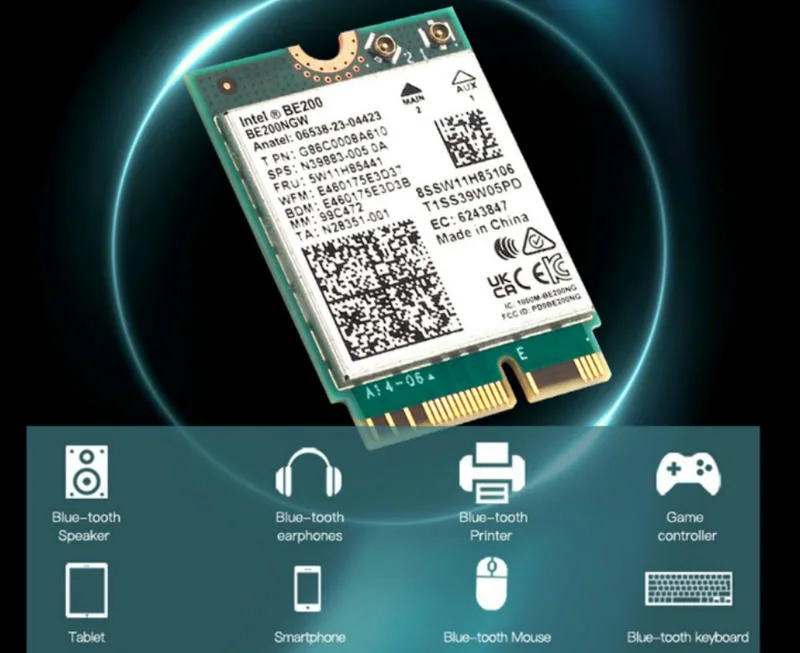

Bluetooth 5.4 peripheral support
Integrated Bluetooth 5.4 delivers faster transmission speeds, broader coverage, and enhanced link stability. It maintains reliable long-distance connections to development peripherals, smart home hardware, and wireless audio equipment.

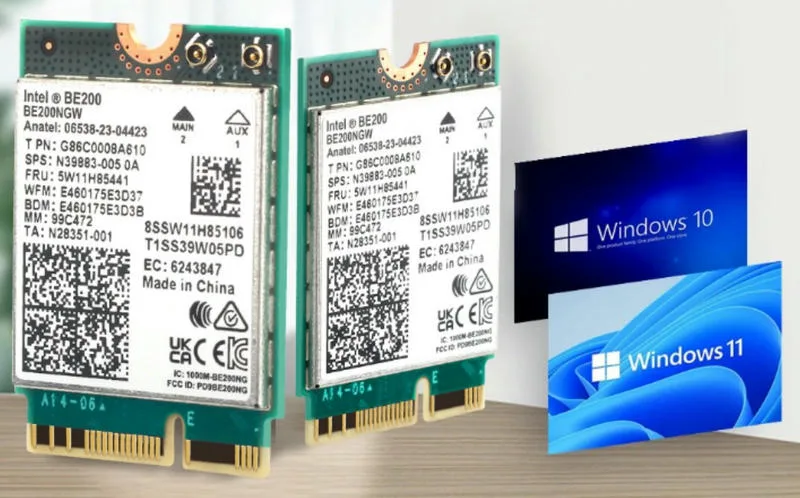

Windows 10 and 11 compatibility
This network card is designed for 64-bit Windows 10 and Windows 11 operating systems. It provides a direct networking upgrade for LattePanda Sigma, LattePanda IOTA, and standard PC hardware.
Compact form factor and security

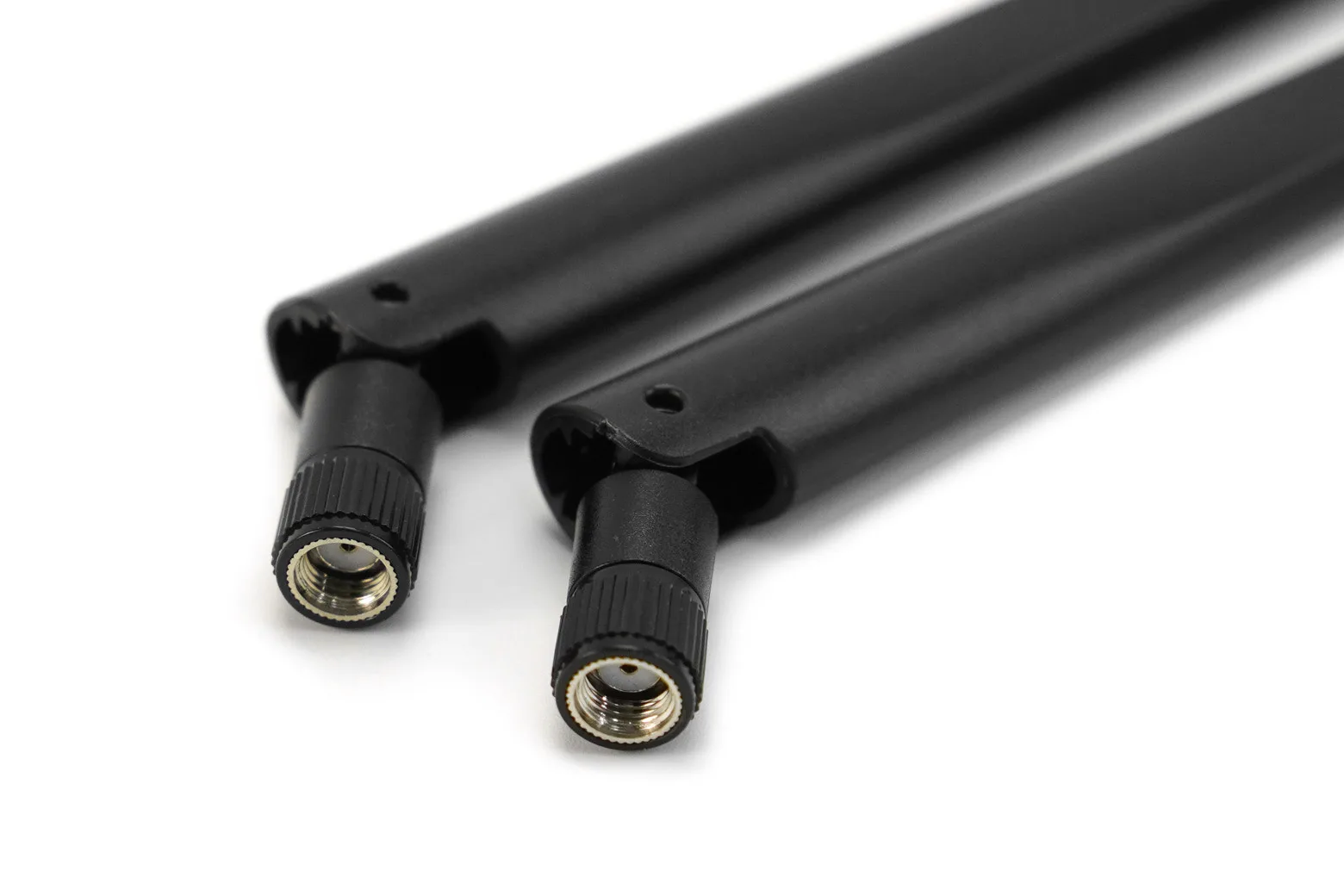

Built to standard 22 x 30mm M.2 2230 dimensions with an E Key interface, the board incorporates MU-MIMO technology and supports WPA2, WPA3, and WPA4 encryption standards. The package includes two 8dBi external antennas for optimal signal reception.
Specifications
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Bluetooth Version | Bluetooth 5.4 |
| Interface | M.2 E Key |
| System Support | Windows 10, 11 (64-bit) |
| Encryption | WPA2/WPA3/WPA4 |
| Dimensions | 22 x 30mm |

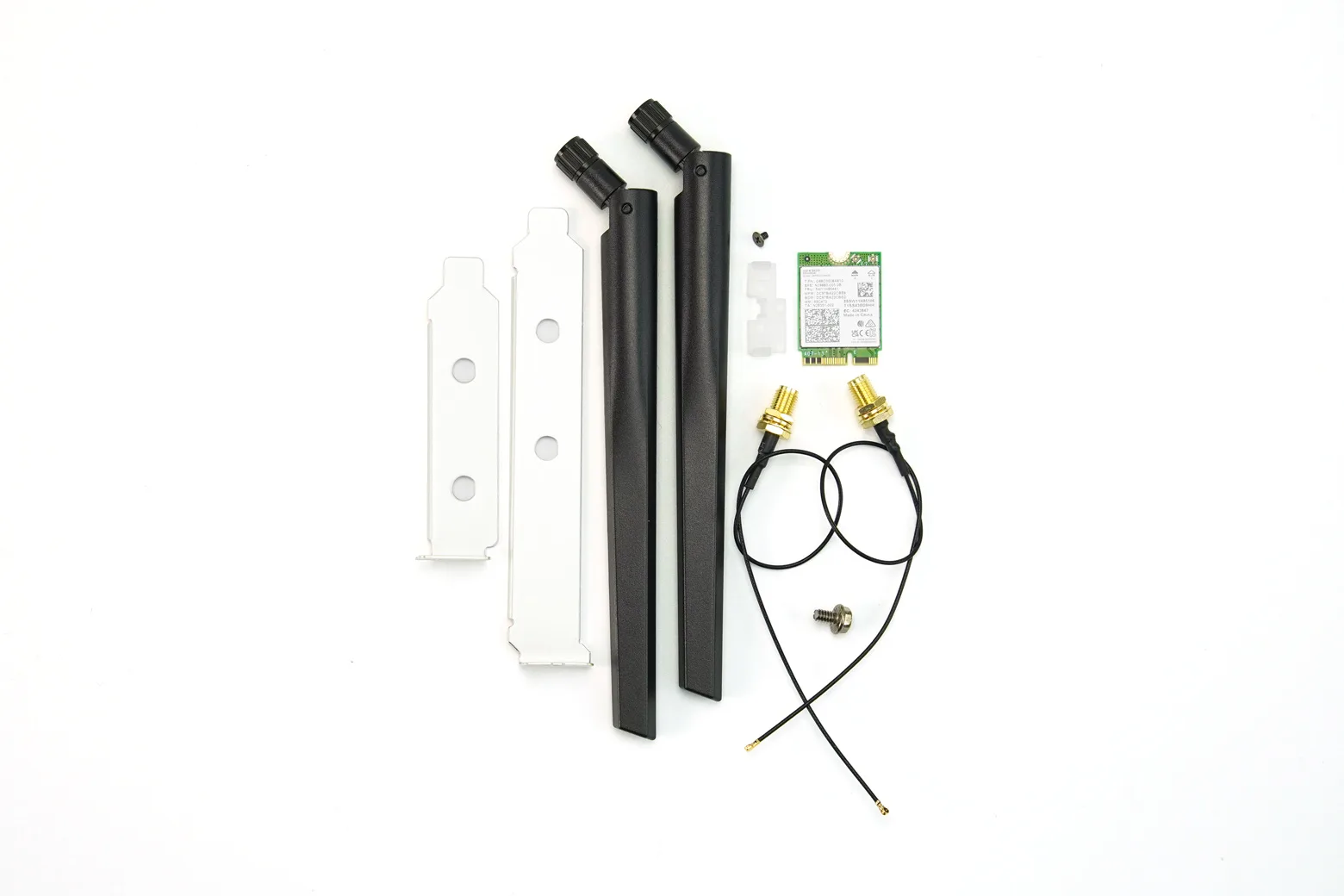

In the box
| M.2 E Key WiFi7 BE200 Wireless Network Card | 1 |
| 8DB external antenna | 2 |
