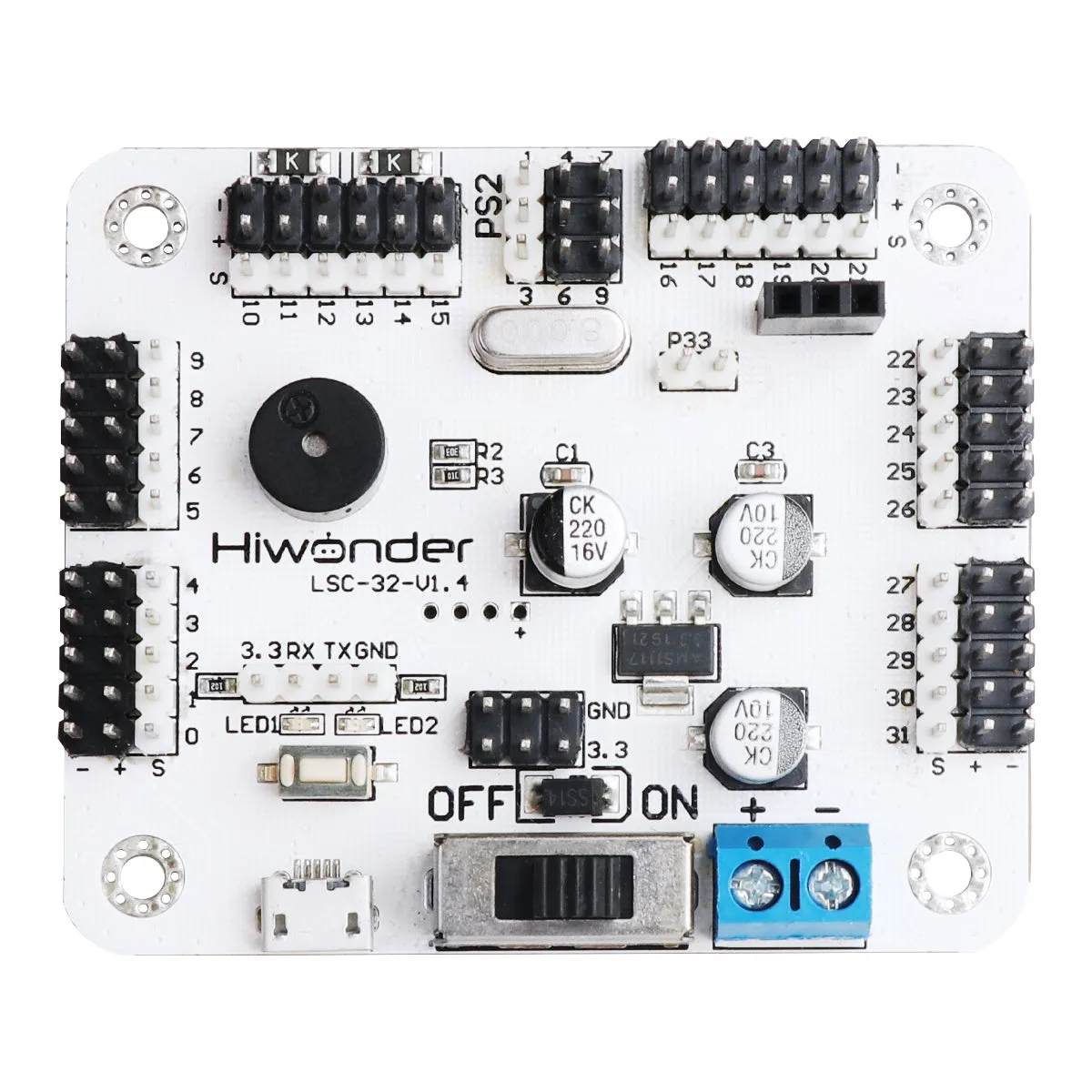

LSC-32: Hiwonder 32 Channel Digital Servo Controller with 16M Memory/ Arduino Compatible

The Hiwonder LSC-32 is a powerful 32-channel digital servo controller designed for high-precision motion control in complex robotic projects. Equipped with a high-performance STM32 microcontroller and 16MB of onboard memory, it is ideal for students, educators, and advanced makers building multi-jointed robots. The controller supports seamless integration with Arduino, Raspberry Pi, and Jetson Nano development boards for intelligent, expanded control.

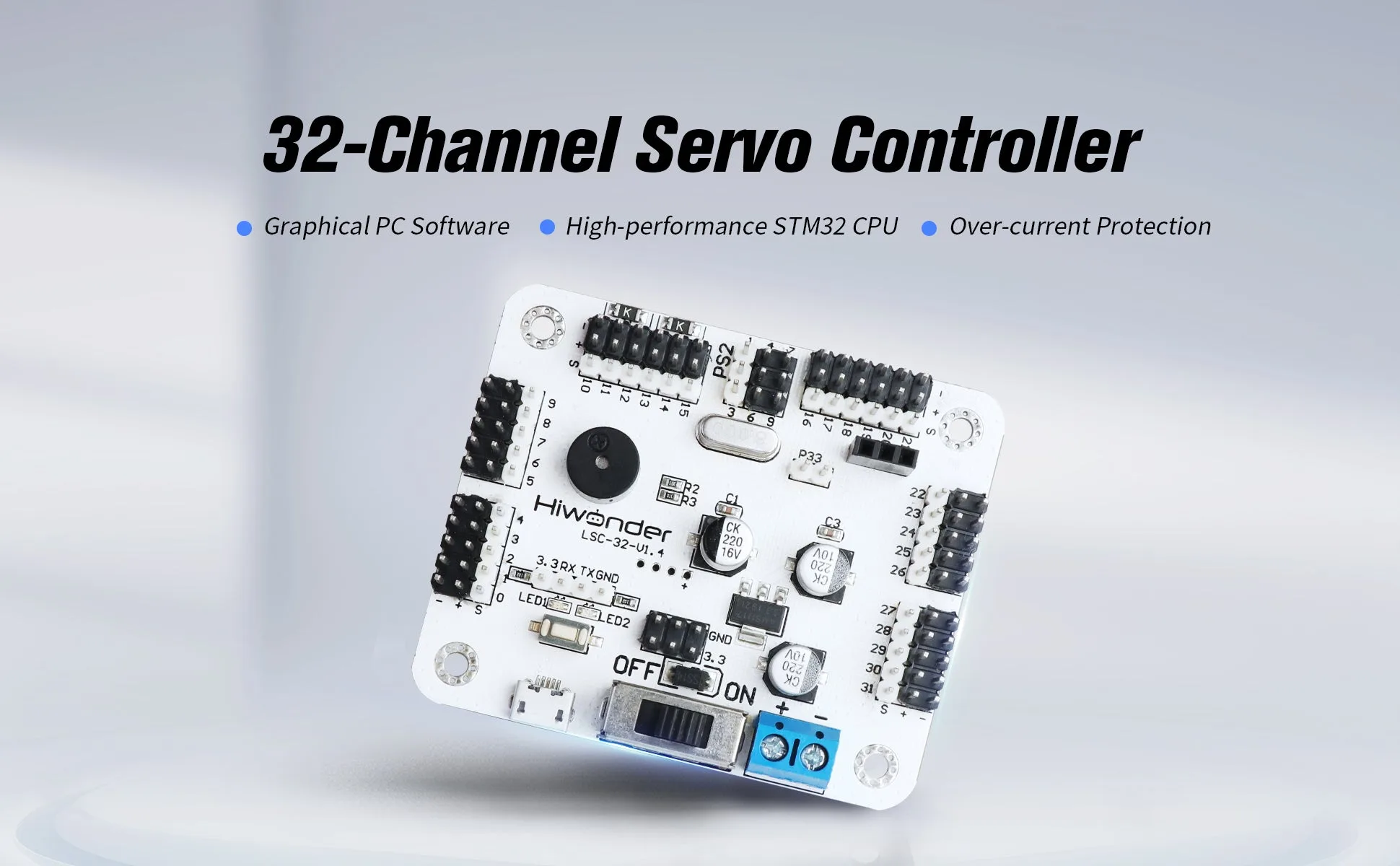

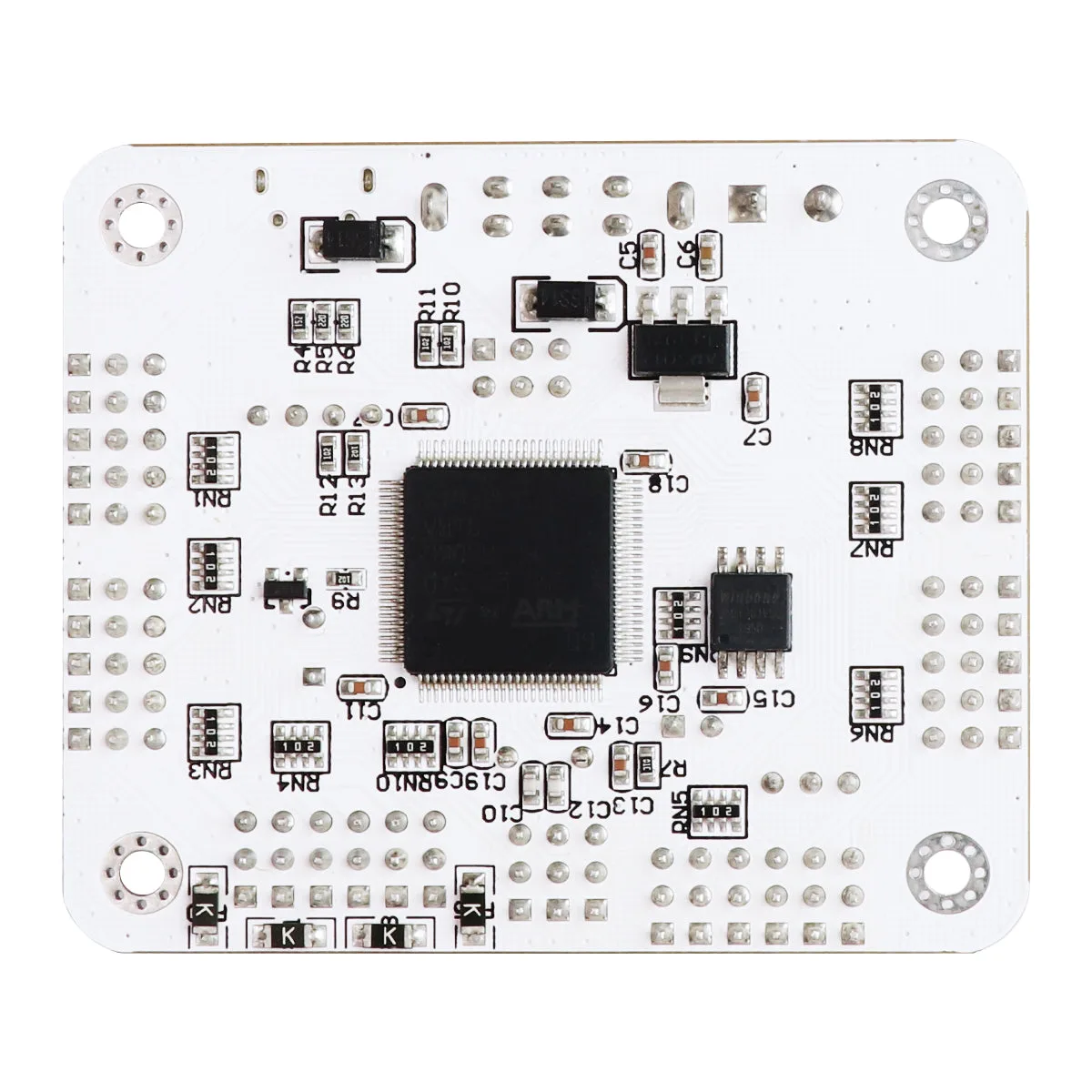

High-performance STM32 processing core

Powered by an ARM Cortex-M3 core, the STM32 microcontroller delivers high-precision motion control with adjustable speeds. This ensures smooth, coordinated movement across all 32 connected digital servos.

Generous memory and offline operation

The built-in 16MB memory chip stores up to 230 action groups, with each group capable of holding up to 510 individual actions. Once programmed, the controller can run these routines offline either as a single execution or in a continuous loop.

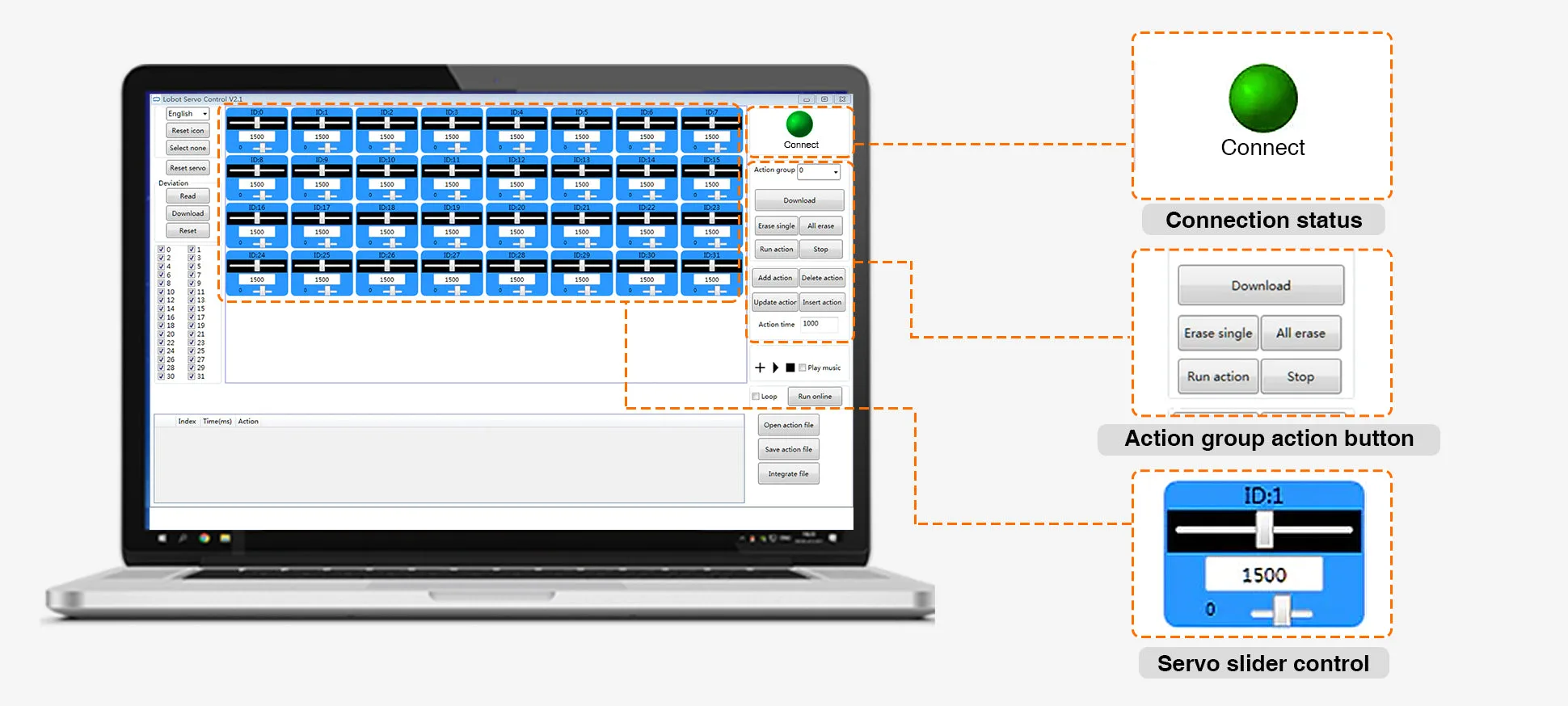

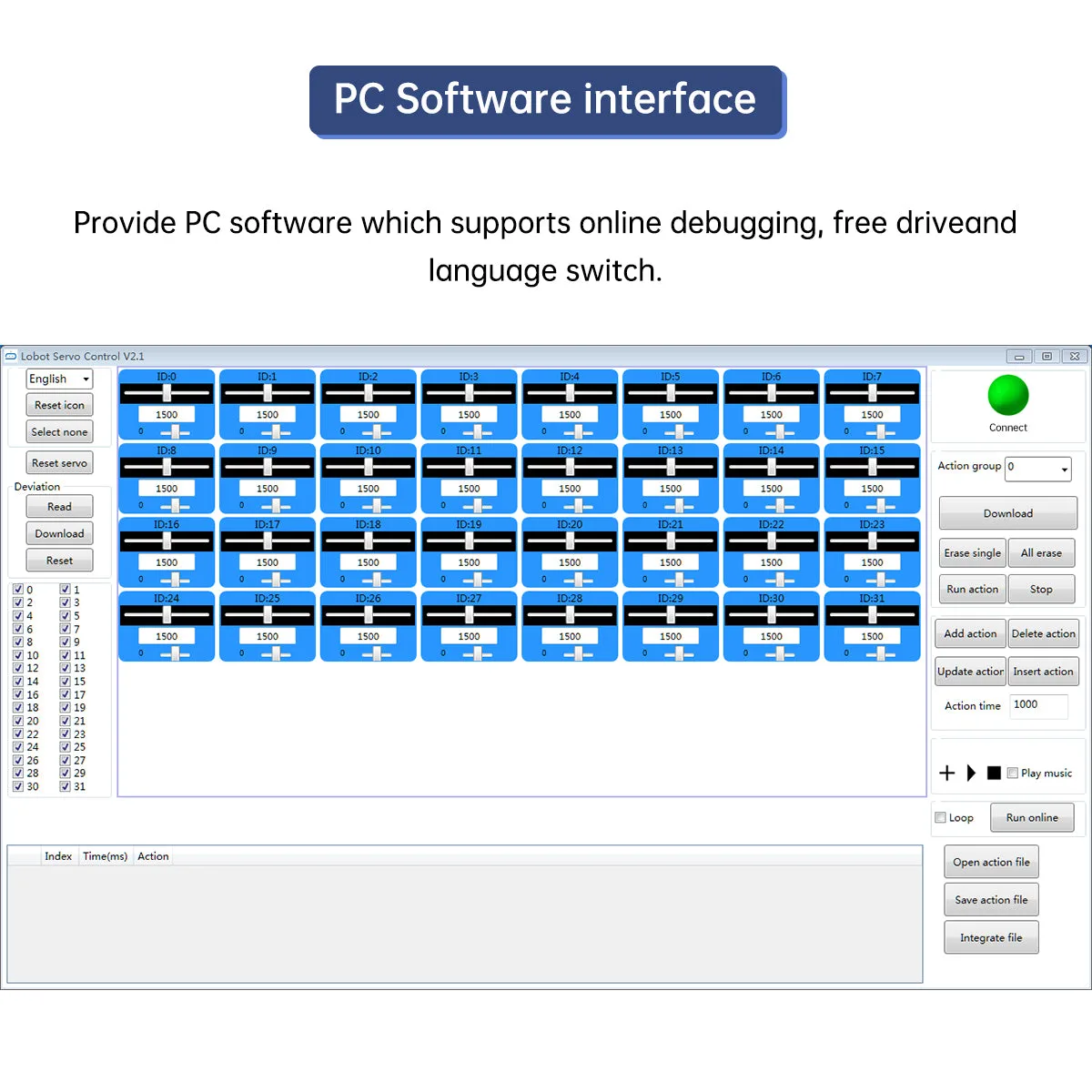

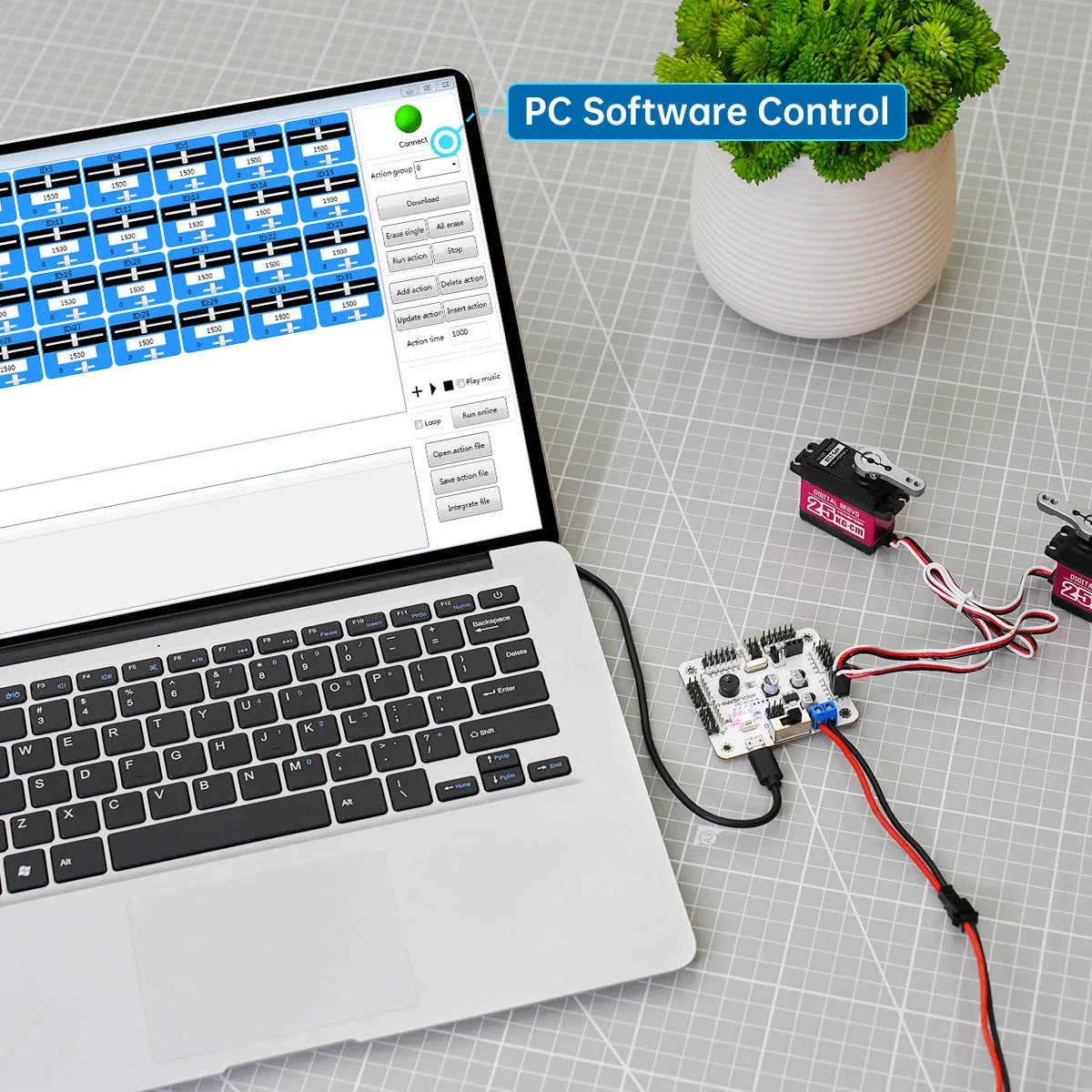

Driver-free PC debugging software

The dedicated PC software interface allows for online debugging without the need to install external drivers. Users can easily configure, adjust, and test servo positions in real time.

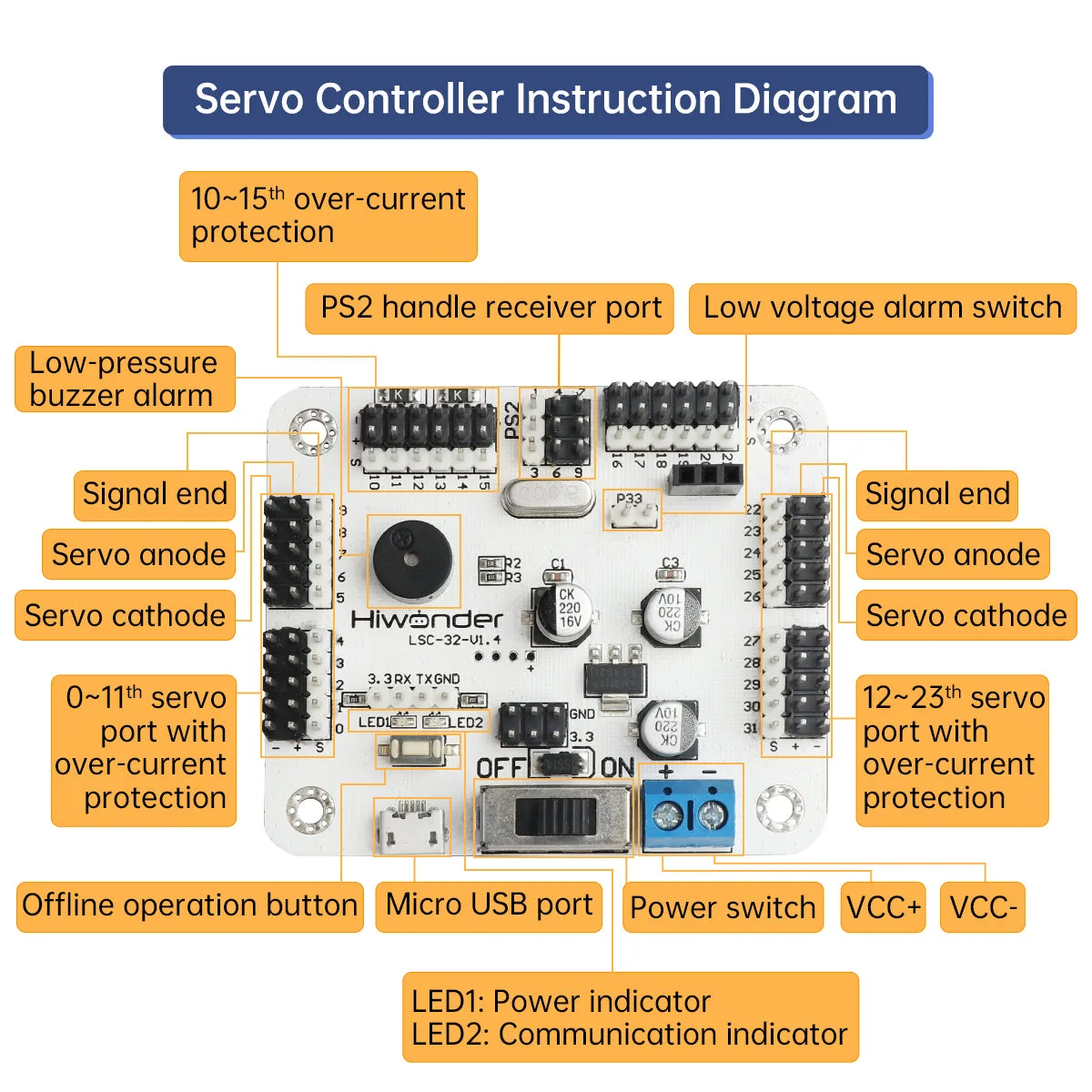

Hardware protection and safety features

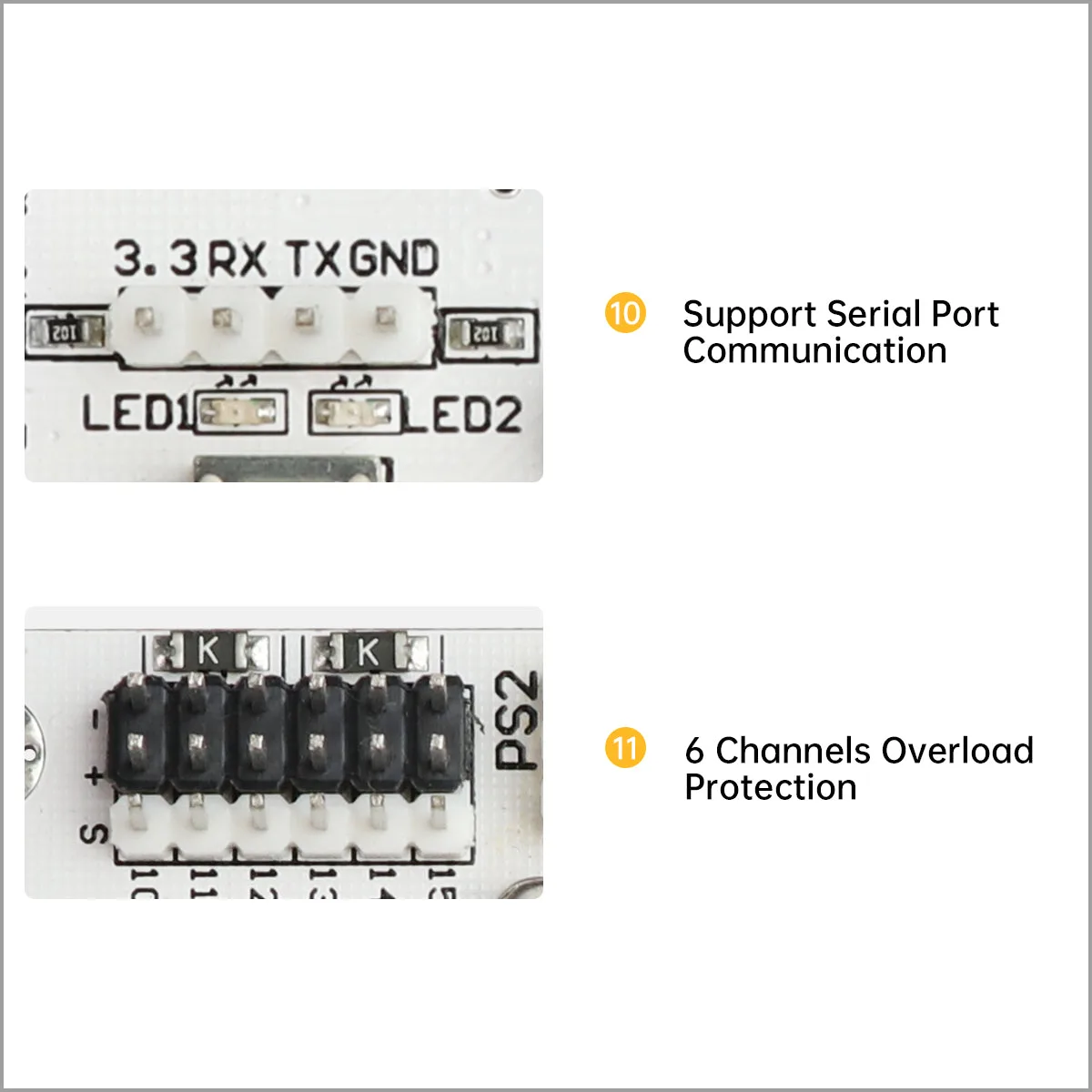

To prevent damage during heavy use, the board features six channels of overload protection to reduce the risk of servos stalling and burning out. A low-voltage buzzer alarm also sounds when the positive voltage drops below 5.6V, alerting you to recharge your battery.

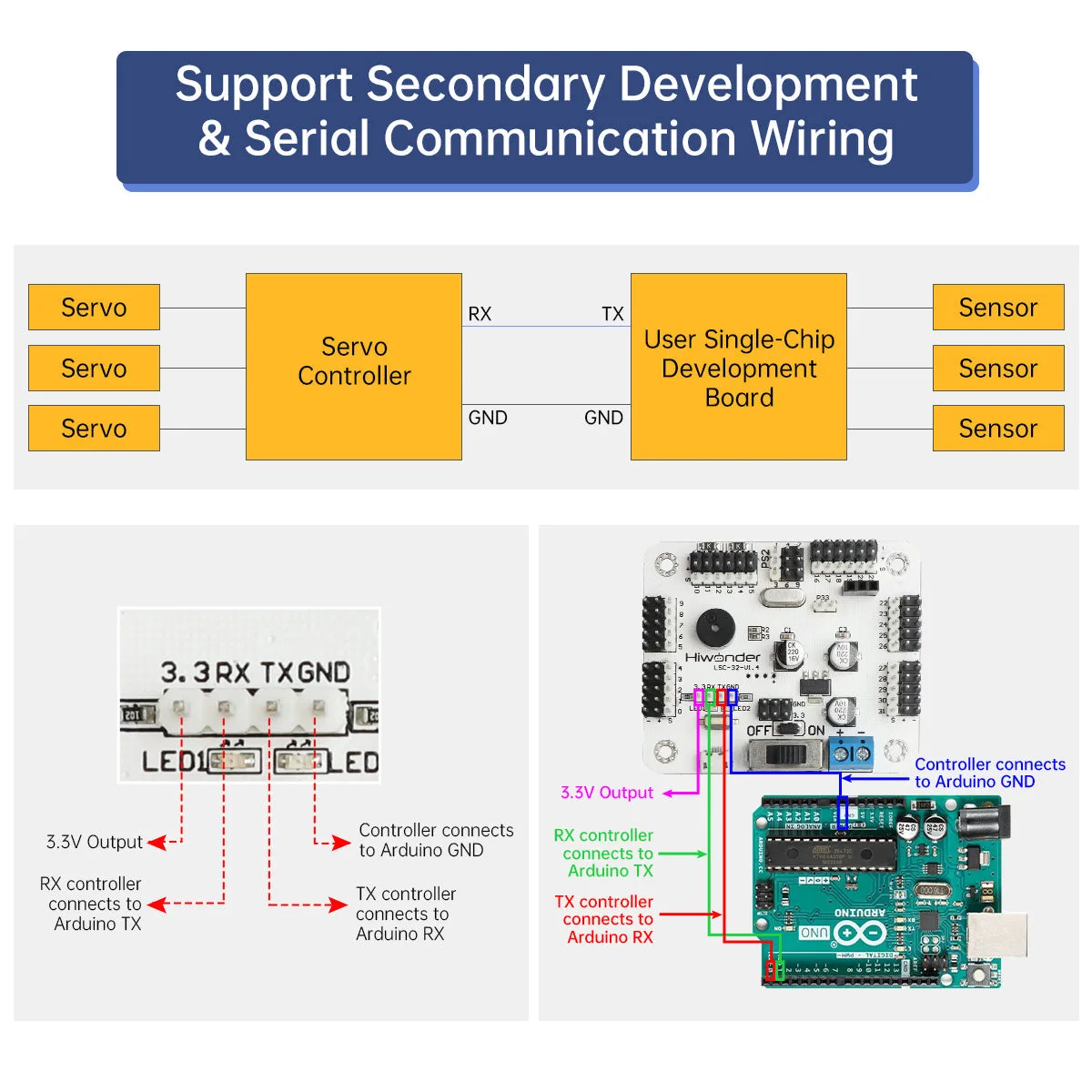

Seamless development board integration

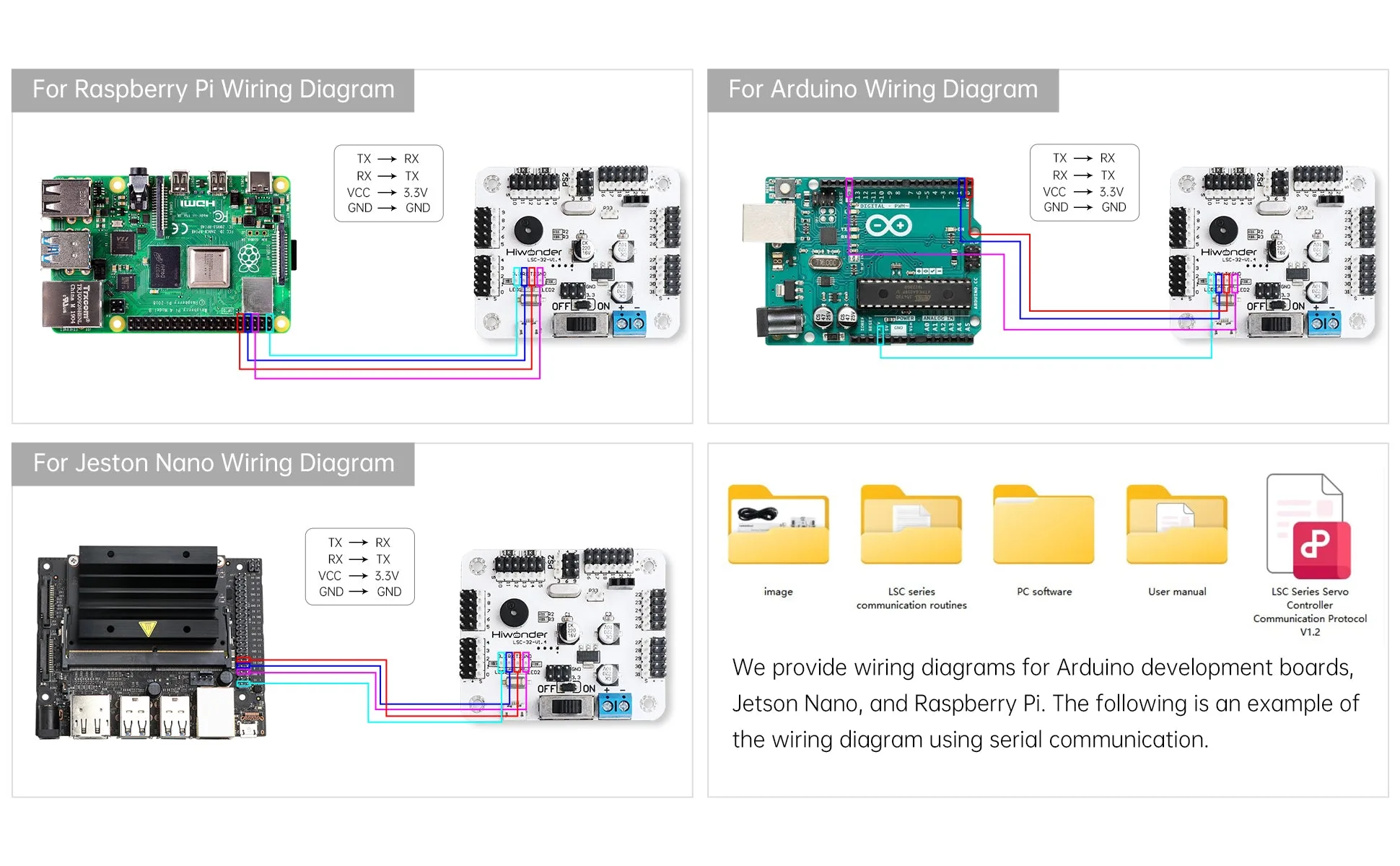

A reserved TTL serial communication port allows the controller to interface directly with external microcontrollers. To simplify setup, communication protocols and routines are provided for Arduino, Raspberry Pi, and Jetson Nano.

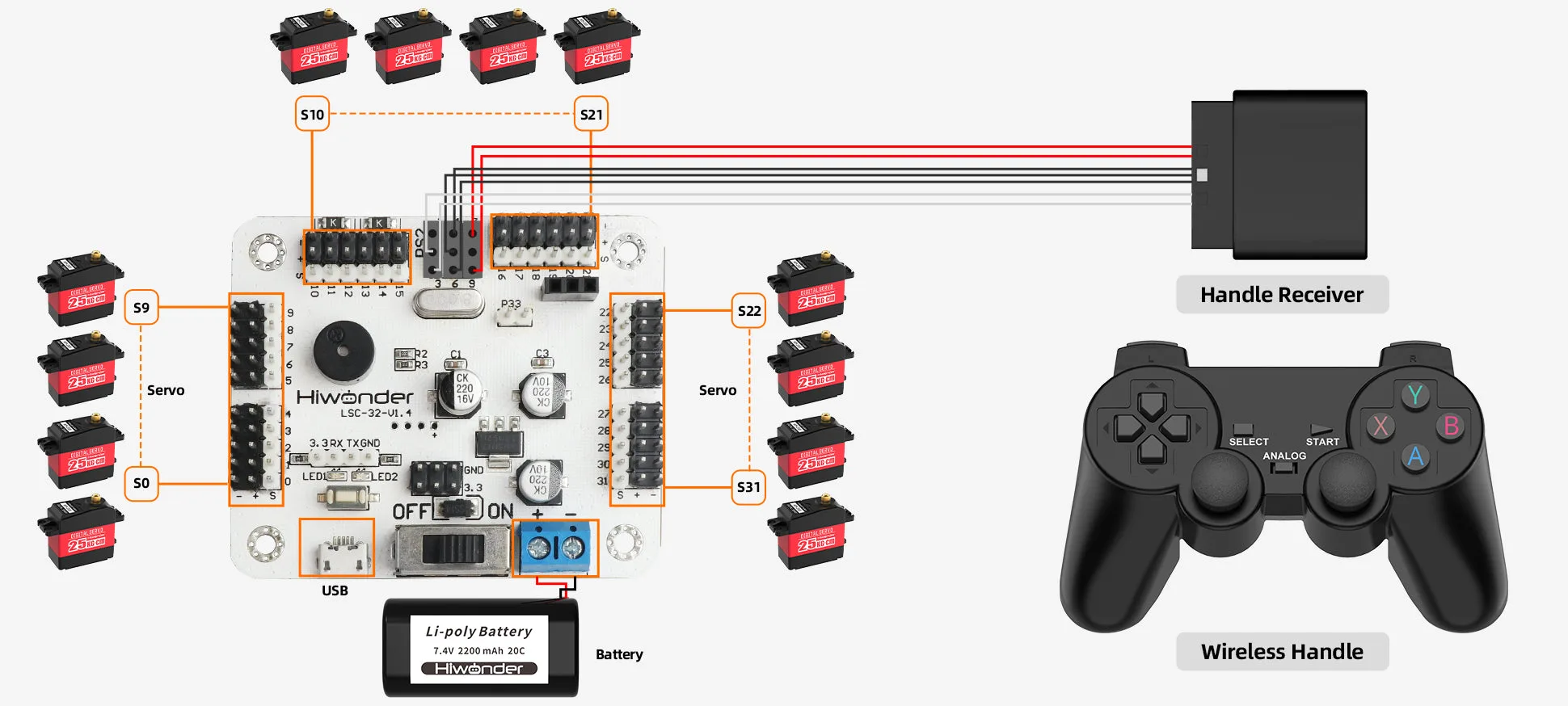

Versatile expansion and control options

The controller features a dedicated PS2 handle interface for wireless remote control up to 10 metres away. It also supports plug-in Bluetooth modules for mobile control and MP3 modules to add sound effects to your robot.
