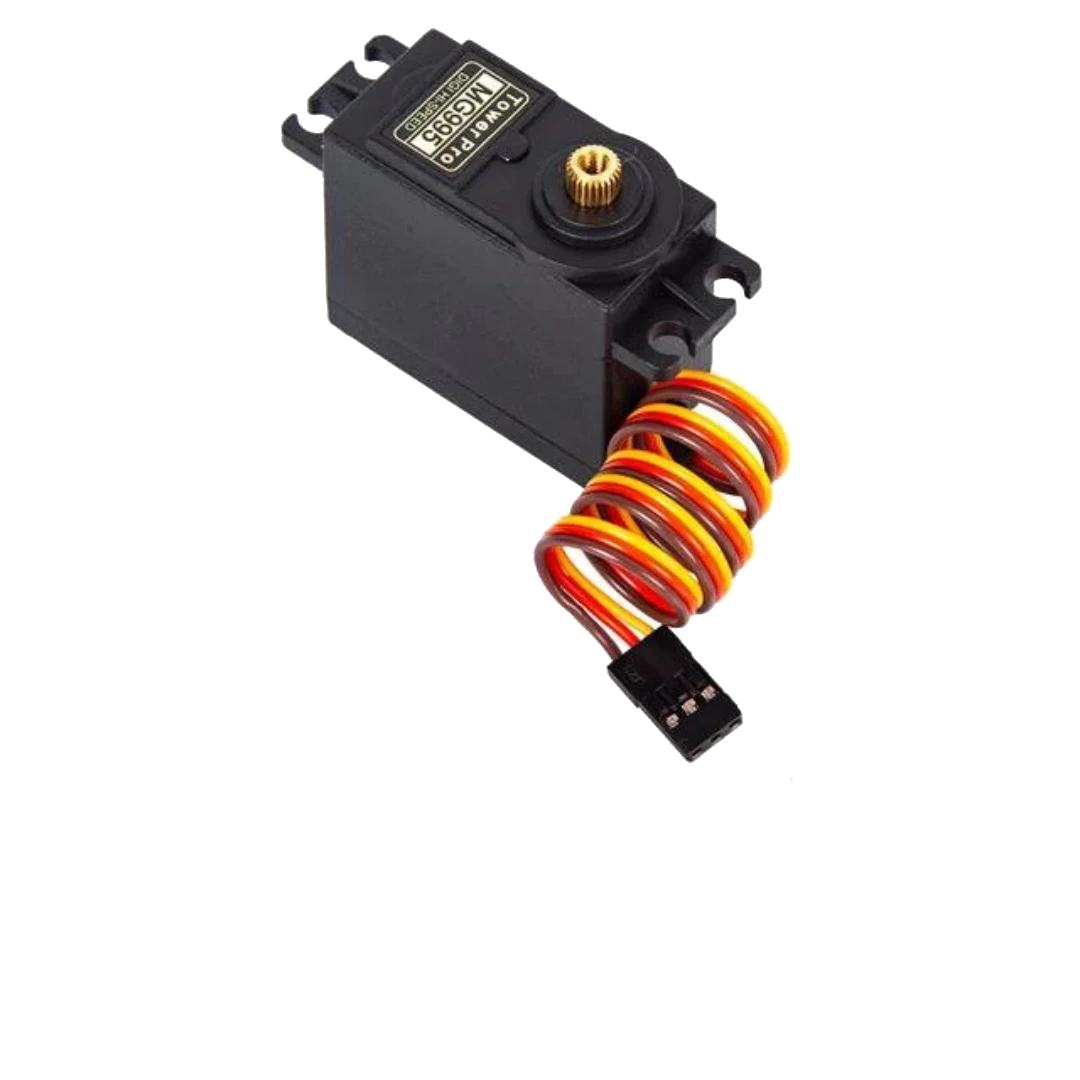

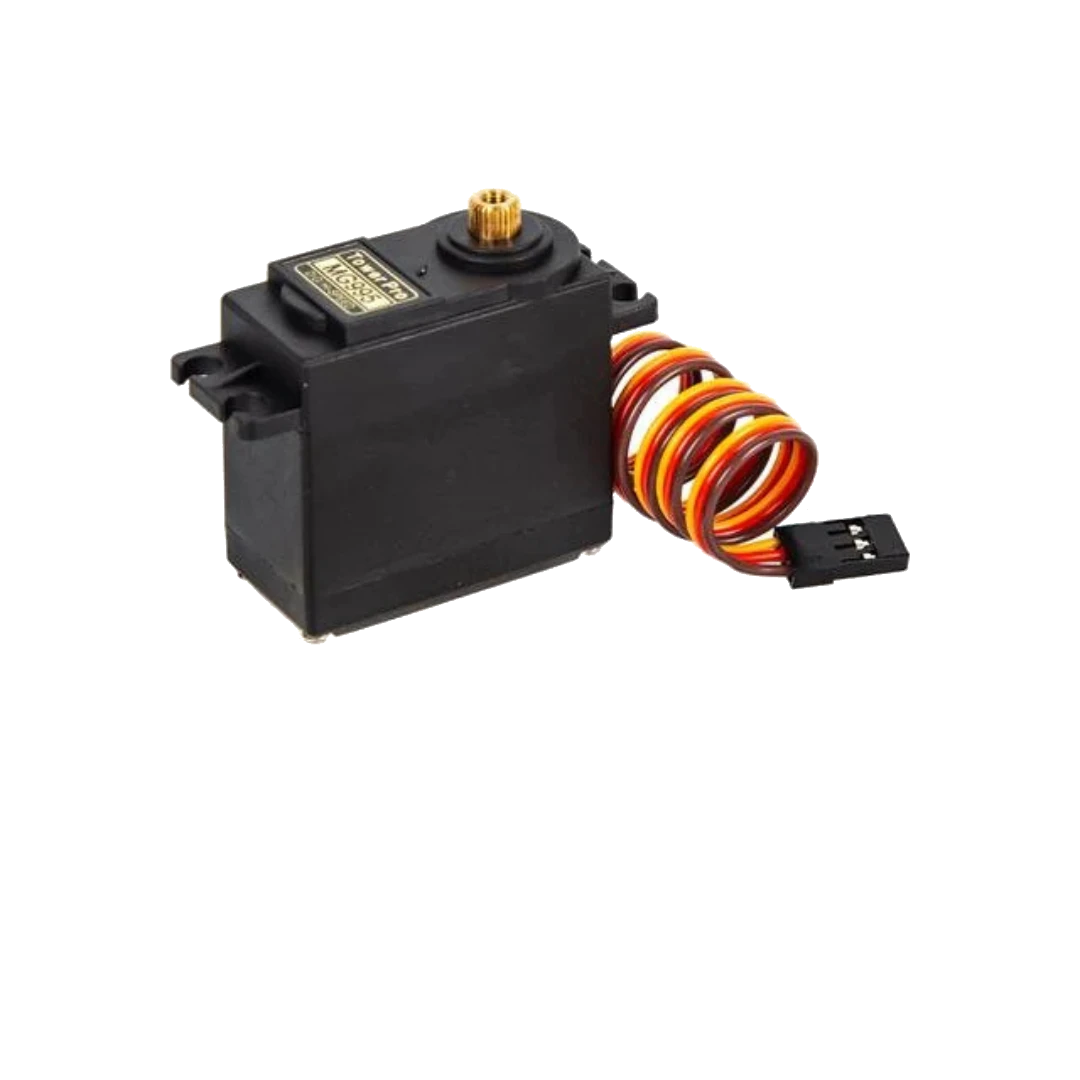

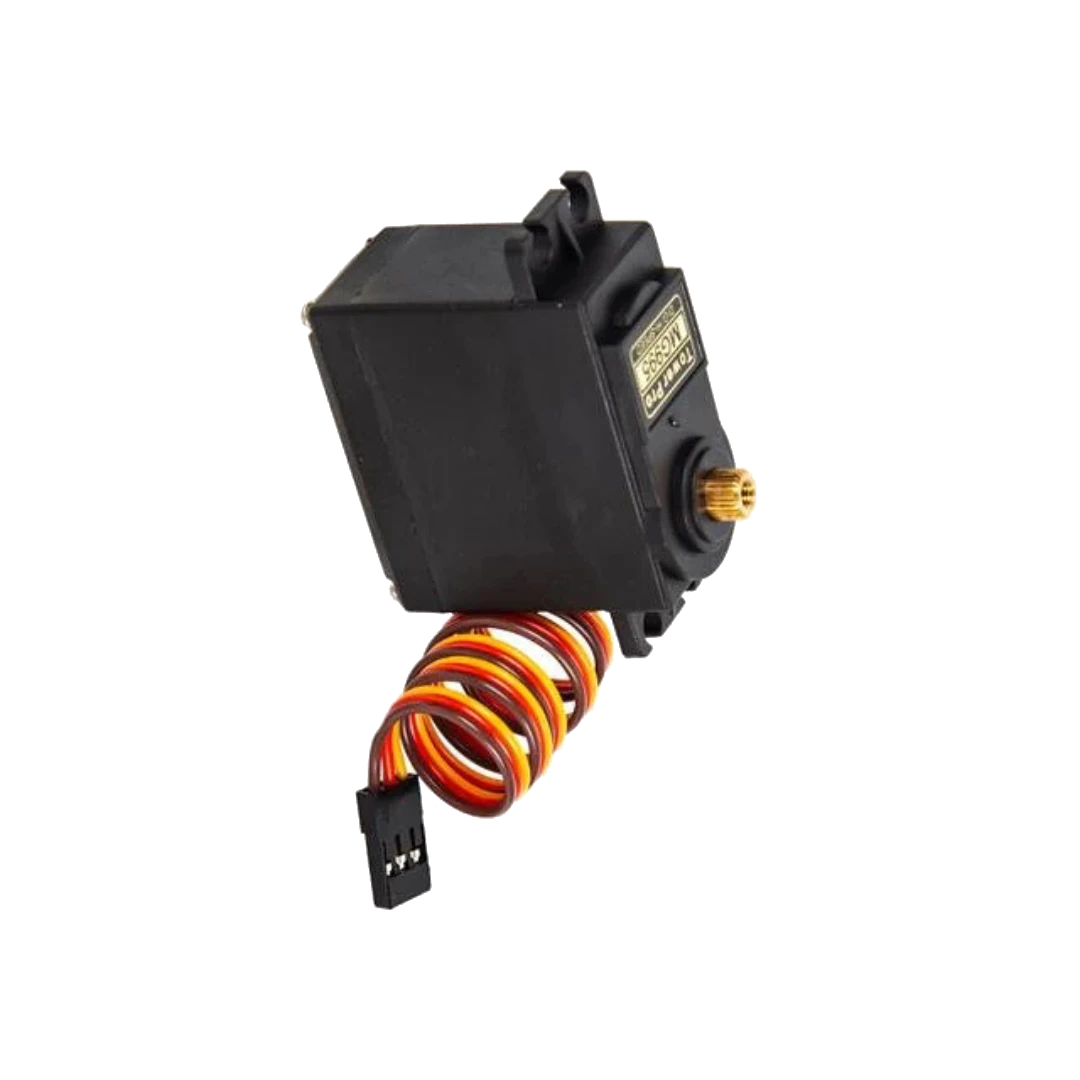

MG995 Full Metal Gear Servo Motor - 180 - 12Kg Torque

The MG995 180 Full Metal Gear Servo Motor is a high-torque, precision analog servo ideal for a wide range of demanding applications. With a torque output of up to 12Kg/cm, it's capable of handling tough mechanical loads in robotics, RC vehicles, aircraft, and other automation systems.

Featuring a 180-degree rotation range, this servo is perfect for tasks that require precise angular movement such as robotic joints, grippers, and steering mechanisms. The full metal gear train ensures excellent durability and performance under high torque conditions, making it a reliable choice for both hobbyists and professionals.

This servo supports standard JR/Futaba connectors, is compatible with most servo controllers, and can be easily integrated with microcontroller platforms such as Arduino, Raspberry Pi, and STM32. It includes a comprehensive accessory kit for convenient installation.

Specifications:

• Operating Voltage: 3.0V - 7.2V DC
• Torque: 12Kg/cm (at optimal voltage)
• Rotation Range: 180 degrees
• Speed:
  0.17 sec/60 @ 4.8V
  0.13 sec/60 @ 6.0V
• Dead Band Width: 4 s
• Gears: Full metal gear construction
• Connection: JR/Futaba universal plug
• Cable Length: 30 cm (Signal: Yellow, Power: Red, Ground: Brown)
• Operating Temp: -30 C to +60 C
• Size: 40.7 x 19.7 x 42.9 mm
• Weight: 55g

Applications:

• Biped robots and humanoid limbs
• RC cars, boats, and aircraft (methanol/gasoline fixed-wing)
• Robotic arms, pan-tilt mechanisms, and grippers
• Automation projects and hobby electronics

This servo is ideal where strong torque and accurate 180 movement are required. It's especially well-suited for robotics and RC tasks that involve stable, repeatable angular motion.

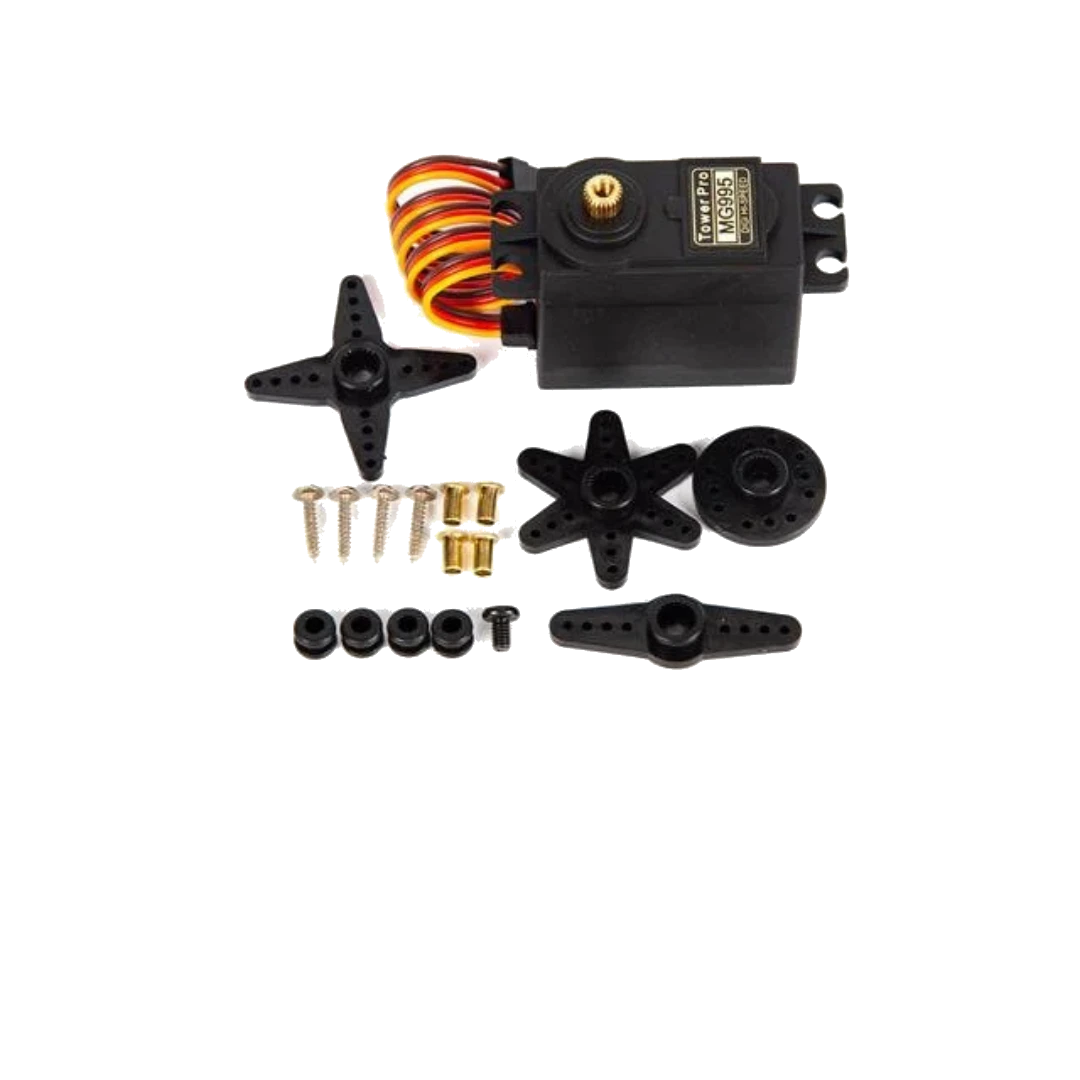

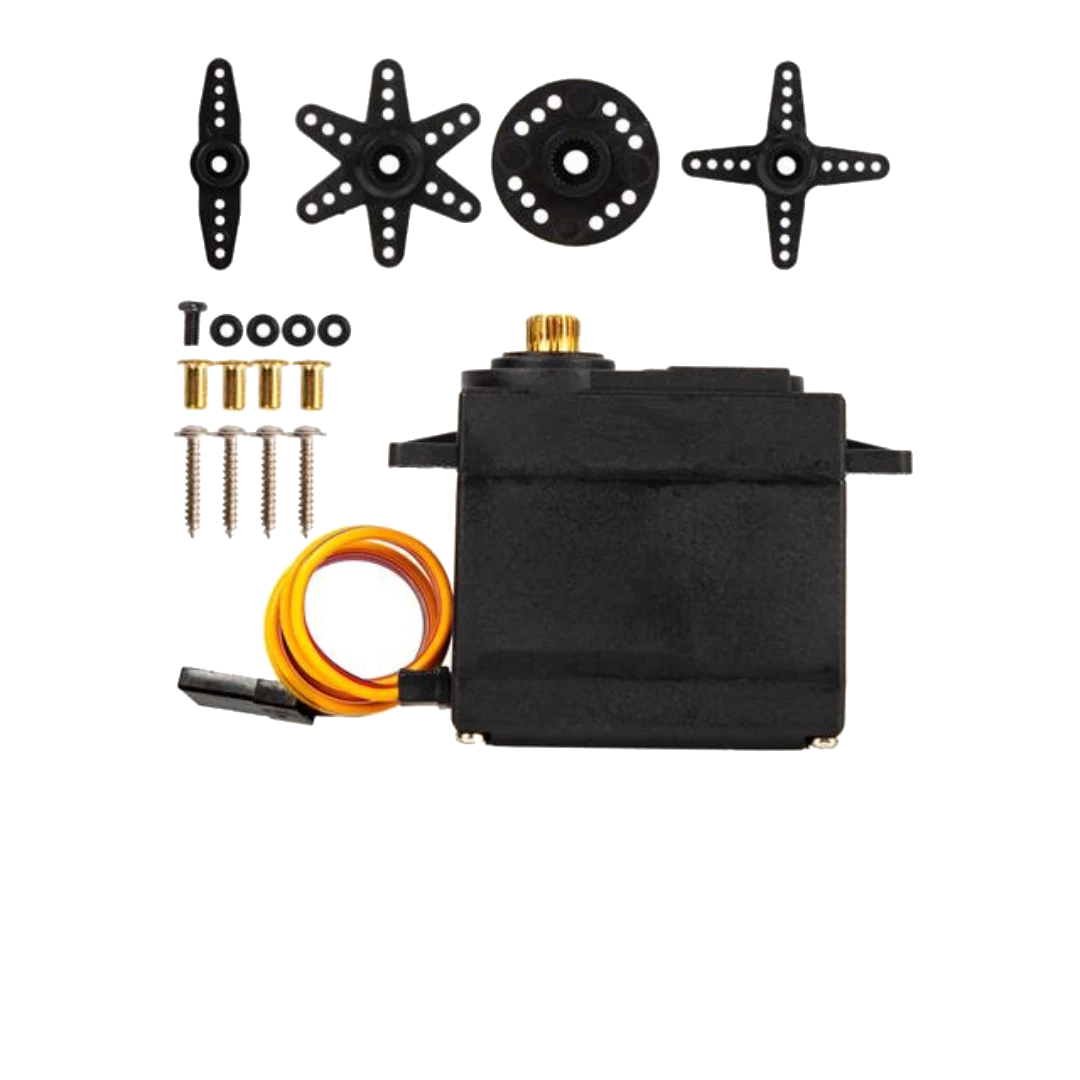

What's in the box
x1 Rudder horn
x1 Fixing screws
x1 Vibration-damping rubber sleeves
x1 Aluminum mounting sleeves
x1 MG995 Full Metal Gear Servo Moto
