MG995 Full Metal Gear Servo Motor - 360 Continuous Rotation - 12Kg Torque

The MG995 360 Full Metal Gear Servo is a powerful, reliable, and high-performance servo motor designed for heavy-duty robotic and RC applications. With a torque rating of up to 12Kg/cm, it is ideal for use in robotic joints, biped robots, RC vehicles, boats, and even medium-size aircraft. Its 360 continuous rotation capability makes it suitable for wheel-driving mechanisms and other rotational motion needs.

Equipped with durable full metal gears, the MG995 ensures superior wear resistance and longevity under high load. The motor's high-precision potentiometer and analog control offer accurate positioning and consistent performance. It operates across a wide voltage range of 3.0V to 7.2V, giving users flexibility in powering the servo across various platforms.

Its universal JR/Futaba-compatible plug and standard 3-wire configuration (Signal, VCC, GND) make integration simple in any standard RC or microcontroller setup. The servo is designed to withstand tough environments with an operating temperature range of -30 C to +60 C, and it comes with a full accessory kit for easy installation and mounting.

Specifications:

• Operating Voltage: DC 3.0V - 7.2V
• Torque: Up to 12Kg/cm (at optimal voltage)
• Rotation Range: 360 Continuous
• Speed:
  0.17 sec/60 @ 4.8V
  0.13 sec/60 @ 6.0V
• Dead Band Width: 4 s
• Material: Full Metal Gear Train
• Connector Type: JR/Futaba Standard
• Cable Length: 30 cm
• Operating Temperature: -30 C to +60 C
• Dimensions: 40.7 x 19.7 x 42.9 mm
• Weight: 55g

Applications:

• Biped walking robots
• Wheeled robotic bases (via continuous rotation)
• Robotic arms and claws
• RC cars, boats, and aircraft (methanol & gasoline powered)
• DIY electronics and hobby projects
• Pan/tilt camera mounts

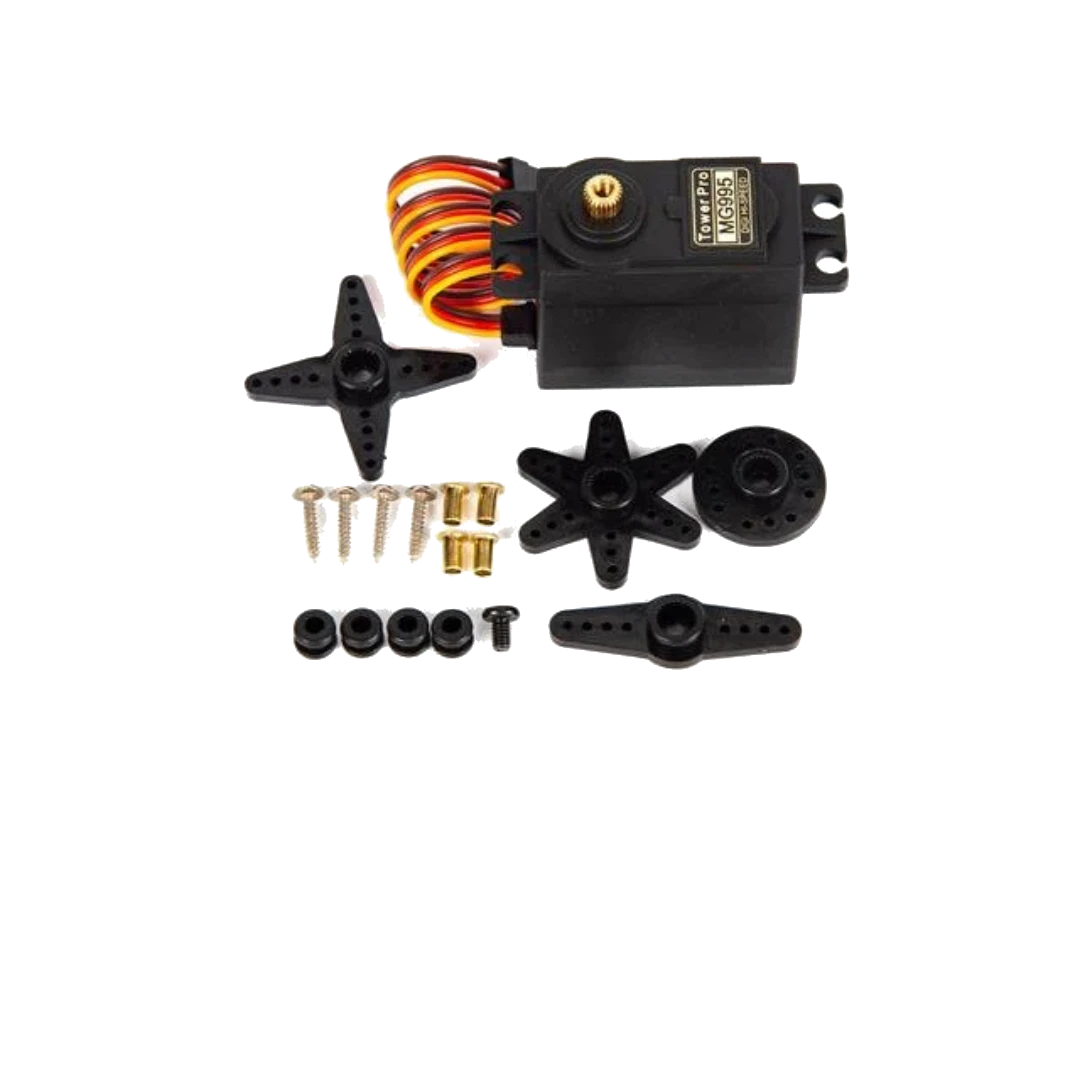

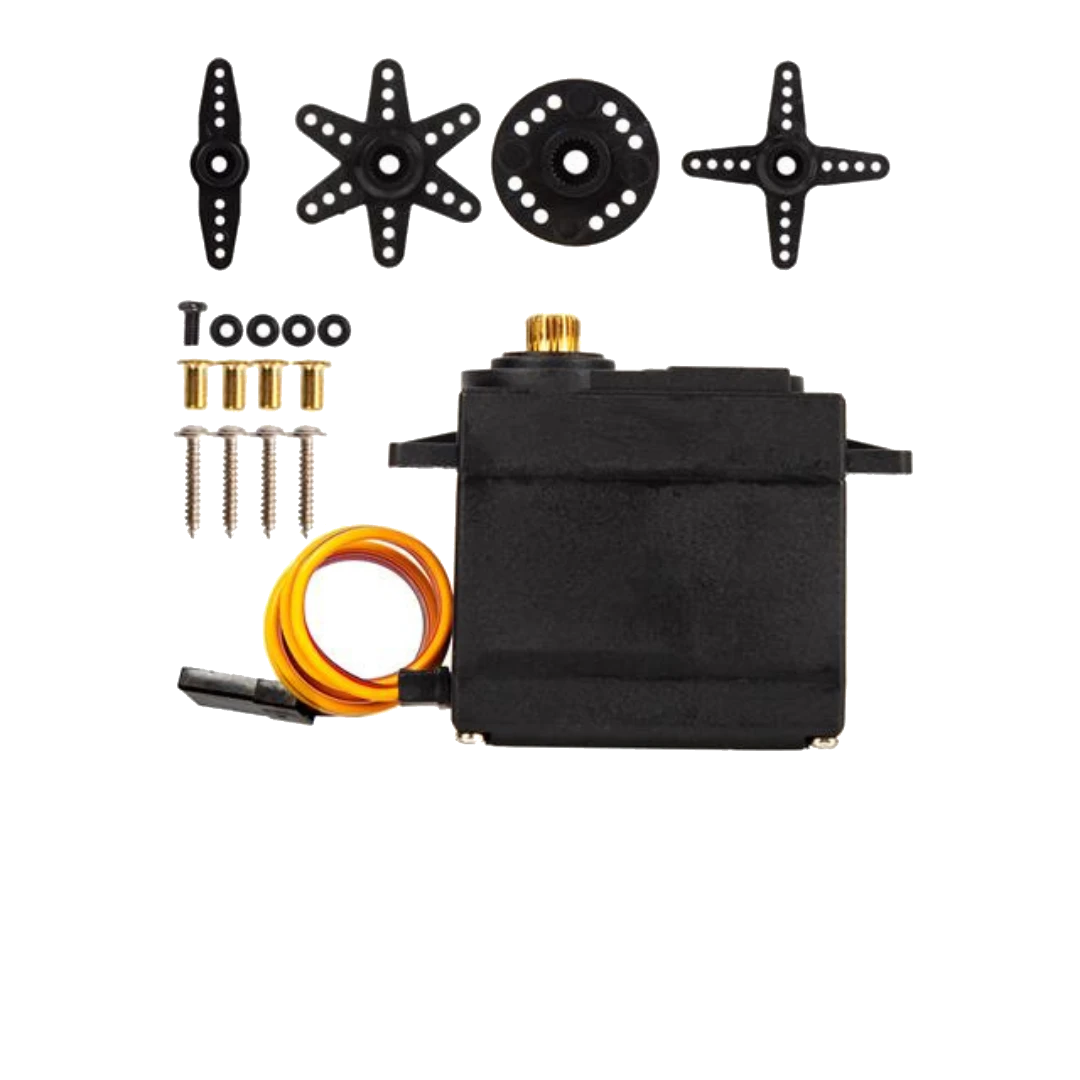

Accessories Included:

• Rudder horn
• Fixing screws
• Vibration-damping rubber sleeves
• Aluminium mounting sleeves

Note: As this is a 360 continuous rotation servo, it is ideal for rotational motion but not suitable for precise angular positioning (such as in arms or joints requiring limited-angle control).

What's in the box
x1 Rudder horn
x1 Fixing screws
x1 Vibration-damping rubber sleeves
x1 Aluminum mounting sleeves
x1 MG995 Full Metal Gear Servo Motor
