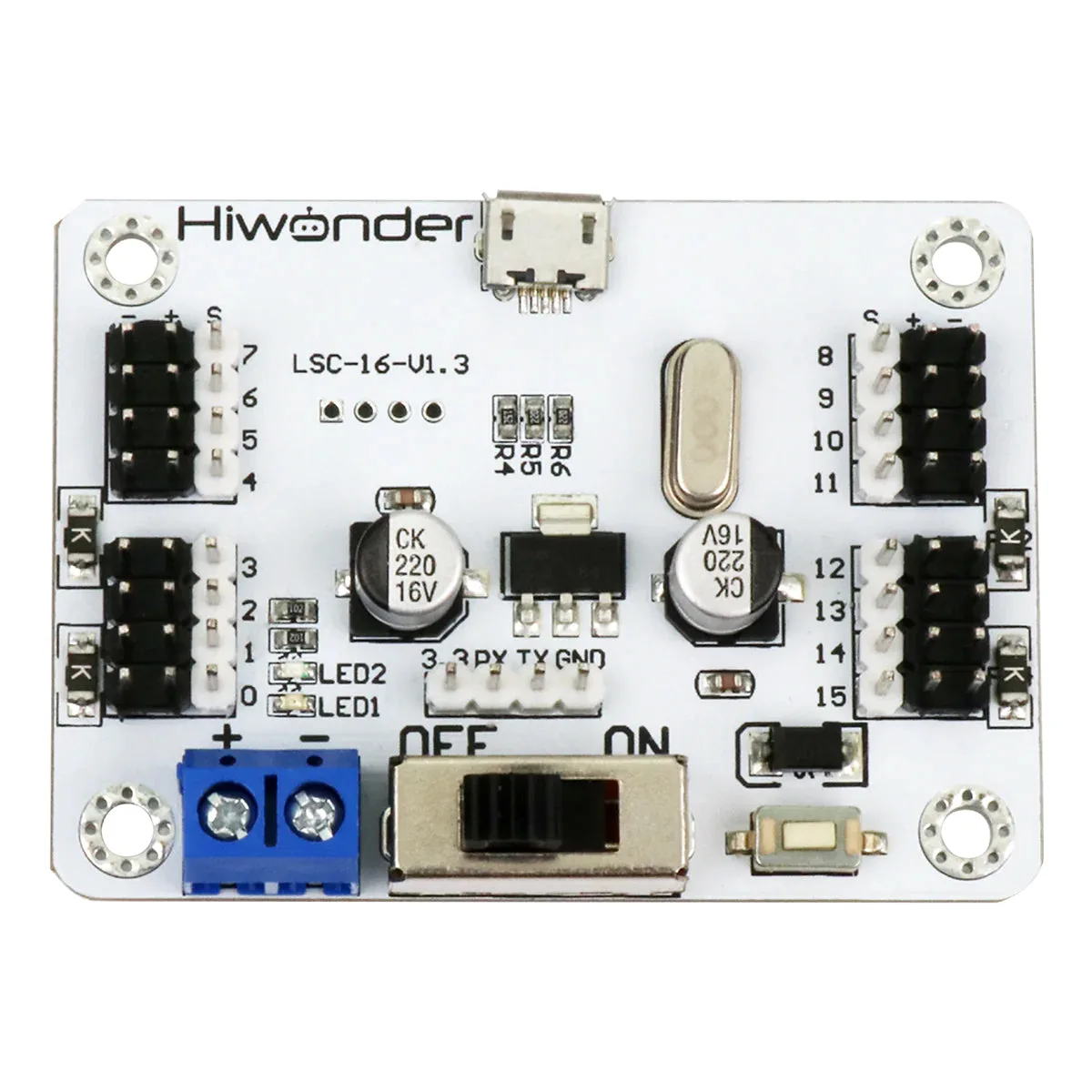

LSC-16: Hiwonder 16 Channel Servo Controller with Over-Current Protection
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Hiwonder LSC-16 is a high-performance 16-channel servo controller designed for precise motion control in robotics projects. It is an ideal solution for students, educators, and hobbyists building multi-axis robotic arms, biped walkers, or hexapod robots.

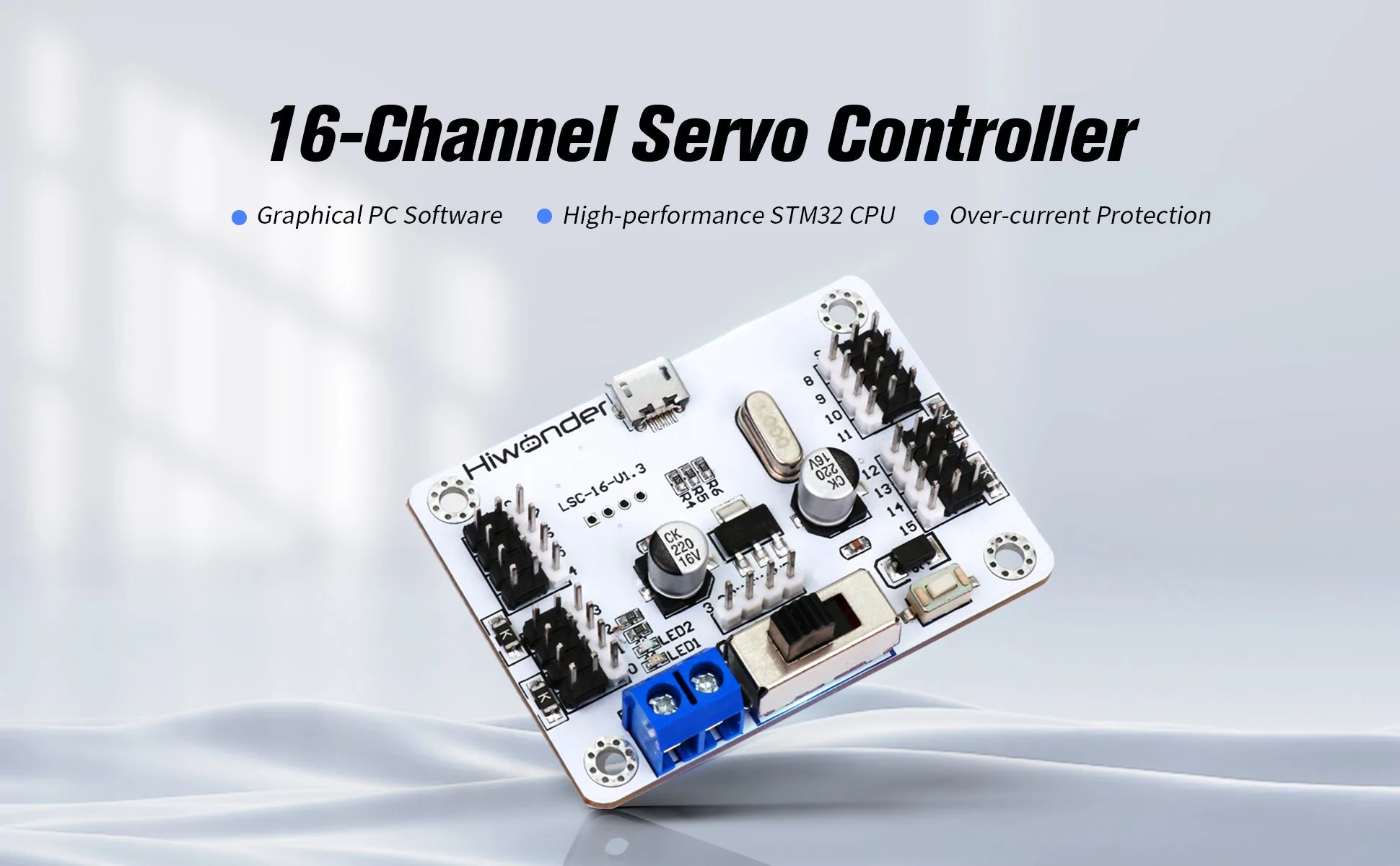

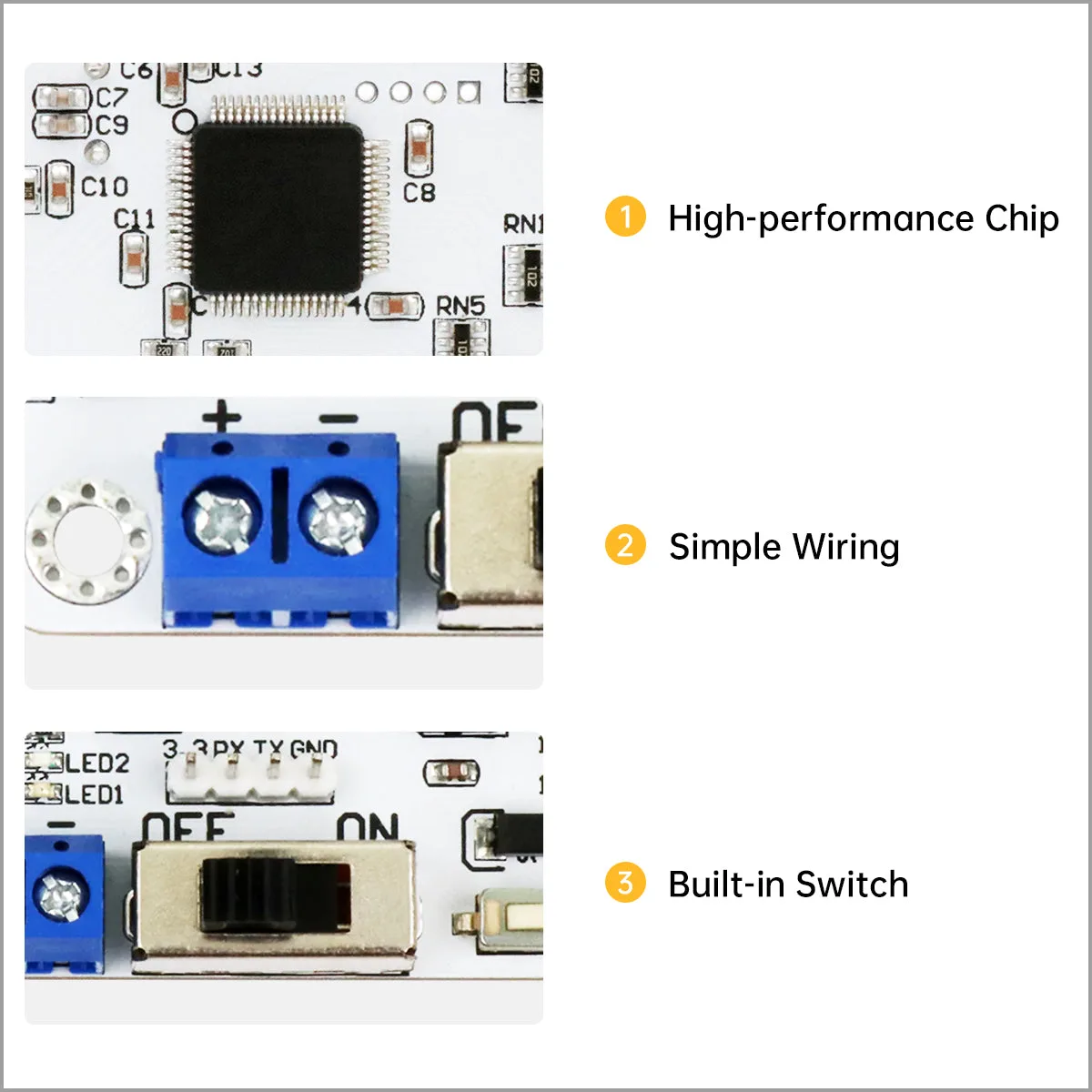

High-precision STM32 core processing
Powered by an STM32 microcontroller with an ARM Cortex-M3 core, this controller delivers high-precision motion control with adjustable speeds. The driver-free design allows for immediate online debugging on your computer without installing additional software.

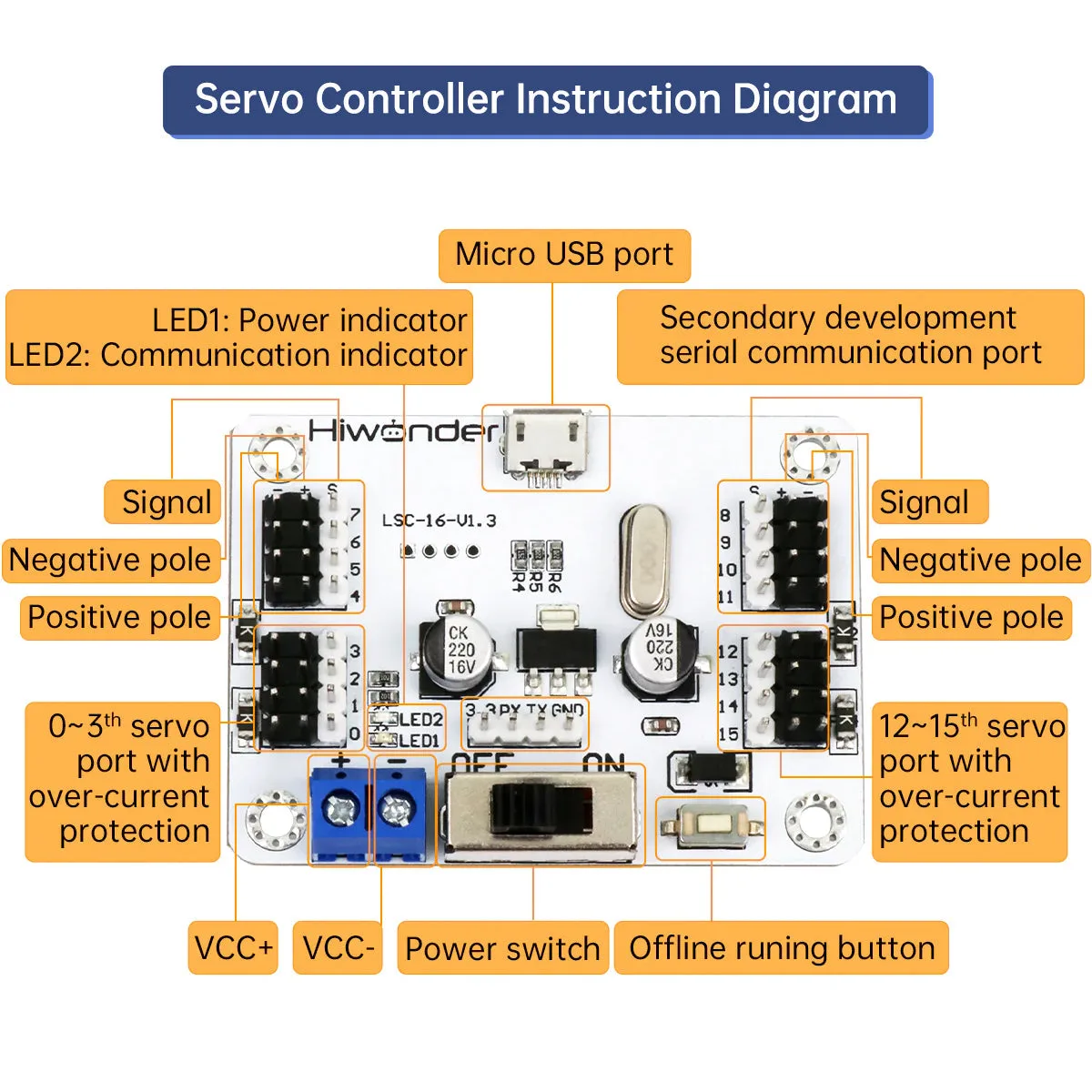

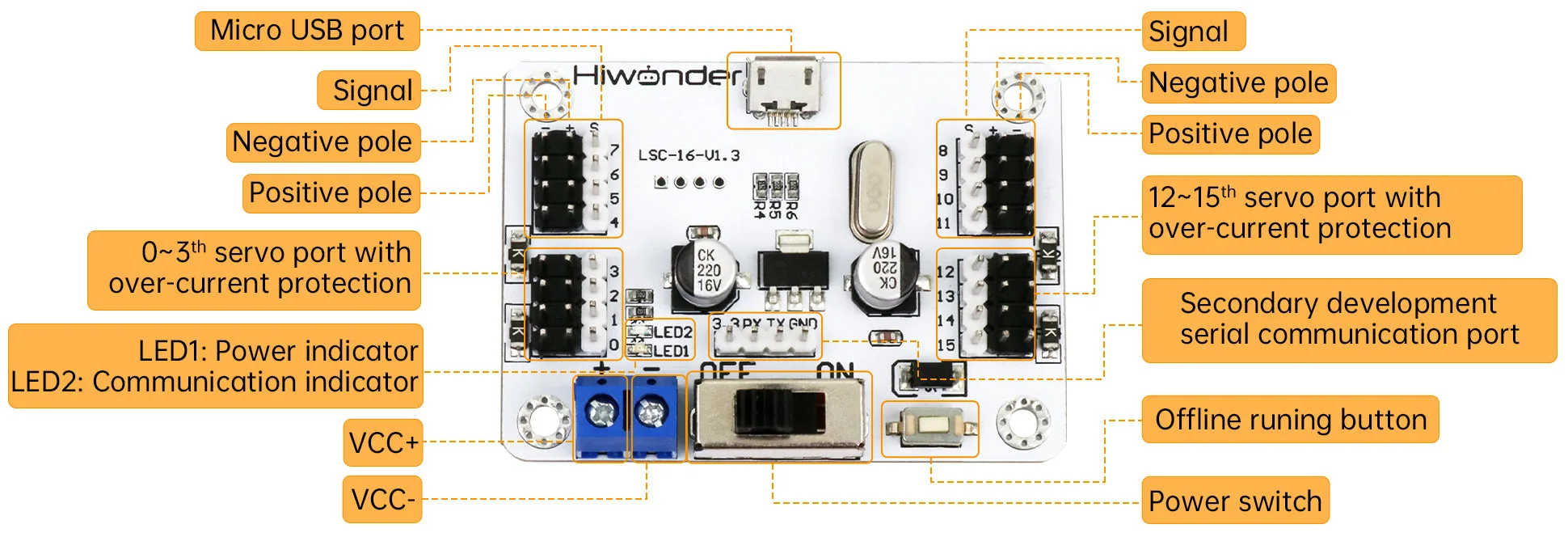

Simplified wiring and power management
Built-in positive and negative power interfaces simplify your wiring setup, while an integrated physical switch makes power management easy.
Large capacity offline memory
With 16MB of onboard memory, the controller can store up to 230 action groups, with each group containing up to 510 individual actions. These action groups can be run offline either once or looped continuously.

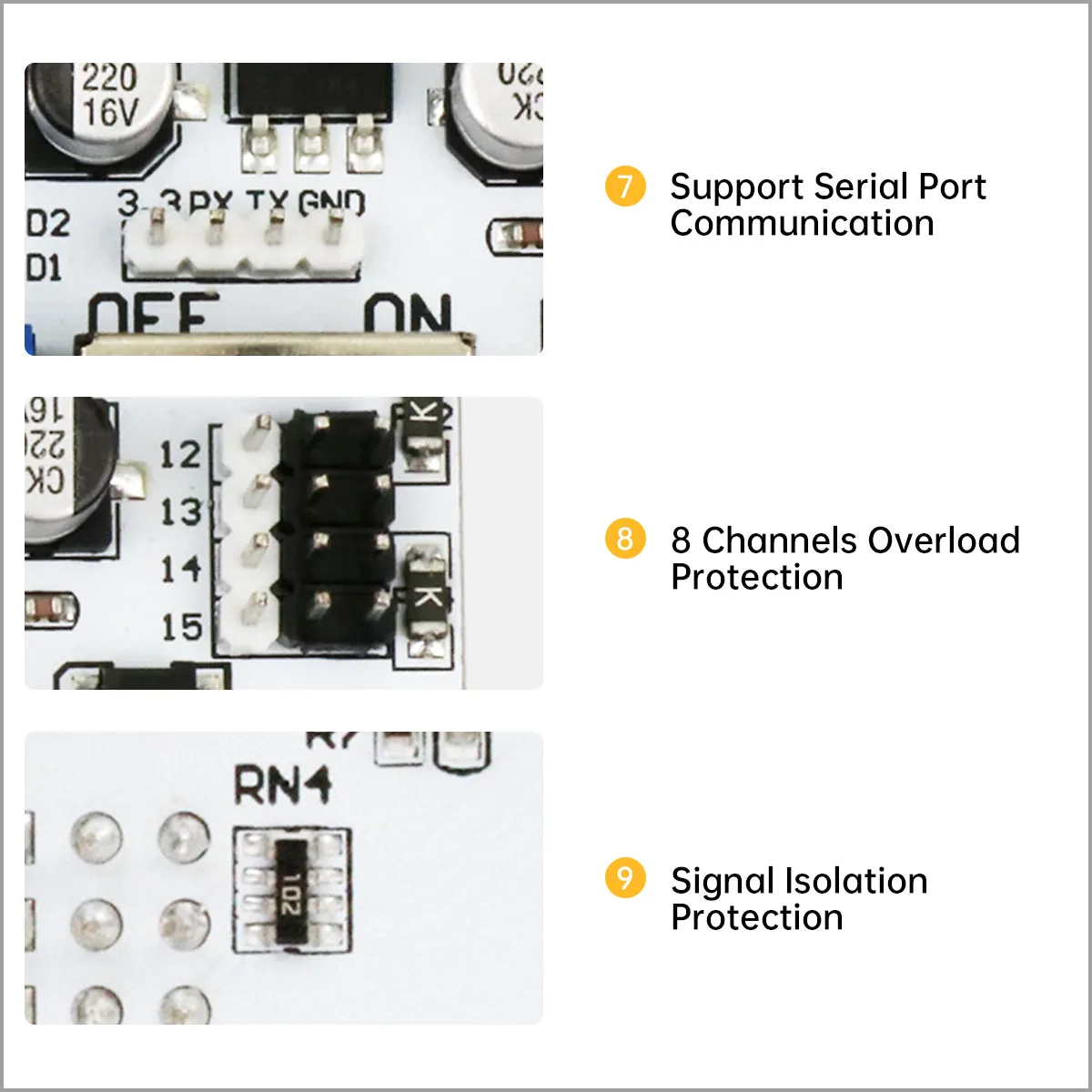

Built-in electrical and signal protection
The controller features eight-way overload protection to prevent servos from blocking and burning out. Signal isolation between the servo output and the CPU protects the processor from damaging power surges.

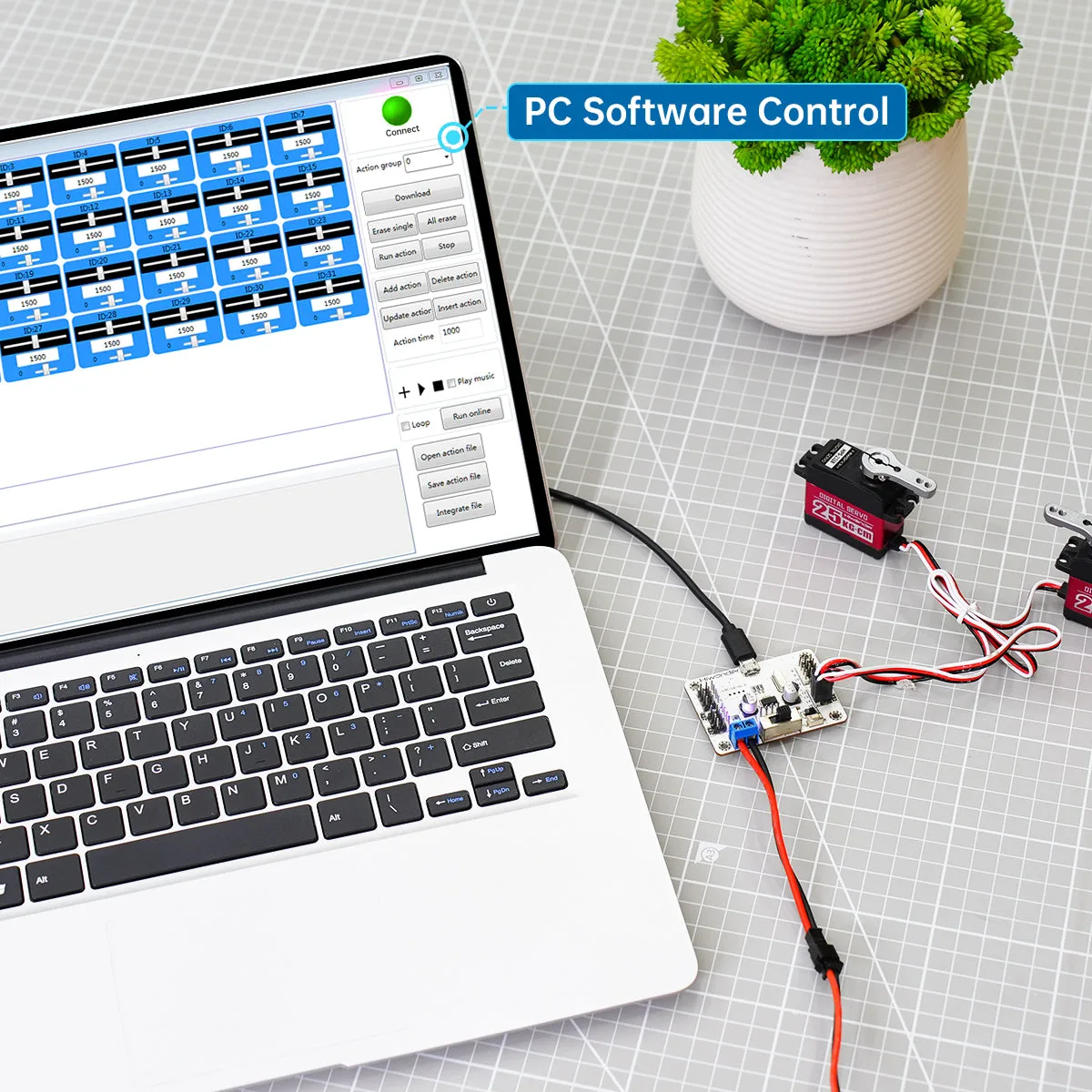

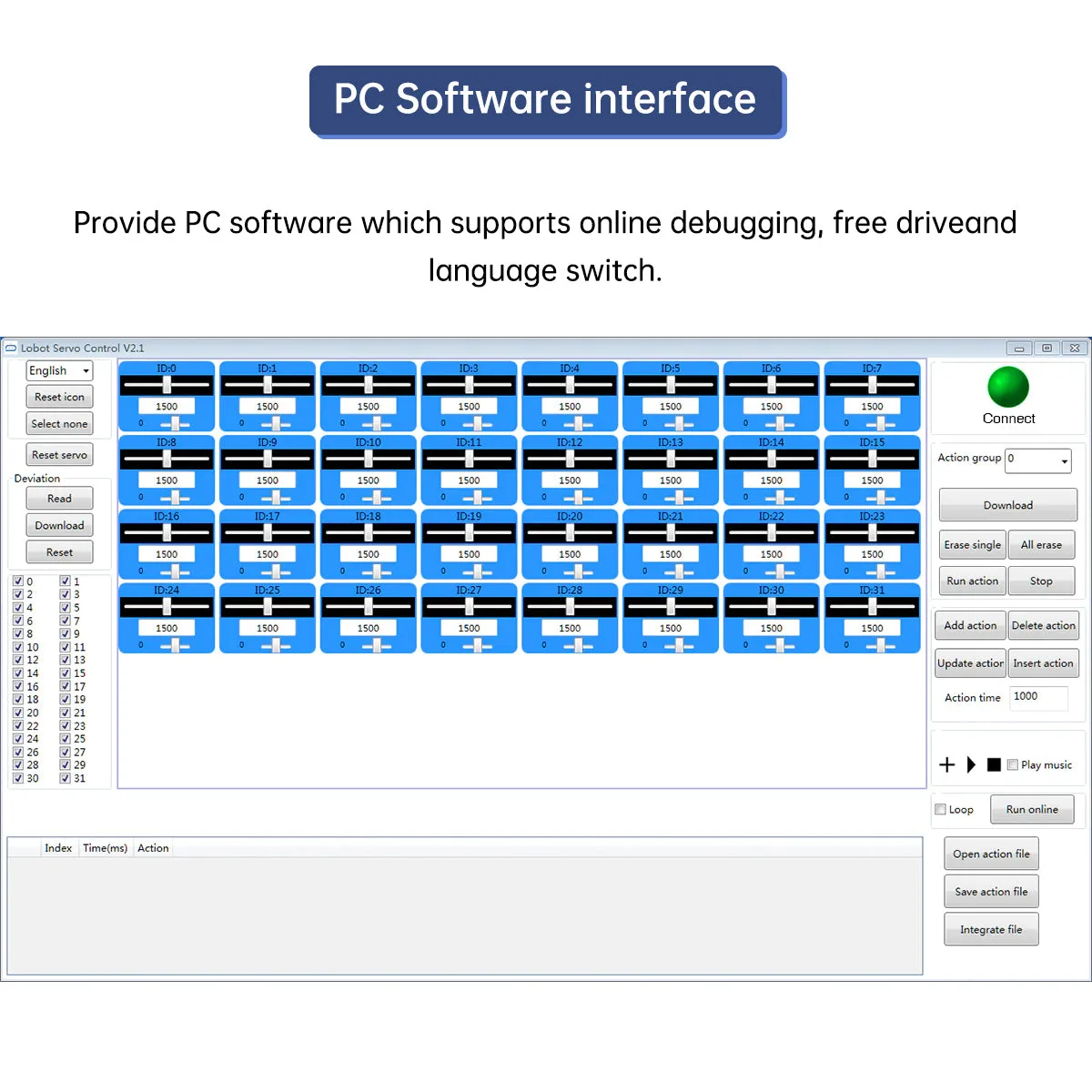

Graphical PC software interface
Configure and program your servo sequences easily using the dedicated PC debugging software. The driver-free setup ensures you can plug in and begin debugging your robot's movements immediately.

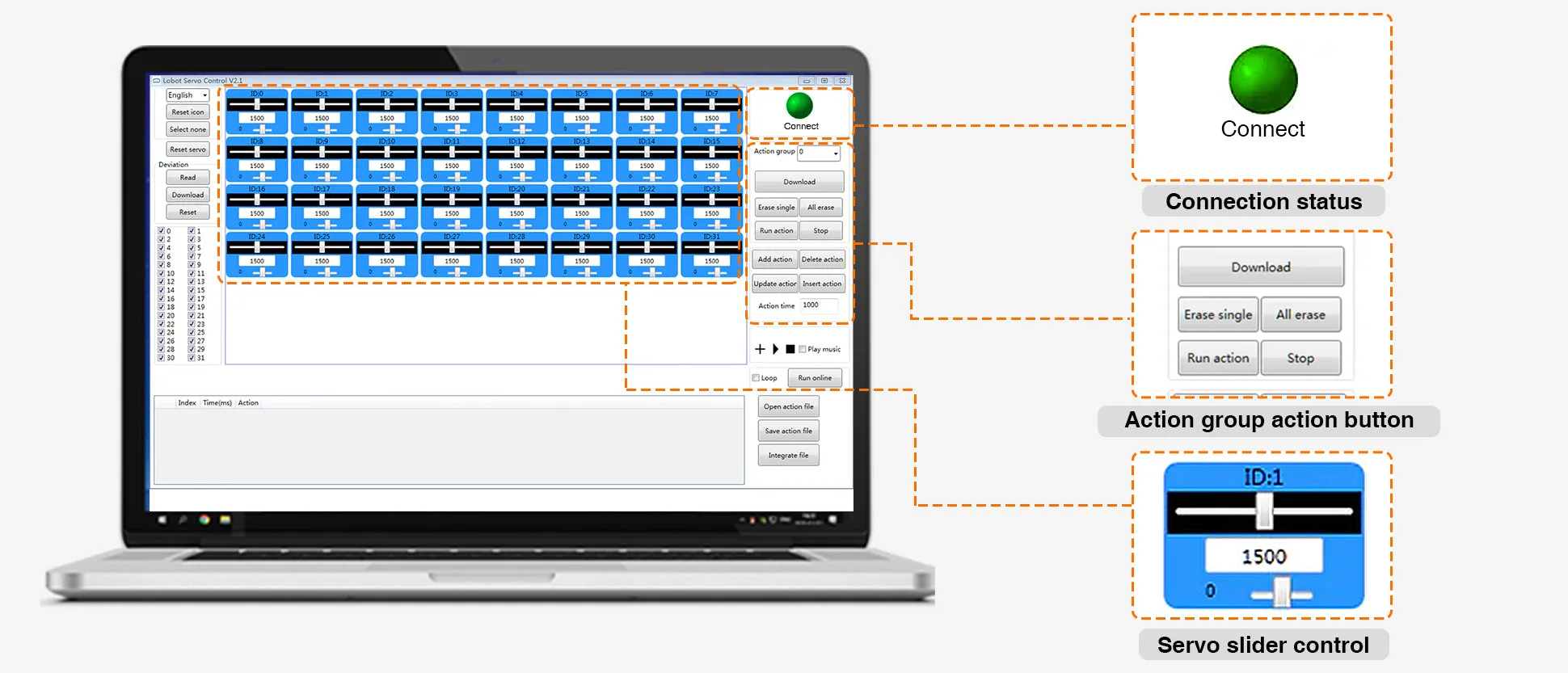

Flexible debugging options
The controller supports real-time online debugging, allowing you to test and adjust servo positions on the fly. This makes it simple to calibrate complex multi-servo movements.

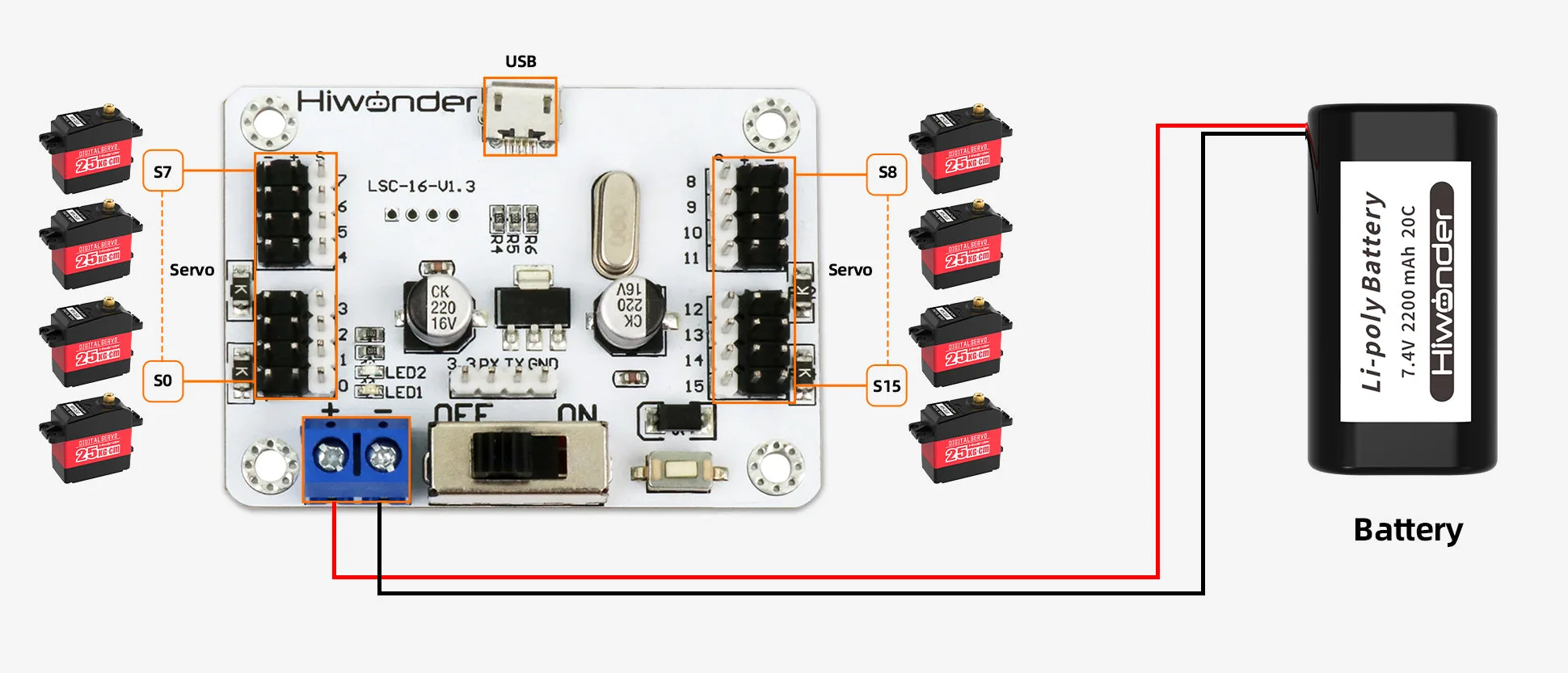

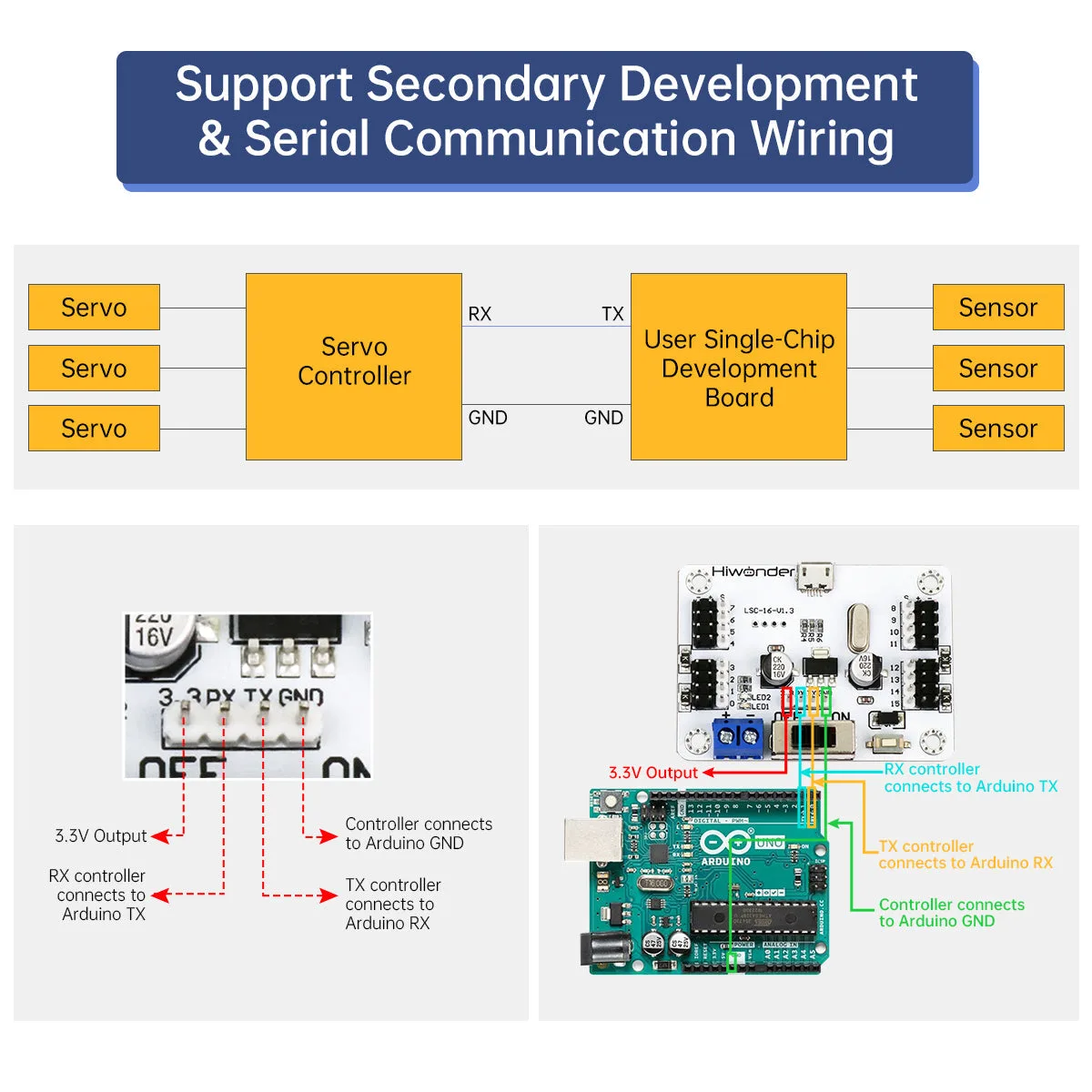

Development board expansion support
A reserved TTL serial communication interface allows the controller to connect directly to external microcontrollers. Sample communication routines are provided for Arduino, Raspberry Pi, and Jetson Nano to accelerate your development.

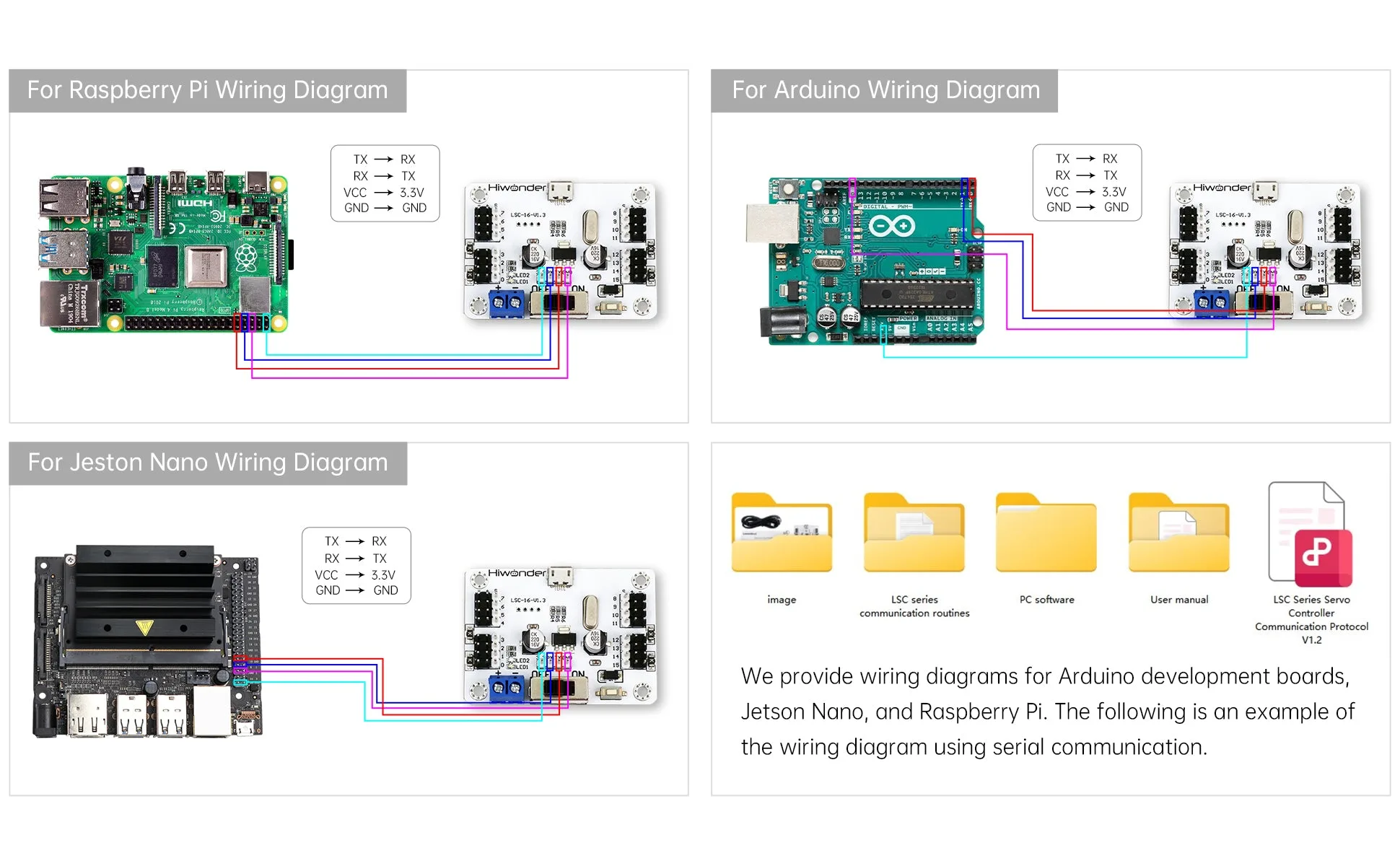

Multi-platform serial communication
The controller supports serial communication with other microcontrollers, enabling them to send direct control commands. Communication protocols are provided for 51, STM32, and Arduino platforms.
