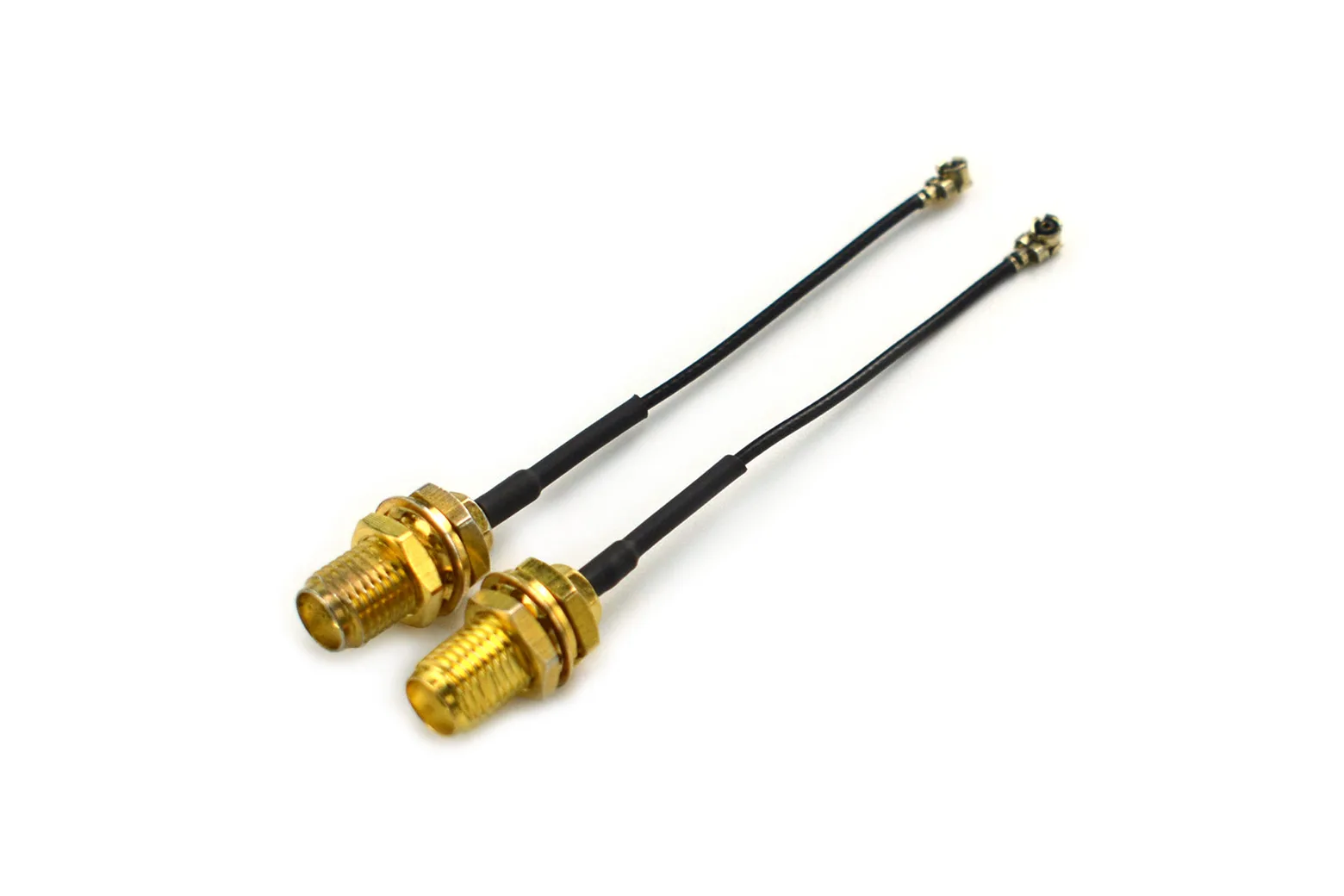

IPEX MHF1 to SMA Female Connector Cable (100mm, 2 PCS)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This pack of two 100mm IPEX MHF1 to SMA female connector cables provides a reliable antenna interface for wireless projects. Designed for makers, students, and engineers integrating external antennas onto compact development boards, it supports high-frequency data transmission. It is ideal for WiFi, GPS, and cellular communication setups requiring a 50-ohm RF connection.

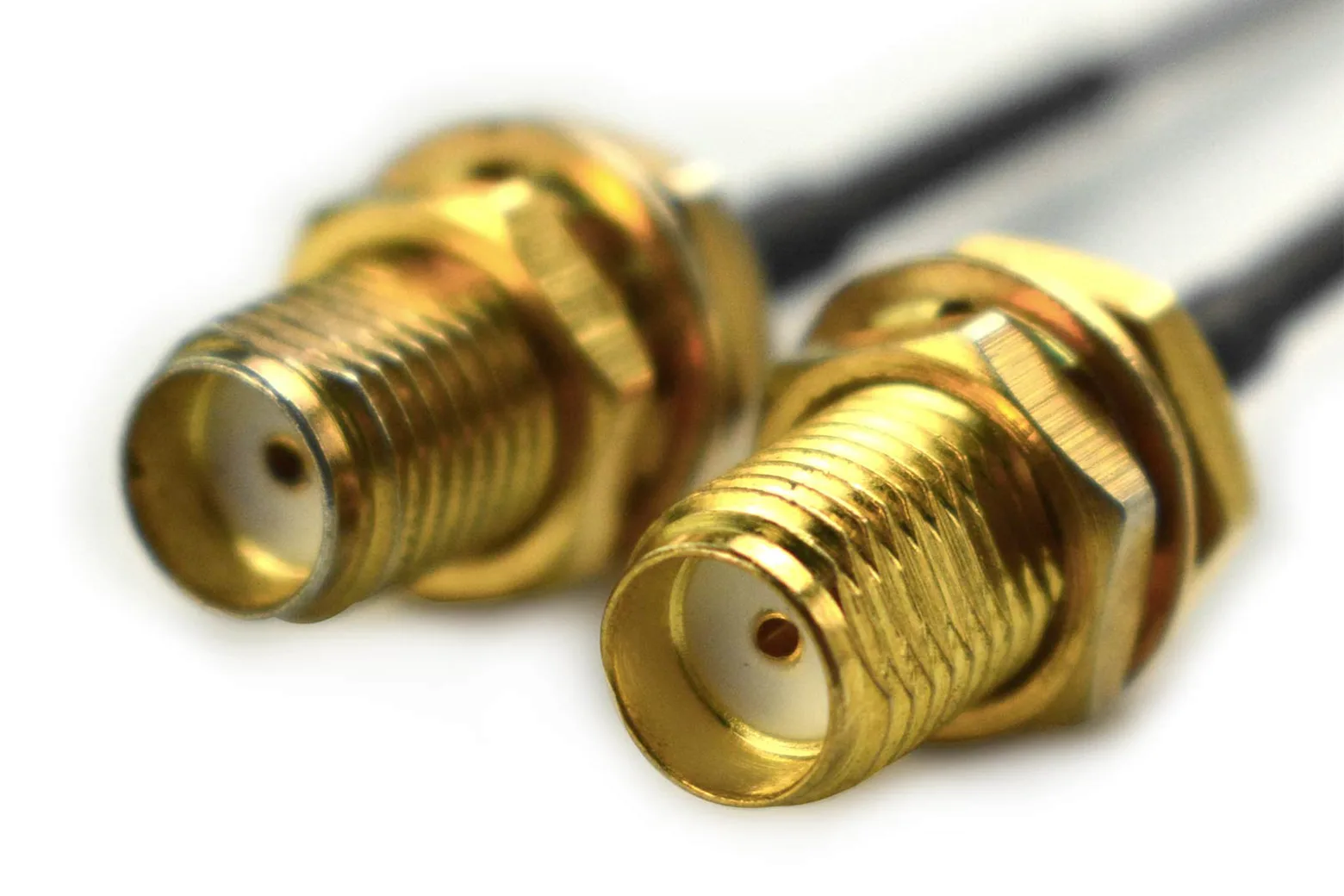

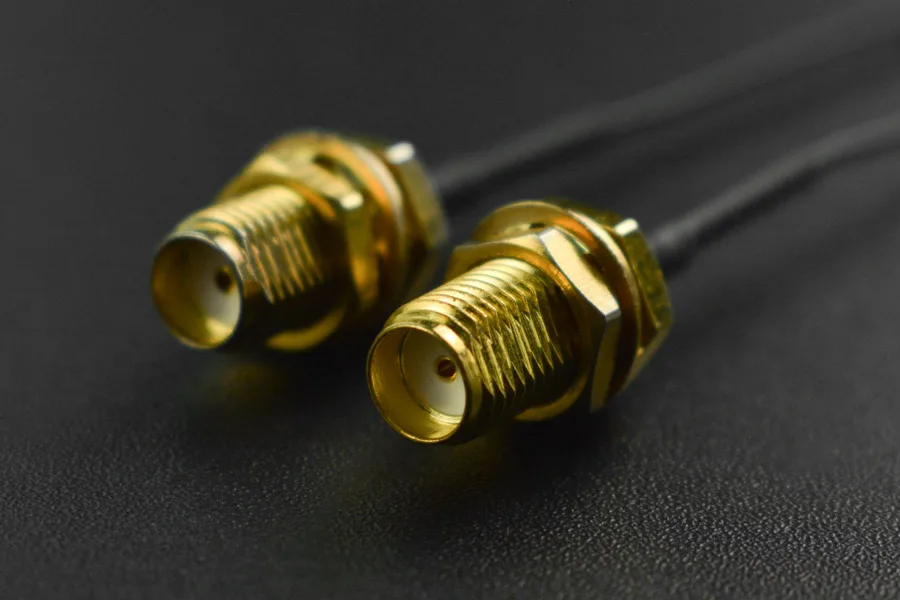

Gold-plated corrosion-resistant connectors
The IPEX MHF1 to SMA female connectors are gold-plated and have passed a 48-hour salt spray test. This construction ensures high conductivity while protecting against rust and environmental wear.

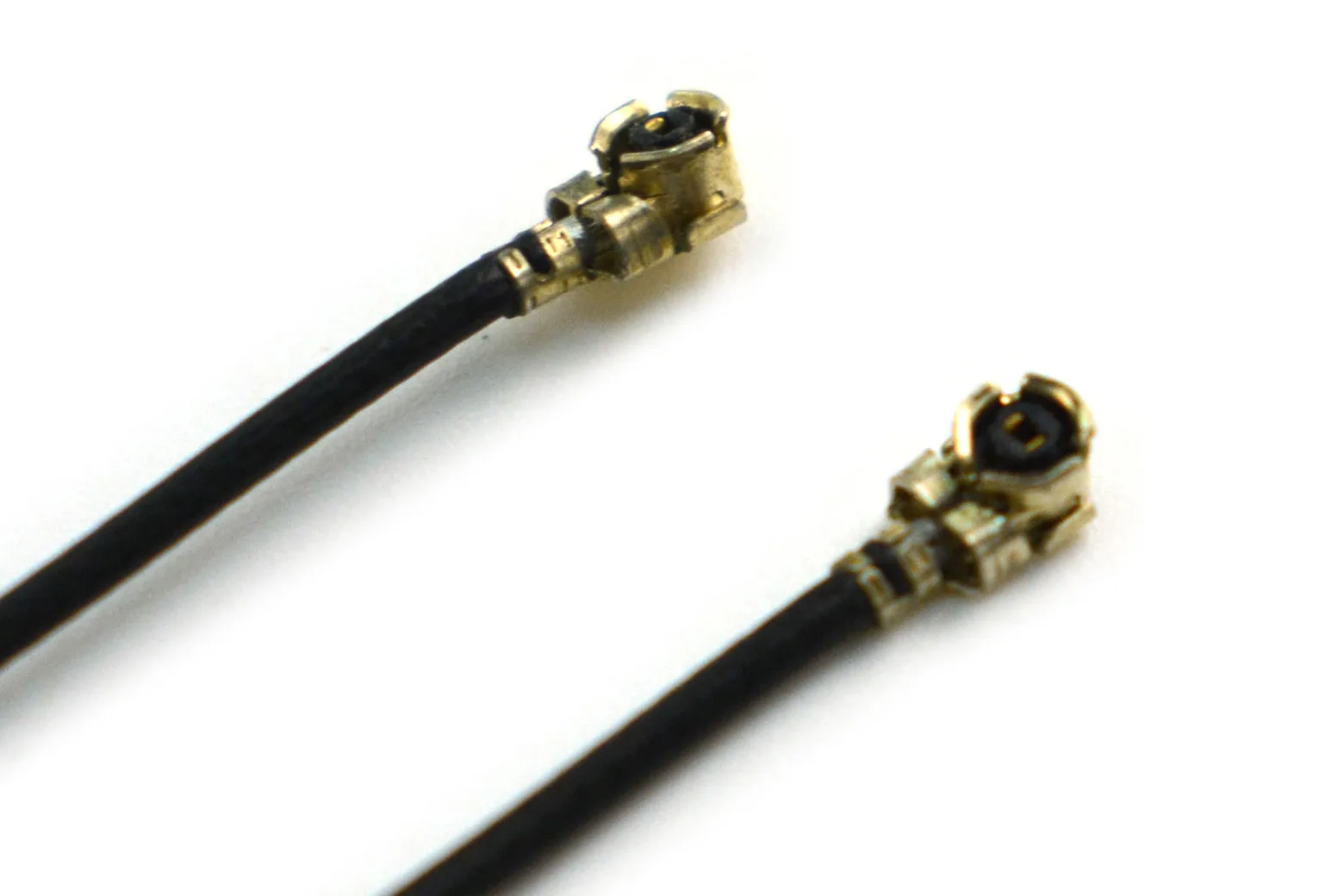

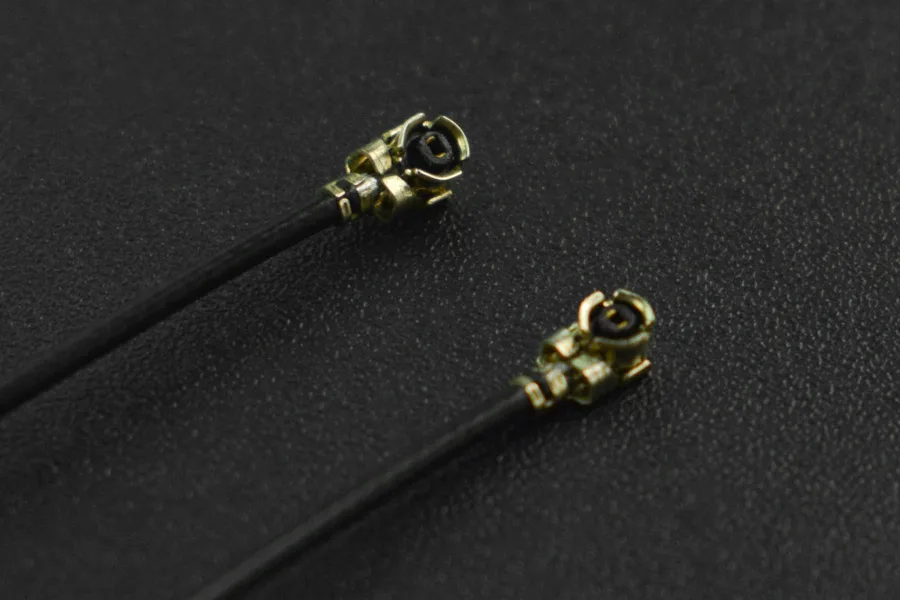

Flexible shielded RG1.13 wire
Built using RG1.13 coaxial wire with a high-density shielding layer, this 10cm lead is flexible, soft, and fold-resistant. The shielding maintains fast, stable signal transmission while minimising interference.

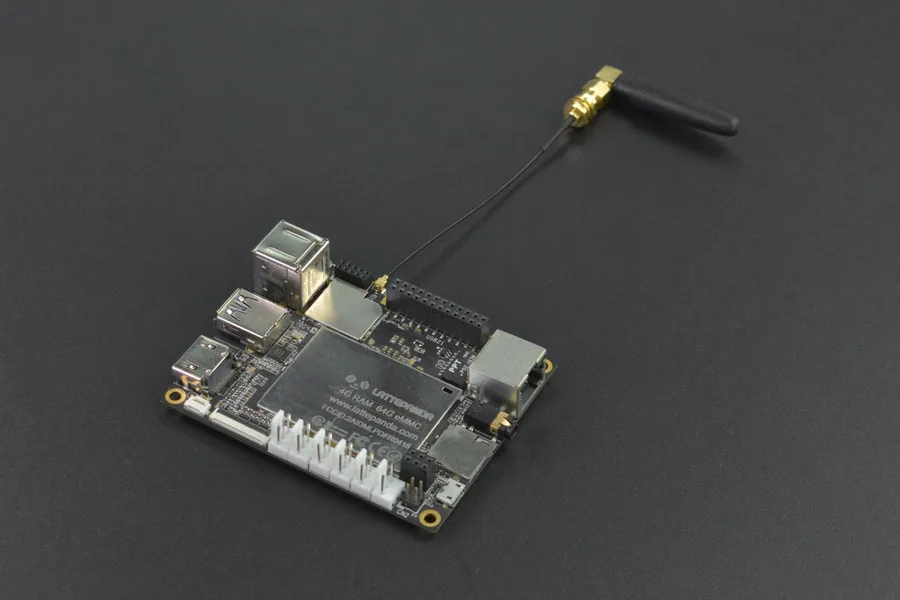

Wide wireless module compatibility
These adapter cables allow you to attach standard external SMA antennas to micro RF boards. They are suitable for WiFi, GPS, 4G, 5G, and other wireless hardware.
High-frequency RF performance
Operating across a frequency band from 0 to 6 GHz with a 100 MHz bandwidth, this cable maintains a voltage standing wave ratio of 1.5 or less. The 50-ohm impedance ensures matched signal paths for sensitive RF gear.

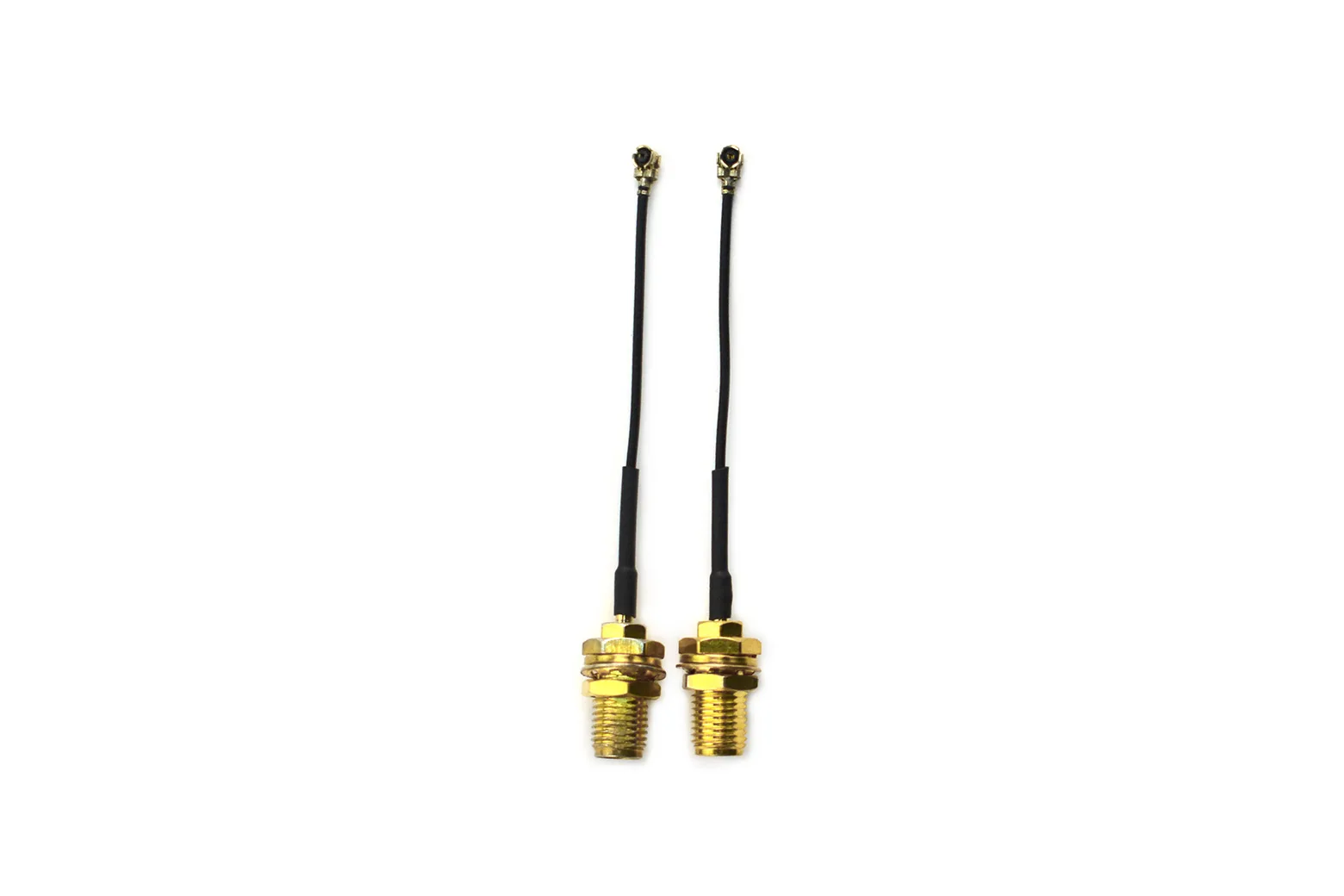

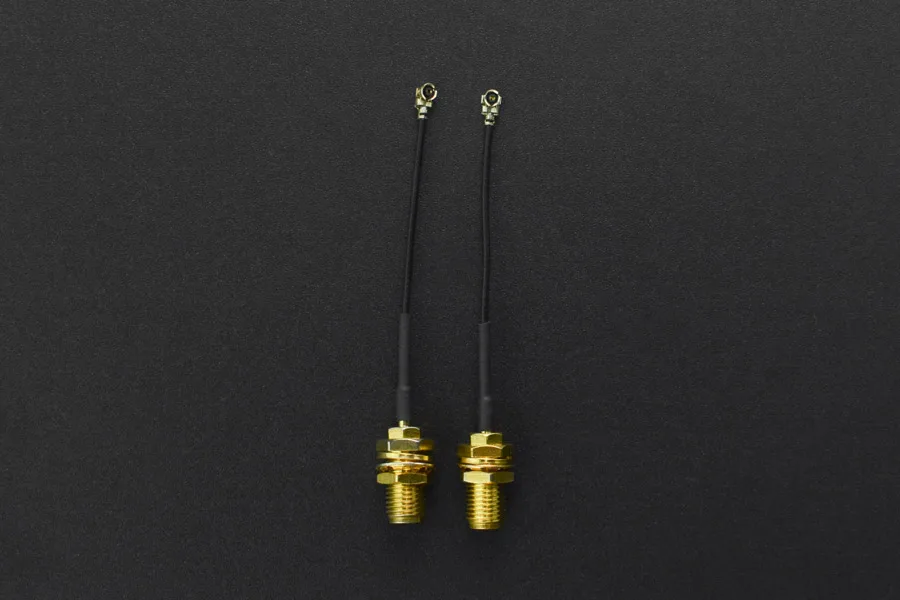

Two-pack cable kit
Each pack includes two 10cm IPEX MHF1 to SMA female connector cables ready for immediate deployment in dual-antenna or multi-device setups.
Specifications
| Applicable Frequency Band | 0-6G |
| Bandwidth | 100Mhz |
| Standing Wave Ratio | ≤1.5 |
| Interface | IPEX MHF1 to SMA |
| Impedance | 50Ω |
| Line Length | 10cm |
| Wire | RG1.13 |
In the box
| IPEX MHF1 to SMA Female Cable | 2 |
| Review | 1 |
| Andrew.Wickens Jan 24, 2026 | 1 |
| Good quality antenna cable with solid connectors. | 1 |
| The IPEX MHF1 connector snaps in securely and the SMA connector is well made with a firm fit. Works perfectly for external antennas on compact boards and wireless modules. No issues with signal or build quality. | 1 |
