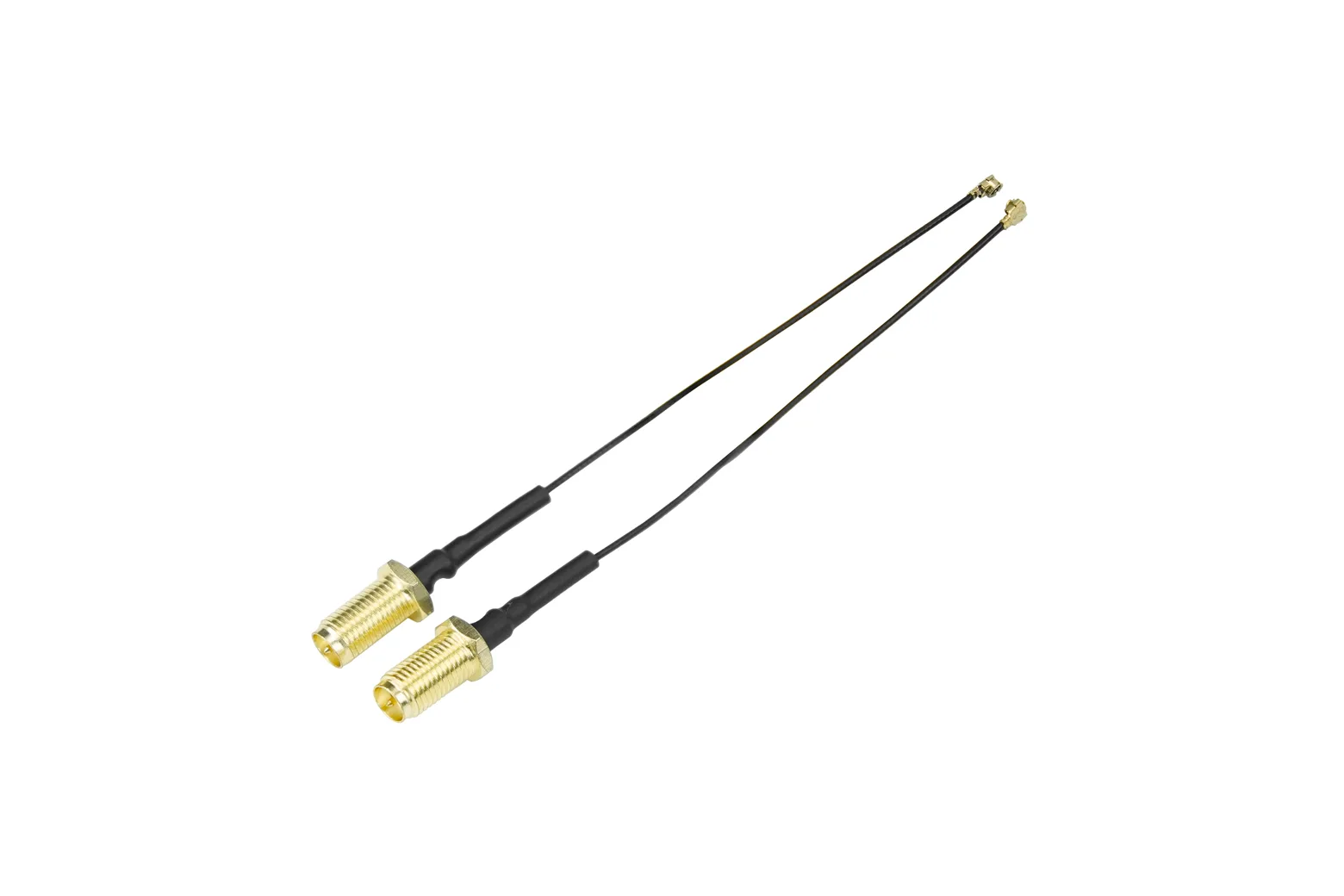

IPEX MHF1 to RP-SMA Female RF Cable (100mm, 2 PCS)

This pack of two 100mm IPEX MHF1 to RP-SMA female RF coaxial cables provides a reliable bridge between internal radio boards and external antennas. It is well suited for makers, students, and developers building wireless communication into embedded electronics and robotics projects.

IPEX MHF1 to RP-SMA female connectors

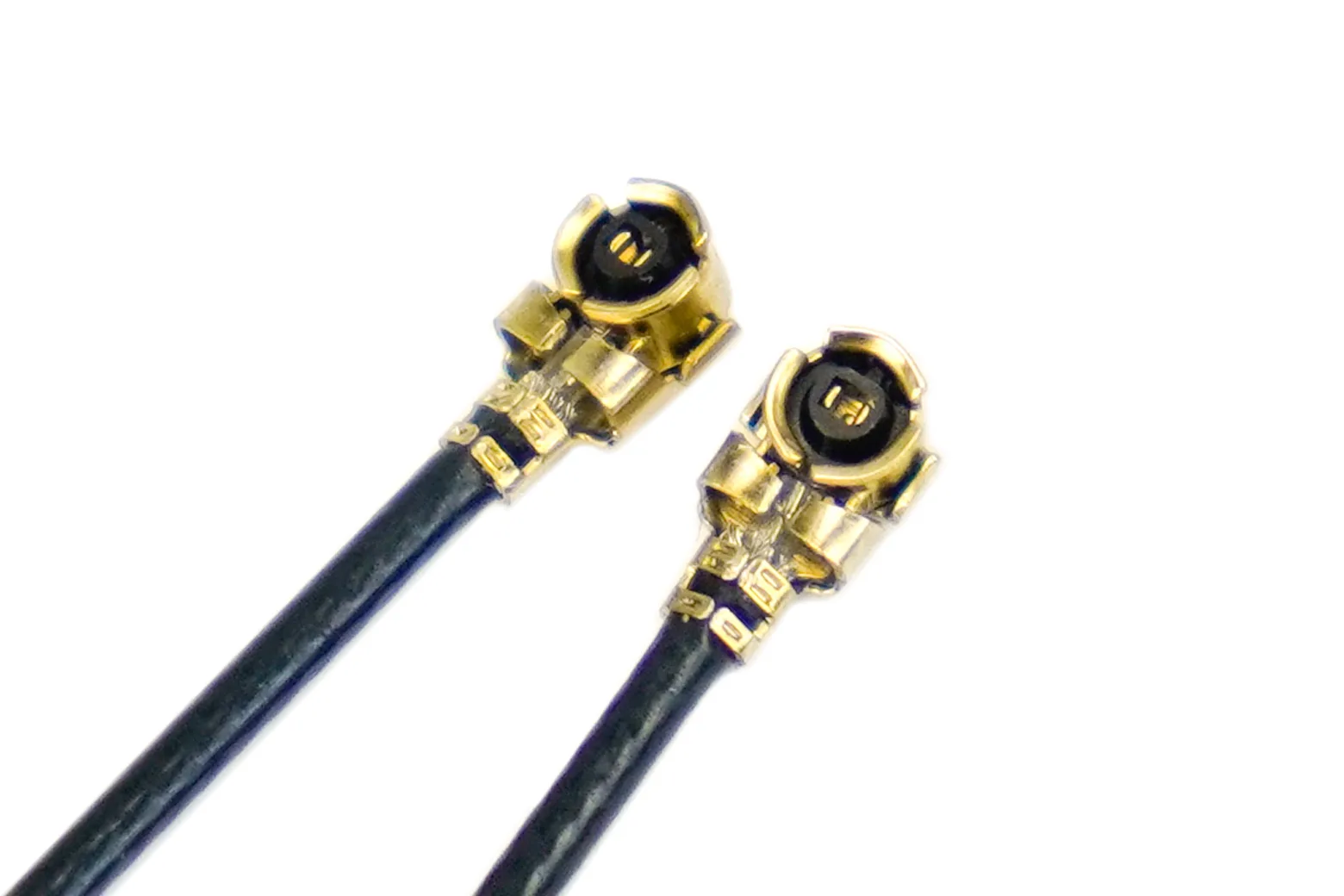

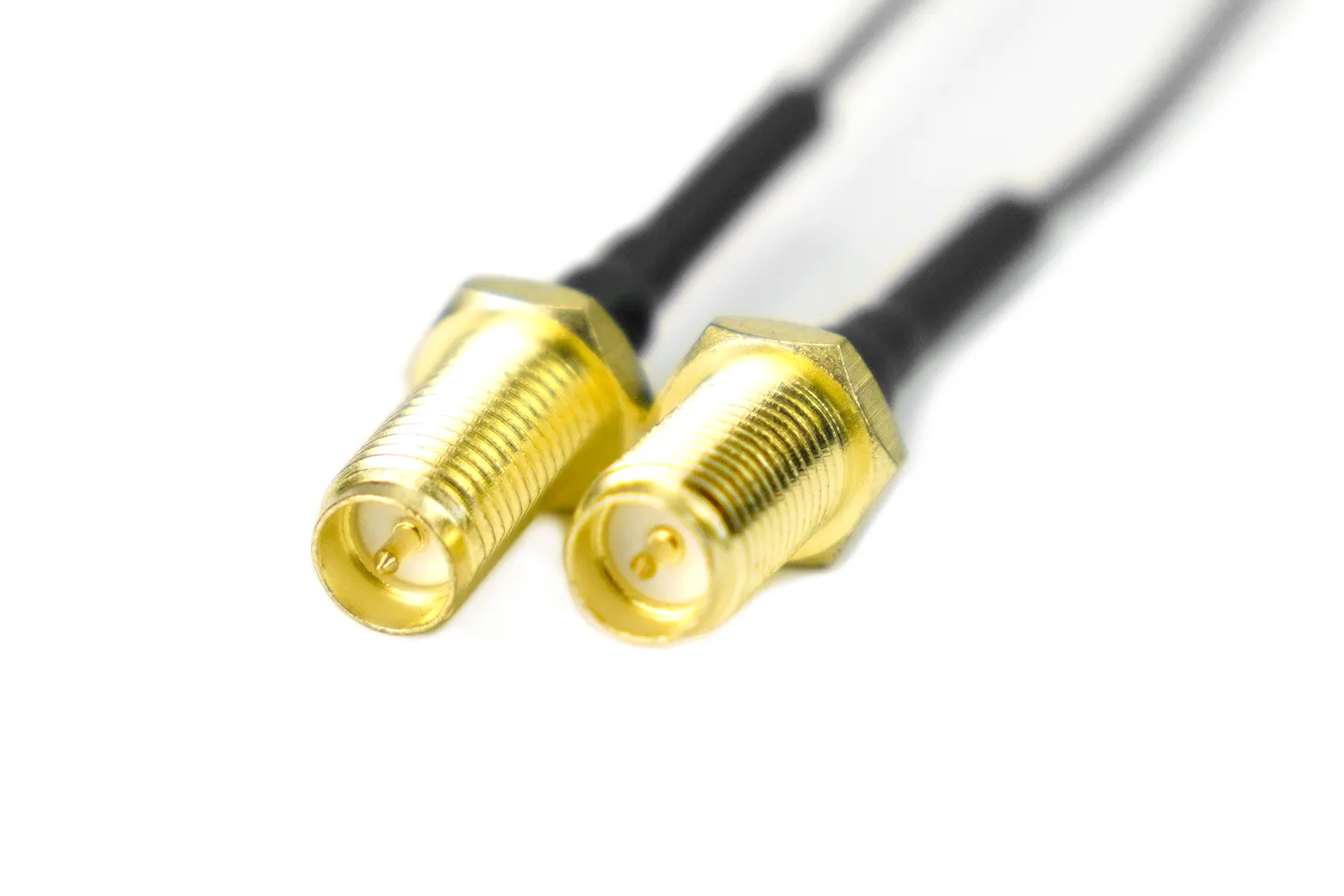

Each cable terminates in a micro IPEX MHF1 connector on one end and a standard RP-SMA female connector on the other. This allows seamless routing from internal wireless cards to chassis-mounted antennas.

RG1.13 coaxial shielding

Built using RG1.13 shielded coaxial wire to minimise signal loss and protect against external interference. The line maintains a standard 50 ohm characteristic impedance for efficient RF transmission.

Multi-band wireless module compatibility

The cable assembly supports a variety of radio frequency standards, including WiFi, GPS, 4G, and 5G modules. This makes it an adaptable choice for telemetry, tracking, and high-speed data links.

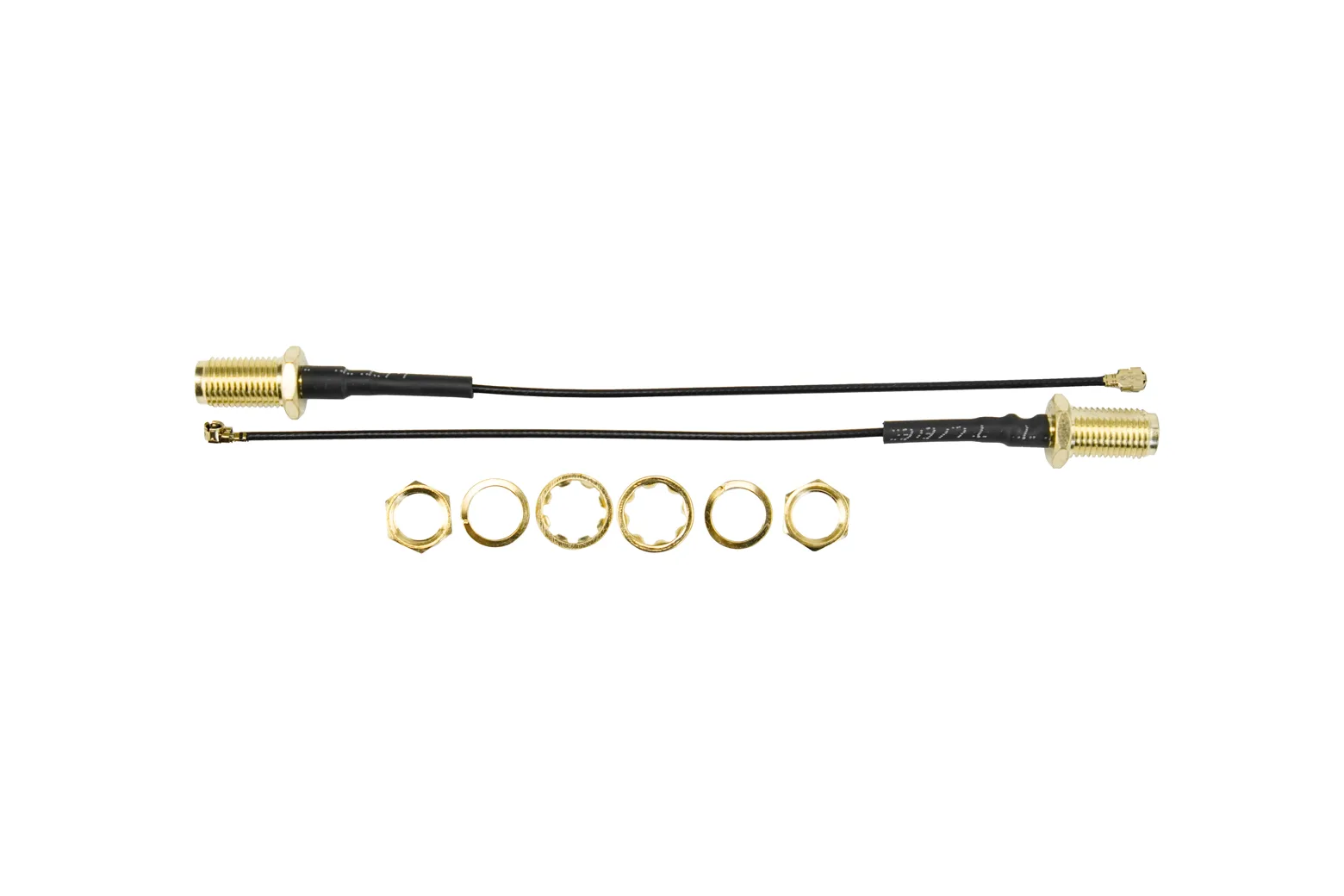

Convenient dual-cable pack

Supplied as a set of two 100mm leads, providing the required hardware for dual-antenna installations or multi-band communication systems in compact enclosures.
