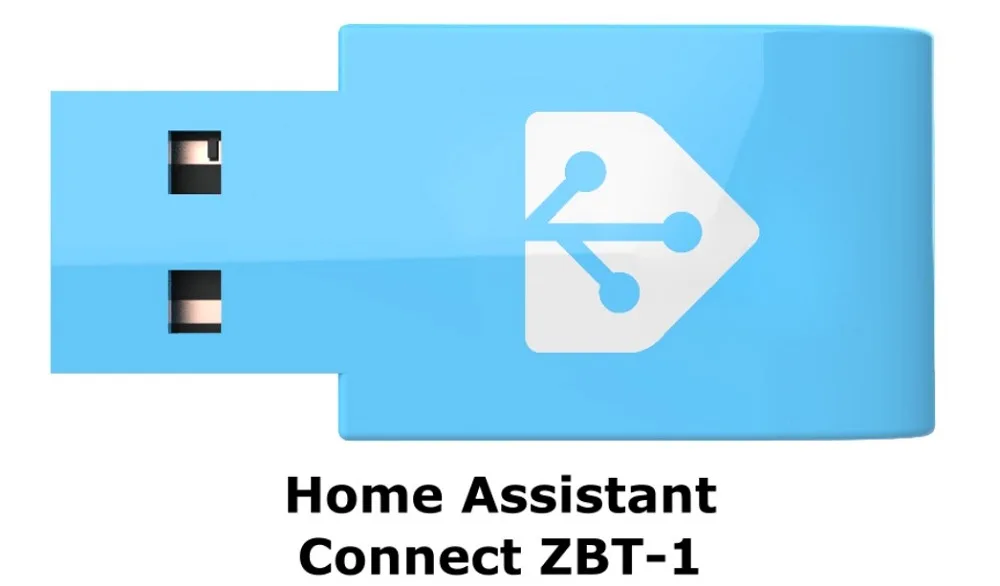

Home Assistant Connect ZBT-1 – Zigbee & Thread USB Adapter for Matter Smart Home
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Home Assistant Connect ZBT-1 is a compact USB adapter that adds Zigbee and Thread connectivity to your smart home. Powered by the Silicon Labs EFR32MG21 chipset, it is ideal for makers and hobbyists integrating Zigbee and Matter-compatible devices with Raspberry Pi or Linux-based Home Assistant setups. It provides plug-and-play installation with zero configuration required.
Dual-protocol Zigbee and Thread support
The adapter operates over 2.4GHz to manage both Zigbee and Thread networks. This provides compatibility with existing Zigbee peripherals while future-proofing your system for Matter-enabled Thread devices.
High-power wireless coverage
Equipped with an optimised PCB antenna and up to +20dBm transmission power, the EFR32MG21 radio provides robust wireless reach. This extended range minimises dropouts and maintains responsive communication across your mesh network.
Seamless Home Assistant integration
When connected to a Raspberry Pi or Linux host running Home Assistant, the adapter is automatically detected for immediate setup. It also supports over-the-wire (OTW) firmware updates directly through USB.

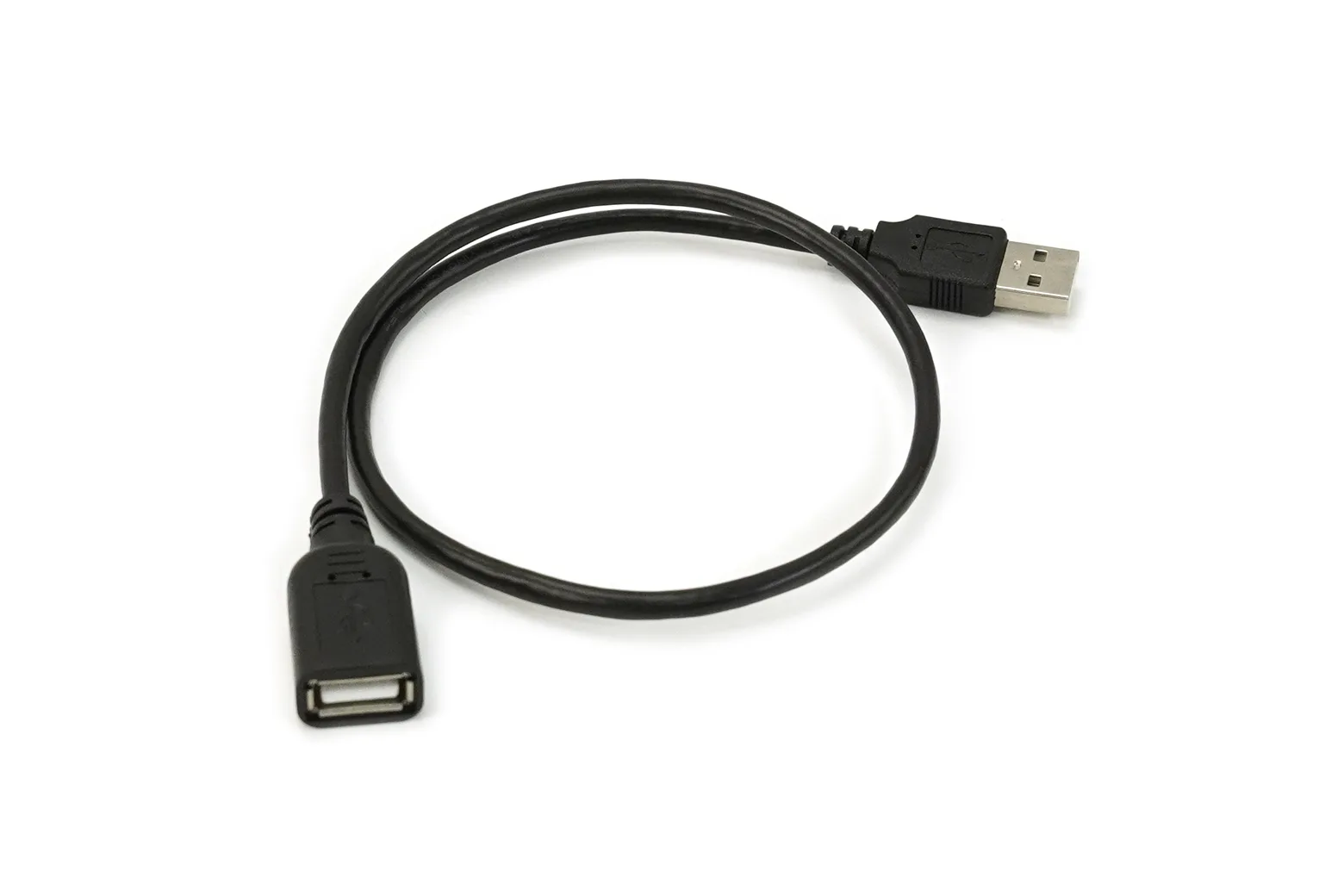

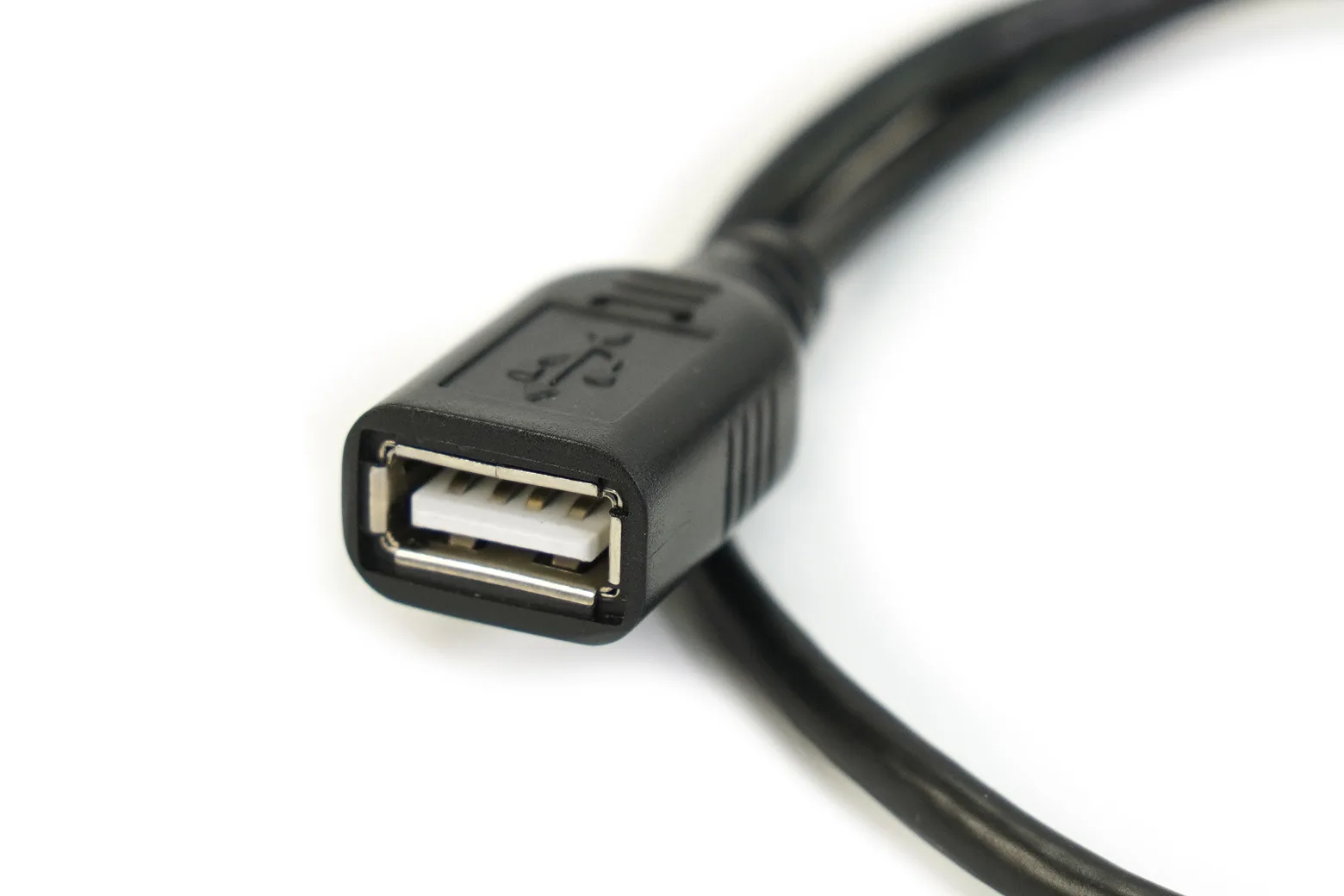

Interference-free USB extension cable
An included USB extension cable separates the adapter from host USB 3.0 ports to prevent 2.4GHz radio frequency interference. This ensures reliable pairing and stable device connectivity.
Compact and low-power hardware design
Weighing only 4g and measuring 18mm by 4.5mm by 38.5mm, the unit utilises a Silicon Labs CP2102N USB-to-UART bridge over USB 2.0 full-speed. It runs efficiently on a 5V DC supply, drawing up to 150mA.

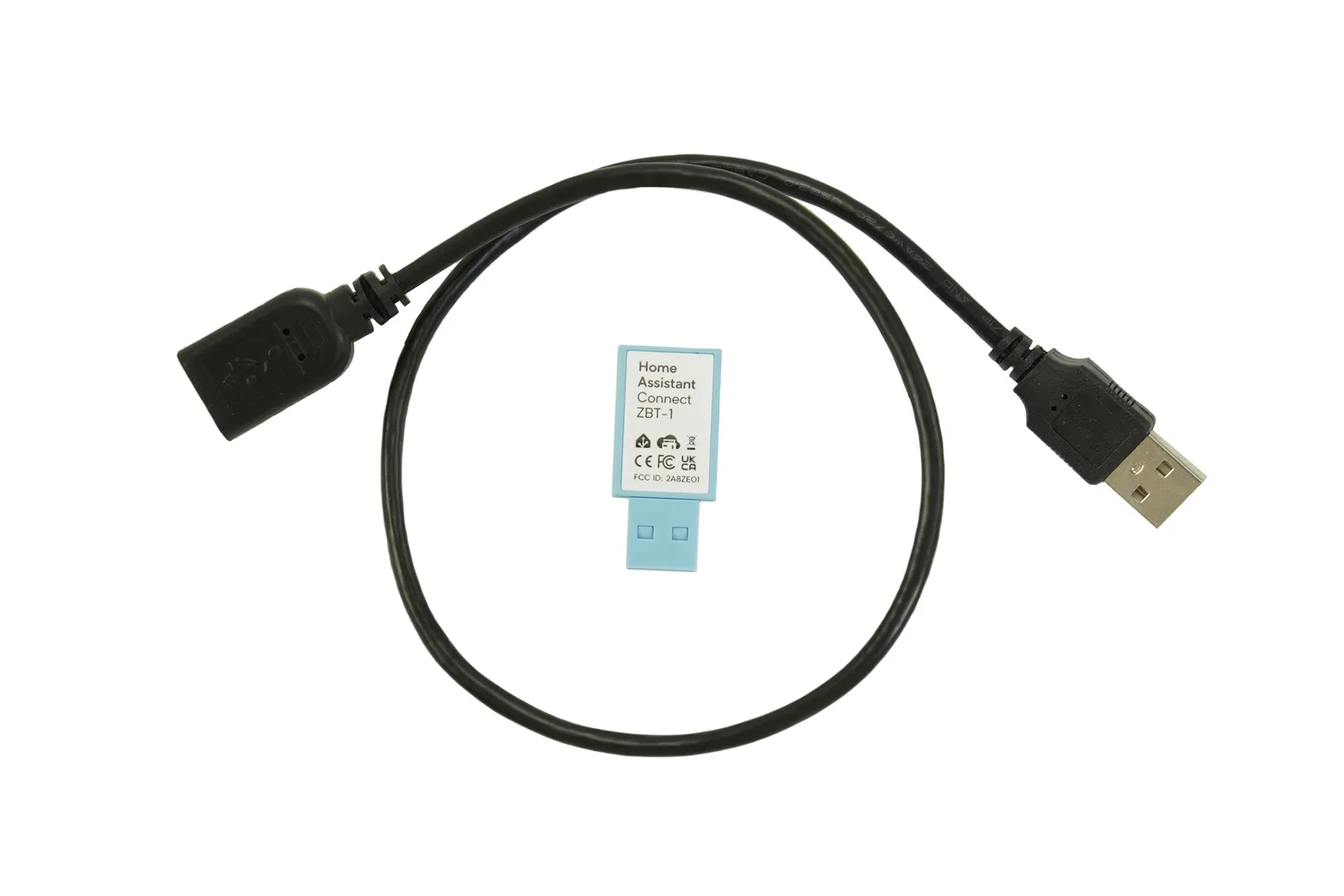

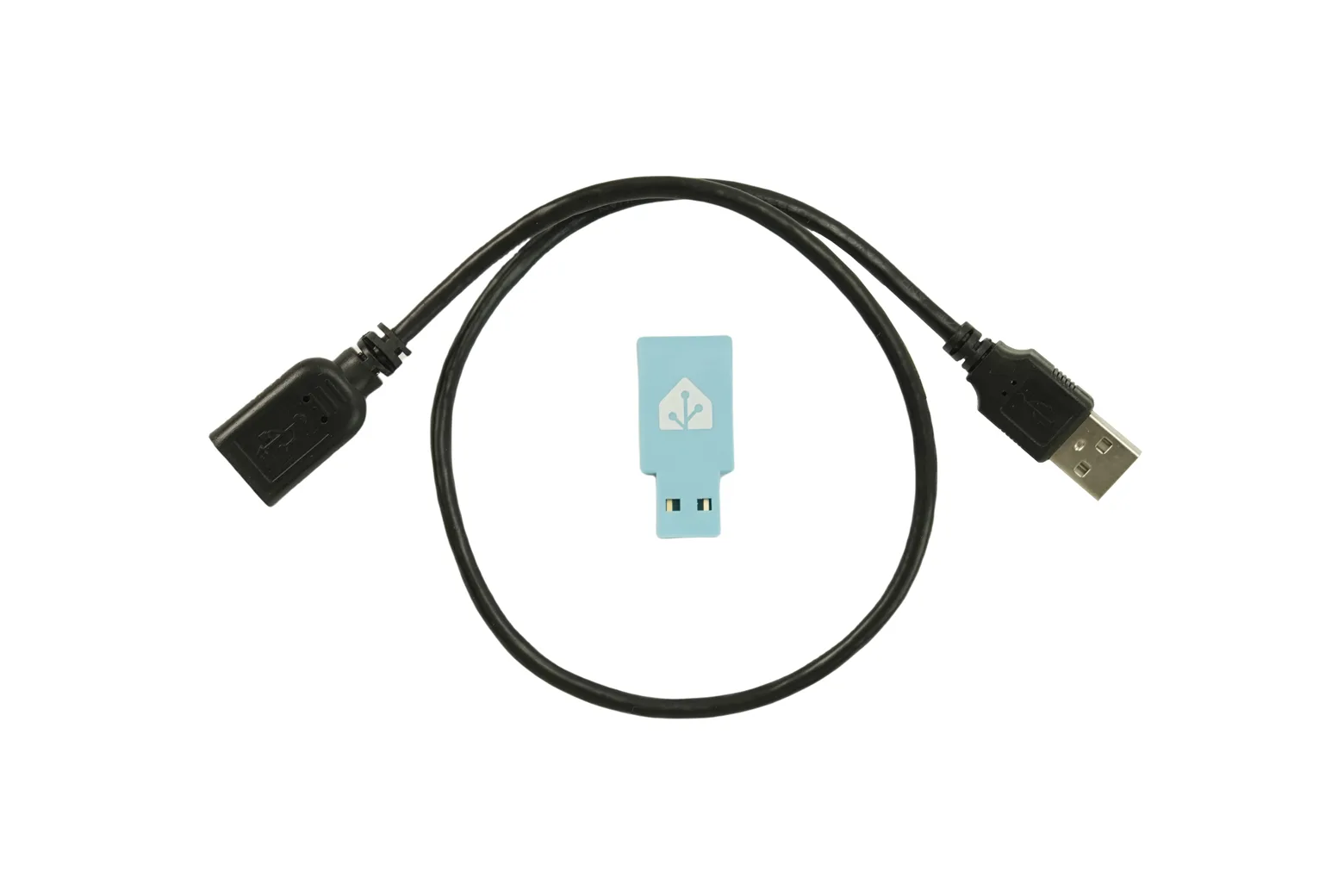

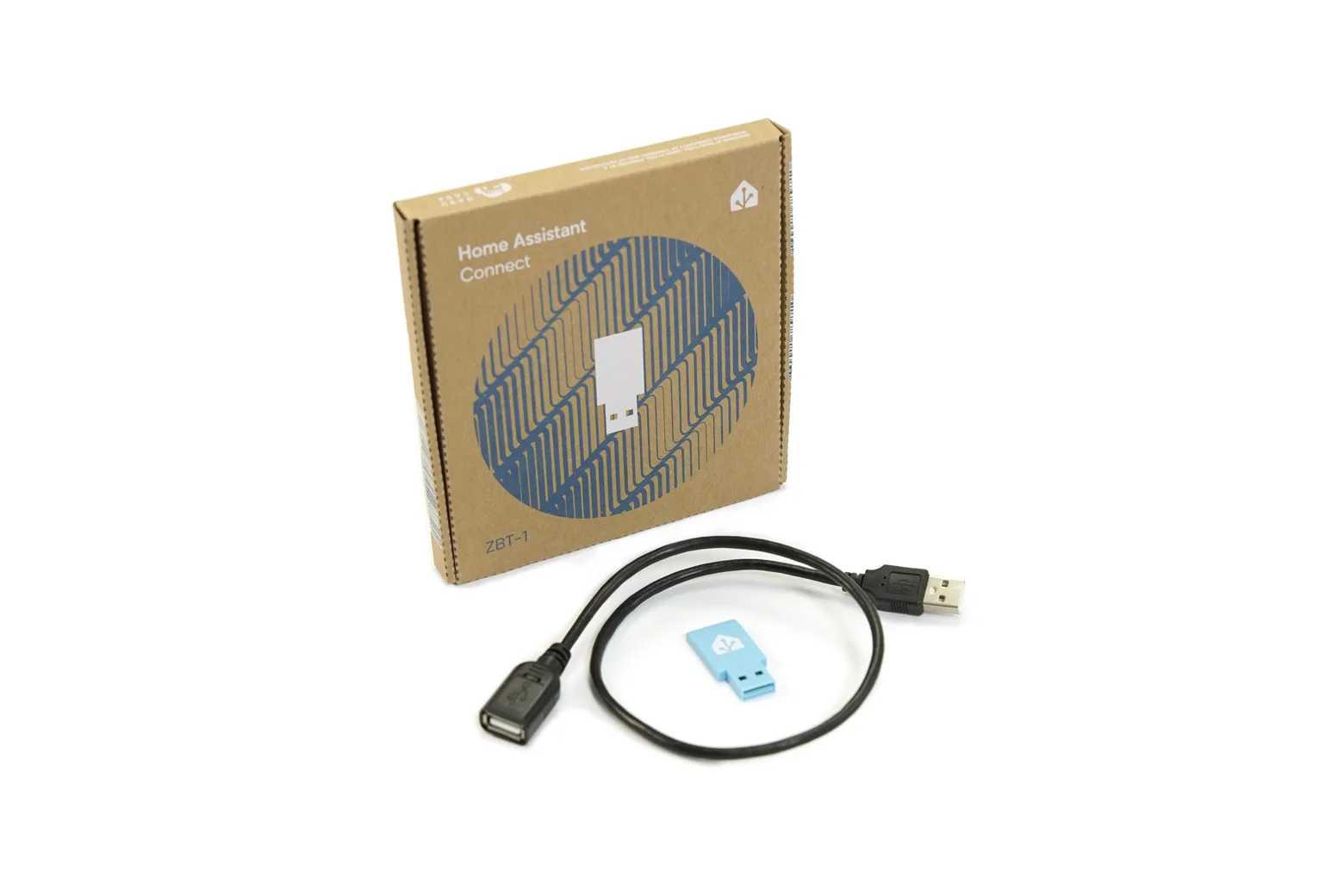

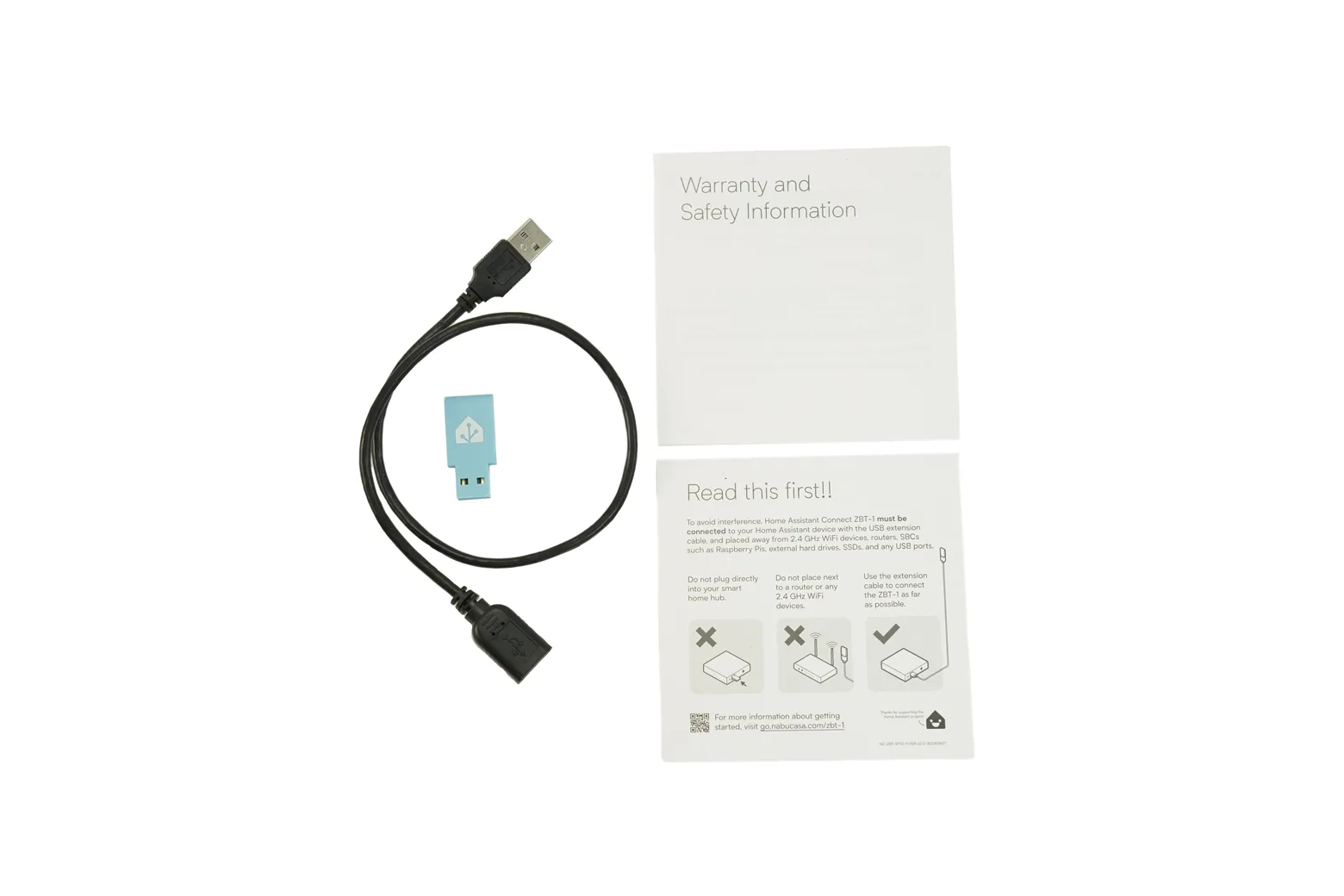

Package contents
Each kit includes one Home Assistant Connect ZBT-1 adapter and one USB extension cable.
Specifications
| Radio Chipset | Silabs EFR32MG21 |
| Frequency | 2.4GHz |
| TX power | up to +20dBm |
| Antenna | PCB |
| Protocols | Zigbee, Thread (Matter) |
| Supply | 5V DC, up to 150mA |
| Width | 18mm |
| Height | 4.5mm |
| Depth | 38.5mm |
| Weight | 4g |
In the box
| Home Assistant Connect ZBT-1 | 1 |
| USB extension cable | 1 |
