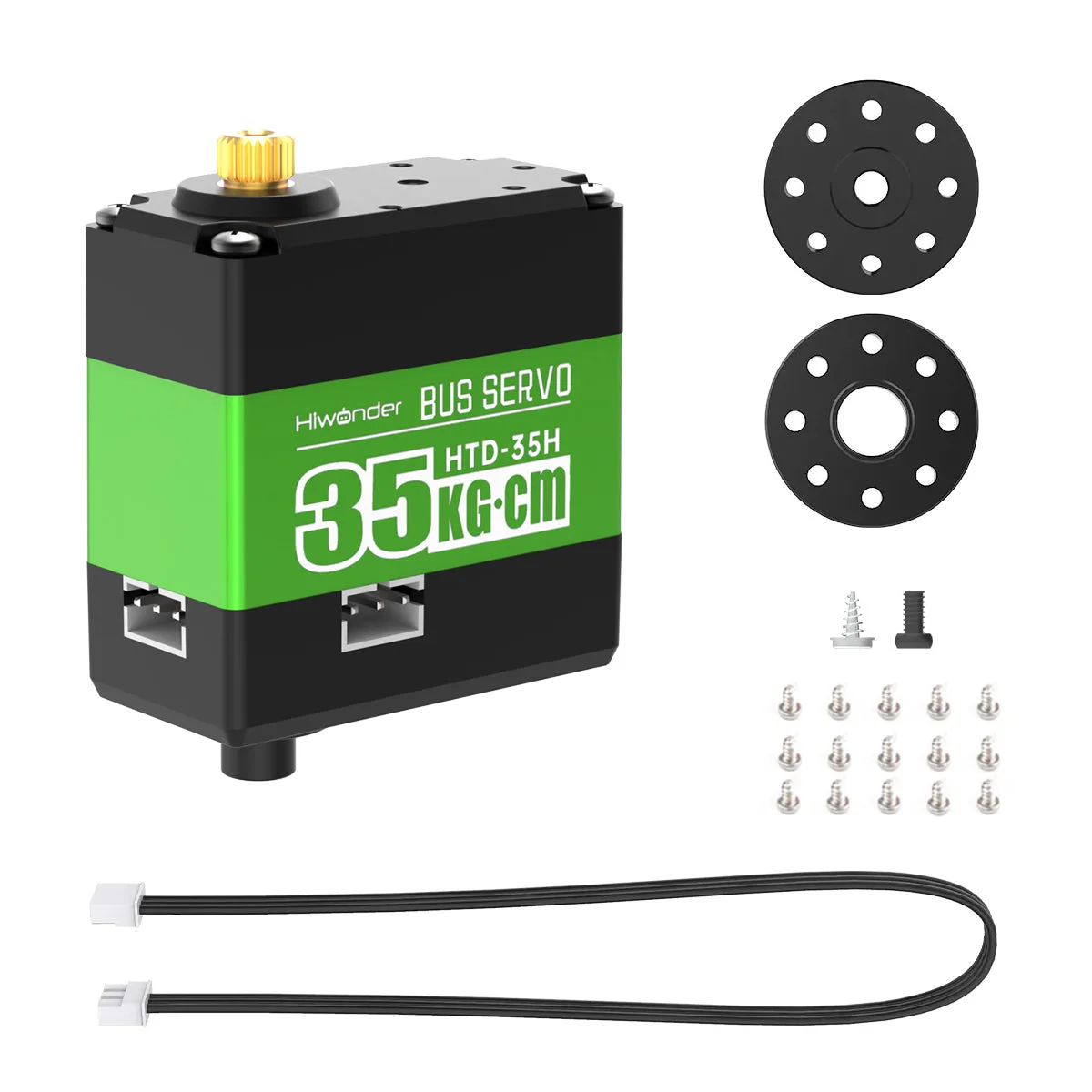

Hiwonder HTD-35H High Voltage Serial Bus Servo 35KG Torque with Three Connectors and Data Feedback

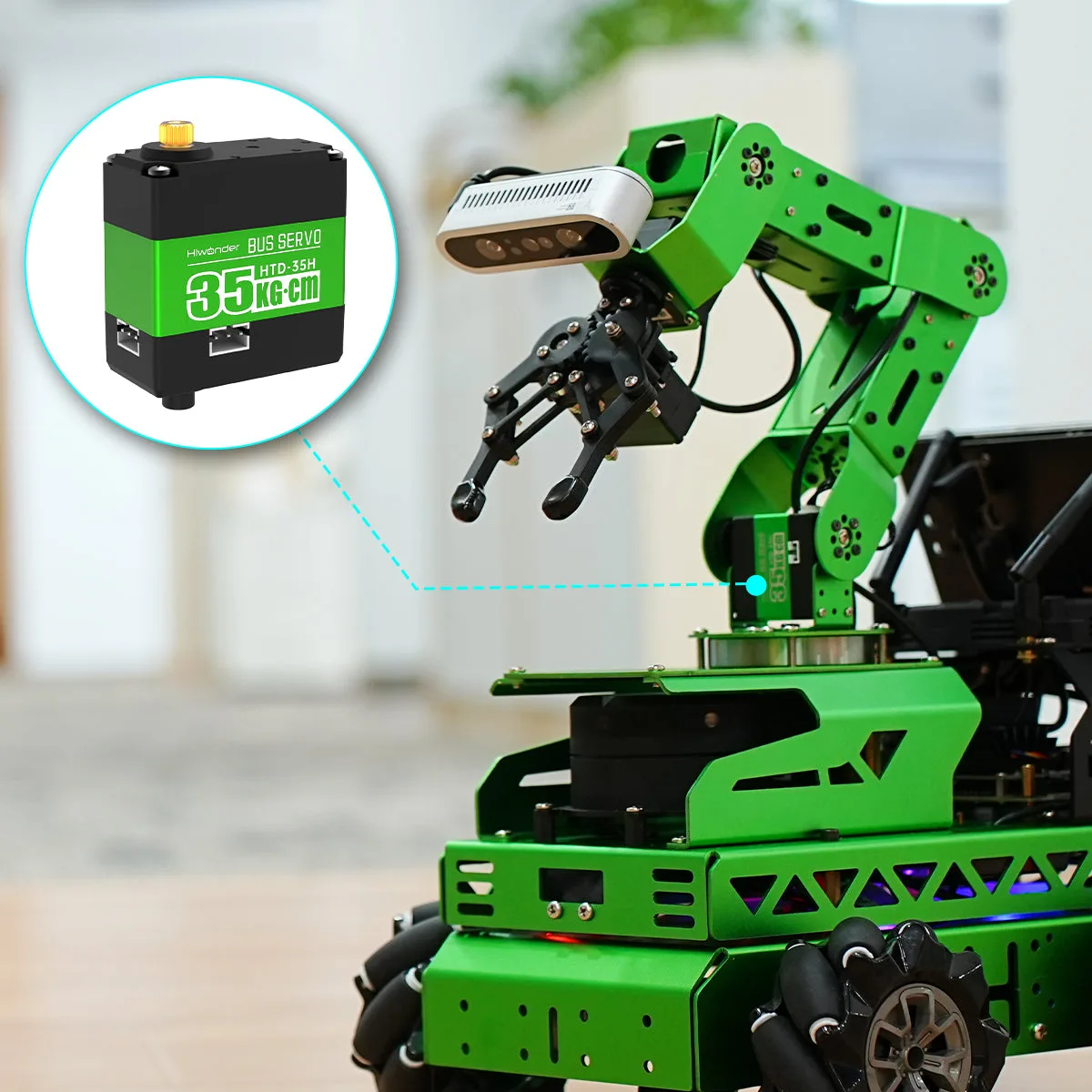

The Hiwonder HTD-35H is a high-voltage serial bus servo delivering 35kg of torque, designed for demanding robotics projects. It is ideal for students, educators, and makers building advanced robotic arms or walking platforms that require precise control and real-time feedback.

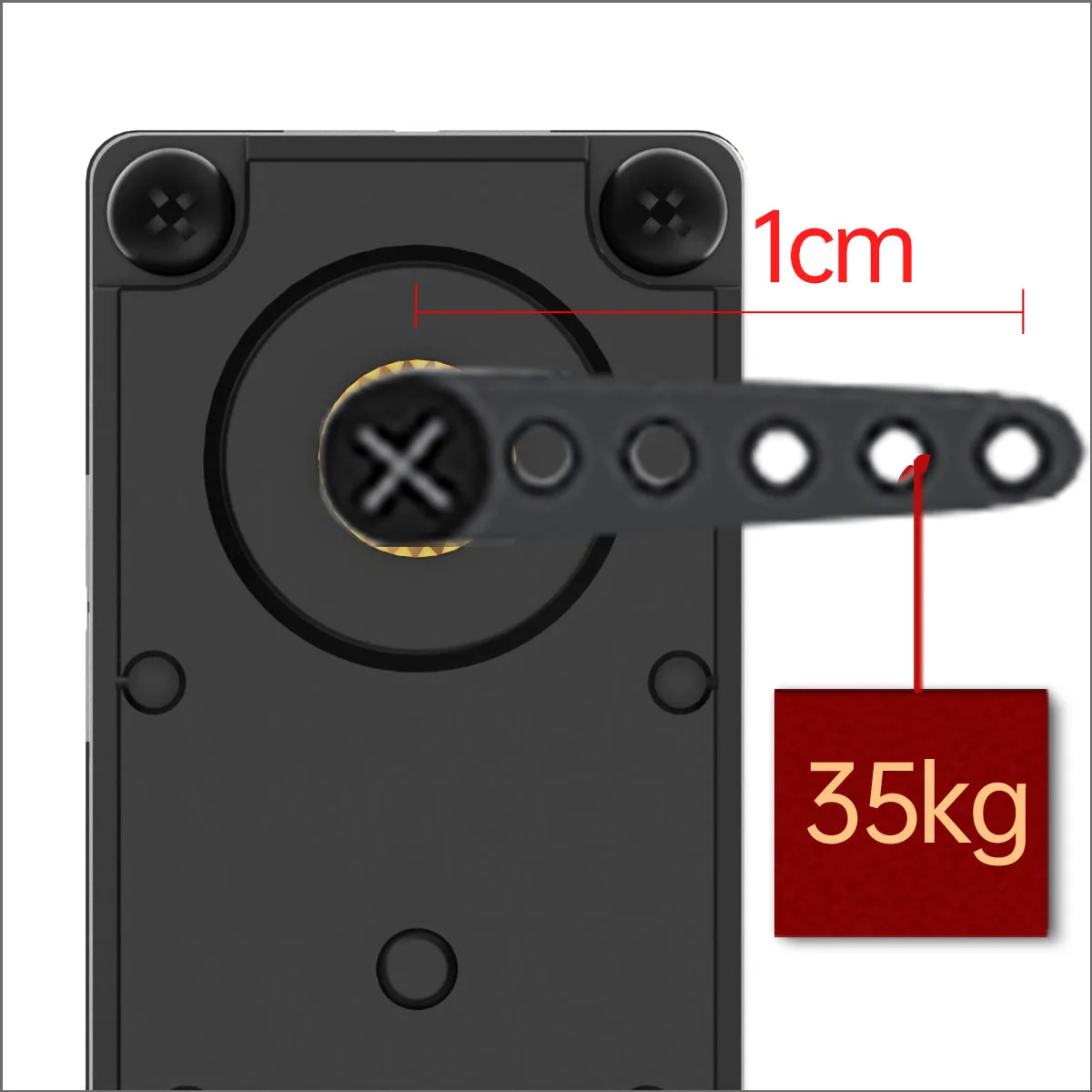

High-voltage performance and high torque

Operating at 11.1V, this high-voltage servo reduces current consumption by more than 60% to improve battery life. It delivers a powerful 35kg of torque, providing ample strength for heavy-duty robotic applications.

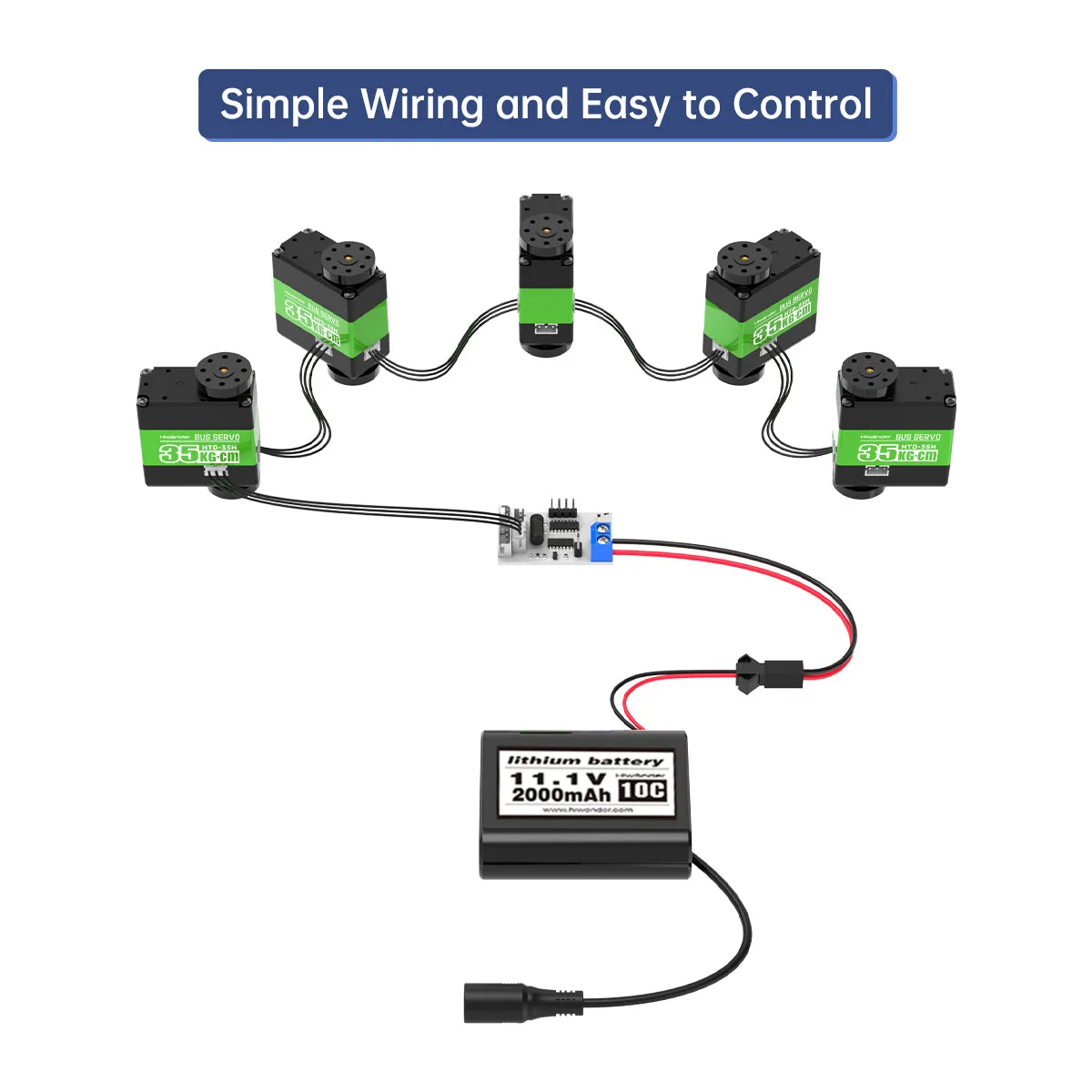

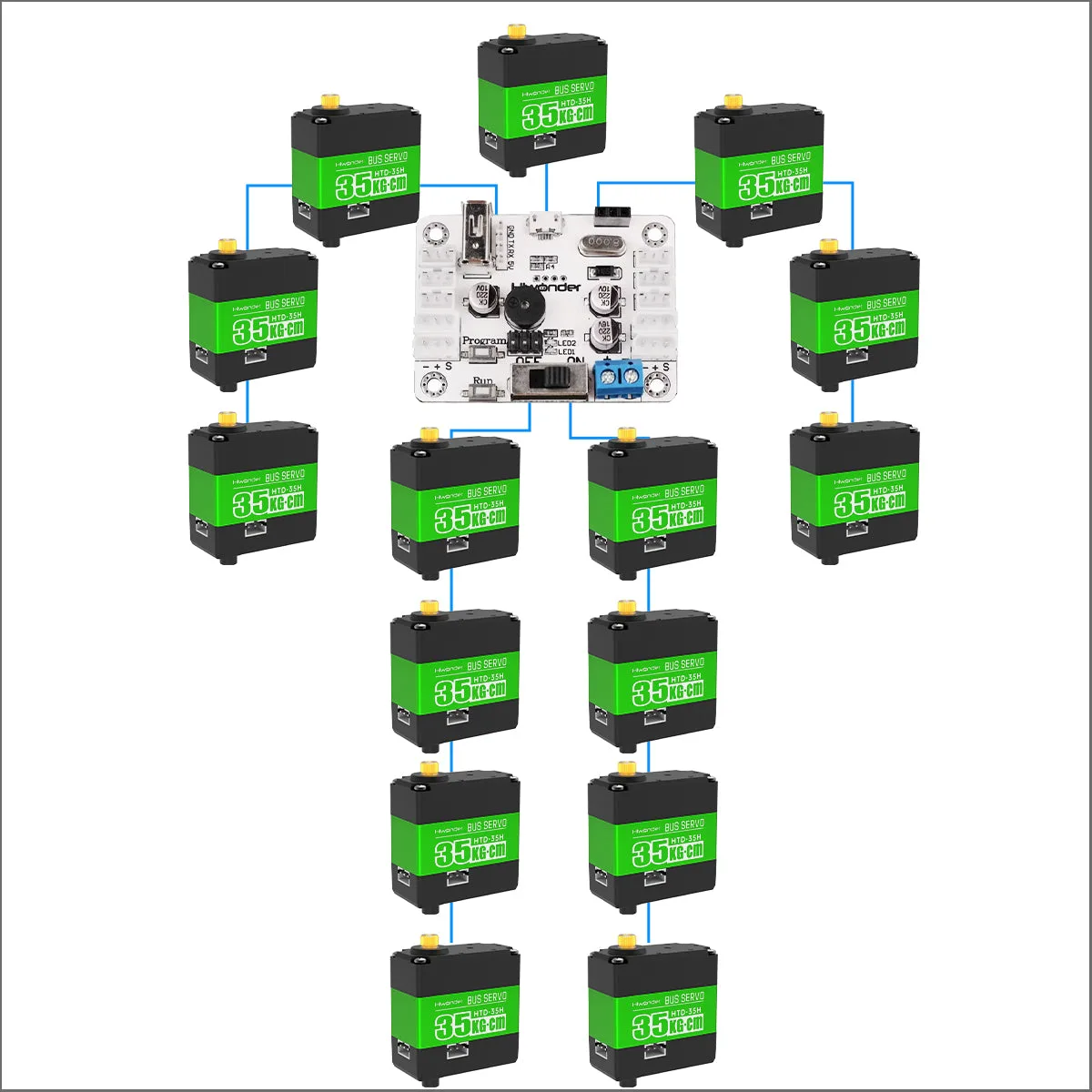

Serial bus communication

Each servo can be assigned a unique ID number, allowing you to daisy-chain and control multiple units through a single controller. The controller issues specific instructions to coordinate complex multi-joint movements.

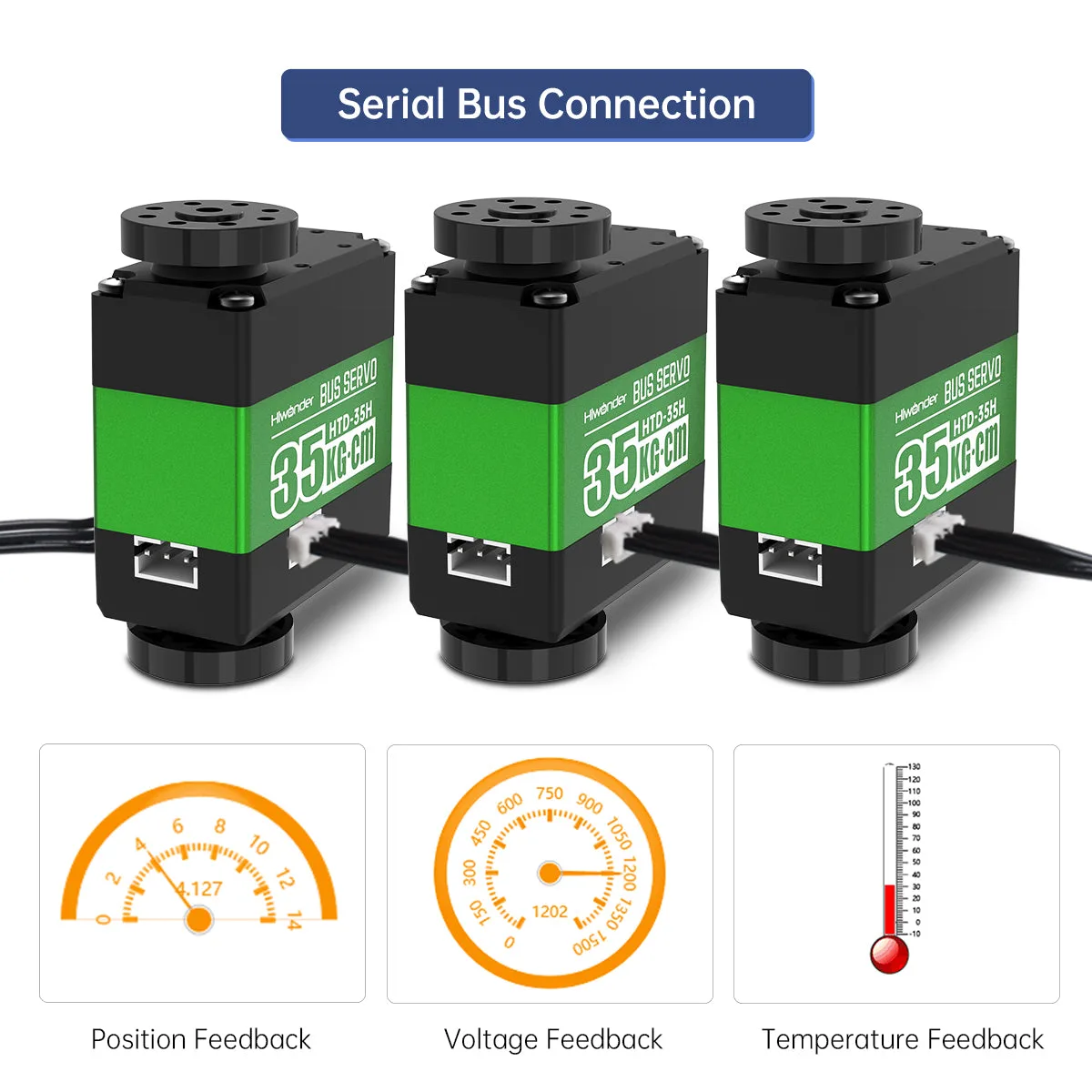

Dual modes and intelligent feedback

The servo supports both standard servo mode and continuous reduction motor mode. It features real-time position, temperature, and voltage feedback to protect the internal components from damage during operation.

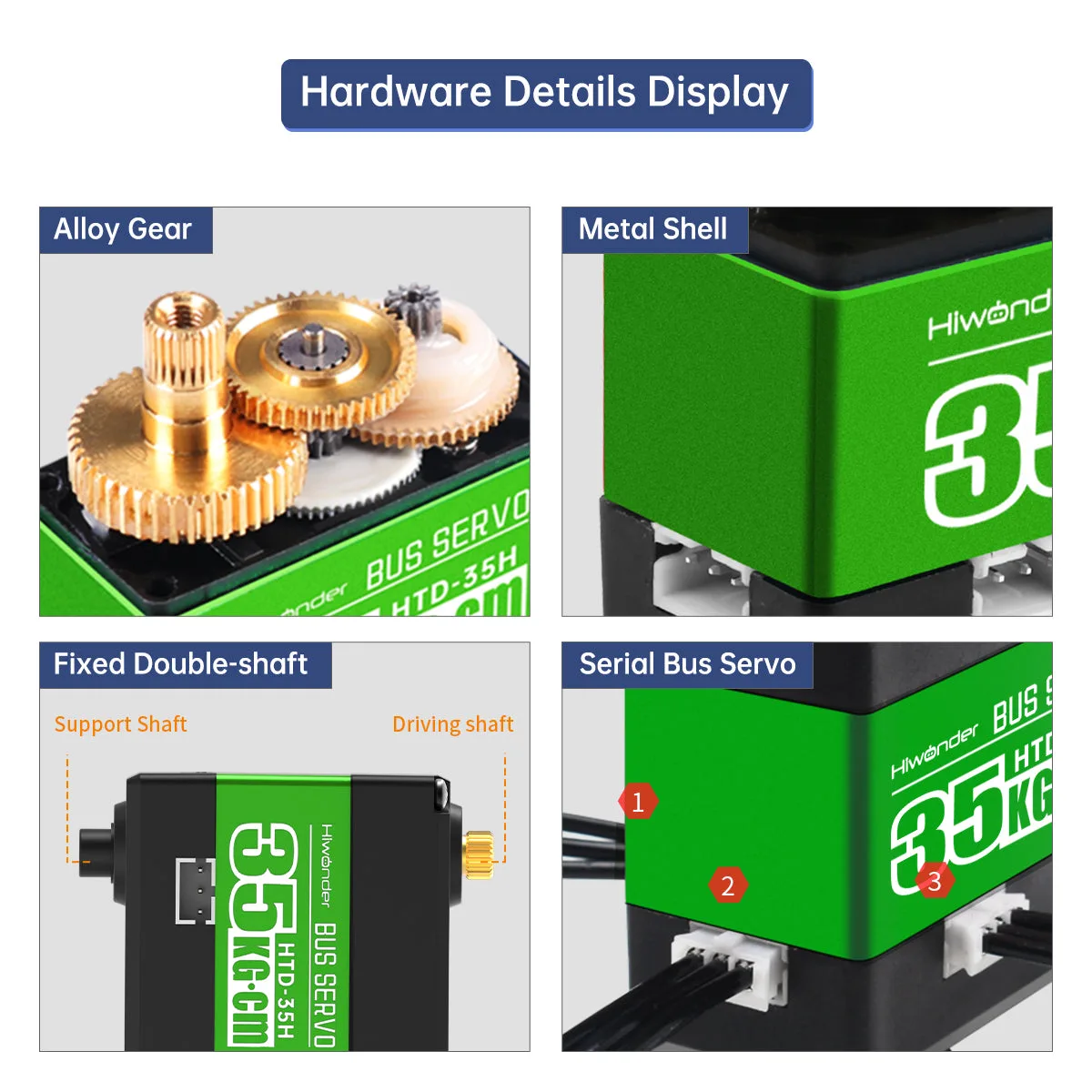

High-precision potentiometer

Equipped with a high-precision internal potentiometer, this servo offers enhanced accuracy and linearity. This ensures more stable operation and extends the overall service life of the unit.

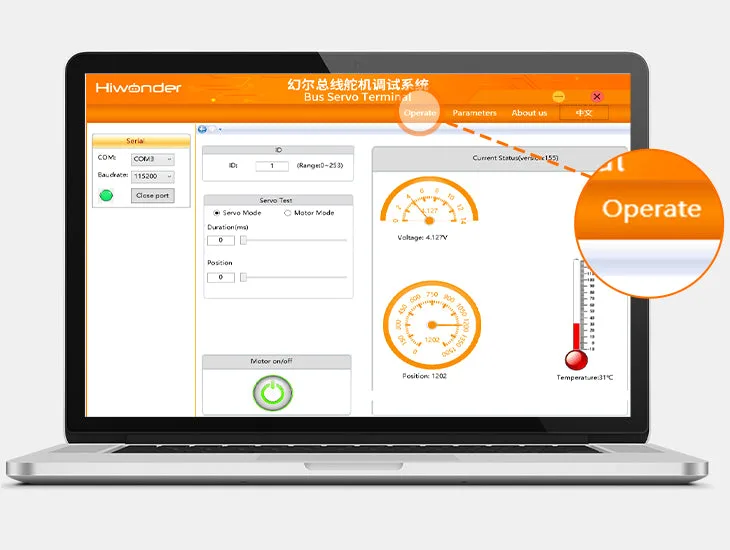

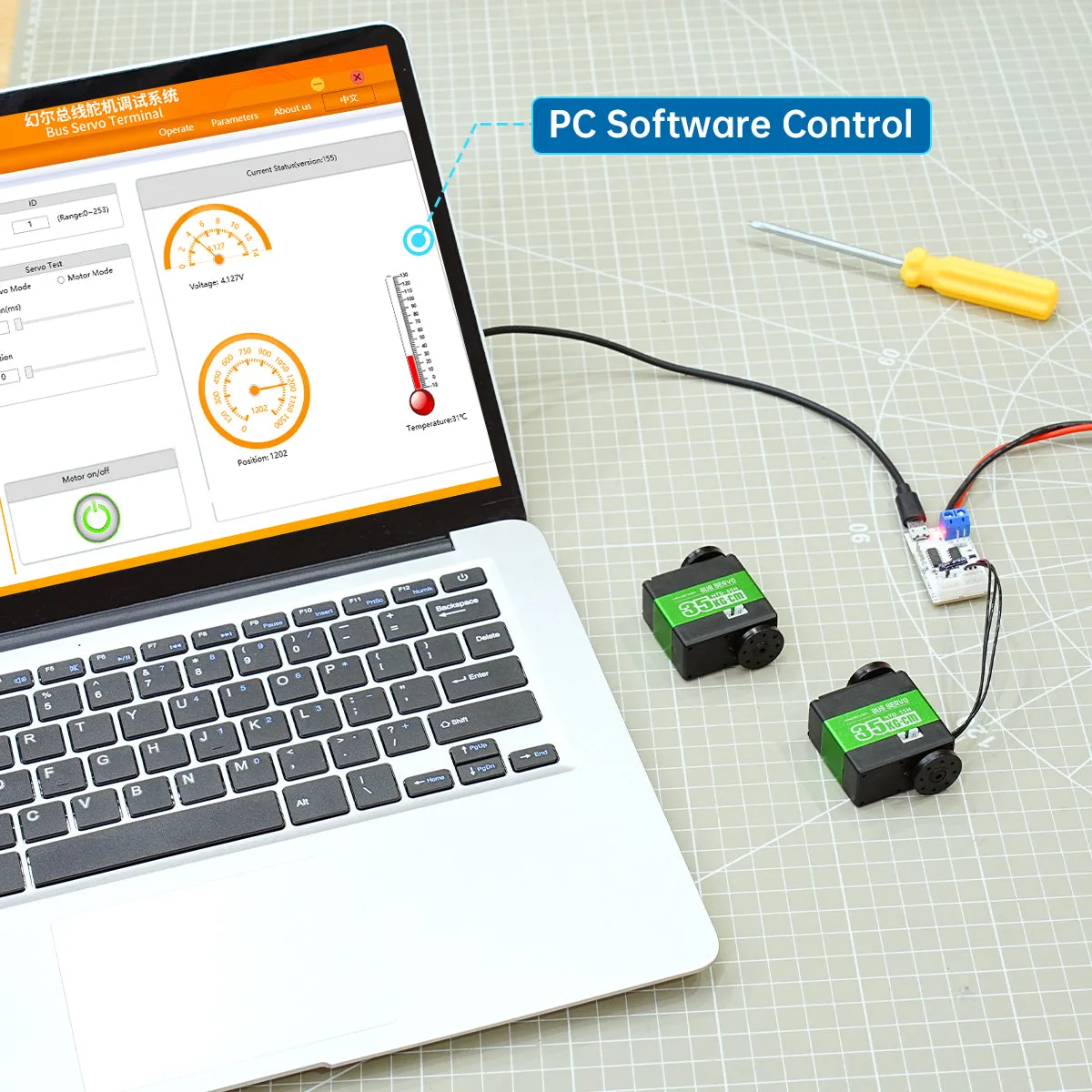

Visual debugging software

The provided visual debugging software simplifies parameter configuration and testing. Users can quickly set and adjust the servo's operating variables through an intuitive interface.

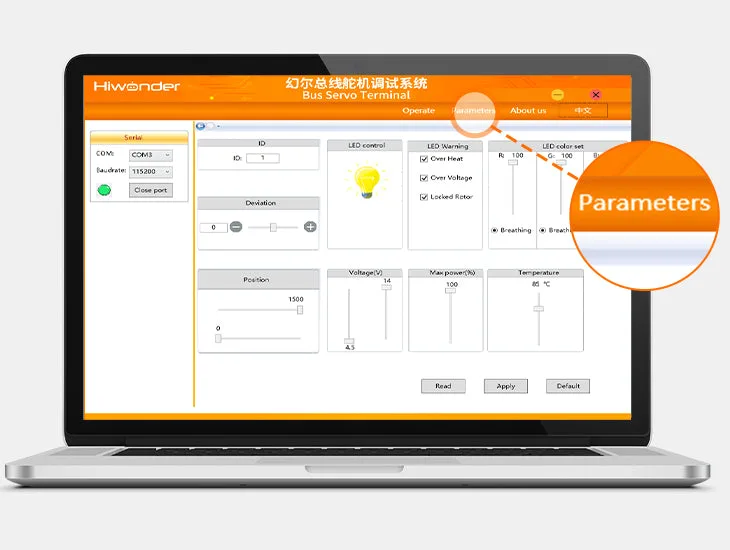

Real-time parameter monitoring

The debugging system allows you to test rotation while monitoring real-time data such as position, voltage, and temperature. You can configure ID numbers, speed, deviation, LED indicators, and safety alarms for stalling, voltage, or temperature.

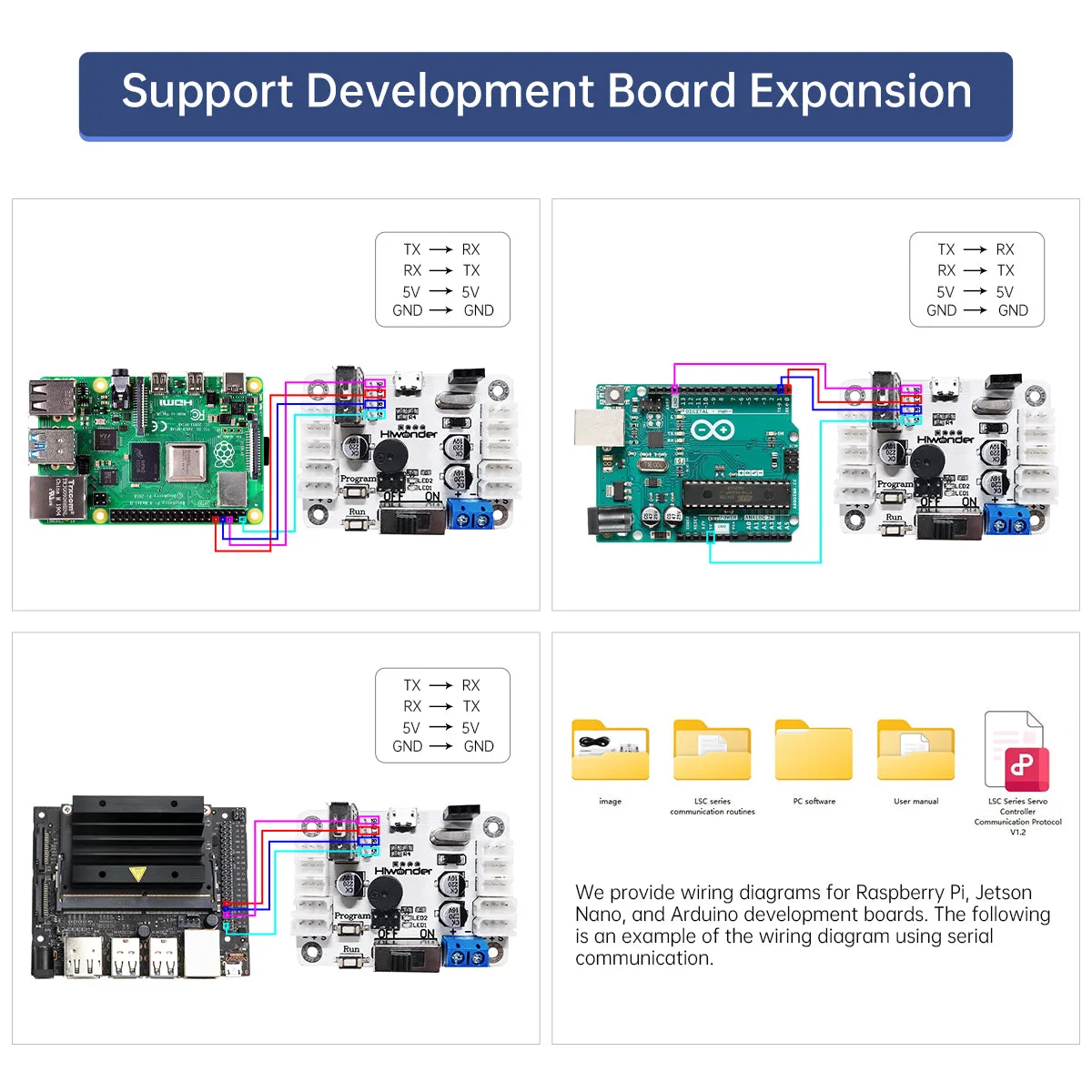

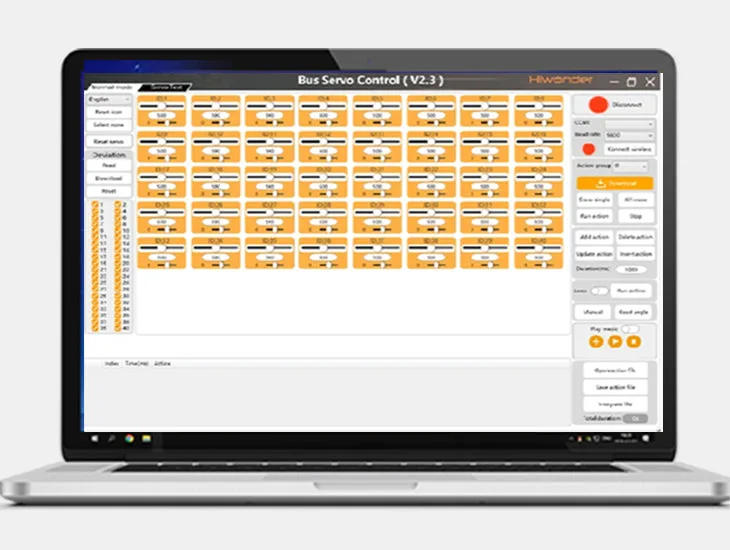

Expandable controller wiring

When paired with a compatible serial bus servo controller, you can utilise 10 connection ports to control up to 40 servos in total. The host computer interface also supports an angle readback function, allowing you to program movements by manually positioning the servo.
