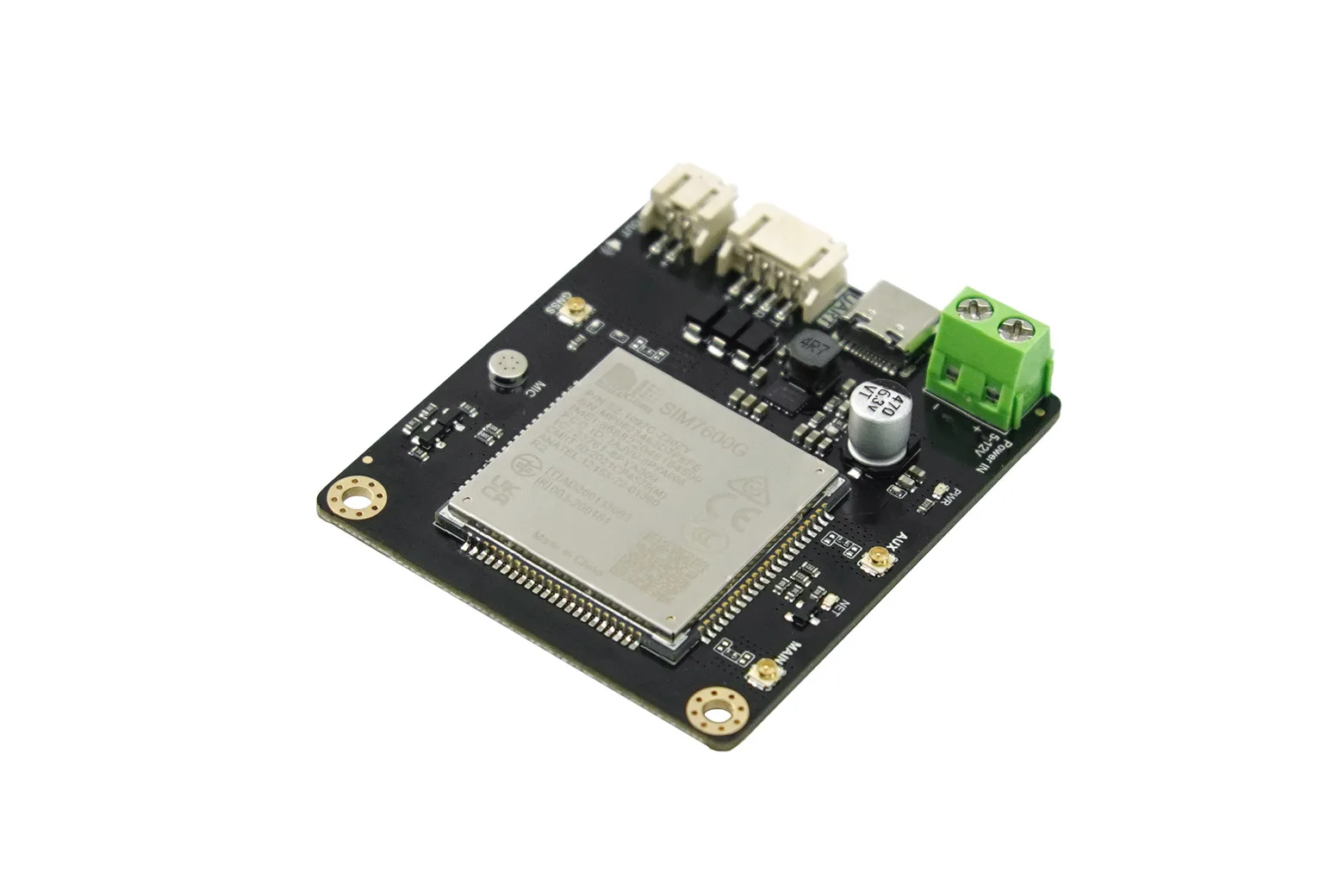

Gravity: CAT1 SIM7600G Global 4G Communication and GNSS Positioning Module (10Mbps/5Mbps)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Gravity CAT1 SIM7600G Global 4G and GNSS Module provides global cellular data, SMS, voice communication, and precise satellite positioning for maker projects. Delivering up to 10Mbps downlink speeds and acting as a USB network card, it is ideal for students, hobbyists, and engineers deploying remote IoT and tracking solutions.

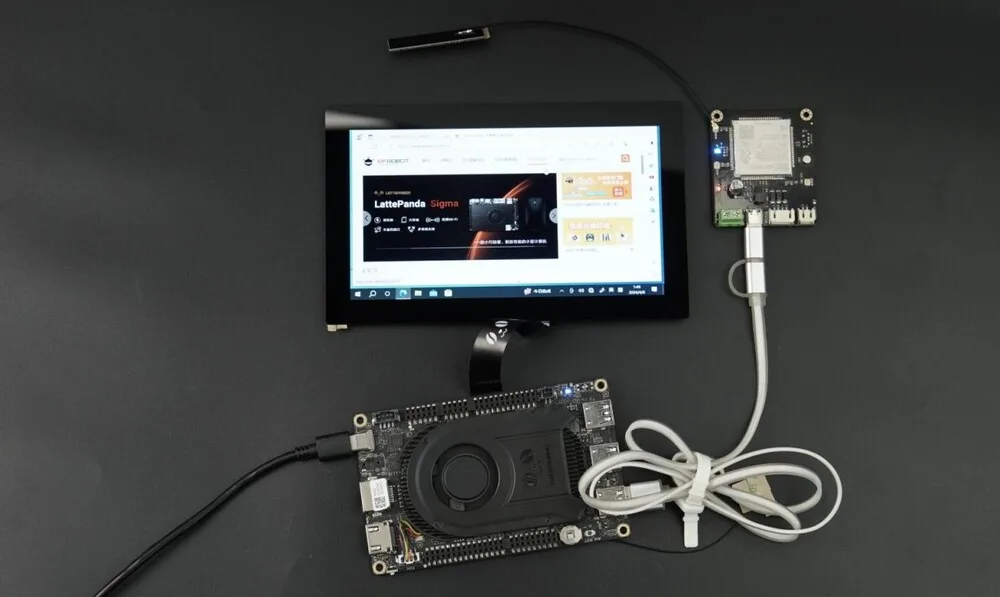

LattePanda USB network card integration
The module connects via USB or UART to single-board computers like the LattePanda 3 Delta, providing immediate 4G network card capability. It supports mainstream operating systems including Windows, Linux, and Android.

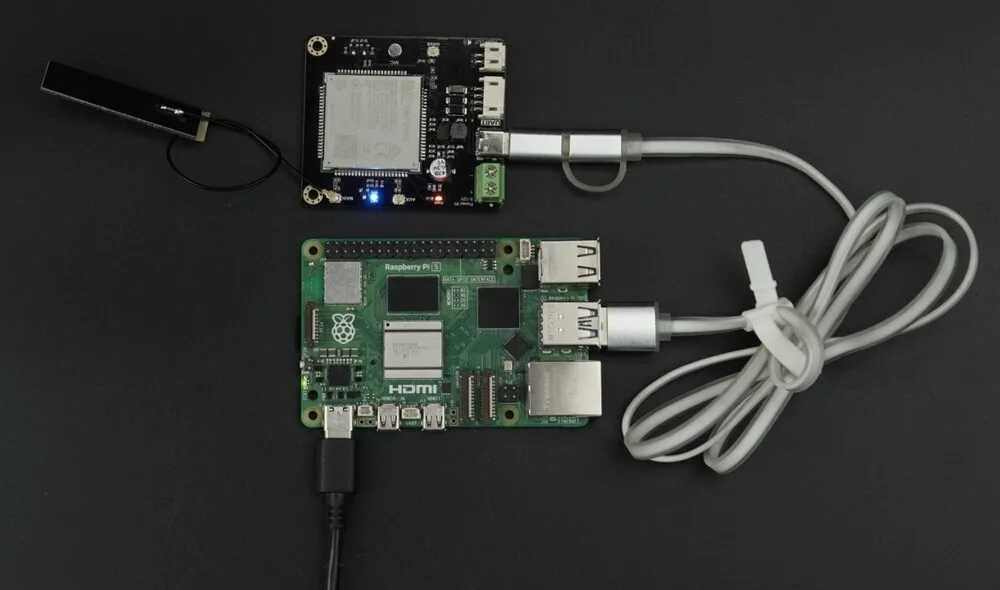

Raspberry Pi cellular communication
Connecting directly to single-board computers such as the Raspberry Pi, the SIM7600G enables cellular data exchange and SMS control. Embedded protocol stacks like TCP/IP, HTTP, HTTPS, and FTP operate via standard AT commands.

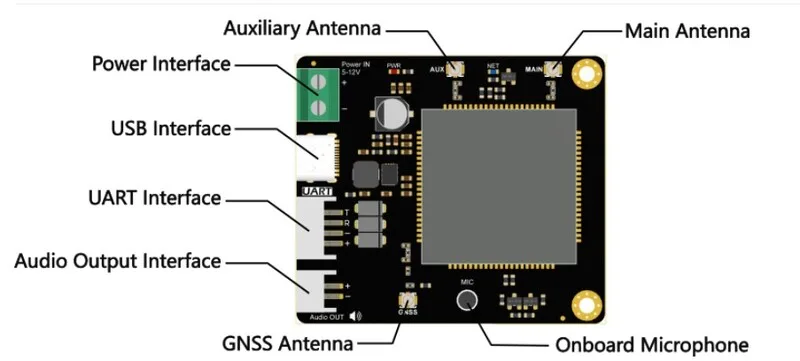

Onboard audio and hardware features

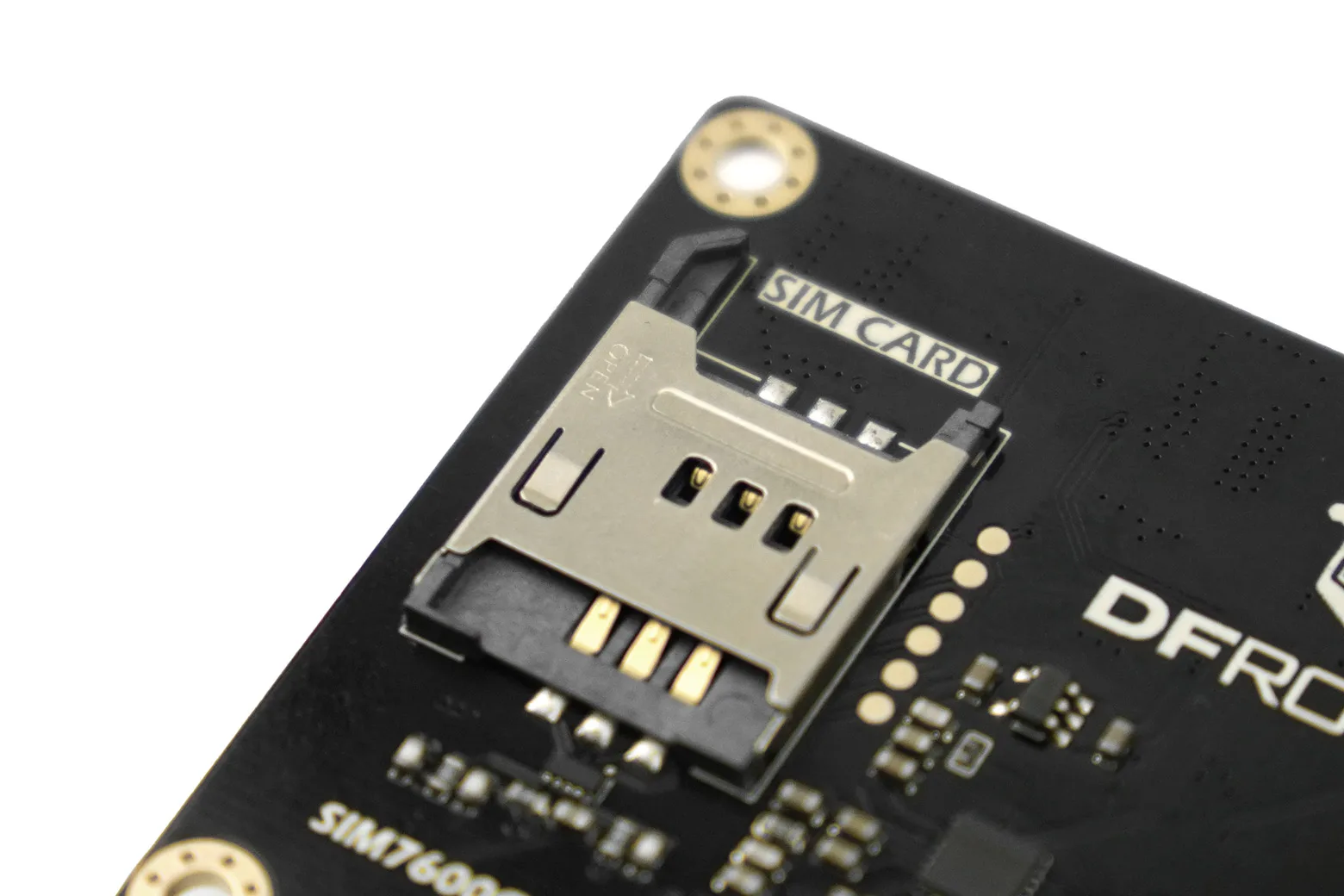

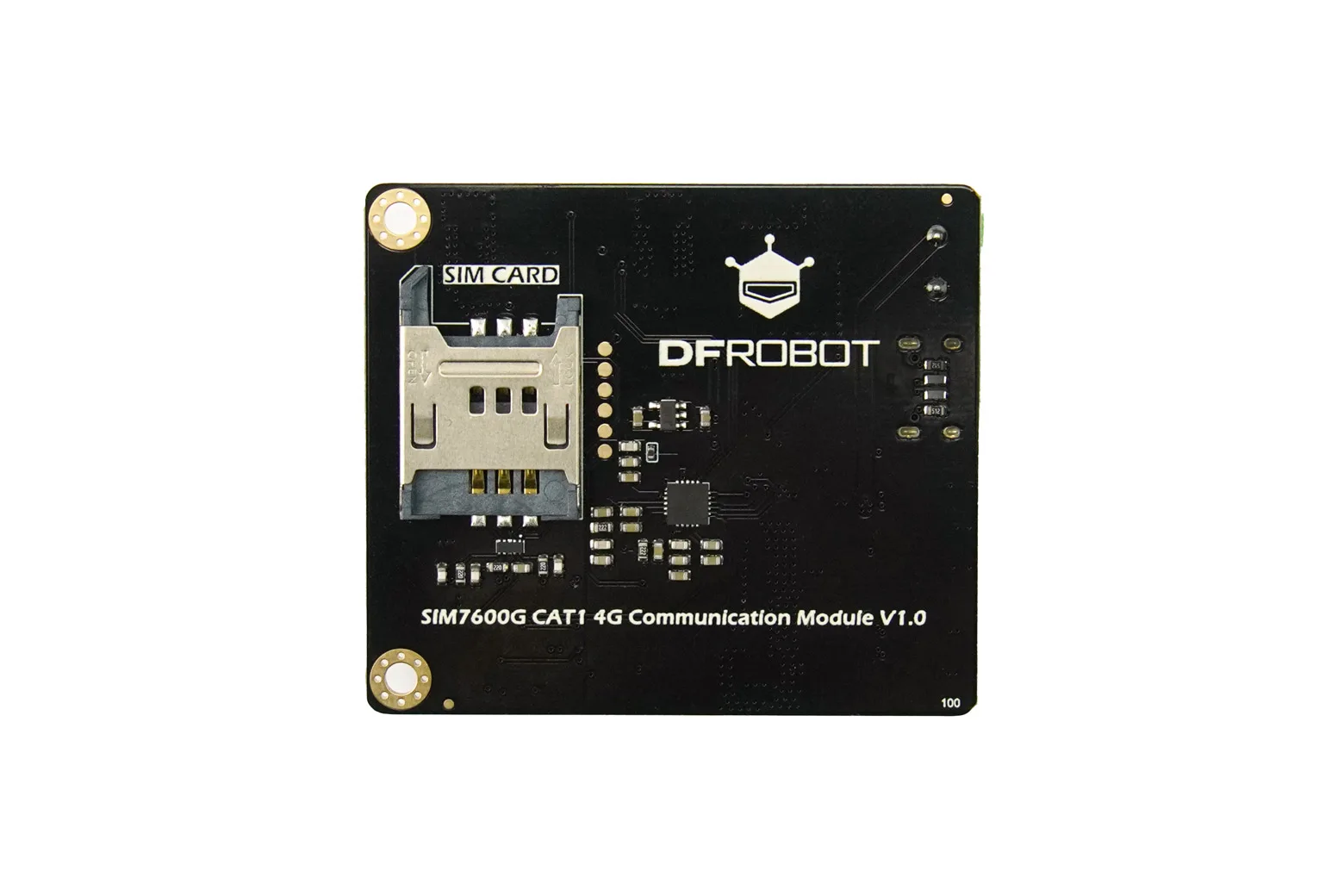

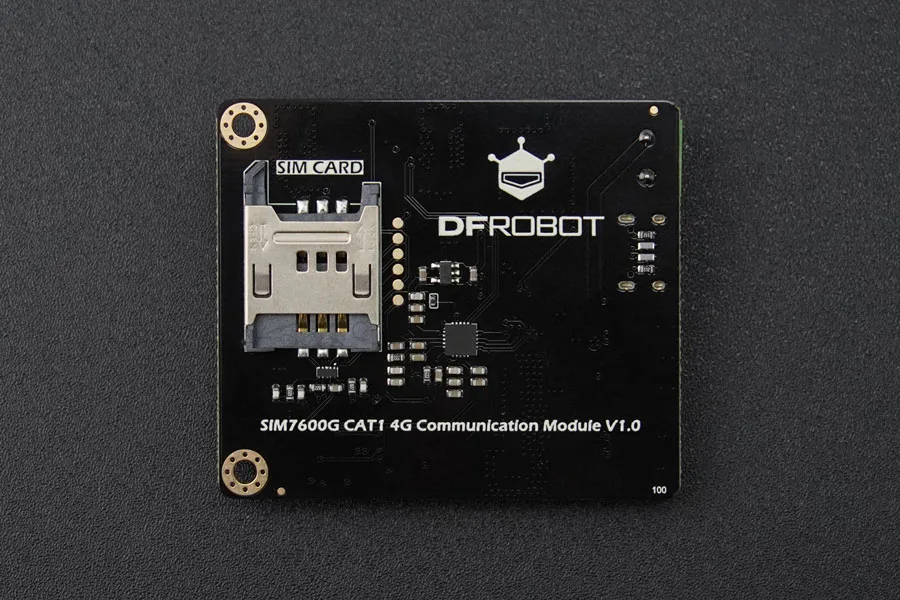

The board features a built-in microphone, audio power amplifier circuit, push-lock SIM slot, and status LEDs for power and network. IPEX connectors are provided for both main and auxiliary 4G antennas as well as an active GNSS antenna.

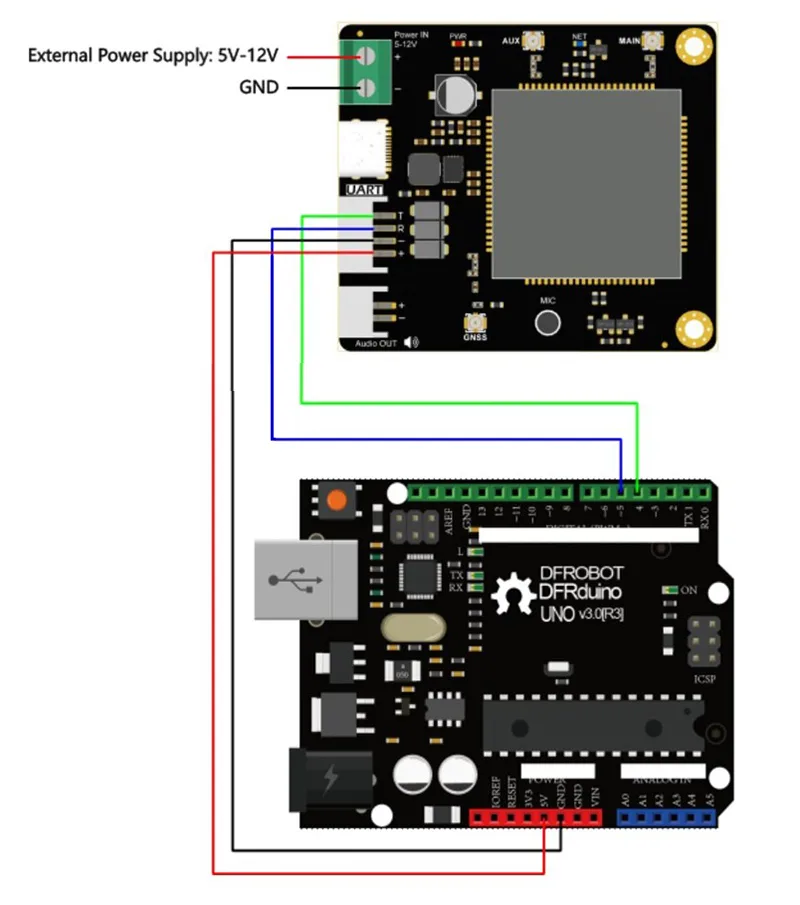

Arduino microcontroller compatibility
Equipped with a Gravity PH2.0-4P UART interface supporting 3.3V to 5V logic levels, the board interfaces easily with Arduino UNO and compatible microcontrollers. This allows lightweight development boards to perform remote data transmission and SMS processing without handling low-level network stacks.
Global multi-band and GNSS positioning
The module supports worldwide LTE-FDD, LTE-TDD, WCDMA, and GSM frequency bands alongside GPS, GLONASS, and BeiDou satellite positioning. Operating across an industrial temperature range of -40°C to 85°C, it is well-suited for fleet tracking, mobile robotics, and remote environmental monitoring.
Downloads & documentation
Specifications
| Power Supply Voltage | Terminal connector: 5-12V |
| TYPE-C | 5V |
| UART Interface | Voltage level: 3.3V-5V |
| Physical interface | PH2.0-4P Gravity sequence standard |
| Audio Output Interface | PJ2.0-2P |
| Frequency Band Applicable Regions | Global |
| LTE-TDD | B34/B38/B39/B40/B41 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 |
| UMTS/HSDPA/HSPA+ | B1/B2/B4/B5/B6/B8/B19 |
| GSM/GPRS/EDGE | 850/900/1800/1900MHz |
| 4G Communication Rate | CAT1 (Uplink speed 5Mbps, Downlink speed 10Mbps) |
| GNSS Satellite Positioning | GPS, BD, GLONASS |
| 4G Antennas | MAIN antenna IPEX male connector ×1 |
| GNSS Antenna | IPEX antenna male connector ×1 |
| Voice Microphone | ×1 |
| SIM Card Slot | Push-lock type |
| Power status | Red |
| Network status | Blue |
| Operating Temperature | -40°C ~ 85°C |

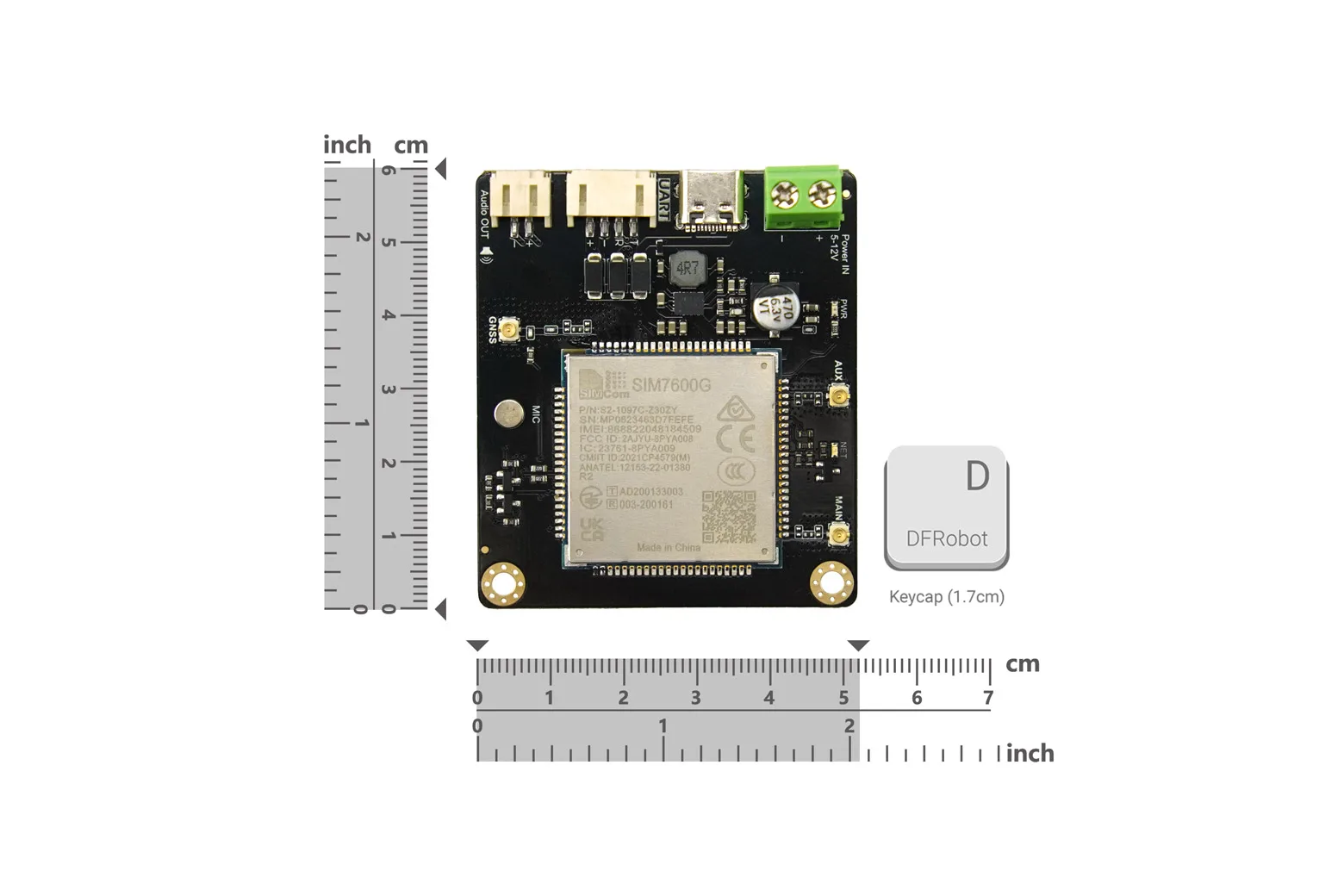

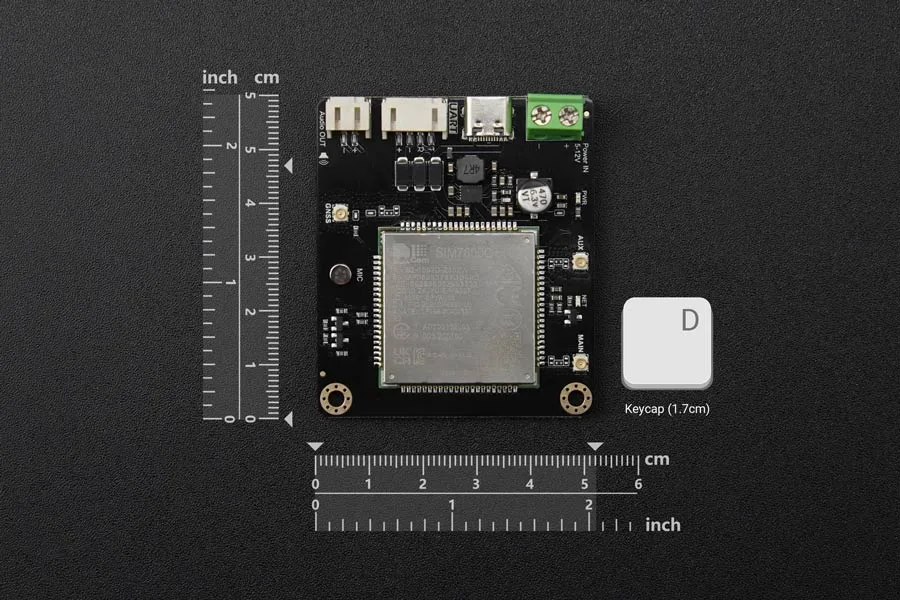

| Product Dimensions | 60mm×52mm |

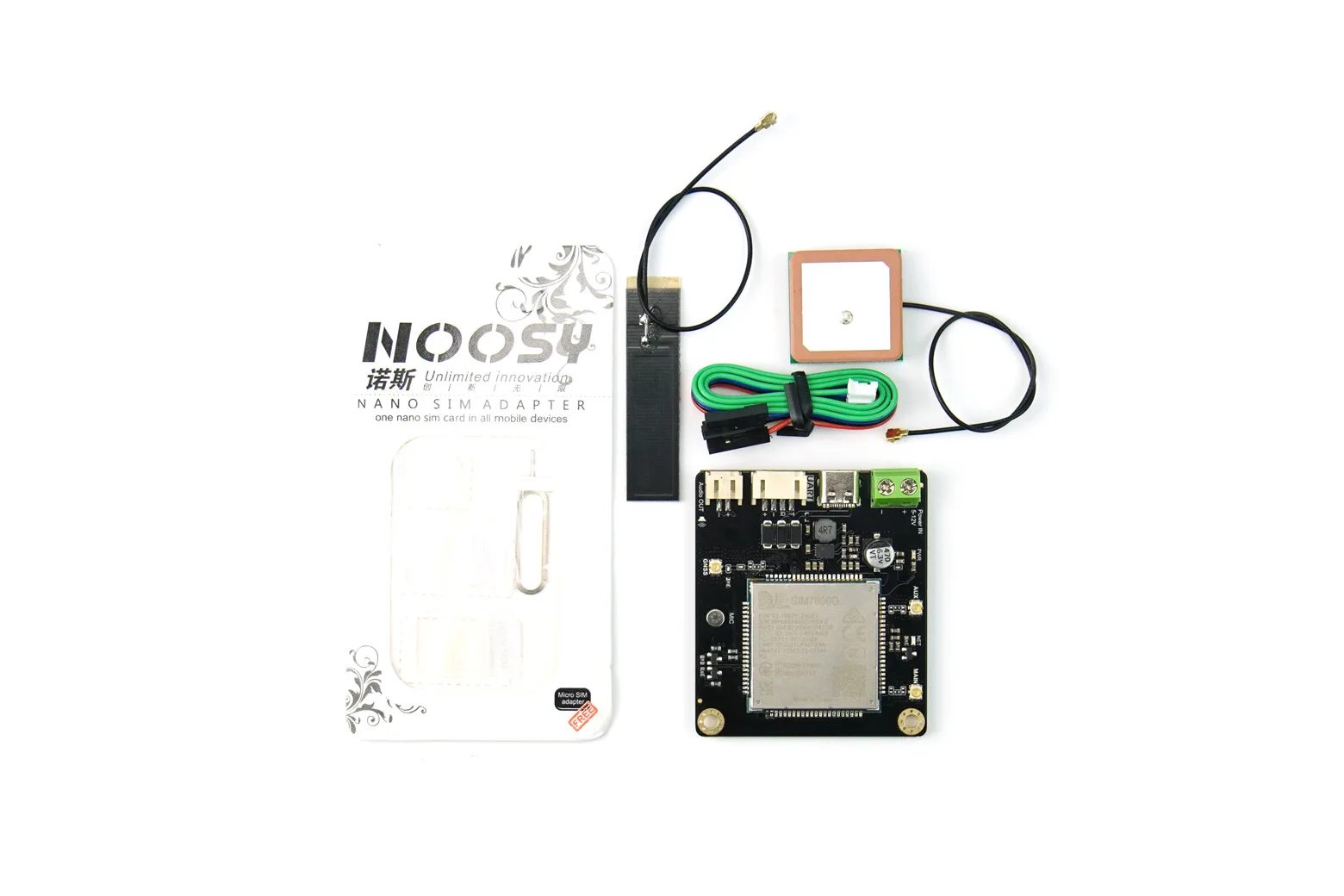

In the box
| CAT1: SIM7600G 4G Communication Module | 1 |

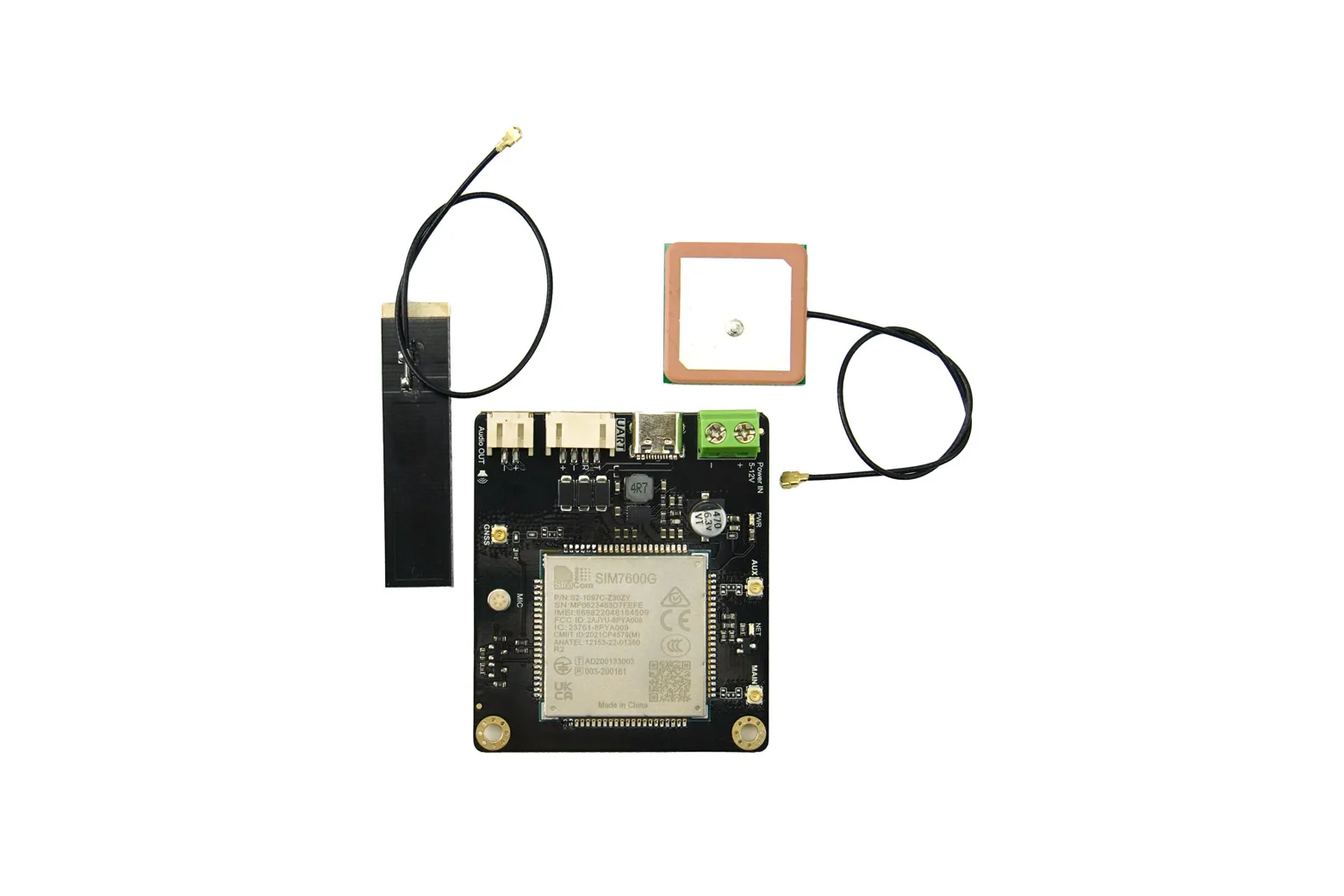

| 4G TEL, GPS antenna pack | 1 |
| Triple-cut universal SIM card adapter | 1 |
| Gravity PH2.0-4P Communication Connection Cable ×1 | 1 |
