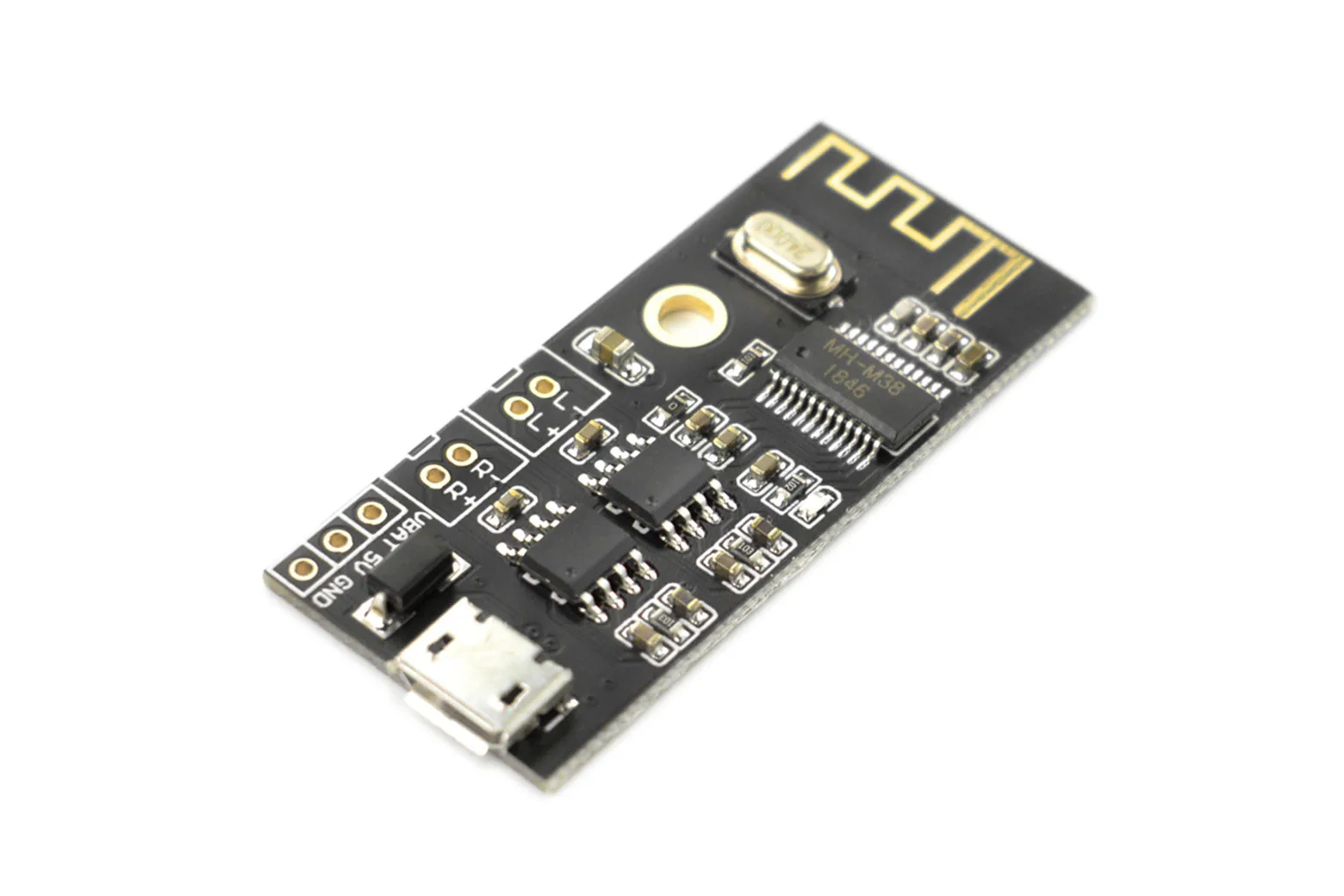

Bluetooth 4.2 Audio Receiver Board-with an Amplifier (2x5W)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This compact Bluetooth 4.2 audio receiver board features an integrated dual 5W amplifier to power stereo speakers directly. Operating on a 3.7V to 5V supply via micro USB or a lithium battery, it provides clear wireless sound with auto-reconnect functionality. It is well suited for makers, students, and hobbyists building custom portable speakers and DIY audio projects.

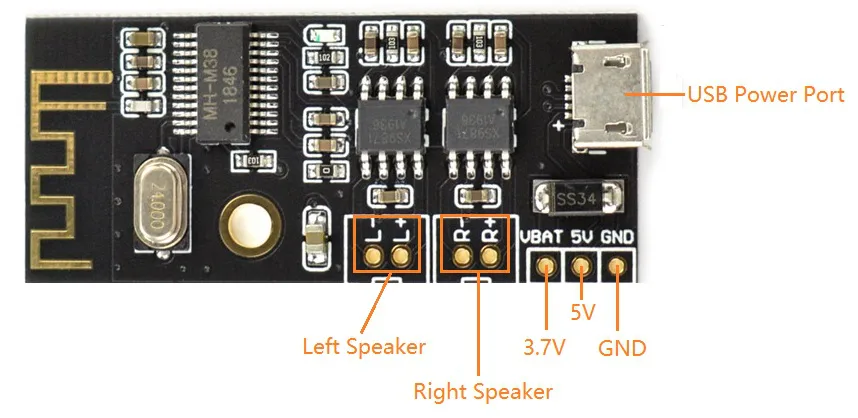

Integrated dual 5W stereo amplifier
The module includes onboard dual 5W power amplifier circuits capable of driving 2 to 8 Ohm speakers directly, with 4 Ohm 5W speakers recommended. Because amplification is built in, external amplifier boards must not be connected.
Wireless connectivity and audio decoding

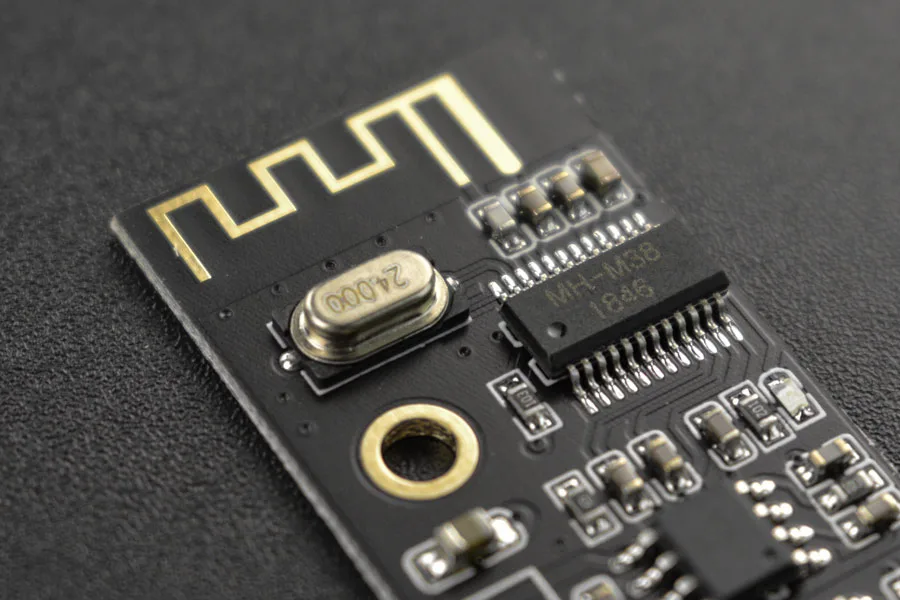

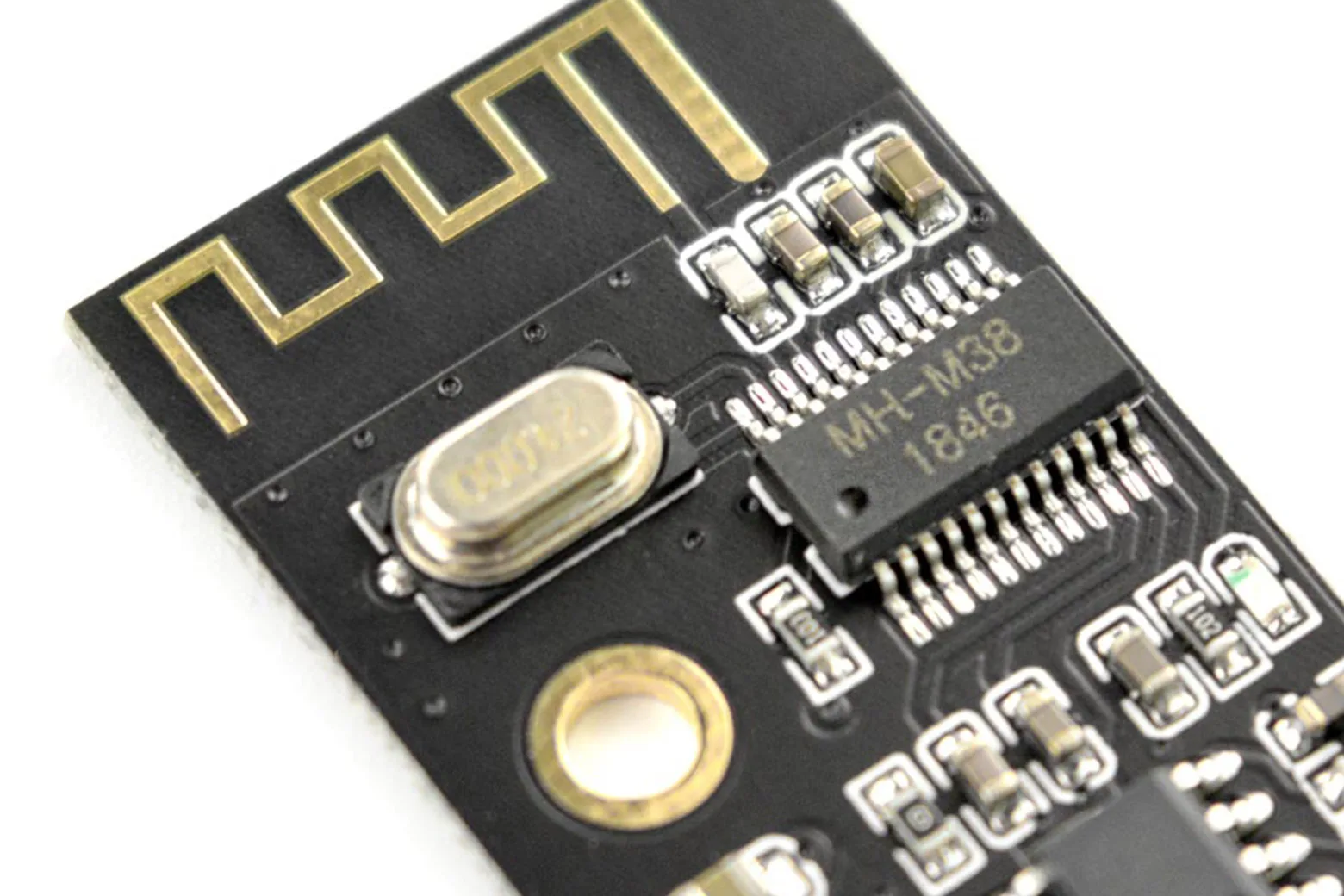

Equipped with Bluetooth 4.2, the board offers a transmission range of up to 15 metres in line of sight and supports automatic reconnection. It handles multiple common decoding formats, including WAV, APE, FLAC, and MP3.
Simple pairing and status indication
The board broadcasts under the name XWF-M18-M28-M38 and provides audio prompt cues during pairing. An onboard blue LED flashes rapidly during pairing mode, stays solid when connected, and blinks slowly during playback.

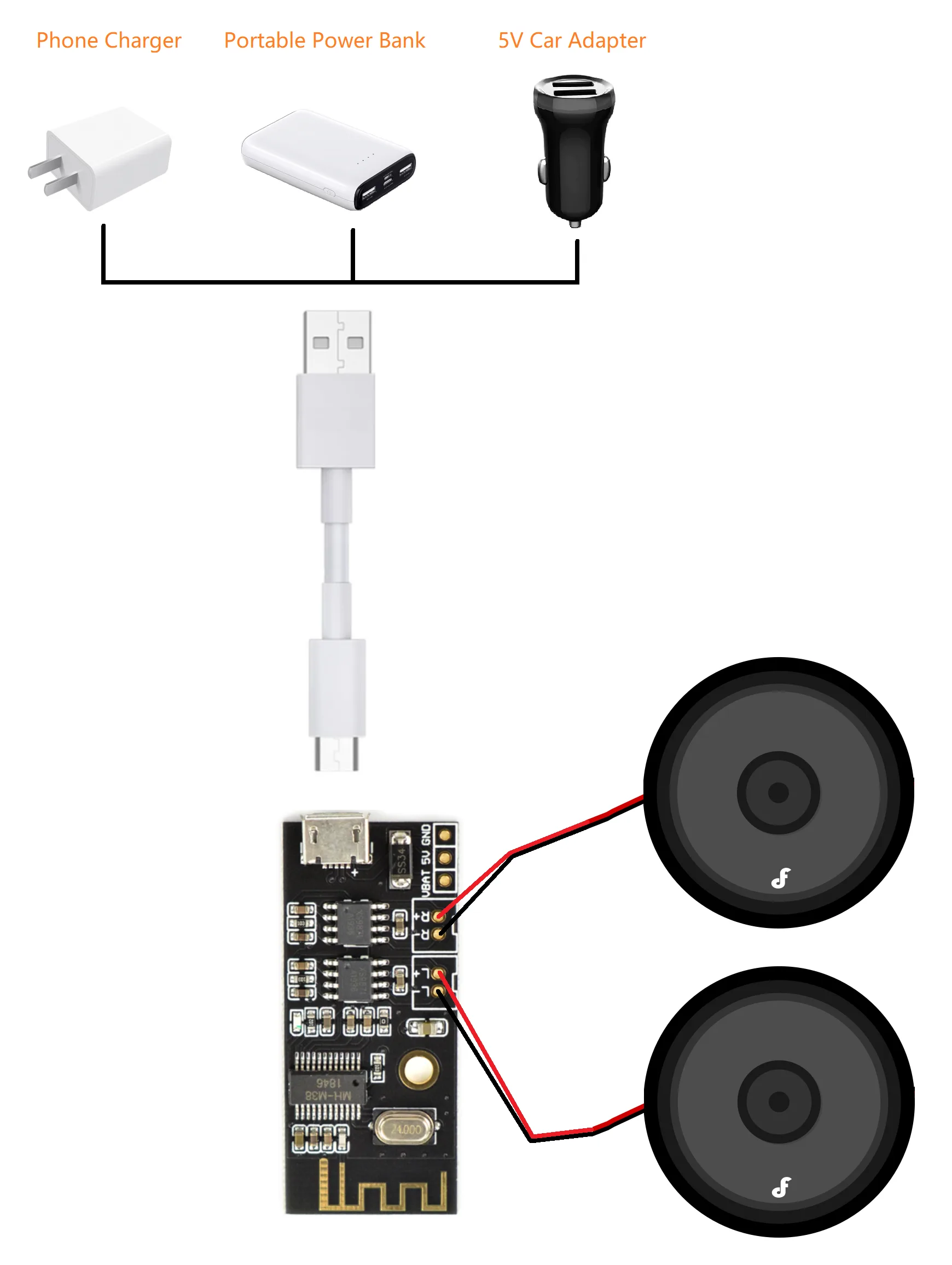

Flexible power supply options
Power can be supplied via a micro USB connection or a 3.7V lithium battery across a 3.7V to 5V operating range. Because the board lacks integrated battery protection, using a dedicated LiPo charger and protection board is recommended.
Handling and wiring precautions

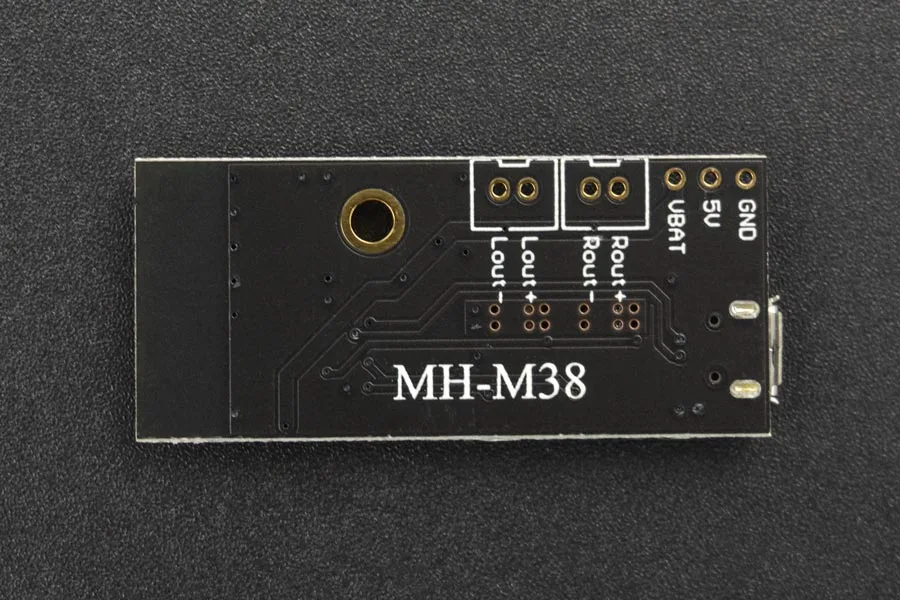

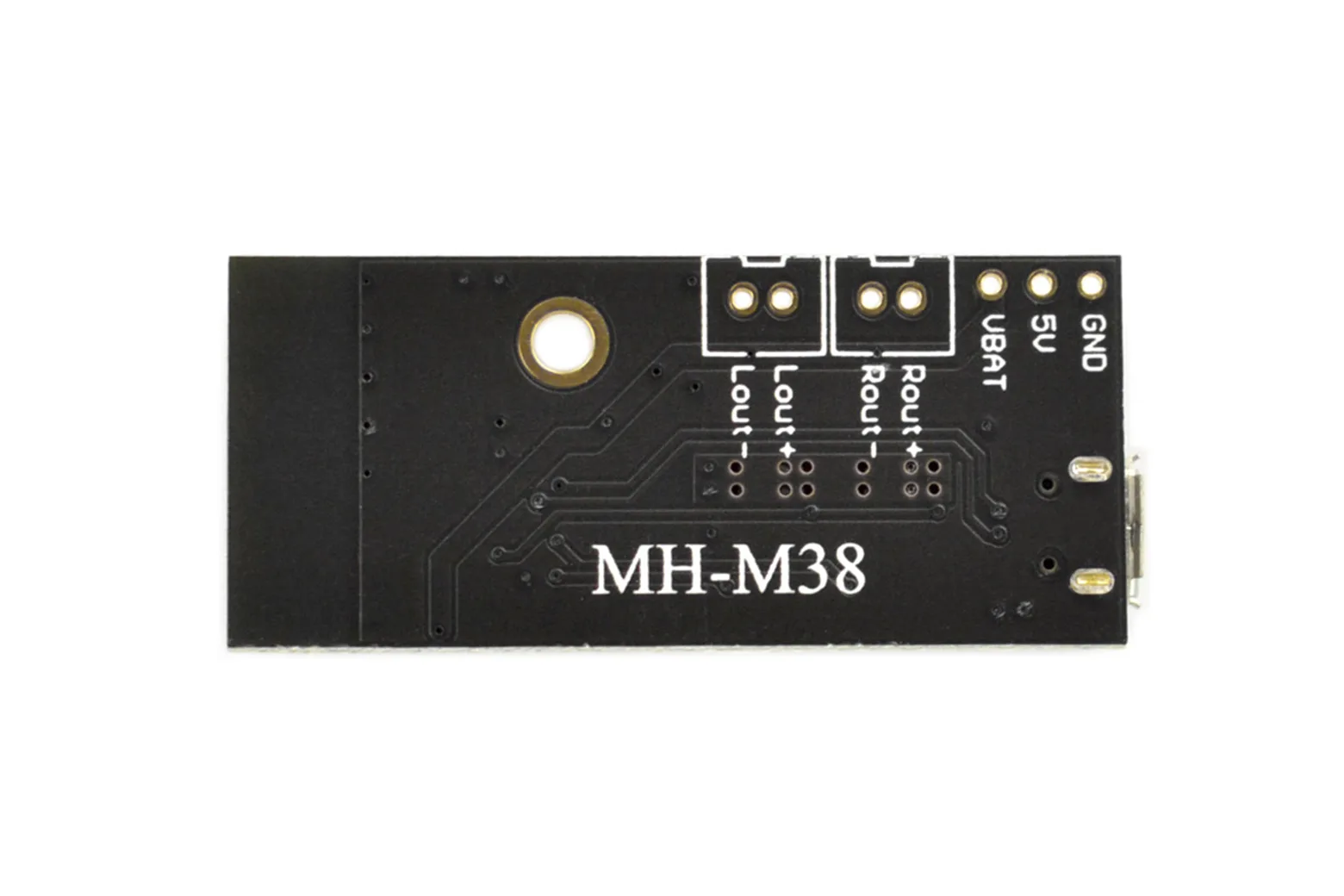

Do not tie the negative speaker terminals together, as common grounding will damage the amplifier chip. Ensure proper electrostatic discharge protection before handling the Bluetooth chip, and keep the antenna clear of metal objects.
Specifications
| Power Supply | 3.7V-5V |
| Bluetooth Version | 4.2 |
| Transmission Distance | 15m（Visible） |
| Audio Decoding | WAV, APE, FLAC, MP3 |
| Match Speaker | 2-8Ω, 3-5W (4Ω5W speaker is recommended ) |

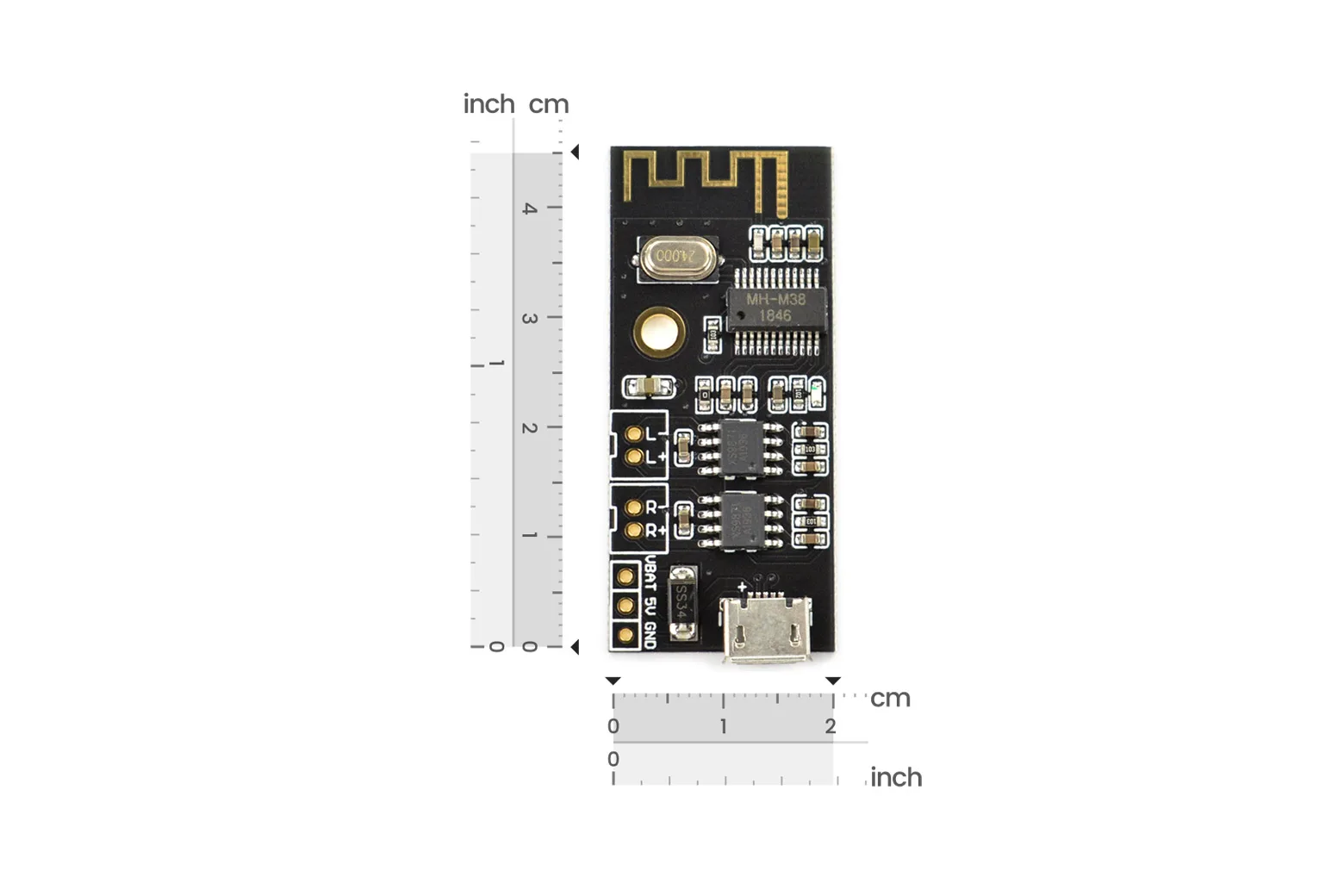

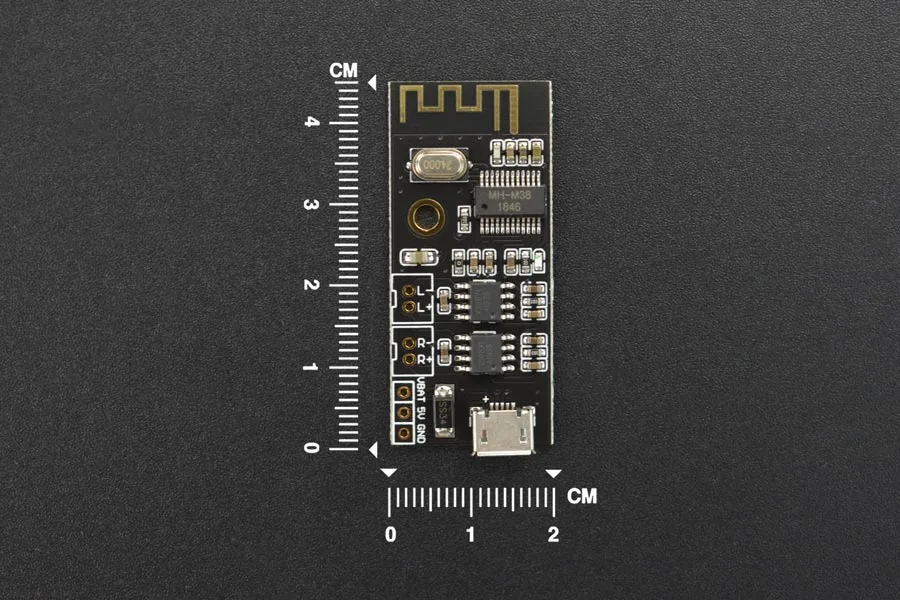

| Dimension | 20*45mm/0.79*1.77” |

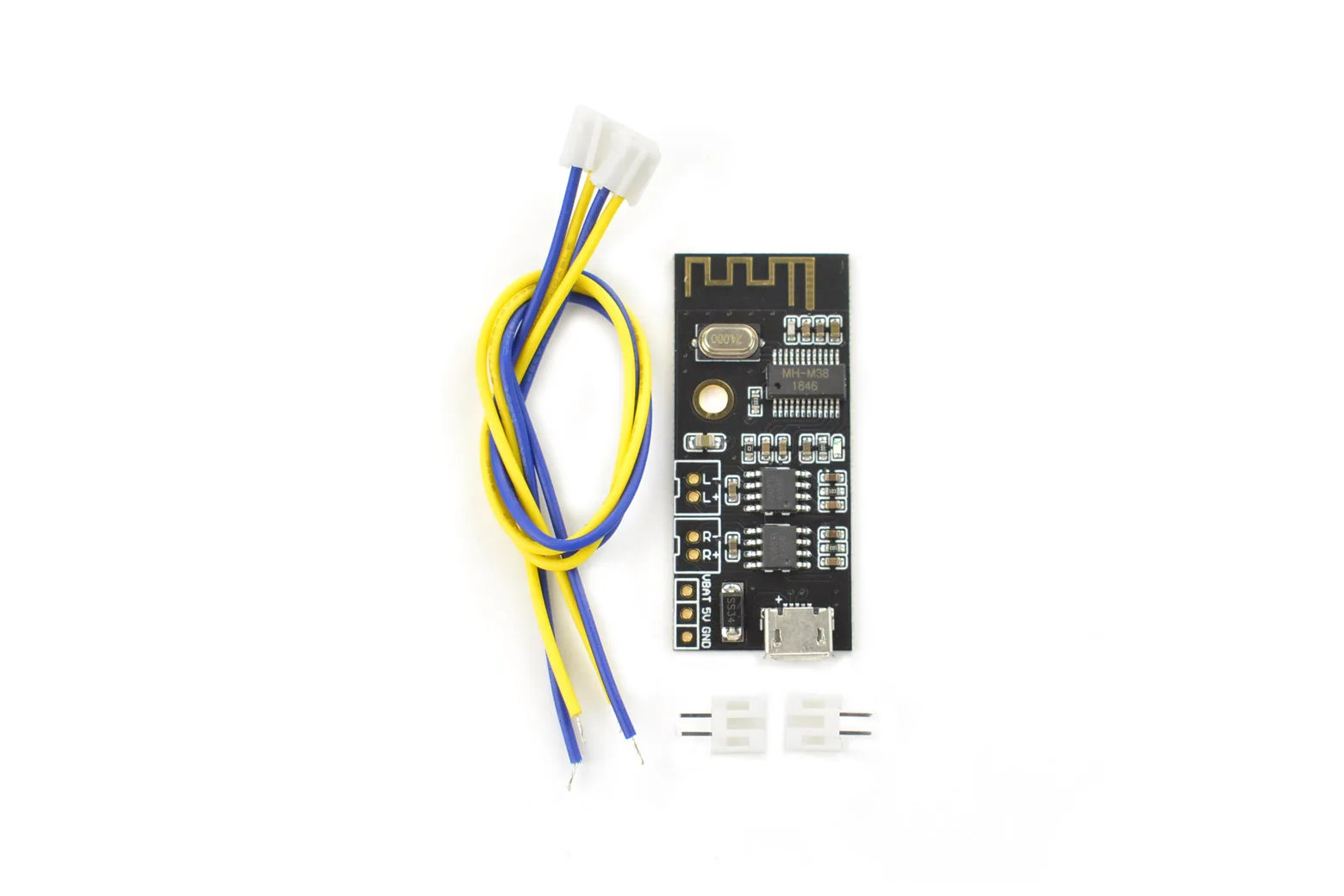

In the box
| Bluetooth 4.2 Audio Receiver Board-with an Amplifier (2x5W) | 1 |
| Review | 1 |
| Andrew.Wickens Jan 24, 2026 | 1 |
| Nice little Bluetooth amp board for DIY audio. | 1 |
| Audio quality is clear, pairing is fast, and the onboard amplifier has more than enough power for small speaker builds. Works well for portable speakers, bench testing, or embedded audio projects. Very straightforward and reliable. | 1 |
| Andrew.Wickens Jan 24, 2026 | 1 |
| Compact and convenient Bluetooth audio solution. | 1 |
| Pairs quickly and provides clean, surprisingly loud audio for its size. The built-in 2×5 W amplifier is perfect for small speakers and DIY audio projects. Simple wiring, stable Bluetooth connection, and great value for compact wireless builds. | 1 |
| Andrew.Wickens Jun 24, 2025 | 1 |
| I bought another one of these of another online store and it was not as good as this one. Using the same speakers the sound is so much better. I will definitely buy another from dfrobot. Thanks | 1 |
| More | 1 |
