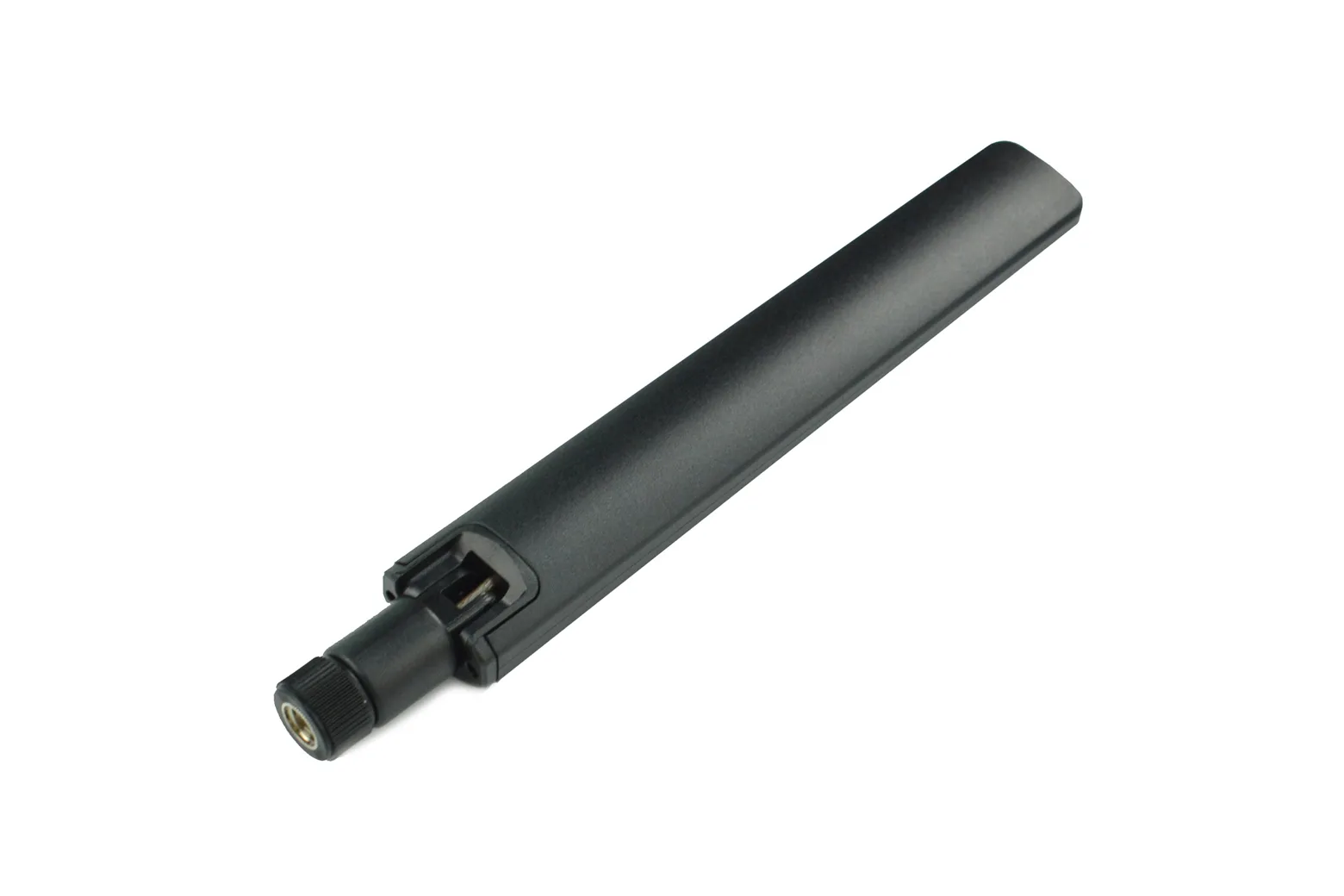

600-6000MHz 5G Antenna

This 600-6000MHz 5G antenna is a versatile wideband antenna designed to boost signal transmission and reception across cellular and wireless networks. It is ideal for makers, students, and engineers developing IoT access points, mobile terminals, and embedded 5G or 4G routers.

Comprehensive wideband network support

Operating across the 600MHz to 6000MHz frequency range, this antenna is fully compatible with 5G, 4G LTE, 3G, 2G GSM, UMTS, and Wi-Fi applications. It provides high efficiency and reliable throughput across global cellular frequency bands.

High peak gain and stability

With a 5dBi peak gain and a standing wave ratio of less than 3, the antenna enhances signal stability for both transmitting and receiving data. Its 50-ohm impedance ensures consistent RF performance and network quality.

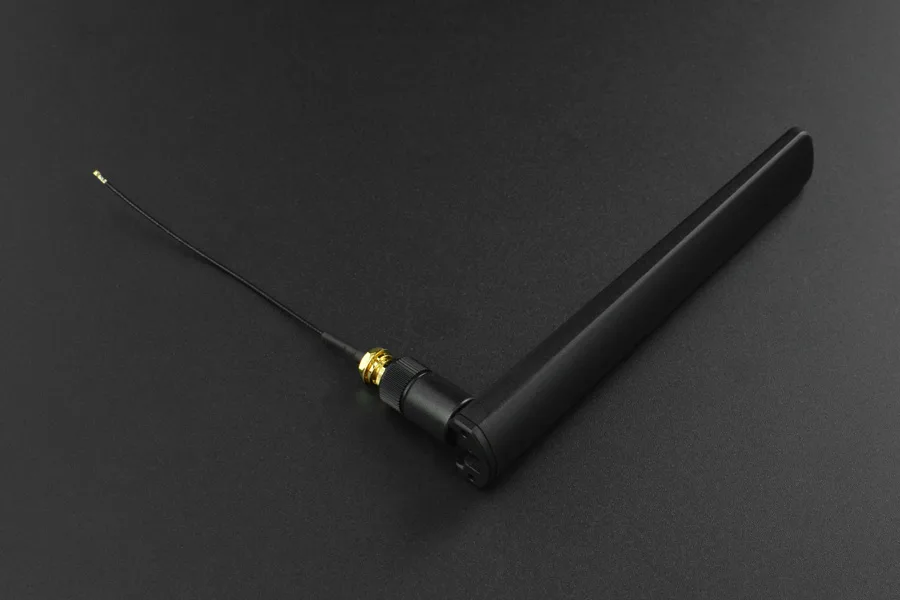

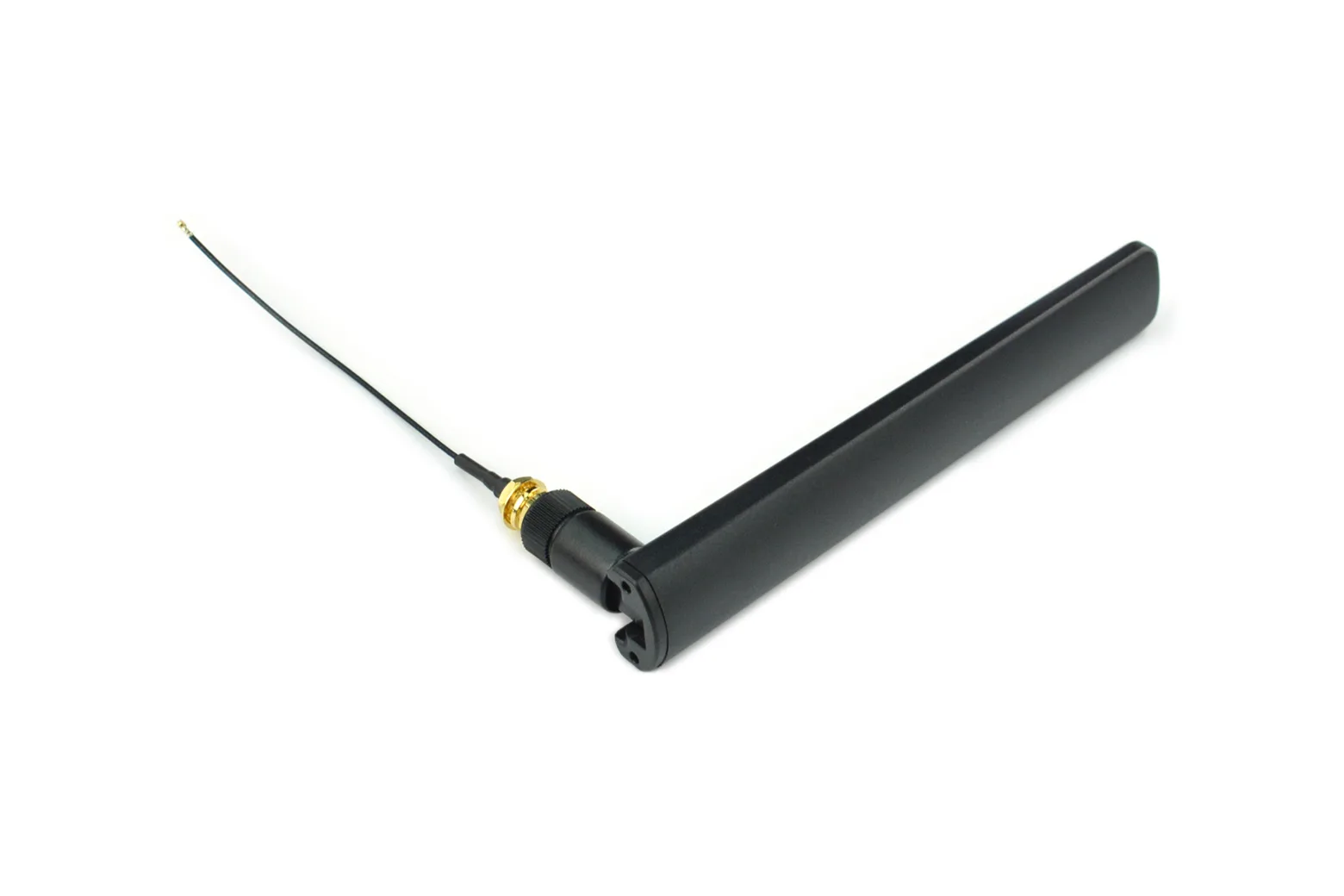

Flexible 90-degree adjustable articulation

The antenna supports 90-degree bending to enable flexible pointing and alignment. This allows for optimal positioning whether mounted to stationary enclosures or mobile platforms.

Compact dimensions and connector interface

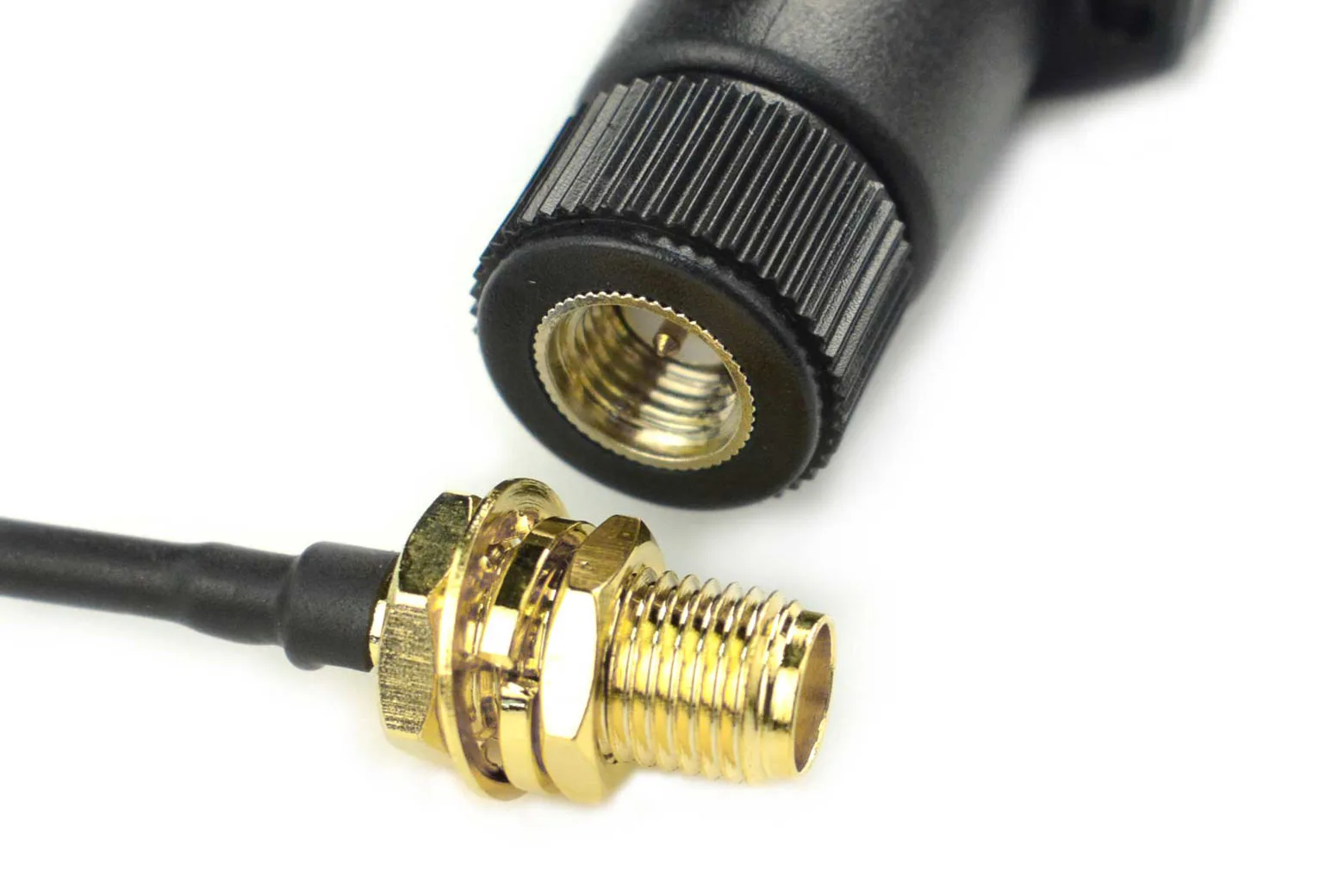

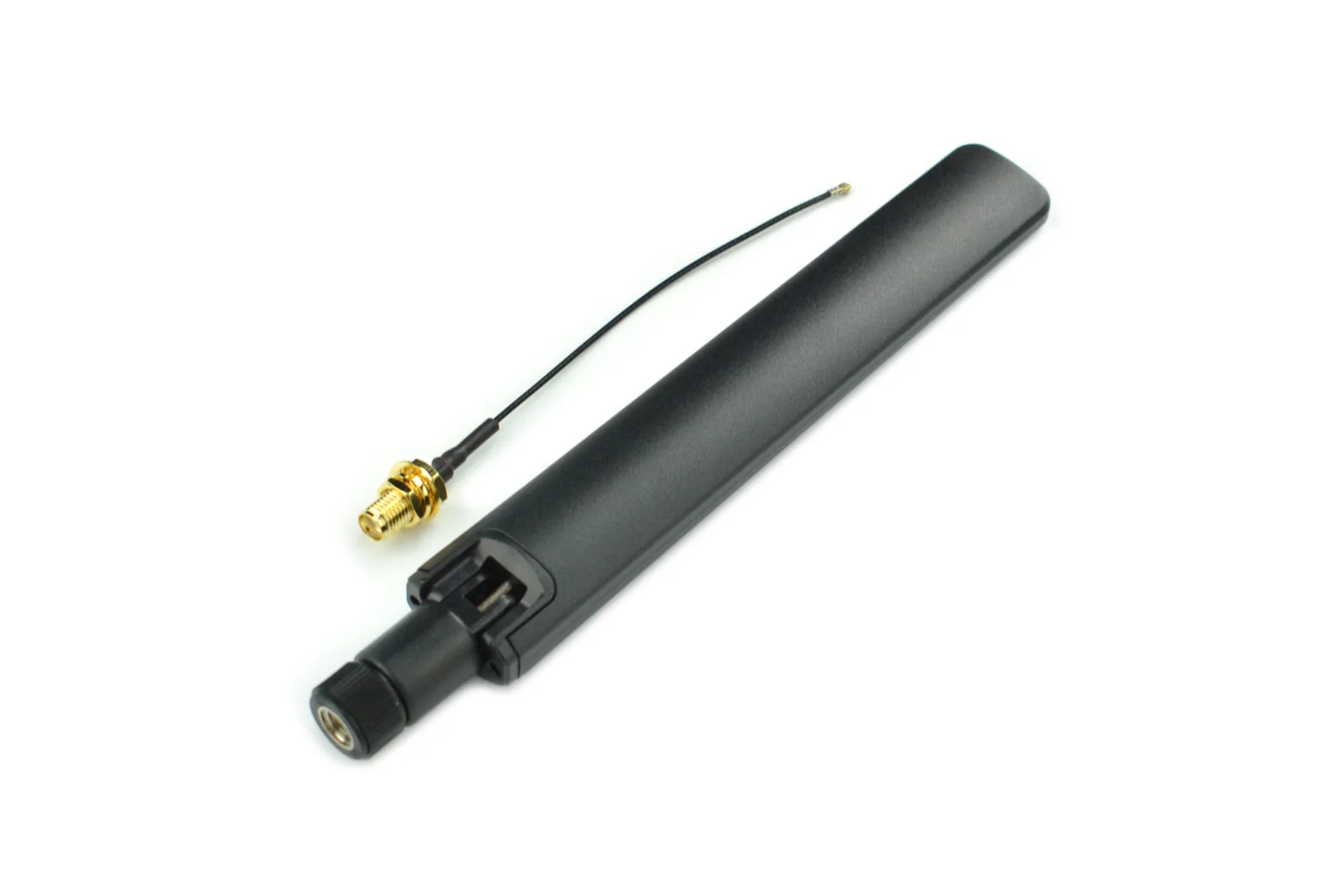

Measuring 47mm in diameter and 30mm in height, the antenna maintains a compact physical footprint. It interfaces via a standard SMA connector accompanied by an 11.5mm IPEX4 generation connection wire.

Resilient environmental operating tolerance

Engineered to withstand demanding operating environments, the antenna functions across a temperature range of -40°C to 85°C. It operates in non-condensing relative humidity up to 95% at 65°C.
