WHEELTEC Rubber Wheel for Lawn Mower Robots

The WHEELTEC Rubber Wheel for Lawn Mower Robots is a heavy-duty, high-traction wheel designed specifically for outdoor robotic projects and automated lawn mowers. Built with a robust cast aluminium hub and a solid rubber tyre, this wheel is ideal for students, makers, and developers building rugged outdoor mobile platforms. It comes equipped with a patented industrial-grade clamping coupling to ensure secure torque transmission under demanding loads.

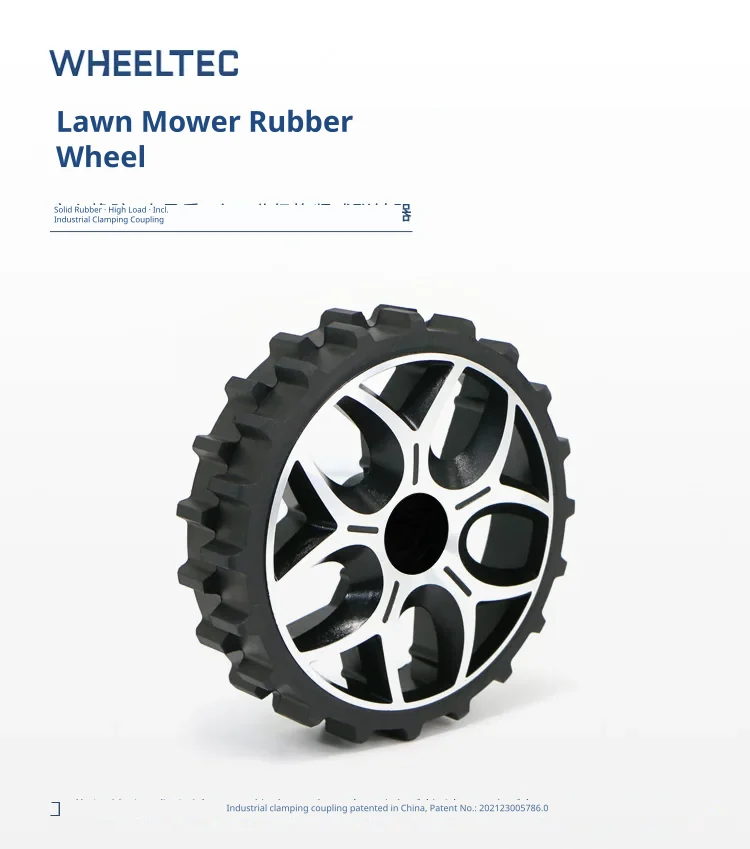

Heavy duty solid rubber construction

This high-traction wheel features a solid rubber tread paired with a durable cast aluminium hub designed to withstand heavy outdoor loads. It includes a patented industrial-grade clamping coupling that ensures a secure, slip-free connection to your motor shaft.

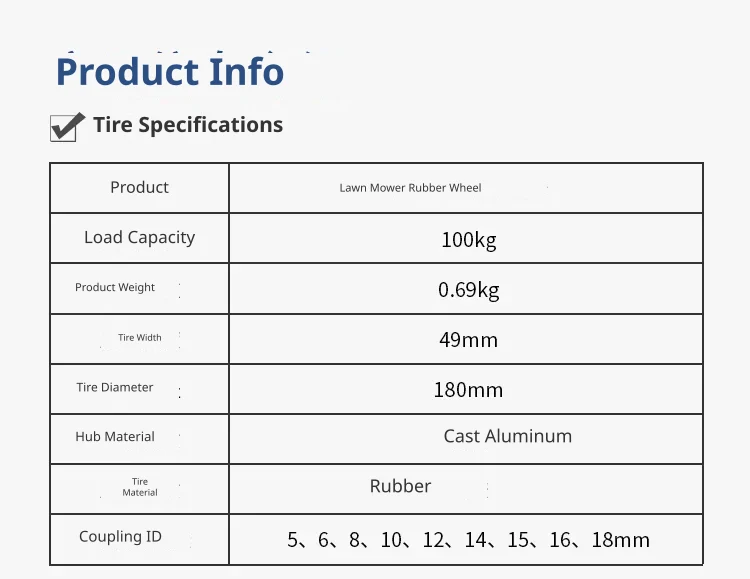

High load capacity and key specifications

Engineered for heavy-duty applications, a single wheel supports a load capacity of up to 100kg while weighing just 0.69kg. It has an outer tyre diameter of 180mm and a tread width of 49mm, providing excellent stability and surface contact for outdoor terrains.

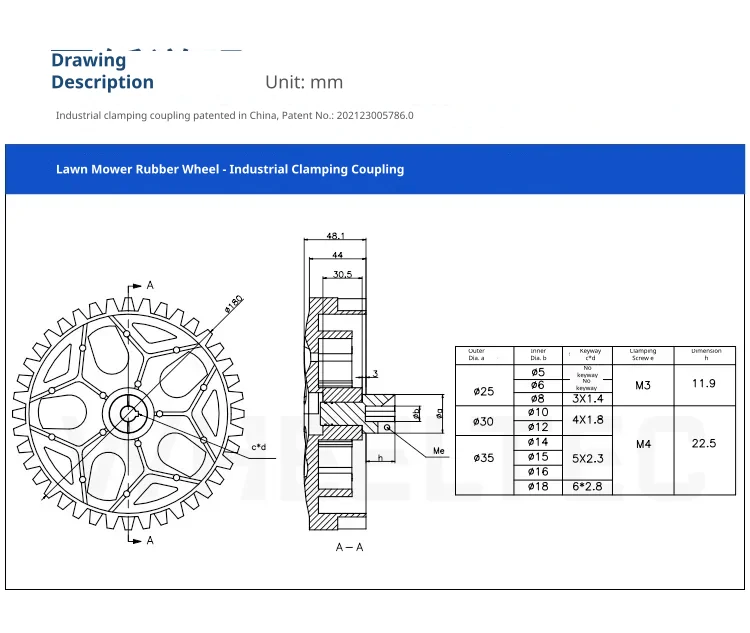

Precise dimensions and coupling options

The wheel is compatible with a wide range of motor shaft diameters from 5mm to 18mm, utilizing M3 or M4 clamping screws depending on the coupling size. Shaft couplings from 8mm to 18mm feature integrated keyways to prevent rotational slippage under high torque.

Ideal for rugged outdoor robotics

Whether you are building an autonomous lawn mower, an agricultural robot, or a heavy-duty transport platform, these wheels provide the durability needed for rough terrain. The combination of a cast aluminium core and deep rubber treads ensures reliable performance in challenging environments.
