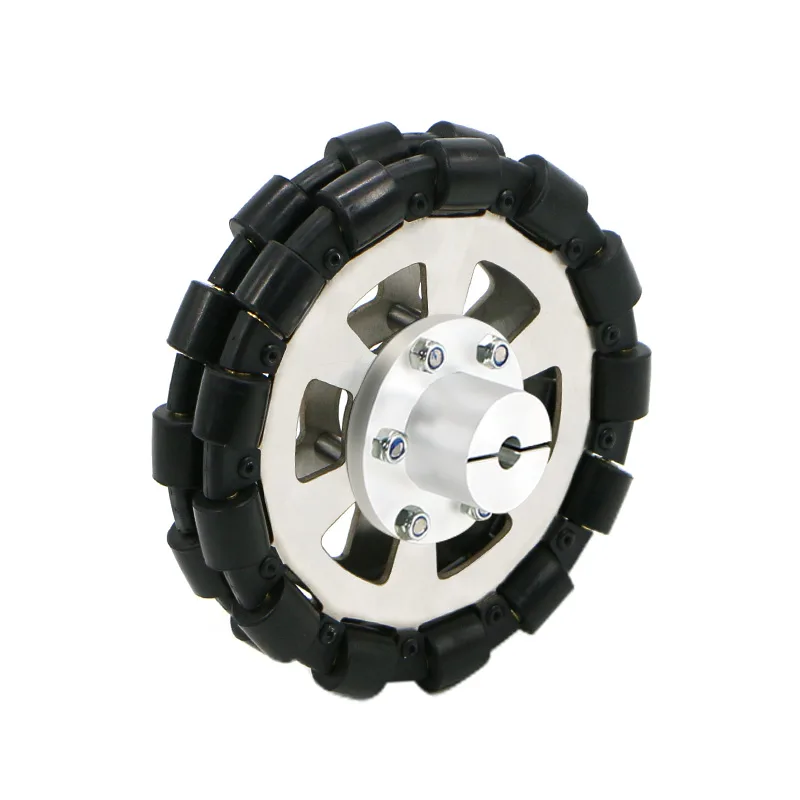

WHEELTEC Omni A Series Omni Wheel

The WHEELTEC Omni A Series Omni Wheel is a high-performance, metal-hubbed omnidirectional wheel designed for agile robotic platforms. It is ideal for students, educators, and makers building mobile robots that require seamless 360-degree manoeuvrability in indoor environments.

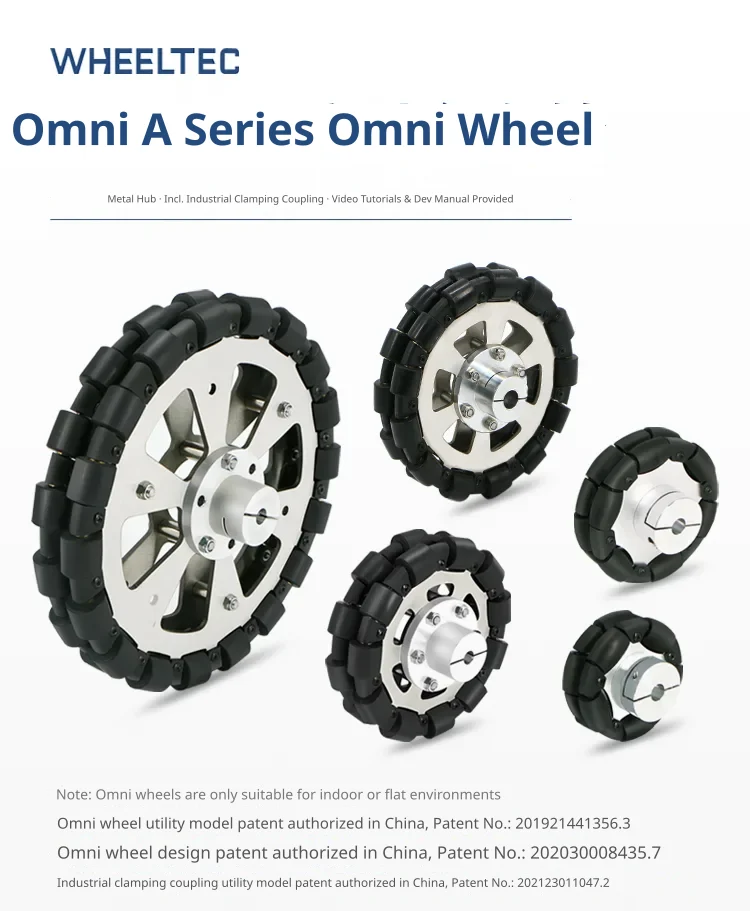

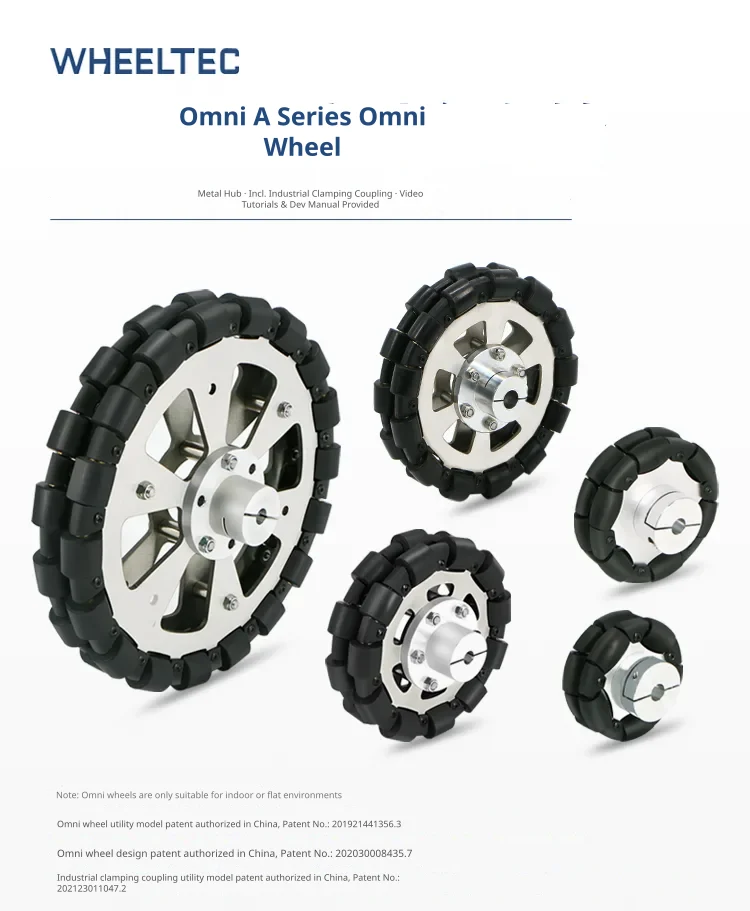

Robust metal construction

Each wheel is built with a durable metal hub and comes with an industrial-grade clamping coupling for secure mounting. This series is designed specifically for flat or indoor environments and is supported by video tutorials and a development manual.

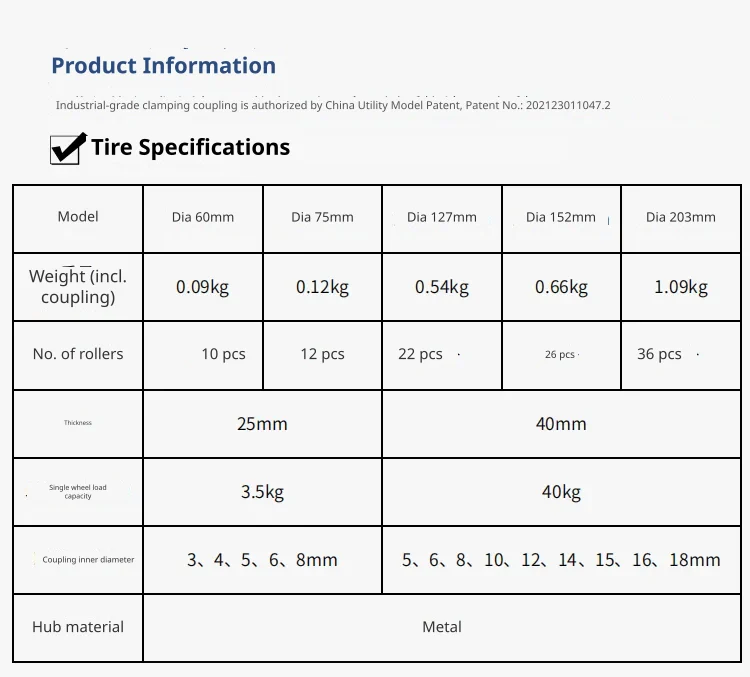

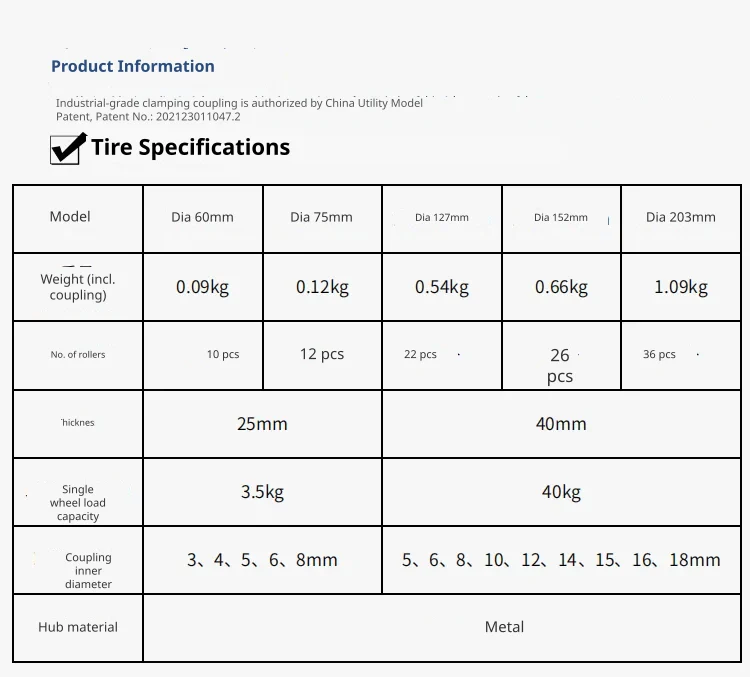

Comprehensive sizing and specifications

The series offers five distinct wheel diameters ranging from 60mm to 203mm, with load capacities up to 40kg per wheel for the larger models. The number of peripheral support rollers scales from 10 on the smallest wheel to 36 on the largest, ensuring smooth motion.

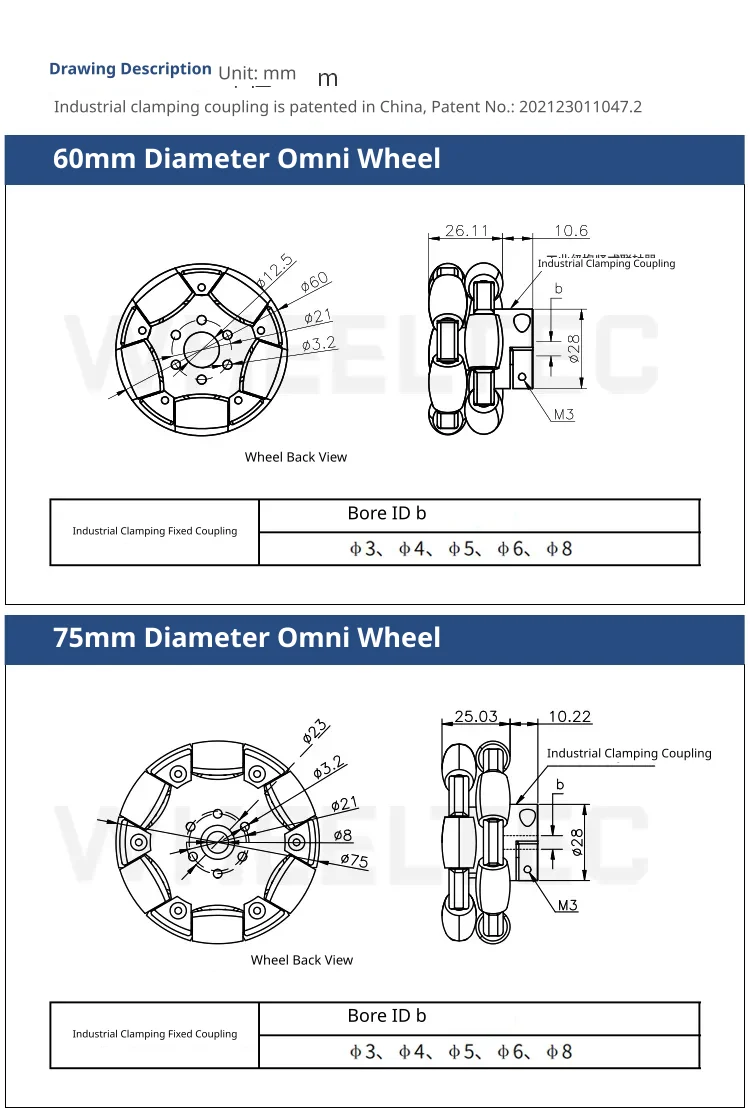

Compact wheel dimensions

The 60mm and 75mm variants feature a slim 25mm thickness and support a single-wheel load capacity of 3.5kg. They are supplied with clamping couplings featuring inner diameters of 3mm, 4mm, 5mm, 6mm, or 8mm secured by M3 screws.

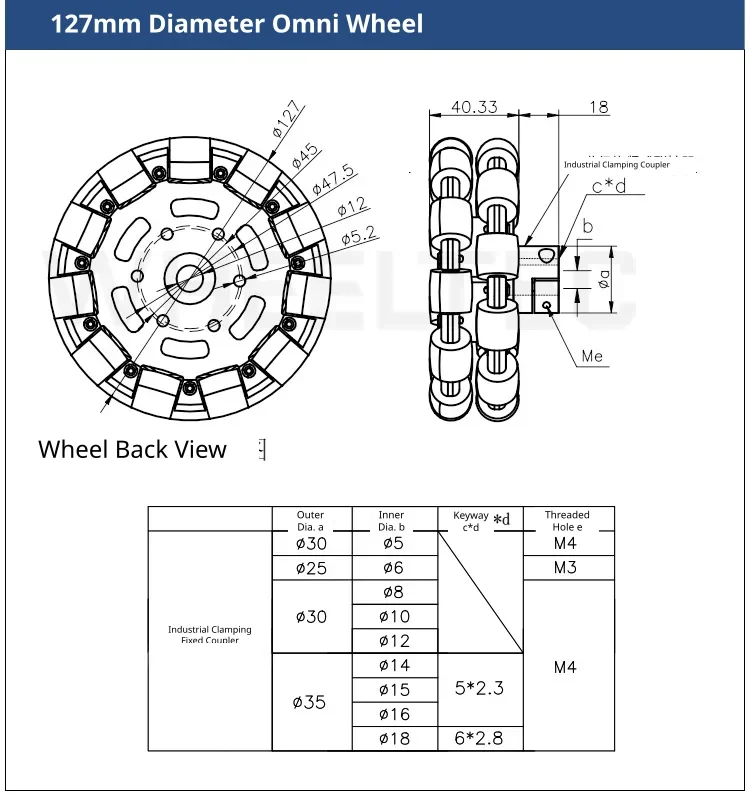

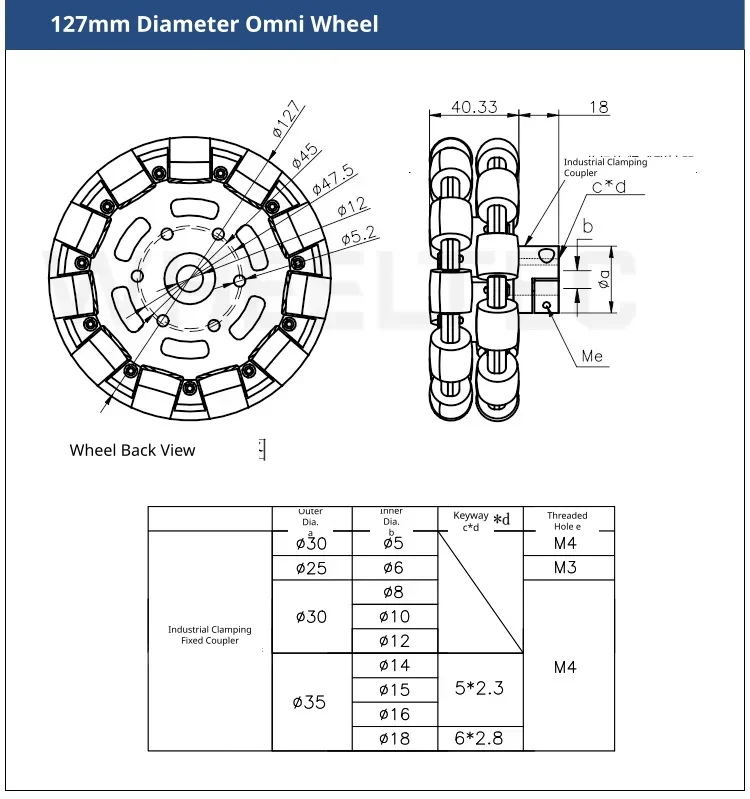

Mid-range heavy duty option

The 127mm variant has a thickness of 40.33mm and supports up to 40kg of load. It accommodates larger motor shafts with coupling inner diameters from 5mm up to 18mm, featuring keyway options for high-torque applications.

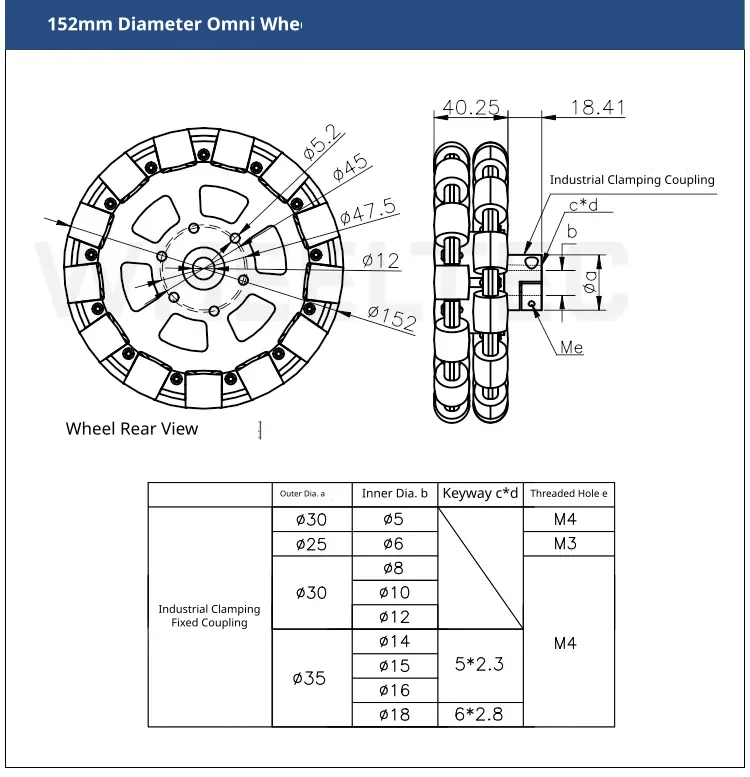

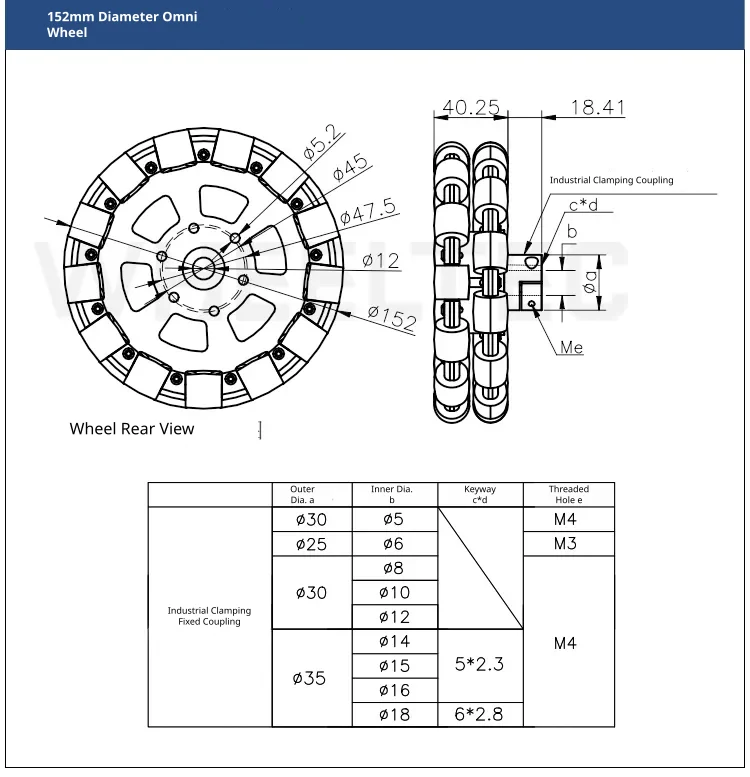

Large scale mobility

Designed for larger robotic platforms, the 152mm wheel has a thickness of 40.25mm and a 40kg load rating. It features 26 peripheral support wheels and uses industrial-grade clamping couplings with M3 or M4 thread holes.

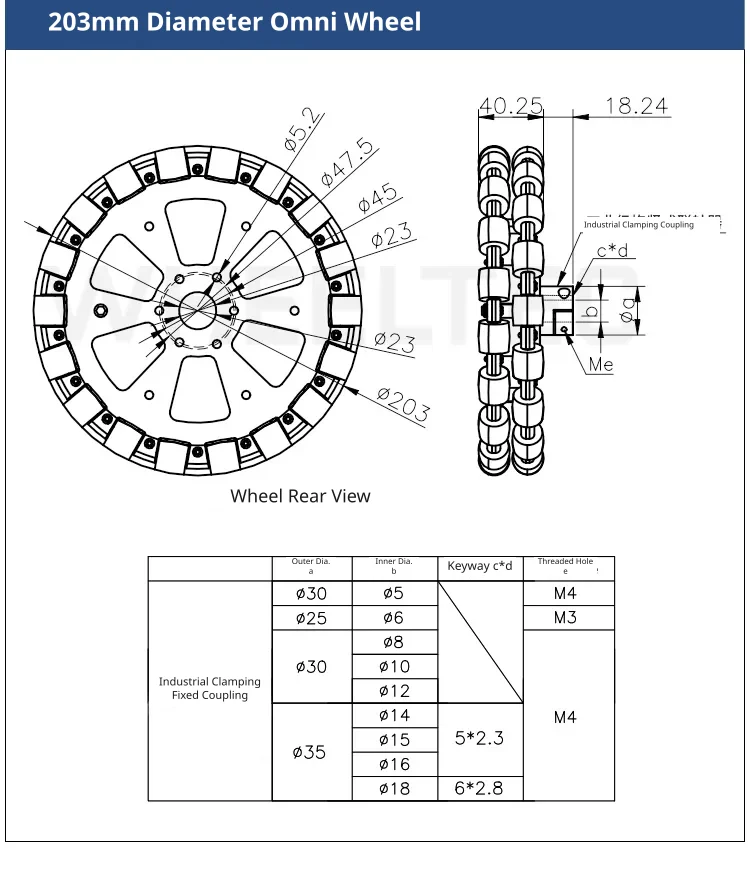

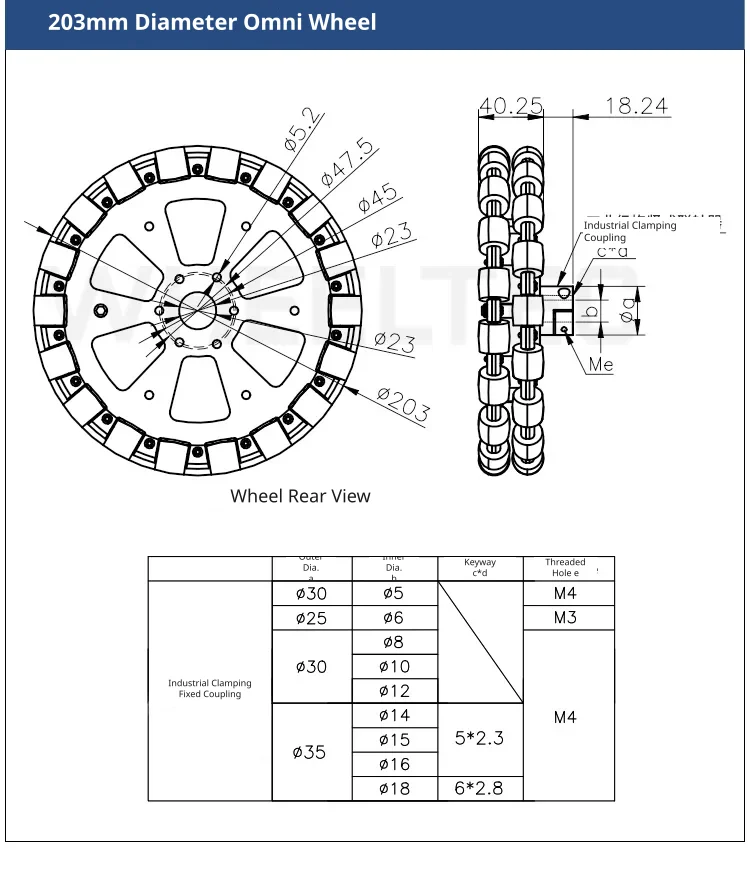

Maximum payload capacity

The largest 203mm wheel is equipped with 36 support rollers to distribute weight evenly across its 40kg load capacity. It features a 40.25mm thickness and a coupling length of 18.24mm, supporting shaft diameters up to 18mm.
