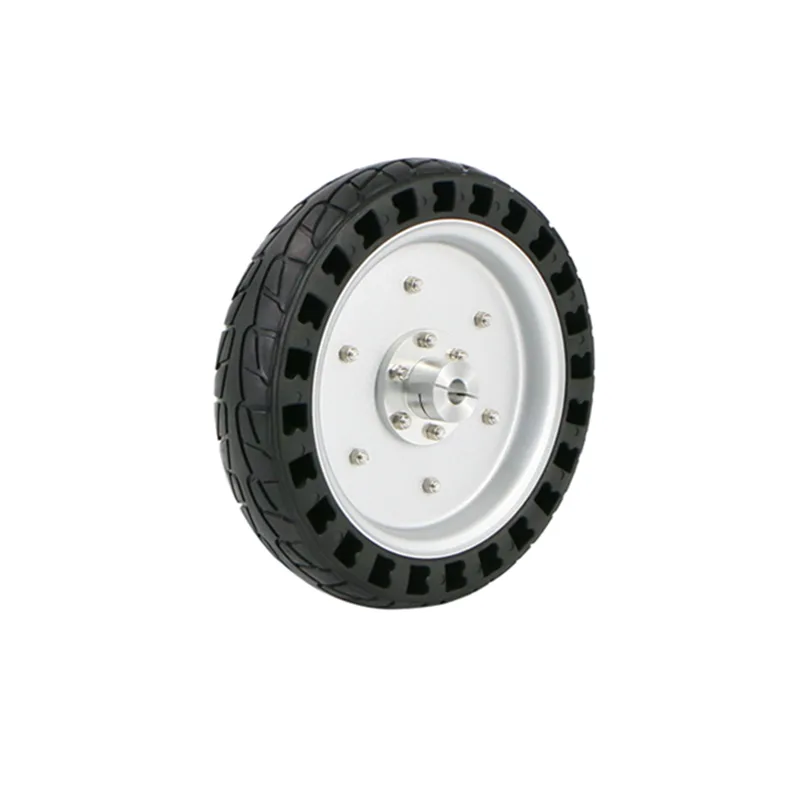

WHEELTEC Honeycomb Solid Rubber Drive Wheel

The WHEELTEC Honeycomb Solid Rubber Drive Wheel is a high-capacity, heavy-duty wheel designed specifically for robotic chassis development. Featuring a robust, environmentally friendly TPE tyre and an integrated steel hub, it is ideal for South African makers, educators, and students building professional-grade mobile robots. This wheel offers exceptional traction and high load-bearing capabilities for demanding projects.

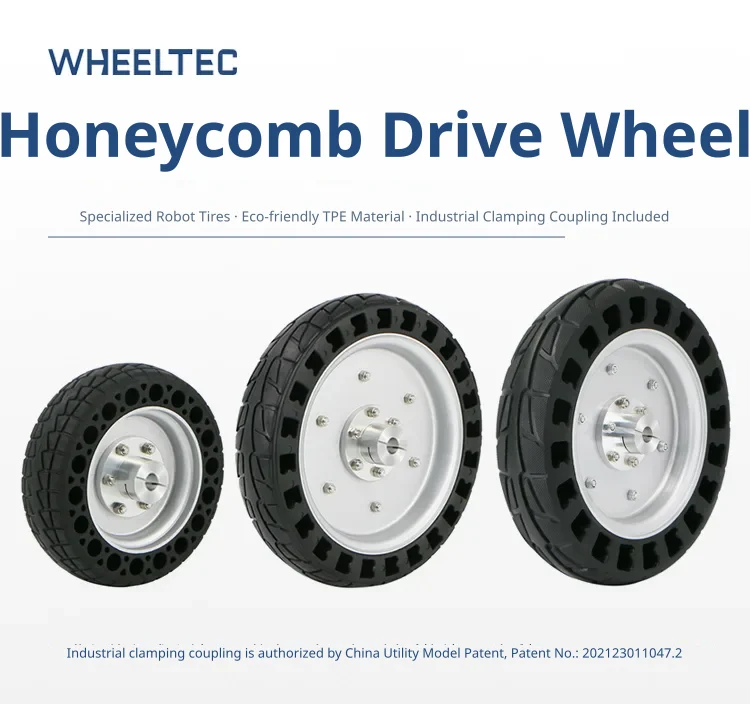

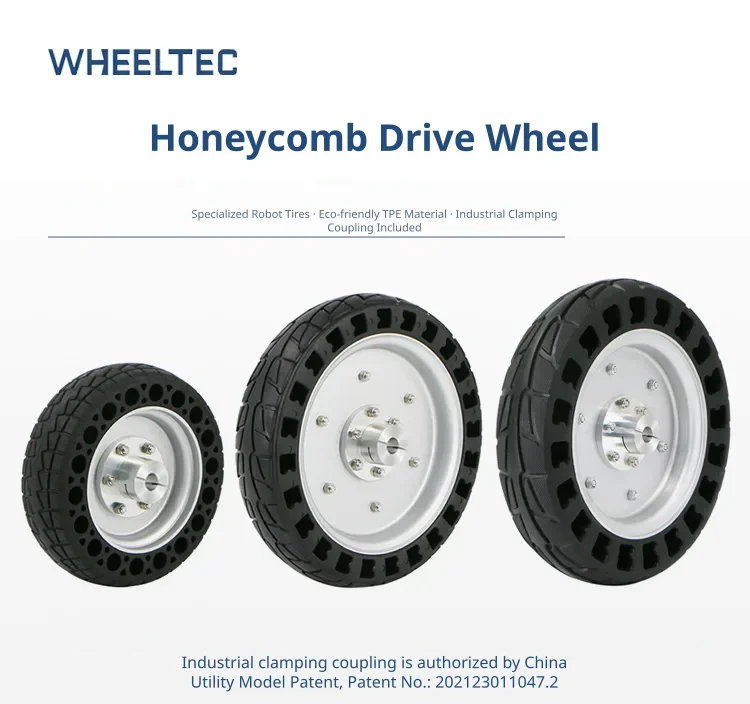

Patented industrial clamping coupling

This specialised robotic wheel is constructed with an eco-friendly TPE tyre and a durable, integrated steel hub. It features a patented industrial-grade clamping coupling (Patent No. 202120311047.2) to ensure a highly secure connection to your drive system.

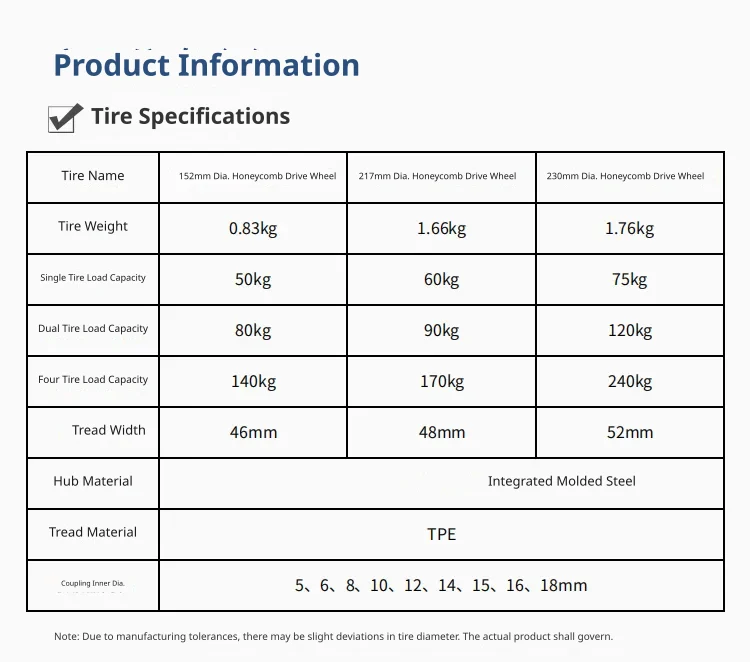

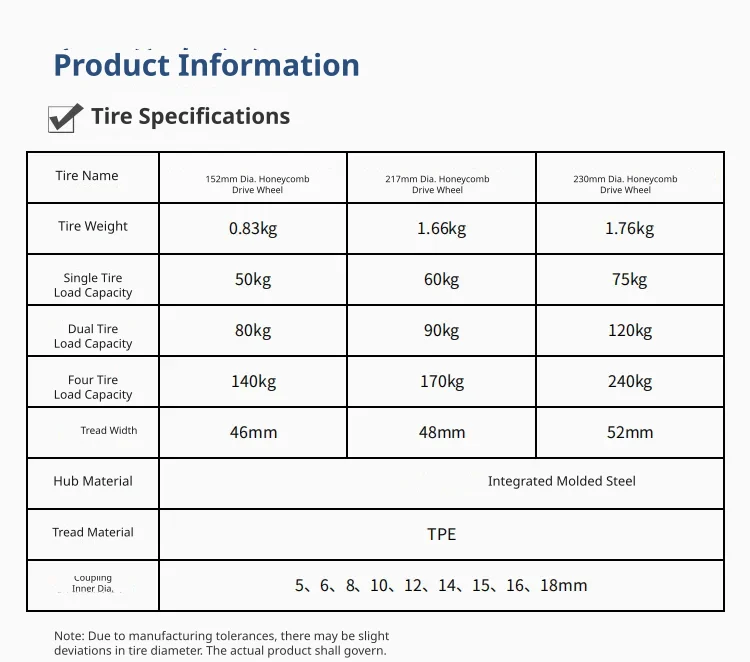

Versatile sizing and payload capacities

Choose between 152mm, 217mm, and 230mm diameters to suit your payload requirements, with four-wheel configurations supporting up to 140kg, 170kg, and 240kg respectively. The wheels accommodate a wide range of coupling inner diameters from 5mm up to 18mm.

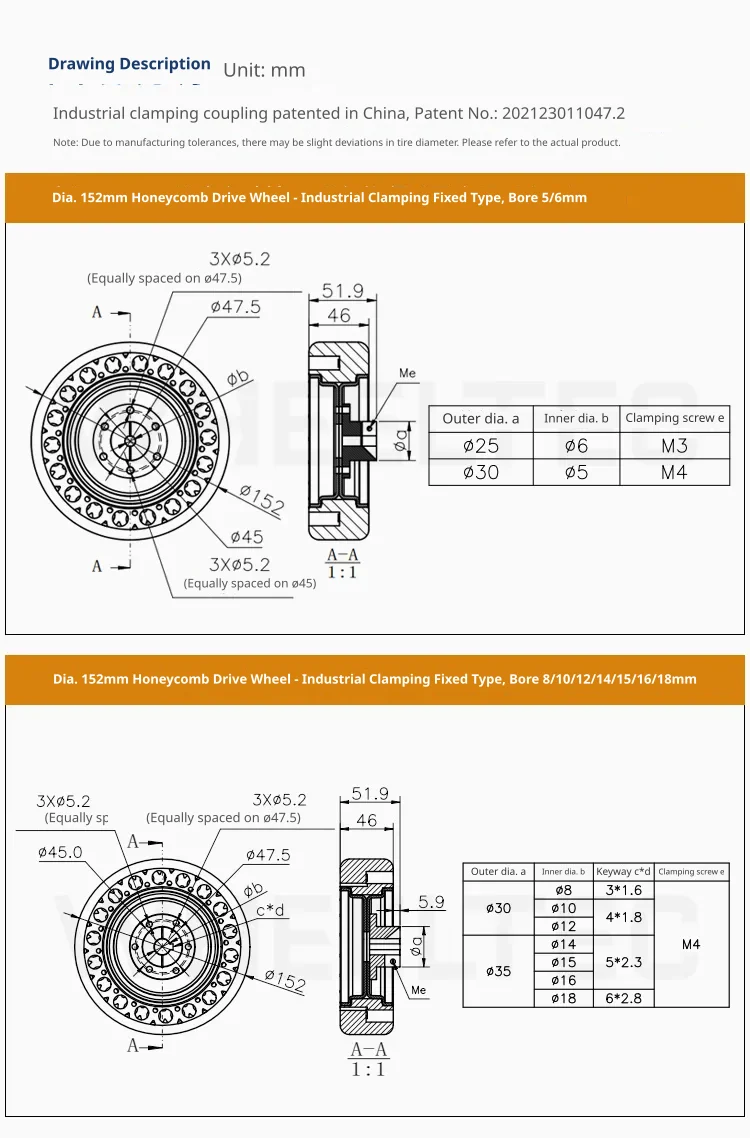

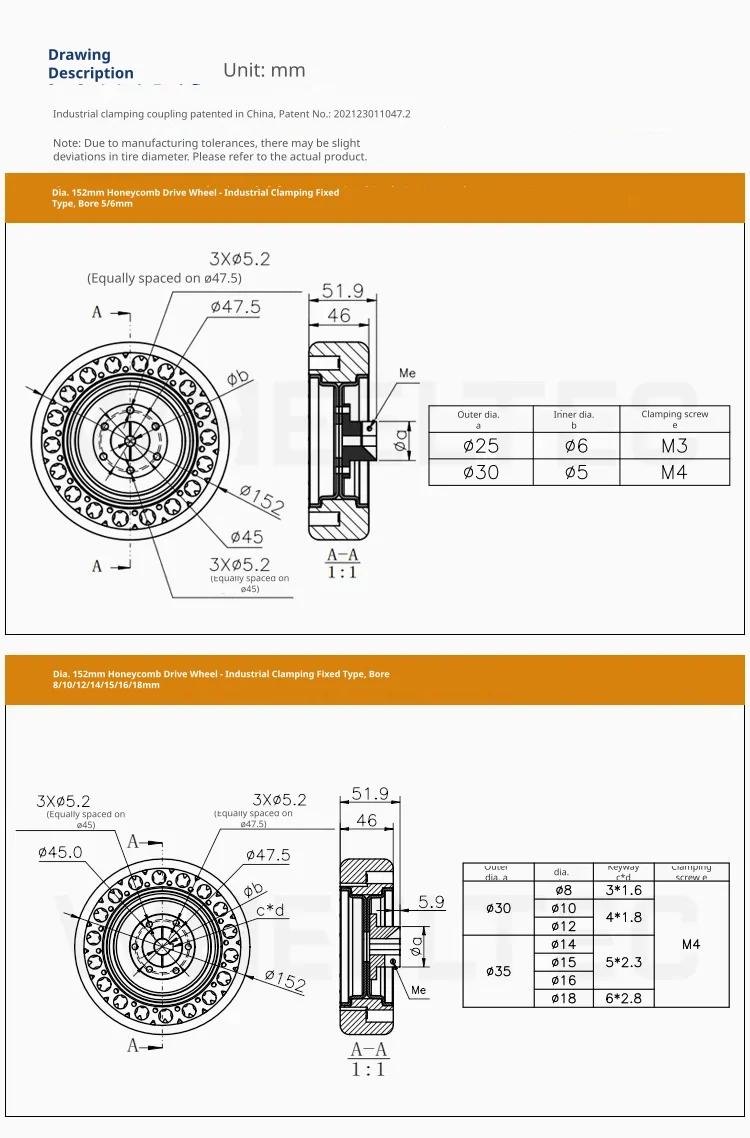

Technical specifications for 152mm wheels

The 152mm diameter model features a tyre width of 46mm and a total width of 51.9mm. It supports 5mm and 6mm bores using M3 or M4 clamping screws, as well as larger keyway-equipped bores from 8mm to 18mm with M4 screws.

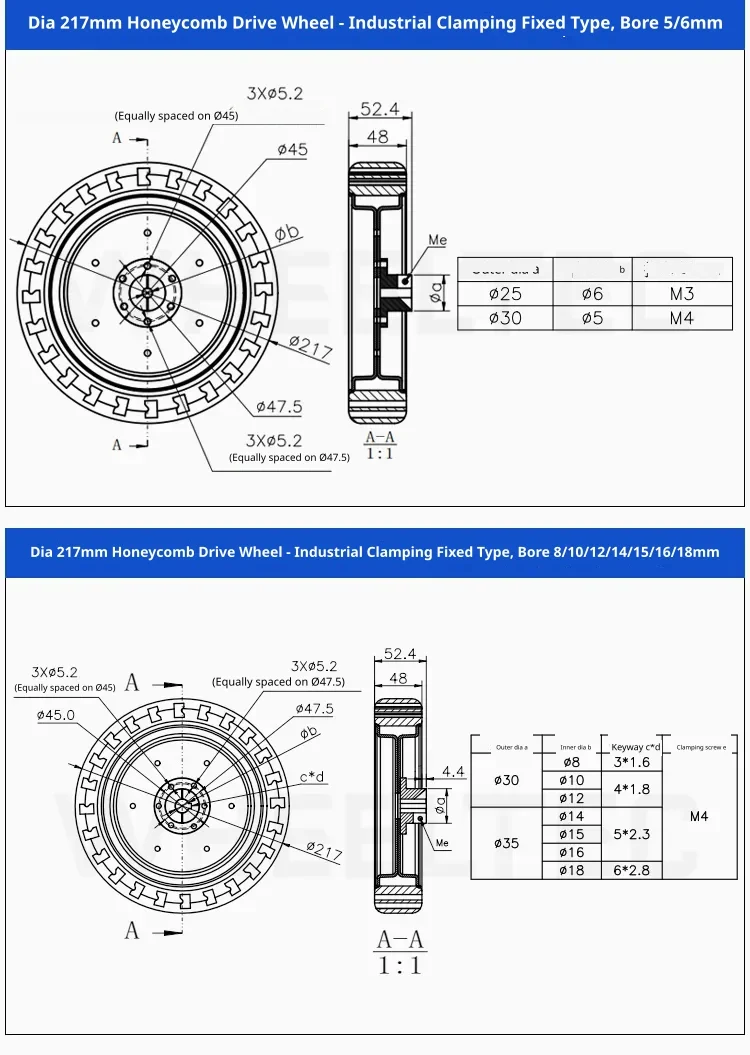

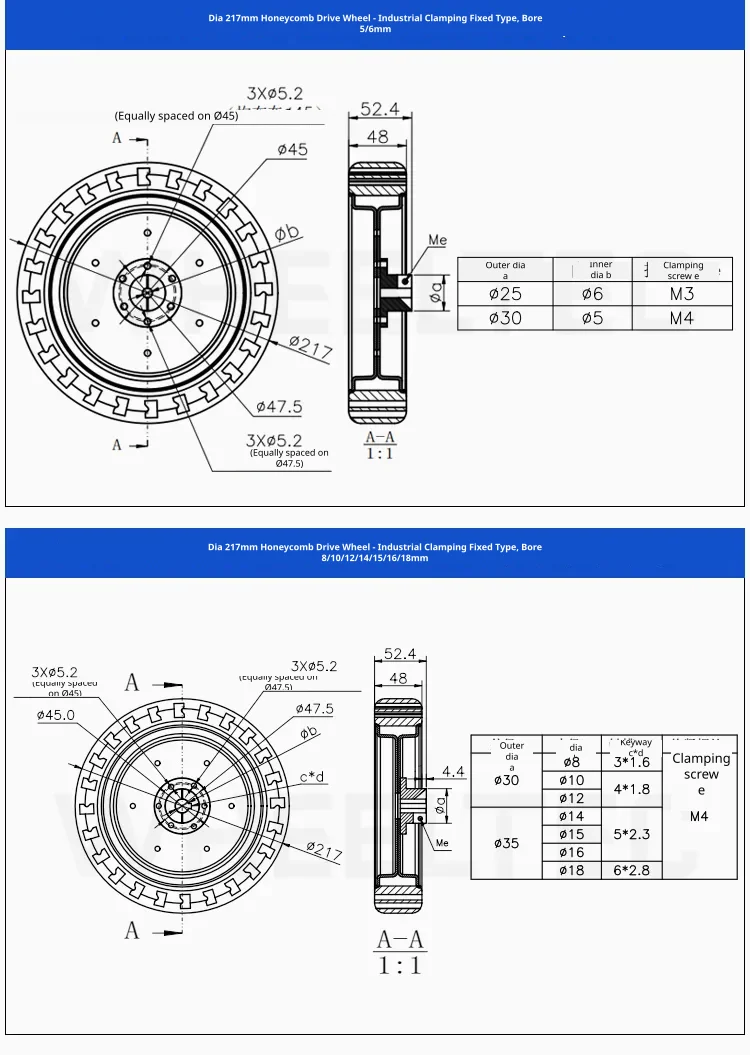

Technical specifications for 217mm wheels

The mid-sized 217mm diameter wheel has a tyre width of 48mm and a total assembly width of 52.4mm. It is compatible with 5mm to 18mm shaft diameters, offering secure keyway options for larger bores to prevent shaft slippage under load.

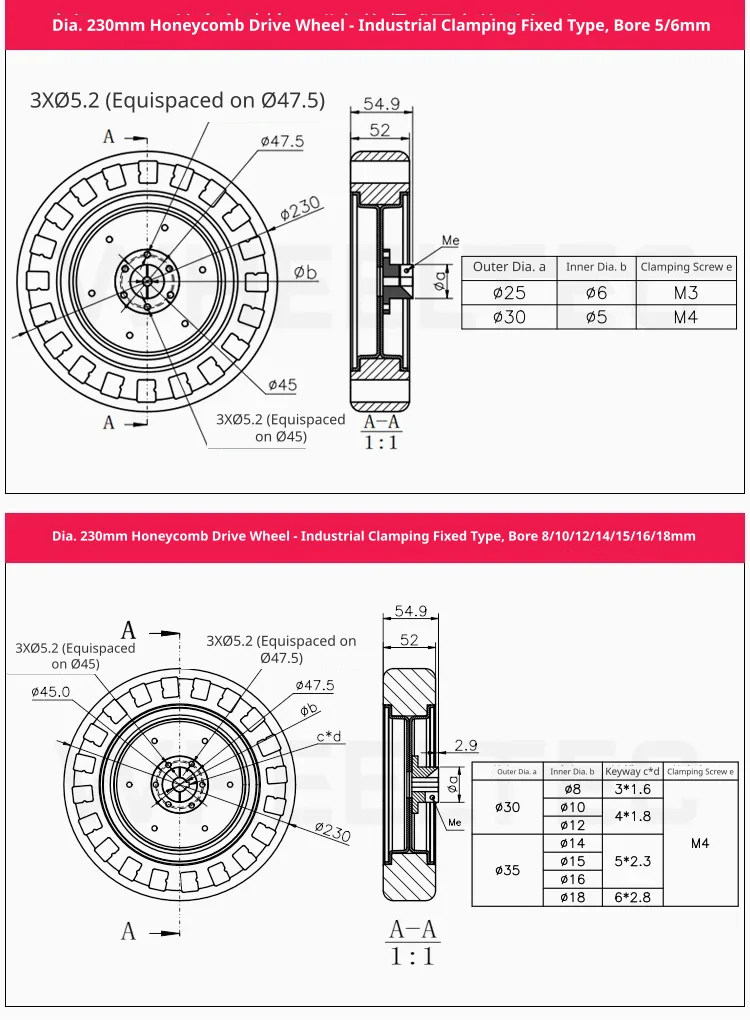

Technical specifications for 230mm wheels

Built for the heaviest applications, the 230mm diameter wheel has a tyre width of 52mm and a total width of 54.9mm. It provides robust mounting options for shaft diameters from 5mm up to 18mm, making it highly adaptable for high-torque motors.
