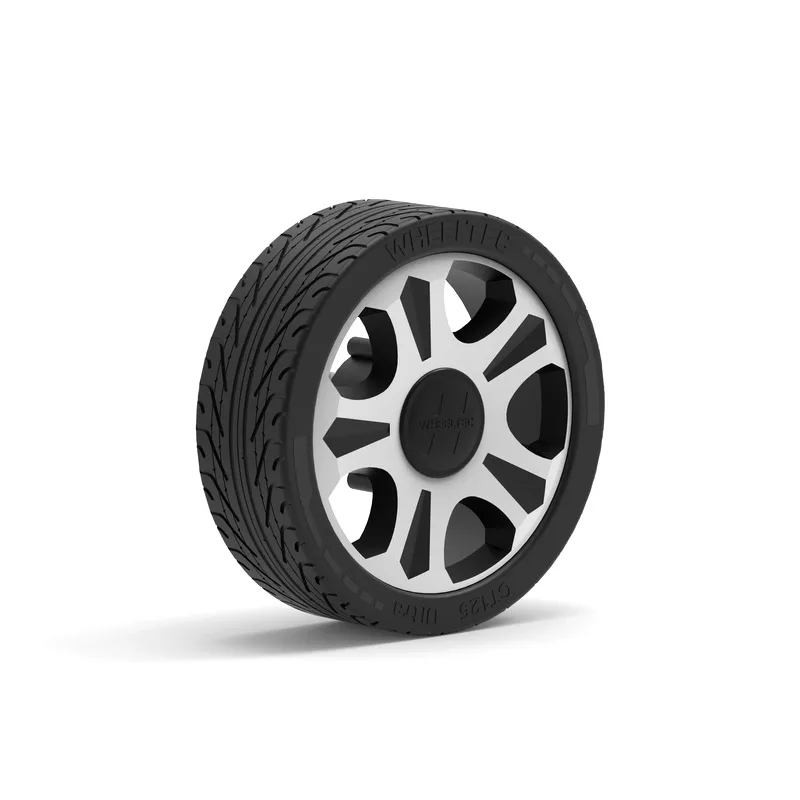

WHEELTEC High Quality Robot Drive Wheel

The WHEELTEC High Quality Robot Drive Wheel series offers robust, heavy-duty mobility solutions for roboticists, educators, and industrial developers. Featuring cast aluminium hubs and natural rubber tyres, these wheels are designed to handle payloads up to 200kg. They are ideal for building high-performance mobile robot chassis, AGVs, and heavy-duty maker projects.

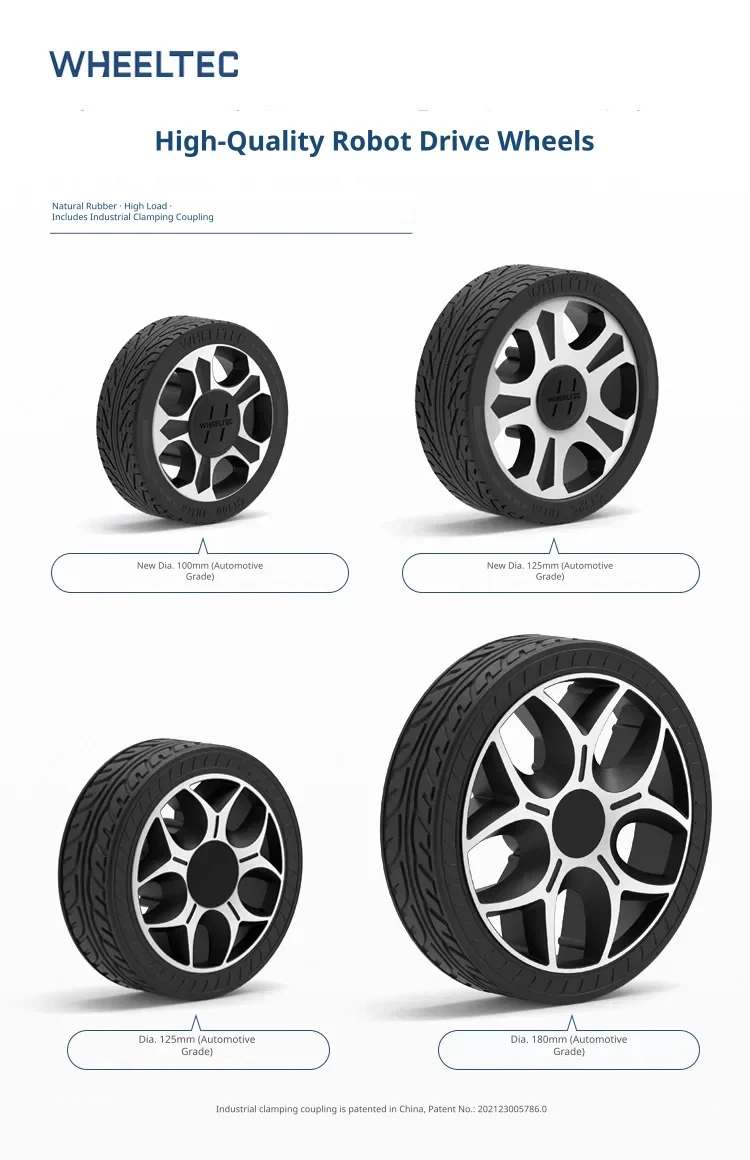

Patented industrial coupling design

These wheels feature high-quality natural rubber tyres and a high load-bearing capacity. The industrial-grade clamping coupling is officially patented under Chinese utility model patent number 202123005786.0.

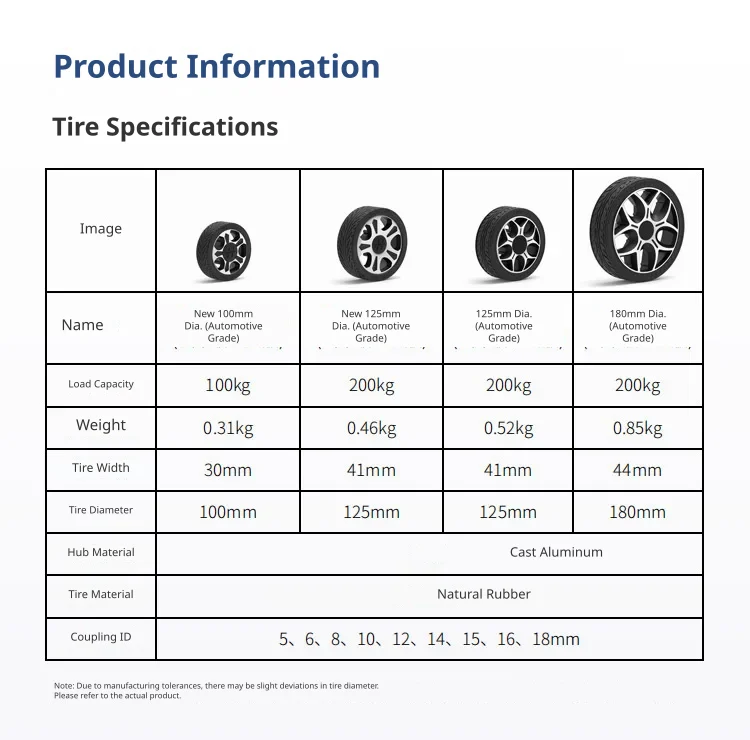

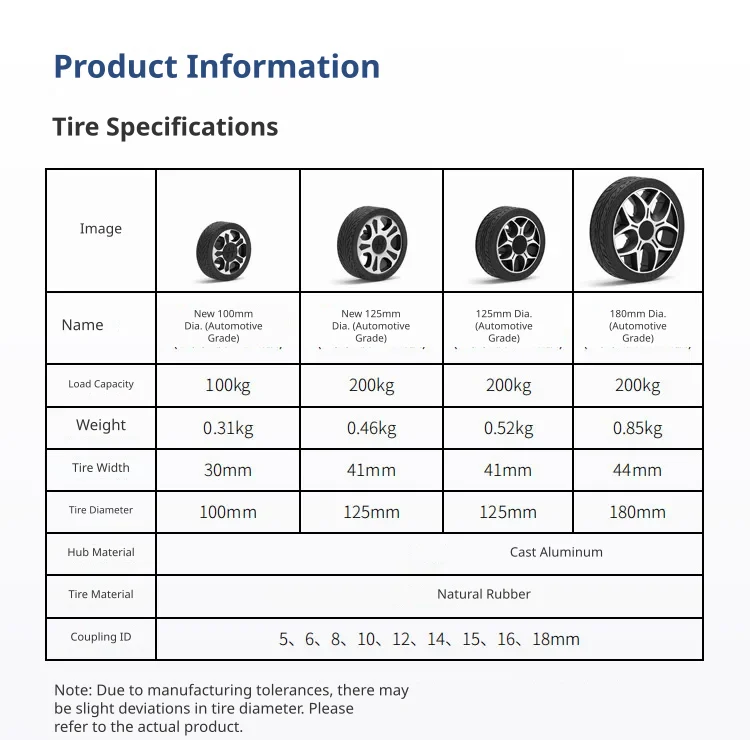

Versatile load and size options

Choose between wheel diameters of 100mm, 125mm, and 180mm to suit your payload requirements up to 200kg. The cast aluminium hubs and natural rubber tyres ensure durability, with individual wheel weights ranging from 0.31kg to 0.85kg.

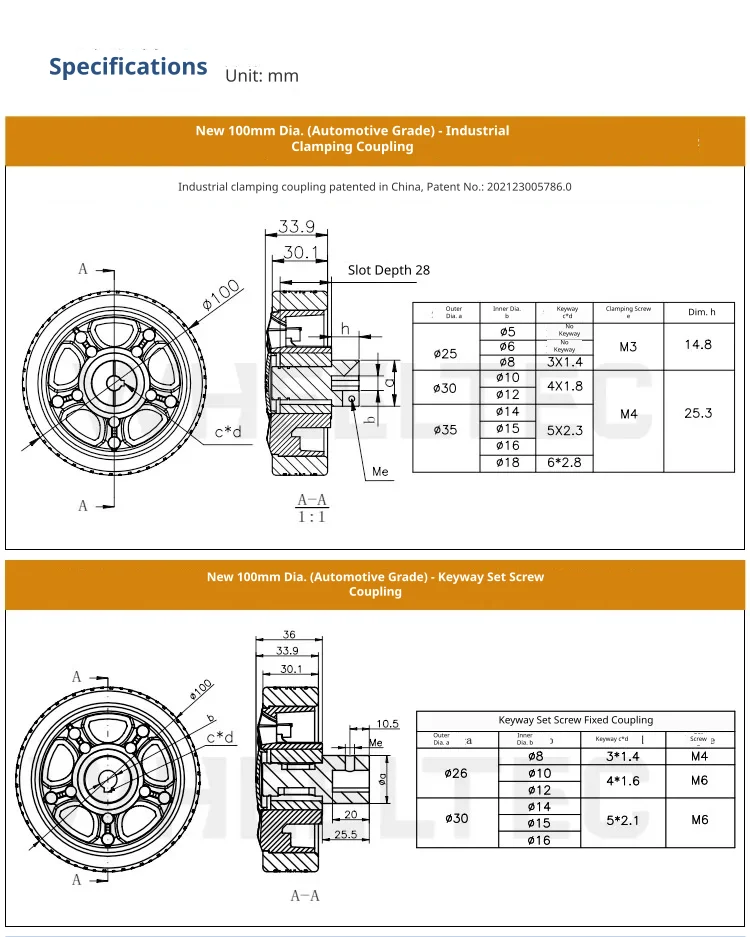

New 100mm wheel dimensions

The new 100mm diameter wheel has a tyre width of 30mm and a weight of 0.31kg. Technical drawings show compatibility with industrial clamping couplings for shaft diameters from 5mm to 18mm, or keyway grub screw couplings from 8mm to 16mm.

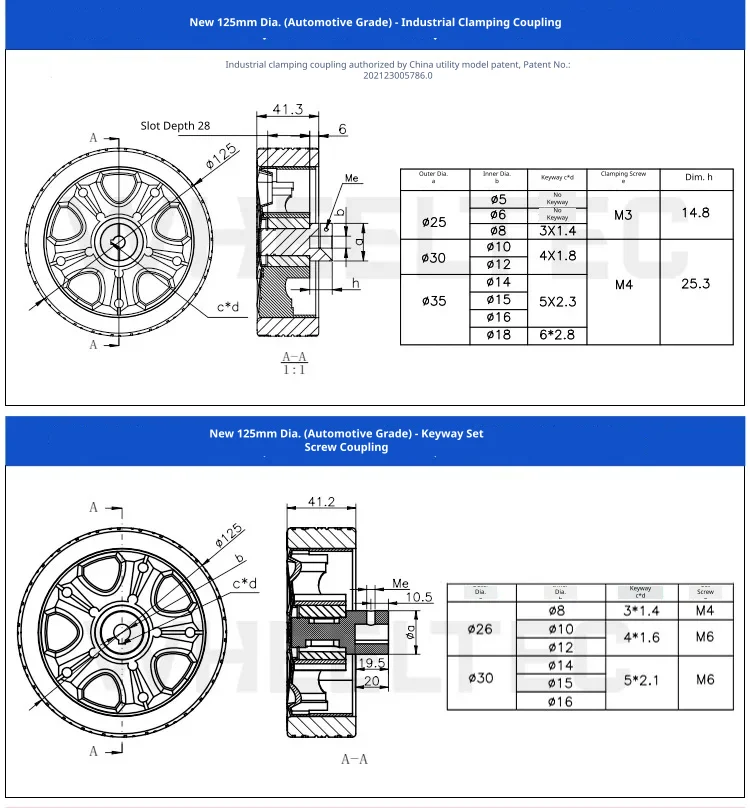

New 125mm wheel specifications

This new 125mm diameter variant weighs 0.46kg and features a 41mm tyre width. It supports both clamping couplings (with M3 or M4 screws) and keyway grub screw couplings (with M4 or M6 screws) for secure shaft attachment.

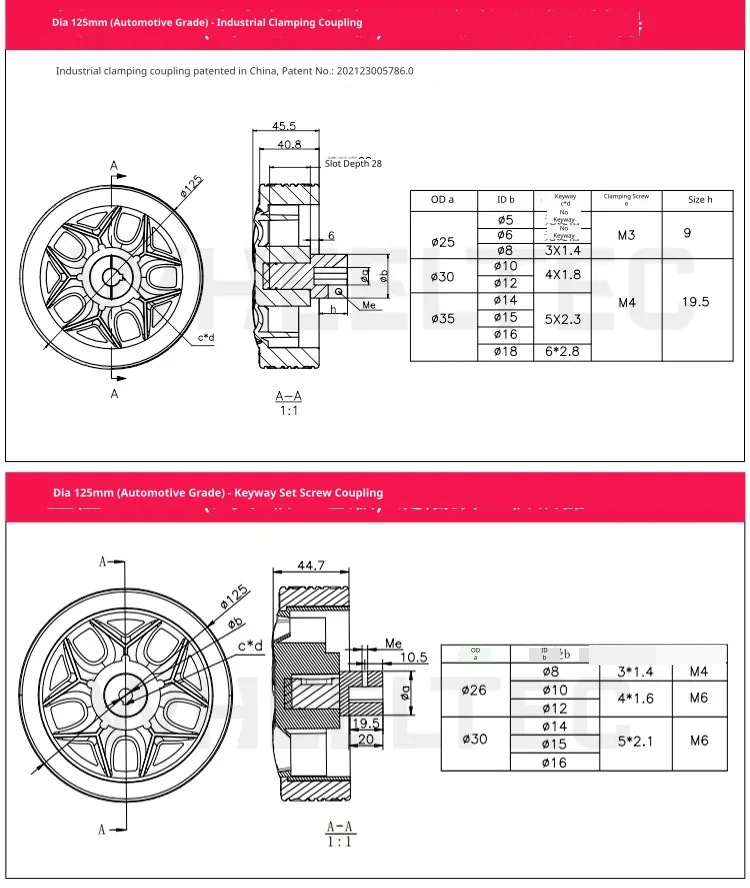

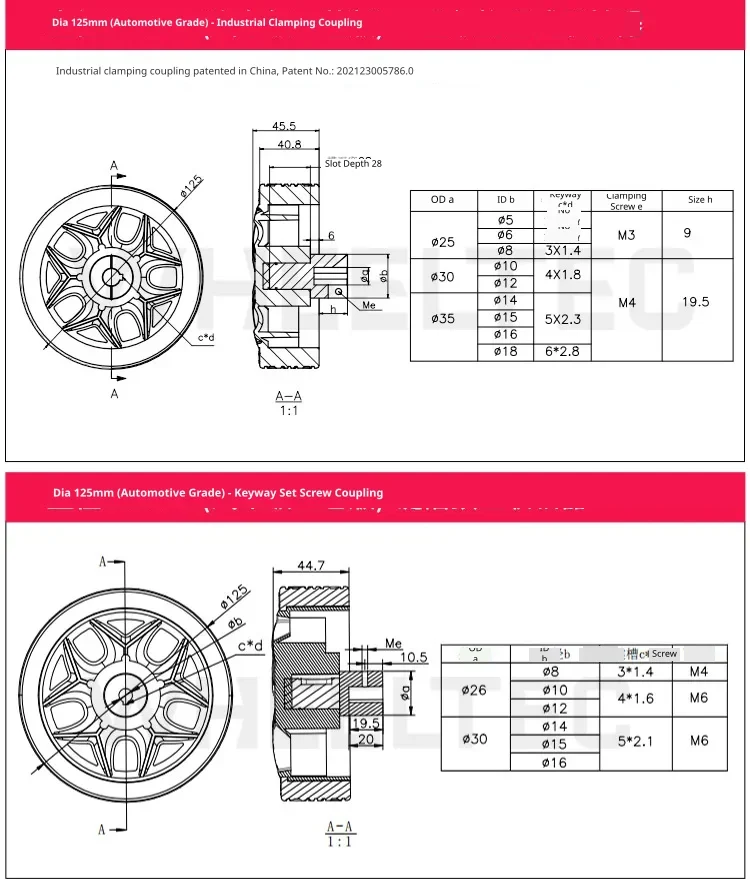

Standard 125mm wheel dimensions

The standard 125mm wheel has a self-weight of 0.52kg and a tyre width of 41mm. Detailed engineering schematics outline the physical dimensions for both the clamping and keyway grub screw coupling options.

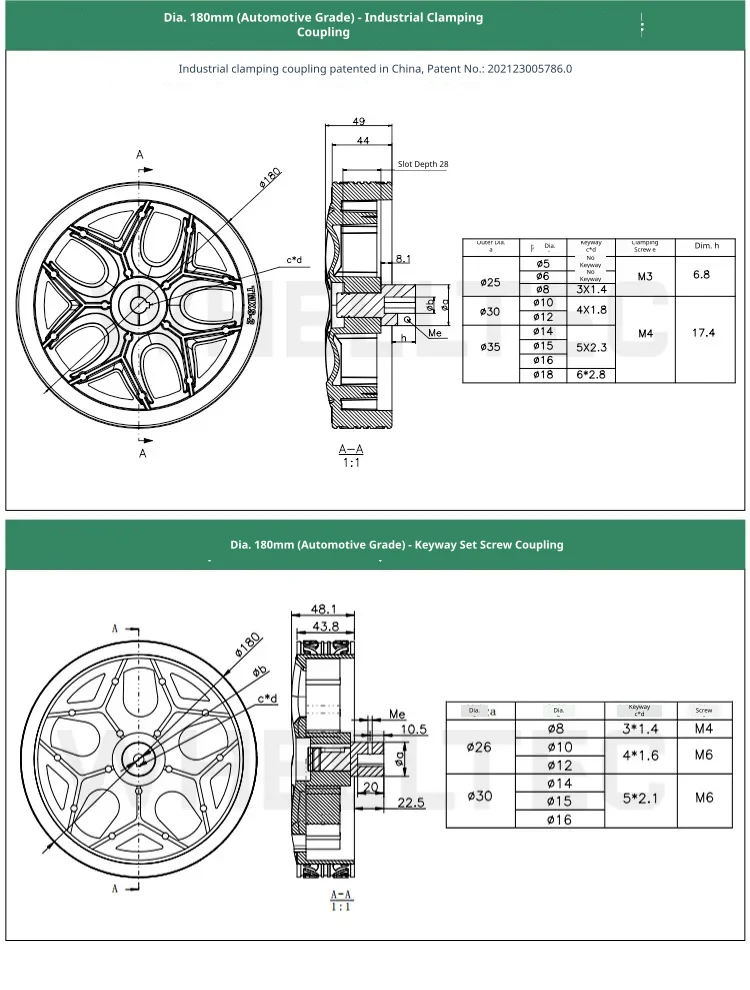

Heavy-duty 180mm wheel schematics

This large 180mm diameter wheel has a tyre width of 44mm and a self-weight of 0.85kg. It supports a maximum load of 200kg and features mounting options for shaft diameters up to 18mm.
