WHEELTEC High Quality Pneumatic Drive Wheel

The WHEELTEC High Quality Pneumatic Drive Wheel is a heavy-duty, robust wheel solution designed for high-payload robotic platforms, AGVs, and outdoor mobile chassis. It is ideal for students, educators, and makers building rugged, all-terrain robotic projects that require reliable traction and high load capacities.

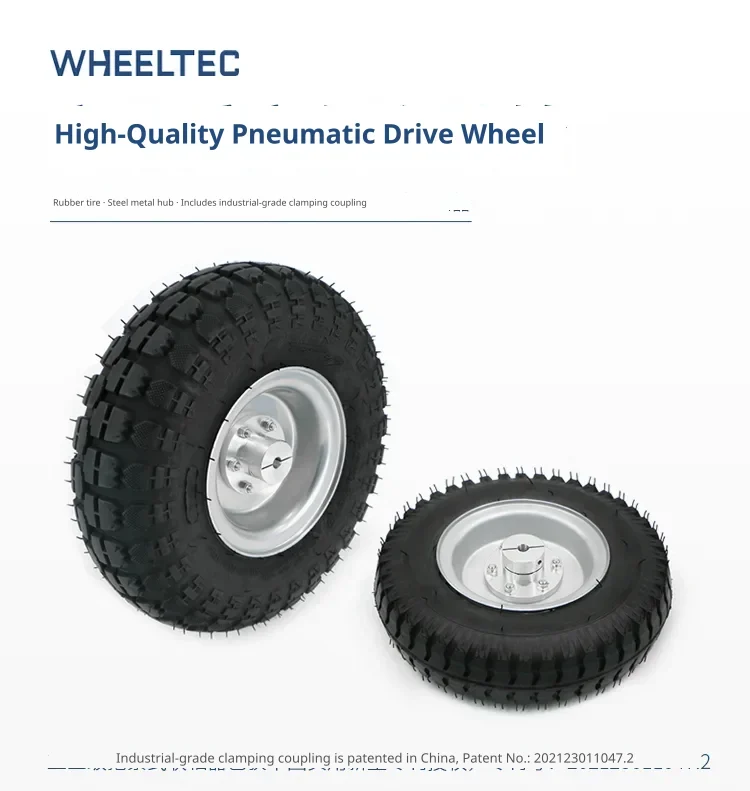

Robust industrial-grade construction

This drive wheel features a high-quality rubber tyre paired with a durable steel metal wheel hub for demanding environments. It includes a patented industrial-grade clamping coupling, registered under Chinese utility patent 202123011047.2, to ensure secure mounting to your drive shafts.

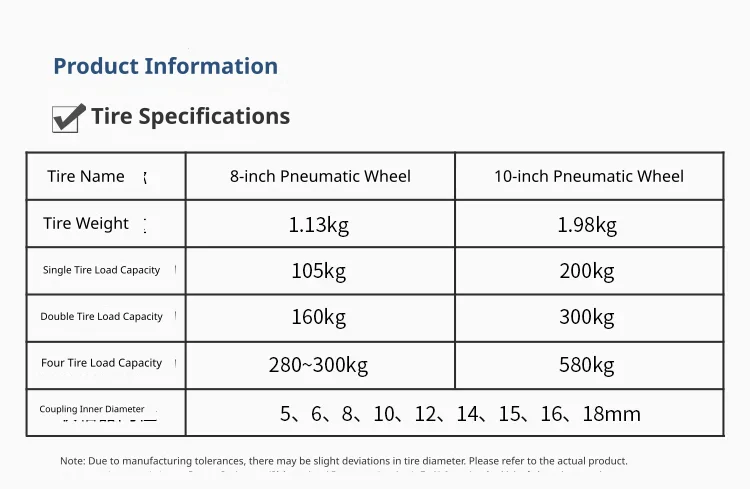

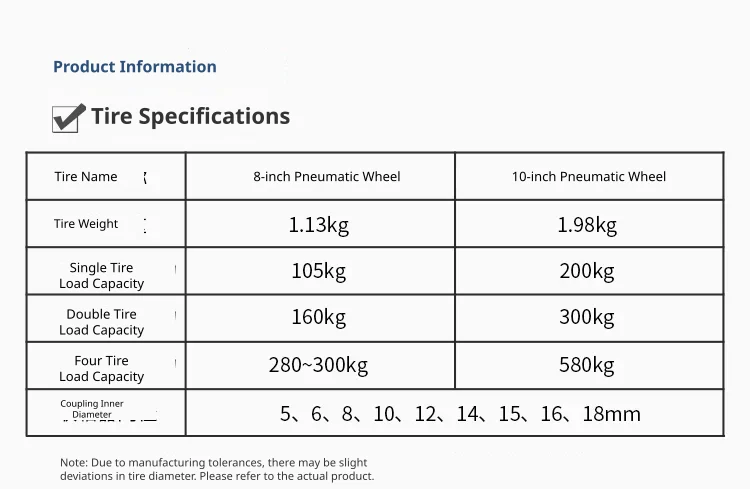

Exceptional load-bearing capacity

Built to carry heavy payloads, the 8-inch wheel supports up to 105 kg individually (up to 300 kg for a four-wheel configuration), while the 10-inch wheel supports up to 200 kg individually (up to 580 kg for four wheels). Couplings are available in multiple inner diameters from 5 mm to 18 mm to accommodate various motor shafts.

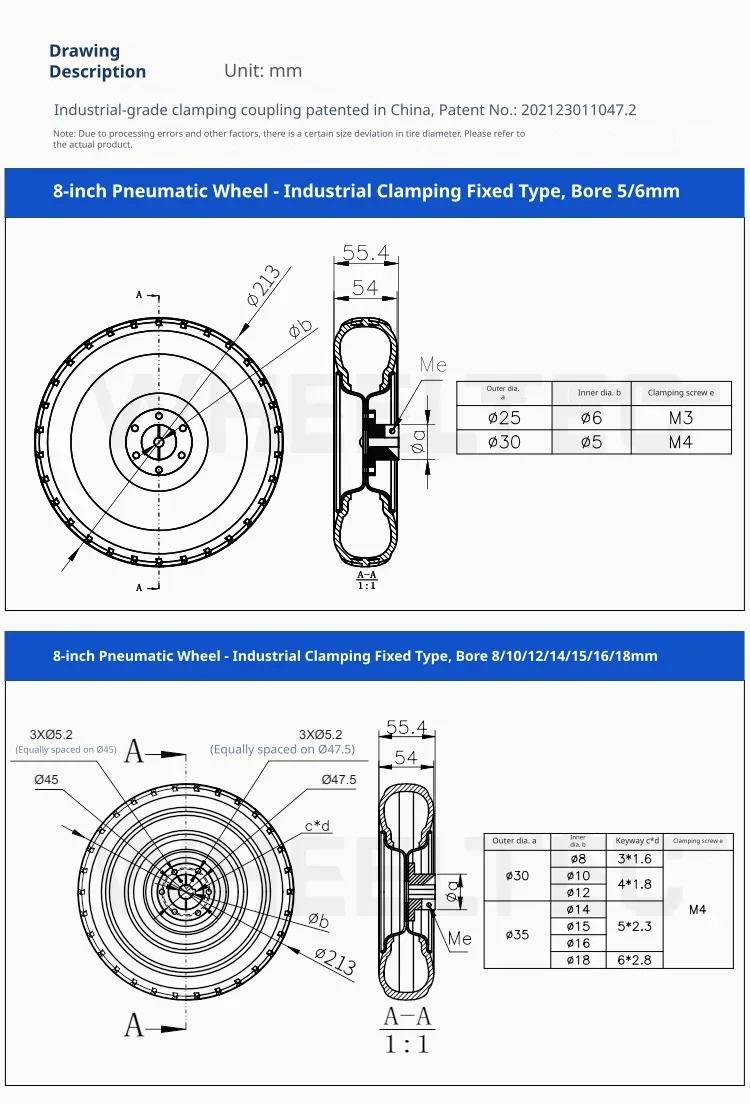

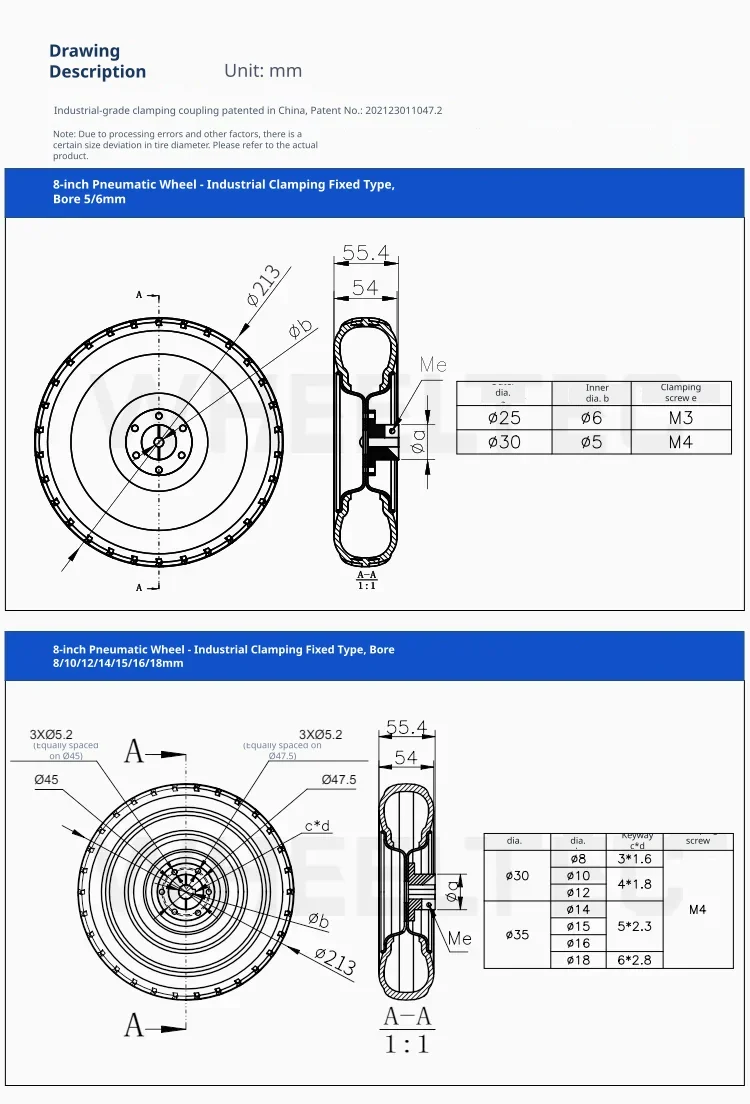

Eight-inch wheel specifications

The 8-inch pneumatic wheel has an outer diameter of 213 mm, a tyre width of 55.4 mm, and a hub width of 54 mm. For shaft diameters from 8 mm to 18 mm, the coupling features integrated keyways to prevent slippage under high-torque operation.

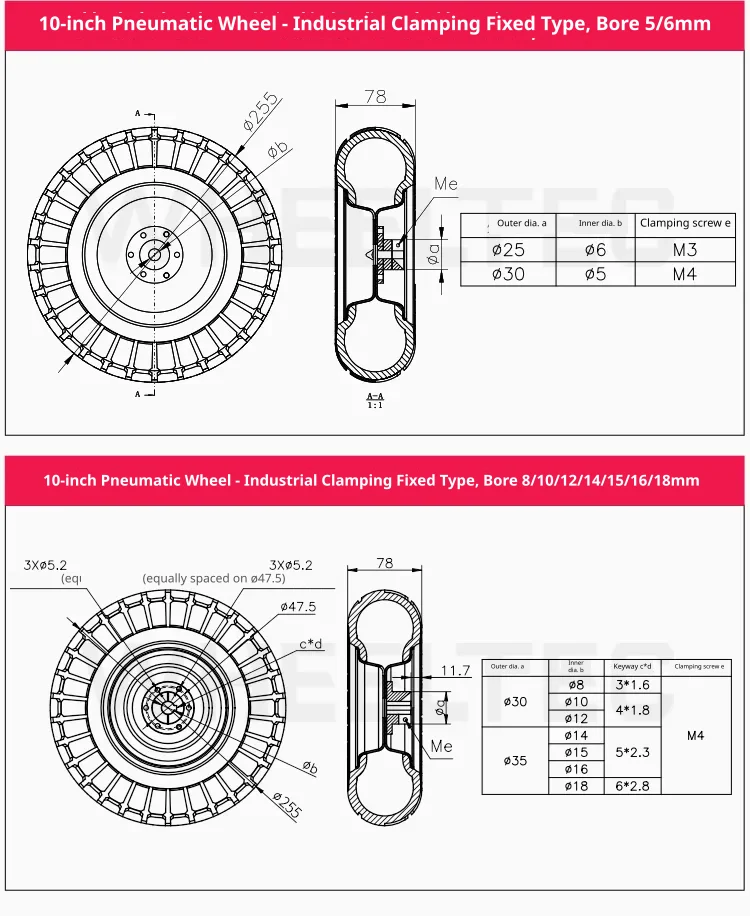

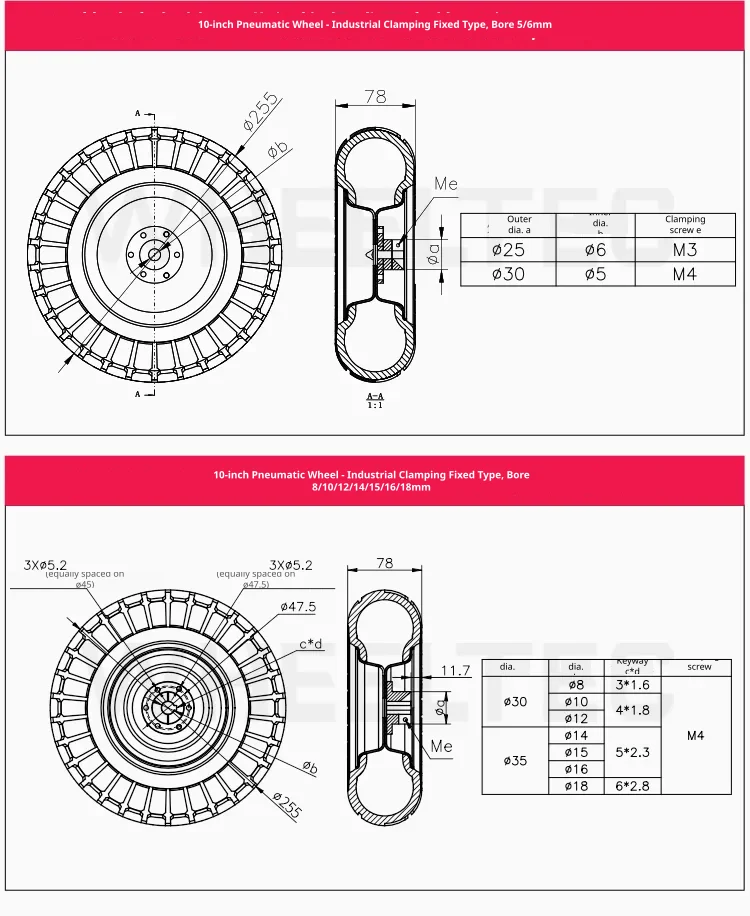

Ten-inch wheel specifications

Offering maximum ground clearance, the 10-inch pneumatic wheel features an outer diameter of 255 mm and a width of 78 mm. It supports shaft apertures from 5 mm up to 18 mm, with keyway options available for sizes 8 mm and above to ensure a non-slip mechanical connection.
