WHEELTEC High Quality Mecanum Wheel for Robots

These high-quality Mecanum wheels from WHEELTEC enable omnidirectional movement for robotic chassis, making them ideal for students, educators, and makers building advanced mobile platforms. Featuring robust construction and patented industrial-grade clamping couplings, they offer reliable performance for projects of various scales.

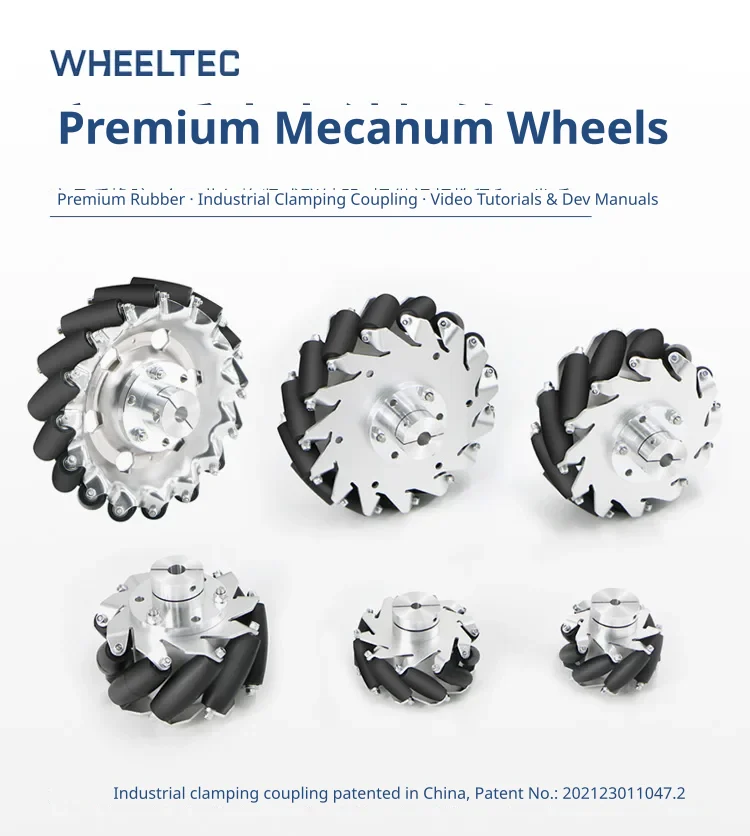

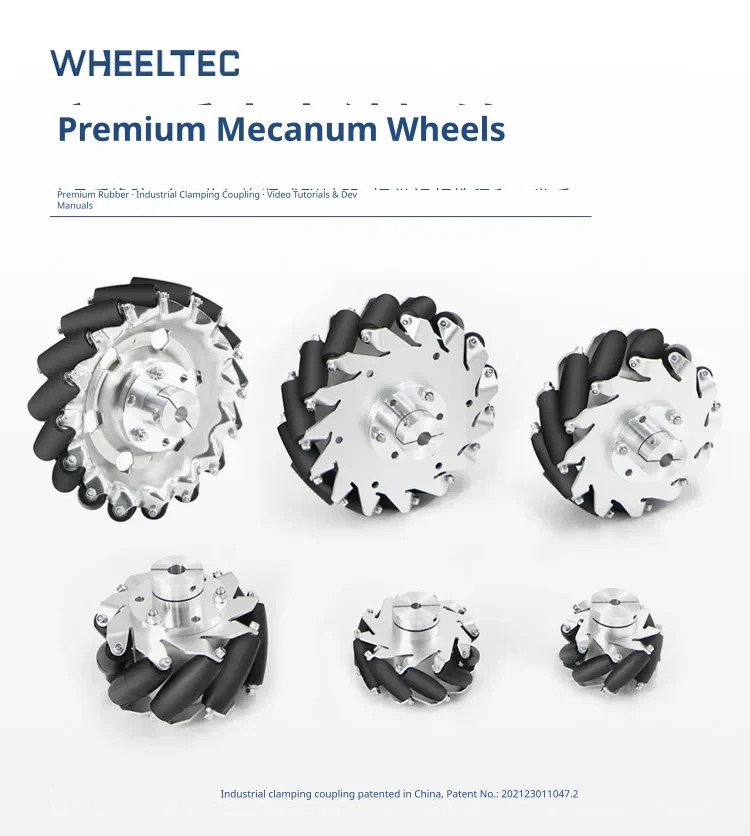

Patented industrial clamping couplings

Each wheel set includes high-quality rubber rollers and a patented industrial-grade clamping coupling (Patent No. 202123011047.2) for secure shaft mounting. The design ensures stable torque transmission and is supported by video tutorials and development manuals.

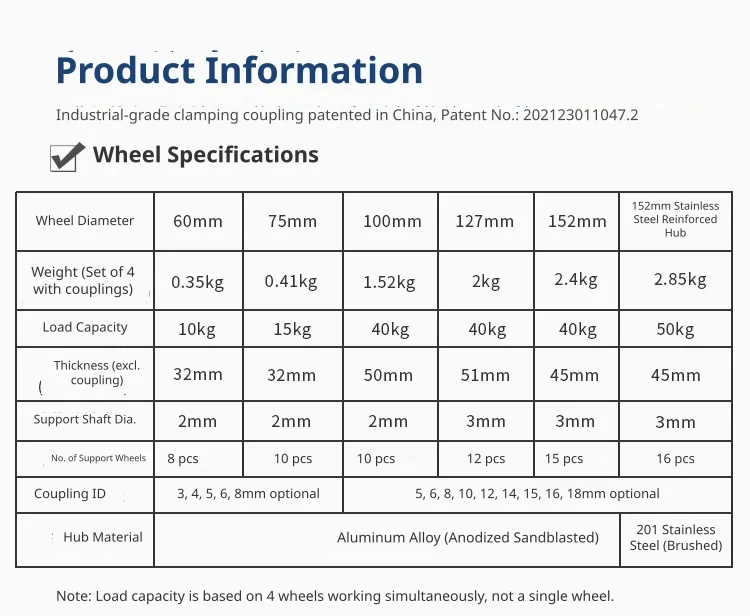

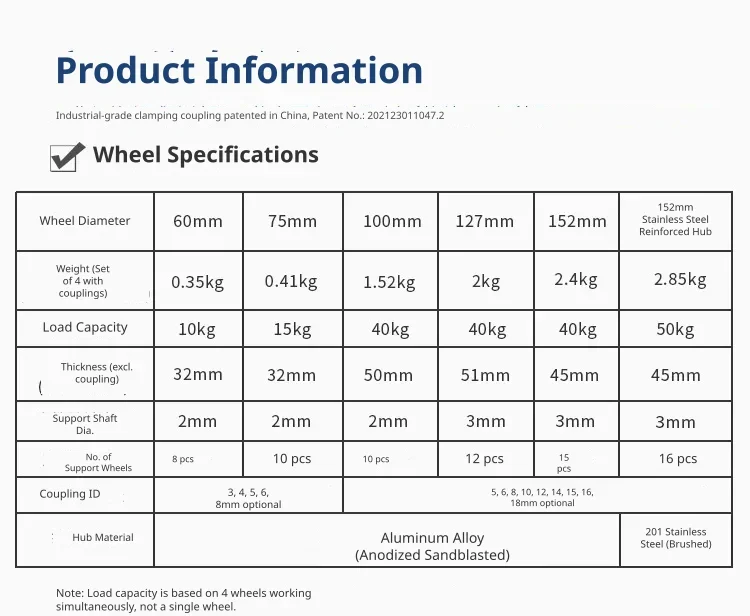

Comprehensive sizing and load specifications

Choose from wheel diameters ranging from 60mm up to 152mm, with load capacities spanning 10kg to 50kg for a set of four. Hubs are constructed from sandblasted anodised aluminium alloy, with a heavy-duty 152mm version utilising wire-drawn 201 stainless steel.

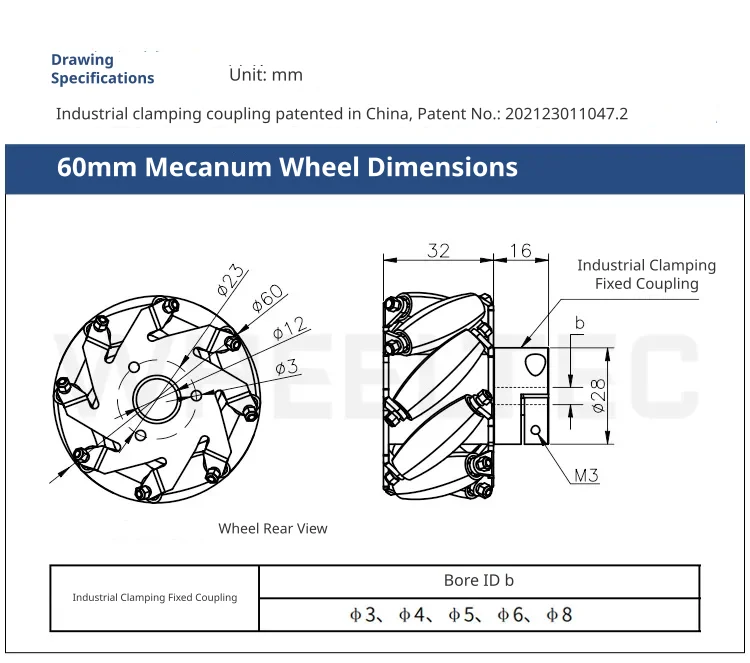

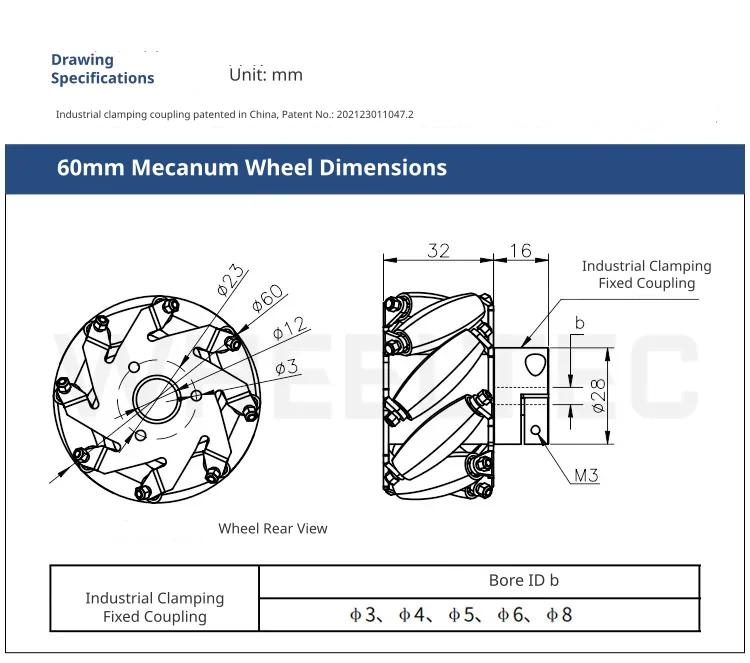

Compact sixty millimetre wheel dimensions

The 60mm diameter wheel features a 32mm thickness and an industrial-grade clamping coupling extending 16mm. It supports inner shaft diameter options of 3mm, 4mm, 5mm, 6mm, and 8mm secured by an M3 screw.

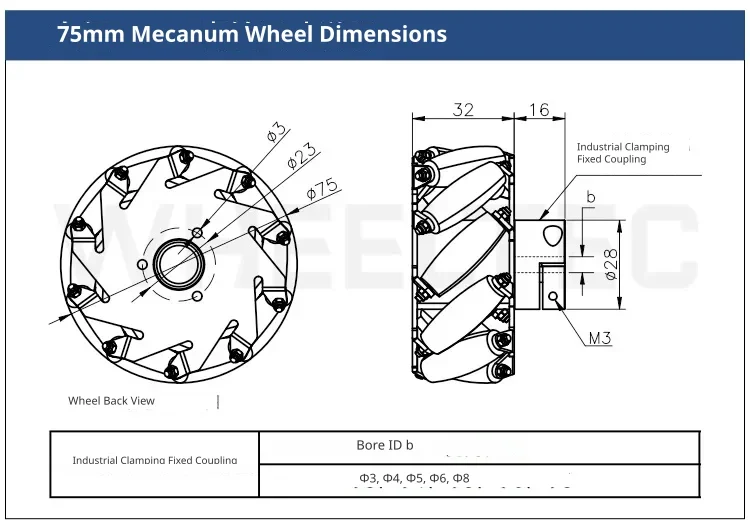

Seventy-five millimetre wheel specifications

This 75mm diameter variant maintains a compact 32mm thickness and utilises a 16mm long clamping coupling. It is compatible with 3mm, 4mm, 5mm, 6mm, and 8mm motor shafts.

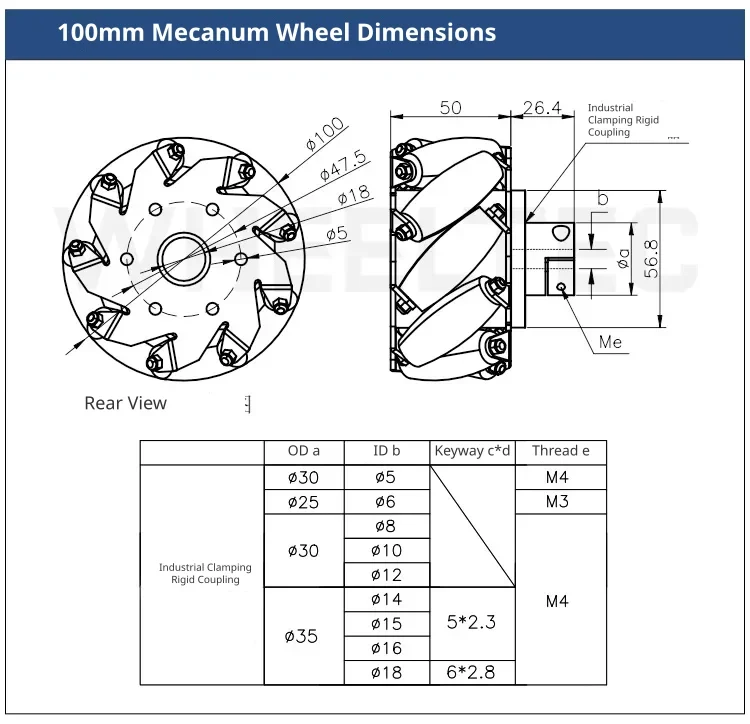

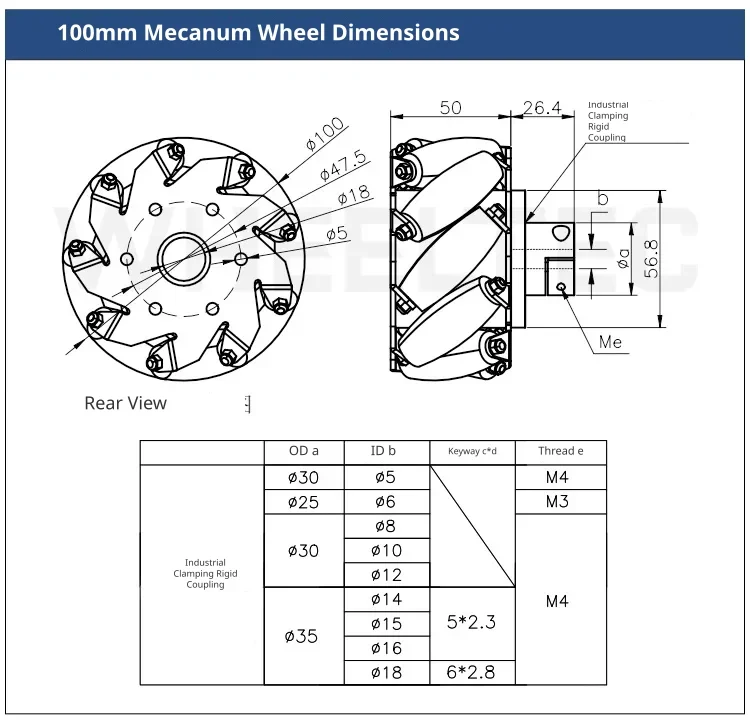

One hundred millimetre wheel engineering

The 100mm wheel has a 50mm thickness and a larger 26.4mm coupling length. It offers versatile mounting options with inner diameters from 5mm up to 18mm, including keyway options for larger shafts.

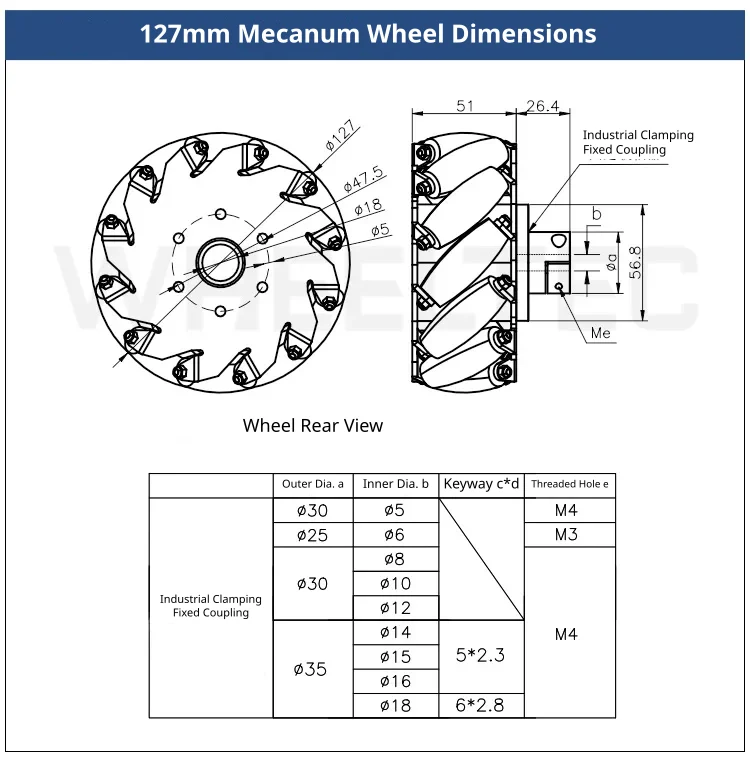

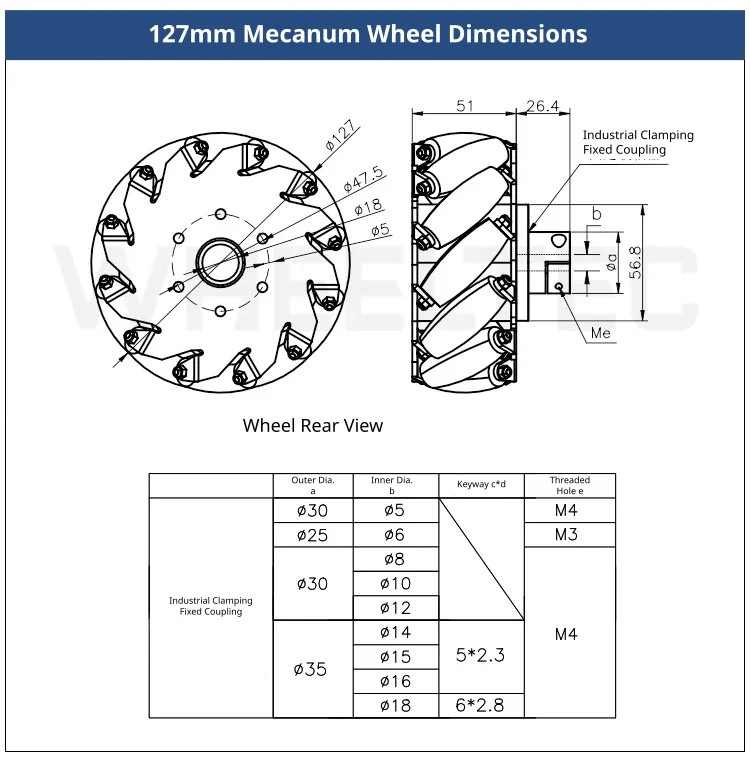

Heavy-duty one hundred and twenty-seven millimetre option

With a thickness of 51mm and a load capacity of 40kg per set of four, this 127mm wheel is designed for medium-sized robotic platforms. The coupling interface supports multiple shaft diameters up to 18mm with optional keyways.

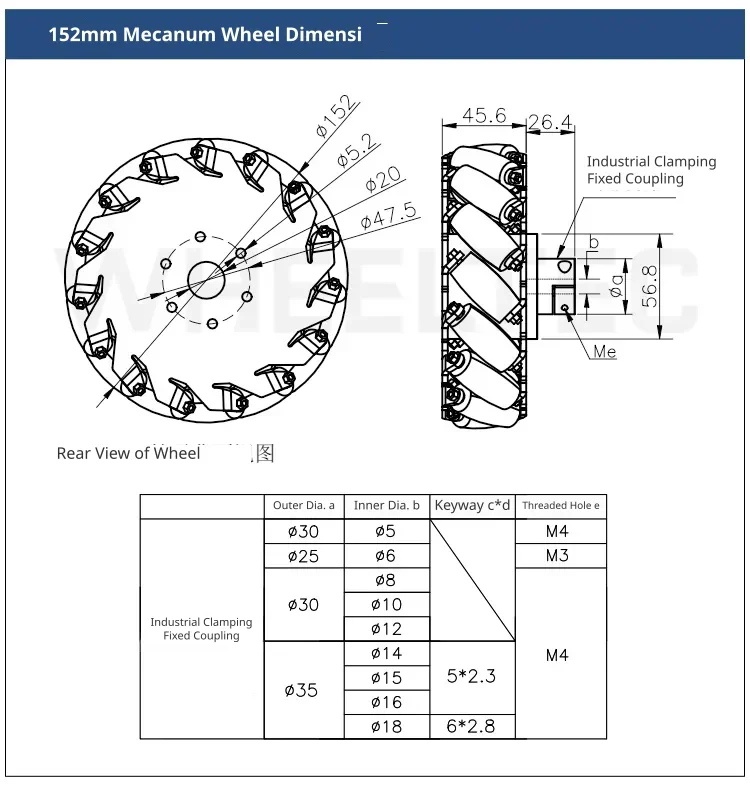

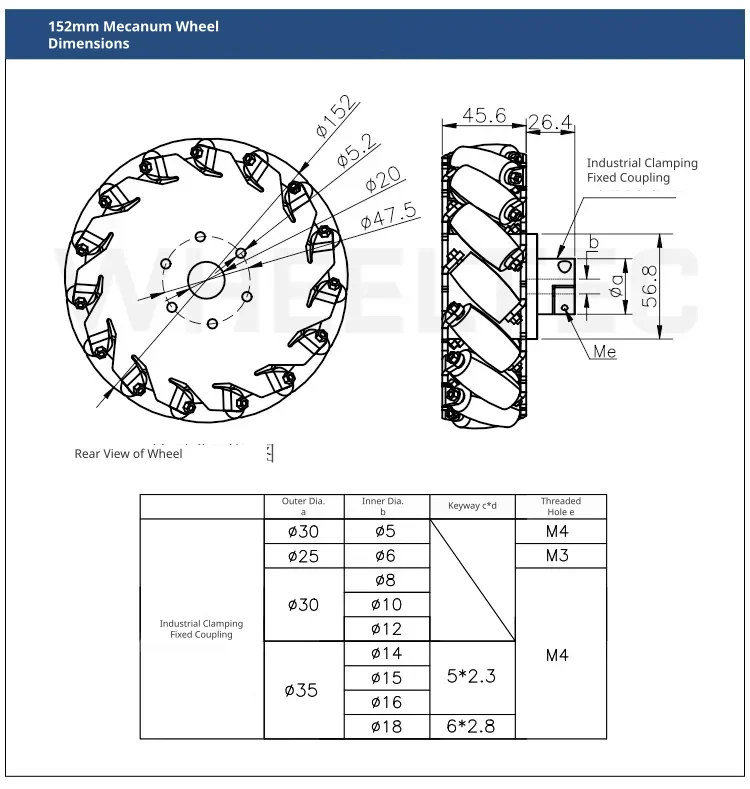

Maximum clearance one hundred and fifty-two millimetre wheel

The largest 152mm wheel features a 45.6mm thickness and a robust 26.4mm coupling. It supports a wide range of industrial clamping couplings with inner diameters from 5mm to 18mm to fit high-torque motors.
