WHEELTEC Flexible Bionic Robotic Gripper

The WHEELTEC Flexible Bionic Robotic Gripper is an adaptable, high-precision end effector designed for delicate handling tasks such as sorting fruit. CNC-machined and available in multiple configurations, it is ideal for South African students, educators, and hobbyists building advanced robotic arms or automated systems.

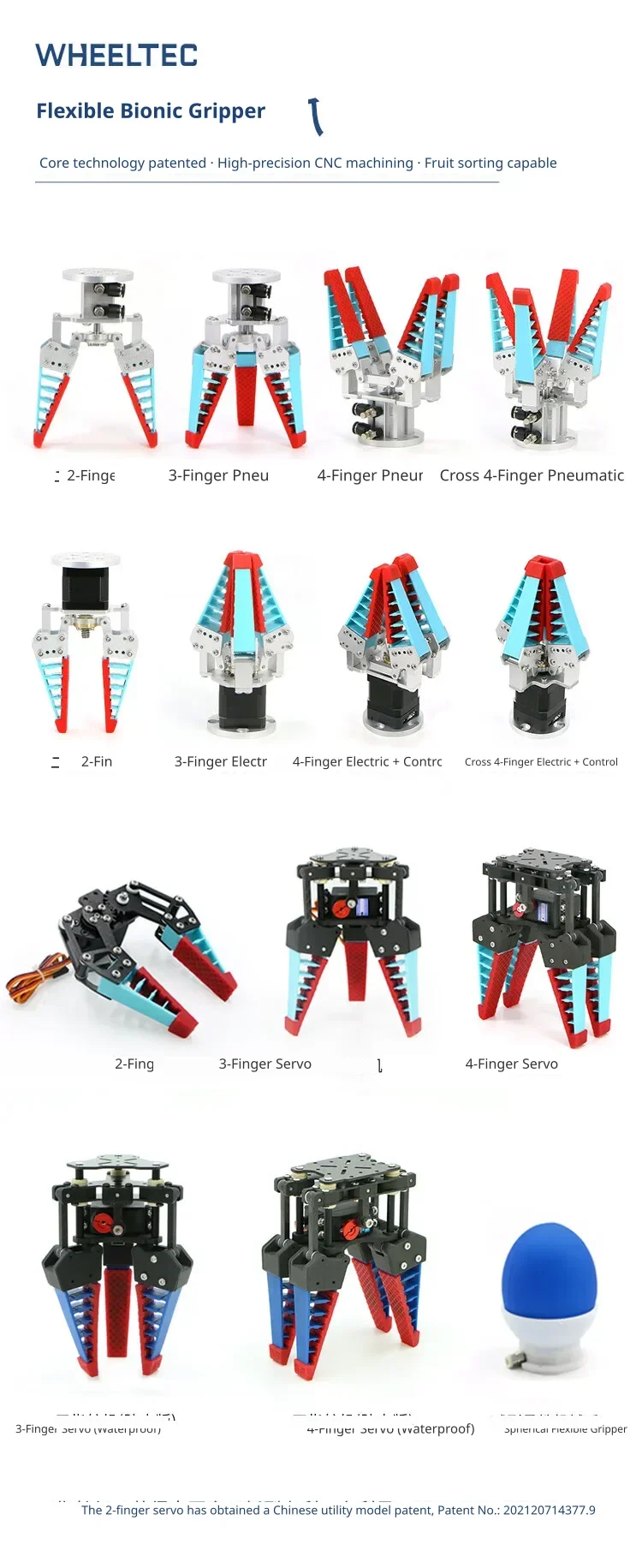

Versatile bionic configurations

This range features pneumatic, electric, and servo-driven models with two, three, or four fingers, including waterproof variants and a spherical gripper. Built using high-precision CNC processing, these bionic claws are designed for delicate tasks like fruit sorting and hold a Chinese utility model patent for the two-finger servo version.

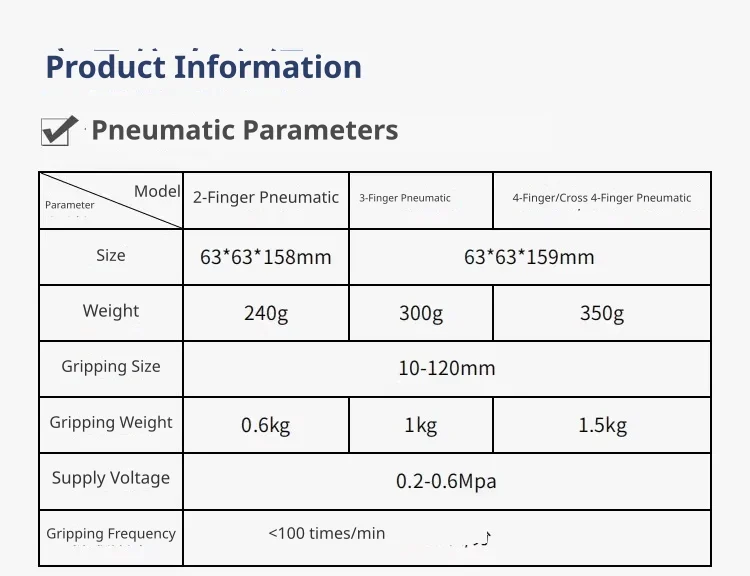

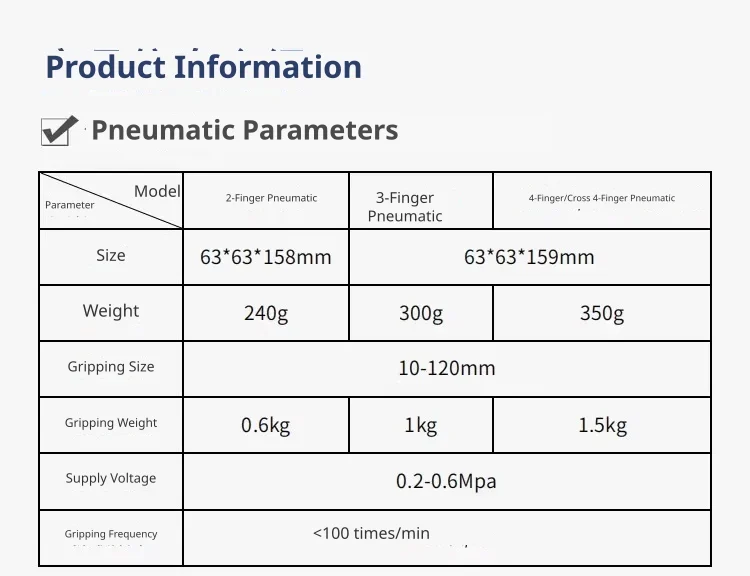

Pneumatic drive specifications

The pneumatic models operate at a pressure of 0.2 to 0.6 MPa and can achieve a gripping frequency of under 100 times per minute. They support a grip size range of 10 to 120 mm, with payloads ranging from 0.6 kg for the two-finger model up to 1.5 kg for the four-finger version.

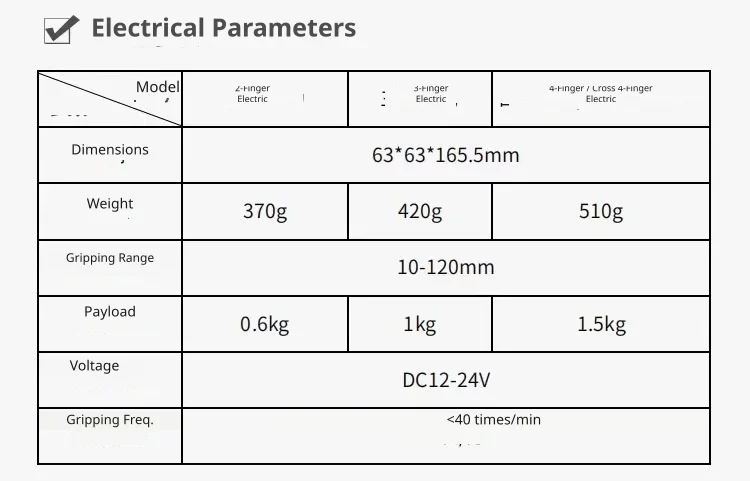

Electric drive specifications

Powered by a DC 12V to 24V supply, the electric grippers offer a stable grip size range of 10 to 120 mm. These models weigh between 370 g and 510 g, delivering a maximum payload of 1.5 kg at a frequency of under 40 times per minute.

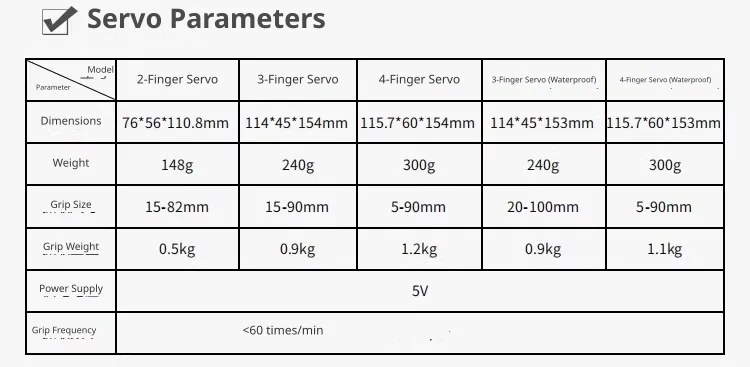

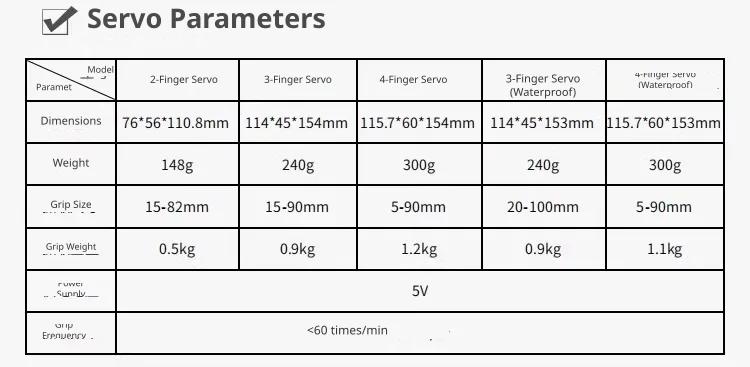

Servo drive specifications

Operating on a 5V supply, the servo-driven grippers are available in standard and waterproof versions with a gripping frequency of under 60 times per minute. Depending on the model, they offer a grip size of up to 100 mm and can handle payloads up to 1.2 kg.

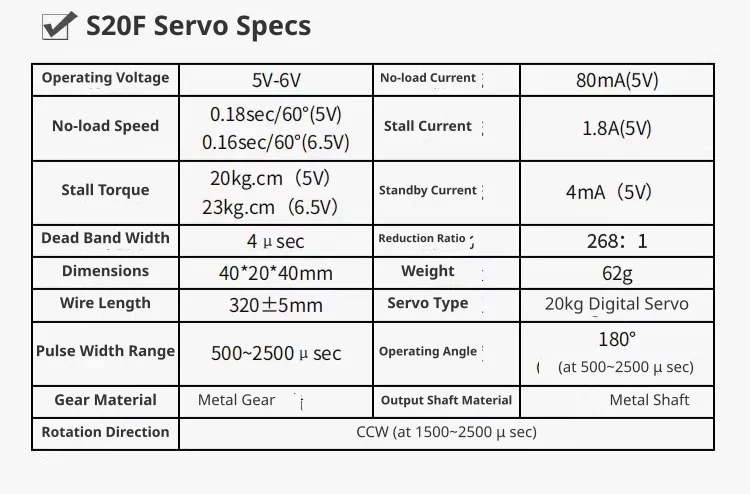

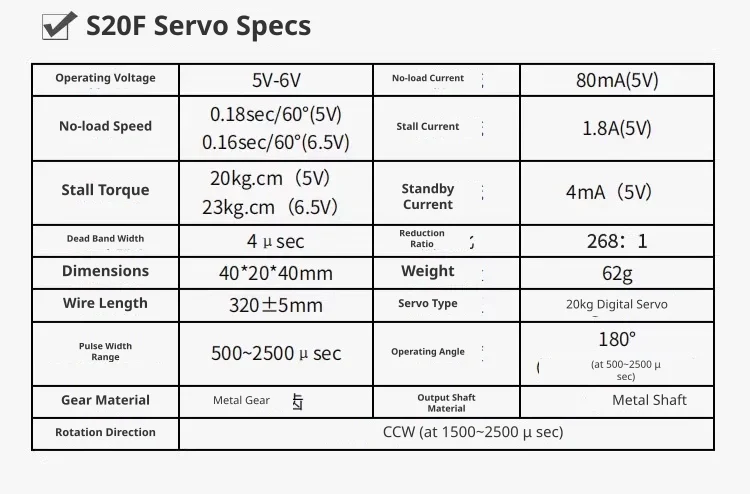

High-performance digital servo

The integrated S20F 20kg digital servo features durable metal gears, a metal output shaft, and a 268:1 reduction ratio. It operates at 5V to 6V, providing up to 23 kg.cm of stall torque and a 180-degree operating angle.
