WHEELTEC 10-Inch Industrial Grade Omni Wheel

The WHEELTEC 10-Inch Industrial Grade Omni Wheel is a heavy-duty, high-strength mobility solution designed for demanding robotics applications. It is ideal for university researchers, industrial automation developers, and advanced hobbyists building heavy-load AGVs or AMRs. This robust wheel enables precise, multi-directional movement with zero turning radius in tight spaces.

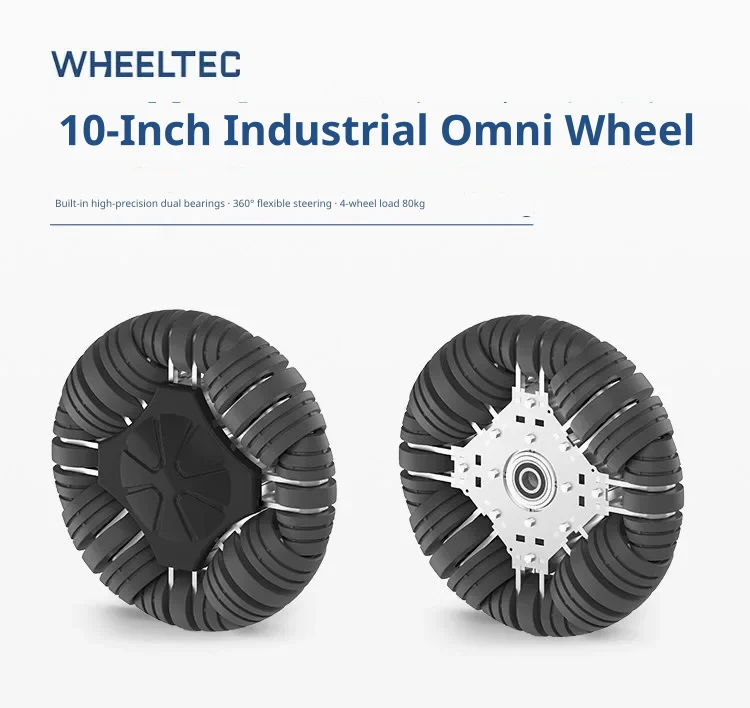

High precision double bearings

Featuring built-in high-precision double bearings, this wheel ensures exceptionally smooth rotation and reliable performance under load. It supports full 360-degree flexible steering, making it perfect for complex omnidirectional chassis designs.

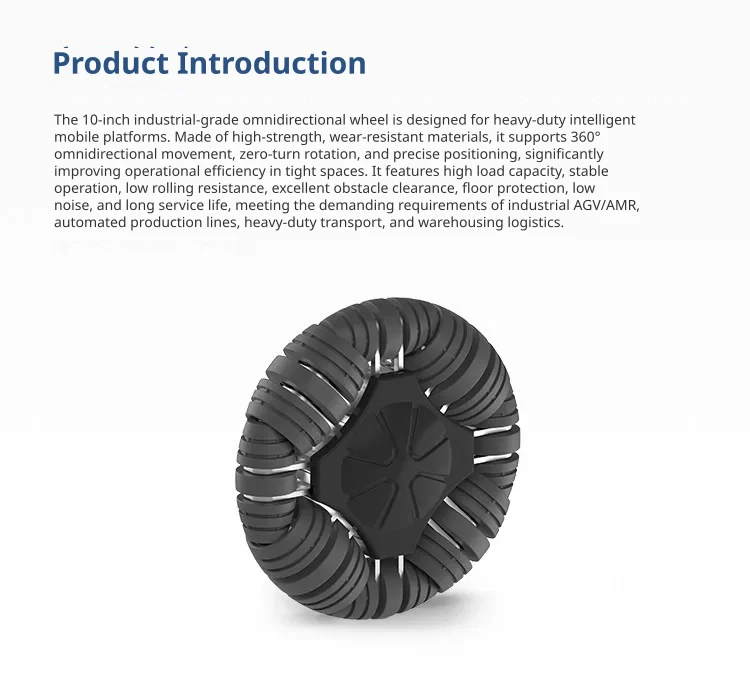

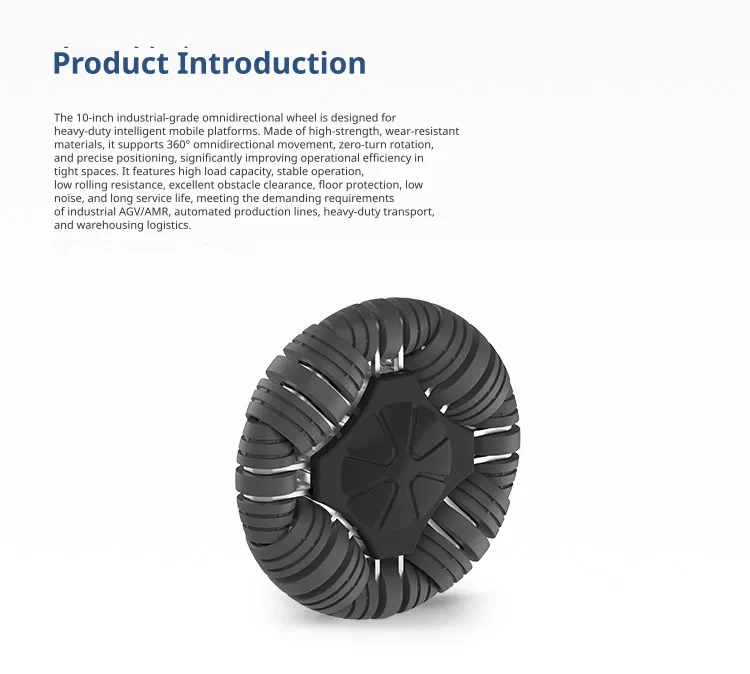

Industrial AGV and AMR integration

Specifically designed for heavy-load intelligent mobile platforms, this wheel is ideal for industrial AGVs, automated production lines, and warehouse logistics. Constructed from high-strength, wear-resistant materials, it delivers low noise, low rolling resistance, and a long service life without damaging floors.

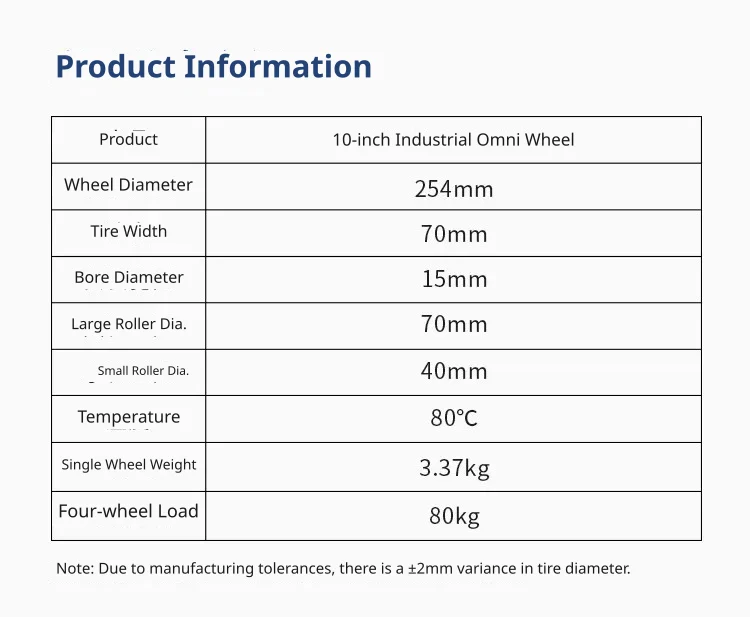

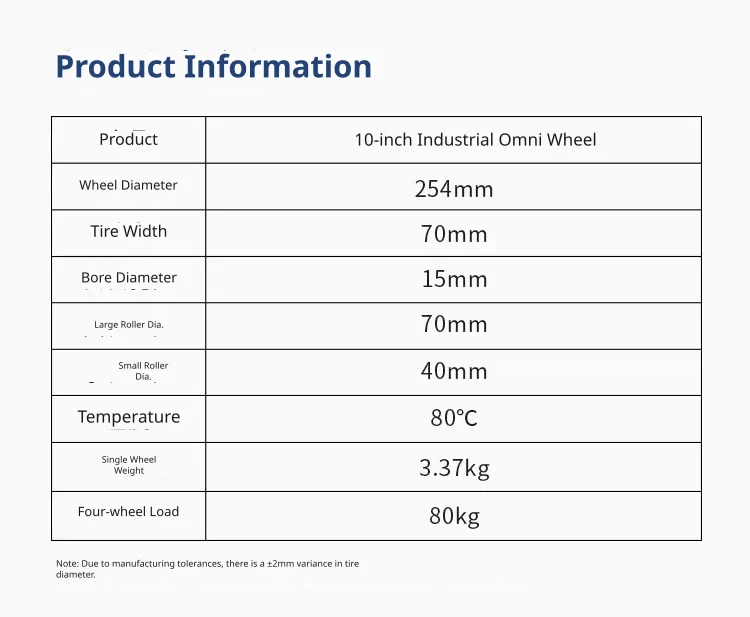

Precise physical dimensions

With a nominal wheel diameter of 254mm and a tire width of 70mm, this wheel is built for substantial platforms. It features a 15mm installation aperture, a large wheel diameter of 70mm, and a small wheel diameter of 40mm.

Heavy load capacity

Weighing 3.37kg per wheel, this robust component is rated for a maximum operating temperature of up to 80 degrees Celsius. A standard four-wheel configuration supports a substantial total load capacity of up to 80kg, ensuring stability for heavy robotic payloads.
