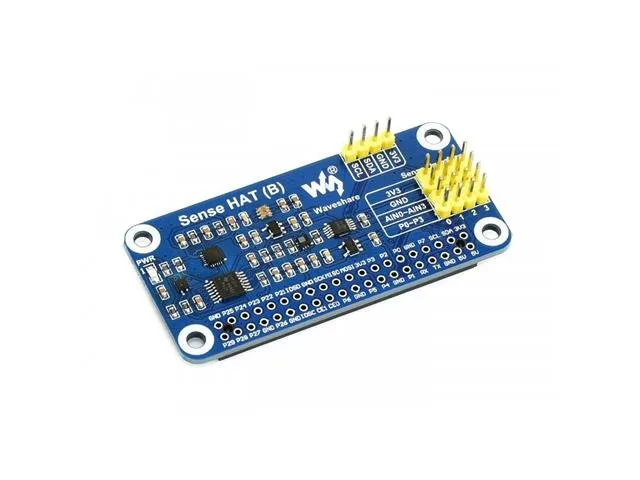

Waveshare Sense HAT (B) Multi-Sensor Board for Raspberry Pi
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Waveshare Sense HAT (B) is a multi-functional sensor add-on board designed specifically for Raspberry Pi series boards. It packs a comprehensive suite of onboard sensors including a 9-axis motion tracker, environmental monitors, and a colour sensor over the I2C interface. It is an ideal tool for students, makers, and robotics enthusiasts building navigation, telemetry, or environmental logging projects.
Comprehensive onboard sensor suite
The HAT integrates an ICM20948 9-axis sensor combining a 3-axis accelerometer, gyroscope, and magnetometer to track movement and orientation. For environmental observation, it includes an SHTC3 temperature and humidity sensor alongside an LPS22HB barometric pressure sensor, as well as a TCS34725 sensor for detecting object colour.
Analogue expansion and interfacing

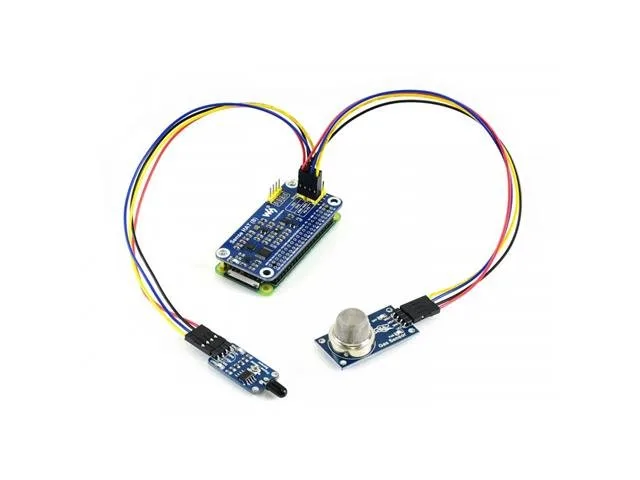

Equipped with an onboard SGM58031 4-channel 16-bit precision ADC, the board allows connection of extra external analogue sensors. It communicates via I2C and breaks out I2C control pins so it can also be interfaced with other host microcontrollers such as STM32.
Broad compatibility and resources

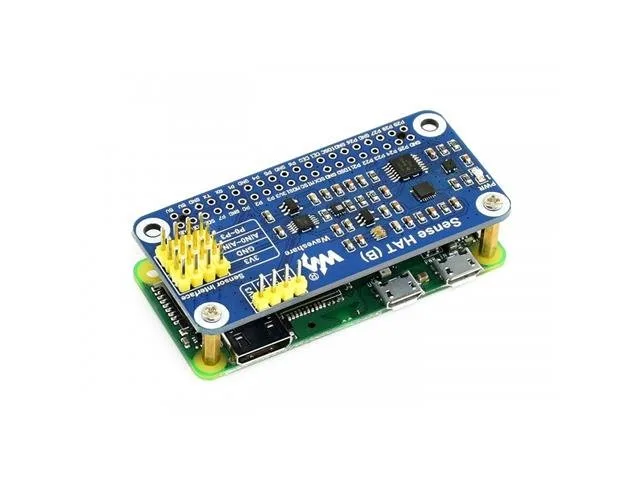

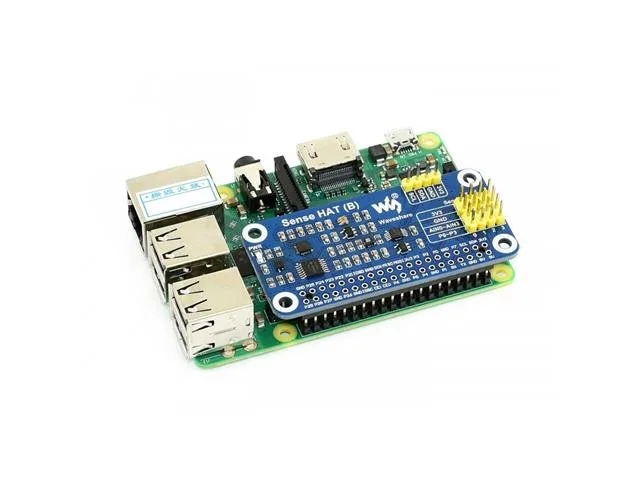

Featuring a standard Raspberry Pi 40-pin GPIO extension header, the module fits directly onto Raspberry Pi series boards. It is provided with complete development resources and manuals with working examples for both Raspberry Pi and STM32.
Specifications
| PRODUCT | SENSE HAT (B) |
| GYROSCOPE | RANGING ±250, ±500, ±1000, ±2000 dps |
| RESOLUTION | 16-bit |
| ACCELERATOR | RANGING ±2, ±4, ±8, ±16 g |
| MAGNETOMETER | RANGING ±49 gauss |
| BAROMETER | RANGING 260 ~ 1260 hPa |
| ACCURACY | ±0.025 hPa (ordinary temperature) |
| SPEED | 1 Hz ~ 75 Hz |
| TEMP & HUMIDITY | RANGING (TEMP) -30 ~ 100 °C |
| ACCURACY (TEMP) | ±0.2 °C |
| RANGING (HUMIDITY) | 0% ~ 100% RH |
| ACCURACY (HUMIDITY) | ±2% RH |
| OTHERS | Color Sensor, High-precision 16-bit AD converter |
| Device | Sense HAT (B) |
| Type | for Raspberry Pi |
| Gyroscope range | ±250, ±500, ±1000, ±2000 dps |
| Accelerometer range | ±2, ±4, ±8, ±16 g |
| Magnetometer range | ±49 gauss |
| Barometer range | 260 ~ 1260 hPa |
| Barometer accuracy | ±0.025 hPa (ordinary temperature) |
| Barometer speed | 1 Hz ~ 75 Hz |
| Temperature range | -30 ~ 100 °C |
| Temperature accuracy | ±0.2 °C |
| Humidity range | 0% ~ 100% RH |
| Humidity accuracy | ±2% RH |
| Onboard ADC | SGM58031 4-channel 16-bit |
| Interface | I2C |
