Waveshare PoE HAT (F) for Raspberry Pi 5 with Cooling Fan
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Waveshare PoE HAT (F) is an IEEE 802.3af/at-compliant Power over Ethernet expansion board designed for the Raspberry Pi 5. It delivers both power and network connectivity via a single Ethernet cable when paired with compliant power sourcing equipment. This module is ideal for makers, educators, and hobbyists looking to simplify cabling in remote or networked computing projects.
Single-cable power and networking
This HAT allows your Raspberry Pi 5 to receive both power and network data through one Ethernet cable, eliminating the need for a separate power supply.
Active cooling and thermal management

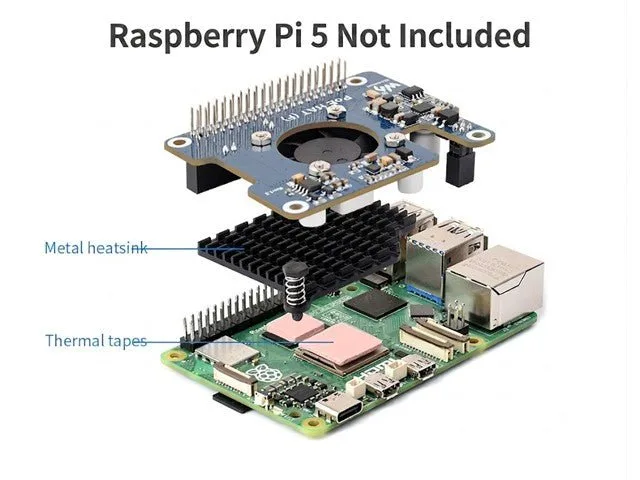

It comes equipped with an onboard high-speed active cooling fan and a metal heatsink to ensure optimal heat dissipation under intensive workloads.
Isolated power supply

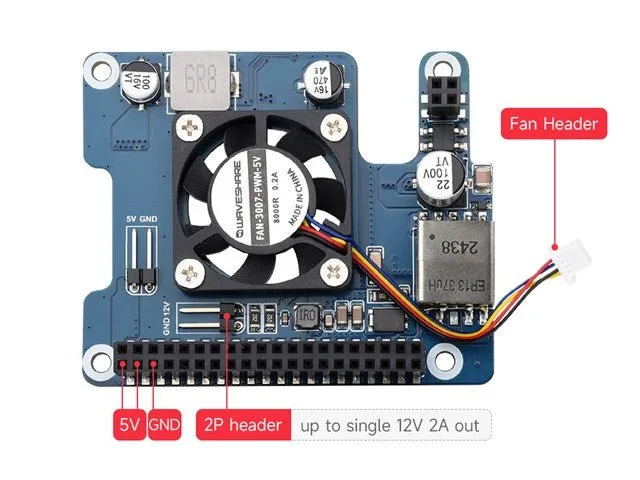

Featuring a fully isolated switched-mode power supply, the HAT provides a stable 5V 4.5A output through the 40-pin GPIO header and up to 12V 2A via the 2-pin header.
Specifications
| POE POWER INPUT | 37V ~ 57V DC in |
| POWER OUTPUT | GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) |

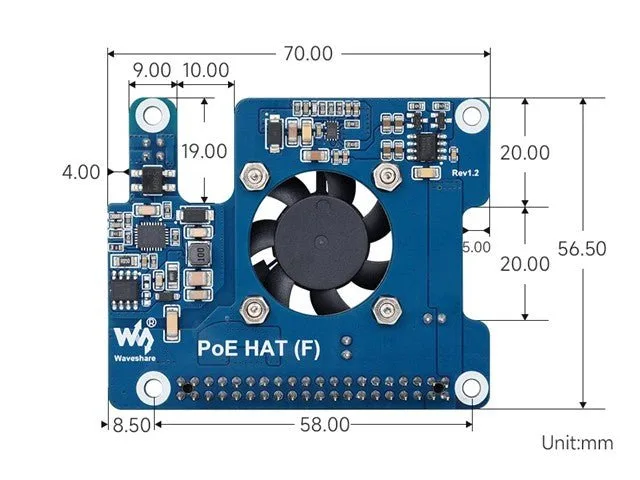

| DIMENSIONS | 56.5 × 70.0mm |
| NETWORK STANDARD | IEEE 802.3af/at PoE |
| Device | Hat |
| Type | Power Over Ethernet |
