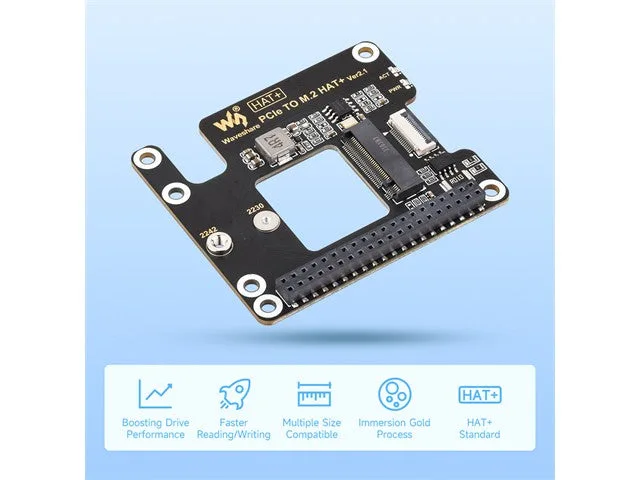

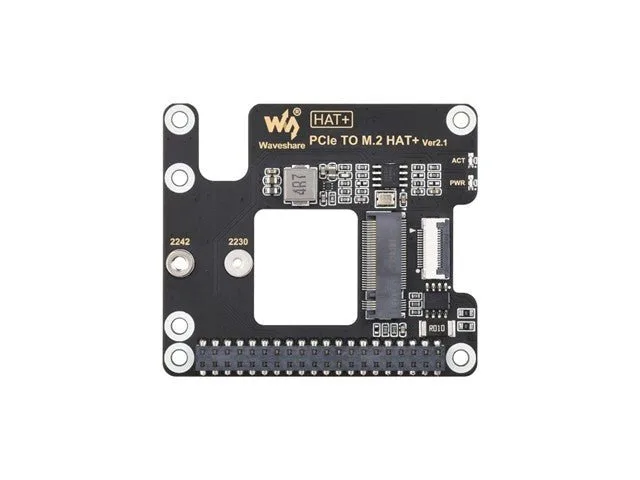

Waveshare PCIe to M.2 NVMe SSD HAT+ for Raspberry Pi 5

The Waveshare PCIe to M.2 HAT+ connects high-speed NVMe solid-state drives directly to the Raspberry Pi 5. It supports PCIe Gen2 and Gen3 modes to deliver fast read and write performance with onboard power monitoring. This adapter is ideal for makers, students, and hobbyists looking to expand their Pi 5 storage capabilities.

High-speed NVMe storage

The board supports NVMe protocol M.2 solid-state drives in 2230 and 2242 form factors. It operates in PCI-E x1 Gen2 or Gen3 mode for efficient, high-speed data transfer.

HAT+ standard and thermal design

Designed specifically for the Raspberry Pi 5, this add-on conforms to the HAT+ standard and includes an onboard EEPROM chip. A reserved airflow vent allows cooling fans to maintain airflow and reduce drive operating temperatures.

Status indicators and power monitoring

An onboard power monitoring chip enables real-time tracking of the SSD operating status. Clear LED indicators show power status continuously via the PWR light and data activity via the blinking ACT light.

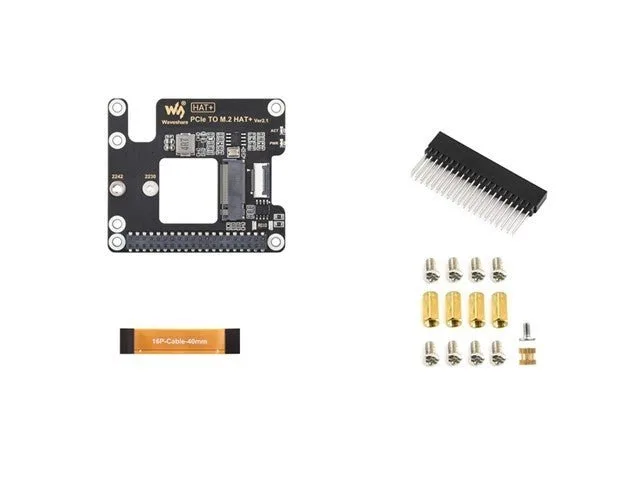

Package contents

The kit includes one PCIe to M.2 HAT+, one 2x20-pin header, one 40 mm 16-pin cable, and a standoff pack.
