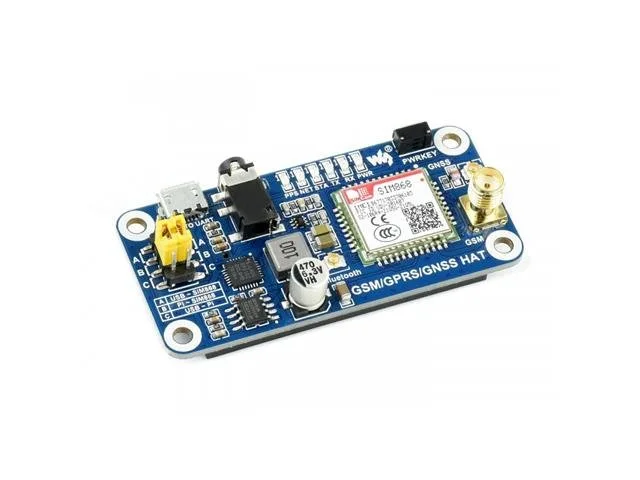

Waveshare GSM/GPRS/GNSS and Bluetooth HAT for Raspberry Pi
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The Waveshare GSM/GPRS/GNSS/Bluetooth HAT is a versatile multi-communication add-on board designed for Raspberry Pi computers. It equips your projects with cellular connectivity, SMS messaging, GPRS data transfer, multi-constellation satellite positioning, and Bluetooth communication. This all-in-one expansion board is ideal for makers, students, and educators building connected IoT, asset tracking, and remote telemetry solutions.
Comprehensive wireless communication
The module features quad-band GSM/GPRS support across 850, 900, 1800, and 1900 MHz for voice calls, SMS, MMS, email, and mobile data up to 85.6kbps. It also provides Bluetooth 3.0 plus EDR connectivity supporting SPP, OPP, and audio profiles for local wireless data transfer.
High-accuracy GNSS positioning
With support for GPS, COMPASS, Glonass, and LBS base station positioning, the onboard receiver features 33 tracking channels and 99 acquisition channels. It achieves a fast time-to-first-fix and horizontal positioning accuracy within 2.5 metres.
Onboard interfaces and hardware

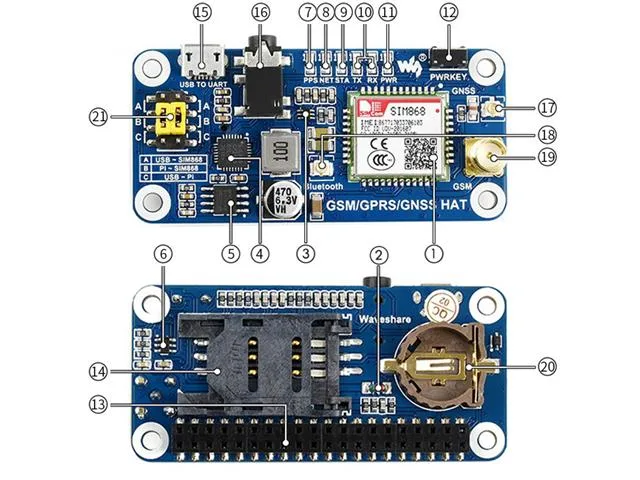

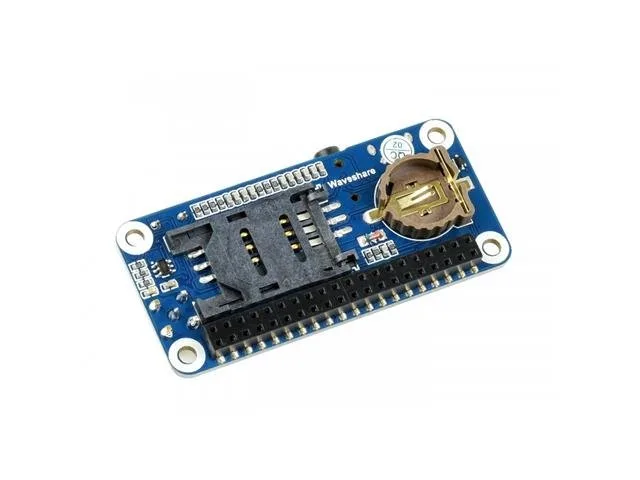

The HAT includes a standard 40-pin Raspberry Pi GPIO header, an onboard CP2102 USB-to-UART converter for debugging, six status LEDs, an RTC with backup battery holder, and a 1.8V/3V SIM card slot. It operates on 5V power and supports automatic baud rate detection from 1200bps to 115200bps.
Command control and compatibility
Configuration and control are handled via standard 3GPP and SIMCOM-enhanced AT commands. Development resources and software examples are provided for Raspberry Pi, Arduino, and STM32 platforms.
Specifications
| Device | HAT |
| Type | for Raspberry Pi |
| Compatibility | Raspberry Pi series (40-pin GPIO header) |
| Operating voltage | 5V |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.2mm x 65mm |
| GSM/GPRS bands | GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz |
| GPRS data speed | Uplink/Downlink max 85.6kbps |
| GNSS channels | 33 tracking, 99 acquisition |
| GNSS tracking sensitivity | -165 dBm |
| Horizontal positioning accuracy | <2.5m CEP |
| Bluetooth standard | Bluetooth 3.0 + EDR |
| UART chip | CP2102 |
| SIM card compatibility | 1.8V / 3V |
