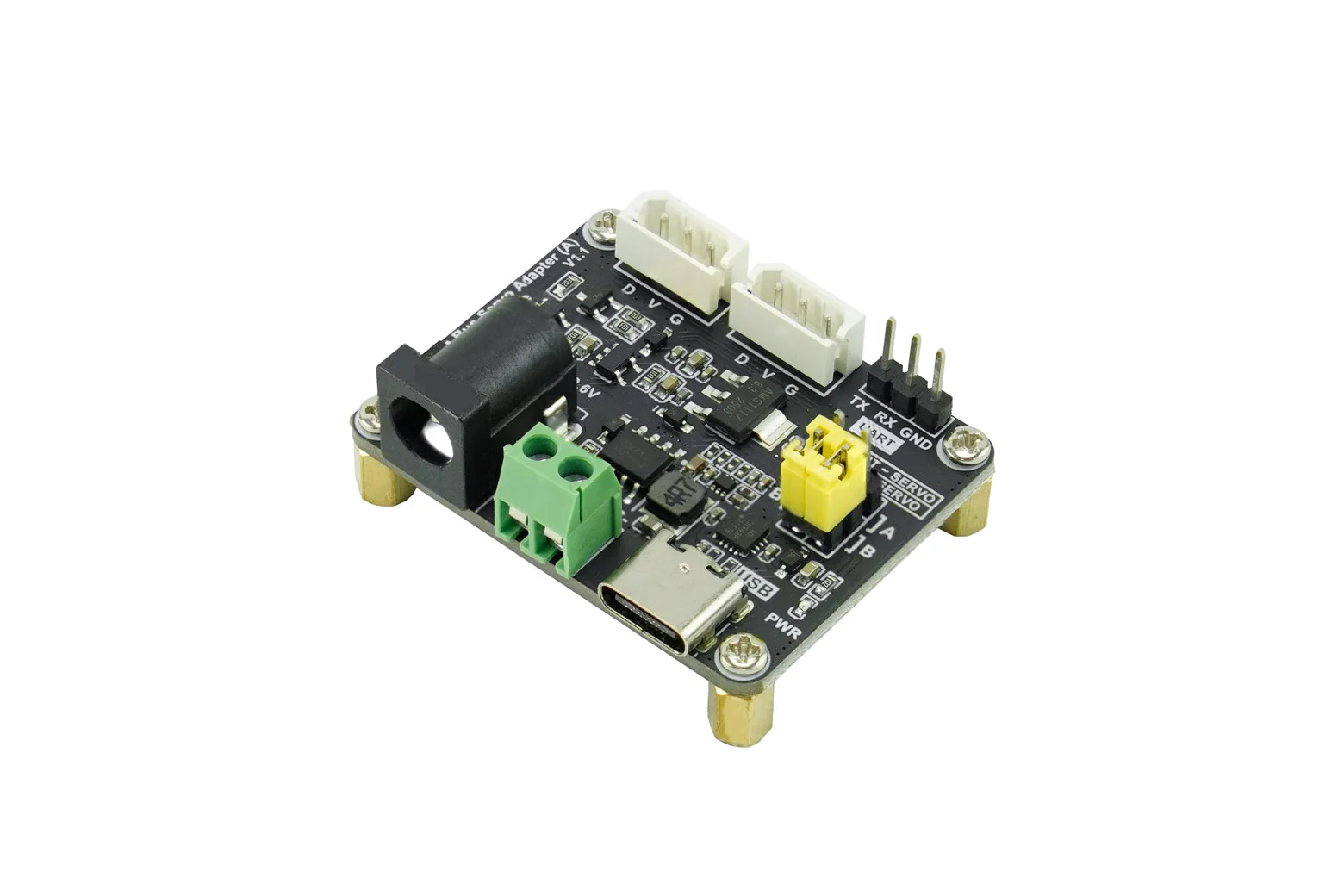

Serial Bus Servo Driver Board (9-12.6V DC, Control up to 253 Servos)

The Serial Bus Servo Driver Board is a multi-axis controller capable of managing up to 253 ST and SC series serial bus servos with a 9-12.6V DC power supply. Featuring both USB and UART interfaces, it offers integrated telemetry feedback and servo ID programming capabilities. This board is an ideal choice for robotics hobbyists, students, and makers building multi-joint robotic mechanisms.

Extensive multi-axis servo capacity

The controller is capable of driving up to 253 serial bus servos across multi-axis systems. This high capacity makes it suitable for complex multi-servo robotic platforms and robotic arms.

ST and SC servo compatibility

Designed for versatility, the board directly supports both ST and SC series serial bus servos. This allows makers to incorporate different servo models into a unified control network.

Dual USB and UART communication

Equipped with dedicated USB and UART communication interfaces, the board connects seamlessly to microcontrollers, single-board computers, or PCs. These dual interfaces offer flexible options for programming and command transmission.

Telemetry feedback and ID programming

The board supports real-time telemetry feedback to monitor servo status during operation. It also enables convenient servo ID programming to streamline multi-unit setup and configuration.

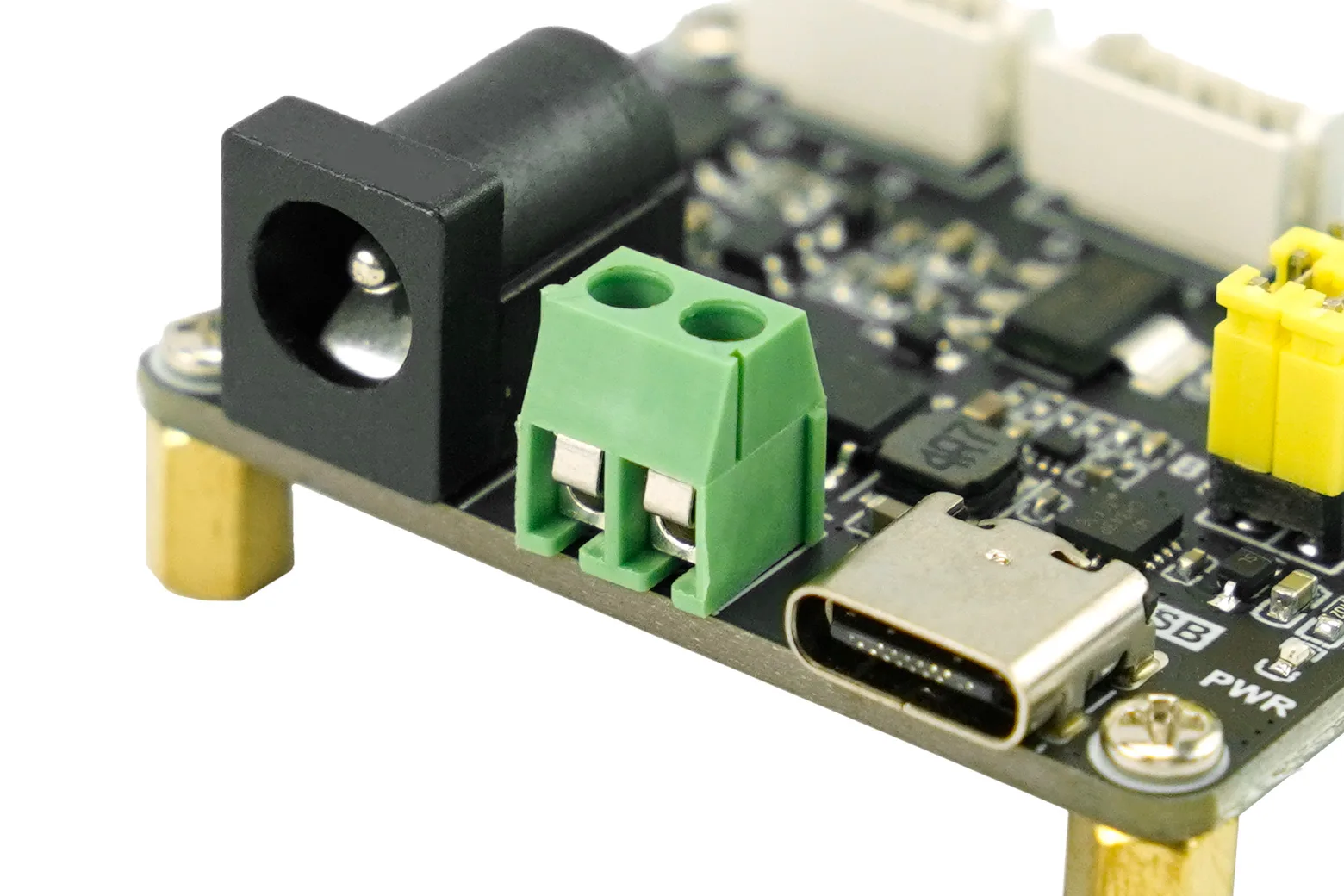

Wide DC voltage input range

Operating on a 9V to 12.6V DC input, the board provides the appropriate power range needed to drive connected bus servos reliably.

Downloads & documentation

• Output Diagram
• Bus Servo Adapter (A).step
