Realman Robotic Arm for ROS Robots

The Realman Robotic Arm for ROS Robots (ECO65-B) is a highly versatile, 6-DOF standard robotic arm designed for seamless integration into advanced robotics projects. Ideal for university researchers, educators, and professional developers, this arm combines a high payload capacity with a lightweight, integrated design to simplify deployment on mobile platforms.

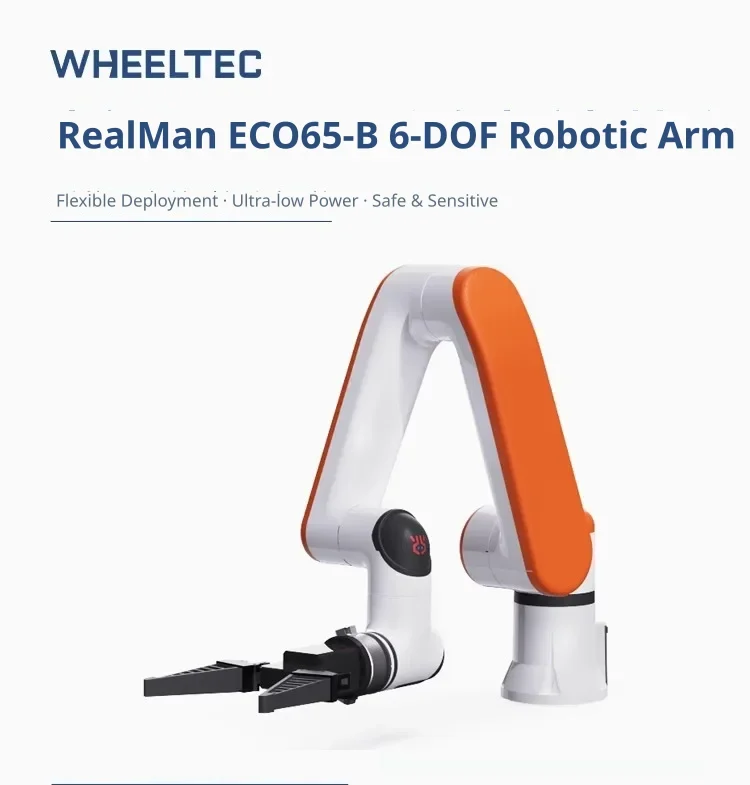

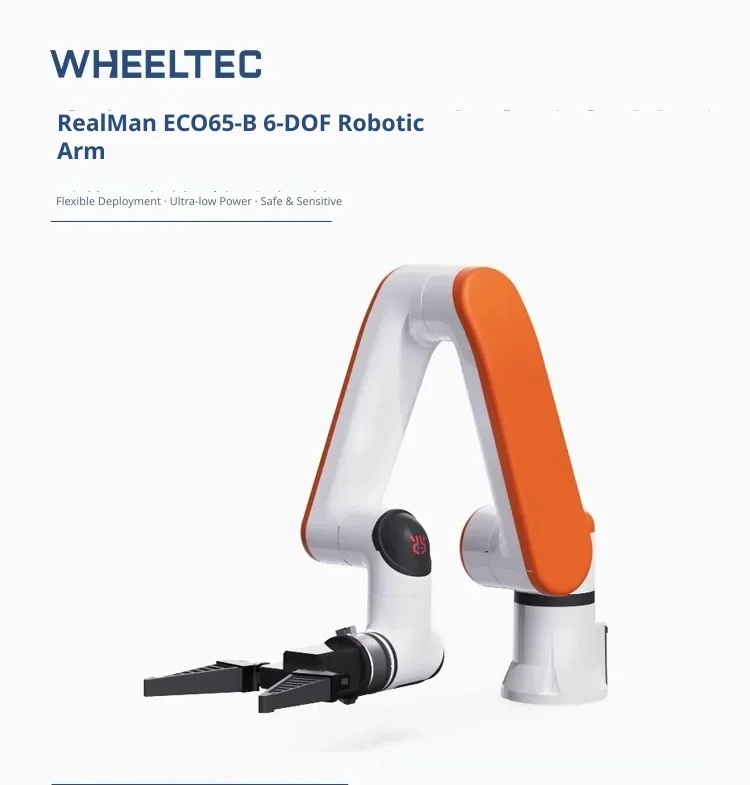

Flexible six degrees of freedom

The Realman ECO65-B is a 6-DOF robotic arm engineered for flexible deployment, ultra-low power consumption, and safe, sensitive operation. Its lightweight structure makes it an excellent choice for mounting on mobile robotic bases and ROS-driven research platforms.

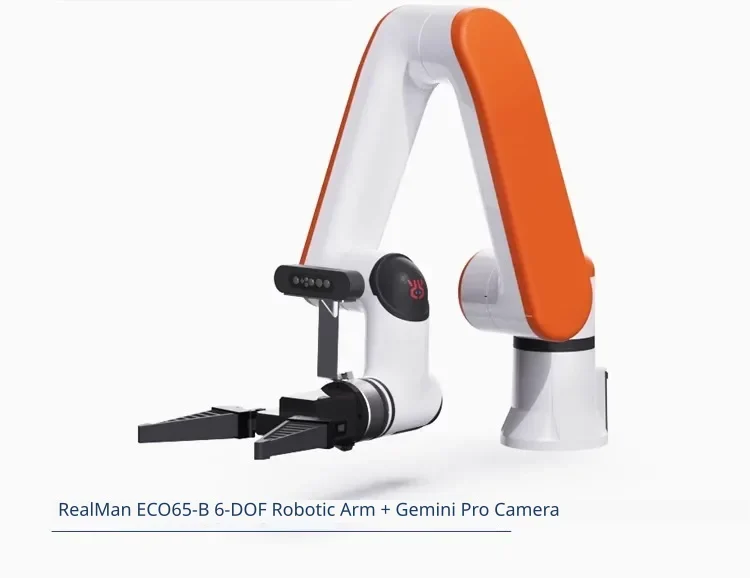

Vision integration with Gemini Pro

Expand your robot's capabilities with support for advanced 3D vision systems like the Gemini Pro camera. This integration enables precise object recognition, spatial awareness, and complex pick-and-place operations in dynamic environments.

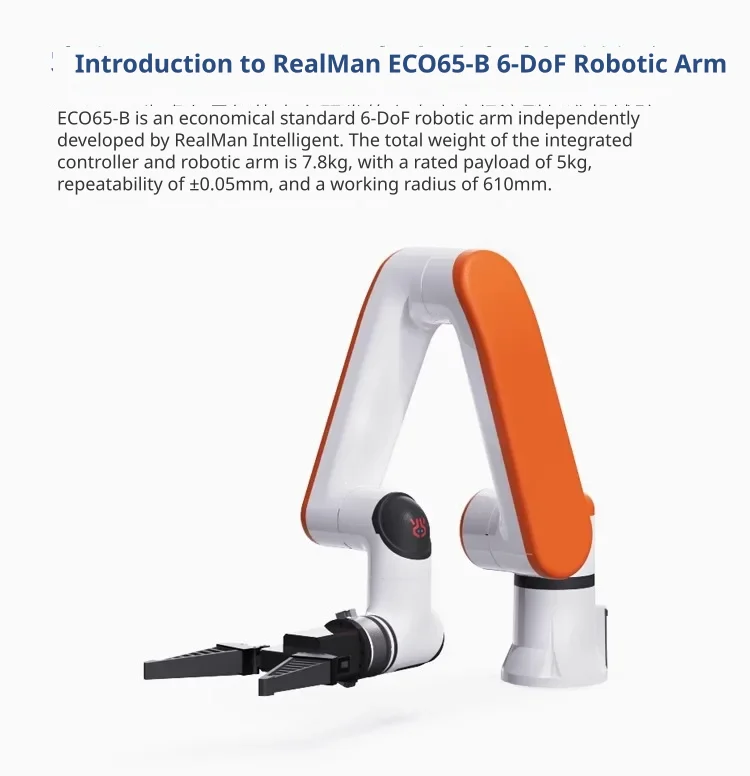

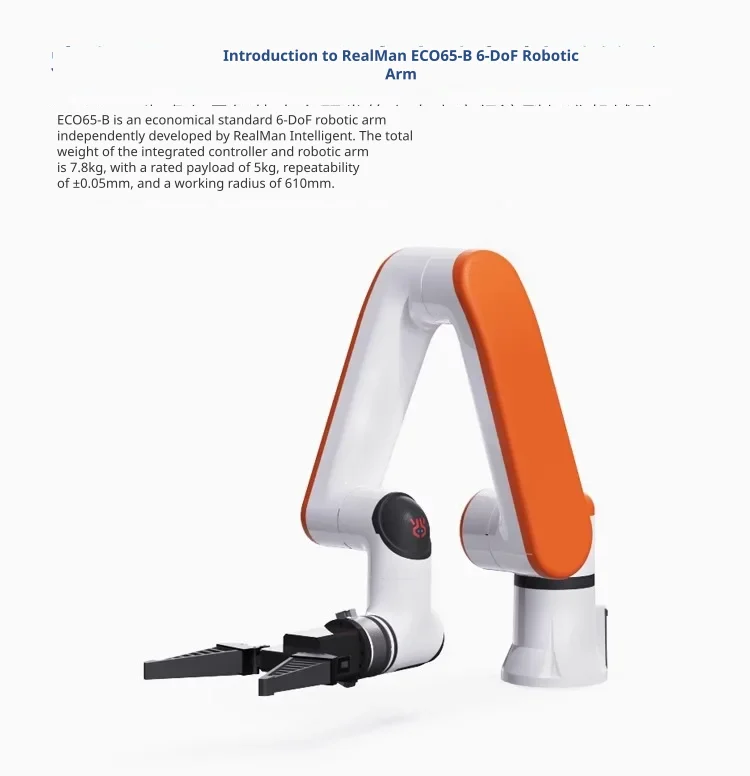

High payload and precision

Despite weighing only 7.8kg with its fully integrated controller, this robotic arm boasts an impressive 5kg rated payload. It delivers a generous 610mm working radius alongside a repeat positioning accuracy of ±0.05mm for highly precise tasks.

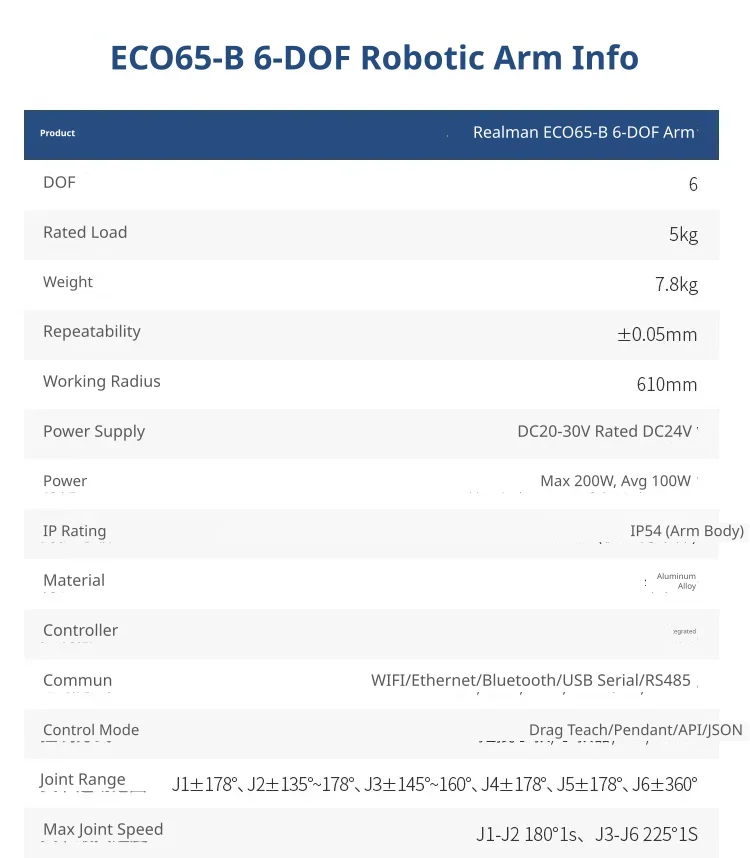

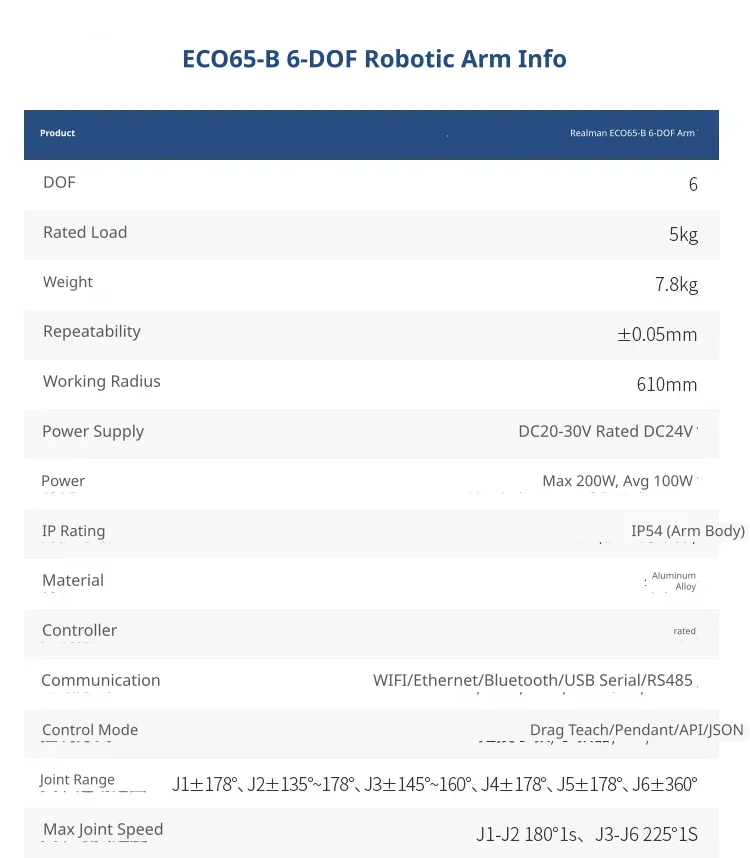

Comprehensive connectivity and control

Constructed from robust aluminium alloy, the IP54-rated arm supports Wi-Fi, Ethernet, Bluetooth, USB serial, and RS485 communication. It operates on a DC 20-30V supply with a maximum power consumption of 200W, and can be controlled via drag-and-drop teaching, APIs, or JSON.
