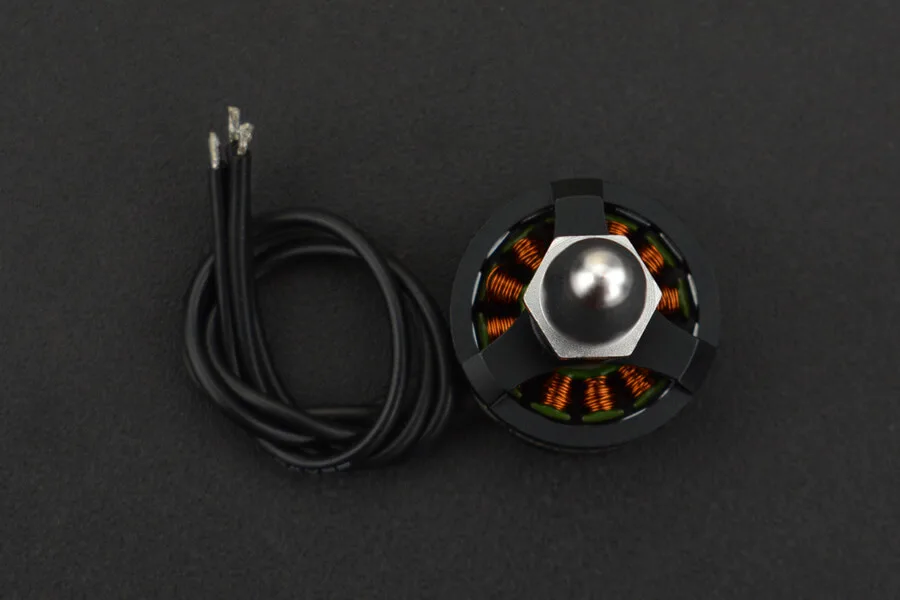

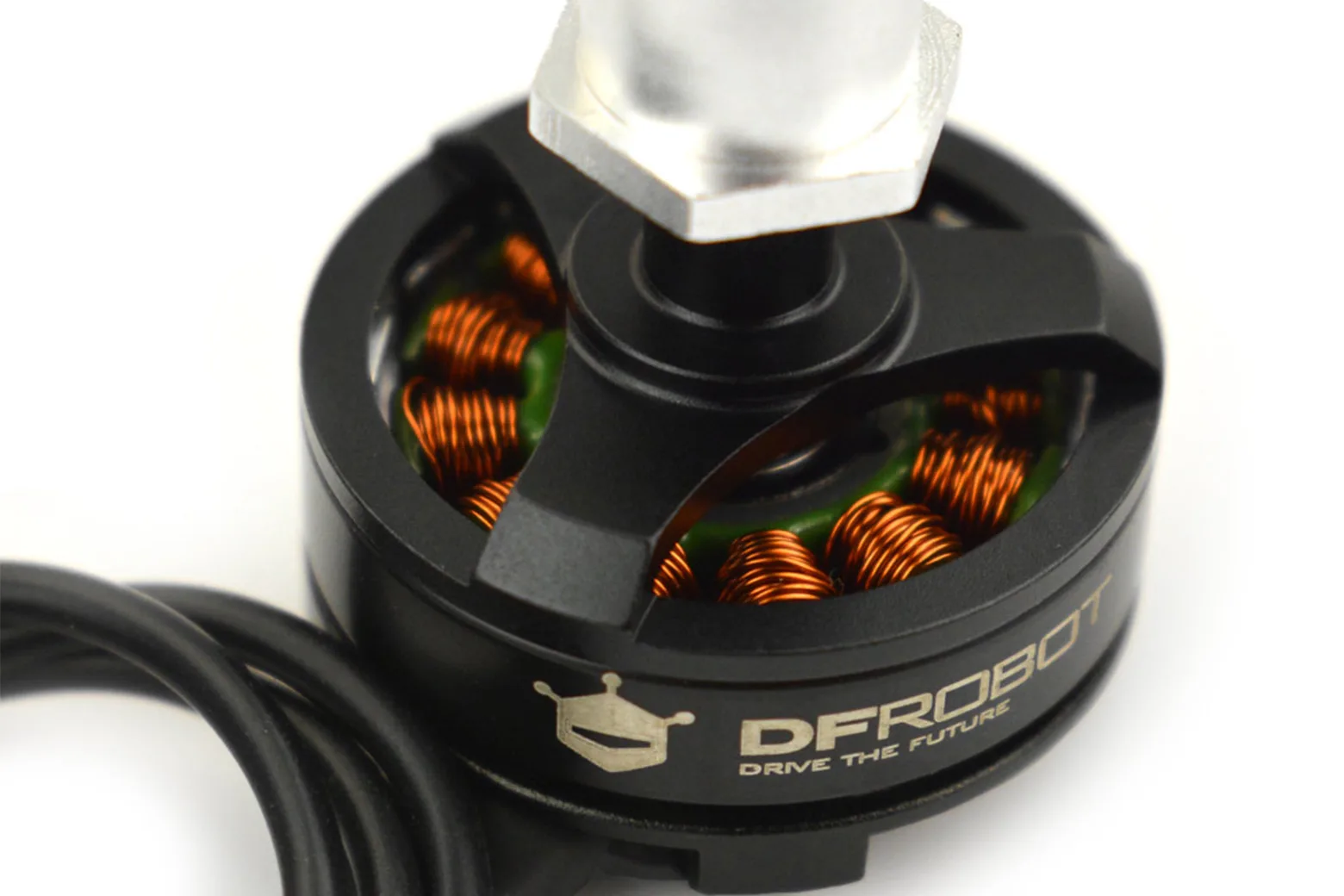

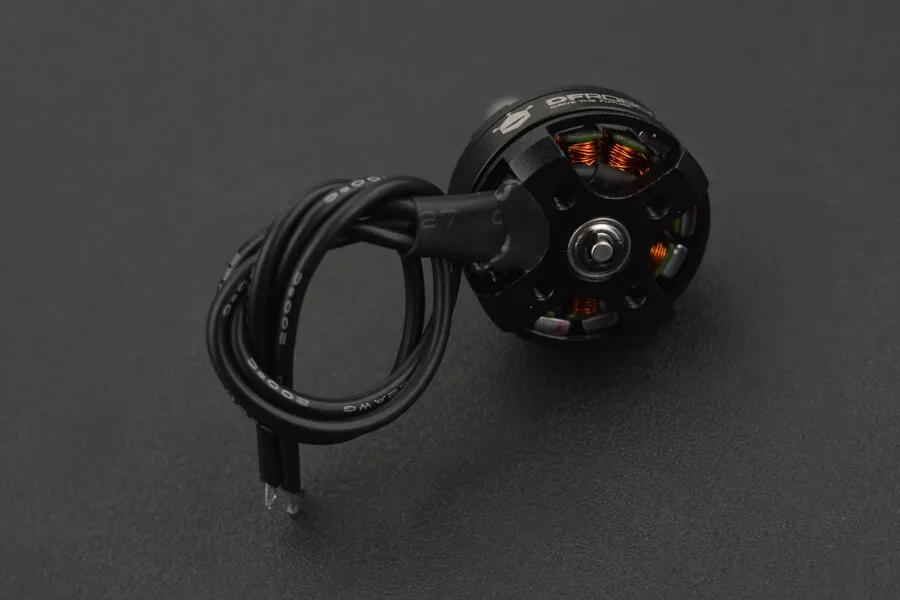

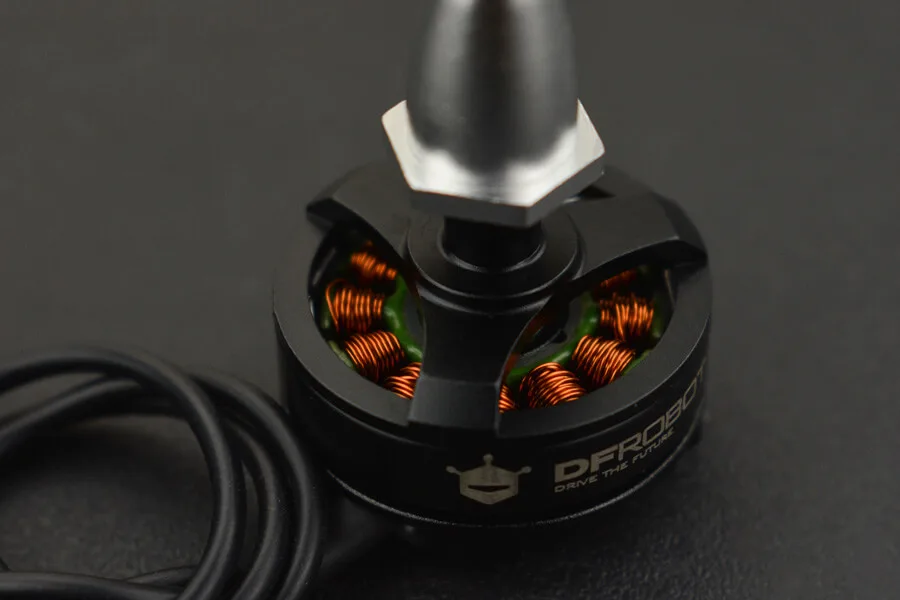

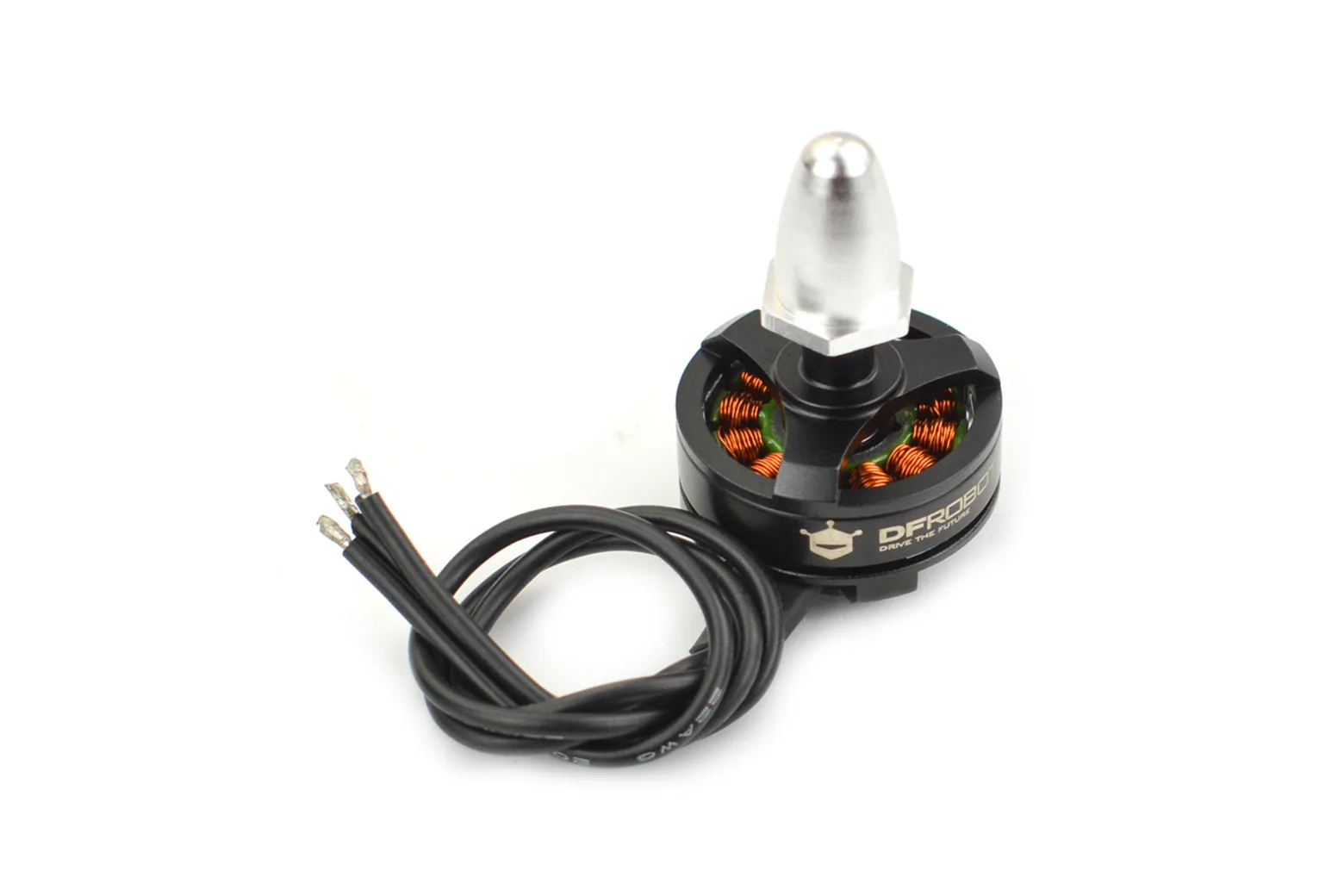

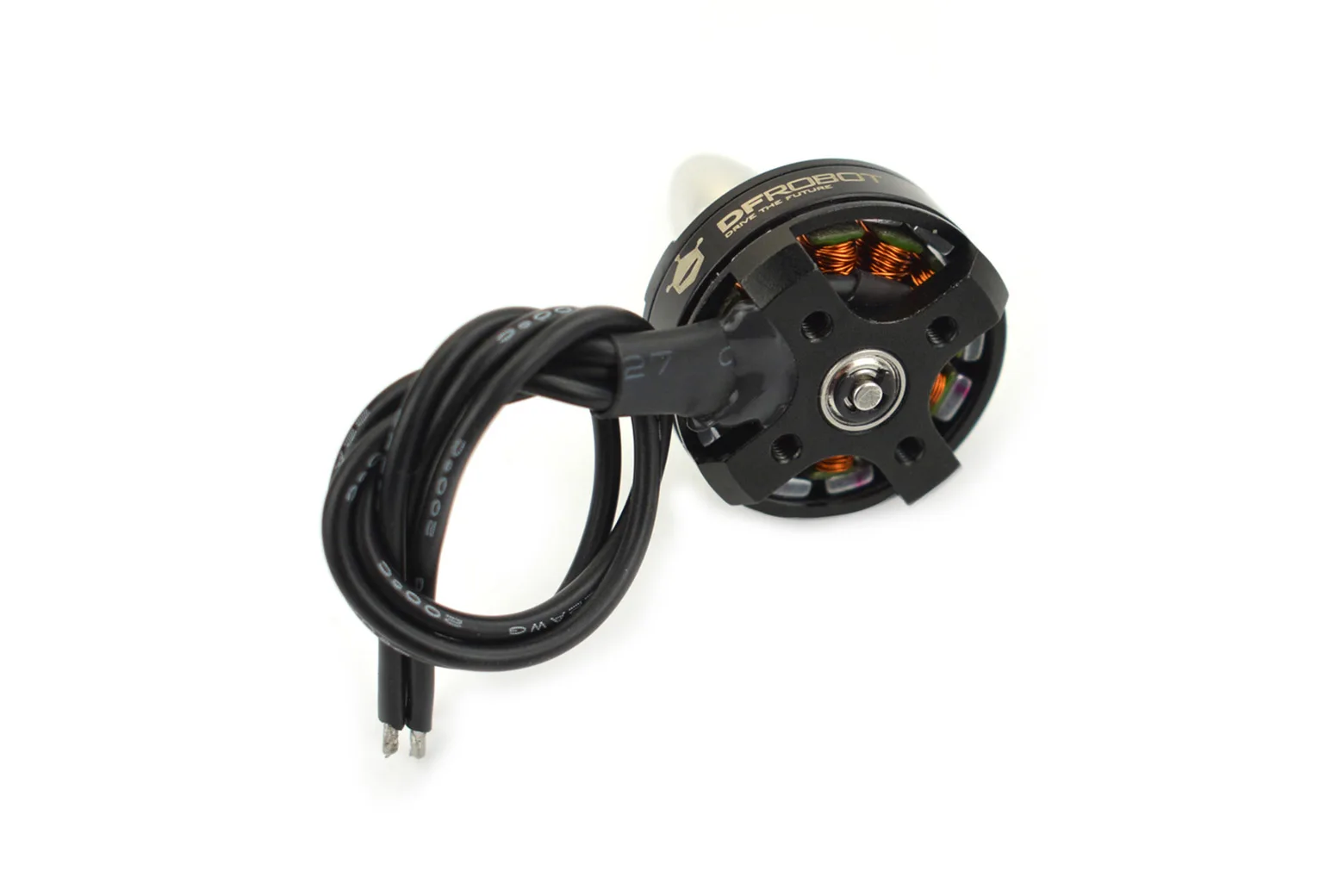

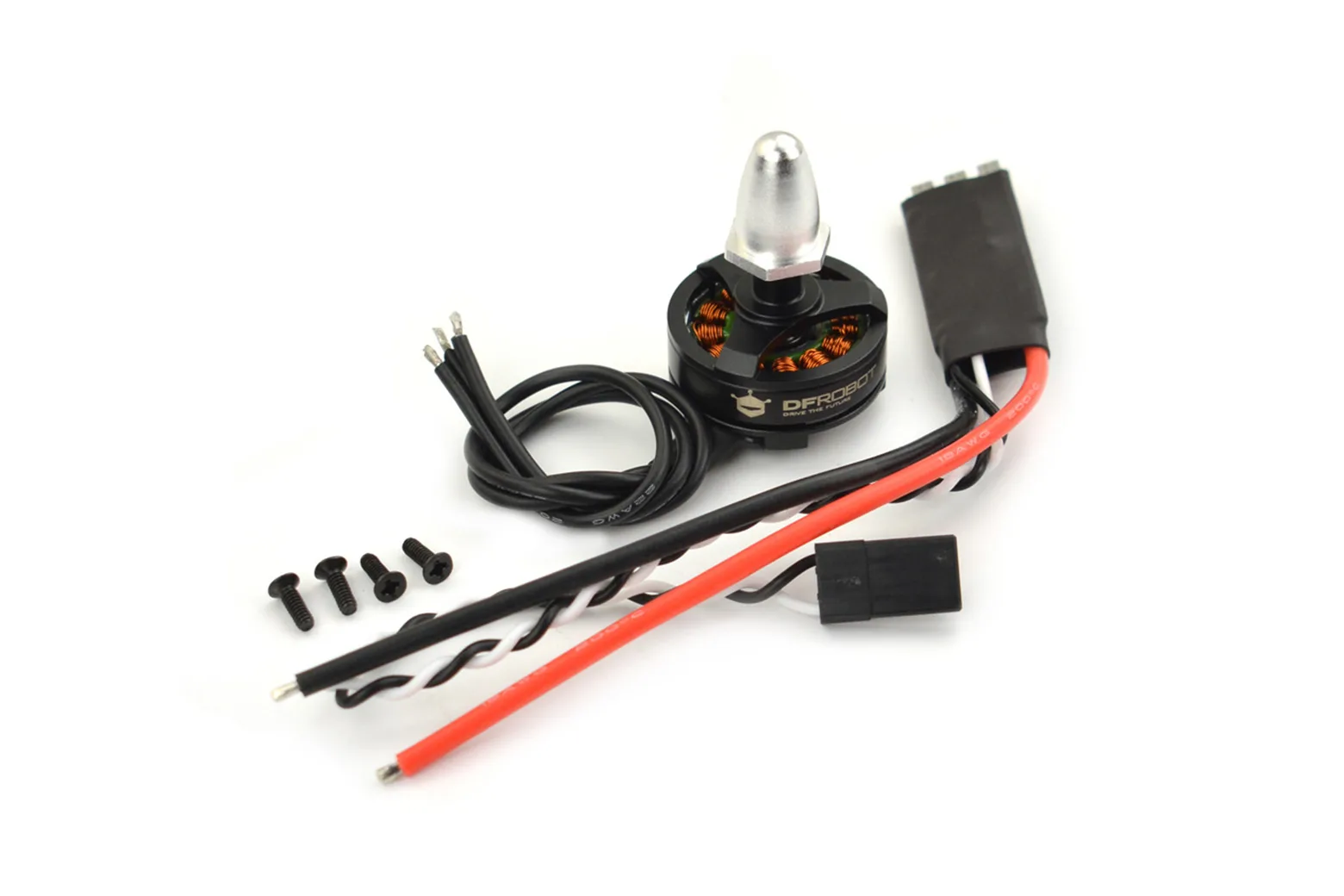

MTO1804 Brushless DC Motor (CW) with 20A ESC

The MTO1804 Brushless DC Motor (CW) with 20A ESC is a lightweight, high-performance propulsion system designed for multi-rotor drones, intelligent robotics, and aerial photography platforms. It offers dependable torque and high efficiency, making it ideal for makers, robotics students, and drone builders.

High torque and wide speed range

This brushless DC motor delivers high torque even at low speeds and supports full-power operation across its entire RPM range. It features high efficiency, robust overload protection, and efficient regenerative braking in a compact package.

Precision engineering and heat resistance

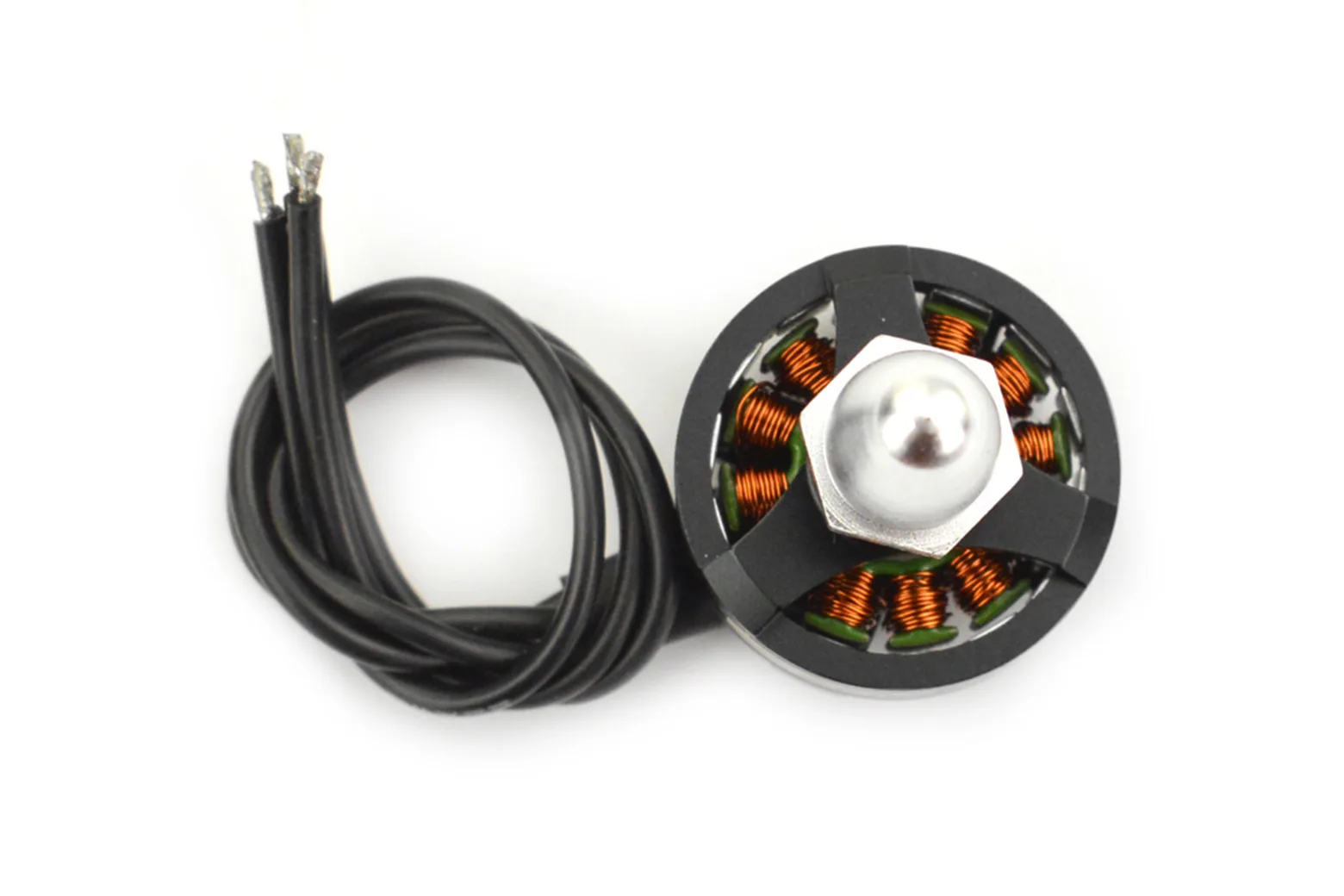

Equipped with NSK bearings and oxygen-free copper windings rated up to 220 degrees Celsius, this motor resists overheating at high rotational speeds. Its hollow housing reduces weight while enhancing airflow and heat dissipation.

Balanced rotation and threaded shaft

Every motor undergoes 100 percent dynamic balance calibration for smooth and stable flight with minimal vibration. The M5 threaded shaft ensures secure propeller attachment on multi-rotor platforms.

Motor specifications

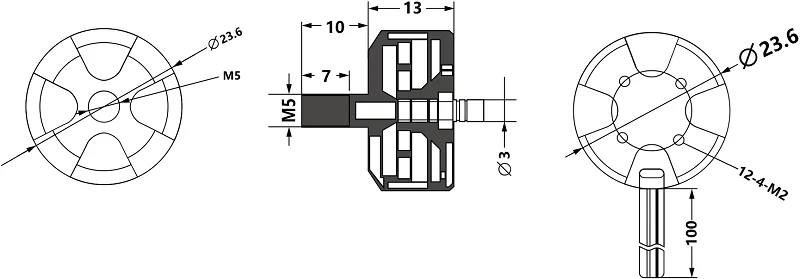

The 2480KV motor measures 23 by 25.1 millimetres and weighs only 16 grams. It operates on 2 to 3S LiPo batteries, handling up to 5A continuous current and 55.5W maximum power.

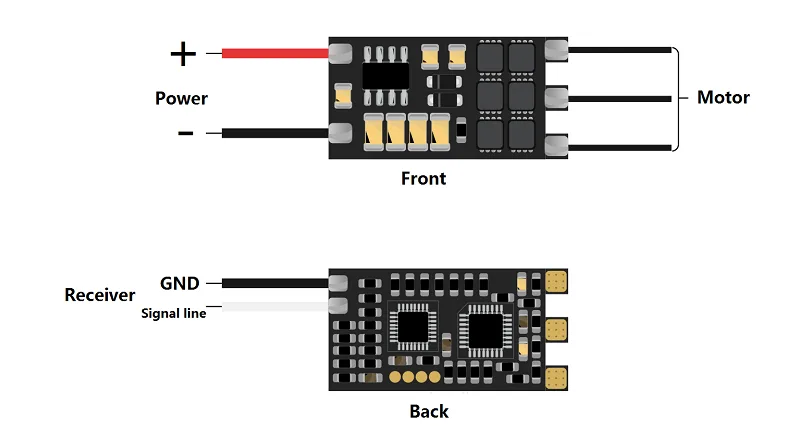

20A electronic speed controller

The included drive board handles a continuous current of 20A with peaks up to 25A across 2 to 4S LiPo inputs. It weighs 7.5 grams, measures 27 by 12 millimetres, and operates without an onboard BEC.
