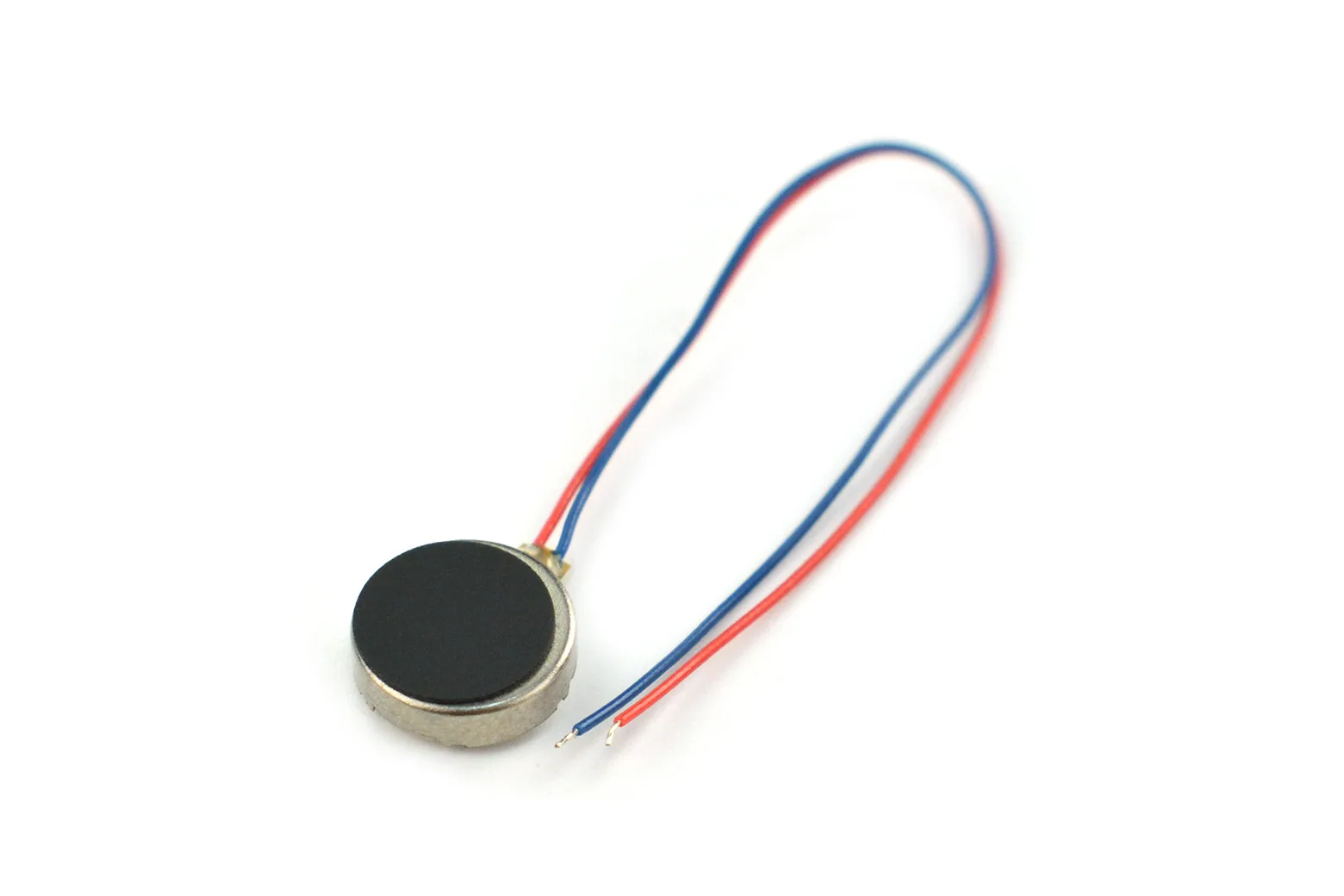

Mini Vibration Motor (10*2.7mm)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

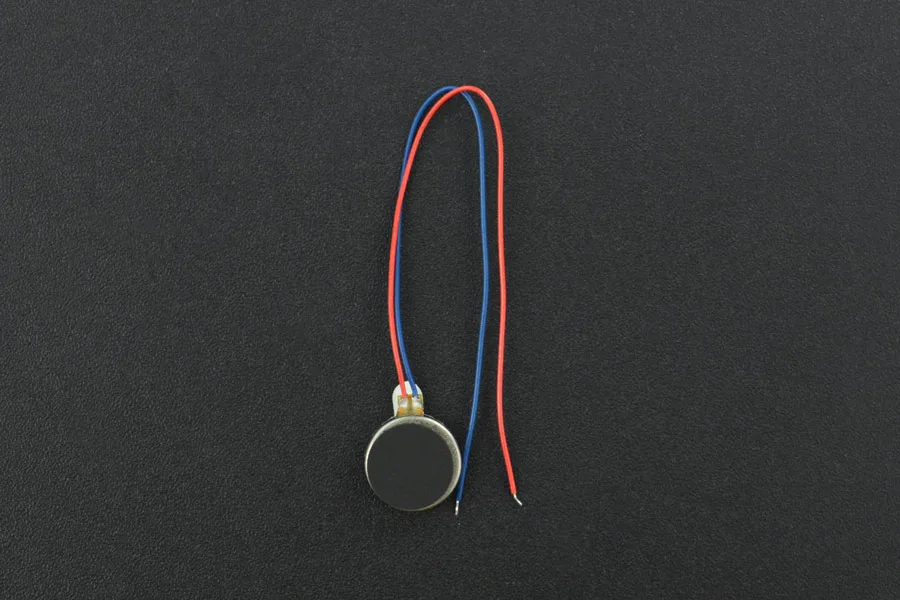

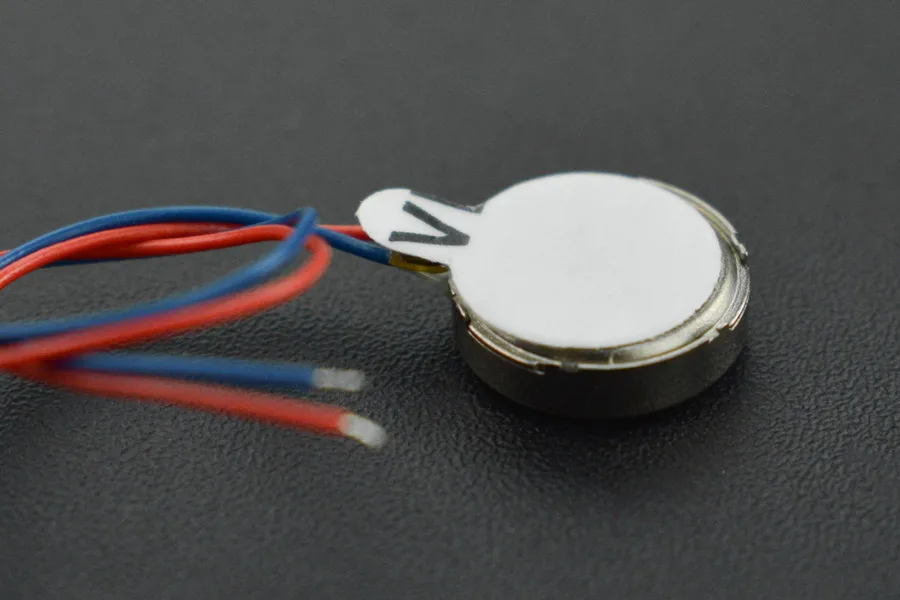

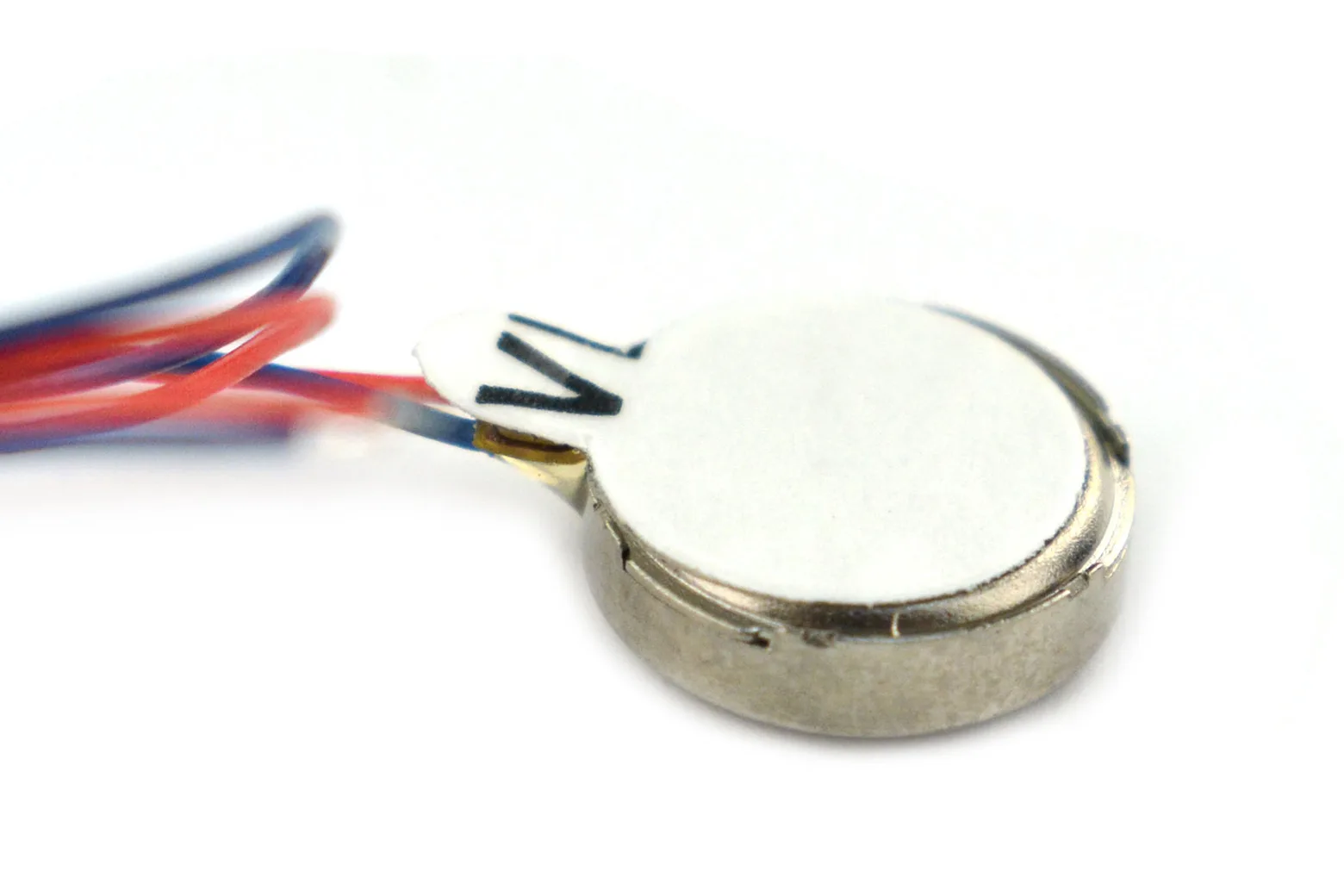

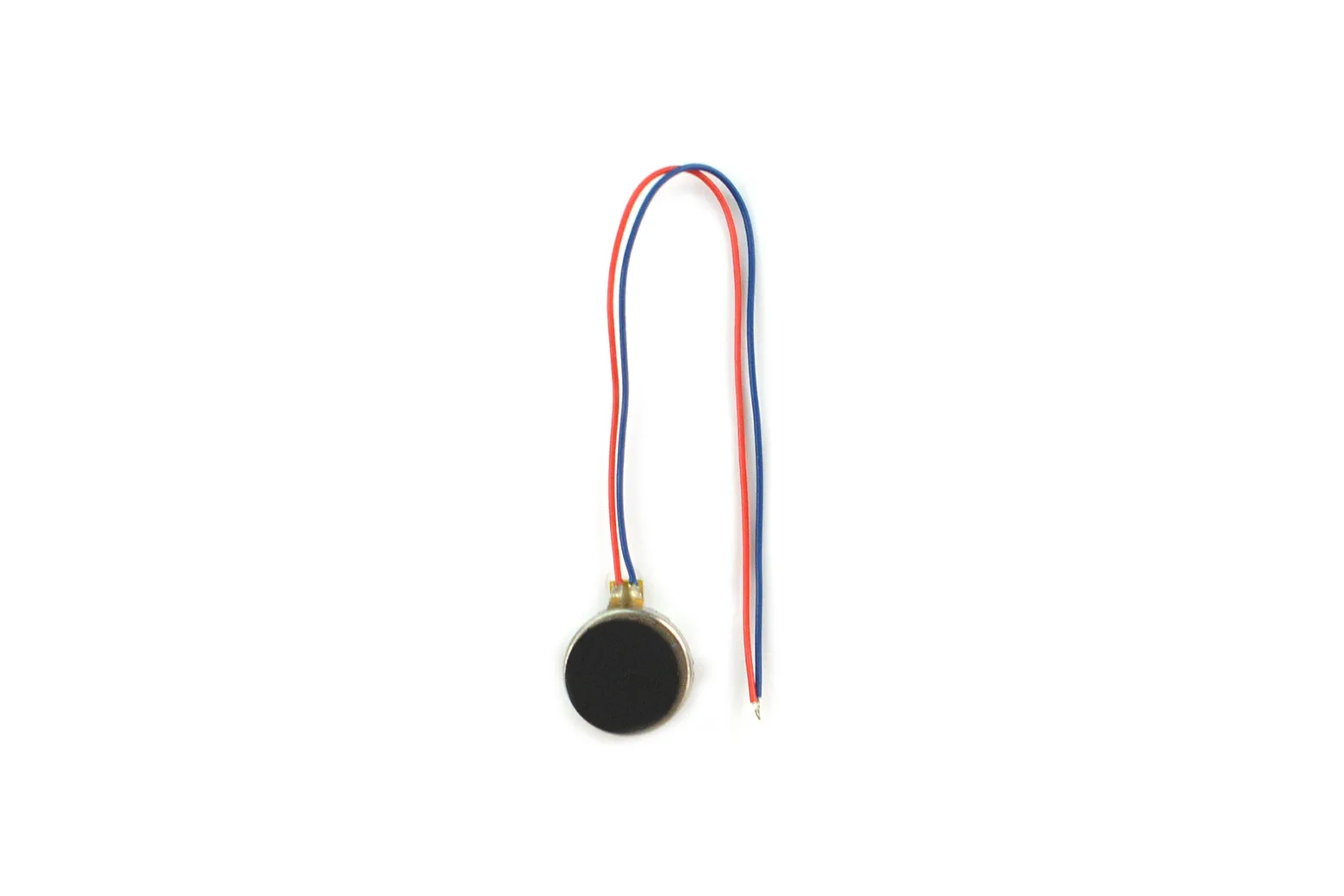

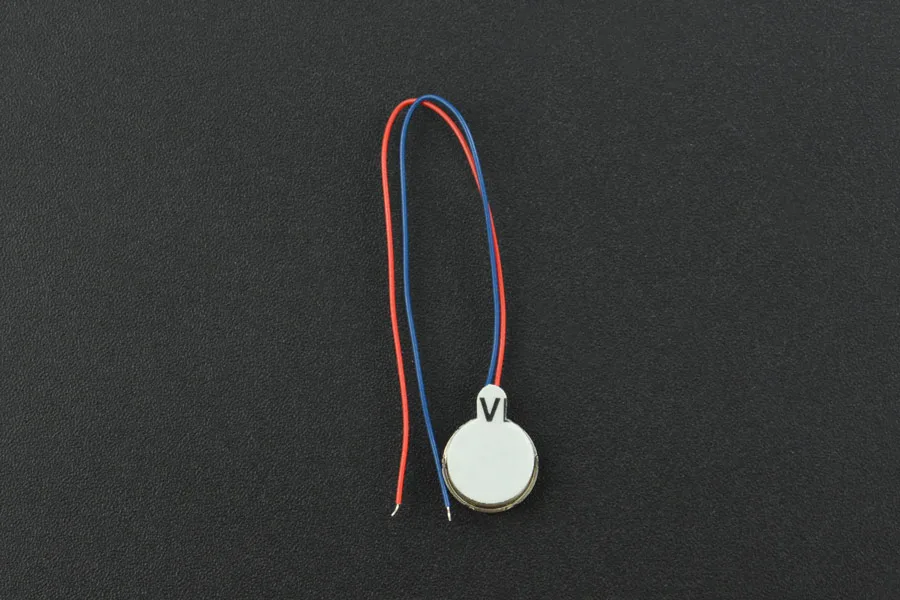

The Mini Vibration Motor (10*2.7mm) is an ultra-compact disc motor designed to deliver distinct haptic feedback with low operating noise. Its fingernail-sized profile makes it ideal for makers, students, and hobbyists building wearable gadgets, gaming controllers, and compact electronics.

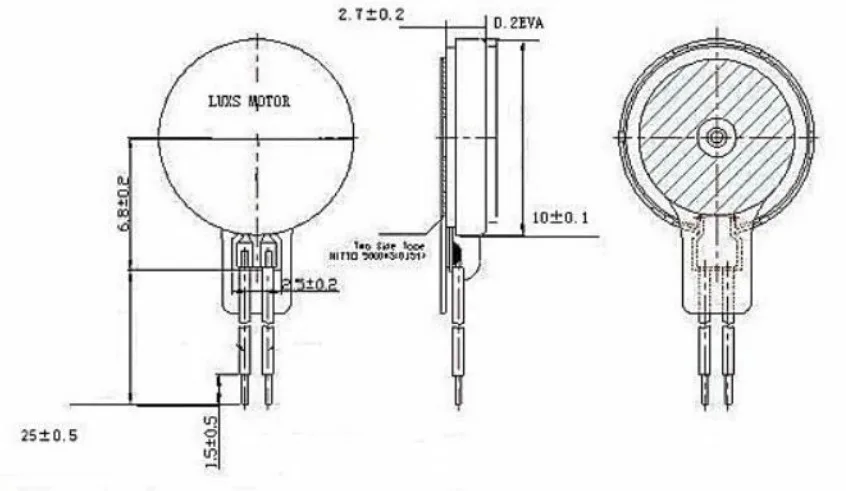

Ultra-compact disc form factor
Measuring just 10mm in diameter and 2.7mm in thickness, this motor easily integrates into space-constrained enclosures. Its low-profile build allows seamless embedding into slim handheld and wearable devices.
Flexible DC voltage operation
The motor operates smoothly across a DC 1.5V to 4.2V range with a rated voltage of 3V. Adjusting the input voltage alters the vibration frequency, allowing you to fine-tune the haptic intensity.
High-speed and low-power performance
Drawing a rated current of 50mA, the motor spins at 11000±2500 RPM to produce strong, immediate vibration. It is rated for a continuous service life of 24 hours at 3V.
Wide environmental temperature tolerance
Built for resilient operation, it withstands working temperatures from -50°C to +60°C. It can also be safely stored in environments ranging between -30°C and +70°C.
Versatile haptic feedback applications
This vibration motor is well suited for DIY mobile phones, smartwatches, interactive gaming projects, electric toys, and personal massagers. Each pack includes one mini vibration motor.
Specifications
| Operating Voltage | DC1.5-4.2V |
| Rated Voltage | 3V |
| Rated Current | 50mA |
| RPM | 11000±2500rpm |
| Dimension | 10mm(0.39”)(Diameter); 2.7mm(0.11”)(Thickness) |
| Working Temperature | -50°C~+60°C |
| Storage Temperature | -30°C~+70°C |
| Continuous service life | [email protected] |
In the box
| Mini Vibration Motor (10*2.7mm) | 1 |
| Review | 1 |
| Ayaz.Ahmed May 17, 2025 | 1 |
| I really liked this vibration motor as it is small in size and low power | 1 |
| Steffen.Lorenz Jan 10, 2025 | 1 |
| Very small ... perfect for projects for example with games (it provides the user a useful haptic feedback) | 1 |
