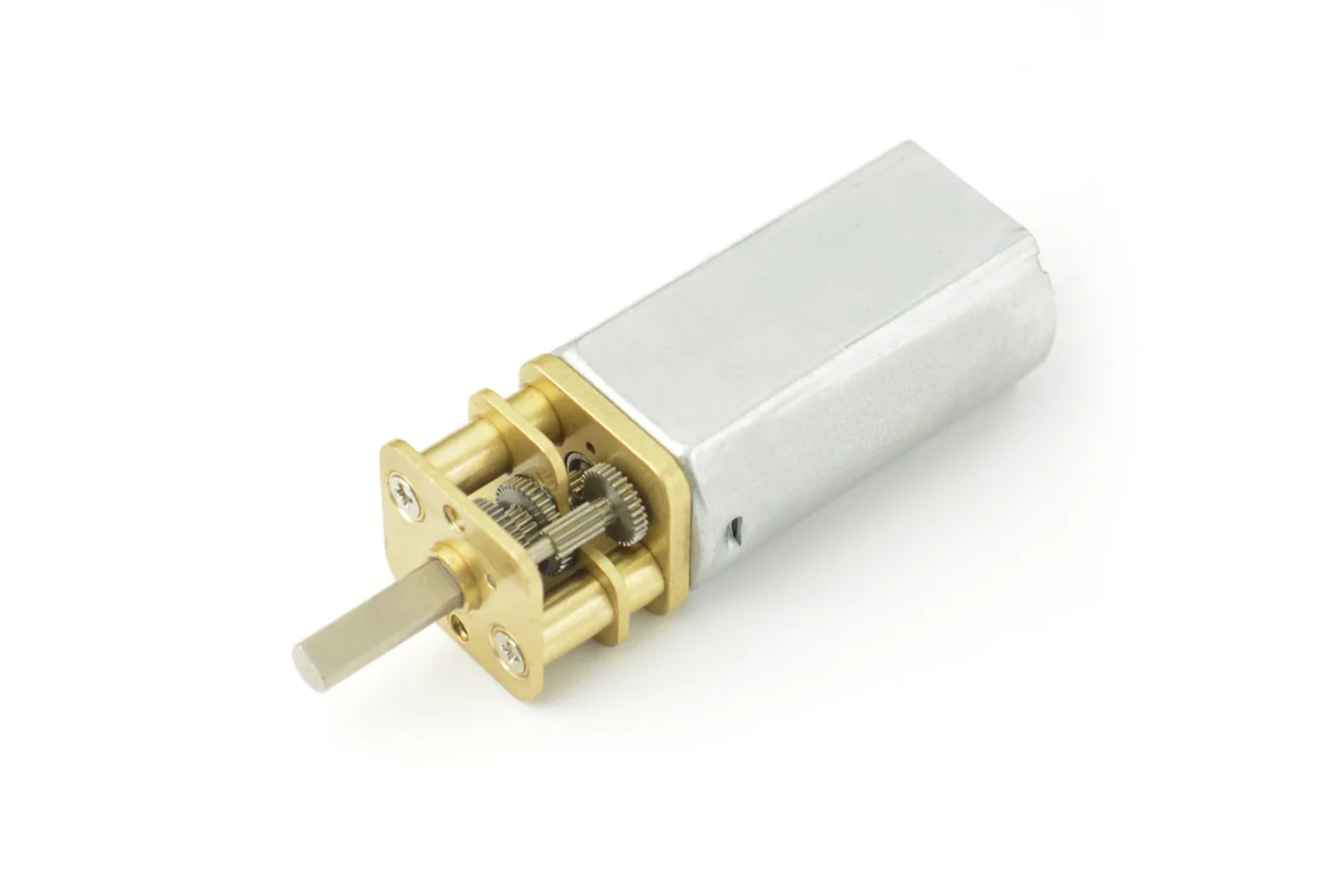

Mini Metal DC Geared Motor (6V, 570RPM, 1.5kg.cm)

The Mini Metal DC Geared Motor is a compact 6V drive unit designed for educational robotics, hobbyist projects, and small-scale automation. Combining high-speed rotation with a durable metal gearbox, it provides dependable power in space-constrained assemblies.

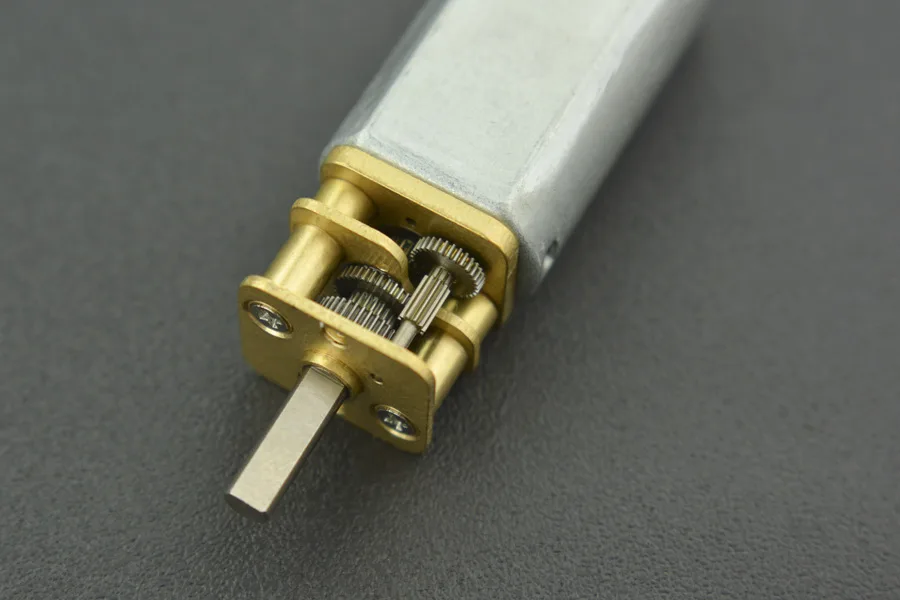

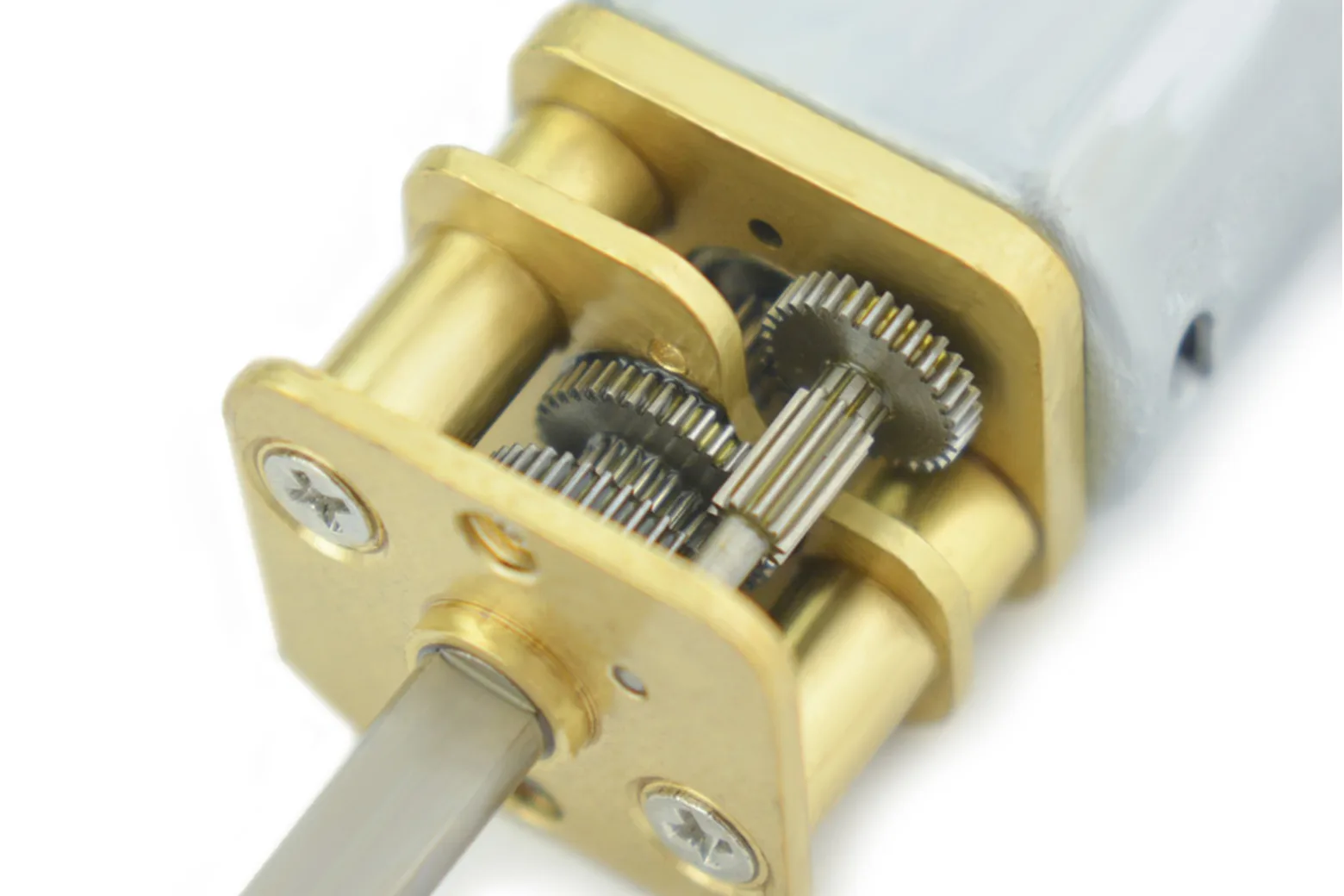

Compact 1:35 metal gearbox

An integrated 1:35 reduction gearbox provides reliable power transmission within a miniature form factor. The metal construction ensures robust operation under mechanical load.

570RPM no-load rotational speed

Operating at a nominal 6V supply, the motor achieves a no-load speed of 570RPM. This makes it well suited for small, fast-moving robotic platforms and mechanism drives.

1.5kg.cm stall torque output

The gearing arrangement delivers a stall torque of 1.5kg.cm at 6V. This provides sufficient driving force to handle compact robotic payloads and steering assemblies.

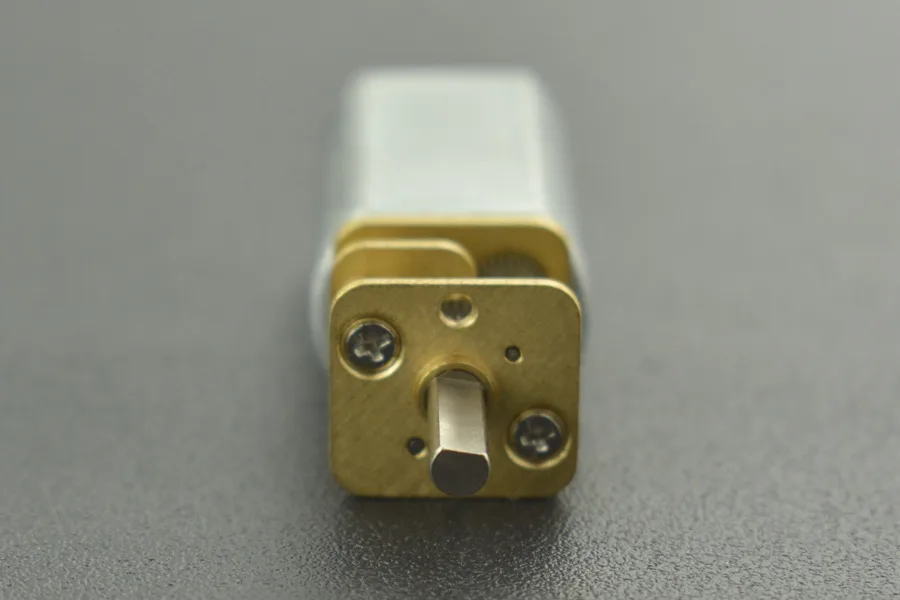

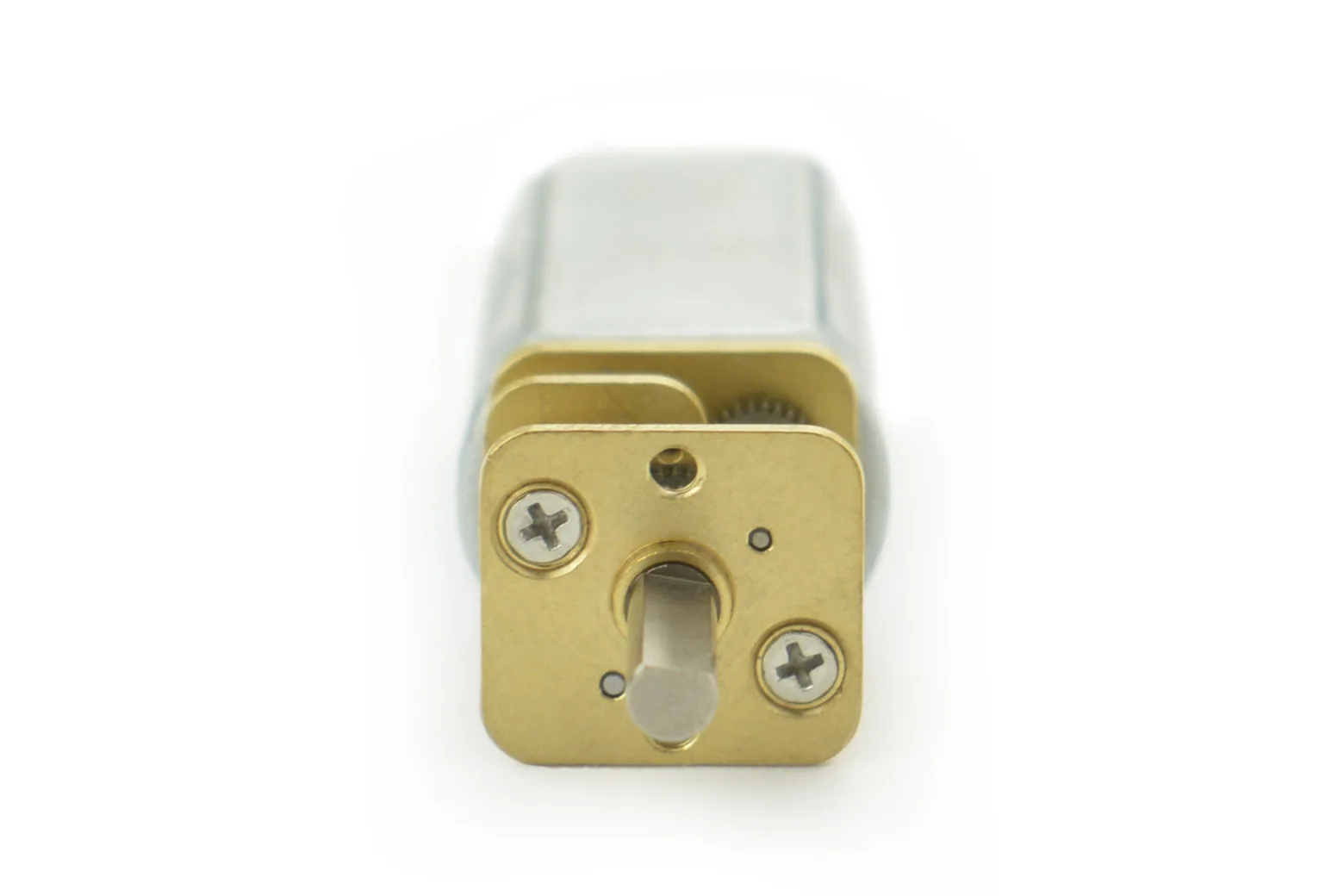

Secure 3mm D-shaped shaft

A standard 3mm D-shaped output shaft allows for positive mechanical engagement with compatible wheels, gears, and couplers. The flat edge prevents rotational slippage under torque.
