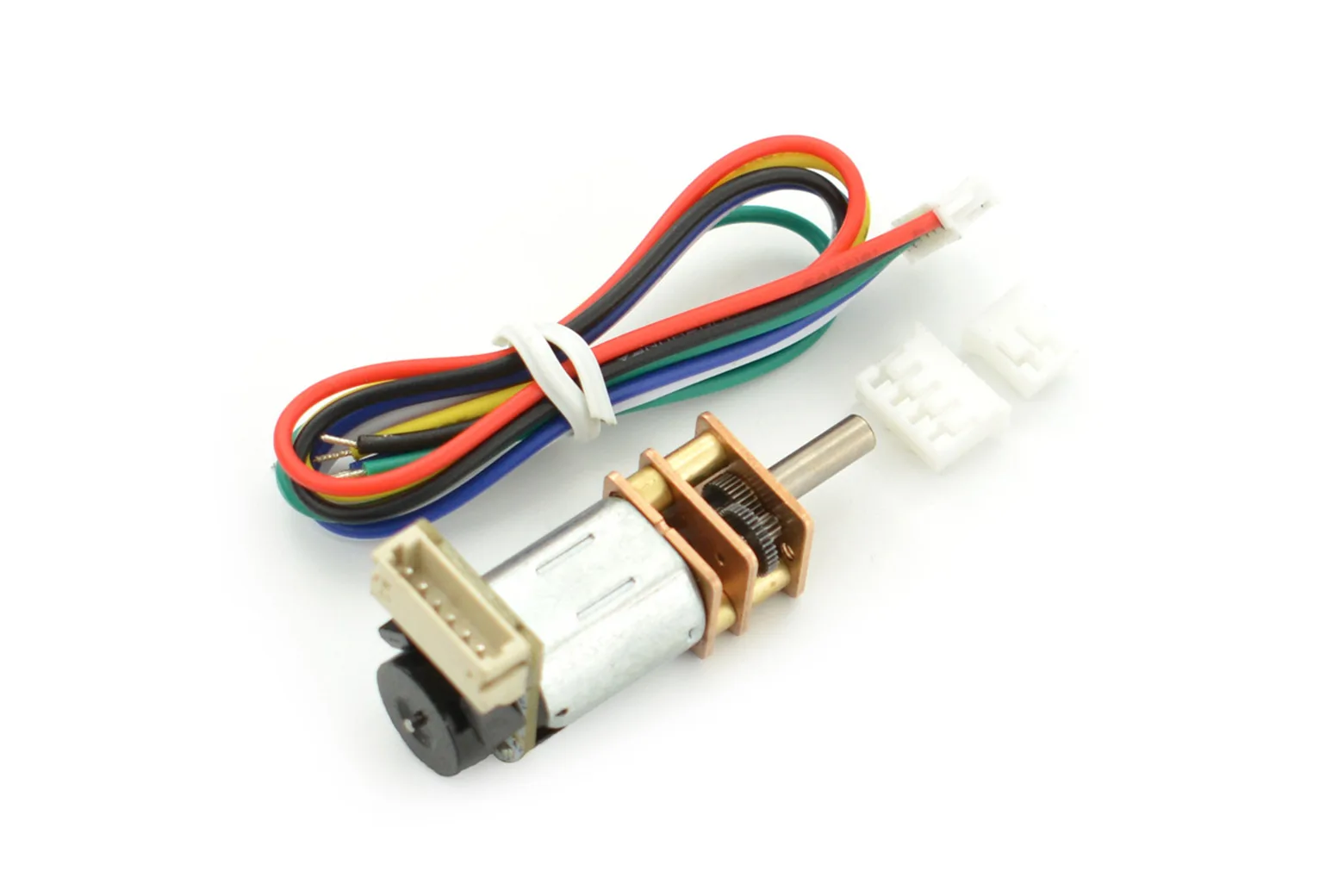

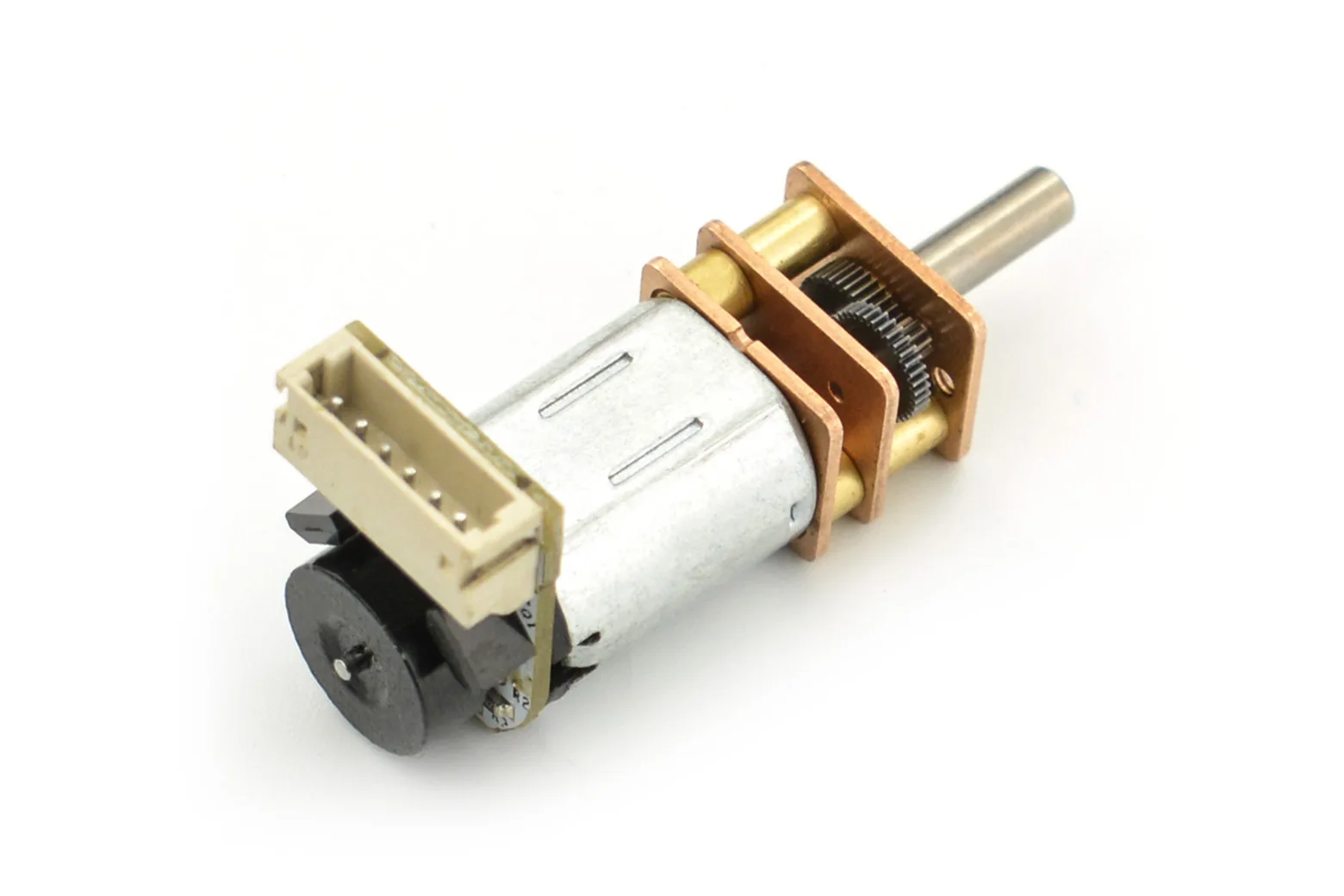

Micro Metal Geared motor w/Encoder - 6V 155RPM 100:1

The Micro Metal Geared Motor with Encoder is a compact DC drive unit engineered for precise motion control in miniature robotics applications. Operating at 6V with a 100:1 reduction ratio and 155 RPM output, it is well suited to hobbyists, makers, and engineering students building closed-loop mobile platforms.

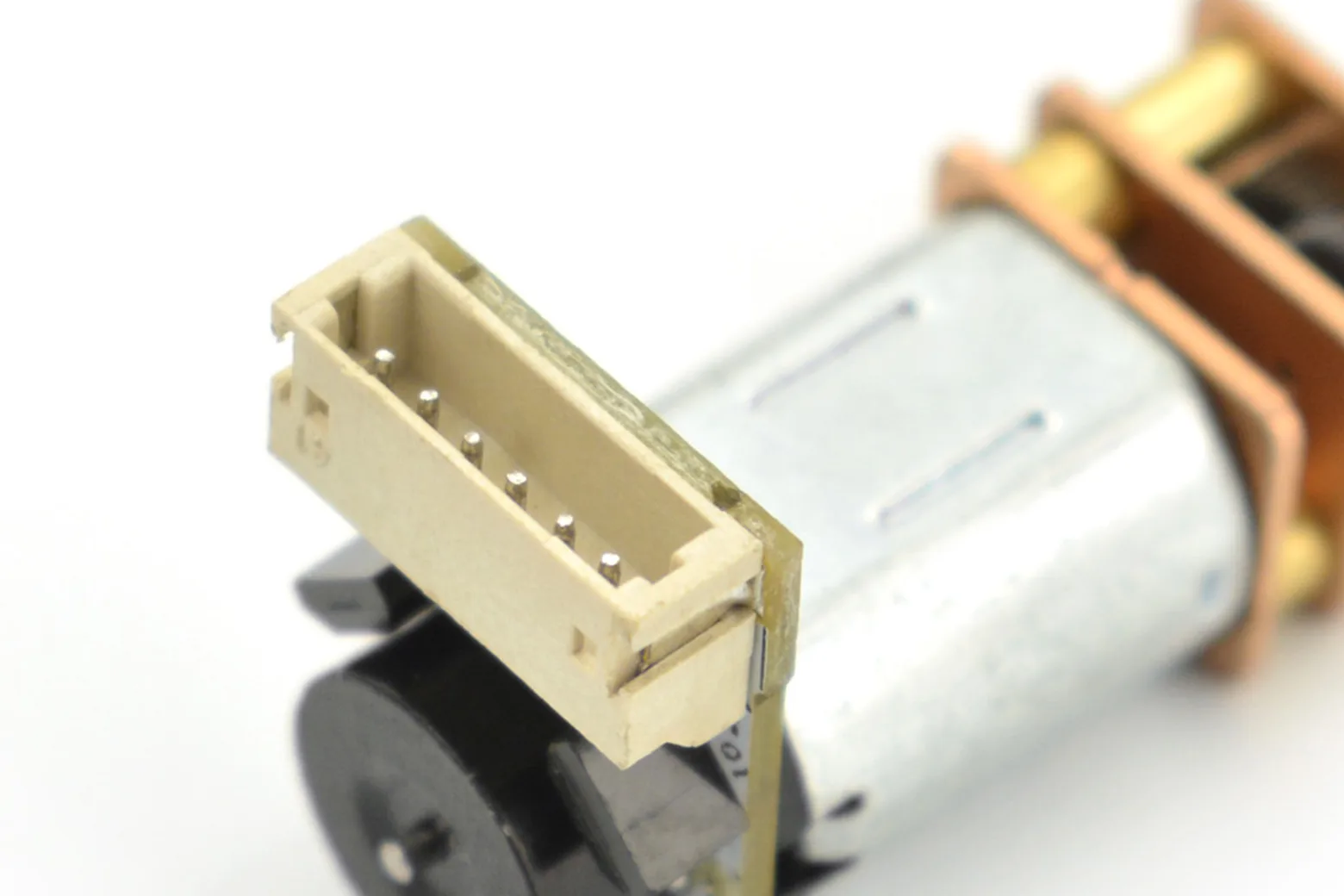

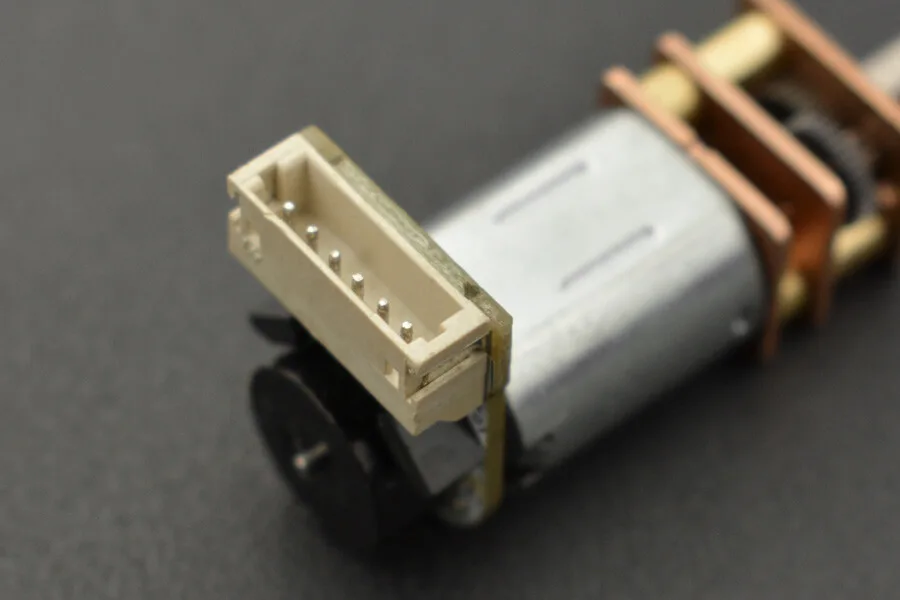

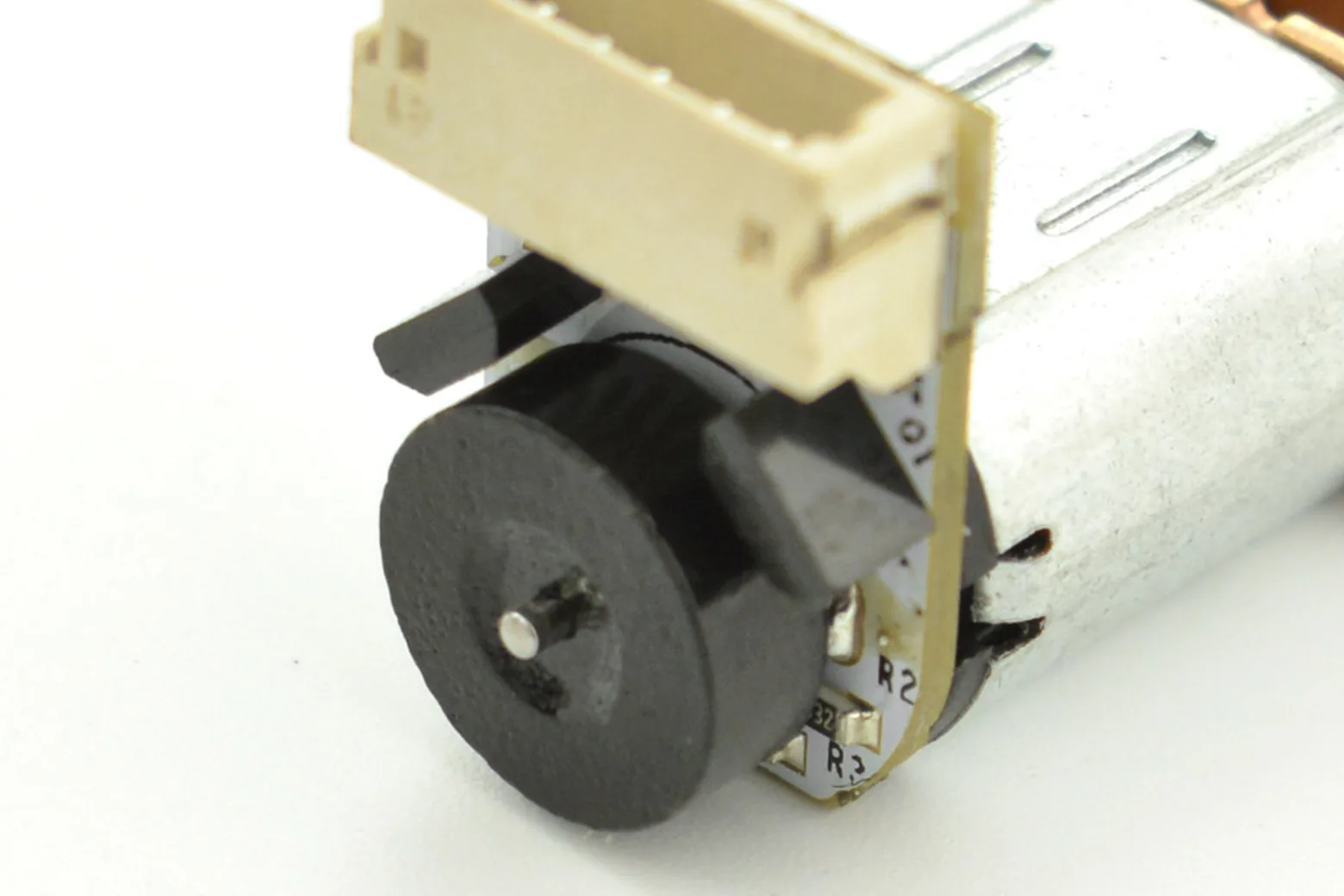

Integrated feedback encoder

The integrated encoder allows microcontrollers to track rotational direction, velocity, and position in real time. This feedback enables closed-loop control algorithms such as PID speed regulation for accurate navigation.

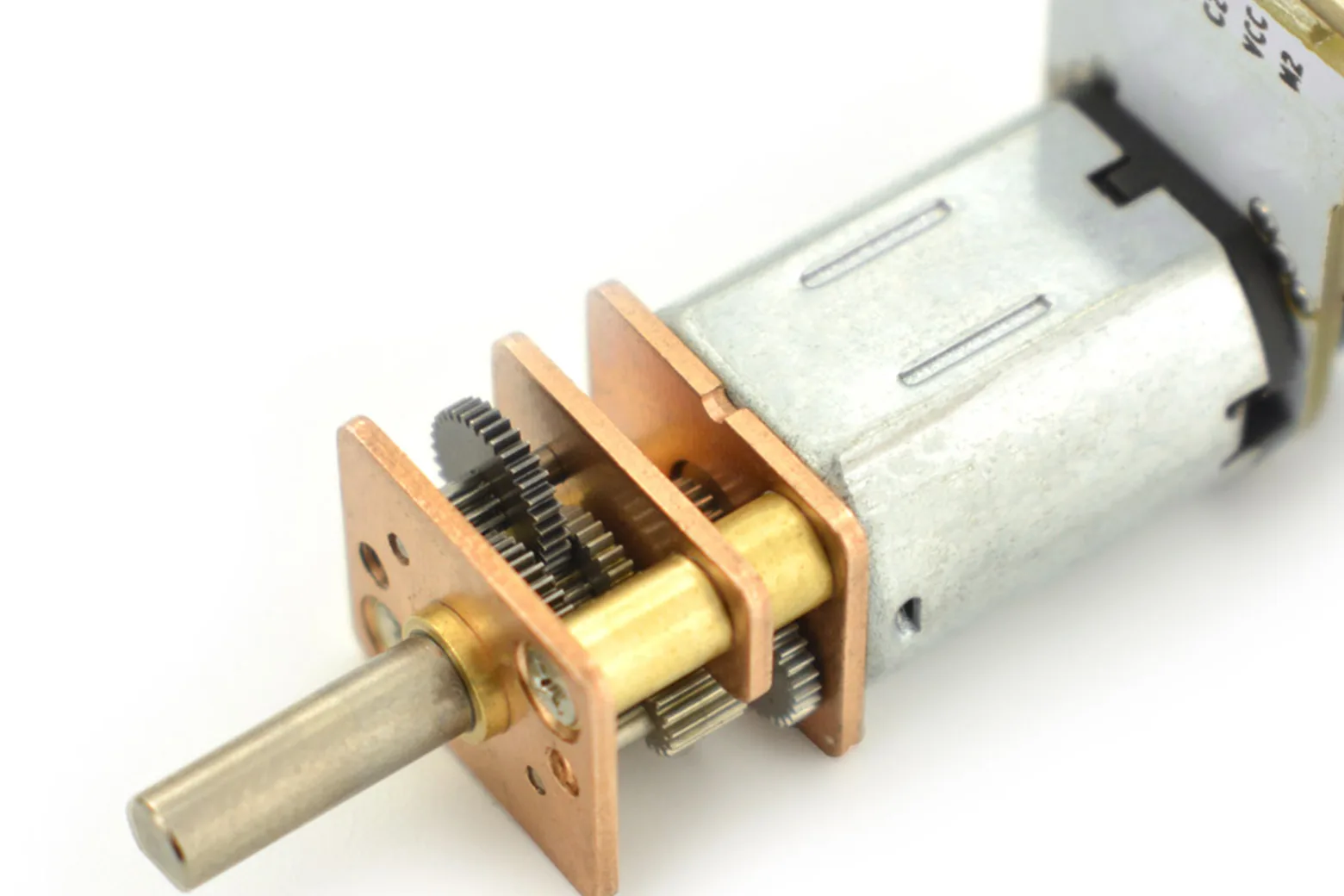

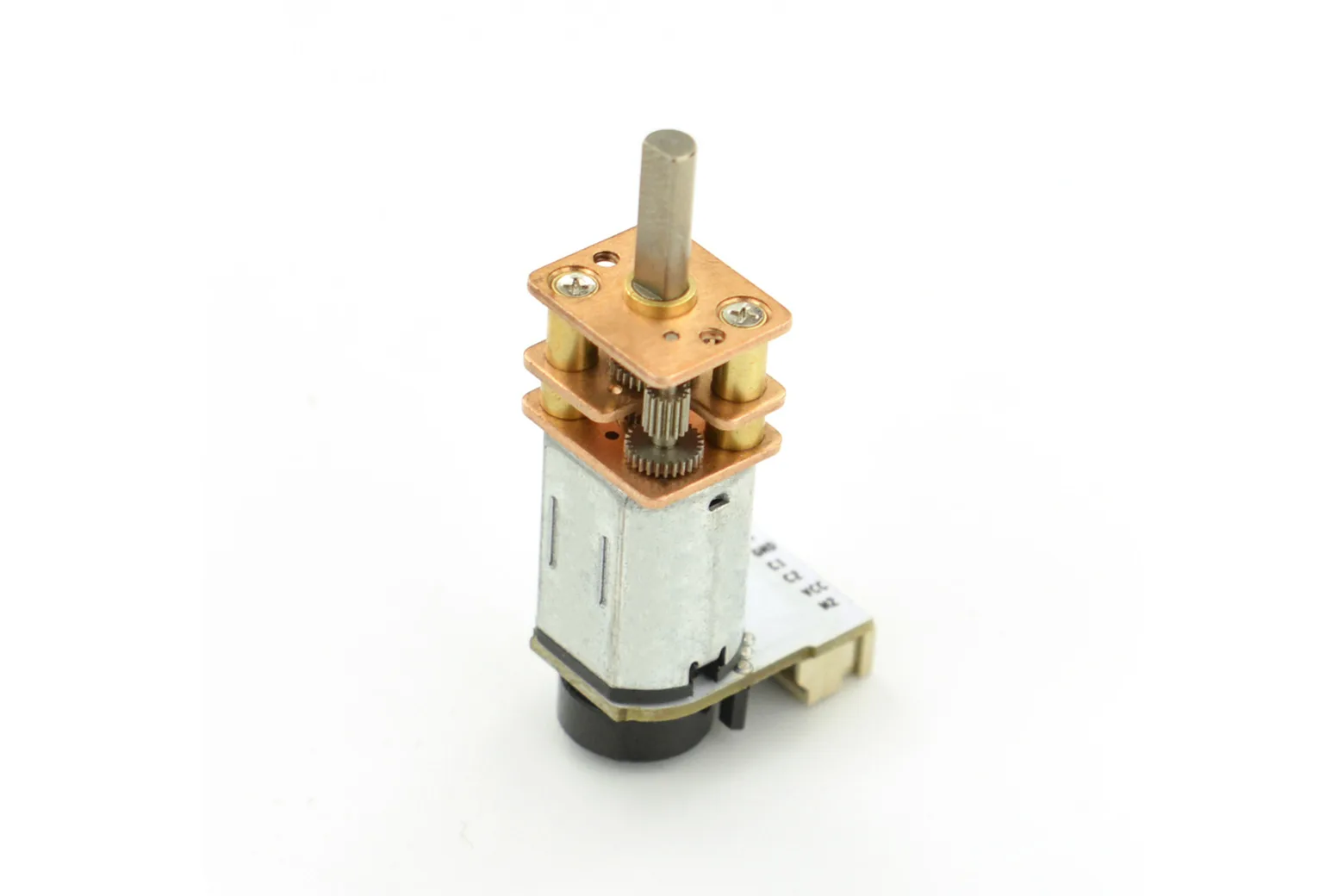

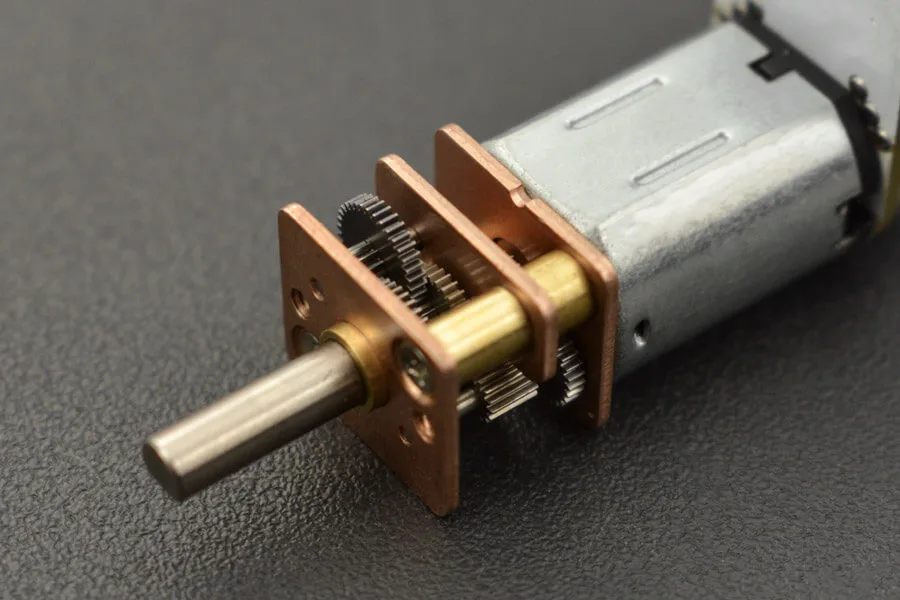

Metal 100:1 reduction gearbox

A 100:1 reduction gearbox reduces rotational speed while increasing usable output torque within a miniature footprint. The metal gear construction provides mechanical resilience under continuous operation.

Optimised 6V DC performance

Designed for nominal 6V DC operation, the motor achieves an output speed of 155 RPM under rated conditions. This voltage profile aligns with standard robotics battery packs and common low-voltage dual H-bridge motor drivers.

Compact micro profile

The micro-sized form factor is suited for space-constrained mobile robots, micromouse builds, and desktop automation projects. It delivers dependable drive power without adding excessive weight or bulk to the chassis.
