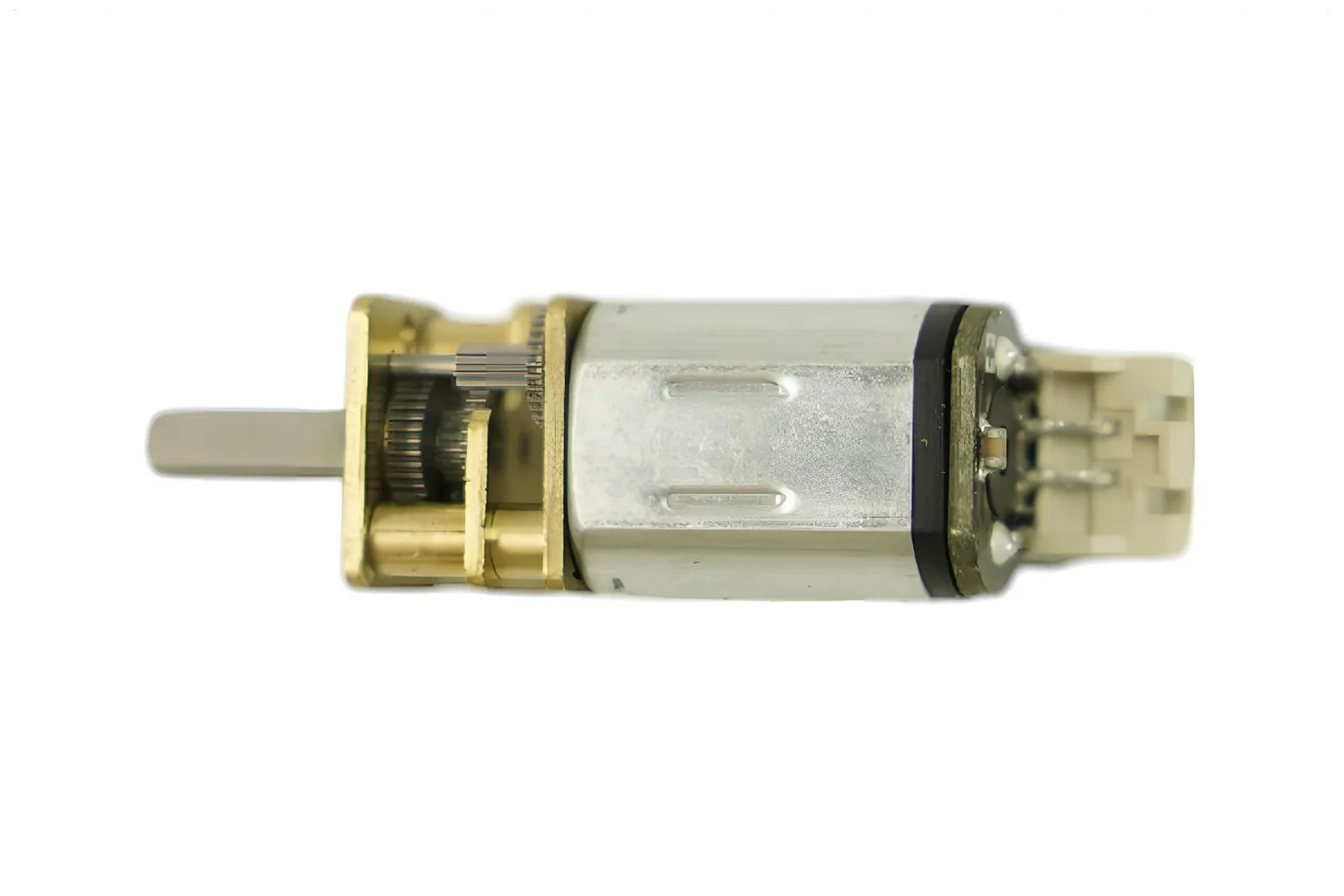

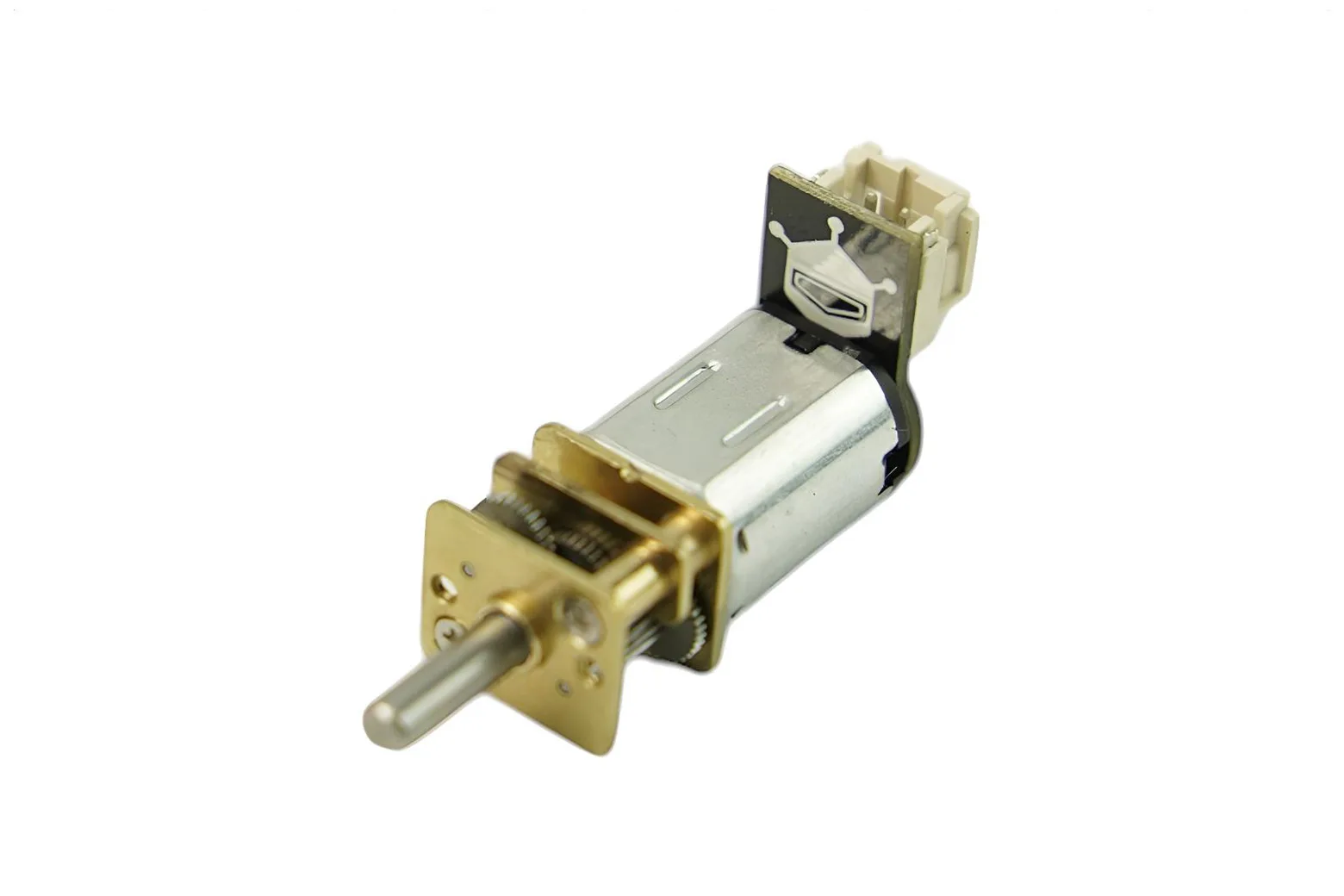

Micro Metal Gear Motor with PH2.0 Connector (50:1, 440RPM@6V)

The Micro Metal Gear Motor with PH2.0 Connector is a compact DC gearmotor engineered for small robotic chassis and smart vehicle projects. Running at 6V with a 50:1 reduction ratio, it achieves a swift 440 RPM output speed while delivering reliable driving torque. It is well suited to students, educators, and hobbyists assembling agile, space-constrained builds.

50:1 metal gear reduction

The integrated metal gearbox provides a 50:1 reduction ratio for dependable mechanical transmission in demanding miniature mechanisms. Its metal construction ensures long-term durability during regular educational or maker use.

440 RPM output speed at 6V

Operating at 6V, the motor delivers a rotation speed of 440 RPM to support fast-moving rovers and small mobile platforms. It offers an effective balance of speed and responsiveness for compact robotics.

0.39 kg.cm stall torque

With a stall torque rating of 0.39 kg.cm, this motor generates sufficient force to move lightweight robot frames and low-friction wheel assemblies. It provides the necessary turning effort without requiring a bulky form factor.

Integrated PH2.0 wire connector

The motor is terminated with a PH2.0 connector for quick, plug-and-play wiring to compatible motor drivers and expansion boards. This solderless interface simplifies assembly, maintenance, and educational lab setups.

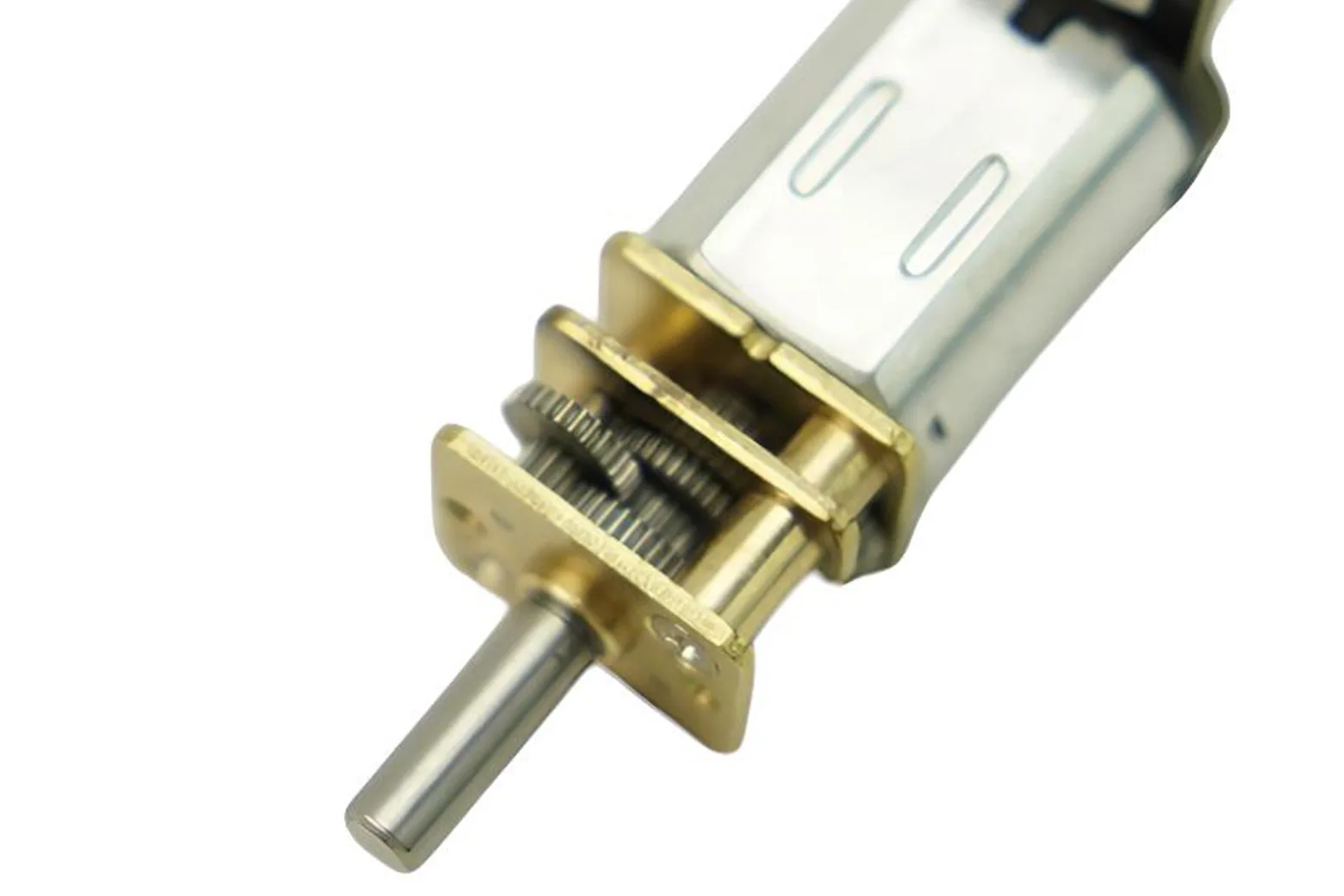

Slip-resistant D-profile shaft

The D-shaped output shaft provides a secure flat surface for mounting wheels, pulleys, and custom couplers. This profile prevents rotational slippage under driving loads for precise locomotion.
