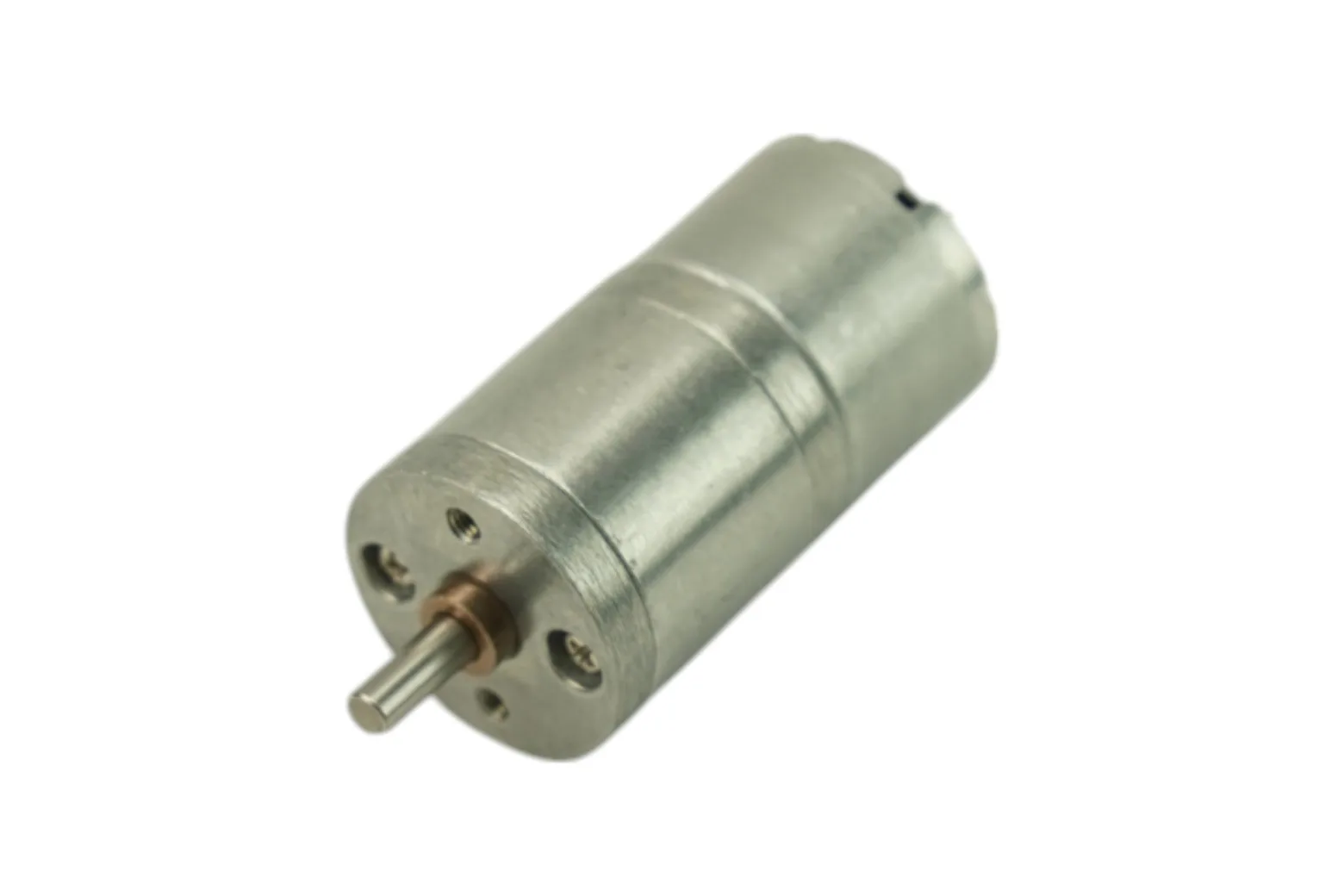

Metal DC Geared Motor - 6V 15RPM 10Kg.cm

This compact 6V DC geared motor features a 478.1:1 metal reducer that outputs high torque at a smooth 15 RPM. It is well suited for students, makers, and hobbyists building robotics, automated mechanisms, and low-speed drive systems.

High-reduction metal gearbox

Equipped with a 478.1:1 all-metal reducer, this motor delivers dependable durability and a locked-rotor torque of up to 10 kg.cm. Its compact design allows it to provide substantial turning force in space-constrained projects.

Electrical and speed ratings

The motor operates at a nominal 6V with a working range of 2V to 7.5V, achieving a no-load speed of 15 RPM at rated voltage. It draws 50 mA under no-load conditions and reaches 0.6 A at stall.

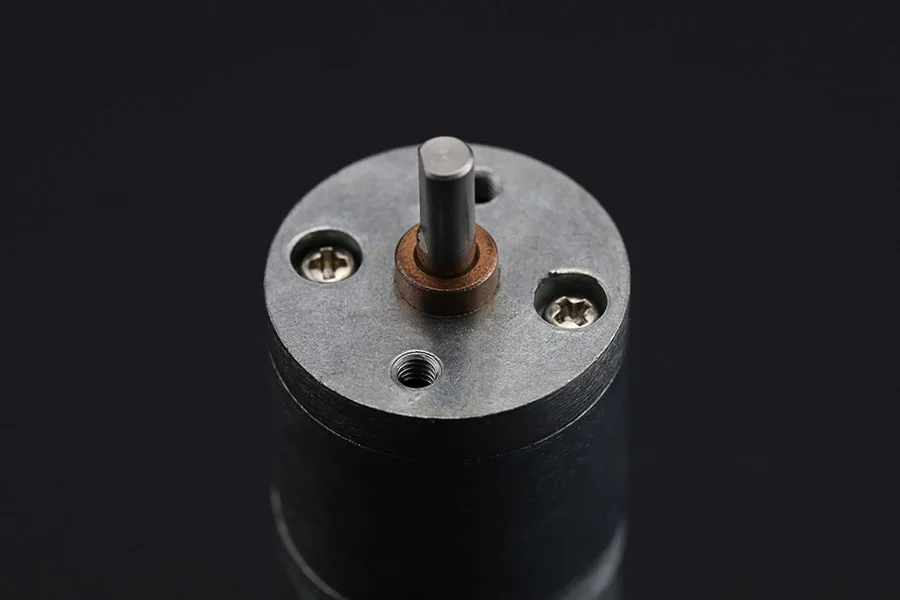

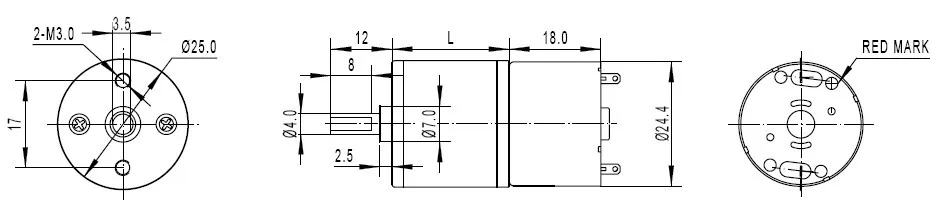

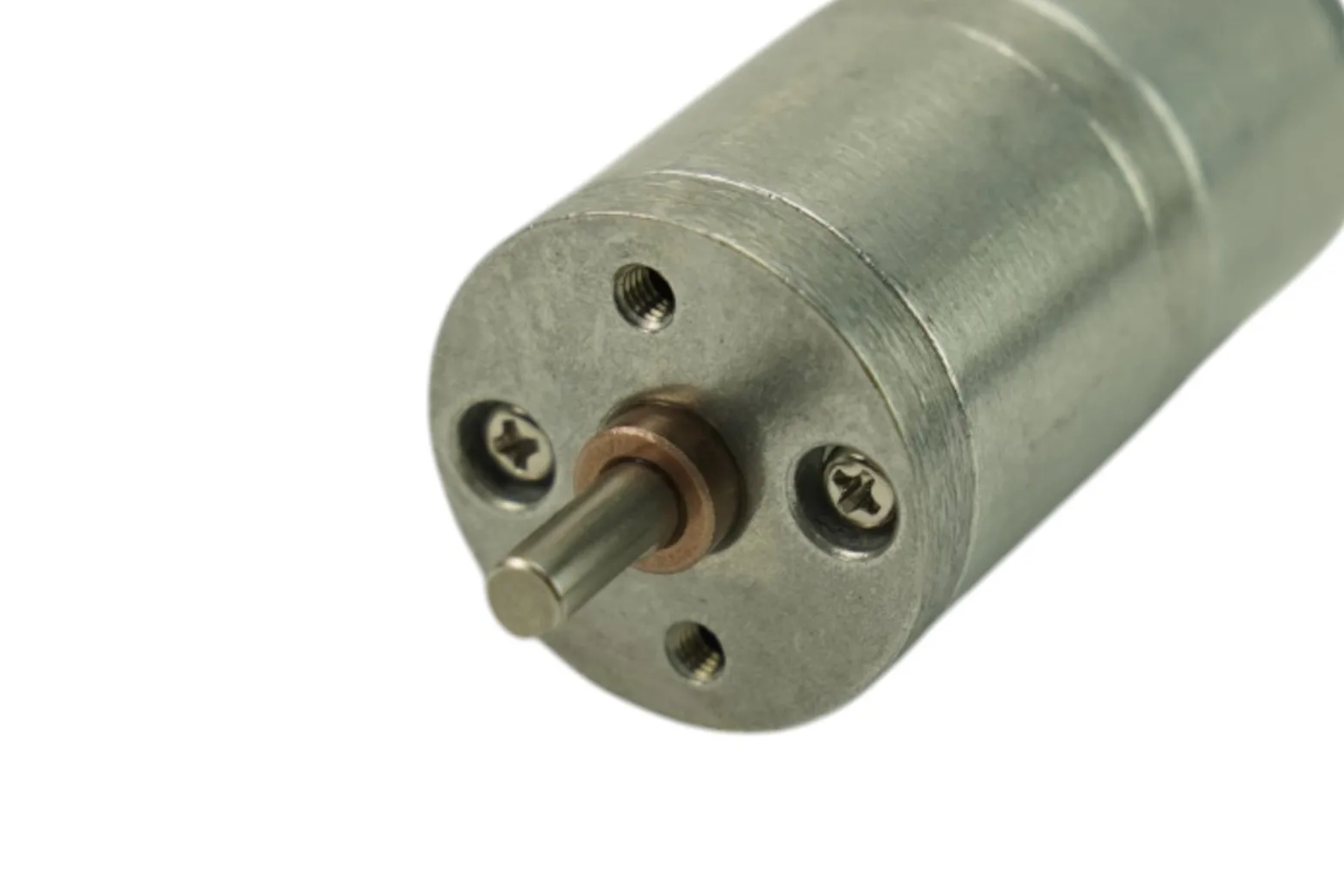

Standard D-shaft and dimensions

The unit features a 27 mm gearbox length and a 4 mm diameter D-shaped output shaft for reliable wheel or coupler attachment. The entire assembly weighs 74 g.

Broad operating temperature range

Engineered for diverse conditions, the motor operates reliably within a temperature range of -20 deg C to 60 deg C. Each package includes one metal DC geared motor.
