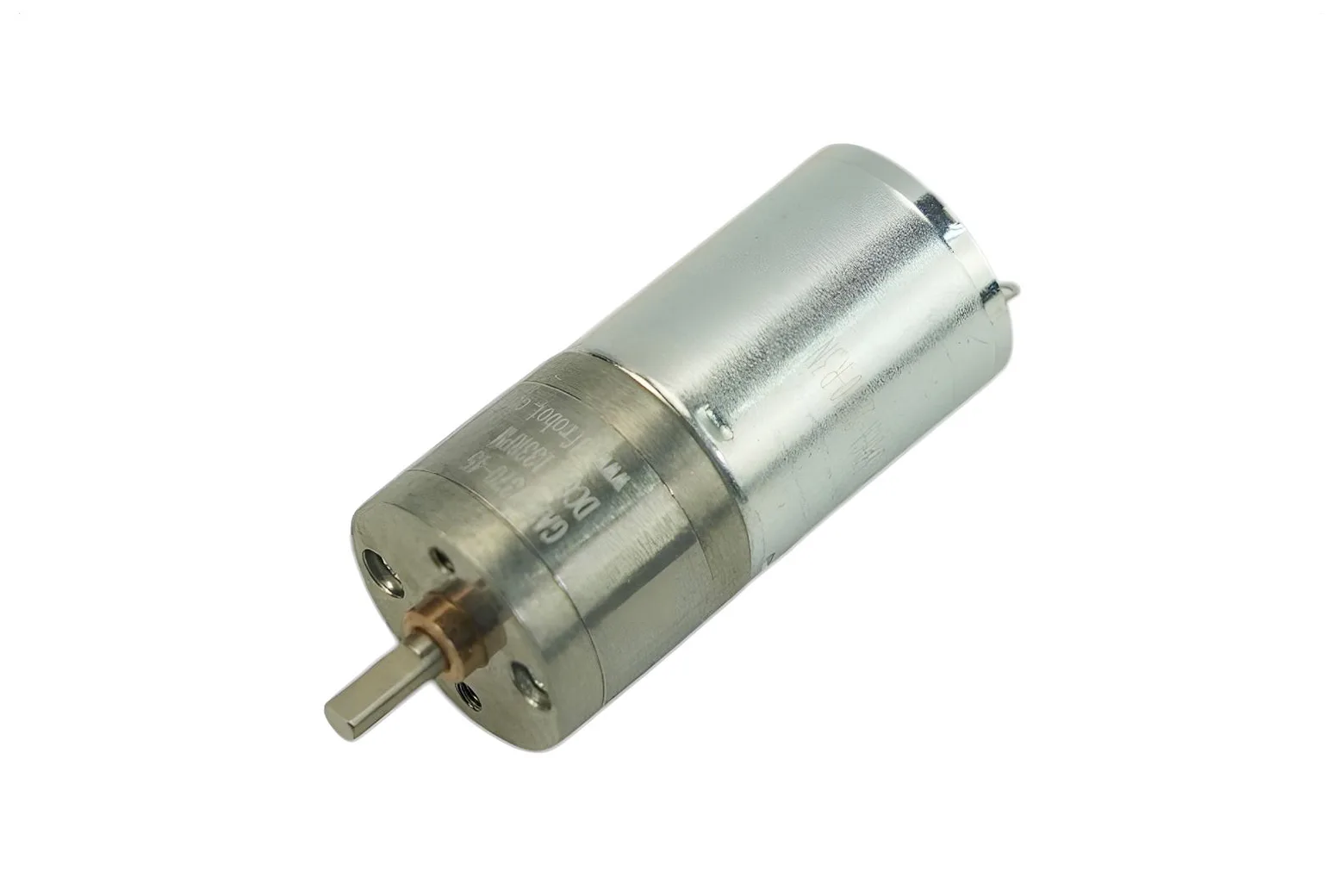

Metal DC Geared Motor - 6V 133RPM 4.5kg.cm

The Metal DC Geared Motor is a compact drive unit designed to deliver dependable power for hobbyist, student, and maker robotics builds. Operating at 6V, it combines a 45:1 metal gearbox with an output speed of 133 RPM and a maximum torque of 4.5 kg.cm. Its robust design makes it an excellent choice for educational robotics, small vehicles, and custom motorised mechanisms.

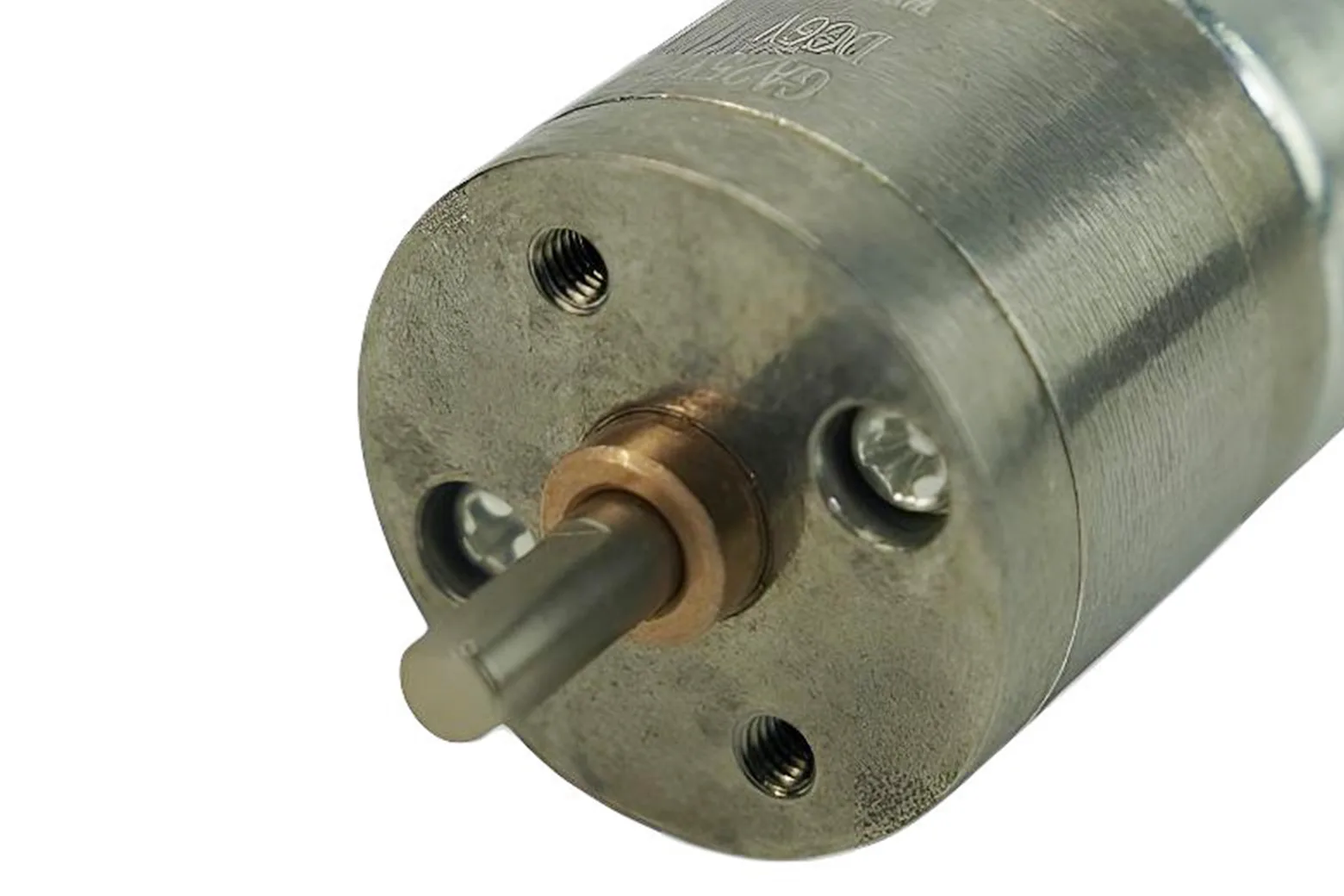

Integrated metal gear reducer

The motor incorporates a 45:1 all-metal reduction gearbox to step down speed while significantly boosting usable force. The metal gear train ensures stable power transfer and long-lasting durability under load.

High output torque capability

Despite its small size, this geared DC motor can reach a maximum torque of up to 4.5 kg.cm. This provides ample driving force for moving heavier chassis and overcoming rolling resistance.

Balanced 6V operating speed

Engineered for 6V operation, the unit turns at a rated speed of 133 RPM. This offers a practical blend of travel speed and precise positioning control for mobile robotics.

Compact and durable form factor

The small footprint allows for easy integration into space-constrained DIY and classroom projects. Its durable build quality ensures reliable operation across repeated prototyping cycles.

Downloads & documentation

• Dimension
