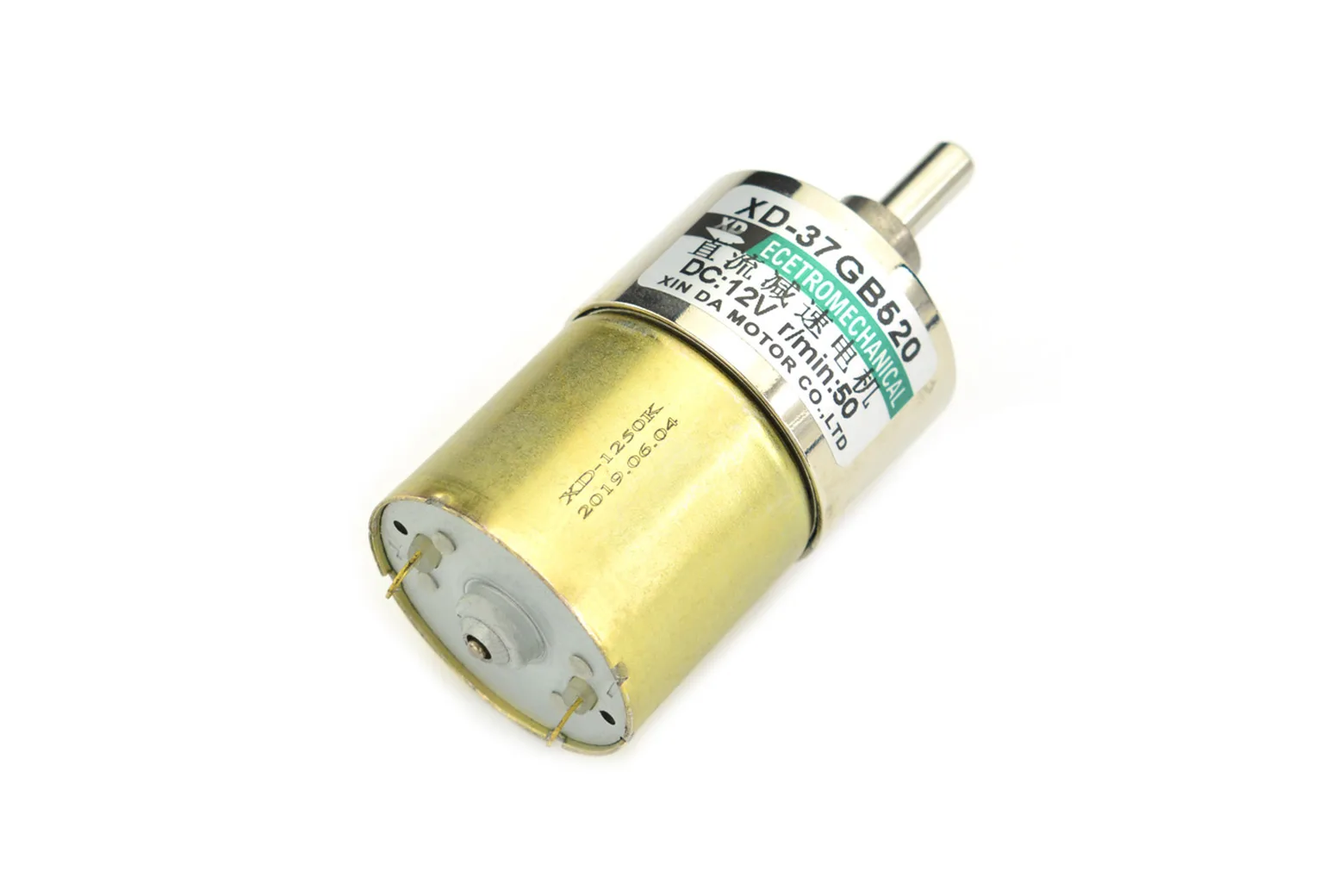

Metal DC Geared Motor - 12V 50RPM 26kg.cm

The Metal DC Geared Motor is a compact 12V drive unit designed for high-torque robotic and mechanical applications. Built with pure copper coils and a 100:1 metal reducer, it delivers up to 26 kg.cm of torque at low speeds. It is an ideal actuator for makers, robotics students, and hobbyists building sturdy mobile platforms or automated mechanisms.

High-torque metal gearbox

Equipped with an integrated 100:1 metal reducer, this motor generates a rated torque of 9 kg.cm and a maximum locked-rotor torque of 26 kg.cm. The all-metal gear assembly ensures reliable power delivery and long-term durability under heavy loads.

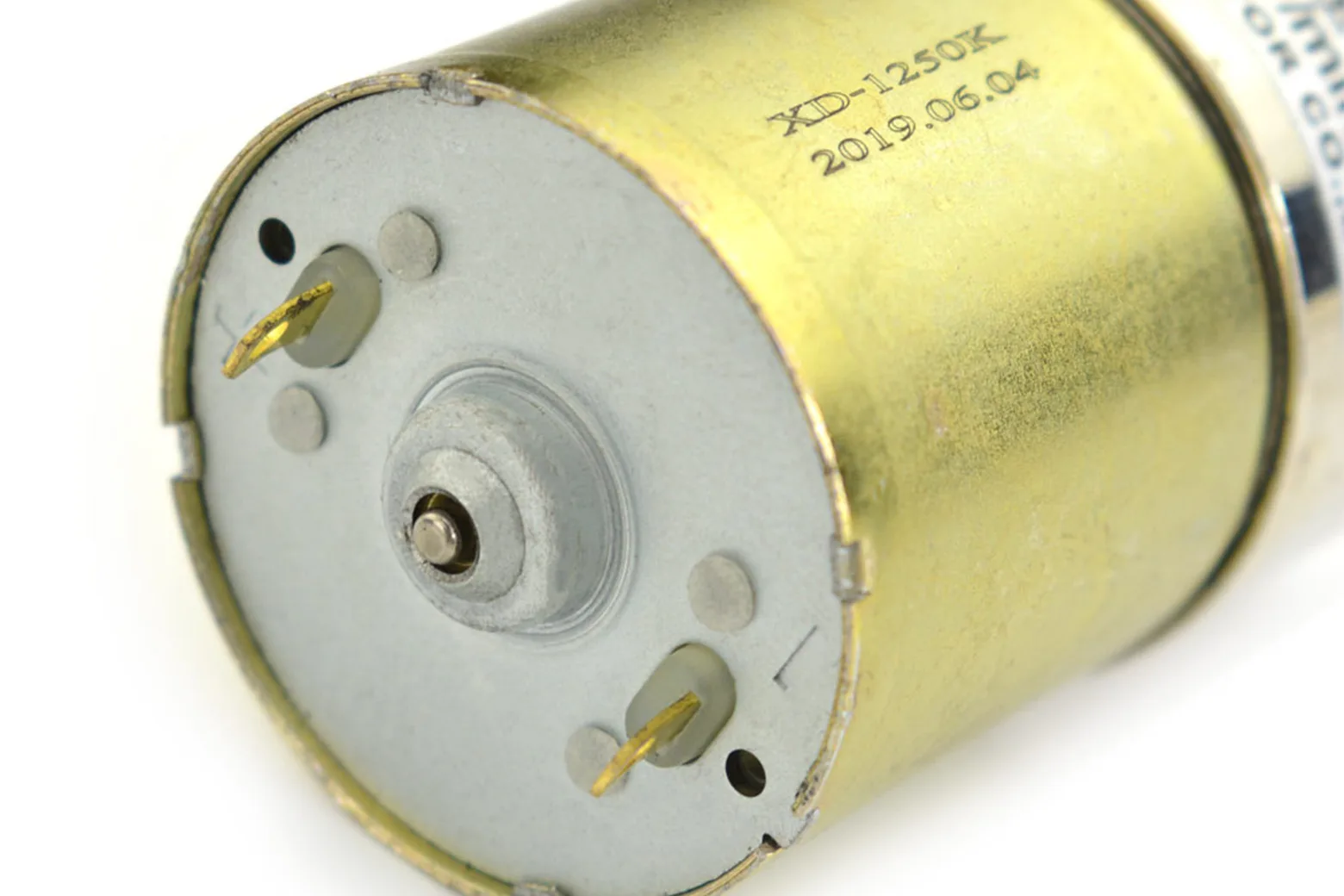

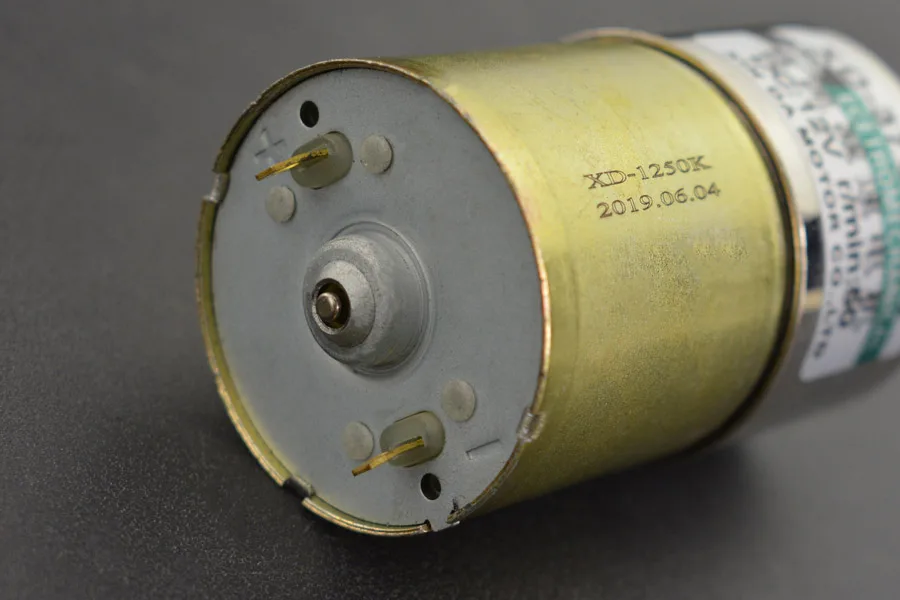

Pure copper coil construction

The motor features 100 percent pure copper windings shielded by a high-density molecular layer. This build provides stable electrical conductivity, reduces heat build-up, and enhances operational lifespan.

Efficient 12V power characteristics

Operating at a nominal 12V, the motor runs at a no-load speed of 50 RPM with a 0.17 A current draw, and reaches 45 RPM under its rated 0.68 A load. It produces 5W of power, with a locked-rotor current draw of 2.19 A.

Standard 6 mm D-shaft

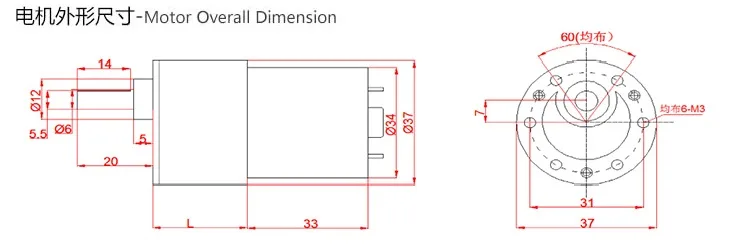

The output features a 6 mm diameter D-shaft to prevent wheels, gears, and couplers from slipping during high-torque operation. The entire motor assembly weighs 210 g.

Package contents

The package includes one 12V 50RPM 26kg.cm metal DC geared motor unit.
