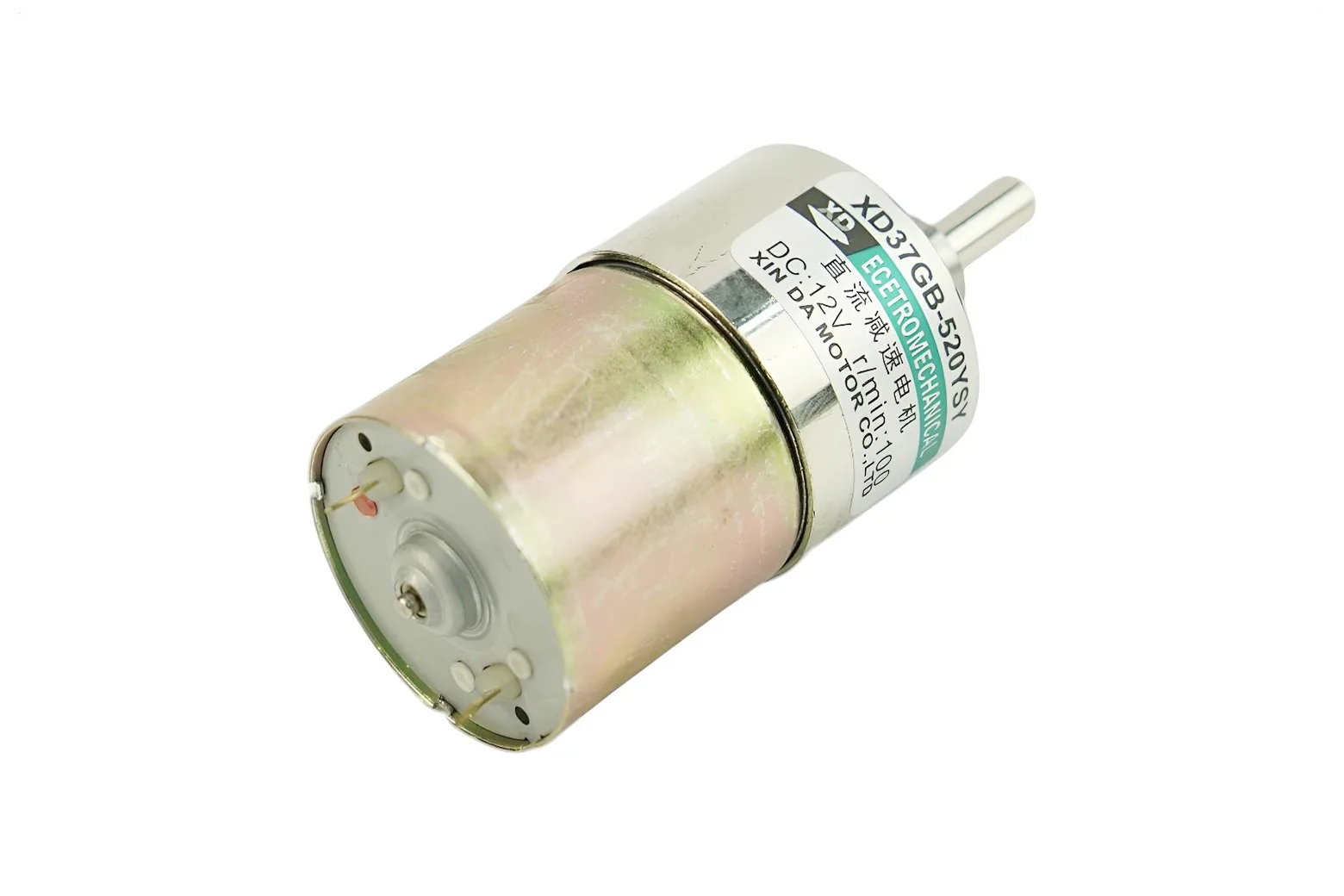

Metal DC Geared Motor - 12V 100RPM 12kg.cm

The Metal DC Geared Motor is a robust 12V drive unit featuring pure copper coils and an integrated 50:1 all-metal reducer. Delivering up to 12 kg.cm of stall torque at a steady 100 RPM, it is an ideal choice for robotics students, hobbyists, and makers building high-torque drive systems or automated mechanisms.

High-torque 50:1 metal reducer

Equipped with an internal 50:1 metal reduction gearbox, this motor delivers a rated torque of 7 kg.cm and reaches a maximum stall torque of 12 kg.cm. The durable all-metal gearing ensures stable performance under demanding mechanical loads.

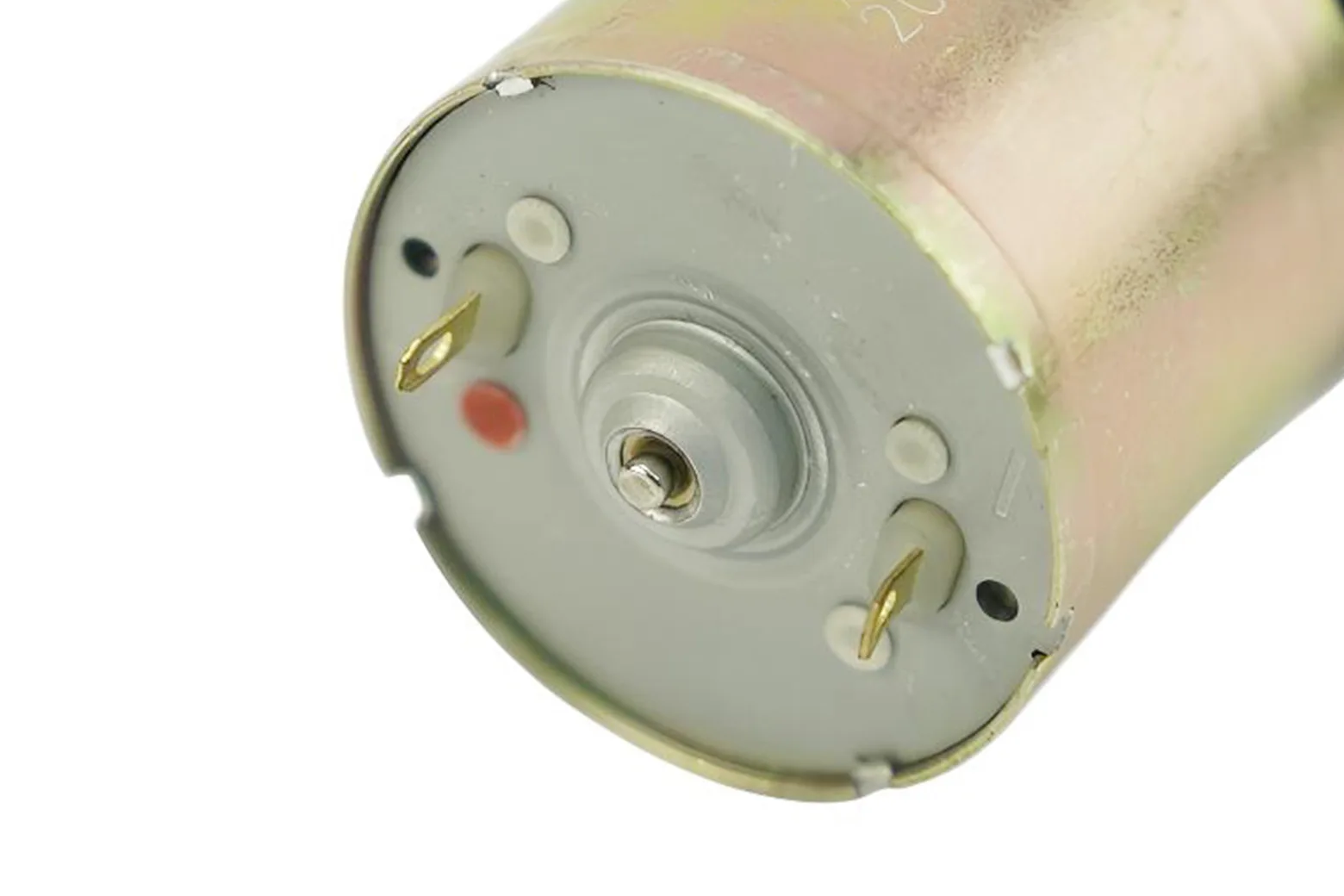

Pure copper coil construction

The motor incorporates 100% pure copper windings shielded by a high-density molecular layer. This build improves electrical conductivity and thermal endurance for prolonged operational reliability.

12V operating specifications

Operating at a nominal 12V, the motor draws 0.17A with a no-load speed of 100 RPM, shifting to 93 RPM and 0.68A under rated load. It consumes up to 2.19A at full stall and delivers 5W of rated power output.

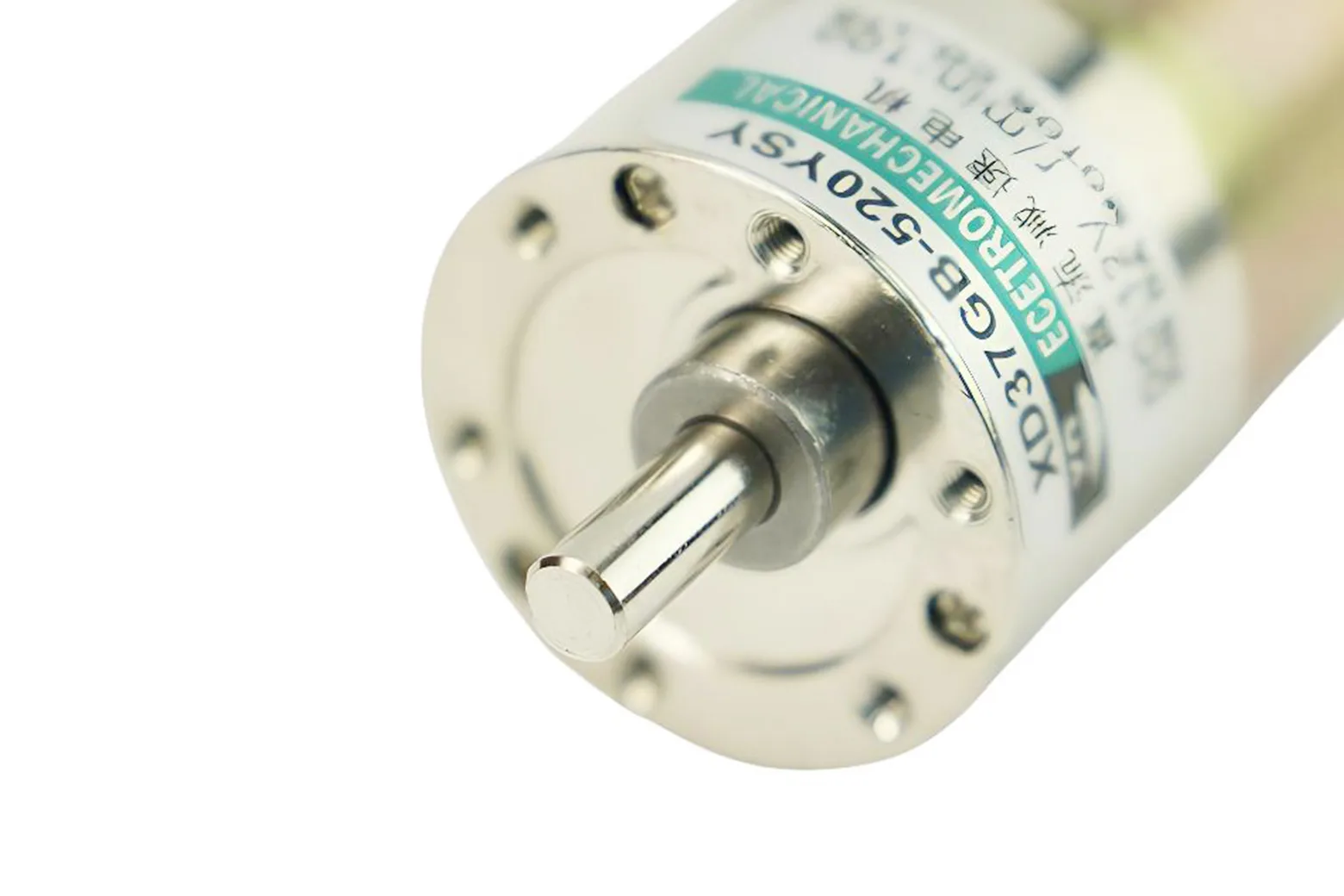

Standard 6 mm D-shaft

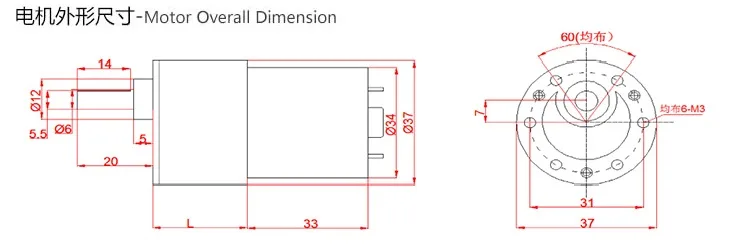

The output side features a 6 mm diameter D-shaped shaft designed to prevent wheels, pulleys, and couplers from slipping under load. The complete unit weighs 210 g for straightforward integration into compact chassis designs.

Included package contents

Each pack includes one 12V 100RPM 12kg.cm metal DC geared motor, ready for wiring into your custom motor driver or controller board.
