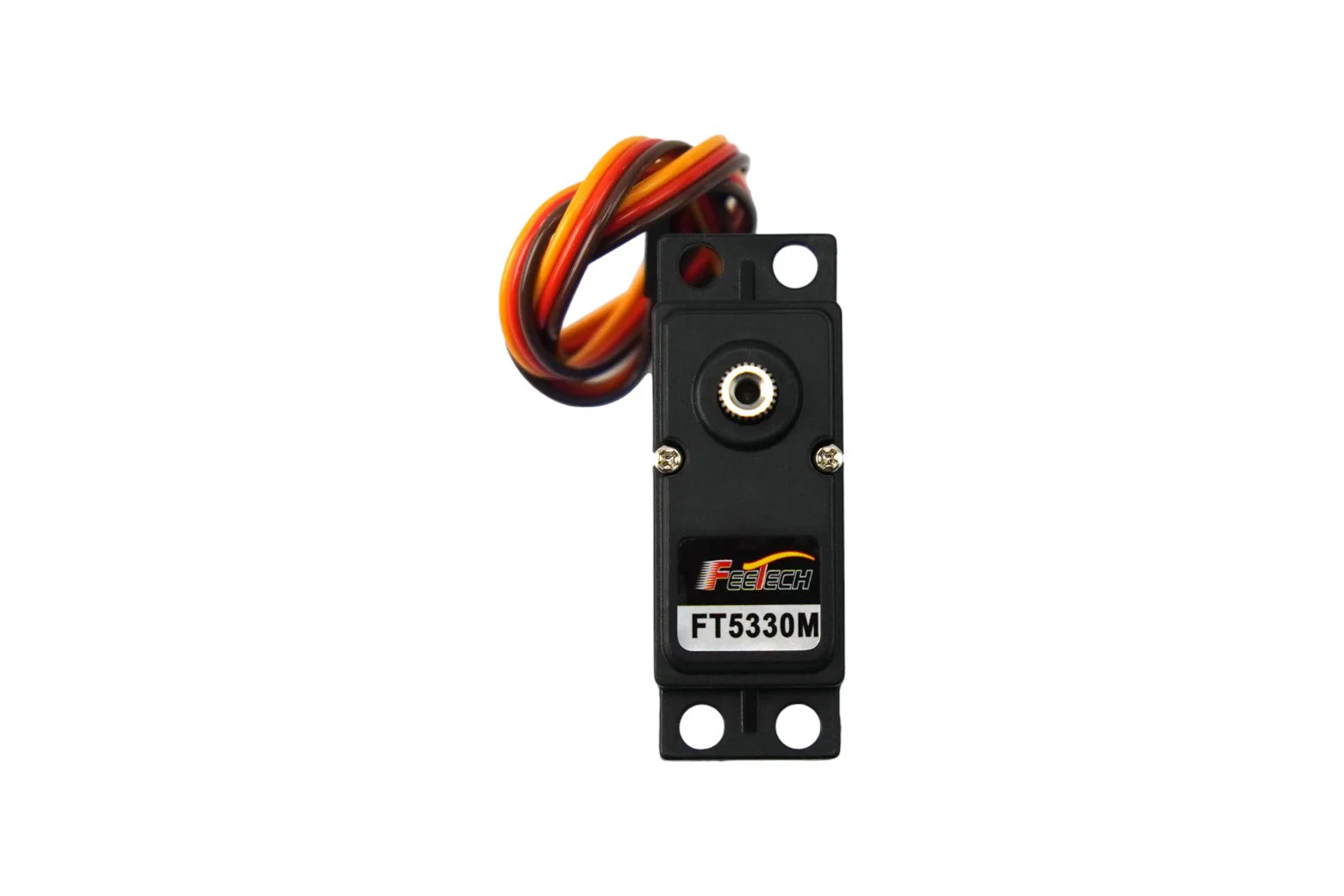

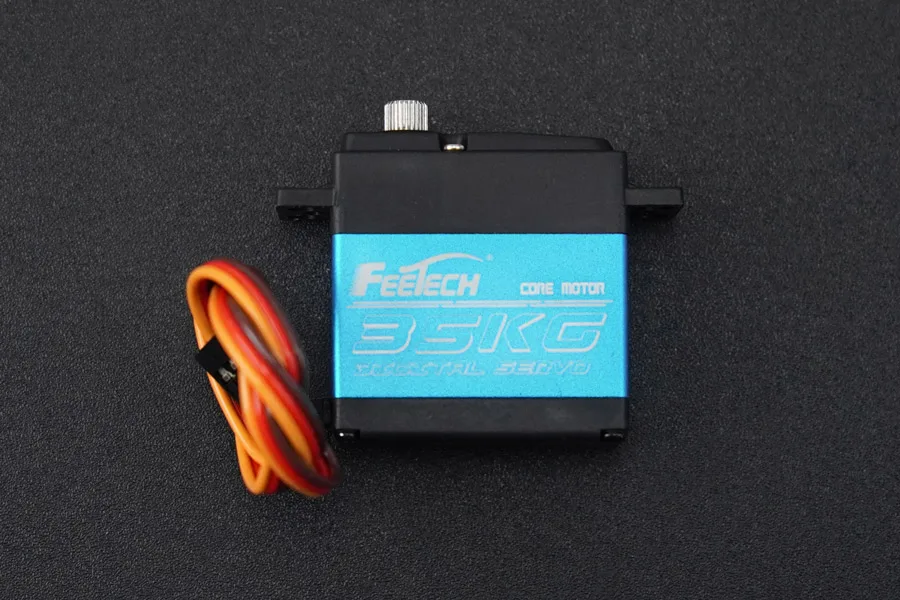

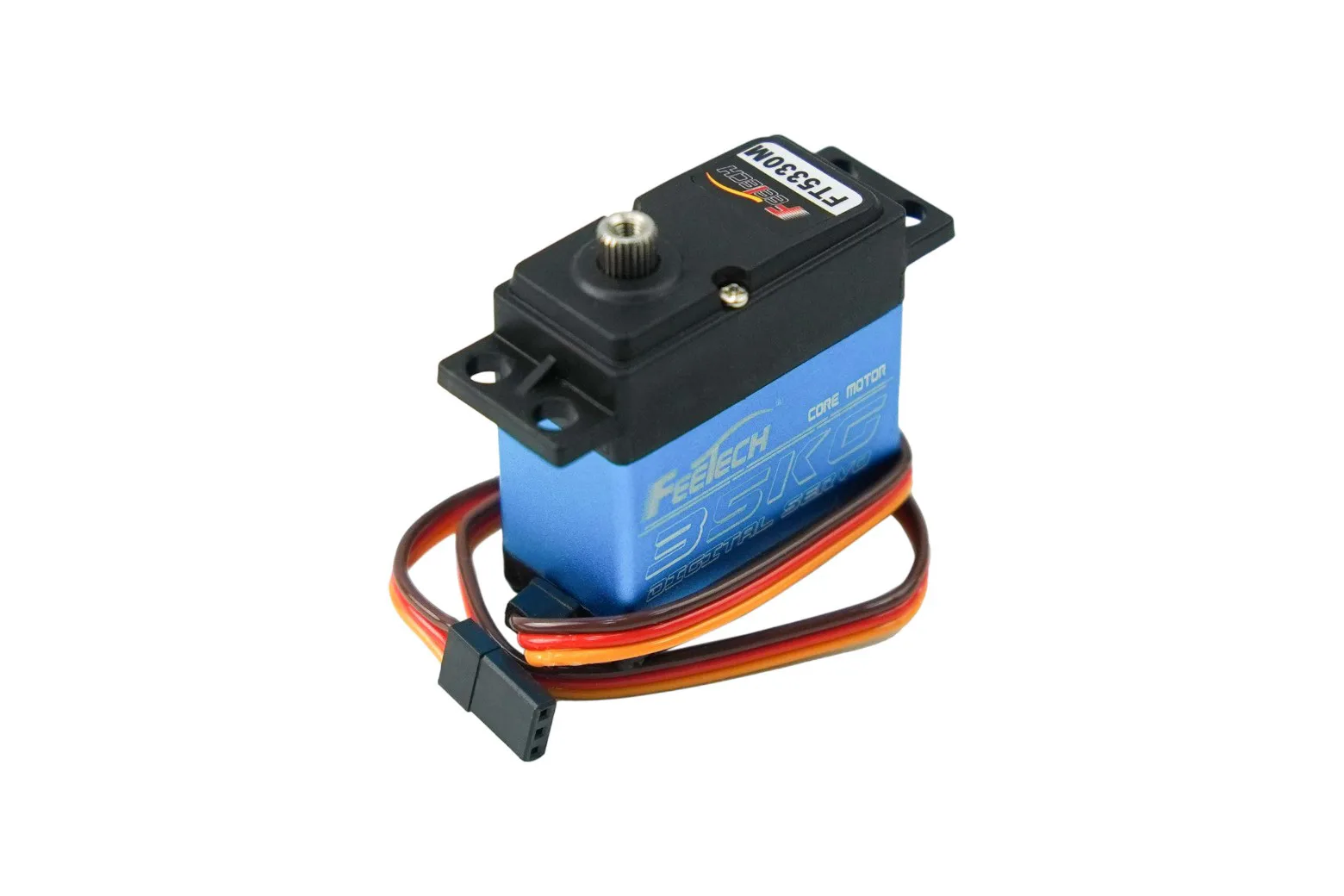

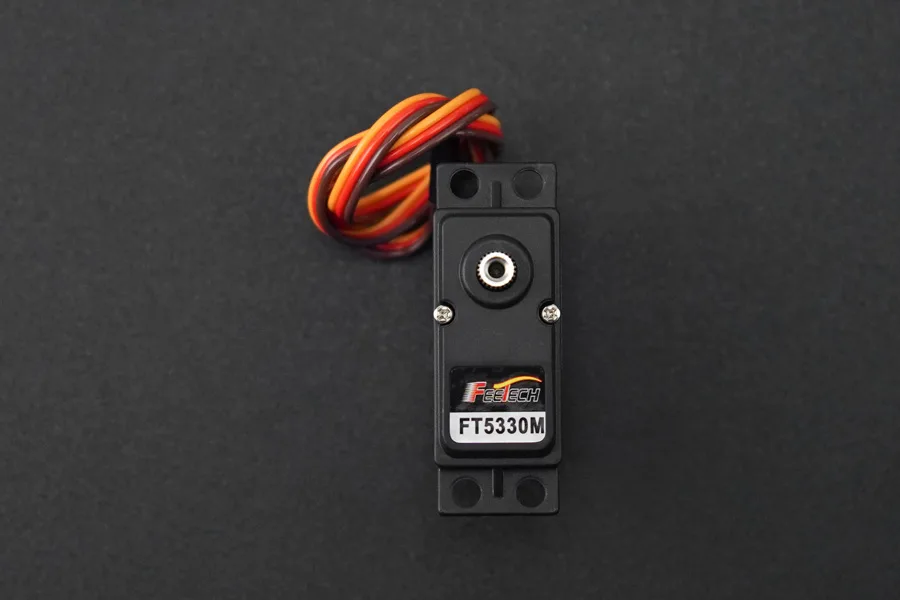

High Torque Waterproof Metal Gear Digital Servo (35KG, 180°, IP54)

The High Torque Waterproof Metal Gear Digital Servo is a heavy-duty 35kg.cm actuator designed for demanding robotics and automation projects. Featuring hardened steel gears, IP54 splash resistance, and dual ball bearings, it delivers robust and reliable 180-degree motion for students, makers, and roboticists.

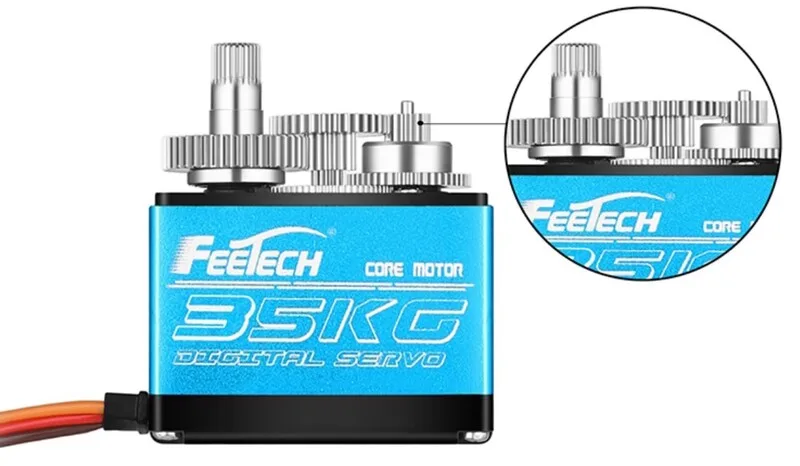

High-torque steel gear drivetrain

Built with internal steel gears on a thickened 2.0 centre distance axis, this servo produces up to 35.5kg.cm of stall torque at 7.4V. Dual ball bearings ensure smooth rotation, while the aluminium and PA casing facilitates rapid heat dissipation during heavy loads.

Electronic and thermal overload protection

Integrated intelligence safeguards internal components from damage during stalls and extended strain. The system triggers overload protection if locked up for over 8 seconds and automatically cuts torque output if operating temperatures exceed 70°C, resuming once cooled.

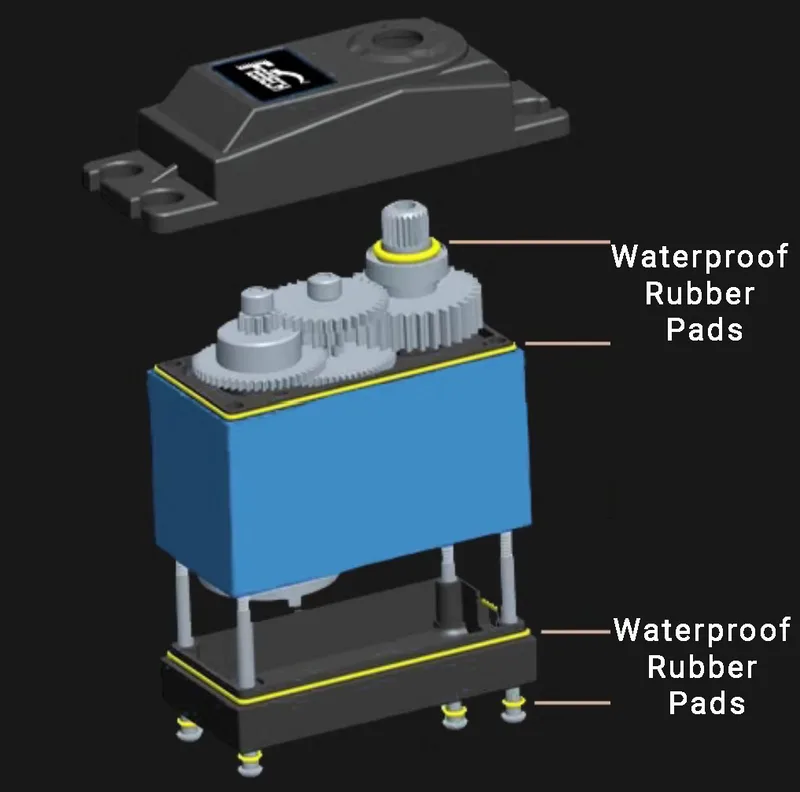

IP54 splash-proof sealed construction

Gasket-sealed joints, coated circuit boards, and adhesive-sealed motor and potentiometer assemblies provide IP54-rated moisture protection. This allows reliable actuation in damp, outdoor, or splash-prone operational environments.

Precision PWM signal interface

Driven by standard 500 to 2500µs PWM signals over a 5V to 8.4V operating range, the servo achieves precise 180-degree linear travel with less than 4µs dead band width. Clear pinout definitions allow straightforward wiring to standard microcontrollers and servo controllers.

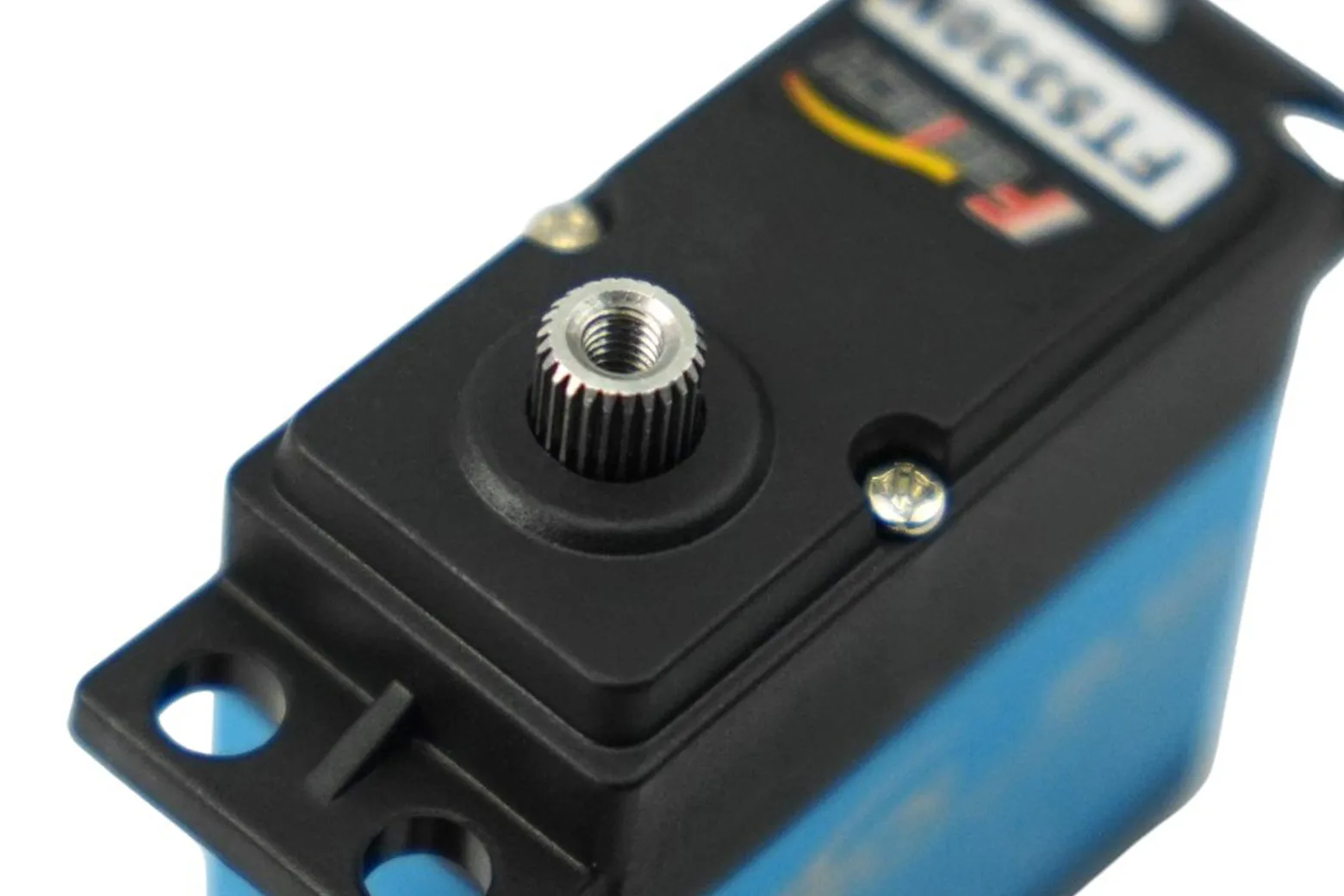

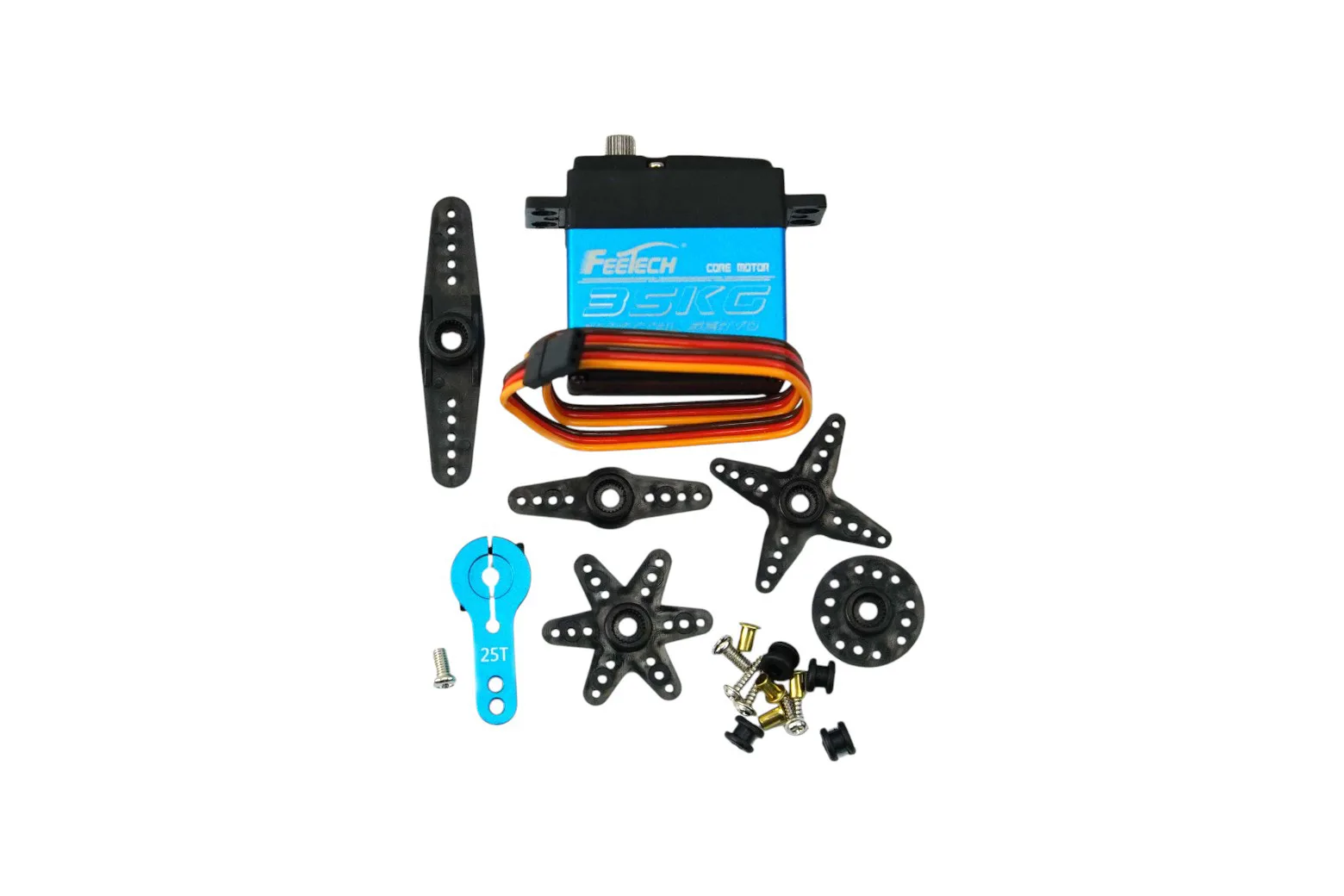

Standard mounting and included accessories

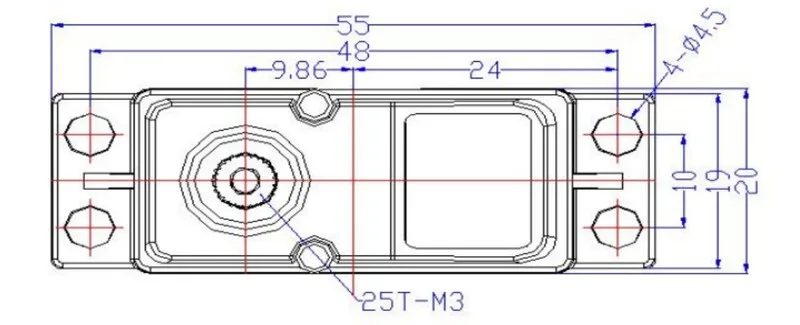

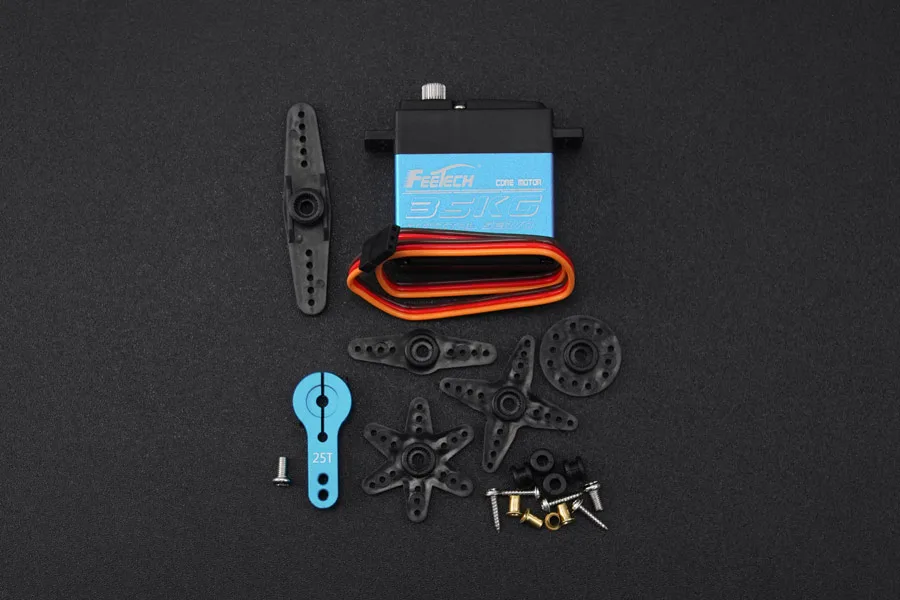

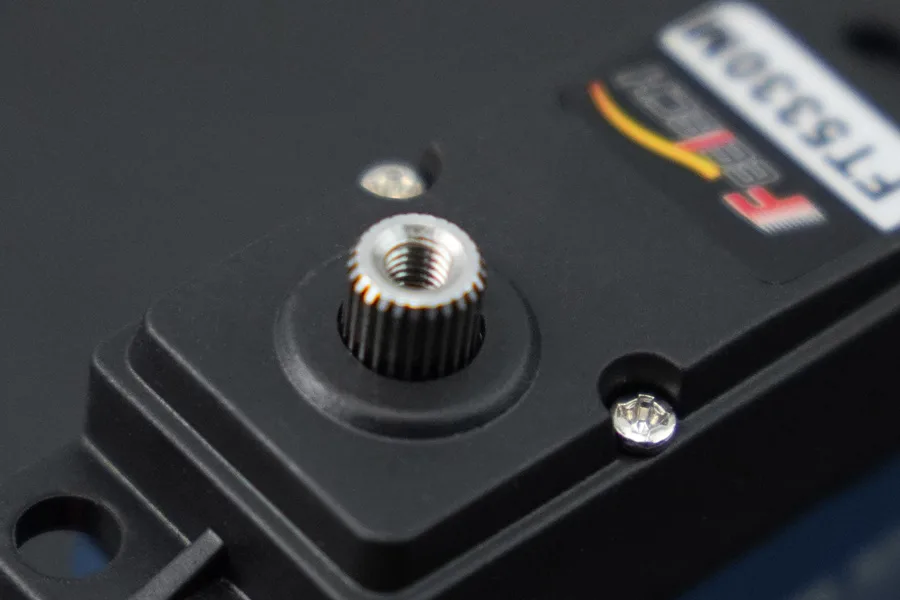

The standard-size form factor features a 25T output shaft with an M3 mounting thread for broad mechanical compatibility. Each unit includes a dedicated metal servo arm as well as an assortment of alternative servo horn accessories.
