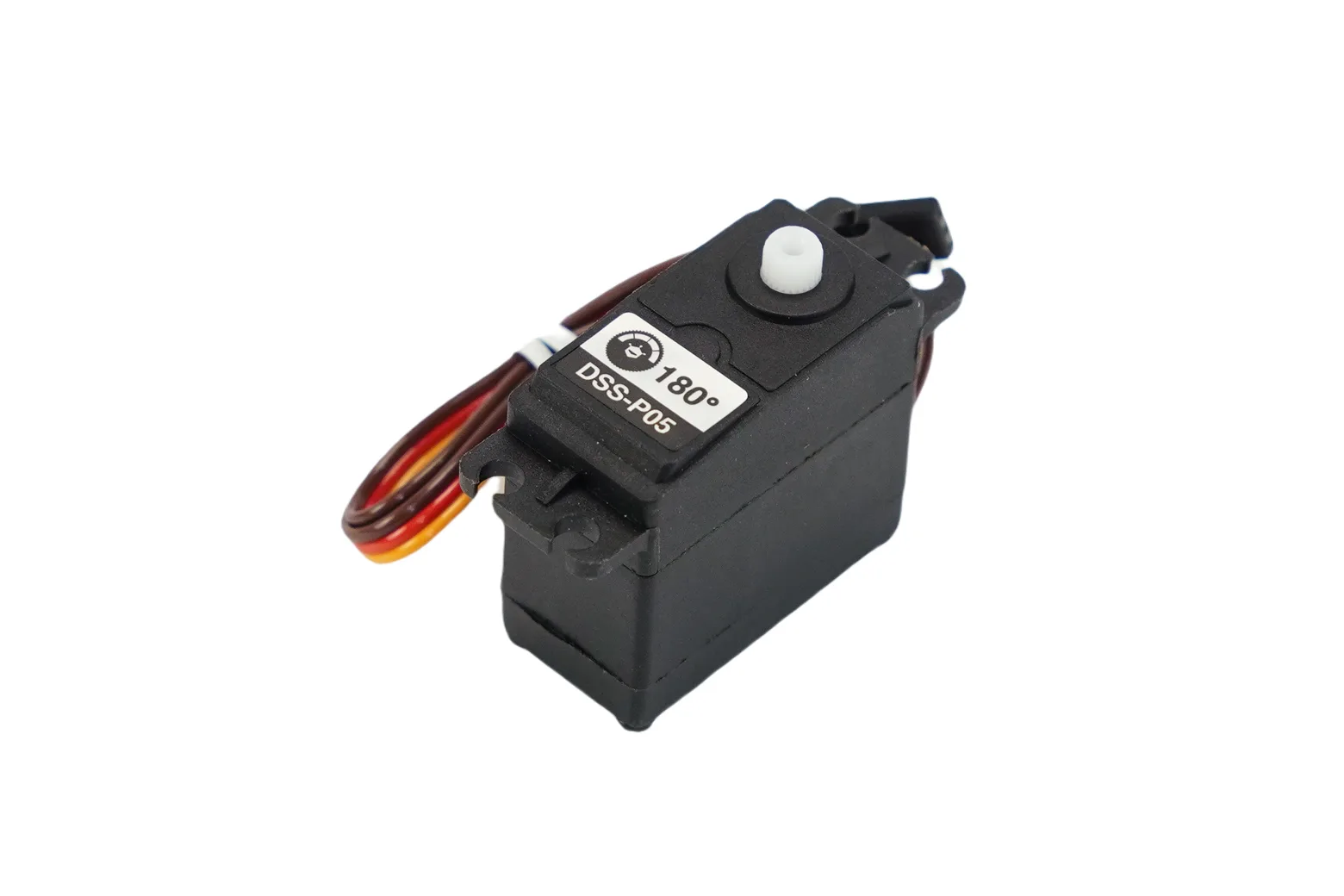

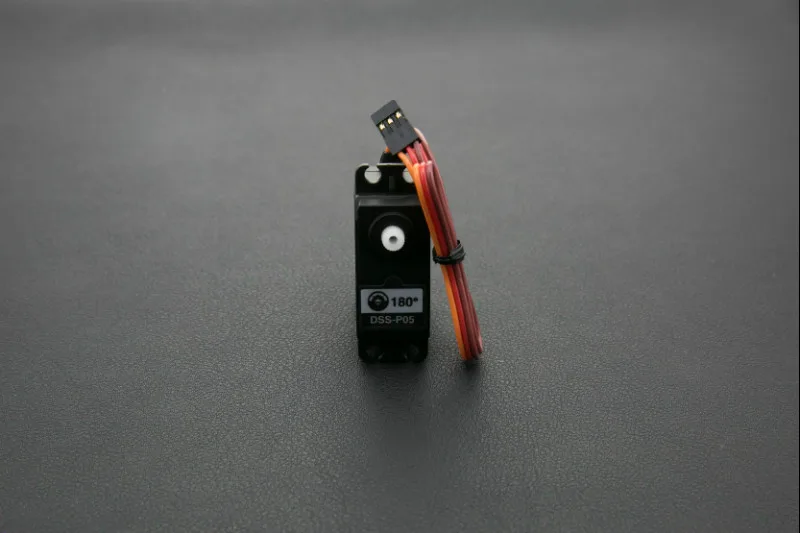

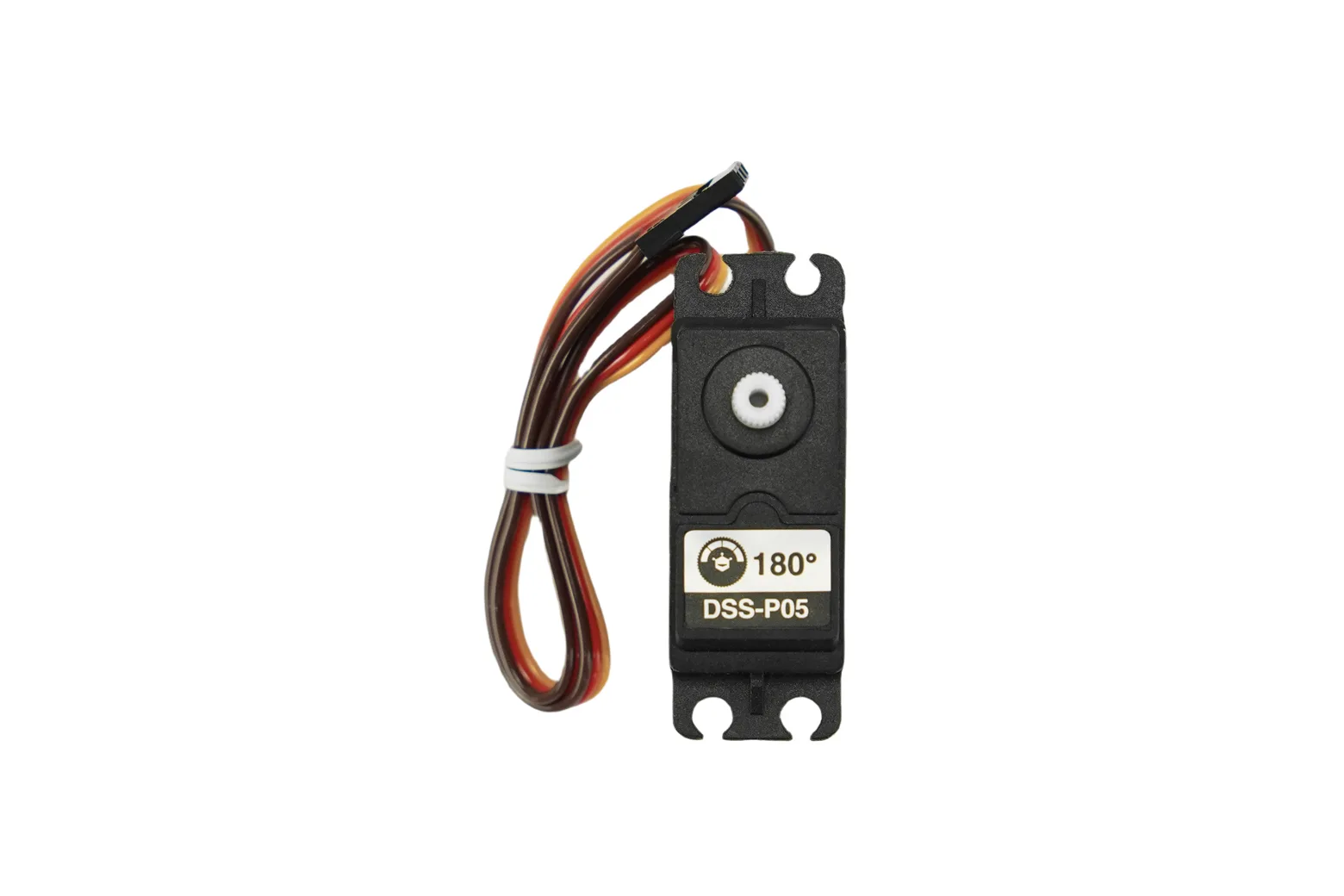

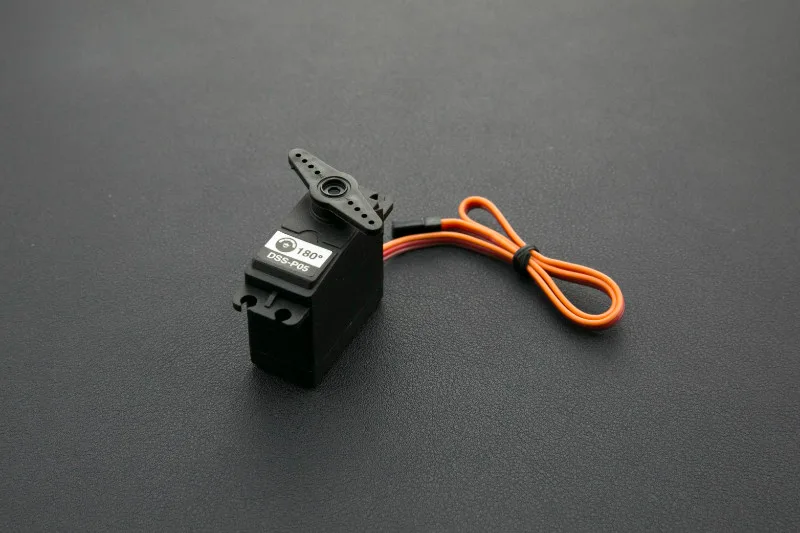

DSS-P05 Standard Servo (5.1kg)

The DSS-P05 is a high-torque standard servo motor operating across 4.8V to 6.0V with a 180-degree rotation range. It provides dependable actuation for makers, educators, and hobbyists building articulated mechanisms such as robotic arms, pan-tilt heads, and bipedal walkers.

Versatile robotic actuation

Offering up to 4.5kg-cm of torque at 6.0V (and 3.5kg-cm at 4.8V), this servo delivers ample strength for mechanical joints. It is well suited for animating robot heads, steering linkages, and bipedal robotic legs.

Fast 180-degree motion

The servo sweeps through 180 degrees with a no-load speed of 0.12 seconds per 60 degrees at 6.0V (0.17 seconds at 4.8V). It features a 20us dead band for stable positioning control.

Electrical specifications and efficiency

Designed for 4.8V to 6.0V supplies, the unit draws 20mA to 25mA under no load and peaks at a stall current of 300mA (4.8V) to 350mA (6.0V). It operates reliably within ambient temperatures from 0 to 60 degrees Celsius.

Standard form factor

Measuring 40.2 x 20.2 x 43.2mm and weighing 38g (+/-1g), the DSS-P05 matches standard servo brackets and mountings for straightforward mechanical integration.

Updated replacement model

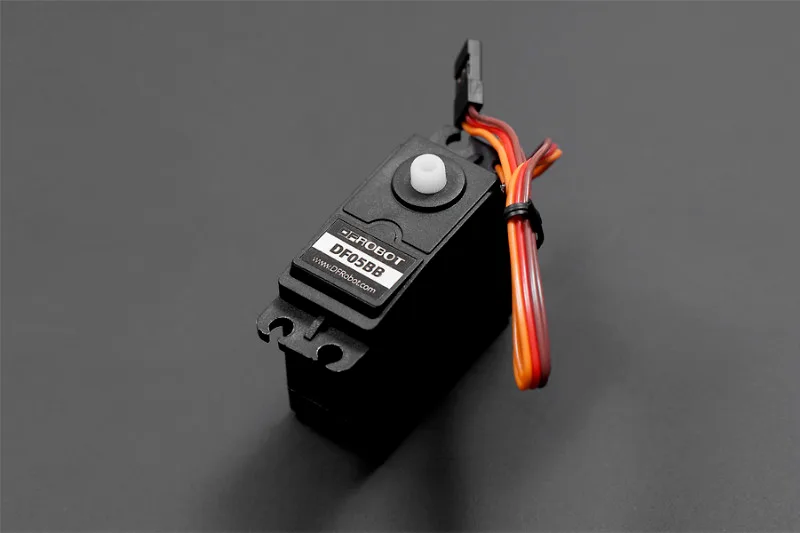

The DSS-P05 standard servo directly replaces the legacy DF05BB servo motor in compatible robotic chassis and projects.

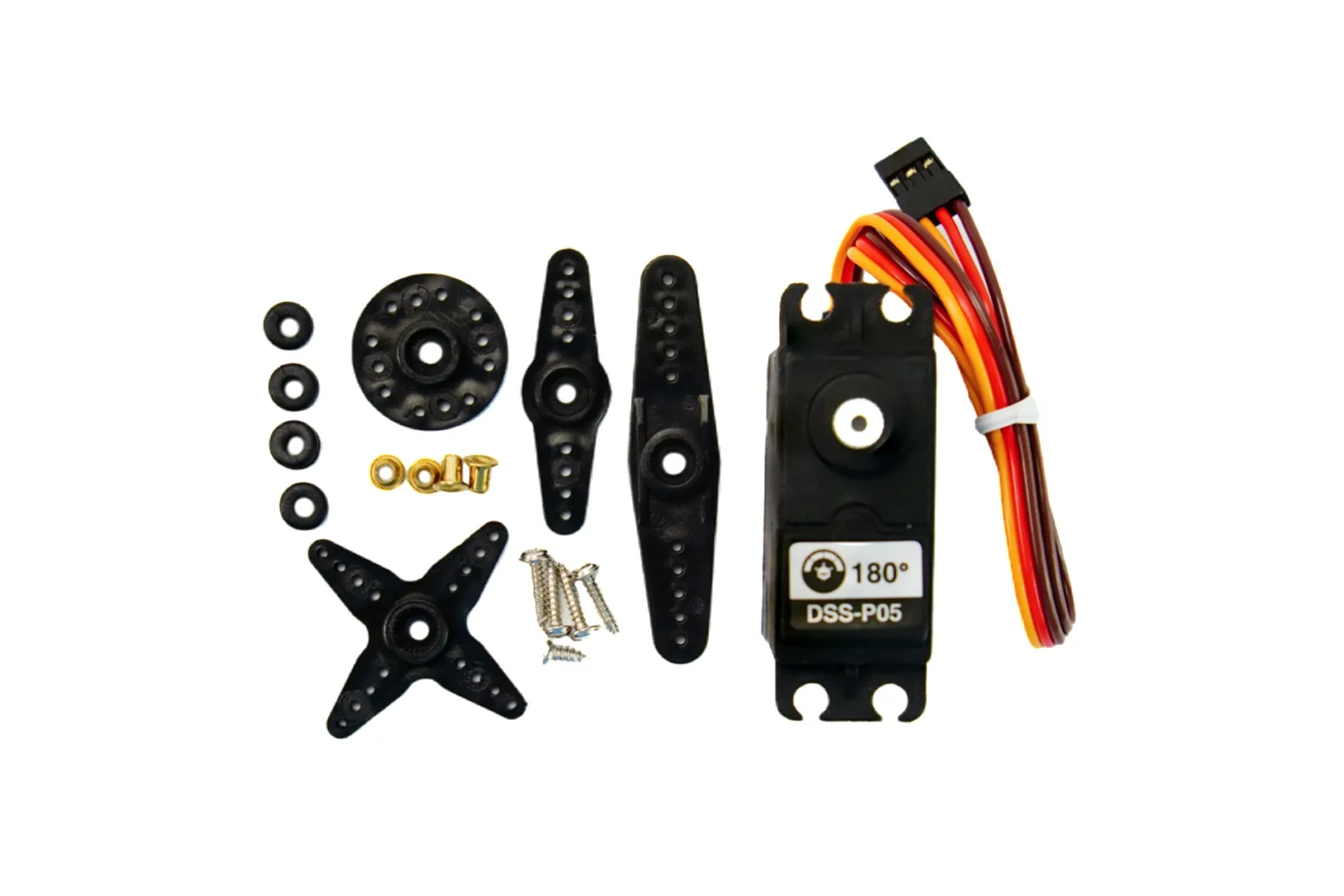

What is included

The package contains a single DSS-P05 standard servo motor ready to connect to your controller or power board.
