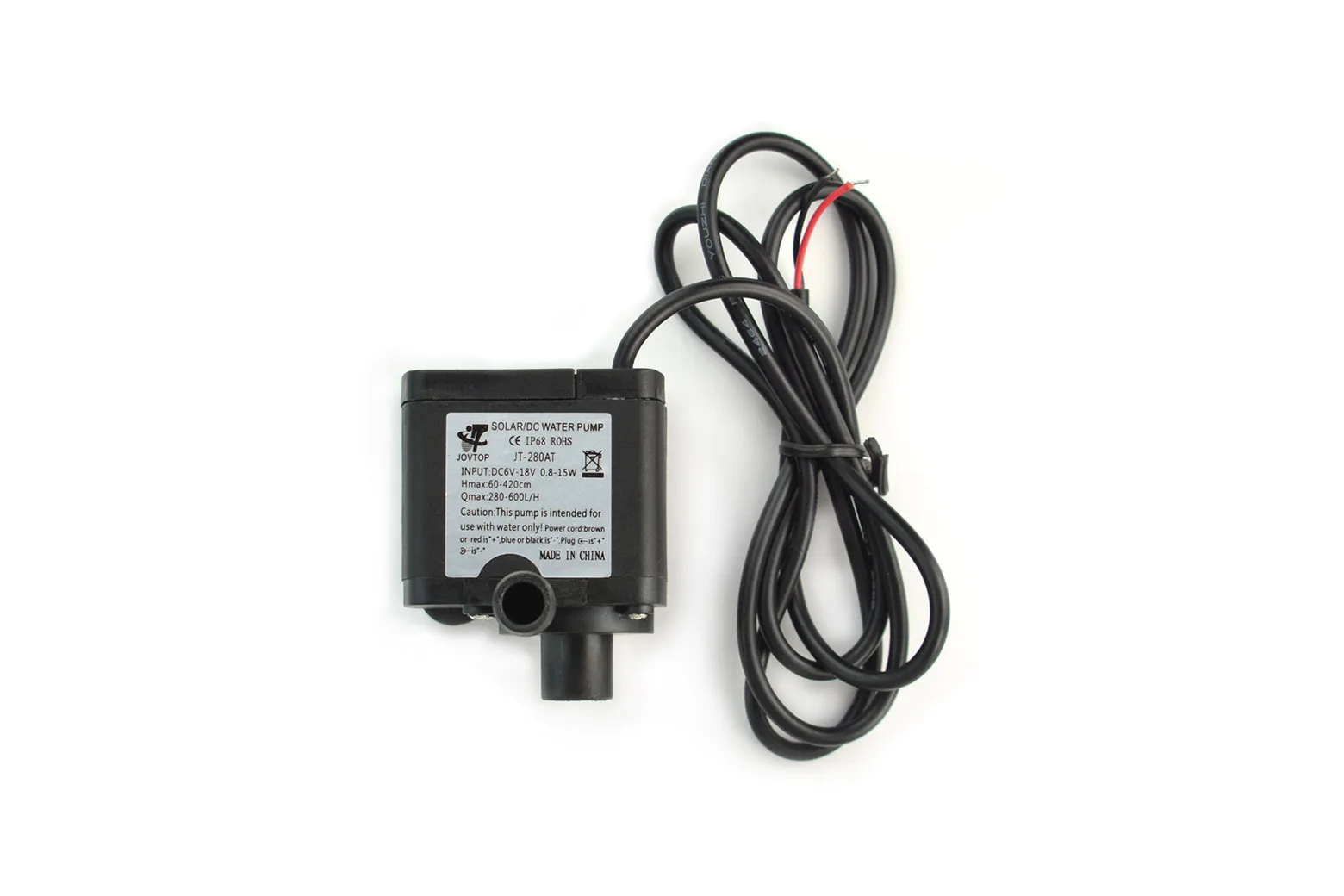

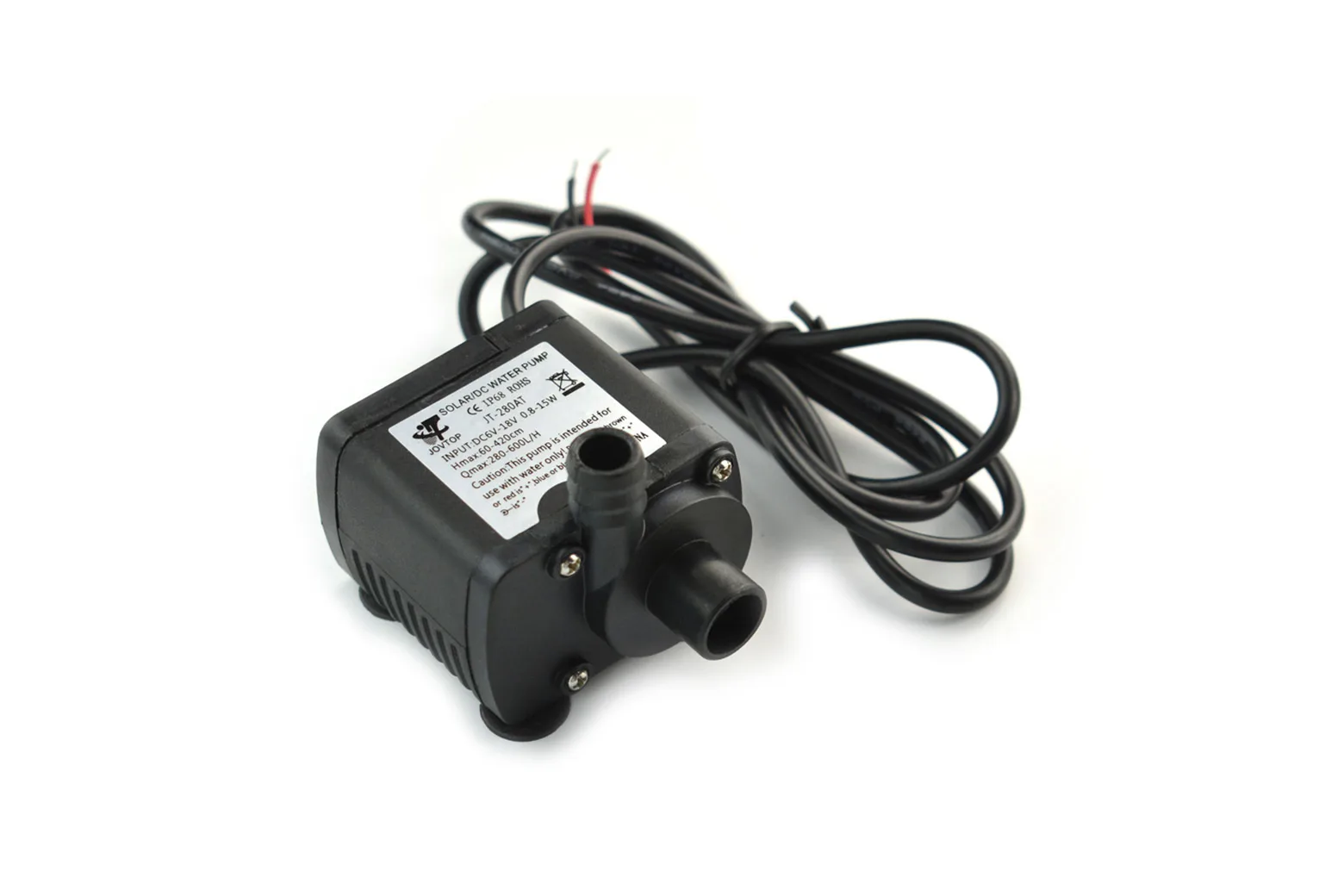

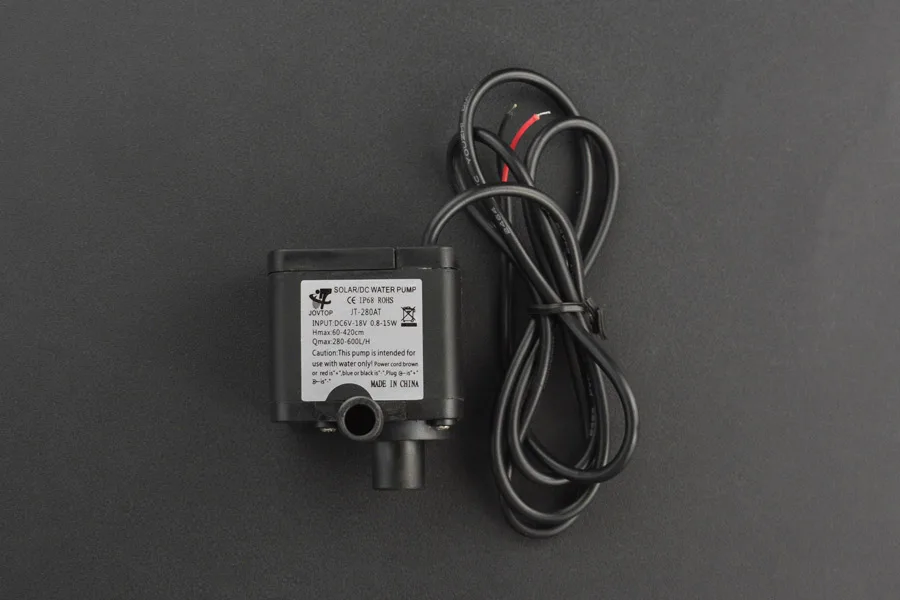

DC Mini Immersible Water Pump (6V~18V)

The DC Mini Immersible Water Pump is a compact, submersible fluid pump operating on 6V to 18V DC. It is ideal for students, makers, and hobbyists building automated plant-watering systems, miniature fountains, aquariums, and refrigeration projects.

Adjustable flow and quiet operation

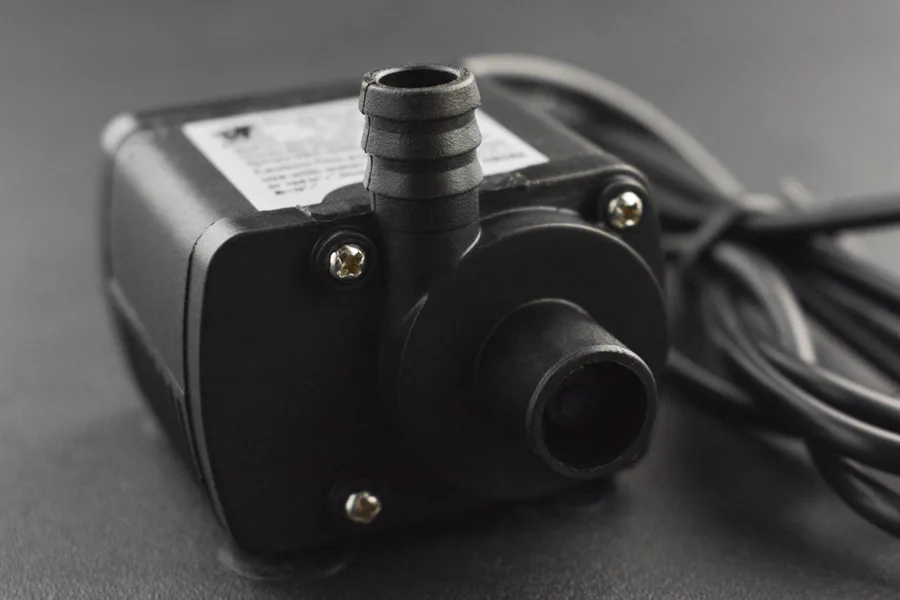

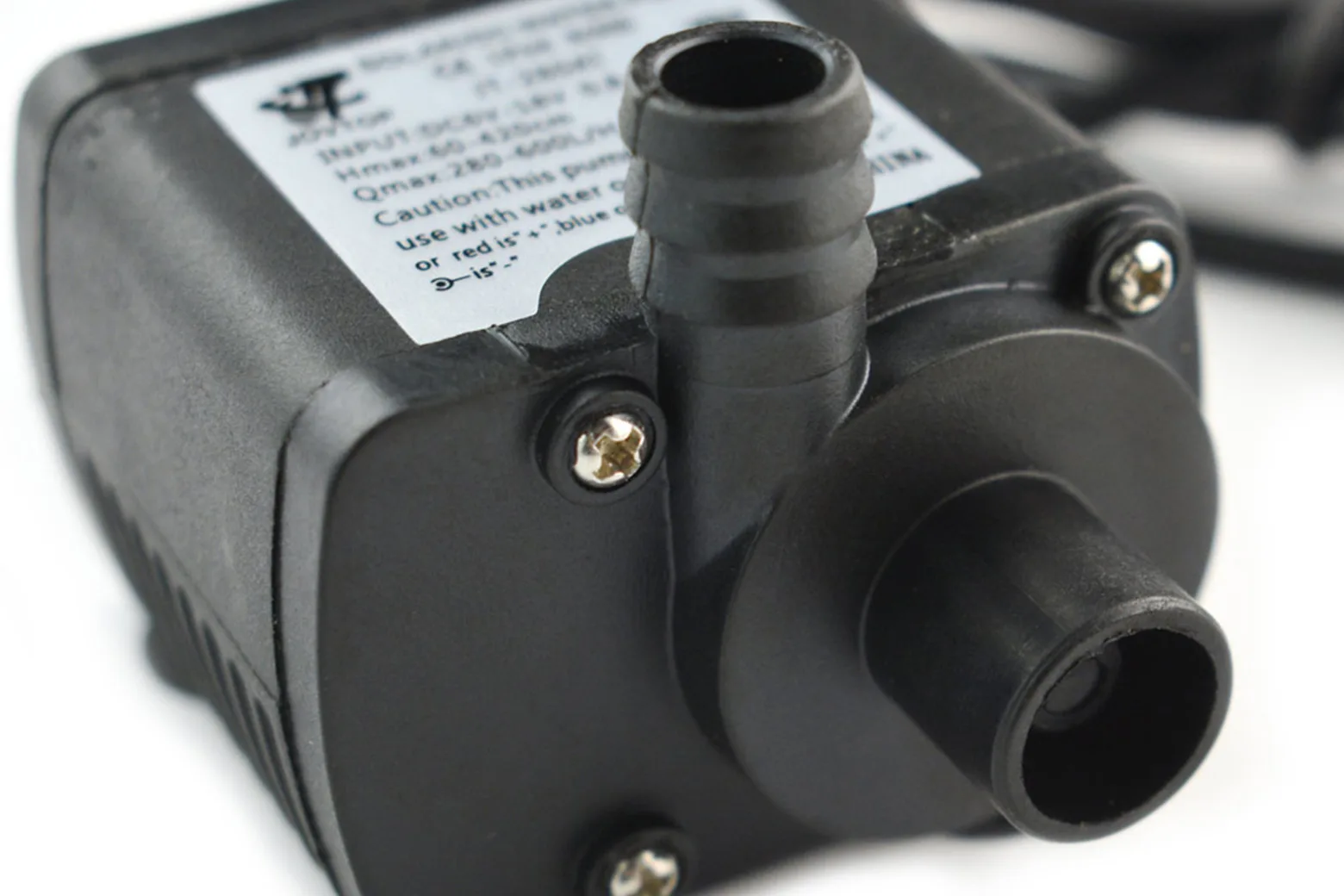

The pump features an integrated manual inlet valve to regulate fluid intake, delivering flow rates between 280 and 500 litres per hour. It runs quietly with operating noise levels kept below 40 dB.

Submersible mounting and filtration

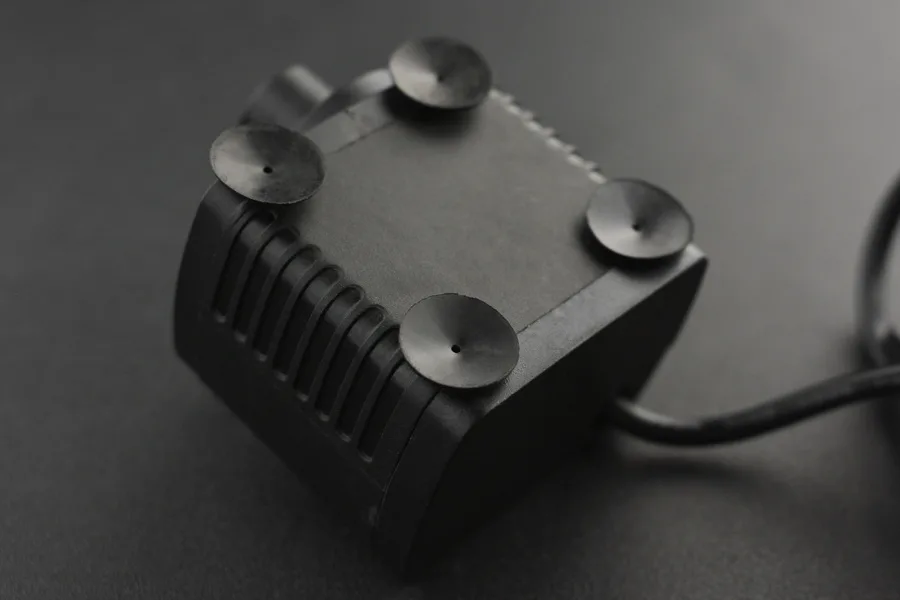

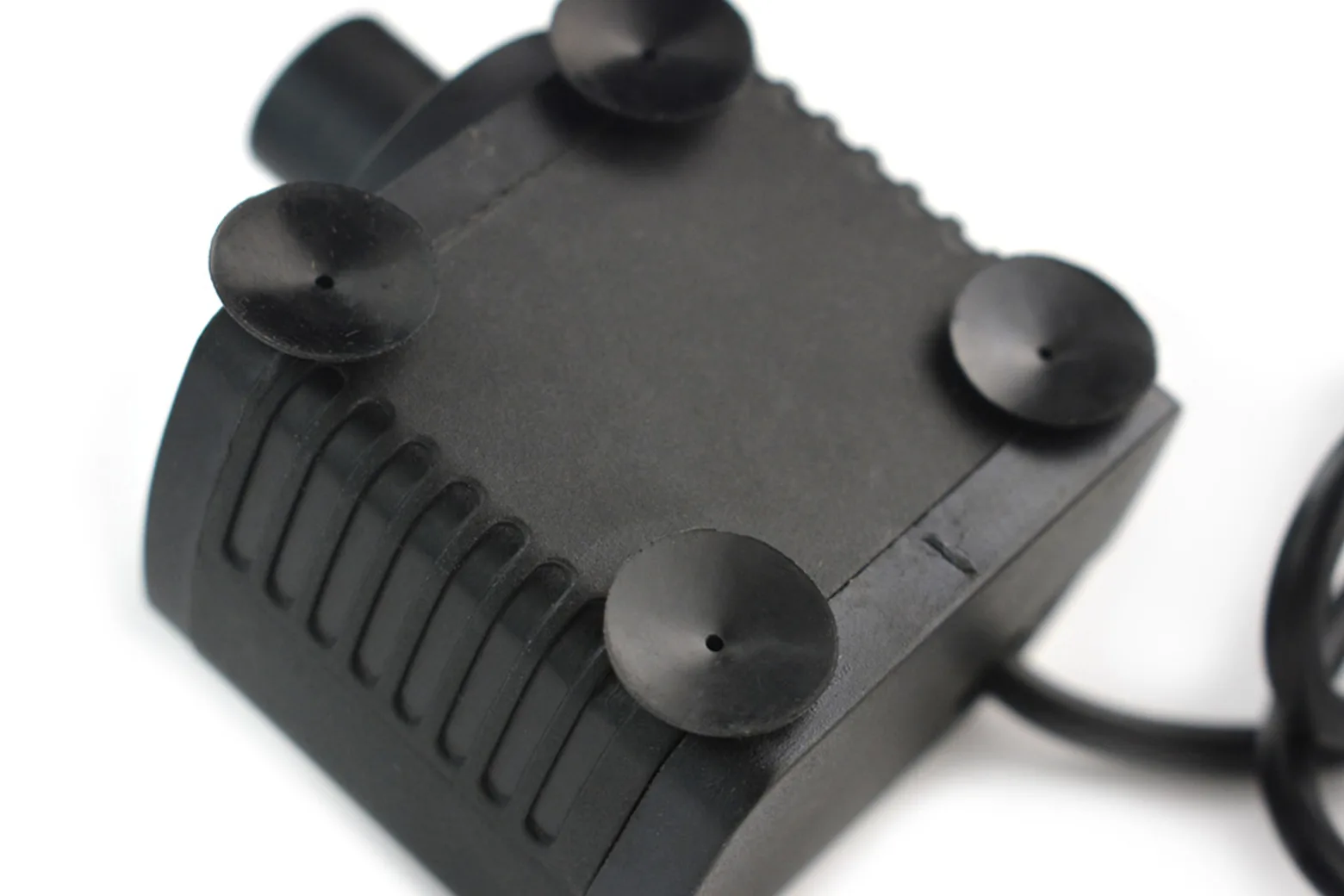

Equipped with an internal filter, the unit prevents debris from entering the mechanism. An integrated suction cup secures the pump tightly to smooth surfaces under water.

Wide voltage operating specifications

The pump operates from 6V to 18V DC at 65mA to 500mA, consuming 0.8W to 15W of power. It achieves a pumping lift head between 60cm and 420cm and connects via a 1m cable terminated with a DC 5.5 interface.

Submerged use and wiring polarity

This unit is designed exclusively for fully submerged operation. Wiring is colour-coded for convenience, using brown or red for positive and blue or black for negative.

Versatile liquid pumping applications

Suitable for plant irrigation and fish tank water changes, this pump also supports solar-powered systems, rockeries, air conditioning, and refrigeration equipment.

Included accessories and dimensions

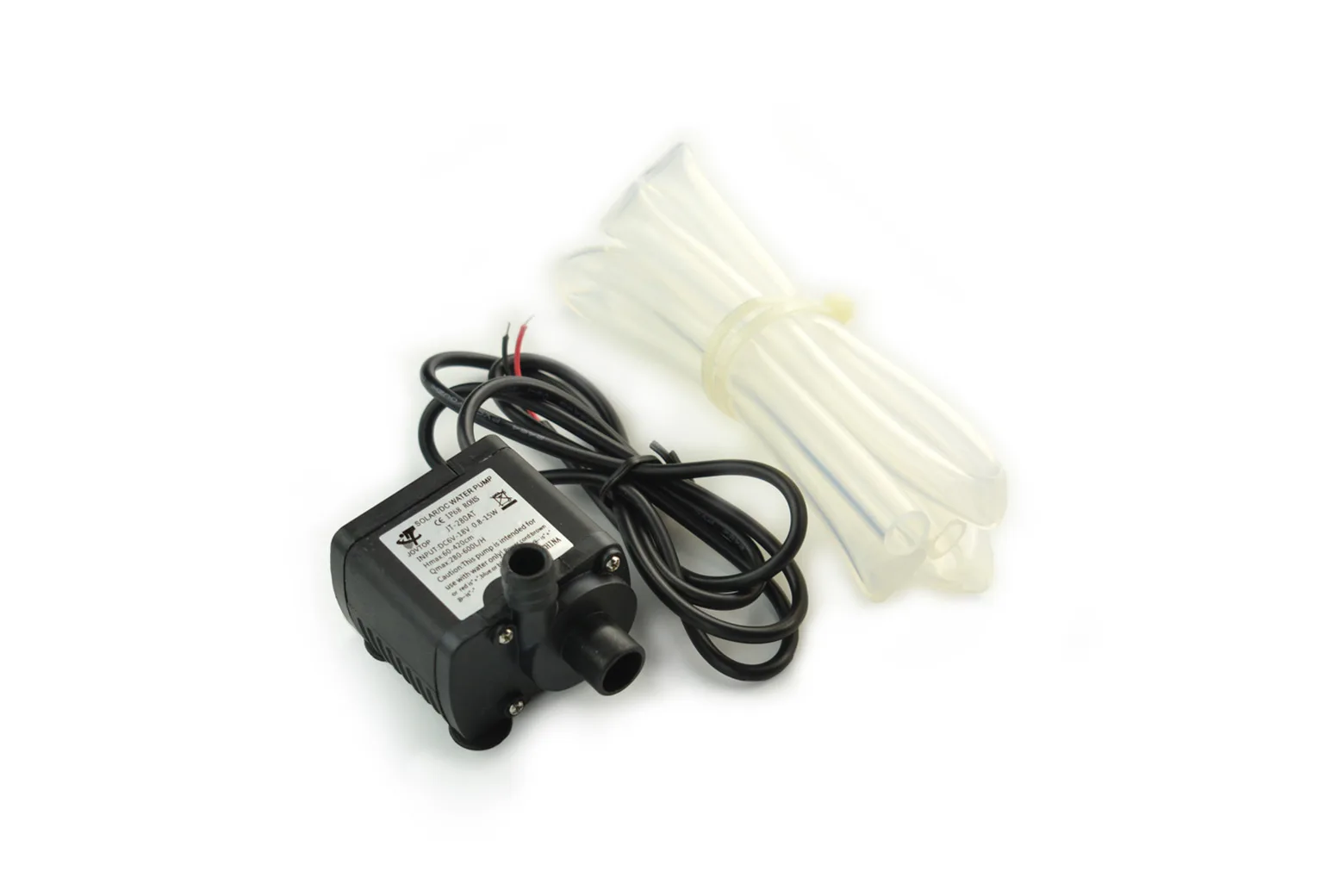

Measuring 45 x 43 x 30 mm and weighing 300 g, the compact unit ships complete with one immersible water pump and one matching water pipe.
