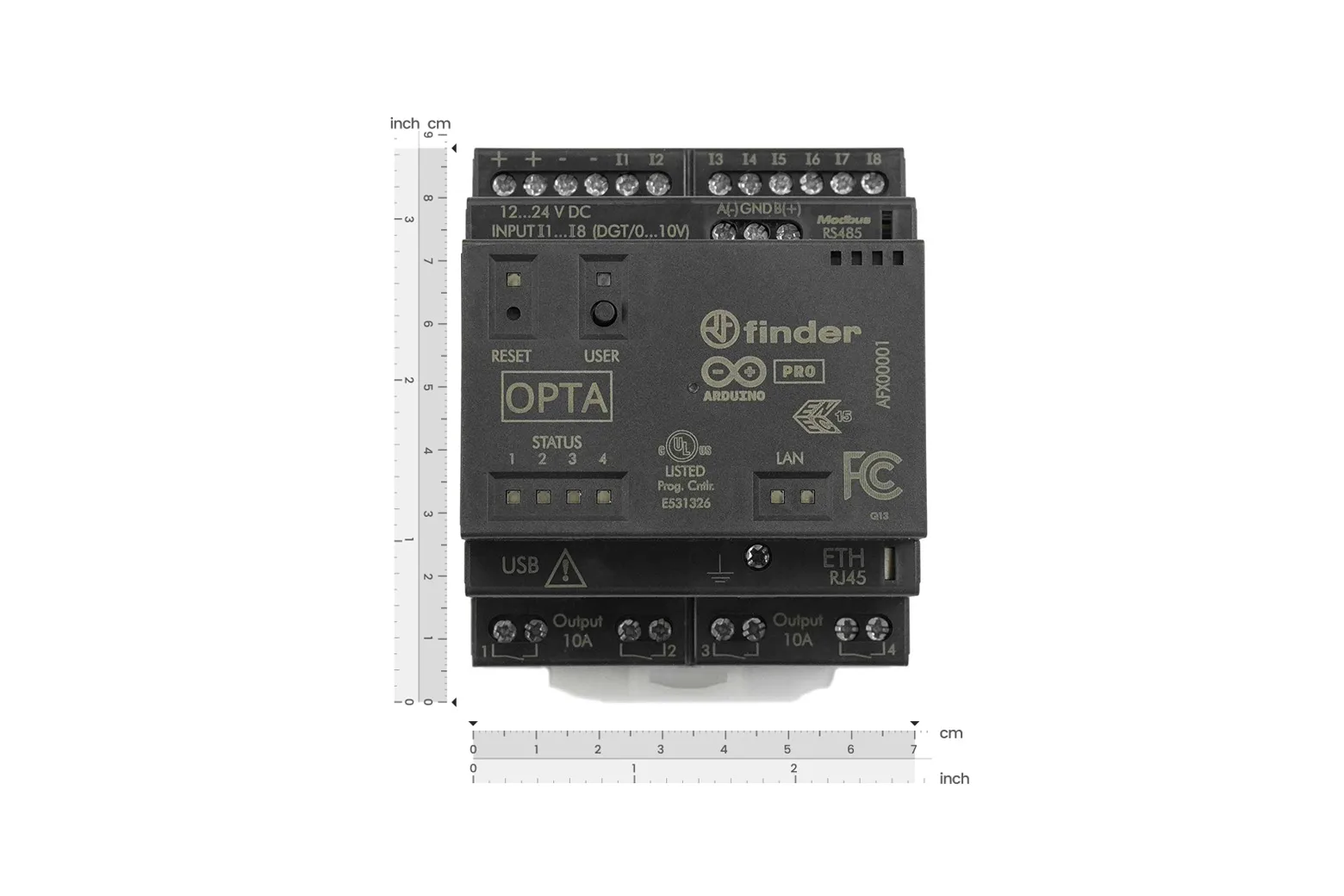

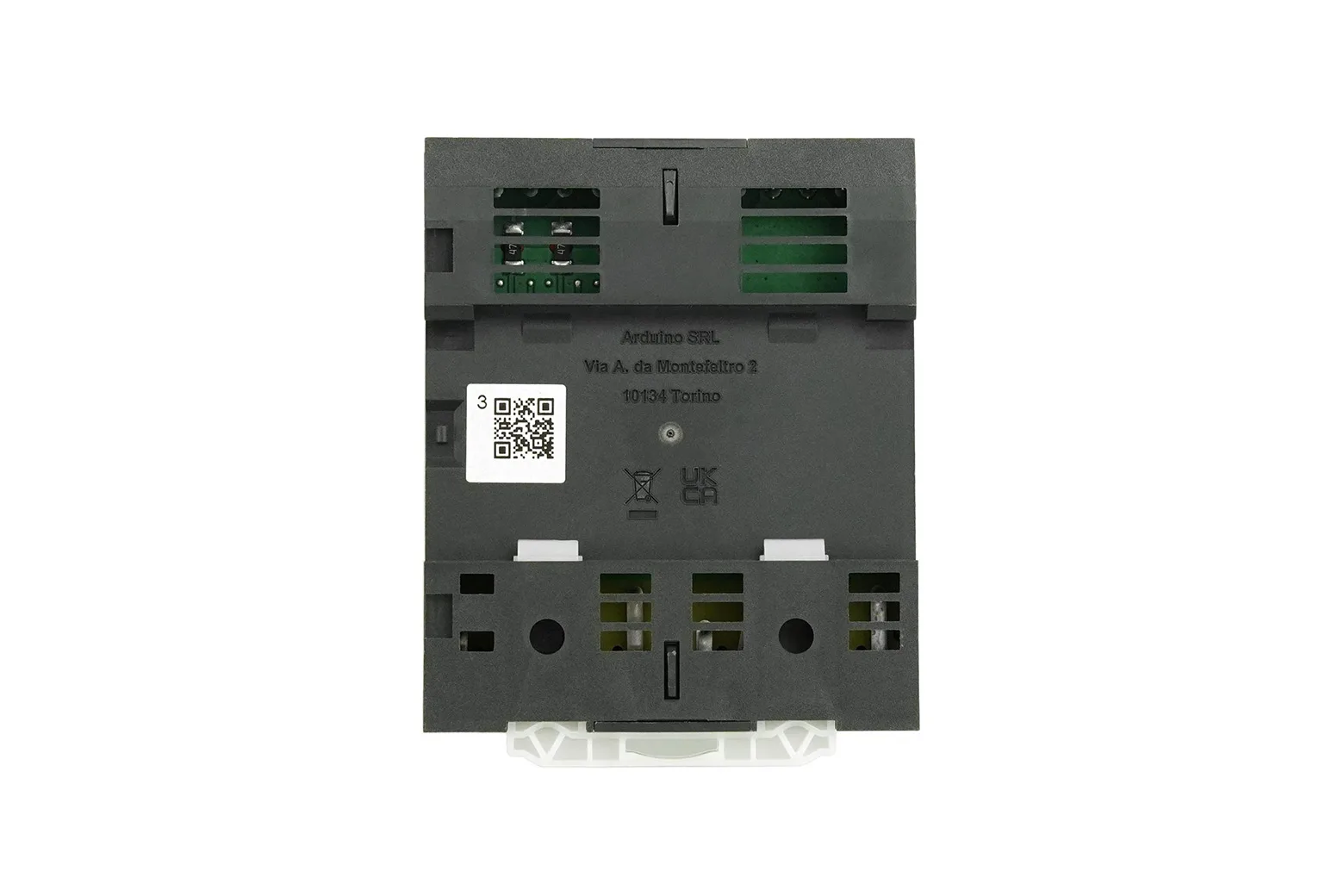

Arduino Opta RS485 Micro PLC (Ethernet and USB-C ports, RS485)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Arduino Opta RS485 is a secure, easy-to-use micro PLC designed for industrial IoT, automation, and predictive maintenance applications. Powered by a dual-core STM32 processor, it combines industrial reliability with standard PLC and Arduino programming environments. It is ideal for automation engineers, students, and makers implementing real-time monitoring and control.

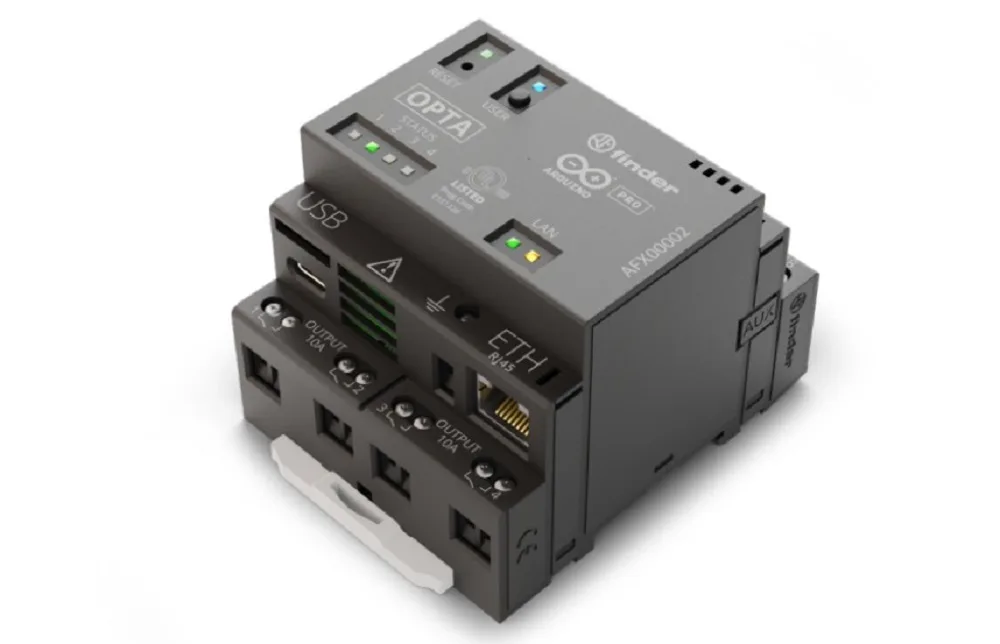

Dual-core processing power
Equipped with an ST STM32H747XI dual-core Cortex-M7 and M4 microcontroller, the Opta performs real-time edge control and predictive maintenance. It includes 1 MB of programming RAM, 2 MB internal flash, and 16 MB of QSPI flash memory.
Flexible PLC programming support
Program using familiar Arduino sketches or the Arduino PLC IDE. The platform supports all five IEC 61131-3 standard languages, including Ladder Diagram, Function Block Diagram, Structured Text, Sequential Function Chart, and Instruction List.

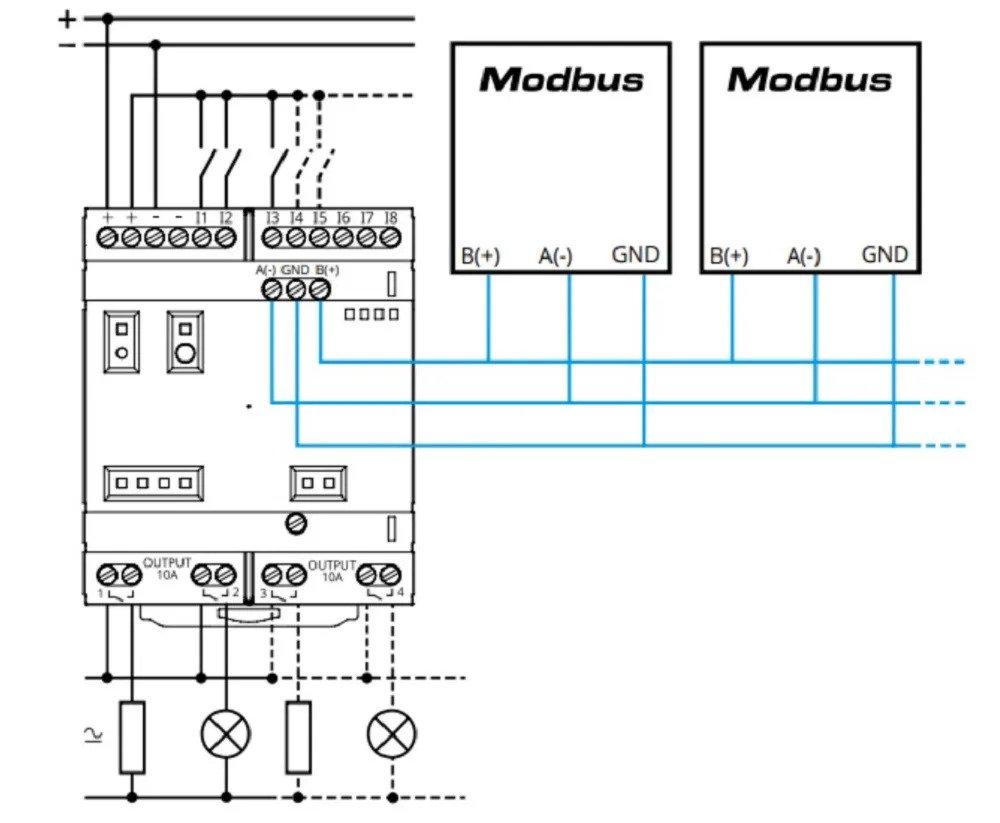

RS-485 and Ethernet communication

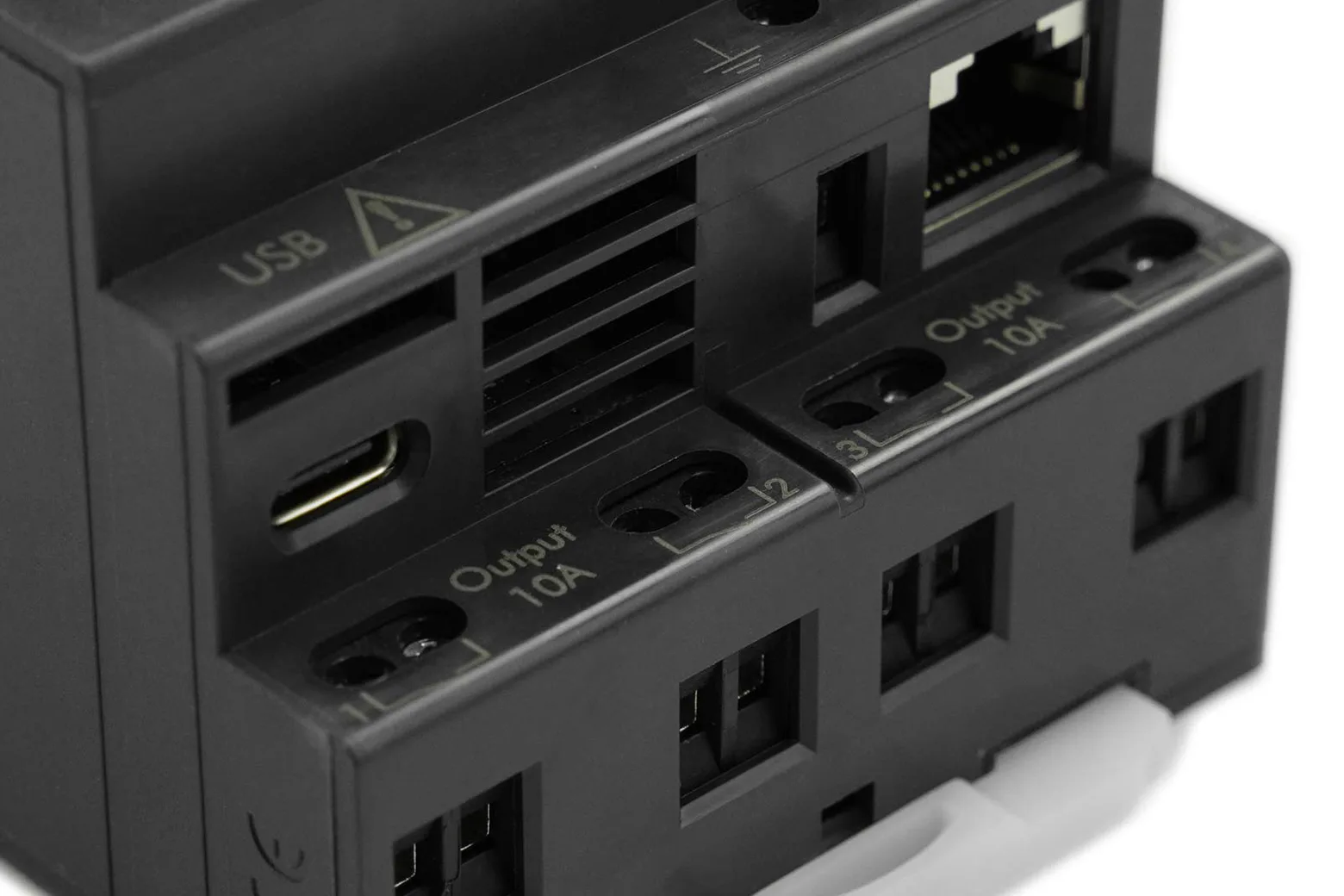

This model features half-duplex RS-485 alongside 10/100 Ethernet supporting TCP/IP and Modbus TCP protocols. A USB-C port is available for host/device operations, firmware flashing, and programming.
Industrial inputs and relay outputs
The unit provides eight configurable analog or digital inputs and four normally open relay outputs rated up to 10 A each. It operates on a 12 to 24 V DC power supply and mounts directly to standard DIN rails.
Hardware security and cloud integration
An onboard ATECC608B secure element and X.509 compliance safeguard data from hardware to the cloud. Connect to Arduino Cloud or third-party platforms for real-time dashboards, remote control, and over-the-air firmware updates.
Video
Downloads & documentation
Specifications
| Supply Voltage | 12-24VDC |
| Input | Analog/digital input × 8 |
| Output | Relay × 4 - Normally Open (NO) - Maximum: 10A per relay |
| Processor | Dual-core ST STM32H747XI processor |
| Memory | 1 MB RAM(Programming) |
| Flash memory | 2 MB |
| Flash QSPI | 16 MB Flash QSPI |
| Programming Languages | Arduino + IEC-61131-3 (LD-SFC-FBD-ST-IL) |
| USB Connection | Used for host and device operations, programming/refresh, and power supply for programming (not for driving external high-power peripherals) |
| Communication | support 10/100 Ethernet (TCP/IP or Modbus TCP) |
| Security | ATECC608B secure element |
| IP Protection | IP20 |
| Operating Temperature | -20℃ to 50℃ (-4℉ to 122℉) |
In the box
| Arduino Opta RS485 Micro PLC | 1 |
