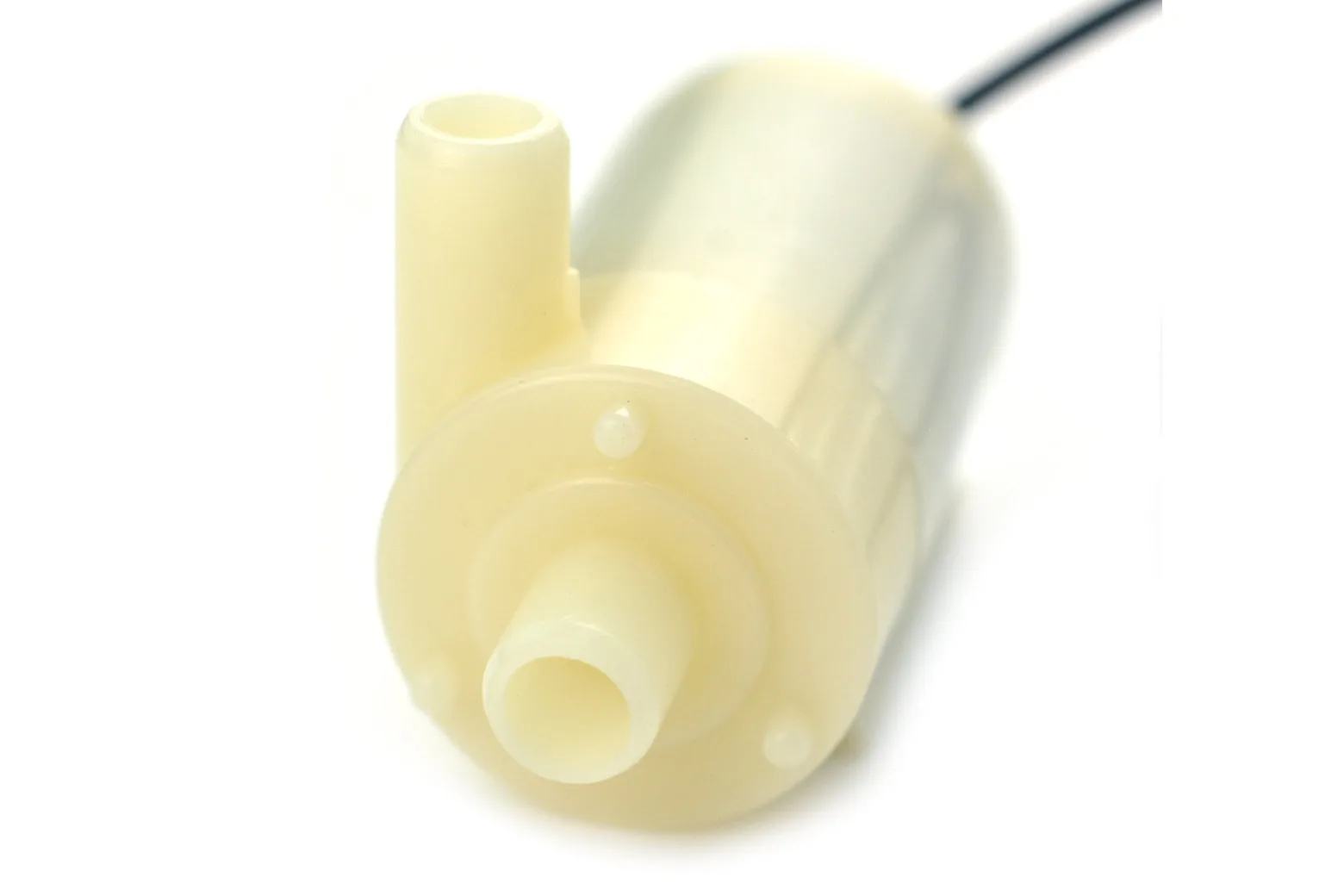

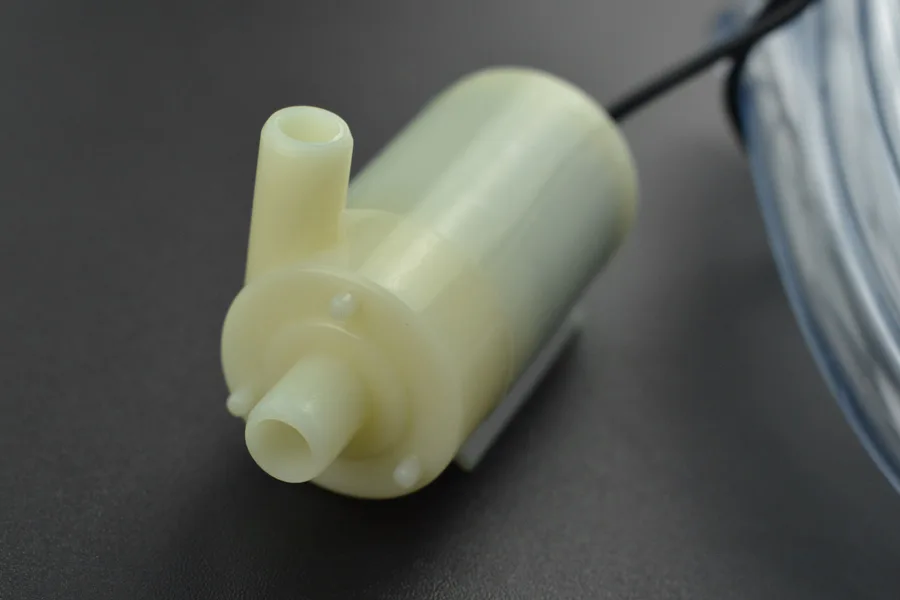

Amphibious Horizontal Submersible Pump

The Amphibious Horizontal Submersible Pump is a compact, low-voltage water pump designed for automated liquid handling and fluid circulation projects. Capable of submersible or external inline operation, it is well suited for makers, students, and hobbyists building DIY irrigation systems, small fountains, or automated water changers.

Amphibious design and IP68 waterproofing

Featuring an IP68 waterproof rating, the pump can operate fully submerged provided the water level remains above the unit. It can also function externally by connecting water tubes directly to the inlet and outlet.

Flow rate and lift specifications

The unit delivers a flow rate of 80 to 100 litres per hour with a pump lift between 25 and 45 cm. It operates efficiently with power consumption ranging from 0.4 to 2 W.

Low-voltage and quiet operation

Designed for silent running, the pump operates from a DC 3 to 6V power source drawing between 150 and 370 mA. The compact assembly is engineered for high efficiency and easy cleaning.

Standard ports and included pipe

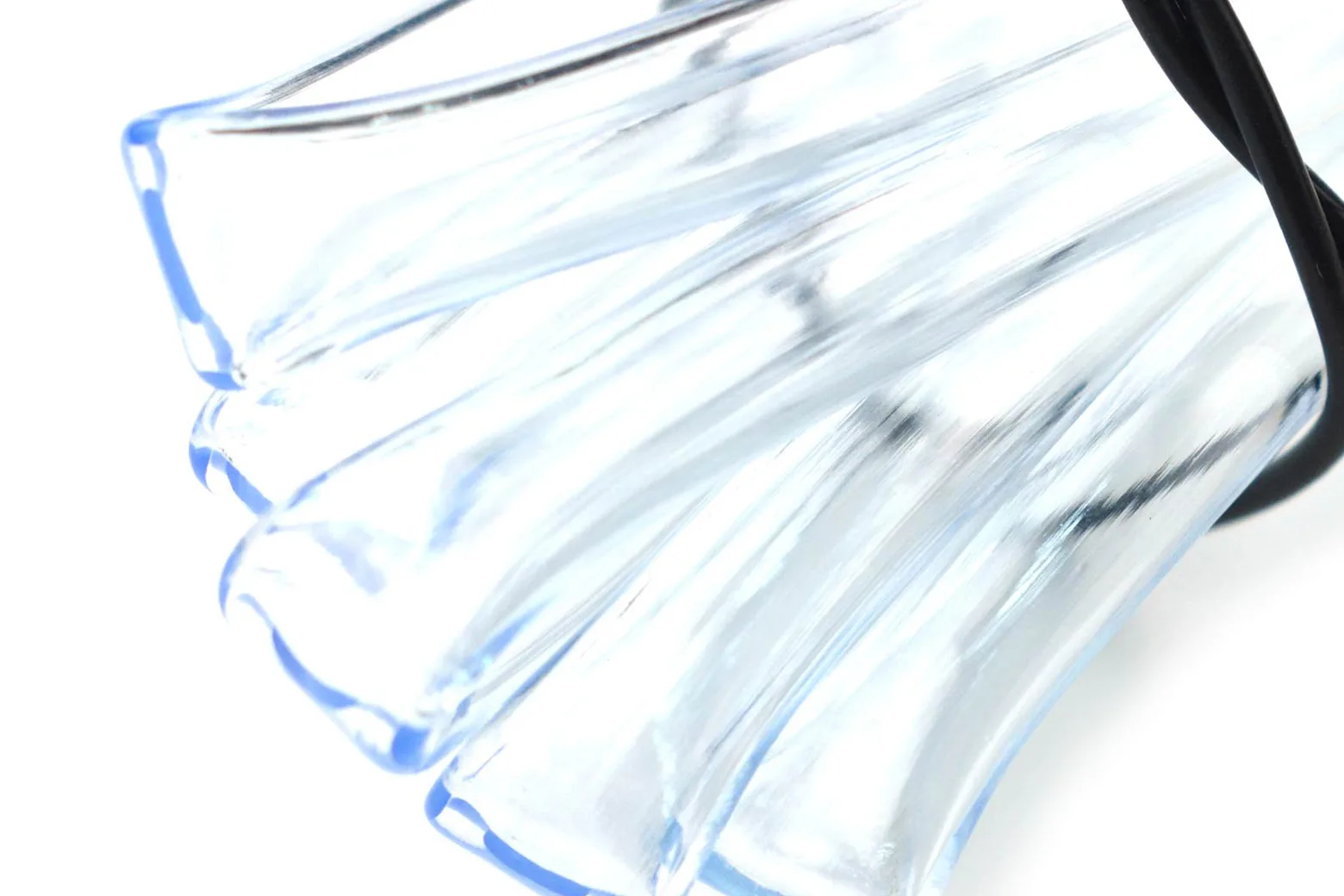

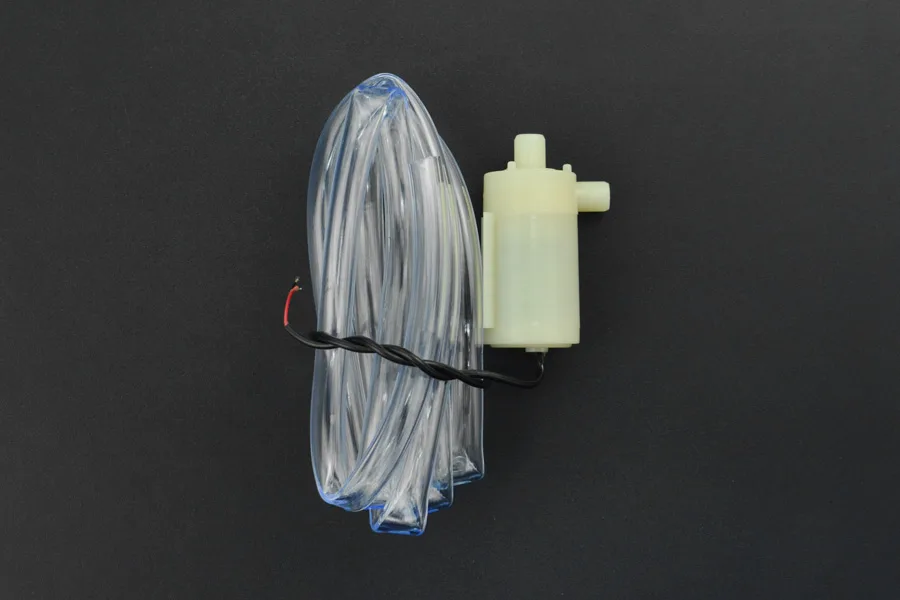

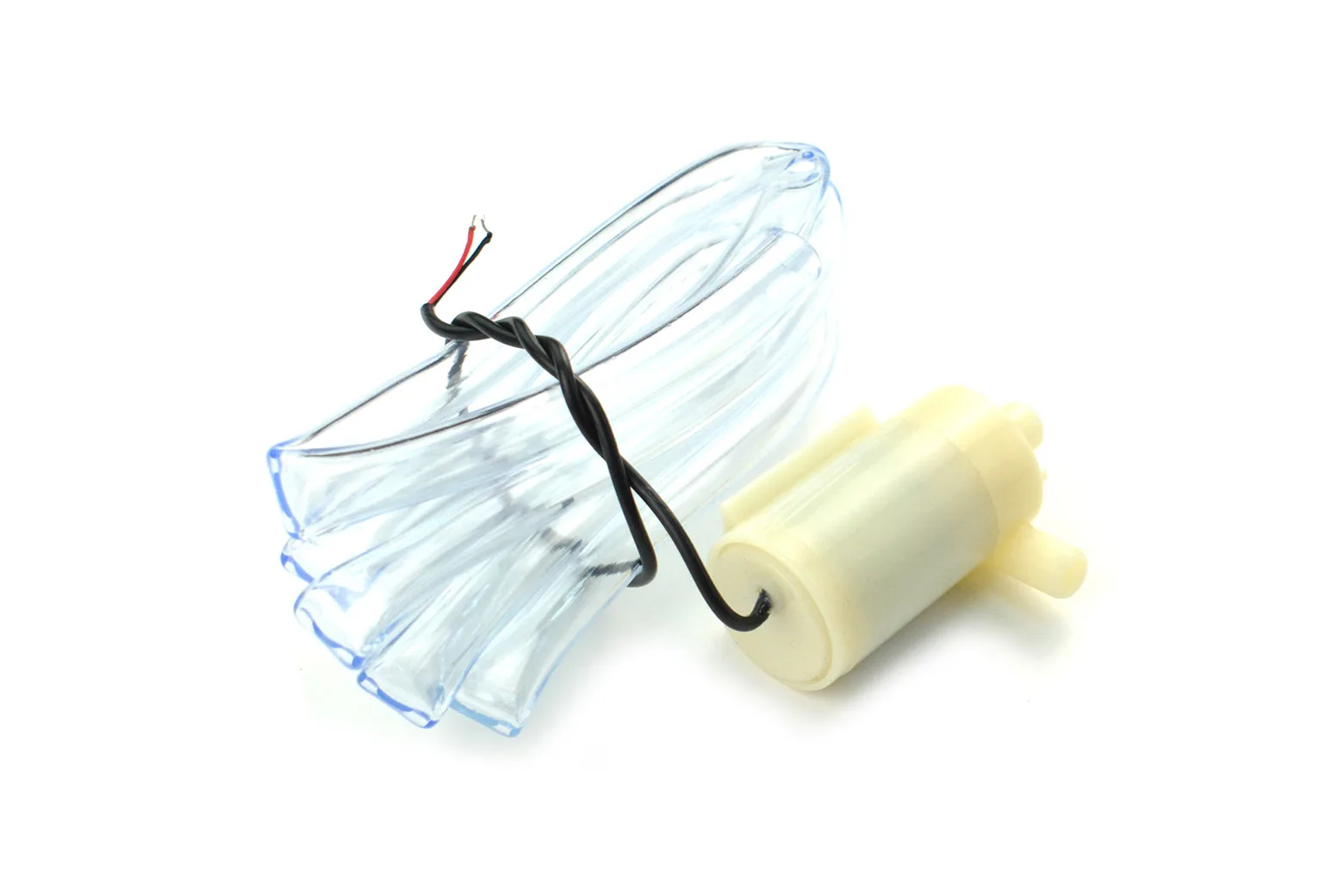

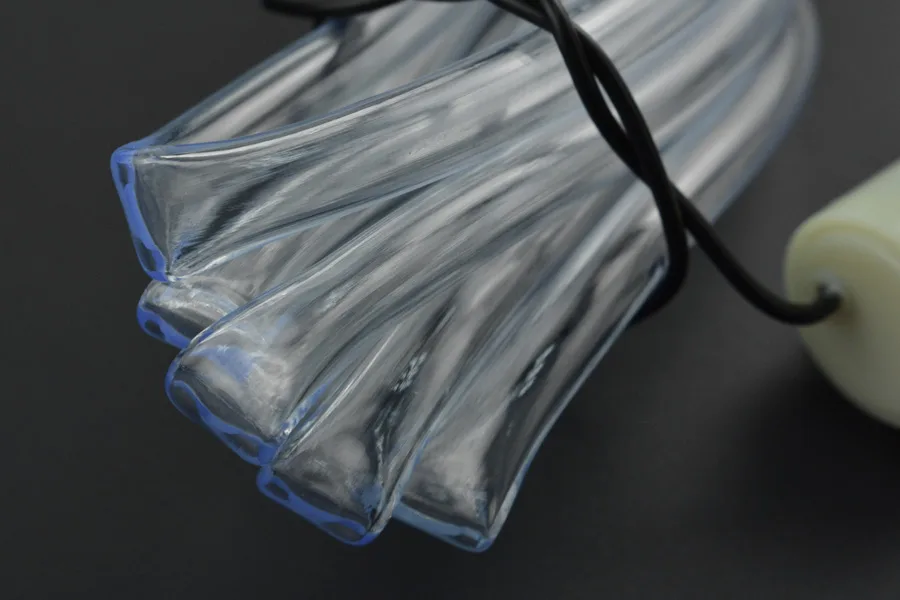

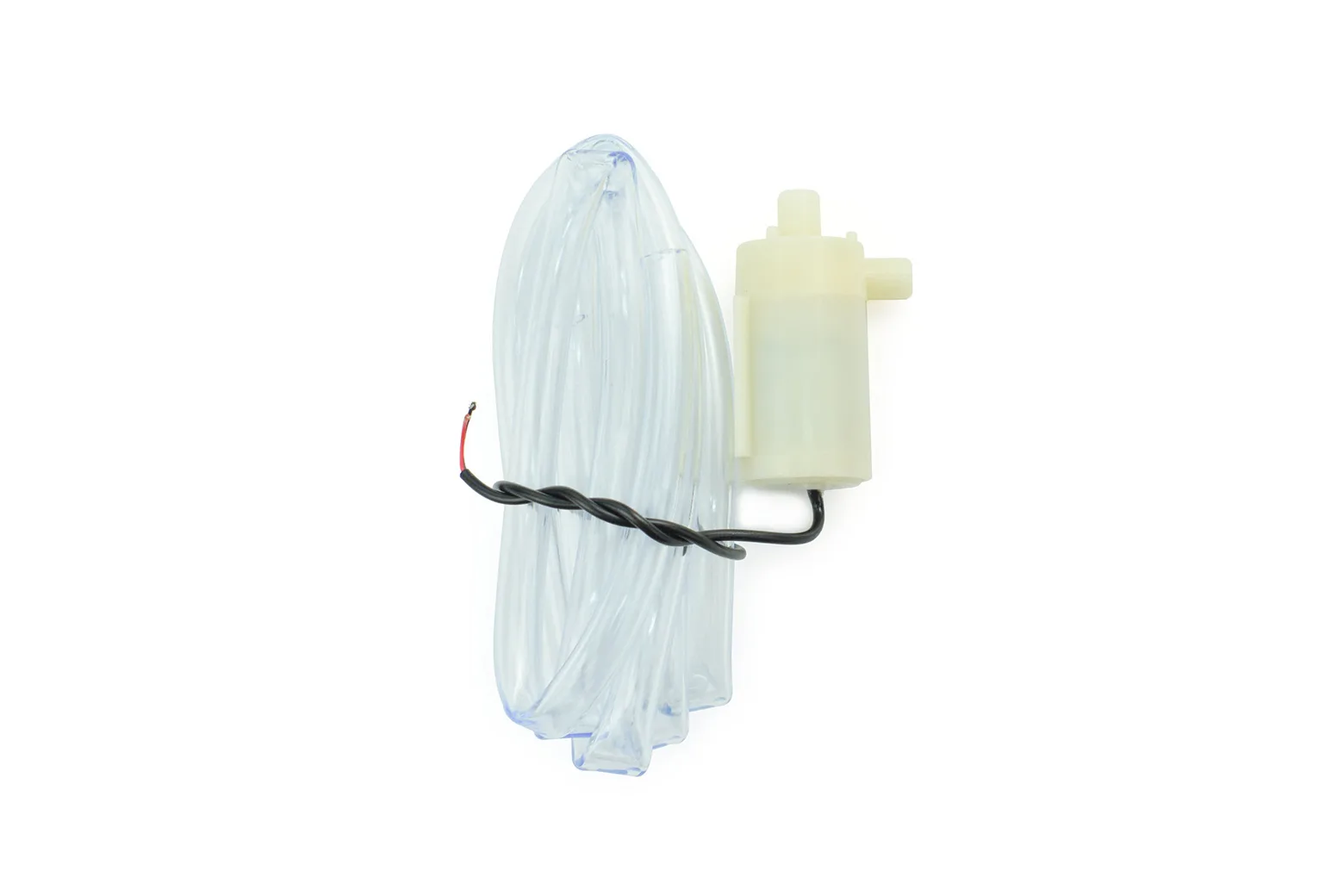

Both the water inlet and outlet measure 5 mm (0.20 inches) in diameter. Each package includes one pump unit and a 1-metre length of compatible piping.
